EN ISO 15614-1:2004

Specification and qualification of welding procedures for metallic materials - Welding procedure test - Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys (ISO 15614-1:2004)

ISO 15614-1:2004 specifies how a preliminary welding procedure specification is qualified by welding procedure tests.
It defines the conditions for the execution of welding procedure tests and the range of qualification for welding procedures for all practical welding operations within a range of variables. Additional tests may be required by application standards.
ISO 15614-1:2004 applies to the arc and gas welding of steels in all product forms and the arc welding of nickel and nickel alloys in all product forms.
Arc and gas welding are covered by the following processes:
manual metal arc welding (metal-arc welding with covered electrode);
self-shielded tubular-cored arc welding;
submerged arc welding;
metal inert gas welding, MIG welding;
metal active gas welding, MAG welding;
tubular-cored metal arc welding with active gas shield;
tubular-cored metal arc welding with inert gas shield;
tungsten inert gas arc welding; TIG welding;
plasma arc welding;
oxy-acetylene welding.
The principles of ISO 15614-1:2004 may be applied to other fusion welding processes.

Anforderung und Qualifizierung von Schweißverfahren für metallische Werkstoffe - Schweißverfahrensprüfung - Teil 1: Lichtbogen- und Gasschweißen von Stählen und Lichtbogenschweißen von Nickel und Nickellegierungen (ISO 15614-1:2004)

Diese Norm legt fest, wie eine Schweißanweisung durch Schweißverfahrensprüfungen anerkannt wird.

Descriptif et qualification d'un mode opératoire de soudage pour les matériaux métalliques - Epreuve de qualification d'un mode opératoire de soudage - Partie 1: Soudage à l'arc et aux gaz des aciers et soudage à l'arc des nickels et alliages de nickel (ISO 15614-1:2004)

L'ISO 15614-1:2004 spécifie comment un descriptif de mode opératoire de soudage préliminaire est qualifié par une épreuve.
L'ISO 15614-1:2004 définit les conditions d'exécution des épreuves de qualification de mode opératoire de soudage et le domaine de validité du mode opératoire de soudage, pour toutes les opérations pratiques de soudage.
L'ISO 15614-1:2004 s'applique au soudage à l'arc et aux gaz des aciers sous toutes les formes et au soudage à l'arc du nickel et des alliages de nickel sous toutes les formes.
Les soudages à l'arc et aux gaz sont couverts par les procédés suivants:
soudage manuel à l'arc avec électrode enrobée;
soudage à l'arc avec fil fourré autoprotecteur;
soudage à l'arc sous flux (en poudre);
soudage MIG (soudage à l'arc sous protection de gaz inerte avec fil-électrode fusible);
soudage MAG (soudage à l'arc sous protection de gaz actif avec fil-électrode fusible);
soudage MAG avec fil fourré (soudage à l'arc sous protection de gaz actif avec fil-électrode fourré);
soudage MIG avec fil fourré (soudage à l'arc sous protection de gaz inerte avec fil-électrode fourré);
soudage TIG (soudage à l'arc sous protection de gaz inerte avec électrode de tungstène);
soudage plasma;
soudage oxyacétylénique.
Les principes de l'ISO 15614-1:2004 peuvent s'appliquer à d'autres procédés de soudage par fusion.

Specifikacija in razvrščanje varilnih postopkov za kovinske materiale - Preskus postopka varjenja - 1. del: Obločno in plinsko varjenje jekel in obločno varjenje niklja in nikljevih zlitin (ISO 15614-1:2004)

Ta evropski standard je del skupine standardov. Podrobnosti te skupine so navedene v dodatku A standarda EN ISO 15607:2003. Ta standard določa, kako se predhodna specifikacija varilnega postopka razvrsti s preskusi varilnih postopkov. Ta standard določa pogoje za izvajanje preskusov varilnih postopkov in razpon razvrščanja za varilne postopke za vse praktične varilne operacije v okviru spremenljivk iz točke 8. Preskusi se izvajajo v skladu s tem standardom. Standardi uporabe lahko določajo dodatne preskuse. Ta standard se uporablja za obločno in plinsko varjenje jekel v vseh proizvodnih oblikah ter obločno varjenje niklja in nikljevih zlitin v vseh proizvodnih oblikah. Obločno in plinsko varjenje sta zajeta v naslednjih postopkih v skladu s standardom EN ISO 4063: 111; ročno obločno varjenje (obločno varjenje s pokrito elektrodo); 114: varjenje s stržensko žico z lastnim ščitom; 12: obločno varjenje pod praškom; 131: obločno varjenje s kovinsko varilno žico, z inertnim plinom, varjenje MIG; 135: obločno varjenje s kovinsko varilno žico, z aktivnim plinom, varjenje MAG; 136: varjenje s stržensko žico s ščitom iz aktivnega plina; 137: varjenje s stržensko žico s ščitom iz inertnega plina; 141: obločno varjenje z inertnim plinom in volframovo elektrodo, varjenje TIG; 15: plazemsko obločno varjenje; 311: oksiacetilensko varjenje. Načela tega evropskega standarda je mogoče uporabiti za druge postopke fuzijskega varjenja.

General Information

• Status: Withdrawn
• Publication Date: 14-Jun-2004
• Withdrawal Date: 20-Jun-2017
• ICS: 25.160.10 - Welding processes
• Technical Committee: CEN/TC 121 - Welding
• Drafting Committee: CEN/TC 121/SC 4 - Quality management in the field of welding
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Completion Date: 21-Jun-2017
• Directive: 2009/105/EC - DIRECTIVE 2009/105/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 16 September 2009 relating to simple pressure vessels
• Directive: 2009/105//EC - DIRECTIVE 2009/105/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 16 September 2009 relating to simple pressure vessels
• Directive: 2014/29/EU - Directive 2014/29/EU of The European Parliament and of the Council of 26 February 2016 on the harmonisation of the laws of the Member States relating to the making available on the market of simple pressure vessels
• Directive: 2014/68/EU - Directive 2014/68/EU of the European Parliament and of the Council of 15 May 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of pressure equipment
• Directive: 87/404/EEC - Simple pressure vessels
• Directive: 97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
• Mandate: M/071 - Mandate to CEN for standardization in the field of Pressure equipment
• Mandate: M/BC/CEN/89/2 - Standardization mandate to CEN concerning supporting standards in the context of pressure vessels
• Ref Project: SIST EN ISO 15614-1:2004 - Specification and qualification of welding procedures for metallic materials - Welding procedure test - Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys (ISO 15614-1:2004)

Relations

• Replaces: EN 288-3:1992 - Specification and approval of welding procedures for metallic materials - Part 3: Welding procedure tests for the arc welding of steels
• Effective Date: 22-Dec-2008
• Replaces: EN 288-3:1992/A1:1997 - Specification and approval of welding procedures for metallic materials - Part 3: Welding procedure tests for the arc welding of steels
• Effective Date: 22-Dec-2008
• Replaced By: EN ISO 15614-1:2017 - Specification and qualification of welding procedures for metallic materials - Welding procedure test - Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys (ISO 15614-1:2017, Corrected version 2017-10-01)
• Effective Date: 28-Jun-2017
• Amended By: EN ISO 15614-1:2004/A1:2008 - Specification and qualification of welding procedures for metallic materials - Welding procedure test - Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys - Amendment 1 (ISO 15614-1:2004/Amd 1:2008)
• Effective Date: 08-Jun-2022
• Amended By: EN ISO 15614-1:2004/A2:2012 - Specification and qualification of welding procedures for metallic materials - Welding procedure test - Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys - Amendment 2 (ISO 15614-1:2004/Amd 2:2012)
• Effective Date: 08-Jun-2022

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Anforderung und Qualifizierung von Schweißverfahren für metallische Werkstoffe - Schweißverfahrensprüfung - Teil 1: Lichtbogen- und Gasschweißen von Stählen und Lichtbogenschweißen von Nickel und Nickellegierungen (ISO 15614-1:2004)Descriptif et qualification d'un mode opératoire de soudage pour les matériaux métalliques - Epreuve de qualification d'un mode opératoire de soudage - Partie 1: Soudage a l'arc et aux gaz des aciers et soudage a l'arc des nickels et alliages de nickel (ISO 15614-1:2004)Specification and qualification of welding procedures for metallic materials - Welding procedure test - Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys (ISO 15614-1:2004)77.120.40Nikelj, krom in njune zlitineNickel, chromium and their alloys77.080.20JeklaSteels25.160.10Varilni postopki in varjenjeWelding processesICS:Ta slovenski standard je istoveten z:EN ISO 15614-1:2004SIST EN ISO 15614-1:2004en01-september-2004SIST EN ISO 15614-1:2004SLOVENSKI
STANDARDSIST EN 288-3:1996/A1:1999SIST EN 288-3:19961DGRPHãþD



SIST EN ISO 15614-1:2004



EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN ISO 15614-1June 2004ICS 25.160.10English versionSpecification and qualification of welding procedures for metallicmaterials - Welding procedure test - Part 1: Arc and gas weldingof steels and arc welding of nickel and nickel alloys (ISO 15614-1:2004)Descriptif et qualification d'un mode opératoire de soudagepour les matériaux métalliques - Epreuve de qualificationd'un mode opératoire de soudage - Partie 1: Soudage àl'arc et aux gaz des aciers et soudage à l'arc des nickels etalliages de nickel (ISO 15614-1:2004)Anforderung und Qualifizierung von Schweißverfahren fürmetallische Werkstoffe - Schweißverfahrensprüfung - Teil1: Lichtbogen- und Gasschweißen von Stählen undLichtbogenschweißen von Nickel und Nickellegierungen(ISO 15614-1:2004)This European Standard was approved by CEN on 7 May 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN ISO 15614-1:2004: ESIST EN ISO 15614-1:2004

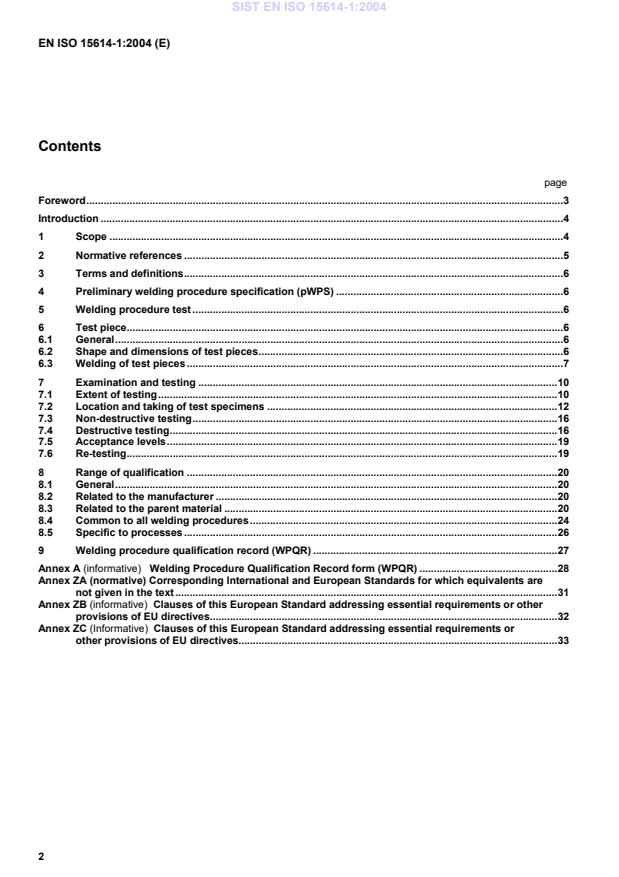

EN ISO 15614-1:2004 (E)2ContentspageForeword.3Introduction.41Scope.42Normative references.53Terms and definitions.64Preliminary welding procedure specification (pWPS).65Welding procedure test.66Test piece.66.1General.66.2Shape and dimensions of test pieces.66.3Welding of test pieces.
...
