EN ISO 11111-2:2005

Textile machinery - Safety requirements - Part 2: Spinning preparatory and spinning machines (ISO 11111-2:2005)

ISO 11111-2:2005, taken together with ISO 11111-1, specifies significant hazards and corresponding safety requirements and/or measures for spinning preparatory and spinning machinery. It is applicable to all machinery, plant and related equipment intended to be used for the opening, cleaning, blending, wool scouring, baling, carding, tow cutting and stretch breaking, spinning preparation subsequent to carding and spinning.

Textilmaschinen - Sicherheitsanforderungen - Teil 2: Spinnereivorbereitungs- und Spinnmaschinen (ISO 11111-2:2005)

Dieser Teil von ISO/DIS 11111 zusammen mit ISO/DIS 11111-1 benennt maßgebliche Gefährdungen durch Spinnereivorbereitungs- und Spinnmaschinen und legt die entsprechenden Sicherheitsanforderungen und/oder Maßnahmen fest.
Dieser Teil von ISO/DIS 11111 ist auf alle Maschinen, Anlagen und zugehörige Einrichtungen anwendbar, die für das Öffnen, Reinigen Mischen, die Wollwäsche, das Ballenpressen, Kardieren und Krempeln, Spinnkabelschneiden und Spinnkabelreißen, die Spinnereivorbereitung nach dem Kardieren und Krempeln und für das Spinnen vorgesehen sind.
Dieser Teil von ISO/DIS 11111 ist nicht anwendbar auf Maschinen, Anlagen und zugehörige Einrichtungen, die in 1.4 von ISO/DIS 11111-1:2002 aufgeführt sind.

Matériel pour l'industrie textile - Exigences de sécurité - Partie 2: Machines de préparation de filature et machines de filature (ISO 11111-2:2005)

L'ISO 11111-2:2005, ensemble avec l'ISO 11111-1, spécifie les phénomènes dangereux significatifs et les exigences et/ou les mesures de sécurité correspondantes pour les machines de préparation de filature et machines de filature. Elle est applicable à toutes les machines, installations ainsi qu'aux matériels associés destinés à être utilisés pour l'ouverture, le nettoyage, le mélange, le nettoyage de la lame, le pressage pour mise en balles, le cardage, la coupe et le craquage par étirage, la préparation de filature après cardage et la filature.

Tekstilni stroji – Varnostne zahteve - 2. del: Stroji za pripravo predenja in predilni stroji (ISO 11111-2:2005)

Ta del ISO 11111 je namenjen za uporabo skupaj z ISO 11111-1. Določa velike nevarnosti in ustrezne varnostne zahteve in/ali ukrepe za stroje za pripravo predenja in predilne stroje. Z upoštevanjem delovnega področja ISO 11111-1 glede na ustreznost, velja ta del ISO 11111 za vse stroje, obrate in s tem povezano opremo, namenjeno za odpiranje, čiščenje, spajanje, čiščenje surove volne, baliranje, mikanje, rezanje prediva in predenje z raztezanjem in prekinjanjem, pripravo po mikanju in predenju, kot je določeno v Klavzuli 5.

General Information

• Status: Published
• Publication Date: 14-Feb-2005
• ICS: 59.120.10 - Spinning, twisting and texturing machines
• Technical Committee: CEN/TC 214 - Textile machinery and allied machinery
• Drafting Committee: CEN/TC 214/WG 1 - Safety requirements for textile machinery
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 18-Jan-2010
• Completion Date: 18-Jan-2010
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 98/37/EC - Machinery
• Mandate: M/BC/CEN/88/13 - Standardization request to CEN/CENELEC relating to machinery
• Ref Project: SIST EN ISO 11111-2:2005 - Textile machinery - Safety requirements - Part 2: Spinning preparatory and spinning machines (ISO 11111-2:2005)

Relations

• Replaces: EN ISO 11111:1995 - Safety requirements for textile machinery (ISO 11111:1995)
• Effective Date: 22-Dec-2008
• Amended By: EN ISO 11111-2:2005/A2:2016 - Textile machinery - Safety requirements - Part 2: Spinning preparatory and spinning machines - Amendment 2 (ISO 11111-2:2005/Amd 2:2016)
• Effective Date: 18-Dec-2013
• Amended By: EN ISO 11111-2:2005/A1:2009 - Textile machinery - Safety requirements - Part 2: Spinning preparatory and spinning machines - Amendment 1 (ISO 11111-2:2005/Amd 1:2009)
• Effective Date: 22-Dec-2008

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2005
Tekstilni stroji – Varnostne zahteve - 2. del: Stroji za pripravo predenja in predilni
stroji (ISO 11111-2:2005)
Textile machinery - Safety requirements - Part 2: Spinning preparatory and spinning
machines (ISO 11111-2:2005)
Textilmaschinen - Sicherheitsanforderungen - Teil 2: Spinnereivorbereitungs- und
Spinnmaschinen (ISO 11111-2:2005)
Matériel pour l'industrie textile - Exigences de sécurité - Partie 2: Machines de
préparation de filature et machines de filature (ISO 11111-2:2005)
Ta slovenski standard je istoveten z: EN ISO 11111-2:2005
ICS:
59.120.10 Predilni, sukalni in teksturirni Spinning, twisting and
stroji texturing machines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 11111-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2005
ICS 59.120.10 Supersedes EN ISO 11111:1995
English version
Textile machinery - Safety requirements - Part 2: Spinning
preparatory and spinning machines (ISO 11111-2:2005)
Matériel pour l'industrie textile - Exigences de sécurité - Textilmaschinen - Sicherheitsanforderungen - Teil 2:
Partie 2: Machines de préparation de filature et machines Spinnereivorbereitungs- und Spinnmaschinen (ISO 11111-
de filature (ISO 11111-2:2005) 2:2005)
This European Standard was approved by CEN on 21 January 2005.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 11111-2:2005: E
worldwide for CEN national Members.

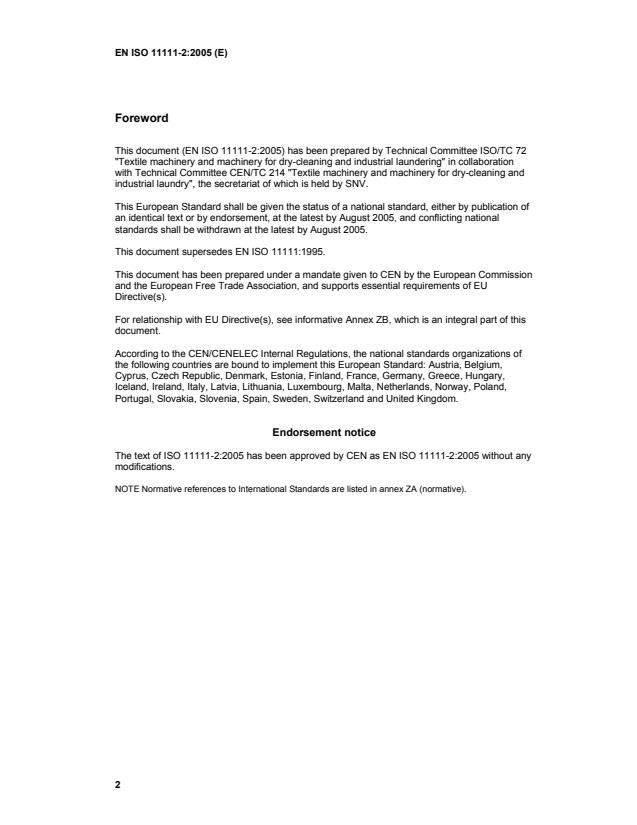

Foreword
This document (EN ISO 11111-2:2005) has been prepared by Technical Committee ISO/TC 72
"Textile machinery and machinery for dry-cleaning and industrial laundering" in collaboration
with Technical Committee CEN/TC 214 "Textile machinery and machinery for dry-cleaning and
industrial laundry", the secretariat of which is held by SNV.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by August 2005, and conflicting national
standards shall be withdrawn at the latest by August 2005.

This document supersedes EN ISO 11111:1995.

This document has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of EU
Directive(s).
For relationship with EU Directive(s), see informative Annex ZB, which is an integral part of this
document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 11111-2:2005 has been approved by CEN as EN ISO 11111-2:2005 without any
modifications.
NOTE Normative references to International Standards are listed in annex ZA (normative).
ANNEX ZA
(normative)
List of ISO standards and corresponding EN Standards

ISO or IEC Standard Corresponding to
ISO 9902-1 EN ISO 9902-1
ISO 9902-2 EN ISO 9902-2
ISO 11111-1:2005 EN ISO 11111-1:2005
ISO 12100-1:2003 EN ISO 12100-1:2003
ISO 12100-2:2003 EN ISO 12100-2:2003
ISO 13849-1:1999 EN 954-1:1996
ISO 13852:1996 EN 294:1992
ISO 13853:1998 EN 811:1996
ISO 13854:1996 EN 349:1993
ISO 14119:1998 EN 1088:1995
EN 795
ISO 13856-1:2001 EN 1760-1:1997
— EN 1760-2
— EN 1760-3:2004
ANNEX ZB
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37/EC

This European Standard has been prepared under a mandate given to CEN by the European

Commission and the European Free Trade Association to provide a means to conforming to
Essential Requirements of the New Approach Directive Machinery Directive 98/37/EC amended
by Directive 98/79/EC.
Once this standard is cited in the Official Journal of the European Communities under that
Directive and has been implemented as a national standard in at least one Member State,
compliance with the normative clauses of this standard confers, within the limits of the scope of
this standard, a presumption of conformity with the corresponding Essential Requirements of
that Directive and associated EFTA regulations.

WARNING: Other requirements and other EU Directives may be applicable to the product(s)
falling within the scope of this standard.

INTERNATIONAL ISO
STANDARD 11111-2
First edition
2005-02-15
Textile machinery — Safety
requirements —
Part 2:
Spinning preparatory and spinning
machines
Matériel pour l'industrie textile — Exigences de sécurité —
Partie 2: Machines de préparation de filature et machines de filature

Reference number
ISO 11111-2:2005(E)
©
ISO 2005
ISO 11111-2:2005(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

ISO 11111-2:2005(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Normative references . 1
3 Terms and definitions. 2
4 List of significant hazards. 2
5 Significant hazards and corresponding safety requirements and/or measures. 2
5.1 General. 2
5.2 Opening, cleaning, blending machines . 2
5.2.1 General. 2
5.2.2 Automated blending bale openers . 4
5.2.3 Teasers, willows. 5
5.2.4 Bale breakers and hopper feeders . 6
5.2.5 Moving bin emptiers . 6
5.2.6 Bunker emptiers. 8
5.3 Wool scouring (wool washing) machines . 8
5.4 Baling machines. 9
5.5 Carding machines . 11
5.5.1 General. 11
5.5.2 Flat cards . 13
5.5.3 Roller and clearer cards . 13
5.5.4 Tape condensers. 14
5.6 Converters and stretch-breaking converters. 15
5.7 Spinning preparation machines subsequent to carding . 16
5.7.1 General. 16
5.7.2 Draw frames for short fibres. 18
5.7.3 Gill boxes, including “intersecting” and “chain-gill” types . 18
5.7.4 Backwashers . 19
5.7.5 Sliver and ribbon lap machines, lap formers . 19
5.7.6 Cotton combers. 20
5.7.7 Rectilinear combs (for worsted yarn and flax yarn and similar). 20
5.7.8 Speedframes. 21
5.7.9 High draft finishers . 22
5.7.10 Automatic sliver can-doffing units. 22
5.8 Spinning machines . 23
5.8.1 General. 23
5.8.2 Ring spinning machines. 23
5.8.3 Open-end spinning machines. 24
5.8.4 Gill spinning machines. 25
6 Verification of the safety requirements and/or measures . 25
7 Information concerning machine use . 25
Bibliography . 26

ISO 11111-2:2005(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
establis
...
