EN IEC 60947-7-4:2019
(Main)Low-voltage switchgear and controlgear - Part 7-4: Ancillary equipment - PCB terminal blocks for copper conductors
Low-voltage switchgear and controlgear - Part 7-4: Ancillary equipment - PCB terminal blocks for copper conductors
IEC 60947-7-4:2019 is available as IEC 60947-7-4:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 60947-7-4:2019 specifies requirements for PCB terminal blocks primarily intended for industrial or similar use. Mounting and fixing on the printed circuit board is made by soldering, press-in or equivalent methods to provide electrical and mechanical connection between copper conductors and the printed circuit board. This document applies to PCB terminal blocks intended to connect copper conductors, with or without special preparation, having a cross-section between 0,08 mm2 and 300 mm2 (AWG 28-600 kcmil), intended to be used in circuits of a rated voltage not exceeding 1 000 V AC up to 1 000 Hz or 1 500 V DC. This second edition cancels and replaces the first edition published in 2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) additional test for PCB terminal blocks with clamping units, where contact pressure is transmitted through insulating materials; b) tightening torques for screws now given in Table 4 of this document (previously given in Table 4 of IEC 60947-1:2007); tightening torques added for an additional type of screw; c) new criteria for verification of contact resistance introduced; d) clarification in the description of the temperature-rise test (current-temperature derating); corrections in the test sequence according to Figure 4.
Niederspannungsschaltgeräte - Teil 7-4: Hilfseinrichtungen - Leiterplatten-Anschlussklemmen für Kupferleiter
Appareillage à basse tension - Partie 7-4: Matériels accessoires - Blocs de jonction pour cartes de circuits imprimés pour conducteurs en cuivre
IEC 60947-7-4:2019 est disponible sous forme de IEC 60947-7-4:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.L'IEC 60947-7-4:2018 spécifie les exigences concernant les blocs de jonction pour cartes de circuits imprimés destinés principalement à un usage industriel ou similaire. Le montage et la fixation sur la carte de circuits imprimés s'effectuent par brasage, insertion à force ou par des méthodes équivalentes afin d'assurer une connexion électrique et mécanique entre les conducteurs en cuivre et la carte de circuits imprimés. Le présent document s'applique aux blocs de jonction pour cartes de circuits imprimés destinés à connecter les conducteurs en cuivre, avec ou sans préparation spéciale, dont la section est comprise entre 0,08 mm2 et 300 mm2 (AWG 28-600 kcmil), destinés à être utilisés dans les circuits dont la tension assignée ne dépasse pas 1 000 V en courant alternatif jusqu'à 1 000 Hz ou 1 500 V en courant continu au maximum. Cette deuxième édition annule et remplace la première édition parue en 2013. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) essai complémentaire pour les blocs de jonction pour cartes de circuits imprimés à organes de serrage pour lesquels la pression de contact est transmise par des matériaux isolants; b) les couples de serrage des vis sont désormais présentés dans le Tableau 4 du présent document (ils étaient précédemment donnés dans le Tableau 4 de l'IEC 60947-1:2007); les couples de serrage sont donnés pour un type supplémentaire de vis; c) ajout de nouveaux critères pour la vérification de la résistance de contact; d) clarification de la description de l'essai d'échauffement (taux de réduction de l'intensité en fonction de la température); corrections de la séquence d'essais conformément à la Figure 4.
Nizkonapetostne stikalne in krmilne naprave - 7-4. del: Pomožna oprema - Priključni bloki na tiskanih vezjih za bakrene vodnike (IEC 60947-7-4:2019)
Ta del standarda IEC 60947-7 določa zahteve za priključne bloke na tiskanih vezjih, ki so prvotno namenjeni za industrijsko ali podobno uporabo.
Nameščanje in pritrjevanje na tiskana vezja se izvaja s spajkanjem, tiskanjem ali ekvivalentnimi metodami, da se zagotovi električni in mehanski stik med bakrenimi vodniki in tiskanim vezjem.
Ta dokument se uporablja za priključne bloke na tiskanih vezjih za povezovanje bakrenih vodnikov, s posebno pripravo ali brez nje, s prerezom med 0,08 mm2 in 300 mm2 (AWG 28–600 kcmil), namenjene za uporabo v tokokrogih, katerih nazivna napetost ne presega 1000 V izmenične napetosti s frekvenco do 1000 Hz ali 1500 V enosmerne napetosti.
OPOMBA 1: Priključni bloki z velikim prerezom so namenjeni za specifično zasnovo tiskanih vezij z visokim tokom. Vključen je razpon do 300 mm2, ki obsega katero koli posebno vrsto uporabe. Primeri tiskanih vezij z visokim tokom in priključnih blokov na tiskanih vezjih so prikazani v dodatku C.
OPOMBA 2: AWG je okrajšava za »American Wire Gage« (Gage (ZDA) = Gauge (Združeno kraljestvo)).
1 kcmil = 1000 cmil;
1 cmil = 1 krožni promil = površina kroga s premerom 1 promil;
1 mil = 1/1000 palca.
Ta dokument je mogoče uporabljati kot vodilo za posebne vrste priključnih blokov na tiskanih vezjih s komponentami, kot so odklopne enote, vgrajeni taljivi vložki varovalk in podobni, ali z drugimi dimenzijami vodnikov.
V tem dokumentu se namesto izraza »terminal« uporablja izraz »pritrdilna enota«. To se upošteva pri sklicevanju na standard IEC 60947-1.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Niederspannungsschaltgeräte - Teil 7-4: Hilfseinrichtungen - Leiterplatten-Anschlussklemmen für Kupferleiter (IEC 60947-7-4:2019)Appareillage à basse tension - Partie 7-4: Matériels accessoires - Blocs de jonction pour cartes de circuits imprimés pour conducteurs en cuivre (IEC 60947-7-4:2019)Low-voltage switchgear and controlgear - Part 7-4: Ancillary equipment - PCB terminal blocks for copper conductors (IEC 60947-7-4:2019)31.180SORãþHPrinted circuits and boards29.130.20Nizkonapetostne stikalne in krmilne napraveLow voltage switchgear and controlgearICS:Ta slovenski standard je istoveten z:EN IEC 60947-7-4:2019SIST EN IEC 60947-7-4:2019en01-maj-2019SIST EN IEC 60947-7-4:2019SLOVENSKI
STANDARDSIST EN 60947-7-4:20141DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN IEC 60947-7-4
March 2019 ICS 29.130.20
Supersedes
EN 60947-7-4:2013
English Version
Low-voltage switchgear and controlgear - Part 7-4: Ancillary equipment - PCB terminal blocks for copper conductors (IEC 60947-7-4:2019)
Appareillage à basse tension - Partie 7-4: Matériels accessoires - Blocs de jonction pour cartes de circuits imprimés pour conducteurs en cuivre (IEC 60947-7-4:2019)
Niederspannungsschaltgeräte - Teil 7-4: Hilfseinrichtungen - Leiterplatten-Anschlussklemmen für Kupferleiter (IEC 60947-7-4:2019) This European Standard was approved by CENELEC on 2019-02-22. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Rue de la Science 23,
B-1040 Brussels © 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60947-7-4:2019 E SIST EN IEC 60947-7-4:2019
This document supersedes EN 60947-7-4:2013. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

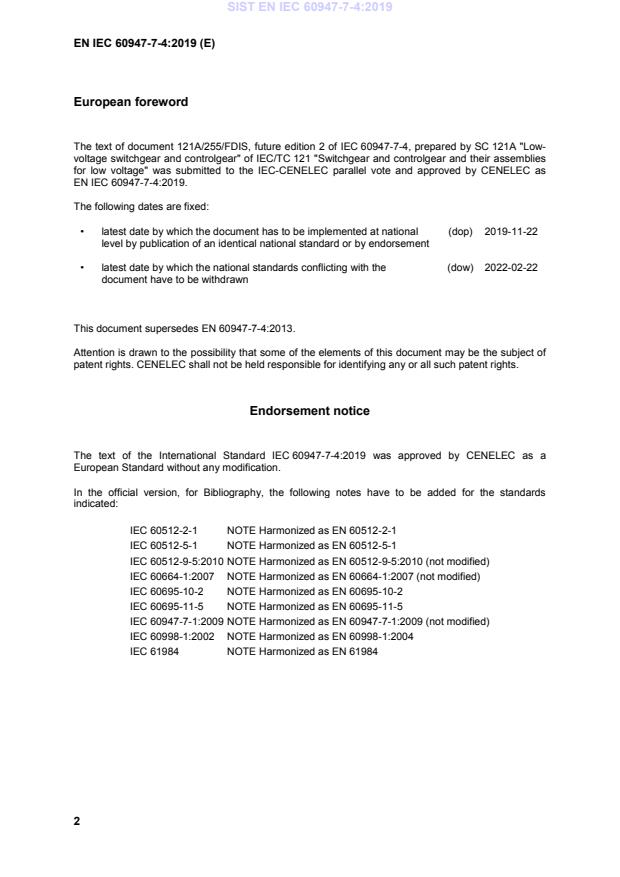

Endorsement notice The text of the International Standard IEC 60947-7-4:2019 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following notes have to be added for the standards indicated: IEC 60512-2-1 NOTE Harmonized as EN 60512-2-1 IEC 60512-5-1 NOTE Harmonized as EN 60512-5-1 IEC 60512-9-5:2010 NOTE Harmonized as EN 60512-9-5:2010 (not modified) IEC 60664-1:2007 NOTE Harmonized as EN 60664-1:2007 (not modified) IEC 60695-10-2 NOTE Harmonized as EN 60695-10-2 IEC 60695-11-5 NOTE Harmonized as EN 60695-11-5 IEC 60947-7-1:2009 NOTE Harmonized as EN 60947-7-1:2009 (not modified) IEC 60998-1:2002 NOTE Harmonized as EN 60998-1:2004
