Lamp controlgear - Part 1: General and safety requirements

NEW! IEC 61347-1:2015 is available as IEC Standards+ 61347-1:2015 which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition. IEC 61347-1:2015 specifies general and safety requirements for lamp controlgear for use on d.c. supplies up to 250 V and/or a.c. supplies up to 1 000 V at 50 Hz or 60 Hz. This third edition cancels and replaces the second edition published in 2007, Amendment 1:2010 and Amendment 2:2012. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) additional marking requirements; b) additional requirements for creepage distances and clearances: - for working voltages with operating frequencies up to 30 kHz; - for working voltages with higher operating frequencies than 30 kHz; - for impulse and resonance voltages ignition; - for basic, supplementary and reinforced insulation; - for insulation between circuits; - for coated or potted controlgear; c) modification of definition of ELV and FELV; d) modification of schematic drawing, showing the different controlgear classification and insulation requirements; e) scope extension; f) new Annex A: test to establish whether a conductive part is a live part which may cause an electric shock; g) new Annex M: creepage distances and clearances for controlgear where a higher degree of availability (impulse withstand category III) may be requested; h) new Annex Q: example for Up calculation; i) new Annex P: creepage distances and clearances and distance through isolation (DTI) for lamp controlgear which are protected against pollution by the use of coating or potting; j) new Annex R: concept of creepage distances and clearances.

Geräte für Lampen - Teil 1: Allgemeine und Sicherheitsanforderungen

Appareillages de lampes - Partie 1: Exigences générales et exigences de sécurité

NEW! IEC 61347-1:2015 est disponible sous forme de IEC Standards+ 61347-1:2015 qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente. L'IEC 61347-1:2015 spécifie les exigences générales et les exigences de sécurité pour les appareillages de lampes destinés à être utilisés sur des alimentations à courant continu jusqu'à 250 V et/ou sur des alimentations à courant alternatif jusqu'à 1 000 V à 50 Hz ou 60 Hz. Cette troisième édition annule et remplace la deuxième édition parue en 2007, l'Amendement 1:2010 et l'Amendement 2:2012. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) les exigences de marquage supplémentaires; b) des exigences supplémentaires pour les lignes de fuite et écartements: - pour des tensions de service avec des fréquences de fonctionnement jusqu'à 30 kHz; - pour des tensions de service avec des fréquences de fonctionnement supérieures à 30 kHz; - pour impulsion et la résonance des tensions d'allumage; - pour l'isolation de base, supplémentaire et renforcée; - pour l'isolation entre les circuits; - pour l'appareillage enduit ou en pot; c) modification de la définition d'ELV et de FELV; d) la modification du schéma, montrant les différentes exigences en matière de classification et d'isolation appareillage; e) extension de l'objet; f) la nouvelle Annexe A: essai pour déterminer si une partie conductrice est une partie active qui peut provoquer un choc électrique; g) la nouvelle Annexe M: les lignes de fuite et écartements pour l'appareillage où un plus haut degré de disponibilité (tenue aux chocs de catégorie III) peut être demandée; h) la nouvelle Annexe Q: exemple de calcul Up; i) la nouvelle Annexe P: les distances des lignes de fuite l'écartement et la distance à travers l'isolation (DTI) pour les appareillages de lampes qui sont protégés contre la pollution par l'utilisation d'un revêtement ou d'enrobage; j) la nouvelle Annexe R: concept de lignes de fuite et écartements.

Stikalne naprave za sijalke - 1. del: Splošne in varnostne zahteve

Ta del standarda IEC 61347 določa splošne in varnostne zahteve za stikalne naprave za sijalke za uporabo pri enosmernem napajanju do 250 V in/ali izmeničnem napajanju do 1000 V pri 50 Hz ali 60 Hz. Ta standard obravnava tudi stikalne naprave za sijalke, ki še niso standardizirane. Preskusi, obravnavani v tem standardu, so tipski preskusi. Zahteve za preskušanje posameznih stikalnih naprav za sijalke med proizvodnjo niso vključene. Zahteve za polsvetilke so podane v standardu IEC 60598-1:2014 (glej definicijo 1.2.60). Posebne zahteve za stikalne naprave, ki zagotavljajo varnostno nizko napetost (v nadaljevanju: SELV) so navedene v dodatku L. Pričakuje se lahko, da stikalne naprave za sijalke, ki so v skladu s tem standardom, ne bodo ogrožale varnosti med 90 % do 110 % nazivne napajalne napetosti pri neodvisni rabi in kadar delujejo v svetilkah, ki so v skladu z varnostnim standardom IEC 60598-1 in ustreznim delom standarda IEC 60598-2-xx, ter v sijalkah, ki so v skladu z ustreznimi standardi za sijalke. Za zahteve glede zmogljivosti so potrebne strožje omejitve.

General Information

Status
Published
Publication Date
14-May-2015
Withdrawal Date
25-Mar-2018
Current Stage
6060 - Document made available - Publishing
Start Date
15-May-2015
Completion Date
15-May-2015

Relations

Buy Standard

Standard
EN 61347-1:2015 - BARVE
English language
124 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 61347-1:2015
01-september-2015
1DGRPHãþD
SIST EN 61347-1:2008
Stikalne naprave za sijalke - 1. del: Splošne in varnostne zahteve
Lamp controlgear - Part 1: General and safety requirements
Geräte für Lampen -- Teil 1: Allgemeine und Sicherheitsanforderungen
Appareillages de lampes -- Partie 1: Exigences générales et exigences de sécurité
Ta slovenski standard je istoveten z: EN 61347-1:2015
ICS:
29.130.01 Stikalne in krmilne naprave Switchgear and controlgear
na splošno in general
29.140.99 Drugi standardi v zvezi z Other standards related to
žarnicami lamps
SIST EN 61347-1:2015 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 61347-1:2015

---------------------- Page: 2 ----------------------

SIST EN 61347-1:2015


EUROPEAN STANDARD EN 61347-1

NORME EUROPÉENNE

EUROPÄISCHE NORM
May 2015
ICS 29.140.99 Supersedes EN 61347-1:2008
English Version
Lamp controlgear - Part 1: General and safety requirements
(IEC 61347-1:2015)
Appareillages de lampes - Partie 1: Exigences générales et Geräte für Lampen - Teil 1: Allgemeine und
exigences de sécurité Sicherheitsanforderungen
(IEC 61347-1:2015) (IEC 61347-1:2015)
This European Standard was approved by CENELEC on 2015-03-26. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.



European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 61347-1:2015 E

---------------------- Page: 3 ----------------------

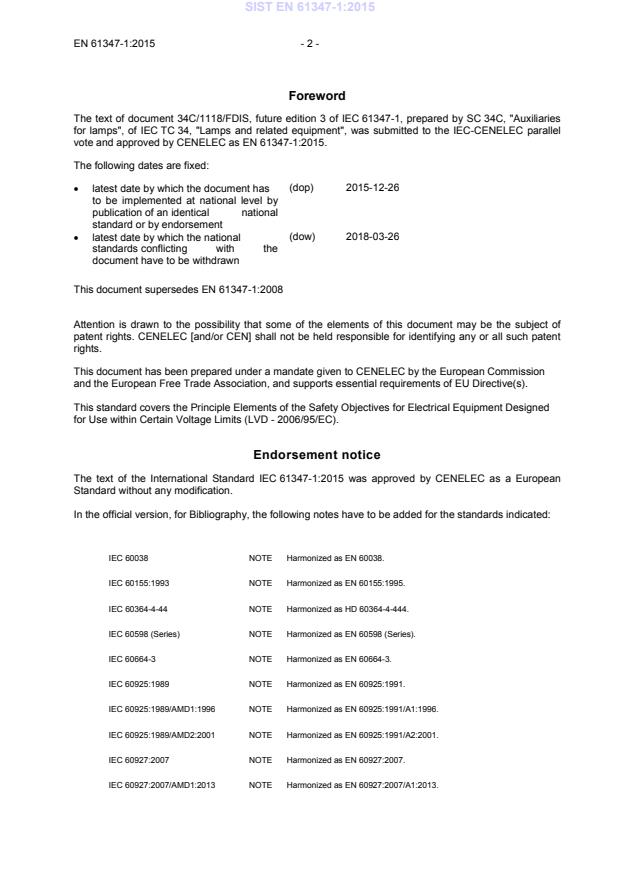

SIST EN 61347-1:2015
EN 61347-1:2015 - 2 -
Foreword
The text of document 34C/1118/FDIS, future edition 3 of IEC 61347-1, prepared by SC 34C, "Auxiliaries
for lamps", of IEC TC 34, "Lamps and related equipment", was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN 61347-1:2015.
The following dates are fixed:
(dop) 2015-12-26
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2018-03-26
standards conflicting with the
document have to be withdrawn

This document supersedes EN 61347-1:2008

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.

This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).

This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed
for Use within Certain Voltage Limits (LVD - 2006/95/EC).

Endorsement notice
The text of the International Standard IEC 61347-1:2015 was approved by CENELEC as a European
Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated:


IEC 60038 NOTE Harmonized as EN 60038.
IEC 60155:1993 NOTE Harmonized as EN 60155:1995.
IEC 60364-4-44 NOTE Harmonized as HD 60364-4-444.
IEC 60598 (Series) NOTE Harmonized as EN 60598 (Series).
IEC 60664-3 NOTE Harmonized as EN 60664-3.
IEC 60925:1989 NOTE Harmonized as EN 60925:1991.
IEC 60925:1989/AMD1:1996 NOTE Harmonized as EN 60925:1991/A1:1996.
IEC 60925:1989/AMD2:2001 NOTE Harmonized as EN 60925:1991/A2:2001.
IEC 60927:2007 NOTE Harmonized as EN 60927:2007.
IEC 60927:2007/AMD1:2013 NOTE Harmonized as EN 60927:2007/A1:2013.

-----------
...
