EN 60068-2-78:2013 (Test Cab: Damp heat, steady state) is a CLC/CENELEC adoption of IEC 60068-2-78:2012 that defines a test method to determine the ability of components and equipment to withstand high humidity at constant temperature without condensation. This second edition supersedes the 2001 version and incorporates the test chamber requirements from IEC 60068-3-6.

The standard applies to small and large equipment, heat-dissipating and non-heat-dissipating specimens, and supports qualification for transportation, storage and use in humid environments.

Key Topics

• Test objective: Evaluate effects of high humidity on materials and assemblies by moisture absorption and vapour diffusion under steady-state conditions.
• Test chamber and measurement: Chambers shall meet IEC 60068-3-6 requirements. Sensors must be located in the working space; condensed water must be drained and not fall on specimens; water conductivity limits and injection points are specified to avoid direct wetting.
• Severity parameters: The standard defines combinations of temperature, relative humidity (RH) and duration as severity criteria. Typical temperature/RH pairs include:
  • 30 ± 2 °C at 93 ± 3 % RH
  • 30 ± 2 °C at 85 ± 3 % RH
  • 40 ± 2 °C at 93 ± 3 % RH
  • 40 ± 2 °C at 85 ± 3 % RH
• Preferred durations: 12 h, 16 h, 24 h; 2 days, 4 days, 10 days, 21 days, 56 days. The test duration is measured from the moment the prescribed conditions are achieved.
• Specimen state and mounting: Tests may be performed with specimens unpacked, powered or unpowered as specified. Mounting and support must not significantly influence heat/humidity exchange unless specified.
• Measurements and recovery: Visual, electrical and mechanical checks are required before and after the test; intermediate measurements may be required by the relevant specification. Recovery procedures and periods follow IEC 60068-1 guidance.

Applications

EN 60068-2-78:2013 is used by manufacturers, test labs and procurement teams for:

• Design verification: Confirm seals, coatings, conformal protection and material choices under sustained humidity.
• Qualification and QA: Establish acceptance criteria for production batches and incoming components.
• Reliability assessment: Evaluate effects of humidity on long-term performance for storage and transport scenarios.
• Vendor and contract testing: Define uniform test conditions for contractual verification of products destined for humid environments.

Related Standards

• IEC 60068-1: Environmental testing - general guidance and procedures referenced for recovery and measurement methods.
• IEC 60068-3-6: Supporting documentation and guidance - confirmation and verification of temperature/humidity chamber performance (introduced into this edition).
• IEC Guide 104: Use for classification as a basic safety publication where applicable.

Practical value: EN 60068-2-78:2013 provides repeatable, standardised damp-heat test methods that help ensure products meet humidity endurance requirements, reduce field failures, and support conformity in design, production and procurement processes.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Umweltprüfungen - Teil 2-78: Prüfungen - Prüfung Cab: Feuchte Wärme, konstantEssais d'environnement - Partie 2-78: Essais - Essai Cab: Chaleur humide, essai continuEnvironmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state19.040Preskušanje v zvezi z okoljemEnvironmental testingICS:Ta slovenski standard je istoveten z:EN 60068-2-78:2013SIST EN 60068-2-78:2013en01-september-2013SIST EN 60068-2-78:2013SLOVENSKI
STANDARDSIST EN 60068-2-78:20021DGRPHãþD

EUROPEAN STANDARD EN 60068-2-78 NORME EUROPÉENNE
EUROPÄISCHE NORM June 2013
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2013 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60068-2-78:2013 E
ICS 19.040; 29.020 Supersedes EN 60068-2-78:2001
English version
Environmental testing -
Part 2-78: Tests -
Test Cab: Damp heat, steady state (IEC 60068-2-78:2012)
Essais d'environnement -
Partie 2-78: Essais -
Essai Cab: Chaleur humide, essai continu (CEI 60068-2-78:2012)
Umgebungseinflüsse -
Teil 2-78: Prüfverfahren -
Prüfung Cab: Feuchte Wärme, konstant (IEC 60068-2-78:2012)
This European Standard was approved by CENELEC on 2012-12-03. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

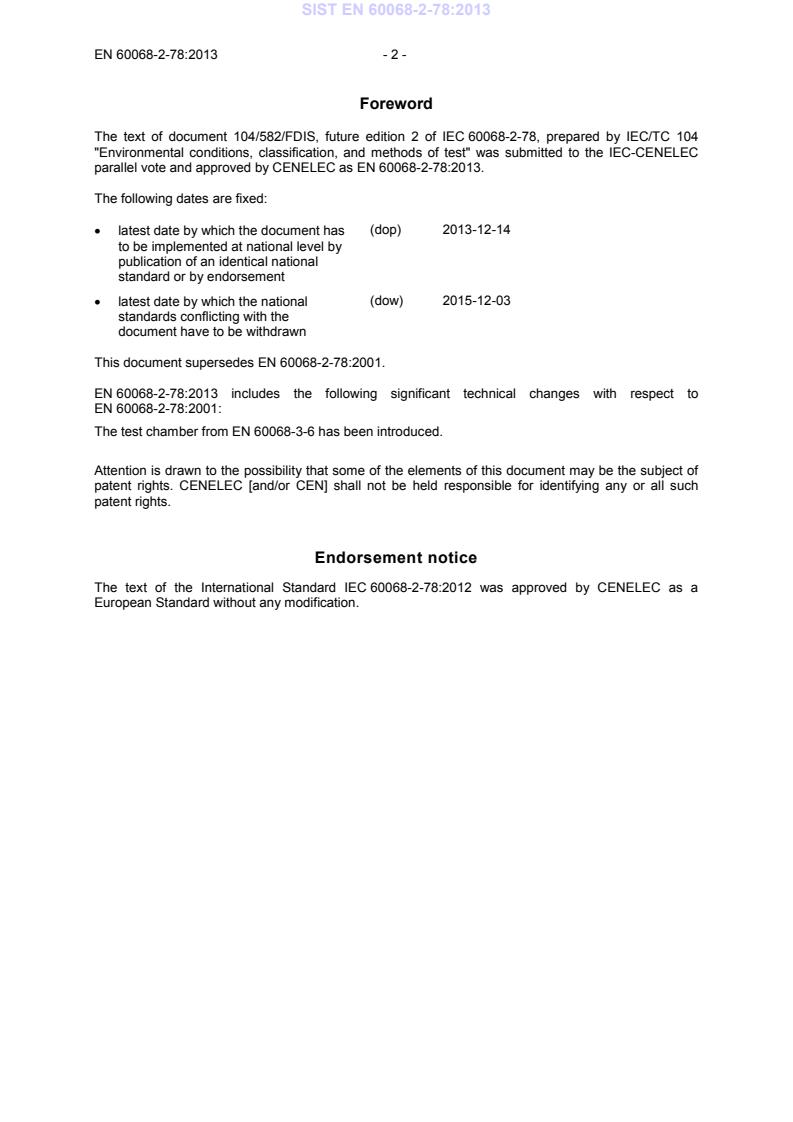

Foreword The text of document 104/582/FDIS, future edition 2 of IEC 60068-2-78, prepared by IEC/TC 104 "Environmental conditions, classification, and methods of test" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 60068-2-78:2013. The following dates are fixed: • latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2013-12-14 • latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2015-12-03
