EN IEC 62271-204:2022
(Main)High-voltage switchgear and controlgear - Part 204: Rigid gas-insulated transmission lines for rated voltage above 52 kV
High-voltage switchgear and controlgear - Part 204: Rigid gas-insulated transmission lines for rated voltage above 52 kV
This part of IEC 62271 applies to rigid HV gas-insulated transmission lines (GIL) in which the insulation is obtained, at least partly, by a non-corrosive insulating gas, other than air at atmospheric pressure, for alternating current of rated voltages above 52 kV, and for service frequencies up to and including 60 Hz. It is intended that this international standard shall be used where the provisions of IEC 62271-203 do not cover the application of GIL (see Note 3). At each end of the HV gas-insulated transmission line, a specific element may be used for the connection between the HV gas-insulated transmission line and other equipment like bushings, power transformers or reactors, cable boxes, metal-enclosed surge arresters, voltage transformers or GIS, covered by their own specification. Unless otherwise specified, the HV gas-insulated transmission line is designed to be used under normal service conditions. Note 1 to entry: In this international standard, the term "HV gas-insulated transmission line" is abbreviated to "GIL". Note 2 to entry: In this international standard, the word "gas" means gas or gas mixture, as defined by the manufacturer. Note 3 to entry: Examples of GIL applications are given: - where all or part of the HV gas-insulated transmission line is directly buried; or - where the HV gas-insulated transmission line is located, wholly or partly, in an area accessible to public; or - where the HV gas-insulated transmission line is long (typically longer than to 500 m) and the typical gas compartment length exceeds the common practice of GIS technology.
Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil 204: Starre gasisolierte Übertragungsleitungen für Bemessungsspannungen über 52 kV
Appareillage à haute tension - Partie 204: Lignes de transport rigides à isolation gazeuse de tension assignée supérieure à 52 kV
IEC 62271-204:2022 est disponible sous forme de IEC 62271-204:2022 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.L’IEC 62271-204:2022 est applicable aux lignes de transport rigides haute tension à isolation gazeuse (LIG) dont l’isolation est réalisée, au moins partiellement, par un gaz isolant ou un mélange gazeux autre que l’air à la pression atmosphérique, pour un courant alternatif de tension assignée supérieure à 52 kV, pour des fréquences de service inférieures ou égales à 60 Hz. Cette deuxième édition annule et remplace la première édition parue en 2011. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - mise à jour par rapport à l’IEC 62271-1:2017 et alignement des caractéristiques assignées de tension et des tensions d’essai; - ajout de nouvelles informations relatives aux soudures sur les parties sous pression et à l’étanchéité au gaz.
Visokonapetostne stikalne in krmilne narave - 204. del: Togi plinsko izolirani prenosni vodi za naznačene napetosti nad 52 kV (IEC 62271-204:2022)
Ta del standarda IEC 62271 se uporablja za toge visokonapetostne plinsko izolirane prenosne vode (GIL), ki so vsaj delno izolirani z nekorozivnim izolirnim plinom, drugačnim od zraka pri atmosferskem tlaku, za izmenični tok naznačenih napetosti nad 52 kV in za delovne frekvence do vključno 60 Hz. Ta mednarodni standard je treba uporabiti, kadar določbe iz standarda IEC 62271-203 ne zajemajo uporabe togih visokonapetostnih plinsko izoliranih prenosnih vodov (glej opombo 3).
Na vsakem koncu visokonapetostnega plinsko izoliranega prenosnega voda se lahko uporabi poseben element za povezovanje tega voda z drugo opremo, kot so puše, močnostni transformatorji ali reaktorji, kabelske škatle, prenapetostni odvodniki v kovinskem ohišju, napetostni transformatorji ali plinsko izolirane stikalne naprave, za katere veljajo njihove lastne specifikacije.
Če ni določeno drugače, je visokonapetostni plinsko izolirani prenosni vod zasnovan za uporabo v običajnih pogojih delovanja.
Opomba 1: V tem mednarodnem standardu se za izraz »visokonapetostni plinsko izolirani prenosni vod« uporablja kratica »GIL«.
Opomba 2: V tem mednarodnem standardu beseda »plin« pomeni plin ali plinsko mešanico v skladu z opredelitvijo proizvajalca.
Opomba 3: Primeri uporabe visokonapetostnih plinsko izoliranih prenosnih vodov so podani:
– kadar je visokonapetostni plinsko izolirani prenosni vod neposredno zakopan; ali
– kadar je visokonapetostni plinsko izolirani prenosni vod delno ali v celoti na javno dostopnem območju; ali
– kadar je visokonapetostni plinsko izolirani prenosni vod dolg (običajno daljši od 500 m) in tipična dolžina plinskih pregrad presega tisto, ki jo predvideva ustaljena praksa na področju tehnologije plinsko izoliranih stikalnih naprav.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 62271-204:2022
01-oktober-2022
Nadomešča:
SIST EN 62271-204:2011
Visokonapetostne stikalne in krmilne narave - 204. del: Togi plinsko izolirani
prenosni vodi za naznačene napetosti nad 52 kV (IEC 62271-204:2022)
High-voltage switchgear and controlgear - Part 204: Rigid gas-insulated transmission
lines for rated voltage above 52 kV (IEC 62271-204:2022)
Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil 204: Starre gasisolierte
Übertragungsleitungen für Bemessungsspannungen über 52 kV (IEC 62271-204:2022)
Appareillage à haute tension - Partie 204: Lignes de transport rigides à isolation gazeuse
de tension assignée supérieure à 52 kV (IEC 62271-204:2022)
Ta slovenski standard je istoveten z: EN IEC 62271-204:2022
ICS:
29.130.10 Visokonapetostne stikalne in High voltage switchgear and
krmilne naprave controlgear
SIST EN IEC 62271-204:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 62271-204:2022
---------------------- Page: 2 ----------------------
SIST EN IEC 62271-204:2022
EUROPEAN STANDARD EN IEC 62271-204
NORME EUROPÉENNE
EUROPÄISCHE NORM July 2022
ICS 29.130.10 Supersedes EN 62271-204:2011
English Version
High-voltage switchgear and controlgear - Part 204: Rigid gas-
insulated transmission lines for rated voltage above 52 kV
(IEC 62271-204:2022)
Appareillage à haute tension - Partie 204: Lignes de Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil
transport rigides à isolation gazeuse de tension assignée 204: Starre gasisolierte Übertragungsleitungen für
supérieure à 52 kV Bemessungsspannungen über 52 kV
(IEC 62271-204:2022) (IEC 62271-204:2022)
This European Standard was approved by CENELEC on 2022-07-05. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62271-204:2022 E
---------------------- Page: 3 ----------------------
SIST EN IEC 62271-204:2022
EN IEC 62271-204:2022 (E)

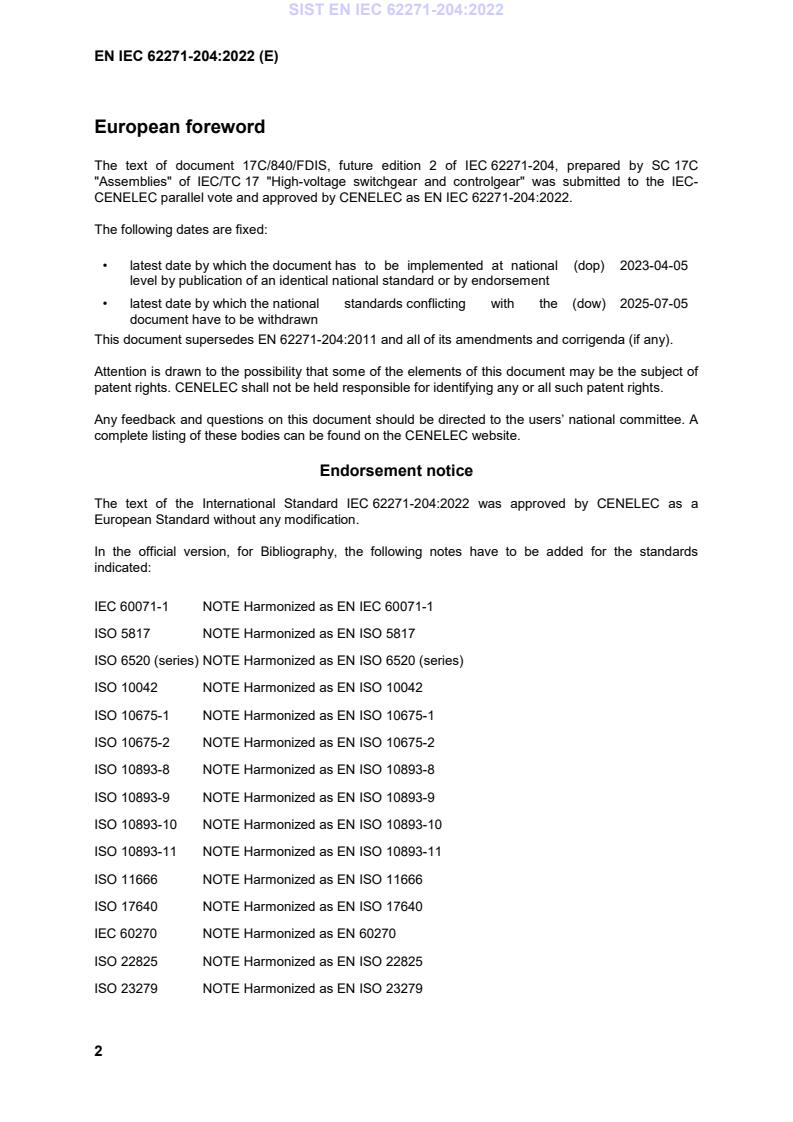

European foreword
The text of document 17C/840/FDIS, future edition 2 of IEC 62271-204, prepared by SC 17C
"Assemblies" of IEC/TC 17 "High-voltage switchgear and controlgear" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 62271-204:2022.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-04-05
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2025-07-05
document have to be withdrawn
This document supersedes EN 62271-204:2011 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62271-204:2022 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60071-1 NOTE Harmonized as EN IEC 60071-1
ISO 5817 NOTE Harmonized as EN ISO 5817
ISO 6520 (series) NOTE Harmonized as EN ISO 6520 (series)
ISO 10042 NOTE Harmonized as EN ISO 10042
ISO 10675-1 NOTE Harmonized as EN ISO 1
...
