IEC 61937-10:2017

Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 10: Non-linear PCM bitstreams according to the MPEG-4 audio lossless coding (ALS) format

IEC 61937-10:2017(E) specifies the method for IEC 60958 to convey non-linear PCM bitstreams encoded in accordance with the MPEG-4 audio lossless coding (ALS) format.
This second edition cancels and replaces the first edition published in 2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) Addition of Levels 2, 3, 4 of MPEG-4 ALS Simple Profile;
b) Addition of data-type bits 0-4 and data-type bits 5-6 for MPEG-4 ALS with LATM/LOAS header.

General Information

• Status: Published
• Publication Date: 27-Jul-2017
• ICS: 33.160.30 - Audio systems
• ICS: 35.240.99 - IT applications in other fields
• Technical Committee: TA 20 - Analogue and digital audio
• Drafting Committee: MT 61937-10 - TC 100/MT 61937-10
• Current Stage: PPUB - Publication issued
• Start Date: 28-Jul-2017
• Completion Date: 04-Aug-2017

Relations

• Revises: IEC 61937-10:2011 - Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 10: Non-linear PCM bitstreams according to the MPEG-4 audio lossless coding (ALS) format
• Effective Date: 05-Sep-2023

Overview

IEC 61937-10:2017 defines how to carry non-linear PCM audio bitstreams encoded with the MPEG‑4 Audio Lossless Coding (ALS) format over the IEC 60958 digital audio interface. Part of the IEC 61937 series, this second edition (2017) is a technical revision that extends support for additional ALS Simple Profile levels and adds metadata handling for LATM/LOAS-wrapped ALS streams. The standard specifies burst mapping, burst-info fields, payload format and timing/latency considerations needed for reliable transport and synchronization.

Key Topics

• Mapping onto IEC 61937: Rules for packaging MPEG‑4 ALS frames into IEC 61937 data-bursts so legacy IEC 60958 interfaces can transport lossless ALS bitstreams.
• Burst‑info (16‑bit field): Definition of the 16‑bit burst-info word including data-type bits 0–4, data-type bits 5–6, an error flag and ALS‑specific fields (multiplier, Simple Profile Level). Table mappings indicate when ALS or LATM/LOAS is used.
• Burst payload format: Normative description of the ALS burst payload and optional LATM/LOAS header handling; includes ALSSpecificConfig and auxiliary data fields required to decode each burst.
• ALS Simple Profile levels: Addition of Levels 2, 3 and 4 to support higher complexity/use cases while retaining Simple Profile restrictions.
• Timing and latency: Guidance on decoder latency, repetition periods of data‑bursts, IEC 60958 frame rates and how to schedule bursts for AV synchronization.
• Constraints and profiles: Limits on channels, sampling rates and word length implied by the ALS Simple Profile (referenced normative limits in the standard).

Applications and Users

Practical applications include:

• Transporting lossless multichannel audio over consumer and professional S/PDIF or AES3 links that implement IEC 60958.
• Interoperability between external decoders, AV receivers, set‑top boxes, DACs and content sources using MPEG‑4 ALS.
• Supporting LATM/LOAS-based multiplexing scenarios where ALS elementary streams are wrapped before transmission.

Who uses this standard:

• Hardware and firmware engineers designing digital audio interfaces and receivers.
• Systems integrators and manufacturers of broadcast, pro‑audio and consumer A/V equipment.
• Test labs and QA teams validating compliance and interoperability of IEC 61937 transports.

Related Standards

• IEC 60958-1 / IEC 60958-3 - Digital audio interface (general and consumer).
• IEC 61937-1 / IEC 61937-2 - General and burst-info rules for IEC 61937 series.
• ISO/IEC 14496-3 (MPEG‑4 Audio) - ALS Simple Profile and LATM/LOAS transport.

Keywords: IEC 61937-10, MPEG‑4 ALS, IEC 60958, digital audio interface, non-linear PCM, LATM/LOAS, burst-info, burst-payload, ALS Simple Profile.

Standards Content (Sample)

IEC 61937-10 ®
Edition 2.0 2017-07
INTERNATIONAL
STANDARD
Digital audio – interface for non-linear PCM encoded audio bitstreams applying
IEC 60958 –
Part 10: Non-linear PCM bitstreams according to the MPEG-4 audio lossless
coding (ALS) format
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61937-10 ®
Edition 2.0 2017-07
INTERNATIONAL
STANDARD
Digital audio – interface for non-linear PCM encoded audio bitstreams applying

IEC 60958 –
Part 10: Non-linear PCM bitstreams according to the MPEG-4 audio lossless

coding (ALS) format
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.160.30; 35.240.99 ISBN 978-2-8322-4560-6

– 2 – IEC 61937-10:2017 © IEC 2017

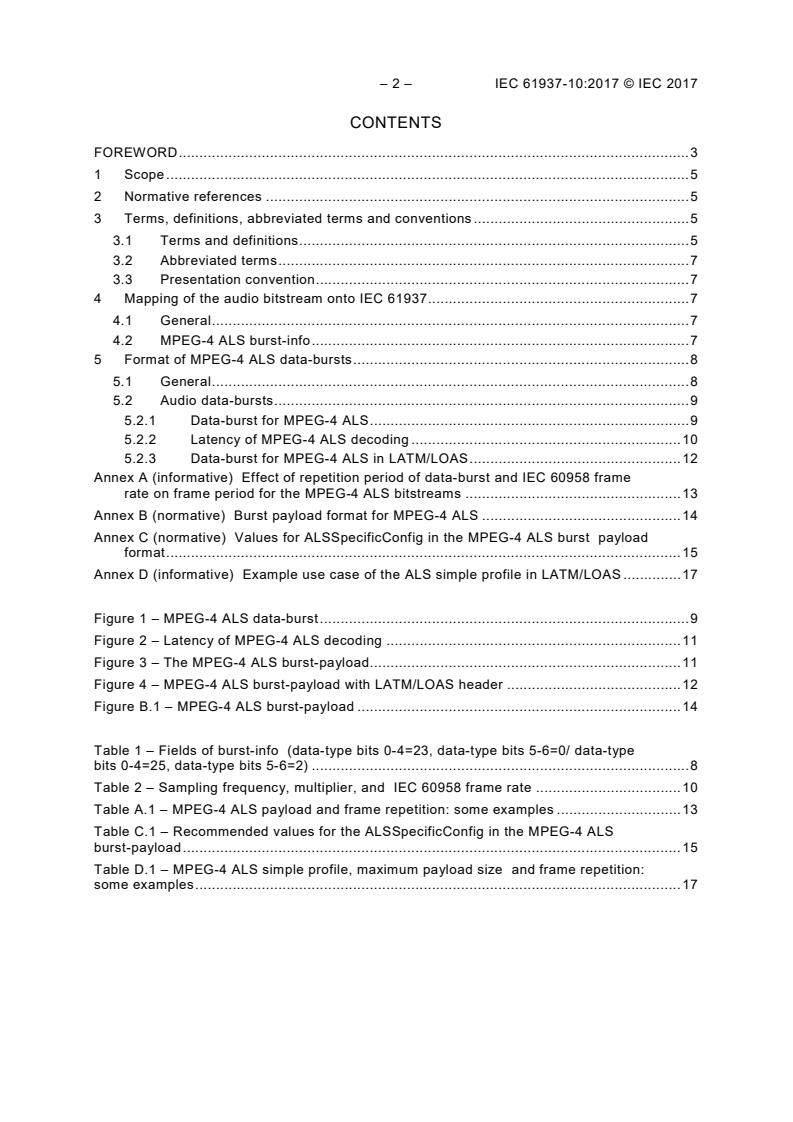

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions, abbreviated terms and conventions . 5
3.1 Terms and definitions . 5
3.2 Abbreviated terms . 7
3.3 Presentation convention . 7
4 Mapping of the audio bitstream onto IEC 61937 . 7
4.1 General . 7
4.2 MPEG-4 ALS burst-info . 7
5 Format of MPEG-4 ALS data-bursts . 8
5.1 General . 8
5.2 Audio data-bursts . 9
5.2.1 Data-burst for MPEG-4 ALS . 9
5.2.2 Latency of MPEG-4 ALS decoding . 10
5.2.3 Data-burst for MPEG-4 ALS in LATM/LOAS . 12
Annex A (informative) Effect of repetition period of data-burst and IEC 60958 frame
rate on frame period for the MPEG-4 ALS bitstreams . 13
Annex B (normative) Burst payload format for MPEG-4 ALS . 14
Annex C (normative) Values for ALSSpecificConfig in the MPEG-4 ALS burst payload
format . 15
Annex D (informative) Example use case of the ALS simple profile in LATM/LOAS . 17

Figure 1 – MPEG-4 ALS data-burst . 9
Figure 2 – Latency of MPEG-4 ALS decoding . 11
Figure 3 – The MPEG-4 ALS burst-payload . 11
Figure 4 – MPEG-4 ALS burst-payload with LATM/LOAS header . 12
Figure B.1 – MPEG-4 ALS burst-payload . 14

Table 1 – Fields of burst-info (data-type bits 0-4=23, data-type bits 5-6=0/ data-type
bits 0-4=25, data-type bits 5-6=2) . 8
Table 2 – Sampling frequency, multiplier, and IEC 60958 frame rate . 10
Table A.1 – MPEG-4 ALS payload and frame repetition: some examples . 13
Table C.1 – Recommended values for the ALSSpecificConfig in the MPEG-4 ALS
burst-payload . 15
Table D.1 – MPEG-4 ALS simple profile, maximum payload size and frame repetition:
some examples . 17

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIGITAL AUDIO – INTERFACE FOR NON-LINEAR PCM ENCODED
AUDIO BITSTREAMS APPLYING IEC 60958 –

Part 10: Non-linear PCM bitstreams according to the MPEG-4 audio
lossless coding (ALS) format
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61937-10 has been prepared by technical area 4: Digital system
interfaces and protocols, of IEC technical committee 100: Audio, video and multimedia
systems and equipment.
This second edition cancels and replaces the first edition published in 2011. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Addition of Levels 2, 3, 4 of MPEG-4 ALS Simple Profile;
b) Addition of data-type bits 0-4 and data-type bits 5-6 for MPEG-4 ALS with LATM/LOAS
header.
– 4 – IEC 61937-10:2017 © IEC 2017

The text of this International Standard is based on the following documents:
CDV Report on voting
100/2630/CDV 100/2930/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 61937 series, published under the general title Digital audio –
Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 can be found on
the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

DIGITAL AUDIO – INTERFACE FOR NON-LINEAR PCM ENCODED
AUDIO BITSTREAMS APPLYING IEC 60958 –

Part 10: Non-linear PCM bitstreams according to the MPEG-4 audio
lossless coding (ALS) format
1 Scope
This part of IEC 61937 specifies the method for IEC 60958 to convey non-linear PCM
bitstreams encoded in accordance with the MPEG-4 audio lossless coding (ALS) format.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60958-1, Digital audio interface – Part 1: General
IEC 60958-3, Digital audio interface – Part 3: Consumer applications
IEC 61937-1, Digital audio – Interface for non-linear PCM encoded audio bitstreams applying
IEC 60958 – Part 1: General
IEC 61937-2, Digital audio – Interface for non-linear PCM encoded audio bitstreams applying
IEC 60958 – Part 2: Burst-Info
ISO/IEC 14496-3:2009, Information technology – Coding of audio-visual objects – Part 3:
Audio
ISO/IEC 14496-3:2009/AMD2:2010, ALS simple profile and transport of SAOC
ISO/IEC 14496-3:2009/AMD5:2015, Support for Dynamic Range Control, New Levels for ALS
Simple Profile, and Audio Synchronization
3 Terms, definitions, abbreviated terms and conventions
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

3.1.1
als_id
ALS identifier in ALSSpecificConfig

– 6 – IEC 61937-10:2017 © IEC 2017

3.1.2
ALS Simple Profile
MPEG-4 ALS Simple Profile defined by ISO/IEC 14496-3:2009/AMD2:2010 and
ISO/IEC 14496-3:2009/AMD5:2015
3.1.3
aux_data
auxiliary data contained in the MPEG-4 ALS burst payload
Note 1 to entry: Not required for decoding audio samples.
3.1.4
aux_size
size of the auxiliary data field in bytes for MPEG-4 ALS
3.1.5
channels
number of channels-1, 'channels', contained in the MPEG-4 ALS burst payload
3.1.6
latency
delay time of an external audio decoder to decode a MPEG-4 ALS data-burst, defined as the
sum of the receiving delay time and the decoding delay time
3.1.7
length code
code indicating the length of the data-burst-payload in 8-byte units according to this standard
3.1.8
low overhead audio stream
LOAS
synchronisation layer defined by ISO/IEC 14496-3
Note 1 to entry: Three different formats of LOAS are defined, each of which is designed to address the specific
characteristics of the underlying transmission layer. AudioSyncStream shall be used.
3.1.9
low-overhead MPEG-4 audio transport multiplex
LATM
multiplexing layer defined by ISO/IEC 14496-3
Note 1 to entry: LATM is used for multiplexing of audio elementary streams. AudioMuxElement shall be used.
3.1.10
resolution
bit depth of the audio samples contained in the MPEG-4 ALS burst payload
3.1.11
samples
number of audio samples per channel contained in the MPEG-4 ALS burst payload
Note 1 to entry: In contrast to the ALS specification, each data-burst provides its own ALSSpecificConfig. Thus
the 'samples' value refers to the total number of samples (per channel) of that data-burst.
3.1.12
samp_freq
sampling frequency of the audio samples contained in the MPEG-4 ALS burst payload

3.2 Abbreviated terms
ALS audio lossless coding
PCM pulse-code modulation
3.3 Presentation convention
01 Value "01" in binary format
4 Mapping of the audio bitstream onto IEC 61937
4.1 General
The coding of the bitstream and data-burst is in accordance with the IEC 61937 series of
standards.
4.2 MPEG-4 ALS burst-info
The 16-bit burst-info contains information about the data that will be found in the data-burst in
accordance with Table 1.
– 8 – IEC 61937-10:2017 © IEC 2017

Table 1 – Fields of burst-info
(data-type bits 0-4=23, data-type bits 5-6=0/ data-type bits 0-4=25, data-type bits 5-6=2)
Bits of Value Contents Reference Repetition period of
Pc point R data-burst in
IEC 60958 frames
0 to 4 data-type bits 0-4
0-22 In accordance with IEC 61937-2
23 MPEG-4 ALS or other applications according to Bit 0 of Pa See 5.2.1
IEC 61937-2, depending on data-type bits 5-6
24-24 In accordance with IEC 61937-2
25 MPEG-4 ALS or other applications according to Bit 0 of Pa See 5.2.1
IEC 61937-2, depending on data-type bits 5-6
26-31 In accordance with IEC 61937-2
5, 6 data-type bits 5-6 for data-type bits 0-4 23
0 MPEG-4 ALS See 5.2
...
