IEC TS 62735-2:2016

Direct current (DC) plugs and socket-outlets for information and communication technology (ICT) equipment installed in data centres and telecom central offices - Part 2: Plug and socket-outlet system for 5,2 kW

IEC TS 62735-2: 2016(E) applies to plugs and fixed socket-outlets for class I equipment with two active contacts plus an earthing contact, a rated power of 5,2 kW and a rated voltage range from 294 V to 400 V d.c. They are intended to power d.c. information and communication technology equipment only. The 2,6 kW system complying with Part 1 is safely compatible with the system complying with this part as it is possible to insert the 2,6 kW plug in the 5,2 kW socket-outlet but it is not possible to insert the 5,2 kW plug into the 2,6 kW socket-outlet.
This publication is to be read in conjunction with IEC TS 62735-1:2015

General Information

• Status: Published
• Publication Date: 13-Dec-2016
• ICS: 29.120.01 - Electrical accessories in general
• ICS: 29.120.30 - Plugs, socket-outlets, couplers
• Technical Committee: TC 23 - Electrical accessories
• Drafting Committee: WG 19 - TC 23/SC 23B/WG 19
• Current Stage: PPUB - Publication issued
• Start Date: 14-Dec-2016
• Completion Date: 06-Jan-2017

Overview

IEC TS 62735-2:2016 is a technical specification developed by the International Electrotechnical Commission (IEC) that defines the requirements for direct current (DC) plugs and fixed socket-outlets specifically designed for information and communication technology (ICT) equipment installed in data centres and telecom central offices. This standard covers plugs and socket-outlets for class I equipment with two active contacts plus an earthing contact, supporting a rated power of 5.2 kW and a voltage range from 294 V to 400 V DC. Its primary objective is to ensure safe, reliable power connections for DC-powered ICT equipment in high-demand environments, promoting compatibility, safety, and efficiency.

Key Topics

• Rated Power and Voltage
  The standard specifies plugs and socket-outlets with a rated power of 5.2 kW and a rated voltage range of 294 V to 400 V DC, directly supporting high-performance ICT equipment.

• Compatibility
  Backwards compatibility is ensured: a 2.6 kW plug compliant with IEC TS 62735-1 can be used with a 5.2 kW socket-outlet as specified in Part 2. However, the higher-powered 5.2 kW plug cannot be used with a 2.6 kW socket-outlet, preventing unsafe electrical connections.

• Safety Features

  • Earthing Contact: For enhanced protection against electric shock.
  • Interlock Systems: Mandates either automatic or mechanical interlock mechanisms to prevent arcing during connection/disconnection.
  • Protection and Testing: Specifies requirements for temperature rise, breaking capacity, mechanical strength, resistance to heat, and markings.
  • Markings: Guidelines for “ON”/“OFF” denotation and visibility near switches.

• Physical and Mechanical Compliance

  • Standardized dimensions and gauges ensure reliable fit and secure engagement.
  • Requirements for terminals, conductor sizes, and pull/torque test values for secure cable connections.

Applications

IEC TS 62735-2:2016 is directly applicable to:

• Data Centres:
  Ensures reliable and safe DC power delivery to servers, switches, storage devices, and related ICT infrastructure, critical for uninterrupted operation, high efficiency, and energy savings.

• Telecommunications Central Offices:
  Supports robust DC power connections for telecom equipment, helping maintain network uptime and performance.

• OEMs and Equipment Suppliers:
  Offers manufacturers a clear, internationally recognized specification for designing, testing, and supplying compliant plugs and socket-outlets for the global ICT market.

• System Integrators and Facility Managers:
  Guides selection and installation of DC power distribution components, supporting best practices in safety and system compatibility within large-scale ICT environments.

Related Standards

• IEC TS 62735-1:2015
  Part 1 of the series addresses the 2.6 kW DC plug and socket-outlet system, offering foundational compatibility information.

• IEC 60999-1
  Provides safety requirements for electrical copper conductors and clamping units, relevant for screw-type and screwless DC plug/socket designs.

Practical Value

Implementing IEC TS 62735-2:2016 supports:

• Enhanced Safety: Through robust earthing provisions, interlocks, and rigorous testing protocols.
• International Compliance: Eases global deployment and procurement of DC-powered ICT infrastructure.
• System Reliability: Reduces risk of mismatched connections and equipment failure.
• Future-Proofing: Aligns with the industry trend toward higher voltage DC distribution in next-generation data centres and telecom hubs.

By adhering to IEC TS 62735-2:2016, stakeholders in the ICT and telecom sectors can ensure safer, more efficient, and internationally compatible DC power delivery systems for critical infrastructure.

Standards Content (Sample)

IEC TS 62735-2 ®
Edition 1.0 2016-12
TECHNICAL
SPECIFICATION
Direct current (DC) plugs and socket-outlets for information and communication
technology (ICT) equipment installed in data centres and telecom central
offices –
Part 2: Plug and socket-outlet system for 5,2 kW
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC TS 62735-2 ®
Edition 1.0 2016-12
TECHNICAL
SPECIFICATION
Direct current (DC) plugs and socket-outlets for information and communication

technology (ICT) equipment installed in data centres and telecom central

offices –
Part 2: Plug and socket-outlet system for 5,2 kW

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.120.01; 29.120.30 ISBN 978-2-8322-3708-3

– 2 – IEC TS 62735-2:2016 © IEC 2016

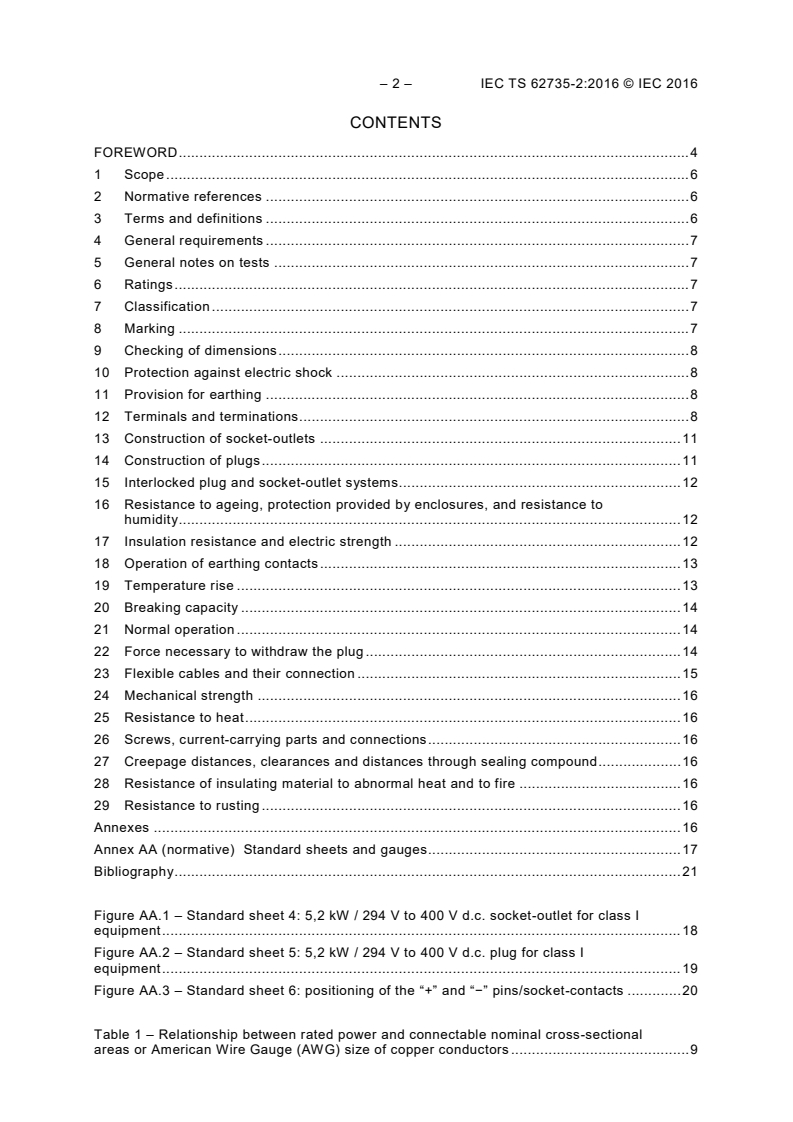

CONTENTS
