Nuclear power plants - Electrical power system - General requirements

IEC 63046:2020 provides requirements and recommendations for the overall Electrical Power System. In particular, it covers interruptible and uninterruptible Electrical Power Systems including the systems supplying the I&C systems; This document is consistent and coherent with IEC 61513. Like IEC 61513, this document also highlights the need for complete and precise requirements, derived from the plant safety goals. Those requirements are prerequisites for generating the comprehensive requirements for the overall Electrical Power System architecture, and for the electrical power supply sub-systems. This document establishes the high level specification and requirement to implement a suitable Electrical Power System in a NPP that supports reactor systems important to safety. It also enables electrical energy production providing the transmission grid with active and reactive power and electro-mechanical inertia.

Centrales nucléaires de puissance - Système d'alimentation électrique - Exigences générales

l'IEC 63046:2020 fournit des exigences et des recommandations pour l'ensemble du système d'alimentation électrique. Il couvre en particulier les systèmes d'alimentation électrique interruptibles et sans interruption, y compris les systèmes alimentant les systèmes d'I&C. Le présent document est en conformité et cohérence avec l'IEC 61513. Tout comme l'IEC 61513, le présent document souligne également la nécessité de disposer d'exigences complètes et précises, issues des objectifs de sûreté de la centrale. Ces exigences constituent les conditions préalables à l'établissement des exigences relatives à l'architecture d'ensemble du système d'alimentation électrique, puis à l'établissement de celles portant sur les sous-systèmes d'alimentation électrique. Le présent document établit la spécification et les exigences de haut niveau pour la mise en œuvre d'un système d'alimentation électrique approprié dans une CNP, système qui est le support des systèmes importants pour la sûreté des réacteurs. Il permet également la production d'énergie électrique, fournissant la puissance active et réactive et l'inertie électromécanique du réseau de distribution.

General Information

Status
Published
Publication Date
19-Oct-2020
Current Stage
PPUB - Publication issued
Completion Date
20-Oct-2020
Ref Project

Buy Standard

Standard
IEC 63046:2020 - Nuclear power plants - Electrical power system - General requirements
English and French language
183 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

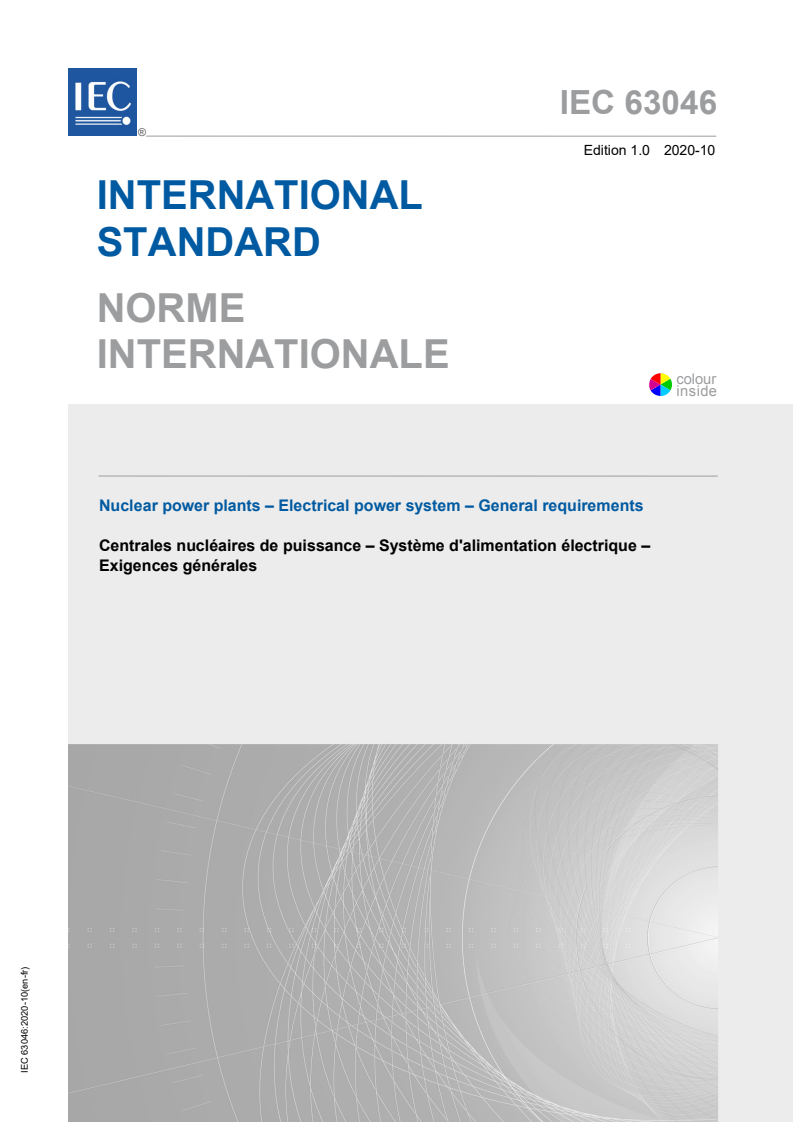

IEC 63046
Edition 1.0 2020-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Nuclear power plants – Electrical power system – General requirements
Centrales nucléaires de puissance – Système d'alimentation électrique –
Exigences générales
IEC 63046:2020-10(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

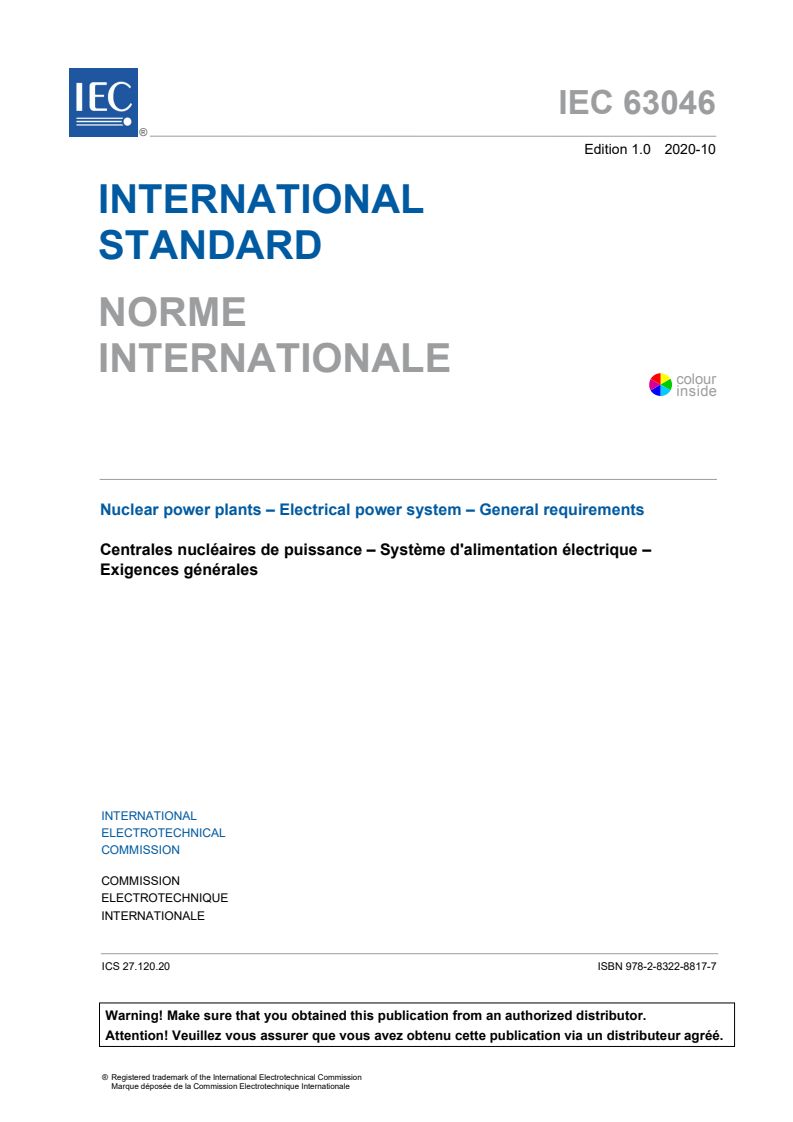

IEC 63046
Edition 1.0 2020-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Nuclear power plants – Electrical power system – General requirements
Centrales nucléaires de puissance – Système d'alimentation électrique –
Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 27.120.20 ISBN 978-2-8322-8817-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

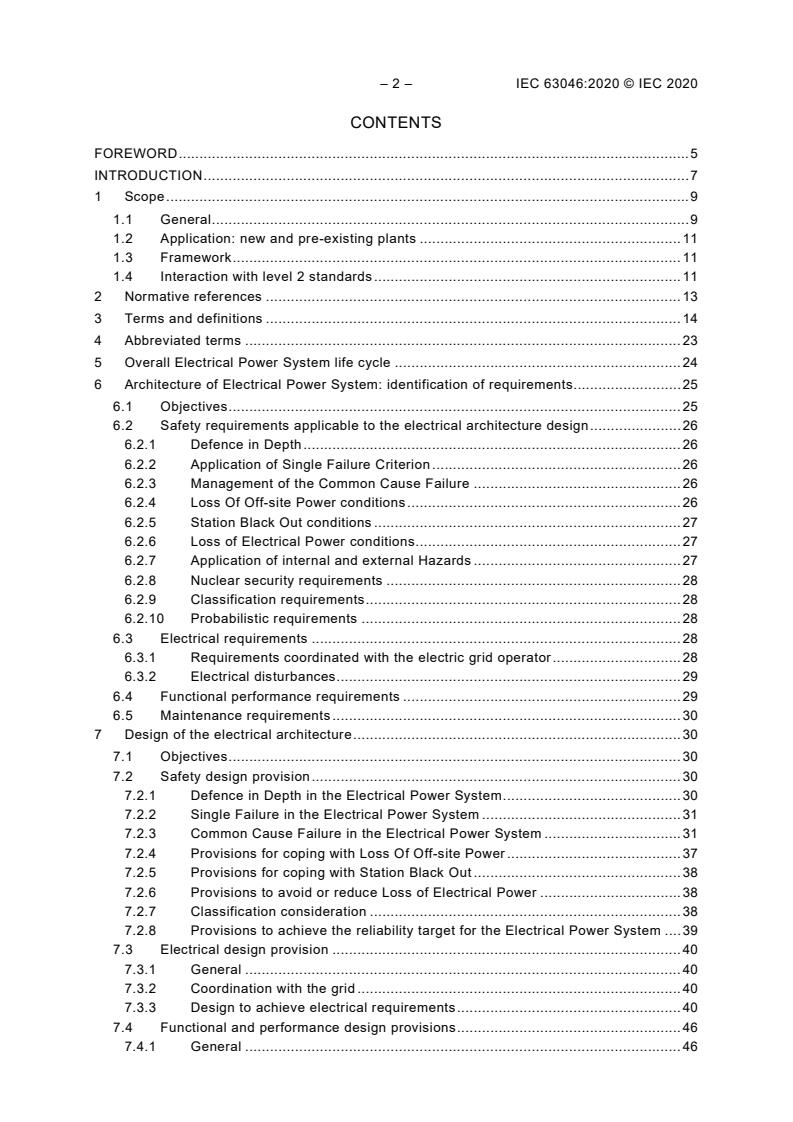

– 2 – IEC 63046:2020 © IEC 2020
CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 9

1.1 General ................................................................................................................... 9

1.2 Application: new and pre-existing plants ............................................................... 11

1.3 Framework ............................................................................................................ 11

1.4 Interaction with level 2 standards .......................................................................... 11

2 Normative references .................................................................................................... 13

3 Terms and definitions .................................................................................................... 14

4 Abbreviated terms ......................................................................................................... 23

5 Overall Electrical Power System life cycle ..................................................................... 24

6 Architecture of Electrical Power System: identification of requirements.......................... 25

6.1 Objectives ............................................................................................................. 25

6.2 Safety requirements applicable to the electrical architecture design ...................... 26

6.2.1 Defence in Depth ........................................................................................... 26

6.2.2 Application of Single Failure Criterion ............................................................ 26

6.2.3 Management of the Common Cause Failure .................................................. 26

6.2.4 Loss Of Off-site Power conditions .................................................................. 26

6.2.5 Station Black Out conditions .......................................................................... 27

6.2.6 Loss of Electrical Power conditions ................................................................ 27

6.2.7 Application of internal and external Hazards .................................................. 27

6.2.8 Nuclear security requirements ....................................................................... 28

6.2.9 Classification requirements ............................................................................ 28

6.2.10 Probabilistic requirements ............................................................................. 28

6.3 Electrical requirements ......................................................................................... 28

6.3.1 Requirements coordinated with the electric grid operator ............................... 28

6.3.2 Electrical disturbances ................................................................................... 29

6.4 Functional performance requirements ................................................................... 29

6.5 Maintenance requirements .................................................................................... 30

7 Design of the electrical architecture ............................................................................... 30

7.1 Objectives ............................................................................................................. 30

7.2 Safety design provision ......................................................................................... 30

7.2.1 Defence in Depth in the Electrical Power System ........................................... 30

7.2.2 Single Failure in the Electrical Power System ................................................ 31

7.2.3 Common Cause Failure in the Electrical Power System ................................. 31

7.2.4 Provisions for coping with Loss Of Off-site Power .......................................... 37

7.2.5 Provisions for coping with Station Black Out .................................................. 38

7.2.6 Provisions to avoid or reduce Loss of Electrical Power .................................. 38

7.2.7 Classification consideration ........................................................................... 38

7.2.8 Provisions to achieve the reliability target for the Electrical Power System .... 39

7.3 Electrical design provision .................................................................................... 40

7.3.1 General ......................................................................................................... 40

7.3.2 Coordination with the grid .............................................................................. 40

7.3.3 Design to achieve electrical requirements ...................................................... 40

7.4 Functional and performance design provisions ...................................................... 46

7.4.1 General ......................................................................................................... 46

---------------------- Page: 4 ----------------------
IEC 63046:2020 © IEC 2020 – 3 –

7.4.2 Electrical Power System studies .................................................................... 46

7.4.3 Design of the Interruptible Power Supply System ........................................... 49

7.4.4 Design of the Uninterruptible Power Supply System ...................................... 49

7.5 Maintenance ......................................................................................................... 50

7.5.1 Consideration of the maintenance in the electrical design .............................. 50

7.6 Multi-unit shared electrical power systems ............................................................ 51

7.7 Electrical system layout ........................................................................................ 51

7.8 Supporting and associated systems for the Electrical Power System .................... 51

7.9 Overall quality assurance programs ...................................................................... 52

7.10 Requirements for output documentation ................................................................ 53

7.10.1 General ......................................................................................................... 53

7.10.2 Architecture principles ................................................................................... 54

7.10.3 Single line diagrams ...................................................................................... 55

8 Sub-system requirements .............................................................................................. 55

8.1 Electrical Power System basis requirements ......................................................... 55

8.1.1 General ......................................................................................................... 55

8.1.2 System Design .............................................................................................. 56

8.1.3 Single line diagram ........................................................................................ 56

8.2 Equipment design specification ............................................................................. 56

8.3 Equipment requirements ....................................................................................... 56

8.4 AC Interruptible Electrical Power Supply System .................................................. 56

8.5 AC/DC Uninterruptible Power Supply System ........................................................ 57

8.6 Coordination and interaction with power grid ......................................................... 57

8.7 Earthing ................................................................................................................ 57

9 Verification of the architecture of the Electrical Power System ....................................... 57

9.1 General ................................................................................................................. 57

9.2 Computerised tools and models verification .......................................................... 57

9.2.1 Electrical Power System verification .............................................................. 57

9.2.2 Layout of electrical power systems and equipment verification ...................... 57

9.3 Test requirements ................................................................................................. 58

10 Overall integration and commissioning .......................................................................... 59

10.1 General ................................................................................................................. 59

10.2 Requirements ....................................................................................................... 59

10.3 Output documentation ........................................................................................... 60

11 Overall operation and maintenance ............................................................................... 60

11.1 General ................................................................................................................. 60

11.2 Requirements ....................................................................................................... 60

11.3 Output documentation ........................................................................................... 60

12 System quality assurance plan ...................................................................................... 61

12.1 General ................................................................................................................. 61

12.2 System verification plan ........................................................................................ 61

12.3 System configuration management plan ................................................................ 62

12.4 Fault resolution procedures ................................................................................... 62

Annex A (informative) Basic safety issues in NPPs .............................................................. 63

A.1 General ................................................................................................................. 63

A.2 Plant safety objectives .......................................................................................... 63

A.3 Plant safety analysis ............................................................................................. 63

A.3.1 General ......................................................................................................... 63

---------------------- Page: 5 ----------------------
– 4 – IEC 63046:2020 © IEC 2020

A.3.2 Analysis of event sequences ......................................................................... 64

A.3.3 Assessment of design basis: deterministic/probabilistic methods ................... 64

A.4 Defence in Depth .................................................................................................. 64

Annex B (informative) AC Interruptible Electrical Power System .......................................... 67

B.1 General ................................................................................................................. 67

B.2 Electrical design provisions ................................................................................... 67

B.2.1 Steady state conditions for Electrical Power System ...................................... 67

B.2.2 Electrical disturbances ................................................................................... 68

B.3 Design of the Interruptible power system .............................................................. 71

B.3.1 Design of the preferred power supply ............................................................ 71

B.3.2 Design of the off-site power supply ................................................................ 71

B.3.3 Design of on-site preferred power supply ....................................................... 72

B.3.4 Design of the AC interruptible power systems important to safety .................. 72

B.3.5 Design of internal standby sources ................................................................ 72

B.4 Preferred power supply system (from IAEA SSG 34:2016, chapter 6, clauses

6.1 to 6.44) ........................................................................................................... 73

B.4.1 General ......................................................................................................... 73

B.4.2 Operation ...................................................................................................... 73

B.4.3 Grid interface and agreement with grid operator ............................................ 73

B.4.4 Reliability of the preferred power supply ........................................................ 73

B.4.5 Off-site power supplies .................................................................................. 74

B.4.6 Availability ..................................................................................................... 75

B.4.7 Independence of off-site circuits .................................................................... 75

B.4.8 Switchyard ..................................................................................................... 76

B.5 Safety power supply system supporting DBC ........................................................ 76

B.5.1 General ......................................................................................................... 76

B.5.2 Design (from IAEA SSG 34:2016, chapter 7, clauses 7.36 to 7.63) ................ 77

B.5.3 Testing (from IAEA SSG 34:2016, chapter 7, clauses 7.64 to 7.67)................ 79

B.5.4 Performance criteria (transient and dynamic) (from IAEA SSG 34:2016,

chapter 7, clauses 7.68 to 7.70) ..................................................................... 79

B.5.5 Relay protection of standby power sources (from IAEA SSG 34:2016,

chapter 7, clauses 7.71 to 7.75) ..................................................................... 79

B.5.6 Support systems for standby AC power sources ............................................ 80

B.5.7 Fuel for standby AC power sources ............................................................... 80

B.6 Power supply system important to safety supporting DEC ..................................... 80

B.6.1 General ......................................................................................................... 80

B.6.2 Design (from IAEA SSG 34:2016, chapter 8, clauses 8.1 to 8.18) .................. 81

B.7 Mobile sources connections network ..................................................................... 82

B.8 Monitoring and switching of buses ........................................................................ 82

Annex C (informative) Earthing ............................................................................................ 84

Annex D (informative) Logic diagram followed for the design of the EPS .............................. 85

Bibliography .......................................................................................................................... 86

Figure 1 – Scope of work of this document............................................................................ 10

Figure 2 – Architecture of Electrical Power System ............................................................... 12

Figure 3 – Connections between the overall Electrical Power System life cycle and the

life cycles of the electrical power sub- systems ..................................................................... 25

Figure 4 – Typical voltage design bases (IEC 62855) ............................................................ 43

Table A.1 – Support of the electrical power supply for the defence in depth of the plant ....... 66

---------------------- Page: 6 ----------------------
IEC 63046:2020 © IEC 2020 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
NUCLEAR POWER PLANTS –
ELECTRICAL POWER SYSTEM –
GENERAL REQUIREMENTS
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 63046 has been prepared by subcommittee 45A: Instrumentation,

control and electrical power systems of nuclear facilities, of IEC technical committee 45:

Nuclear instrumentation.
The text of this International Standard is based on the following documents:
FDIS Report on voting
45A/1348/FDIS 45A/1355/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 7 ----------------------
– 6 – IEC 63046:2020 © IEC 2020

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 8 ----------------------
IEC 63046:2020 © IEC 2020 – 7 –
INTRODUCTION
a) Technical background, main issues, and organisation of the Standard

The purpose of this standard is to provide the high level specification and requirement to

implement a suitable Electrical Power System in a Nuclear Power Plant (NPP).

The electric power system in NPPs supports reactor systems important to safety. It also

allows electric energy production providing the transmission grid with active and reactive

power and electro-mechanical inertia.

The designers, operators of NPPs (utilities), equipment suppliers, systems evaluators and

licensors, may use this document.

b) Situation of the current Standard in the structure of the IEC SC 45A standard series

The entry point of the IEC SC 45A standard series should be summary report introducing the

two first level standards for I&C (IEC 61513) and the Electrical Power System (IEC 63046).

This document is the first level IEC SC 45A document tackling the issue of general

requirements for Electrical Power System and sub-systems.

For more details on the structure of the IEC SC 45A standard series, see item d) of this

introduction.
c) Recommendations and limitations regarding the application of this Standard

It is important to note that this Standard establishes no additional functional requirements for

safety systems.

To ensure that the Standard will continue to be relevant in future years, the emphasis has

been placed on issues of principle, rather than specific technologies.

d) Description of the structure of the IEC SC 45A standard series and relationships

with other IEC documents and other bodies documents (IAEA, ISO)

The top-level documents of the IEC SC 45A standard series are IEC 61513 and IEC 63046.

IEC 61513 provides general requirements for I&C systems and equipment that are used to

perform functions important to safety in NPPs. IEC 63046 provides general requirements for

electrical power systems of NPPs; it covers power supply systems including the supply

systems of the I&C systems. IEC 61513 and IEC 63046 are to be considered in conjunction

and at the same level. IEC 61513 and IEC 63046 structure the IEC SC 45A standard series

and shape a complete framework establishing general requirements for instrumentation,

control and electrical systems for nuclear power plants.

IEC 61513 and IEC 63046 refer directly to other IEC SC 45A standards for general topics

related to categorization of functions and classification of systems, qualification, separation,

defence against common cause failure, control room design, electromagnetic compatibility,

cybersecurity, software and hardware as
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
