Ships and marine technology — Drawings for fire protection — Indications of fire rating by divisions for ships and high-speed craft

ISO 17338:2009 specifies the design and layout of drawings for indicating the fire rating of thermal and structural boundaries (divisions) for fire protection of ships.

Navires et technologie maritime — Dessins pour la protection contre l'incendie — Indication des cotes au feu des cloisonnements

General Information

Status
Published
Publication Date
30-Jul-2009
Current Stage
9093 - International Standard confirmed
Start Date
19-Sep-2018
Completion Date
19-Sep-2018
Ref Project

Buy Standard

Standard
ISO 17338:2009 - Ships and marine technology -- Drawings for fire protection -- Indications of fire rating by divisions for ships and high-speed craft
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 17338:2009 - Ships and marine technology -- Drawings for fire protection -- Indications of fire rating by divisions for ships and high-speed craft
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 17338
First edition
2009-08-15
Ships and marine technology —
Drawings for fire protection — Indications
of fire rating by divisions for ships and
high-speed craft
Navires et technologie maritime — Dessins pour la protection contre
l'incendie — Indication des cotes au feu des cloisonnements
Reference number
ISO 17338:2009(E)
ISO 2009
---------------------- Page: 1 ----------------------
ISO 17338:2009(E)

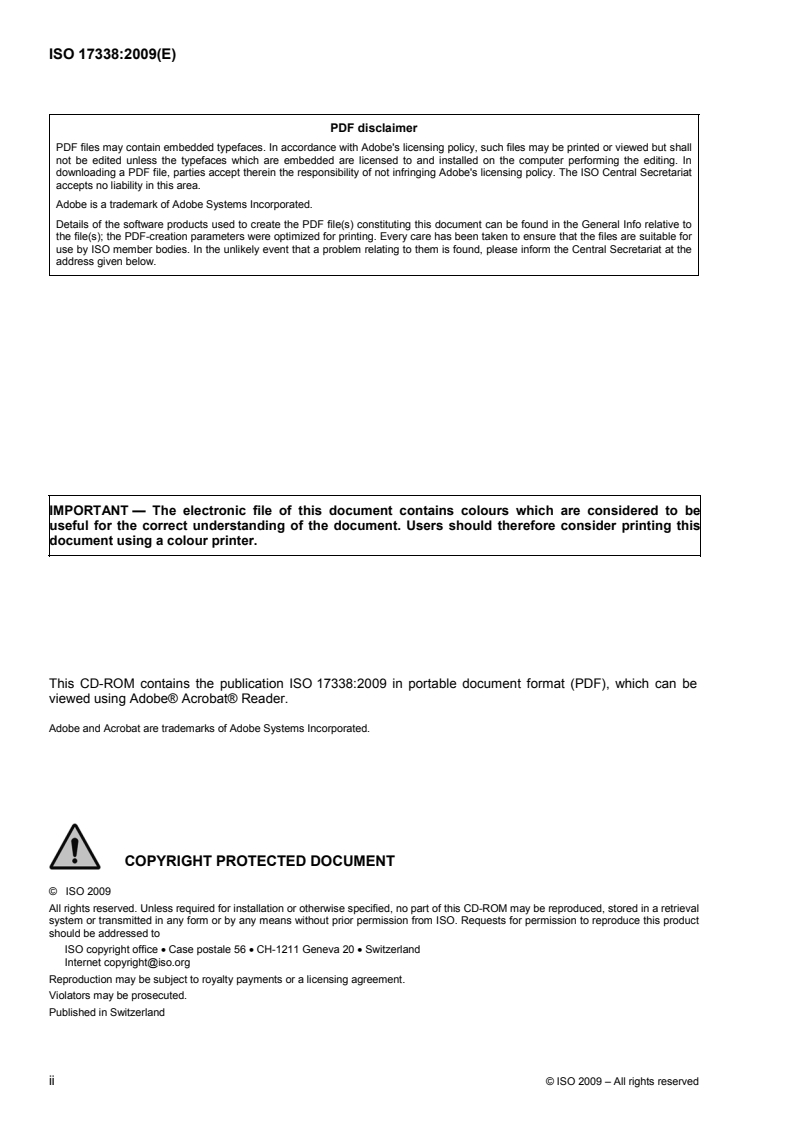

PDF disclaimer

PDF files may contain embedded typefaces. In accordance with Adobe's licensing policy, such files may be printed or viewed but shall

not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading a PDF file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create the PDF file(s) constituting this document can be found in the General Info relative to

the file(s); the PDF-creation parameters were optimized for printing. Every care has been taken to ensure that the files are suitable for

use by ISO member bodies. In the unlikely event that a problem relating to them is found, please inform the Central Secretariat at the

address given below.

IMPORTANT — The electronic file of this document contains colours which are considered to be

useful for the correct understanding of the document. Users should therefore consider printing this

document using a colour printer.

This CD-ROM contains the publication ISO 17338:2009 in portable document format (PDF), which can be

viewed using Adobe® Acrobat® Reader.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
COPYRIGHT PROTECTED DOCUMENT
© ISO 2009

All rights reserved. Unless required for installation or otherwise specified, no part of this CD-ROM may be reproduced, stored in a retrieval

system or transmitted in any form or by any means without prior permission from ISO. Requests for permis

...

INTERNATIONAL ISO
STANDARD 17338
First edition
2009-08-15
Ships and marine technology —
Drawings for fire protection — Indications
of fire rating by divisions for ships and
high-speed craft
Navires et technologie maritime — Dessins pour la protection contre
l'incendie — Indication des cotes au feu des cloisonnements
Reference number
ISO 17338:2009(E)
ISO 2009
---------------------- Page: 1 ----------------------
ISO 17338:2009(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

COPYRIGHT PROTECTED DOCUMENT
© ISO 2009

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 17338:2009(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 17338 was prepared by Technical Committee ISO/TC 8, Ships and marine technology, Subcommittee

SC 1, Lifesaving and fire protection.
© ISO 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 17338:2009(E)
Introduction

This International Standard provides standard illustrations and methods of preparation for drawings for fire

protection of ships and high-speed craft provided by thermal and structural boundaries (divisions). It may be

applied equally to drawings for existing ships and high-speed craft, and for ships and high-speed craft under

[3]

construction. This International Standard is complementary to ISO 17631 , which specifies plans primarily

for use by ship operators, and shipboard and shore-side fire-fighting personnel, in responding to shipboard

emergencies. This International Standard specifies drawings primarily for use by shipbuilders and regulatory

authorities to specify and audit the system of thermal and structural boundaries to provide fire protection on a

ship or high-speed craft as required by applicable national and international regulations.

iv © ISO 2009 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 17338:2009(E)
Ships and marine technology — Drawings for fire protection —
Indications of fire rating by divisions for ships and high-speed
craft

IMPORTANT — The electronic file of this document contains colours which are considered to be

useful for the correct understanding of the document. Users should therefore consider printing this

document using a colour printer.
1 Scope

This International Standard specifies the design and layout of drawings for indicating the fire rating of thermal

and structural boundaries (divisions) for fire protection of ships.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

IMO International Convention for the Safety of Life at Sea, 1974 (SOLAS:1974), as amended in 2000

Torremolinos Protocol, 1993, updating, amending and absorbing the Torremolinos International Convention

for the Safety of Fishing Vessels, 1977

IMO Code for the Construction and Equipment of Mobile Offshore Drilling Units, 2001 (MODU Code)

IMO International Code of Safety for High-speed Craft, 2000 (HSC Code), as amended in 2008

3 Terms and definitions

For the purposes of this International Standard, the following terms and definitions apply.

3.1
booklet

compilation of fire protection drawing(s) for use in maintenance and/or survey, which can be easily checked

and maintained
3.2
competent authority

Administration whose flag the ship is entitled to fly, or an organization authorized by an Administration, to

perform functions as specified in this International Standard
3.3
division

thermal and structural boundary (such as a bulkhead or deck), ensembles of which confine spaces and have

fire protection properties as required by the applicable regulations
© ISO 2009 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 17338:2009(E)
3.4
illustration

use of line drawings or colours for the description of the fire rating of divisions

4 General

4.1 Drawings prepared in accordance with this International Standard shall be made to a scale not smaller

than 1:150 with a line thickness according to Table 1.

An example drawing is shown in Annex A illustrating some of the principles outlined in this International

Standard.
Table 1 — Illustrations for indicating the fire rating of divisions
Illustration Description Comment on use
Referent
The line may also be coloured black
A-60 class division for main Continuous wide red
vertical zones line
The line thickness shall be 2,5 mm
The line may also be coloured black
A-30 class division for main
Dashed wide red line
vertical zones
The line thickness shall be 2,5 mm
The line may also be coloured black
A-15 class division for main Long-dashed dotted
vertical zones wide red line
The line thickness shall be 2,5 mm
The line may also be coloured black
A-0 class division for main Long-dashed double
vertical zones dotted wide red line
The line thickness shall be 2,5 mm
1. A-60 class vertical
division
The line may also be coloured black
Continuous medium red
2. Vertical fire resisting
line
division with 60 min of The line thickness shall be 1,5 mm
structural fire protection
time
1. A-30 class vertical
division
The line may also be coloured black
Dashed medium red
2. Vertical fire resisting
line
division with 30 min of The line thickness shall be 1,5 mm
structural fire protection
time
The line may also be coloured black
Long-dashed dotted
A-15 class vertical division
medium red line
The line thickness shall be 1,5 mm
1. A-0 class vertical division
The line may also be coloured black
2. Vertical fire resisting
Long-dashed double
division with 0 min of
dotted medium red line
The line thickness shall be 1,5 mm
structural fire protection
time
Grey shading may be used instead
of the yellow colour
Dashed medium yellow
B-30 class vertical division
The yellow line thickness shall be
line with black outline
1,0 mm and the black outline
thickness 0,1 mm
2 © ISO 2009 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 17338:2009(E)
Table 1 (continued)
Illustration Description Comment on use
Ref
...
