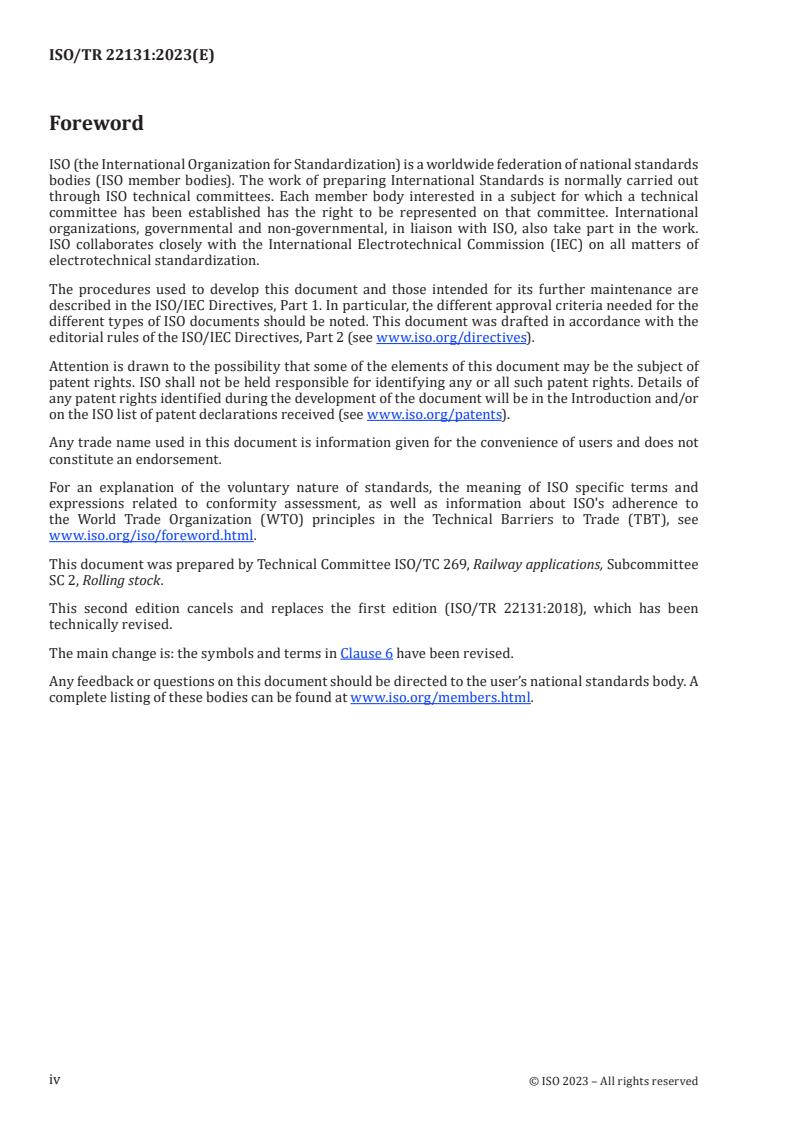

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to

the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 269, Railway applications, Subcommittee

SC 2, Rolling stock.

This second edition cancels and replaces the first edition (ISO/TR 22131:2018), which has been

technically revised.

The main change is: the symbols and terms in Clause 6 have been revised.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.

iv

© ISO 2023 – All rights reserved

---------------------- Page: 4 ----------------------

TECHNICAL REPORT ISO/TR 22131:2023(E)

Railway applications — Railway braking — Country

specific applications for ISO 20138-1

1 Scope

This document provides additional information to assist the understanding and the use of ISO 20138-1.

The calculations in this document follow the same principles but they are slightly different.

This document contains country specific calculation approaches currently in use and represents the

state of knowledge including for calculating:

— stopping and slowing distances;

— equivalent response time;

— brake performance;

— brake ratio.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 20138-1:2018, Railway applications — Calculation of braking performance (stopping, slowing and

stationary braking) — Part 1: General algorithms utilizing mean value calculation

3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 20138-1 apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp

— IEC Electropedia: available at https:// www .electropedia .org/

4 Slowing or stopping distance calculation using a method implemented in

France

4.1 General

This calculation is based on the alternative method of equivalent response time calculation, as used in

the French railway requirements, in particular, for trains operating in “G” position.

4.2 Symbols and abbreviations

For the purpose of Clause 4, the terms, symbols and abbreviations defined in Table 1 apply.

1

© ISO 2023 – All rights reserved

---------------------- Page: 5 ----------------------

ISO/TR 22131:2023(E)

Table 1 — Symbols and abbreviations

Symbol or

Description Unit

abbreviation

Point when the brake force, deceleration or pressure has been substantially —

1

achieved, typically 95 %

2

a Equivalent deceleration (on level track, without considering gradient effect) m/s

e

2

g Standard acceleration of gravity m/s

[9]

“G” position Distributor valve and distributor isolating devices (as defined in EN 15355 ) —

i Gradient of the track (positive rising/negative falling) —

s Stopping/slowing distance on a gradient m

grad

s Stopping distances measured during the tests m

tests

t Delay time s

a

t Build-up time s

ab

t Equivalent response time s

e

2·t Equivalent response time multiplied by 2 s

e

v Initial speed m/s

0

v Final speed (= 0 in the case of a stopping distance) m/s

fin

X Time s

Y Factor of nominal braking force, deceleration or pressure —

4.3 Slowing or stopping distance calculation

4.3.1 French model for “G” position

This model provides a high level of accuracy for the calculation of stopping distances of trains with long

build up time (e.g. “G” position). It is currently used by the infrastructure managers in order to evaluate

the conformance of a train with the train control system and the length of the signalling sections.

For this French model of slowing or stopping distance calculation, Figure 1 can be used for trains

operating in “G” position for brake systems with retarding forces acting on rail contact point.

The model uses a linear development of the effort from 0 to 1 during a time of 2 · t .

e

The equivalent response time, t , can be calculated as set out in Formula (1):

e

t

ab

tt=+ (1)

ea

2

where t and t are in accordance with ISO 20138-1:2018, 5.5.2.

a ab

2

© ISO 2023 – All rights reserved

---------------------- Page: 6 ----------------------

ISO/TR 22131:2023(E)

Key

X time, in s

Y factor of nominal braking force, deceleration or pressure

1 point when the full brake force, deceleration or pressure has been achieved, typically 95 % of maximum value

t equivalent response time, in s

e

Figure 1 — Model based on a linear development of the effort from 0 to 1 during a time of 2 · t

e

The stopping (v = 0) or slowing distance can be calculated as set out in Formula (2):

fin

22 2

a vv− at⋅⋅()ag+⋅4 ⋅i

e 0 fin ee e

st=⋅v ⋅ + − (2)

grad 0 e

ag+⋅i 2⋅+ag⋅i 66⋅+ag⋅i

() ()

e e e

NOTE 1 The equivalent deceleration, a , does not take the effect of the gradient into account.

e

Formula (2) is valid for calculating the stopping/slowing distance with a fully established brake,

provided that the condition in Formula (3) is fulfilled:

vv−≥()ai+⋅2 ⋅t (3)

0 fine e

where

s is the stopping/slowing distance on a gradient, in m;

grad

v is the initial speed, in m/s;

0

t is the equivalent response time, in s;

e

2

a is the equivalent deceleration (on level track, without considering gradient effect), in m/s ;

e

2

g is the standard acceleration of gravity, in m/s ;

i is the gradient of the track (positive rising/negative falling);

v is the final speed (= 0 in the case of a stopping distance), in m/s.

fin

NOTE 2 The stopping/slowing distance as calculated by applying Formula (2) is shorter than calculated

according to the method described in ISO 20138-1:2018, 5.7.4.

3

© ISO 2023 – All rights reserved

---------------------- Page: 7 ----------------------

ISO/TR 22131:2023(E)

4.3.2 Calculation using ISO 20138-1:2018, 5.7.5.1 step model

ISO 20138-1:2018, 5.7.5.1 gives Formula (4) for calculations on level track (i = 0) or with gradient. It uses

t

ab

the model for theoretical response time tt=+ as “step” model.

ea

2

2

m

st 2

v −⋅gi⋅⋅tv−

0 e ffin

m

m

1 dyn

st 2

sv=⋅t −⋅gi⋅⋅t + (4)

grad 0 e e

2 m 2a

dyn e

With train resistance and dynamic mass which compensate each other and v = 0, the formula is

fin

simplified as Formula (5):

2

gi⋅⋅t ()vg−⋅it⋅ ²

e 0 e

sv=⋅t − + (5)

grad 0 e

22a

e

where

s is the stopping/slowing distance on a gradient, in m;

grad

v is the initial speed, in m/s;

0

t is the equivalent response time, in s;

e

m is the static mass, in kg;

st

m is the dynamic mass, in kg;

dyn

2

g is the standard acceleration of gravity, in m/s ;

i is the gradient of the track (positive rising/negative falling);

2

a is the equivalent deceleration (on level track, without considering gradient effect), in m/s ;

e

v is the final speed (= 0 in the case of a stopping distance), in m/s.

fin

4.4 Example of calculation

4.4.1 Test results

This example is based on a long train of 1 000 m in “G” position.

As a reference for further comparison, the tests realized on the tracks have provided the following

results for the stopping distances s :

tests

Stopping distance on level track 824 m

Stopping distance on a down gradient of 5 ‰ 885 m

Stopping distance on an up gradient of 5 ‰ 776 m

The equivalent response time, t (delay time + 1/2 brake build-up time), derived from the results of the

e

tests is 15,5 s.

The equivalent deceleration without including the effect of the gradient, a , derived from the results of

e

2

the tests is 0,89 m/s .

4

© ISO 2023 – All rights reserved

---------------------- Page: 8 ----------------------

ISO/TR 22131:2023(E)

4.4.2 Comparison of calculation models with test results

The stopping distances, s , calculated using Formula (5) (simplified ISO 20138-1 “step model”) are

tests

given in Table 2.

Table 2 — Stopping distances calculated using step model

v g i t a s s s vs s

0 e e grad tests grad tests

difference

2 2

km/h m/s mm/m s m/s m m %

Level track 100 9,81 0 15,5 0,89 864,0 824 5 %

Up gradient 100 9,81 5 15,5 0,89 834,7 776 8 %

Down gradient 100 9,81 −5 15,5 0,89 894,0 885 1 %

The stopping distances, s , calculated using Formula (2) (French alternative method) are given in

tests

Table 3.

Table 3 — Stopping distances calculated using French alternative method

v g i t a Condition: s s s vs s

0 e e grad tests grad tests

v ≥ (a + 2 g · i) t difference

0 e e

v (a + 2 g · i) t

0 e e

2 2

km/h m/s mm/m s m/s m/s m/s m m %

Level track 100 9,81 0 15,5 0,89 27,8 >13,8 828,4 824 <1

Up gradient 100 9,81 5 15,5 0,89 27,8 >15,3 777,7 776 0

Down gradient 100 9,81 −5 15,5 0,89 27,8 >12,3 885,0 885 0

The values in Table 3 demonstrate the following.

— The stopping distances calculated with the French alternative method are shorter than the ones of

the simplified “step model” of ISO 20138-1.

— The stopping distances calculated with the French alternative method are more accurate and closer

to the test results on the track.

5 Calculation of braking performance implemented in Japan

5.1 General

[3]

In Japan, the fundamental law is the Railway Operation Act. In addition, the Technical Regulatory

Standards on Japanese Railway are published by the Ministry of Land, Infrastructure and Transport

and Tourism (MILT). The technical regulation consists of ministerial ordinances and approved model

specifications. Explanatory documents which complement the ministerial ordinances and approved

model specifications and help users to interpret these correctly have also been published. These

[4][7][8]

documents are generally used as standards as well as Japanese Industrial Standards (JIS) and

[5][6]

Japan Association of Rolling Stock Industries standards (JRIS), etc. in Japan.

5.2 Brake ratio for a single vehicle

The brake ratio is used to compare the capability of single vehicles and is used for design assessment.

The braking force for a single vehicle can be calculated as set out in Formula (6):

Fn=⋅Ap⋅⋅i ⋅η (6)

totcyl totc tottot

5

© ISO 2023 – All rights reserved

---------------------- Page: 9 ----------------------

ISO/TR 22131:2023(E)

where

F is the braking force, in kN;

tot

n is the number of brake cylinders;

cyl

2

A is the area of a cylinder, in m ;

tot

p is the brake cylinder pressure, in kPa;

c

i is the total rigging ratio;

tot

ƞ is the mechanical efficiency.

tot

The brake ratio for a single vehicle can be calculated as set out in Formula (7):

F

tot

θ = ⋅⋅C 100 (7)

Mg⋅

tot

with

μ

A

C = (8)

μ

C

where

Ɵ is the brake ratio for a single vehicle, in %;

F is the braking force, in kN;

tot

M is the operational mass of the vehicle plus load, in t;

tot

2

g is the standard acceleration of gravity, in m/s ;

C is the ratio of friction coefficients;

µ is the friction coefficient of applied brake block;

A

µ is the friction coefficient of cast iron block (assumed to be 0,15).

C

NOTE The friction coefficient of applied brake block, µ , and the acceptance criteria of the brake ratio are

A

outside the scope of this document.

5.3 Example for brake ratio calculation

In case of a vehicle with a tread brake unit per wheel, as shown in Figure 2, input data are shown in

Table 4.

Figure 2 — Vehicle with a tread brake unit per wheel

6

© ISO 2023 – All rights reserved

---------------------- Page: 10 ----------------------

ISO/TR 22131:2023(E)

Table 4 — Input data

Description Symbol Example value Unit

Diameter of brake cylinder d 0,152 m

cyl

2

Standard acceleration of gravity g 9,807 m/s

Total rigging ratio i 3,6 —

tot

Operational mass m 31,4 t

op

Mass per person m 55 kg/person

p

Number of brake cylinders n 8 —

cyl

Passenger capacity n 153 —

p

Brake cylinder pressure p 303 kPa

c

Mechanical efficiency —

ƞ 1,0

tot

(including counter force)

Friction coefficient of applied brake block —

µ 0,3

A

(composite brake block)

The braking force of a vehicle can be calculated as set out in Formula (6):

Fm= 0,²152 ⋅π /,48⋅⋅303⋅⋅36 10,

[]()

tot

F =158,4 kN

tot

The mass of a loaded vehicle can be calculated as set out in Formula (9):

Mm=+nm⋅ (9)

totopp p

55

M =+31,4 153⋅

tot

1000

M =39,82 t

tot

The ratio of friction coefficients, C, using composite brake blocks can be calculated as set out in

Formula (8):

03,

C ==20,

01, 5

In the end, the brake ratio for a loaded vehicle can be calculated as set out in Formula (7):

158,4

θ = ⋅⋅20, 100

39,,82t⋅9 807

θ =81 %

5.4 Equivalent response time

5.4.1 General

In Japan, an equivalent response time is determined as below.

7

© ISO 2023 – All rights reserved

---------------------- Page: 11 ----------------------

ISO/TR 22131:2023(E)

5.4.2 Case 1: Determination based on train speed

The equivalent response time is determined based on train speed. In this case, the brake command and

speed are measured. In the time series chart shown in Figure 3, the horizontal line is extended from the

speed at the starting point of the braking. Moreover, another line is extended from around the speed at

which the deceleration is almost constant. The equivalent response time is decided as the time between

the start of braking and cross point of two extended lines.

Key

X time, in s Y2 brake command

Y1 speed 1 equivalent response time

a

Extend the horizontal line from the starting point of the braking.

b

Deceleration is almost constant.

Figure 3 — Equivalent response time in case 1 “based on train speed”

5.4.3 Case 2: Determination based on BC pressure response

The equivalent response time is determined based on BC pressure response as shown in Figure 4. In

this case, it is the time when the brake cylinder pressure reaches about 60 % to 70 % (typically 63,2 %)

of set point from the starting point of braking.

Key

X time, in s Y2 brake command

Y1 brake cylinder pressure 1 equivalent response time

Figure 4 — Equivalent response time in case 2 “BC pressure response”

8

© ISO 2023 – All rights reserved

---------------------- Page: 12 ----------------------

ISO/TR 22131:2023(E)

6 Stopping or slowing distance calculation methods for some particular rolling

stock in China

6.1 General

The following text is based on Reference [2].

Until now, some traditional calculation methods have been used for conventional predefined units, for

example, long trains hauled by locomotive. The numerical parameters given in this traditional method

are based on test data and experience and are used for the vehicle design.

6.2 Symbols and abbreviations

The symbols and abbreviations used in Clause 6 are detailed in Table 5.

Table 5 — Symbols

Description Symbol Unit

Total braking force of train B kN

Dynamic brake force B kN

d

Train unit brake ratio b N/kN

Coefficient independent of speed C N/kN

1

Coefficient dependent on speed C N/kN

2

Coefficient dependent on squared speed C N/kN

3

Diameter of brake cylinder d mm

z

Hauled mass G t

2

Standard acceleration of gravity g m/s

Gradient (positive rising/negative falling) i ‰

Calculation gradient i ‰

j

Single brake block force/braking force K kN

Brake pad force of each brake pad K ′ kN

Conversion brake block force of train K kN

h

Conversion brake block force of locomotive

K ′ kN

h

Conversion brake block force of vehicle

′′

K kN

h

Total distance along the curve including the transition curve lengths L m

r

Equivalent constant curve length l m

r

Transition length l , l m

yz1 yz2

Train overall length l m

1

Number of vehicles n —

Number of brake blocks n —

k

Number of brake cylinders n —

z

Mass of locomotive P t

Cylinder pressure p kPa

z

Brake pipe pressure p kPa

1

Curve radius R m

Wheel radius R mm

c

Brake pipe pressure drop r kPa

Mean swept radius of the brake pad on the disc face r mm

m

Effective braking distance s m

e

9

© ISO 2023 – All rights reserved

---------------------- Page: 13 ----------------------

ISO/TR 22131:2023(E)

TTabablele 5 5 ((ccoonnttiinnueuedd))

Description Symbol Unit

Free running distance s m

k

Stopping/slowing distance s m

z

Effective braking time t s

e

Free running time t s

k

Braking time t s

z

Running speed v km/h

Initial speed v km/h

0

Particular speeds v … v km/h

1 2

Angle of constant curve sector α °

Service brake coefficient β —

c

Rigging ratio γ —

z

Rigging efficiency η —

z

Conversion braking ratio of train ϑ

h

Train conversion brake ratio for service brake ϑ

hc

Coefficient of adhesion µ —

z

Circumference rate π —

Conversion friction coefficient φ —

h

Friction coefficient of each type of brake block φ —

k

Additional curve resistance ω N/kN

r

Basic running resistance for a train ω N/kN

0

Basic running resistance for a single vehicle ω' N/kN

0

6.3 Train resistance retarding forces

6.3.1 Basic running resistance

The basic running resistance for a single vehicle, ω′ , can be calculated as set out in Formula (10).

0

2

′

ω =+CC ⋅+vC ⋅v (10)

01 23

where

′

ω is the basic running resistance for a single vehicle, in N/kN;

0

C is the coefficient independent of speed, in N/kN;

1

C is the coefficient dependent on speed, in N/kN × h/km;

2

2 2

C is the coefficient dependent on squared speed, in N/kN × h /km ;

3

v is the running speed, in km/h.

Table 6 sets out the characteristic coefficients, C , C and C , for specific Chinese vehicles.

1 2 3

10

© ISO 2023 – All rights reserved

---------------------- Page: 14 ----------------------

ISO/TR 22131:2023(E)

Table 6 — Characteristic coefficients for specific Chinese vehicles

Characteristic coefficient

Vehicle type

C C C

1 2 3

Electric locomotives

SS , SS and SS 2,25 0,019 0 0,000 320

1 3 4

SS 1,40 0,003 8 0,000 348

7

SS 1,02 0,003 5 0,000 426

8

6K 1,02 0,003 5 0,000 426

8G 2,55 0,008 3 0,000 212

Diesel locomotives

DF 2,93 0,007 3 0,000 27

DF 2,98 0,020 2 0,000 33

2

DF (for freight wagon, for passenger

4

coach)

DF B (for freight wagon, for passenger 2,28 0,029 3 0,000 178

4

coach)

DF C (for freight wagon)

4

DF 1,31 0,016 7 0,000 391

5

DF D 2,28 0,029 3 0,000 178

7

DF 2,40 0,002 2 0,000 391

8

DF 0,86 0,005 4 0,000 218

11

DFH 1,96 0,010 5 0,000 549

3

Steam locomotives

JS 0,74 0,016 8 0,000 700

QJ 0,70 0,024 3 0,000 673

Passenger coaches

21, 22 (v = 120 km/h) 1,66 0,007 5 0,000 155

max

25B, 25G (v = 140 km/h) 1,82 0,010 0 0,000 145

max

Single deck passenger coach

1,61 0,004 0 0,000 187

(v = 160 km/h)

max

Double deck passenger coach

1,24 0,003 5 0,000 157

(v = 160 km/h)

max

Freight wagons

a

Rolling bearing wagon (loaded) 0,92 0,004 8 0,000 125

Sliding bearing wagon (loaded) 1,07 0,001 1 0,000 236

b

Oil tank wagon trainset (loaded) 0,53 0,012 1 0,000 080

Empty wagon (fit for all types of 2,23 0,005 3 0,000 675

wagon)

a

Coefficients are used when oil tank wagon is coupled with other freight wagons.

b

If a train consists of one or several oil tank wagons (not an oil tank wagon trainset), then the basic running resistance

for a single oil tank wagon is calculated as rolling bearing wagon.

The b

**...**

ISO/TRDTR 22131:2022(E)

ISO/TC 269/SC 2/WG 1

Date: 2022-08-11

Railway applications — Railway braking — Country specific applications for ISO 20138--1

Publication

Warning for WDs and CDs

This document is not an ISO International Standard. It is distributed for review and comment. It is subject to

change without notice and may not be referred to as an International Standard.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of

which they are aware and to provide supporting documentation.

© ISO 2022 – All rights reserved

---------------------- Page: 1 ----------------------

Second edition

Date: 2022-10-11

---------------------- Page: 2 ----------------------

ISO/DTR 22131:2022(E)

© ISO 2022

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of

this publication may be reproduced or utilized otherwise in any form or by any means, electronic or

mechanical, including photocopying, or posting on the internet or an intranet, without prior written

permission. Permission can be requested from either ISO at the address below or ISO’sISO's member body

in the country of the requester.

ISO Copyright Office

CP 401 • CH. de Blandonnet 8

CH-1214 Vernier, Geneva

Phone: + 41 22 749 01 11

Email: copyright@iso.org copyright@iso.org

Website: www.iso.orgwww.iso.org

Published in Switzerland.

iv © ISO 2022 – All rights reserved

---------------------- Page: 3 ----------------------

ISO/DTR 22131:2022(E)

Contents

Foreword . iv

1 Scope . 1

2 Normative references . 1

3 Terms and definitions . 1

4 Slowing or stopping distance calculation using a method implemented in France . 1

4.1 General . 1

4.2 Terms, symbols and abbreviations . 1

4.3 Slowing or stopping distance calculation . 2

4.3.1 French model for “G” position . 2

4.3.2 Calculation using ISO 20138-1:2018, 5.7.5.1 (step model) . 3

4.4 Example of calculation . 4

4.4.1 Test results . 4

4.4.2 Comparison of calculation models with test results . 4

5 Calculation of braking performance implemented in Japan . 5

5.1 General . 5

5.2 Brake ratio for a single vehicle . 5

5.3 Example for brake ratio calculation . 6

5.4 Equivalent response time . 8

6 Stopping or slowing distance calculation methods for some particular rolling stock

in China . 9

6.1 General . 9

6.2 Definitions, symbols and abbreviations . 9

6.3 Train resistance retarding forces. 11

6.3.1 Basic running resistance . 11

6.3.2 Curve resistance . 12

6.4 Train braking force . 14

6.4.1 Total braking force of train . 14

6.4.2 Real friction coefficient . 14

6.4.3 Conversion friction coefficient . 15

6.4.4 Real brake block force . 15

6.4.5 Nominal values of rigging efficiency . 16

6.4.6 Emergency brake cylinder pressure . 17

6.4.7 Conversion brake block force . 17

6.4.8 Conversion braking ratio . 18

6.4.9 Train unit brake ratio . 20

6.4.10 Dynamic brake force . 20

© ISO 2022 – All rights reserved v

---------------------- Page: 4 ----------------------

ISO/DTR 22131:2022(E)

6.4.11 Coefficient of adhesion . 21

6.5 Brake calculation . 21

6.5.1 Braking time . 21

6.5.2 Free running time . 21

6.5.3 Stopping/slowing distance . 22

Bibliography . 23

vi © ISO 2022 – All rights reserved

---------------------- Page: 5 ----------------------

ISO/DTR 22131:2022(E)

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national

standards bodies (ISO member bodies). The work of preparing International Standards is normally

carried out through ISO technical committees. Each member body interested in a subject for which a

technical committee has been established has the right to be represented on that committee.

International organizations, governmental and non-governmental, in liaison with ISO, also take part in

the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all

matters of electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 269, Railway applications, Subcommittee

SC 2, Rolling stock.

This second edition cancels and replaces the first edition (ISO 22131:2018), which has been technically

revised.

The main changes are as follows:is: the symbols and terms in Clause 6 have been revised.

— editorial revision of symbols and terms in Clause 6.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.

© ISO 2022 – All rights reserved vii

---------------------- Page: 6 ----------------------

TECHNICAL REPORT ISO/DTR 22131:2022(E)

Railway applications — Railway braking — Country specific

applications for ISO 20138-1

1 Scope

This document provides additional information to assist the understanding and the use of ISO 20138-1.

The calculations in this document follow the same principles but they are slightly different.

This document contains country specific calculation approaches currently in use and represents the

state of knowledge including for calculating:

— stopping and slowing distances;

— equivalent response time;

— brake performance;

— brake ratio.

2 Normative references

There are no normative references in this document.

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 20138-1:2018, Railway applications — Calculation of braking performance (stopping, slowing and

stationary braking) — Part 1: General algorithms utilizing mean value calculation

3 Terms and definitions

NoFor the purposes of this document, the terms and definitions are listedgiven in this

documentISO 20138-1 apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp

— IEC Electropedia: available at https://www.electropedia.org/

© ISO 2022 – All rights reserved 1

---------------------- Page: 7 ----------------------

ISO/DTR 22131:2022(E)

4 Slowing or stopping distance calculation using a method implemented in

France

4.1 General

This calculation is based on the alternative method of equivalent response time calculation, as used in

the French railway requirements, in particular, for trains operating in “G” position.

4.2 Terms, Symbols and abbreviations

For the purpose of Clause 4, the terms, symbols and abbreviations defined in Table 1 apply.

Table 1 — Symbols, definitions and unitsabbreviations

Term, symbol

Symbol DefinitionDescription Unit

or abbreviation

Point when the brake force, deceleration or pressure has been substantially —

1

achieved, typically 95 %

2

a Equivalent deceleration (on level track, without considering gradient effect) m/s

e

2

g Standard acceleration of gravity m/s

[9]

“G” position Distributor valve and distributor isolating devices (as defined in EN 15355 ) —

i Gradient of the track (positive rising/negative falling) —

sgrad Stopping/slowing distance on a gradient m

stests Stopping distances measured during the tests m

t delay time s

a

t build-up time s

ab

t Equivalent response time s

e

2·t Equivalent response time multiplied by 2 s

e

v0 Initial speed m/s

vfin Final speed (= 0 in the case of a stopping distance) m/s

X Time s

Y Factor of nominal braking force, deceleration or pressure —

4.3 Slowing or stopping distance calculation

4.3.1 French model for “G” position

This model provides a high level of accuracy for the calculation of stopping distances of trains with long

build up time (e.g. “G” position). It is currently used by the infrastructure managers in order to evaluate

the conformance of a train with the train control system and the length of the signalling sections.

For this French model of slowing or stopping distance calculation, Figure 1 maycan be used for trains

operating in “G” position for brake systems with retarding forces acting on rail contact point.

The model uses a linear development of the effort from 0 to 1 during a time of 2· · te.

The equivalent response time, t , can be calculated as set out in Formula (1):

e

2 © ISO 2022 – All rights reserved

---------------------- Page: 8 ----------------------

ISO/DTR 22131:2022(E)

t

𝑡𝑡

ab ab

tt+ 𝑡𝑡 =𝑡𝑡 + (1)

e a

ea

2

2

withwhere t and t are in accordance with ISO 20138-1:2018, 5.5.2.

a ab

Key

X time, in s

Y factor of nominal braking force, deceleration or pressure

X time, in s

1 point when the full brake force, deceleration or pressure has been achieved, typically 95 % of maximum value

2 × equivalent response time multiplied by 2, in s

t

e

Figure 1 — Model based on a linear development of the effort from 0 to 1 during a time of 2· · te

The stopping (v = 0) or slowing distance can be calculated as set out in Formula (2):

fin

22 2

2 2

a vv− a ⋅t ⋅ a + 4⋅ gi⋅

( )

𝑎𝑎 𝑣𝑣 −𝑣𝑣

e 0 fin ee e e 0 fin

s = v⋅⋅t + − 𝑠𝑠 =𝑣𝑣 ⋅𝑡𝑡 ⋅ + −

grad 0 e grad 0 e

𝑎𝑎 +𝑔𝑔⋅𝑖𝑖 2⋅(𝑎𝑎 +𝑔𝑔⋅𝑖𝑖)

e e

a +⋅gi 2⋅ a +⋅gi 6⋅ a +⋅g i

( ) ( )

e e e

2

𝑎𝑎 ⋅𝑡𝑡 ⋅(𝑎𝑎 +4⋅𝑔𝑔⋅𝑖𝑖)

e e e

(2)

6⋅(𝑎𝑎 +𝑔𝑔⋅𝑖𝑖)

e

(2)

NOTE 1 The equivalent deceleration, a , does not take the effect of the gradient into account.

e

© ISO 2022 – All rights reserved 3

=

---------------------- Page: 9 ----------------------

ISO/DTR 22131:2022(E)

Formula (2) is valid for calculating the stopping/slowing distance with a fully established brake,

provided that the following condition in Formula (3) is fulfilled:

v − v ≥(a +⋅2 i)⋅t 𝑣𝑣 −𝑣𝑣 ≥ (𝑎𝑎 + 2⋅𝑖𝑖)⋅𝑡𝑡 (3)

0 fin e e 0 fin e e

(3)

where

sgrad is the stopping/slowing distance on a gradient, in m;

v is the initial speed, in m/s;

0

t is the equivalent response time, in s;

e

2

ae is the equivalent deceleration (on level track, without considering gradient effect), in m/s ;

2

g is the standard acceleration of gravity, in m/s ;

i is the gradient of the track (positive rising/negative falling);

v is the final speed (= 0 in the case of a stopping distance), in m/s.

fin

NOTE 2 The stopping/slowing distance as calculated by applying Formula (2) will beis shorter than calculated

according to the method described in ISO 20138-1:2018, 5.7.4.

4.3.2 Calculation using ISO 20138-1:2018, 5.7.5.1 (step model)

ISO 20138-1:2018, 5.7.5.1 gives Formula (4) for calculations on level track (i = 0) or with gradient.

t 𝑡𝑡

ab ab

It uses the model for theoretical response time tt+ 𝑡𝑡 =𝑡𝑡 + as “step” model.

e a

ea

2

2

2

m

st 2

v − ⋅ g⋅⋅i t − v

0 e fin

m

1 m 1 𝑚𝑚

dyn st

st 2 2

s v⋅t− ⋅ g⋅⋅i t+ 𝑠𝑠 =𝑣𝑣 ⋅𝑡𝑡 − ⋅𝑔𝑔⋅𝑖𝑖⋅𝑡𝑡 +

grad 0 e e grad 0 e e

2𝑚𝑚

dyn

2 m 2a

dyn e

2

𝑚𝑚

st 2

�𝑣𝑣 − ⋅𝑔𝑔⋅𝑖𝑖⋅𝑡𝑡 � −𝑣𝑣

0 e

fin

𝑚𝑚

dyn

(4)

2𝑎𝑎

e

(4)

With train resistance and dynamic mass which compensate each other and v = 0, the formula is

fin

simplified as Formula (5):

2

2

gi⋅⋅t (v − gi⋅⋅t )²

𝑔𝑔⋅𝑖𝑖⋅𝑡𝑡 (𝑣𝑣−𝑔𝑔⋅𝑖𝑖⋅𝑡𝑡 )²

e 0 e e 0 e

s = v⋅t− + 𝑠𝑠 =𝑣𝑣 ⋅𝑡𝑡 − + (5)

grad 0 e

grad 0 e

2 2𝑎𝑎

e

22a

e

(5)

where

s is the stopping/slowing distance on a gradient, in m;

grad

v is the initial speed, in m/s;

0

t is the equivalent response time, in s;

e

4 © ISO 2022 – All rights reserved

=

=

---------------------- Page: 10 ----------------------

ISO/DTR 22131:2022(E)

mst is the static mass, in kg;

m is the dynamic mass, in kg;

dyn

2

g is the standard acceleration of gravity, in m/s ;

i is the gradient of the track (positive rising/negative falling);

2

a is the equivalent deceleration (on level track, without considering gradient effect), in m/s ;

e

v is the final speed (= 0 in the case of a stopping distance), in m/s.

fin

4.4 Example of calculation

4.4.1 Test results

This example is based on a long train of 1 000 m in “G” position.

As a reference for further comparison, the tests realized on the tracks have provided the following

results for the stopping distances s :

tests

Stopping distance on level track 824 m

Stopping distance on a down gradient of 5 ‰ 885 m

Stopping distance on an up gradient of 5 ‰ 776 m

The equivalent response time, t (delay time + 1/2 brake build-up time), derived from the results of the

e

tests is 15,5 s.

The equivalent deceleration without including the effect of the gradient, a , derived from the results of

e

2

the tests is 0,89 m/s .

4.4.2 Comparison of calculation models with test results

The stopping distances, s , calculated using Formula (5) (simplified ISO 20138-1 “step model”) are

tests

given in Table 2:.

Table 2 — Stopping distances calculated using step model

v g i t a s s Difference

0 e e grad tests

s vs s

grad tests

2 2

km/h m/s mm/m s m/s m m %

Level track 100 9,81 0 15,5 0,89 864,0 824 5 %

Up gradient 100 9,81 5 15,5 0,89 834,7 776 8 %

Down gradient 100 9,81 −5 15,5 0,89 894,0 885 1 %

The stopping distances, s , calculated using Formula (2) (French alternative method) are given in

tests

Table 3:.

Table 3 — Stopping distances calculated using French alternative method

Condition Difference

Condition Difference

v0 g i te ae sgrad stests

Merged Cells

v0 ≥ (ae + 2g2 g · i) te sgrad vs stests

© ISO 2022 – All rights reserved 5

---------------------- Page: 11 ----------------------

ISO/DTR 22131:2022(E)

v0 (ae + 2 g · i) te

Split Cells

(ae + 2g · i) te

2 2

km/h m/s mm/m s m/s v m/s m m %

0

m/s

m/s m/s

Level track 100 9,81 0 15,5 0,89 27,8 > 13,8 828,4 824 < 1 %

Up gradient 100 9,81 5 15,5 0,89 27,8 > 15,3 777,7 776 0 %

Down gradient 100 9,81 −5 15,5 0,89 27,8 > 12,3 885,0 885 0 %

The values in the table demonstrate the following:

— The stopping distances calculated with the French alternative method are shorter than the ones of

the simplified “step model” of ISO 20138-1.

— The stopping distances calculated with the French alternative method are more accurate and closer

to the test results on the track.

5 Calculation of braking performance implemented in Japan

5.1 General

[ [3] ]

In Japan, the fundamental law is the Railway Operation Act . . In addition, the Technical Regulatory

Standards on Japanese Railway are published by the Ministry of Land, Infrastructure and Transport and

Tourism (MILT). The technical regulation consists of ministerial ordinances and approved model

specifications. Explanatory documents which complement the ministerial ordinances and approved

model specifications and help users to interpret these correctly have also been published. These

[4][7][8]

documents are generally used as standards as well as Japanese Industrial Standards (JIS) and

[ [5][6] ]

Japan Association of Rolling Stock Industries standards (JRIS) ), , etc. in Japan.

5.2 Brake ratio for a single vehicle

The brake ratio is used to compare the capability of single vehicles and is used for design assessment.

The braking force for a single vehicle can be calculated as set out in Formula (6):

F n⋅ A⋅⋅pi⋅η 𝐹𝐹 =𝑛𝑛 ⋅𝐴𝐴 ⋅𝑝𝑝 ⋅𝑖𝑖 ⋅𝜂𝜂 (6)

tot cyl tot c tot tot

tot cyl tot c tot tot

(6)

where

F is the braking force, in kN;

tot

ncyl is the number of brake cylinders;

2

A is the area of a cylinder, in m ;

tot

p is the brake cylinder pressure, in kPa;

c

i is the total rigging ratio;

tot

ƞ is the mechanical efficiency.

tot

The brake ratio for a single vehicle can be calculated as set out in Formula (7):

6 © ISO 2022 – All rights reserved

=

---------------------- Page: 12 ----------------------

ISO/DTR 22131:2022(E)

F

𝐹𝐹

tot tot

θ ⋅⋅C 100𝜃𝜃 = ⋅𝐶𝐶⋅ 100 (7)

𝑀𝑀 ⋅𝑔𝑔

tot

Mg⋅

tot

with

µ

𝜇𝜇

A A

C= 𝐶𝐶 = (8)

𝜇𝜇

C

µ

C

where

Ɵ is the brake ratio for a single vehicle, in %;

F is the braking force, in kN;

tot

M is the operational mass of the vehicle plus load, in t;

tot

2

g is the standard acceleration of gravity, in m/s ;

C is the ratio of friction coefficients;

µ is the friction coefficient of applied brake block;

A

µC is the friction coefficient of cast iron block (assumed to be 0,15).

NOTE The friction coefficient of applied brake block, µA, and the acceptance criteria of the brake ratio are

outside the scope of this document.

5.3 Example for brake ratio calculation

In case of a vehicle with a tread brake unit per wheel, as shown in Figure 2, input data are shown in

Table 4.

A

Figure 2 — Vehicle with a tread brake unit per wheel

© ISO 2022 – All rights reserved 7

=

---------------------- Page: 13 ----------------------

ISO/DTR 22131:2022(E)

Table 4 — Input data

Description Symbol Example value Unit

Diameter of brake cylinder d 0,152 m

cyl

2

Standard acceleration of gravity g 9,807 m/s

Total rigging ratio i 3,6 —

tot

Operational mass m 31,4 t

op

Mass per person mp 55 kg/person

Number of brake cylinders n 8 —

cyl

Passenger capacity n 153 —

p

Brake cylinder pressure pc 303 kPa

Mechanical efficiency (including counter —

ƞ 1,0

tot

force)

Friction coefficient of applied brake block —

Split Cells

µ 0,3

A

(composite brake block)

Split Cells

(composite brake block)

Split Cells

The braking force of a vehicle can be calculated as set out in Formula (6):

Fm0,152 ²⋅π / 4⋅⋅8 303⋅3,6⋅1,0

[( ) ]

tot

F = 158,4 kN

tot

[( ) ]

𝐹𝐹 = 0,152𝑚𝑚 ²⋅𝜋𝜋/4 ⋅ 8⋅ 303 kPa⋅ 3,6⋅ 1,0

tot

𝐹𝐹 = 158,4 kN

tot

The mass of a loaded vehicle can be calculated as set out in Formula (9):

M m+ nm⋅

tot op p p

𝑀𝑀 =𝑚𝑚 +𝑛𝑛 ⋅𝑚𝑚 (9)

tot op p p

55

M= 31,4+⋅153

tot

1 000

M = 39,82 t

tot

55

𝑀𝑀 = 31,4t + 153⋅� �⋅ t

tot

1 000

𝑀𝑀 = 39,82t

tot

The ratio of friction coefficients, C, using composite brake blocks can be calculated as set out in

Formula (8):

0,3

C 2,0

0,15

0,3

𝐶𝐶 = = 2,0

0,15

8 © ISO 2022 – All rights reserved

==

=

=

---------------------- Page: 14 ----------------------

ISO/DTR 22131:2022(E)

In the end, the brake ratio for a loaded vehicle can be calculated as set out in Formula (7):

158,4

θ ⋅⋅2,0 100

39,82 t⋅9,807

θ= 81 %

158,4 kN

𝜃𝜃 = ⋅ 2,0⋅ 100

39,82t⋅9,807 m/s²

𝜃𝜃 = 81%

5.4 Equivalent response time

5.4.1 General

In Japan, an equivalent response time is determined as below.

5.4.15.4.2 Case 1: Determination based on train speed

The equivalent response time is determined based on train speed. In this case, the brake command and

speed are measured. In the time series chart shown in Figure 3, the horizontal line is extended from the

speed at the starting point of the braking. Moreover, another line is extended from around the speed at

which the deceleration is almost constant. The equivalent response time is decided as the time between

the start of braking and cross point of two extended lines.

© ISO 2022 – All rights reserved 9

=

---------------------- Page: 15 ----------------------

ISO/DTR 22131:2022(E)

Key

X time, in s

Y1 speed

Y2 brake command

X time, in s

1 equivalent response time

a

Extend the horizontal line from the starting point of the braking.

b

Deceleration is almost constant.

Figure 3 — Equivalent response time in case 1 “based on train speed”

10 © ISO 2022 – All rights reserved

---------------------- Page: 16 ----------------------

ISO/DTR 22131:2022(E)

5.4.25.4.3 Case 2: Determination based on BC pressure response

The equivalent response time is determined based on BC pressure response. as shown in Figure 4. In

this case, it is the time when the brake cylinder pressure reaches about 60 % to 70 % (typically 63,2 %)

of set point from the starting point of braking.

Key

X time, in s

Y1 brake cylinder pressure

Y2 brake command

X time, in s

1 equivalent response time

Figure 4 — Equivalent response time in case 2 “BC pressure response”

6 Stopping or slowing distance calculation methods for some particular rolling

stock in China

6.1 General

[2]

The following has been taken from a Chinese Railway Industry Standard .

Until now, some traditional calculation methods have been used for conventional predefined units,

e.g.for example, long trains hauled by locomotive. The numerical parameters given in this traditional

method are based on test data and experience and are used for the vehicle design.

6.2 Definitions,Symbols and abbreviations

The symbols and abbreviations used in Clause 6 are detailed in Table 5.

Table 1 — General definitions, symbols and units

Table 5 — Symbols

© ISO 2022 – All rights reserved 11

---------------------- Page: 17 ----------------------

ISO/DTR 22131:2022(E)

DefinitionDescription Symbol Unit

Total braking force of train B kN

Dynamic brake force B kN

d

Train unit brake ratio b N/kN

Coefficient independent of speed C1 N/kN

Coefficient dependent on speed C2 N/kN

Coefficient dependent on squared speed C N/kN

3

Diameter of brake cylinder d mm

z

Hauled mass G t

2

Standard acceleration of gravity g m/s

Gradient (positive rising/negative falling) i ‰

Calculation gradient i

‰

j

Single brake block force/braking force K kN

′

Brake pad force of each brake pad ′ kN

K 𝐾𝐾

Conversion brake block force of train Kh kN

′

Conversion brake block force of locomotive

K′𝐾𝐾

kN

h

h

′′

Conversion brake block force of vehicle

′′

K 𝐾𝐾 kN

h h

Total distance along the curve including the transition curve lengths Lr m

Equivalent constant curve length l m

r

Transition length l , l m

yz1 yz2

Train overall length l m

1

Number of vehicles n —

Number of brake blocks n —

k

Number of brake cylinders nz —

Mass of locomotive P t

Cylinder pressure p kPa

z

Brake pipe pressure p kPa

1

Curve radius R m

Wheel radius R mm

c

Brake pipe pressure drop r kPa

Mean swept radius of the brake pad on the disc face rm mm

Effective braking distance s m

e

Free running distance s m

k

Stopping/slowing distance s m

z

Effective braking time t s

e

Free running time t s

k

12 © ISO 2022 – All rights reserved

---------------------- Page: 18 ----------------------

ISO/DTR 22131:2022(E)

DefinitionDescription Symbol Unit

Braking time t s

z

Running speed v km/h

Initial speed v km/h

0

Particular speeds v1 … v2 km/h

Angle of constant curve sector α °

Service brake coefficient β —

c

Rigging ratio γ —

z

Rigging efficiency η —

z

Conversion braking ratio of train ϑ

h

Train conversion brake ratio for service brake ϑ

hc

Coefficient of adhesion µz —

Circumference rate π —

Conversion friction coefficient φ —

h

Friction coefficient of each type of brake block φ —

k

Additional curve resistance ω N/kN

r

Basic running resistance for a train ω N/kN

0

Basic running resistance for a single vehicle ω' N/kN

0

6.26.3 Train resistance retarding forces

6.2.16.3.1 Basic running resistance

′

The basic running resistance for a single vehicle, ω′𝜔𝜔 ,, can be calculated as set out in Formula (10).

0 0

2

′ 2

ω′ C+ C⋅+vC⋅v 𝜔𝜔 =𝐶𝐶 +𝐶𝐶 ⋅𝑣𝑣 +𝐶𝐶 ⋅𝑣𝑣 (10)

0 12 3 0 1 2 3

where

′

ω

0

is the basic running resistance for a single vehicle, in N/kN;

′

𝜔𝜔

0

C is the coefficient independent of speed, in N/kN;

1

C is the coefficient dependent on speed, in N/kN× × h/km;

2

2 2

C3 is the coefficient dependent on squared speed, in N/kN× × h /km ;

v is the running speed, in km/h.

Table 6 sets out the characteristic coefficients, C , C , C , for specific Chinese vehicles.

1 2 3

Table 6 — Characteristic coefficients for specific Chinese vehicles

Characteristic coefficient

Vehicle type

C C C

1 2 3

© ISO 2022 – All rights reserved 13

=

---------------------- Page: 19 ----------------------

ISO/DTR 22131:2022(E)

Characteristic coefficient

Vehicle type

C C C

1 2 3

Electric locomotives

SS , SS and SS 2,25 0,019 0 0,000 320

1 3 4

SS7 1,40 0,003 8 0,000 348

SS 1,02 0,003 5 0,000 426

8

6K 1,02 0,003 5 0,000 426

8G 2,55 0,008 3 0,000 212

Diesel locomotives

DF 2,93 0,007 3 0,000 27

DF2 2,98 0,020 2 0,000 33

DF (for freight wagon, for passenger

4

coach)

DF B (for freight wagon, for pa

**...**

TECHNICAL ISO/TR

REPORT 22131

Second edition

Railway applications — Railway

braking — Country specific

applications for ISO 20138-1

Applications ferroviaires — Freinage ferroviaire — Applications

nationales spécifiques de l'ISO 20138-1

PROOF/ÉPREUVE

Reference number

ISO/TR 22131:2022(E)

© ISO/TR 2022

---------------------- Page: 1 ----------------------

ISO/TR 22131:2022(E)

COPYRIGHT PROTECTED DOCUMENT

© ISO 2022

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on

the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below

or ISO’s member body in the country of the requester.

ISO copyright office

CP 401 • Ch. de Blandonnet 8

CH-1214 Vernier, Geneva

Phone: +41 22 749 01 11

Email: copyright@iso.org

Website: www.iso.org

Published in Switzerland

ii

PROOF/ÉPREUVE © ISO 2022 – All rights reserved

---------------------- Page: 2 ----------------------

ISO/TR 22131:2022(E)

Contents Page

Foreword .iv

1 Scope . 1

2 Normative references . 1

3 Terms and definitions . 1

4 Slowing or stopping distance calculation using a method implemented in France .1

4.1 General . 1

4.2 Symbols and abbreviations . 1

4.3 Slowing or stopping distance calculation . 2

4.3.1 French model for “G” position . 2

4.3.2 Calculation using ISO 20138-1:2018, 5.7.5.1 step model . 3

4.4 Example of calculation. 4

4.4.1 Test results . 4

4.4.2 Comparison of calculation models with test results . 4

5 Calculation of braking performance implemented in Japan . 5

5.1 General . 5

5.2 Brake ratio for a single vehicle . 5

5.3 Example for brake ratio calculation . 6

5.4 Equivalent response time . 7

5.4.1 General . 7

5.4.2 Case 1: Determination based on train speed . 8

5.4.3 Case 2: Determination based on BC pressure response . 8

6 Stopping or slowing distance calculation methods for some particular rolling stock

in China . 9

6.1 General . 9

6.2 Symbols and abbreviations . 9

6.3 Train resistance retarding forces . 10

6.3.1 Basic running resistance . 10

6.3.2 Curve resistance .12

6.4 Train braking force . 14

6.4.1 Total braking force of train . 14

6.4.2 Real friction coefficient . 14

6.4.3 Conversion friction coefficient. 15

6.4.4 Real brake block force . 16

6.4.5 Nominal values of rigging efficiency . 17

6.4.6 Emergency brake cylinder pressure . 17

6.4.7 Conversion brake block force . 17

6.4.8 Conversion braking ratio . 18

6.4.9 Train unit brake ratio .20

6.4.10 Dynamic brake force . 20

6.4.11 Coefficient of adhesion . 21

6.5 Brake calculation . 21

6.5.1 Braking time . 21

6.5.2 Free running time . 22

6.5.3 Stopping/slowing distance . 22

Bibliography .24

iii

© ISO 2022 – All rights reserved PROOF/ÉPREUVE

---------------------- Page: 3 ----------------------

ISO/TR 22131:2022(E)

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to

the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 269, Railway applications, Subcommittee

SC 2, Rolling stock.

This second edition cancels and replaces the first edition (ISO 22131:2018), which has been technically

revised.

The main changes is: the symbols and terms in Clause 6 have been revised.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.

iv

PROOF/ÉPREUVE © ISO 2022 – All rights reserved

---------------------- Page: 4 ----------------------

TECHNICAL REPORT ISO/TR 22131:2022(E)

Railway applications — Railway braking — Country

specific applications for ISO 20138-1

1 Scope

This document provides additional information to assist the understanding and the use of ISO 20138-1.

The calculations in this document follow the same principles but they are slightly different.

This document contains country specific calculation approaches currently in use and represents the

state of knowledge including for calculating:

— stopping and slowing distances;

— equivalent response time;

— brake performance;

— brake ratio.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 20138-1:2018, Railway applications — Calculation of braking performance (stopping, slowing and

stationary braking) — Part 1: General algorithms utilizing mean value calculation

3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 20138-1 apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp

— IEC Electropedia: available at https:// www .electropedia .org/

4 Slowing or stopping distance calculation using a method implemented in

France

4.1 General

This calculation is based on the alternative method of equivalent response time calculation, as used in

the French railway requirements, in particular, for trains operating in “G” position.

4.2 Symbols and abbreviations

For the purpose of Clause 4, the terms, symbols and abbreviations defined in Table 1 apply.

1

© ISO 2022 – All rights reserved PROOF/ÉPREUVE

---------------------- Page: 5 ----------------------

ISO/TR 22131:2022(E)

Table 1 — Symbols and abbreviations

Symbol

Description Unit

or abbreviation

Point when the brake force, deceleration or pressure has been substantially —

1

achieved, typically 95 %

2

a Equivalent deceleration (on level track, without considering gradient effect) m/s

e

2

g Standard acceleration of gravity m/s

[9]

“G” position Distributor valve and distributor isolating devices (as defined in EN 15355 ) —

i Gradient of the track (positive rising/negative falling) —

s Stopping/slowing distance on a gradient m

grad

s Stopping distances measured during the tests m

tests

t delay time s

a

t build-up time s

ab

t Equivalent response time s

e

2·t Equivalent response time multiplied by 2 s

e

v Initial speed m/s

0

v Final speed (= 0 in the case of a stopping distance) m/s

fin

X Time s

Y Factor of nominal braking force, deceleration or pressure —

4.3 Slowing or stopping distance calculation

4.3.1 French model for “G” position

This model provides a high level of accuracy for the calculation of stopping distances of trains with long

build up time (e.g. “G” position). It is currently used by the infrastructure managers in order to evaluate

the conformance of a train with the train control system and the length of the signalling sections.

For this French model of slowing or stopping distance calculation, Figure 1 can be used for trains

operating in “G” position for brake systems with retarding forces acting on rail contact point.

The model uses a linear development of the effort from 0 to 1 during a time of 2 · t .

e

The equivalent response time, t , can be calculated as set out in Formula (1):

e

t

ab

tt=+ (1)

ea

2

where t and t are in accordance with ISO 20138-1:2018, 5.5.2.

a ab

2

PROOF/ÉPREUVE © ISO 2022 – All rights reserved

---------------------- Page: 6 ----------------------

ISO/TR 22131:2022(E)

Key

X time, in s

Y factor of nominal braking force, deceleration or pressure

1 point when the full brake force, deceleration or pressure has been achieved, typically 95 % of maximum value

t equivalent response time, in s

e

Figure 1 — Model based on a linear development of the effort from 0 to 1 during a time of 2 · t

e

The stopping (v = 0) or slowing distance can be calculated as set out in Formula (2):

fin

22 2

a vv− at⋅⋅()ag+⋅4 ⋅i

e 0 fin ee e

st=⋅v ⋅ + − (2)

grad 0 e

ag+⋅i 2⋅+ag⋅i 66⋅+ag⋅i

() ()

e e e

NOTE 1 The equivalent deceleration, a , does not take the effect of the gradient into account.

e

Formula (2) is valid for calculating the stopping/slowing distance with a fully established brake,

provided that the condition in Formula (3) is fulfilled:

vv−≥()ai+⋅2 ⋅t (3)

0 fine e

where

s is the stopping/slowing distance on a gradient, in m;

grad

v is the initial speed, in m/s;

0

t is the equivalent response time, in s;

e

2

a is the equivalent deceleration (on level track, without considering gradient effect), in m/s ;

e

2

g is the standard acceleration of gravity, in m/s ;

i is the gradient of the track (positive rising/negative falling);

v is the final speed (= 0 in the case of a stopping distance), in m/s.

fin

NOTE 2 The stopping/slowing distance as calculated by applying Formula (2) is shorter than calculated

according to the method described in ISO 20138-1:2018, 5.7.4.

4.3.2 Calculation using ISO 20138-1:2018, 5.7.5.1 step model

ISO 20138-1:2018, 5.7.5.1 gives Formula (4) for calculations on level track (i = 0) or with gradient.

3

© ISO 2022 – All rights reserved PROOF/ÉPREUVE

---------------------- Page: 7 ----------------------

ISO/TR 22131:2022(E)

t

ab

It uses the model for theoretical response time tt=+ as “step” model.

ea

2

2

m

st 2

v −⋅gi⋅⋅tv−

0 e ffin

m

m

1 dyn

st 2

sv=⋅t −⋅gi⋅⋅t + (4)

grad 0 e e

2 m 2a

dyn e

With train resistance and dynamic mass which compensate each other and v = 0, the formula is

fin

simplified as Formula (5):

2

gi⋅⋅t ()vg−⋅it⋅ ²

e 0 e

sv=⋅t − + (5)

grad 0 e

22a

e

where

s is the stopping/slowing distance on a gradient, in m;

grad

v is the initial speed, in m/s;

0

t is the equivalent response time, in s;

e

m is the static mass, in kg;

st

m is the dynamic mass, in kg;

dyn

2

g is the standard acceleration of gravity, in m/s ;

i is the gradient of the track (positive rising/negative falling);

2

a is the equivalent deceleration (on level track, without considering gradient effect), in m/s ;

e

v is the final speed (= 0 in the case of a stopping distance), in m/s.

fin

4.4 Example of calculation

4.4.1 Test results

This example is based on a long train of 1 000 m in “G” position.

As a reference for further comparison, the tests realized on the tracks have provided the following

results for the stopping distances s :

tests

Stopping distance on level track 824 m

Stopping distance on a down gradient of 5 ‰ 885 m

Stopping distance on an up gradient of 5 ‰ 776 m

The equivalent response time, t (delay time + 1/2 brake build-up time), derived from the results of the

e

tests is 15,5 s.

The equivalent deceleration without including the effect of the gradient, a , derived from the results of

e

2

the tests is 0,89 m/s .

4.4.2 Comparison of calculation models with test results

The stopping distances, s , calculated using Formula (5) (simplified ISO 20138-1 “step model”) are

tests

given in Table 2.

4

PROOF/ÉPREUVE © ISO 2022 – All rights reserved

---------------------- Page: 8 ----------------------

ISO/TR 22131:2022(E)

Table 2 — Stopping distances calculated using step model

v g i t a s s Difference

0 e e grad tests

s vs s

grad tests

2 2

km/h m/s mm/m s m/s m m %

Level track 100 9,81 0 15,5 0,89 864,0 824 5 %

Up gradient 100 9,81 5 15,5 0,89 834,7 776 8 %

Down gradient 100 9,81 −5 15,5 0,89 894,0 885 1 %

The stopping distances, s , calculated using Formula (2) (French alternative method) are given in

tests

Table 3.

Table 3 — Stopping distances calculated using French alternative method

Condition Difference

v g i t a s s

0 e e grad tests

v ≥ (a + 2 g · i) t s vs s

0 e e grad tests

v (a + 2 g · i) t

0 e e

2 2

km/h m/s mm/m s m/s m/s m/s m m %

Level track 100 9,81 0 15,5 0,89 27,8 > 13,8 828,4 824 < 1

Up gradient 100 9,81 5 15,5 0,89 27,8 > 15,3 777,7 776 0

Down gradient 100 9,81 −5 15,5 0,89 27,8 > 12,3 885,0 885 0

The values in the table demonstrate the following:

— The stopping distances calculated with the French alternative method are shorter than the ones of

the simplified “step model” of ISO 20138-1.

— The stopping distances calculated with the French alternative method are more accurate and closer

to the test results on the track.

5 Calculation of braking performance implemented in Japan

5.1 General

[3]

In Japan, the fundamental law is the Railway Operation Act. In addition, the Technical Regulatory

Standards on Japanese Railway are published by the Ministry of Land, Infrastructure and Transport

and Tourism (MILT). The technical regulation consists of ministerial ordinances and approved model

specifications. Explanatory documents which complement the ministerial ordinances and approved

model specifications and help users to interpret these correctly have also been published. These

[4][7][8]

documents are generally used as standards as well as Japanese Industrial Standards (JIS) and

[5][6]

Japan Association of Rolling Stock Industries standards (JRIS), etc. in Japan.

5.2 Brake ratio for a single vehicle

The brake ratio is used to compare the capability of single vehicles and is used for design assessment.

The braking force for a single vehicle can be calculated as set out in Formula (6):

Fn=⋅Ap⋅⋅i ⋅η (6)

totcyl totc tottot

where

F is the braking force, in kN;

tot

n is the number of brake cylinders;

cyl

5

© ISO 2022 – All rights reserved PROOF/ÉPREUVE

---------------------- Page: 9 ----------------------

ISO/TR 22131:2022(E)

2

A is the area of a cylinder, in m ;

tot

p is the brake cylinder pressure, in kPa;

c

i is the total rigging ratio;

tot

ƞ is the mechanical efficiency.

tot

The brake ratio for a single vehicle can be calculated as set out in Formula (7):

F

tot

θ = ⋅⋅C 100 (7)

⋅

Mg

tot

with

μ

A

C = (8)

μ

C

where

Ɵ is the brake ratio for a single vehicle, in %;

F is the braking force, in kN;

tot

M is the operational mass of the vehicle plus load, in t;

tot

2

g is the standard acceleration of gravity, in m/s ;

C is the ratio of friction coefficients;

µ is the friction coefficient of applied brake block;

A

µ is the friction coefficient of cast iron block (assumed to be 0,15).

C

NOTE The friction coefficient of applied brake block, µ , and the acceptance criteria of the brake ratio are

A

outside the scope of this document.

5.3 Example for brake ratio calculation

In case of a vehicle with a tread brake unit per wheel, as shown in Figure 2, input data are shown in

Table 4.

Figure 2 — Vehicle with a tread brake unit per wheel

6

PROOF/ÉPREUVE © ISO 2022 – All rights reserved

---------------------- Page: 10 ----------------------

ISO/TR 22131:2022(E)

Table 4 — Input data

Description Symbol Example value Unit

Diameter of brake cylinder d 0,152 m

cyl

2

Standard acceleration of gravity g 9,807 m/s

Total rigging ratio i 3,6 —

tot

Operational mass m 31,4 t

op

Mass per person m 55 kg/person

p

Number of brake cylinders n 8 —

cyl

Passenger capacity n 153 —

p

Brake cylinder pressure p 303 kPa

c

Mechanical efficiency (including counter —

ƞ 1,0

tot

force)

Friction coefficient of applied brake block —

µ 0,3

A

(composite brake block)

The braking force of a vehicle can be calculated as set out in Formula (6):

Fm= 0,²152 ⋅π /,48⋅⋅303⋅⋅36 10,

[]()

tot

F =158,4 kN

tot

The mass of a loaded vehicle can be calculated as set out in Formula (9):

Mm=+nm⋅ (9)

totopp p

55

M =+31,4 153⋅

tot

1000

M =39,82 t

tot

The ratio of friction coefficients, C, using composite brake blocks can be calculated as set out in

Formula (8):

03,

C ==20,

01, 5

In the end, the brake ratio for a loaded vehicle can be calculated as set out in Formula (7):

158,4

θ = ⋅⋅20, 100

39,,82t⋅9 807

θ =81 %

5.4 Equivalent response time

5.4.1 General

In Japan, an equivalent response time is determined as below.

7

© ISO 2022 – All rights reserved PROOF/ÉPREUVE

---------------------- Page: 11 ----------------------

ISO/TR 22131:2022(E)

5.4.2 Case 1: Determination based on train speed

The equivalent response time is determined based on train speed. In this case, the brake command and

speed are measured. In the time series chart shown in Figure 3, the horizontal line is extended from the

speed at the starting point of the braking. Moreover, another line is extended from around the speed at

which the deceleration is almost constant. The equivalent response time is decided as the time between

the start of braking and cross point of two extended lines.

Key

X time, in s

Y1 speed

Y2 brake command

1 equivalent response time

a

Extend the horizontal line from the starting point of the braking.

b

Deceleration is almost constant.

Figure 3 — Equivalent response time in case 1 “based on train speed”

5.4.3 Case 2: Determination based on BC pressure response

The equivalent response time is determined based on BC pressure response as shown in Figure 4. In

this case, it is the time when the brake cylinder pressure reaches about 60 % to 70 % (typically 63,2 %)

of set point from the starting point of braking.

8

PROOF/ÉPREUVE © ISO 2022 – All rights reserved

---------------------- Page: 12 ----------------------

ISO/TR 22131:2022(E)

Key

X time, in s

Y1 brake cylinder pressure

Y2 brake command

1 equivalent response time

Figure 4 — Equivalent response time in case 2 “BC pressure response”

6 Stopping or slowing distance calculation methods for some particular rolling

stock in China

6.1 General

[2]

The following has been taken from a Chinese Railway Industry Standard .

Until now, some traditional calculation methods have been used for conventional predefined units, for

example, long trains hauled by locomotive. The numerical parameters given in this traditional method

are based on test data and experience and are used for the vehicle design.

6.2 Symbols and abbreviations

The symbols and abbreviations used in Clause 6 are detailed in Table 5.

Table 5 — Symbols

Description Symbol Unit

Total braking force of train B kN

Dynamic brake force B kN

d

Train unit brake ratio b N/kN

Coefficient independent of speed C N/kN

1

Coefficient dependent on speed C N/kN

2

Coefficient dependent on squared speed C N/kN

3

Diameter of brake cylinder d mm

z

Hauled mass G t

2

Standard acceleration of gravity g m/s

Gradient (positive rising/negative falling) i ‰

Calculation gradient i ‰

j

Single brake block force/braking force K kN

Brake pad force of each brake pad ′ kN

K

Conversion brake block force of train K kN

h

Conversion brake block force of locomotive

′

K kN

h

9

© ISO 2022 – All rights reserved PROOF/ÉPREUVE

---------------------- Page: 13 ----------------------

ISO/TR 22131:2022(E)

TTabablele 5 5 ((ccoonnttiinnueuedd))

Description Symbol Unit

Conversion brake block force of vehicle

′′

K kN

h

Total distance along the curve including the transition curve lengths L m

r

Equivalent constant curve length l m

r

Transition length l , l m

yz1 yz2

Train overall length l m

1

Number of vehicles n —

Number of brake blocks n —

k

Number of brake cylinders n —

z

Mass of locomotive P t

Cylinder pressure p kPa

z

Brake pipe pressure p kPa

1

Curve radius R m

Wheel radius R mm

c

Brake pipe pressure drop r kPa

Mean swept radius of the brake pad on the disc face r mm

m

Effective braking distance s m

e

Free running distance s m

k

Stopping/slowing distance s m

z

Effective braking time t s

e

Free running time t s

k

Braking time t s

z

Running speed v km/h

Initial speed v km/h

0

Particular speeds v … v km/h

1 2

Angle of constant curve sector α °

Service brake coefficient β —

c

Rigging ratio γ —

z

Rigging efficiency η —

z

Conversion braking ratio of train ϑ

h

Train conversion brake ratio for service brake ϑ

hc

Coefficient of adhesion µ —

z

Circumference rate π —

Conversion friction coefficient φ —

h

Friction coefficient of each type of brake block φ —

k

Additional curve resistance ω N/kN

r

Basic running resistance for a train ω N/kN

0

Basic running resistance for a single vehicle ω' N/kN

0

6.3 Train resistance retarding forces

6.3.1 Basic running resistance

10

PROOF/ÉPREUVE © ISO 2022 – All rights reserved

---------------------- Page: 14 ----------------------

ISO/TR 22131:2022(E)

′

The basic running resistance for a single vehicle, ω , can be calculated as set out in Formula (10).

0

2

′

ω =+CC ⋅+vC ⋅v (10)

01 23

where

ω′ is the basic running resistance for a single vehicle, in N/kN;

0

C is the coefficient independent of speed, in N/kN;

1

C is the coefficient dependent on speed, in N/kN × h/km;

2

2 2

C is the coefficient dependent on squared speed, in N/kN × h /km ;

3

v is the running speed, in km/h.

Table 6 sets out the characteristic coefficients, C , C , C , for specific Chinese vehicles.

1 2 3

Table 6 — Characteristic coefficients for specific Chinese vehicles

Characteristic coefficient

Vehicle type

C C C

1 2 3

Electric locomotives

SS , SS and SS 2,25 0,019 0 0,000 320

1 3 4

SS 1,40 0,003 8 0,000 348

7

SS 1,02 0,003 5 0,000 426

8

6K 1,02 0,003 5 0,000 426

8G 2,55 0,008 3 0,000 212

Diesel locomotives

DF 2,93 0,007 3 0,000 27

DF 2,98 0,020 2 0,000 33

2

DF (for freight wagon, for passenger

4

coach)

DF B (for freight wagon, for passenger 2,28 0,029 3 0,000 178

4

coach)

DF C (for freight wagon)

4

DF 1,31 0,016 7 0,000 391

5

DF D 2,28 0,029 3 0,000 178

7

DF 2,40 0,002 2 0,000 391

8

DF 0,86 0,005 4 0,000 218

11

DFH 1,96 0,010 5 0,000 549

3

Steam locomotives

JS 0,74 0,016 8 0,000 700

QJ 0,70 0,024 3 0,000 673

Passenger coaches

21, 22 (v = 120 km/h) 1,66 0,007 5 0,000 155

max

25B, 25G (v = 140 km/h) 1,82 0,010 0 0,000 145

max

a

Coefficients are used when oil tank wagon is coupled with other freight wagons.

b

If a train consists of one or several oil tank wagons (not an oil tank wagon trainset), then the basic running resistance

for a single oil tank wagon is calculated as rolling bearing wagon.

11

© ISO 2022 – All rights reserved PROOF/ÉPREUVE

---------------------- Page: 15 ----------------------

ISO/TR 22131:2022(E)

TTabablele 6 6 ((ccoonnttiinnueuedd))

Characteri

**...**

## Questions, Comments and Discussion

## Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
