SIST EN 1147:2010
(Main)Portable ladders for fire service use
Portable ladders for fire service use
This European Standard specifies requirements, test methods and performance criteria for portable ladders for fire and rescue service use and associated purposes. The tests in this European Standard are type tests and not periodical tests. Non-portable ladders for fire and rescue service use are excluded from this standard.
Tragbare Leitern fur die Verwendung bei der Feuerwehr
Diese Europäische Norm legt Anforderungen, Prüfverfahren und Leistungskriterien tragbarer Leitern für die
Anwendung bei Feuerwehr und Rettungsdiensten und damit zusammenhängende Zwecke fest.
Diese Norm schließt nicht tragbare Feuerwehrleitern und Leitern für Rettungsdienste aus.
ANMERKUNG Für Leitern anderen Gebrauchs gilt EN 131.
Echelles portables a l'usage des services d'incendie
La présente Norme européenne spécifie les exigences, méthodes d’essai et critères de performance concernant les échelles portables à l’usage des services d’incendie et de secours et des services connexes. Les échelles non portables à l’usage des services d’incendie et de secours sont exclues de la présente norme. NOTE Pour les échelles destinées à d’autres usages, voir l’EN 131.
Prenosne lestve za gasilce
Ta evropski standard opredeljuje zahteve, preskusne metode in merila za zmogljivost za prenosne lestve, ki jih uporabljajo gasilci in reševalci oziroma se uporabljajo za njihove namene. Preskusi v tem evropskem standardu so tipski preskusi in ne periodični. Neprenosljive lestve, ki jih uporabljajo gasilci in reševalci, so izvzete iz tega standarda.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Prenosne lestve za gasilceTragbare Leitern fur die Verwendung bei der FeuerwehrEchelles portables a l'usage des services d'incendiePortable ladders for fire service use97.145LestveLadders13.220.10Gašenje požaraFire-fightingICS:Ta slovenski standard je istoveten z:EN 1147:2010SIST EN 1147:2010en,fr,de01-julij-2010SIST EN 1147:2010SLOVENSKI
STANDARDSIST EN 1147:20011DGRPHãþD
SIST EN 1147:2010
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1147
May 2010 ICS 13.220.10 Supersedes EN 1147:2000English Version
Portable ladders for fire service use
Échelles portables à l'usage des services d'incendie
Tragbare Leitern für die Verwendung bei der Feuerwehr This European Standard was approved by CEN on 29 April 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1147:2010: ESIST EN 1147:2010

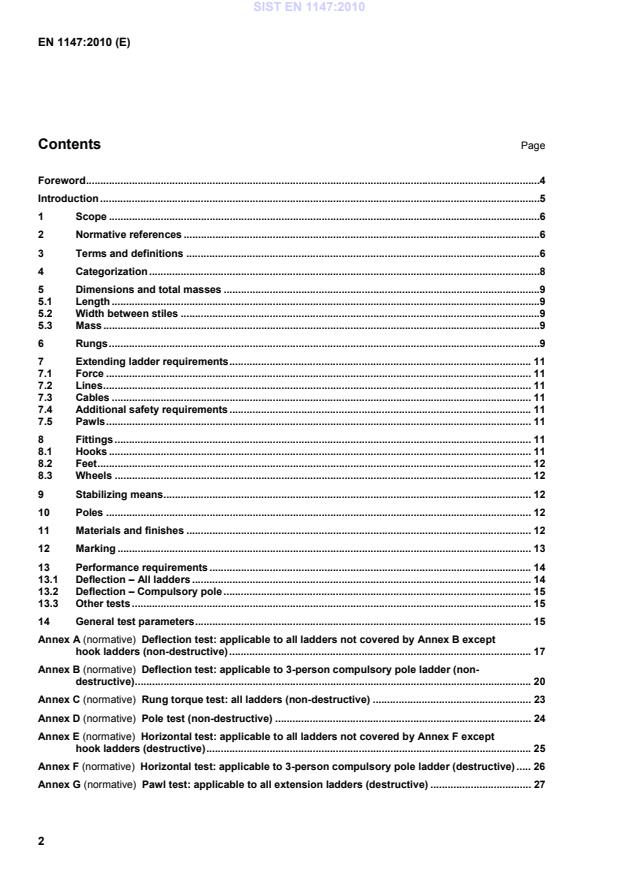

EN 1147:2010 (E) 2 Contents Page Foreword .4Introduction .51Scope .62Normative references .63Terms and definitions .64Categorization .85Dimensions and total masses .95.1Length .95.2Width between stiles .95.3Mass .96Rungs .97Extending ladder requirements . 117.1Force . 117.2Lines . 117.3Cables . 117.4Additional safety requirements . 117.5Pawls . 118Fittings . 118.1Hooks . 118.2Feet . 128.3Wheels . 129Stabilizing means. 1210Poles . 1211Materials and finishes . 1212Marking . 1313Performance requirements . 1413.1Deflection – All ladders . 1413.2Deflection – Compulsory pole . 1513.3Other tests . 1514General test parameters . 15Annex A (normative)
Deflection test: applicable to all ladders not covered by Annex B except hook ladders (non-destructive) . 17Annex B (normative)
Deflection test: applicable to 3-person compulsory pole ladder (non-destructive) . 20Annex C (normative)
Rung torque test: all ladders (non-destructive) . 23Annex D (normative)
Pole test (non-destructive) . 24Annex E (normative)
Horizontal test: applicable to all ladders not covered by Annex F except hook ladders (destructive) . 25Annex F (normative)
Horizontal test: applicable to 3-person compulsory pole ladder (destructive) . 26Annex G (normative)
Pawl test: applicable to all extension ladders (destructive) . 27SIST EN 1147:2010
EN 1147:2010 (E) 3 Annex H (normative)
Rescue ladder rung test: applicable to all rescue ladders (destructive) . 28Annex I (normative)
Access ladder rung test: applicable to all access ladders (destructive) . 29Annex J (normative)
Hook rung and ladder integrity test: for tip-loaded hooks (destructive) . 30Annex K (normative)
Hook rung and ladder integrity test: for mid-loaded hooks (destructive) . 31Annex L (normative)
Foot side strength test: ground standing ladders (destructive) . 32Annex M (informative)
Recommendations for test frequency, repair, servicing and design considerations . 33M.1Inspection and maintenance . 33M.2Non-destructive test schedule . 33M.3Design . 34Annex N (informative)
Information and recommendations for user safety . 35Annex O (informative)
A-deviations . 36Bibliography . 37 SIST EN 1147:2010
EN 1147:2010 (E) 4 Foreword This document (EN 1147:2010) has been prepared by Technical Committee CEN/TC 192 “Fire service equipment”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by November 2010, and conflicting national standards shall be withdrawn at the latest by November 2010. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 1147:2000. Annexes A, B, C, D, E, F, G, H, I, J, K and L are normative; Annexes M, N and O are informative. This European Standard contains A-deviations referring to Clauses 6 and 9. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
SIST EN 1147:2010
EN 1147:2010 (E) 5 Introduction This European Standard is based on the performance of portable fire and rescue service ladders in normal use and includes safety requirements. A safety factor of the order of 3:1 has been used and the mass of a firefighter including personal equipment and breathing apparatus has been taken as 108 kg. The standard sets out minimum and/or maximum values within which the customer may specify his own requirements. In preparing this standard it has been recognized that the operational use of portable ladders varies throughout Europe. SIST EN 1147:2010
EN 1147:2010 (E) 6 1 Scope This European Standard specifies requirements, test methods and performance criteria for portable ladders for fire and rescue service use and associated purposes. The tests in this European Standard are type tests and not periodical tests. Non-portable ladders for fire and rescue service use are excluded from this standard. NOTE For ladders for other uses see EN 131 (all parts). 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 131-2:1993, Ladders — Requirements, testing, marking 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 access ladder ladder designed for gaining access NOTE Access ladders are not recommended for rescue by carry-down or carry-up. 3.2 angle of pitch angle between the horizontal plane and the underside of the stiles of the ladder in use 3.3 cable wire rope for mechanically extending and housing an extension ladder 3.4 carry-down and carry-up lifting of the whole weight of another person 3.5 compulsory pole ladder ladder where the use of poles to support the ladder is mandatory 3.6 distance between rungs distance measured in the middle line between the stiles from the upper edge of a rung to the upper edge of an adjacent rung 3.7 extending ladder ladder consisting of two or more sliding sections SIST EN 1147:2010
EN 1147:2010 (E) 7 3.8 extending line rope for manually extending and housing extending ladder sections 3.9 foot, anti-skid device device fitted to the bottom of ladders to prevent slipping 3.10 hook ladder ladder which has (a) hook(s) from which it is suspended in use 3.11 internal ladder narrow ladder primarily for use inside buildings or restricted spaces 3.12 length overall distance measured from the bottom of the foot to the top of a ladder at its maximum length 3.13 mechanically operated extending ladder extending ladder where the upper parts are extended by mechanical means for example by extending lines or cables 3.14 multifunction ladder ladder which can be configured to serve more than one function 3.15 one-piece ladder ladder consisting of one section only 3.16 pawl load-bearing mechanism which holds the sections of an extending ladder in the extended position 3.17 pole device used for handling and/or support and to improve the stability of the ladder 3.18 pulley sheave wheel with a groove in its rim for a rope or cable 3.19 push-up extending ladder extending ladder where the upper parts are extended by hand 3.20 rescue ladder ladder designed for rescue by carry-down or carry-up 3.21 roof ladder ladder which follows the surface of a roof and has a hook which hooks over the ridge of the roof SIST EN 1147:2010
EN 1147:2010 (E) 8 3.22 rung horizontal climbing support with a walking surface attached to stiles to form a ladder 3.23 sectional ladder ladder consisting of several sections that can be fitted together by means of connection devices but the length can only be varied by one whole section at a time 3.24 stabilizing means device or part of the ladder the function of which is to improve the stability of the ladder in use 3.25 step in/step out distance between adjacent rung centres where ladder sections overlap 3.26 stile lateral part of a ladder which supports the rungs 3.27 stick ladder ladder with hinged rungs enabling the stiles to fold together 3.28 total mass mass of the ladder complete with all extras and fittings as specified 4 Categorization Ladders shall be categorized by their type, the maximum number of persons and mode of use (see Table 1). Table 1 — Ladder categories Type of ladder Maximum number of persons Mode of use Extending 3 Rescue and access 2 Rescue and access 1 Access Hook 1 Access One piece 3 Rescue and access 2 Rescue and access 1 Access Roof 1 Access Sectional 3 Rescue and access 2 Rescue and access 1 Access Stick 1 Access
NOTE For multifunction ladders reference should be made to the manufacturer's instructions. SIST EN 1147:2010
EN 1147:2010 (E) 9 5 Dimensions and total masses 5.1 Length The maximum length of a hook ladder shall be 5 000 mm. 5.2 Width between stiles 5.2.1 The minimum width between stiles for different types of ladder (see Figure 1) shall be: for roof ladders 240 mm; for hook ladders 170 mm; for stick and internal ladders 230 mm; for all other ladders 295 mm.
Figure 1 — Width between stiles 5.2.2 The maximum width between stiles on hook ladders shall be 250 mm. 5.3 Mass The mass for different types of ladders shall not be more than: 25 kg for a ladder operated by one person; 15 kg for hook ladders; 8 kg/m of overall length for all other ladders. 6 Rungs 6.1 The distance between rungs shall remain constant throughout a ladder except where the hook is attached on a hook ladder: for hook ladders the distance between rungs shall be a maximum of 365 mm and a minimum of 280 mm except for the rungs supporting the hook where the distance may be reduced to a minimum of 180 mm; for all other ladders the distance between rungs shall be a maximum of 305 mm and a minimum of 250 mm. 6.2 Rungs shall have a flat or arched non-slip tread surface. Where the non-slip tread surface is a rung covering, the covering shall not move (see also Annex O). 6.3 Roof ladder rungs shall have a flat or arched non-slip surface on all sides. SIST EN 1147:2010
EN 1147:2010 (E) 10 6.4 The minimum width/diameter for rungs shall be 25 mm except for wooden rungs where the minimum width shall be 20 mm. 6.5 Where ladder sections overlap, maximum step-in and step-out shall be 90 mm between adjacent rung centres (see Figure 2).
Figure 2 — Position of adjacent rung centres 6.6 Rungs shall be fitted with their tread surface perpendicular to the stile axis (see Figure 2). 6.7 For hook and roof ladders, the minimum clearance between the underside of a rung and a flat surface roof or wall shall be 50 mm in the user position (see Figures 3a) and 3b)) (see also Annex O).
a) Direct contact type
b) Stand-off bracket
Figure 3 — Roof/wall clearance SIST EN 1147:2010
EN 1147:2010 (E) 11 7 Extending ladder requirements 7.1 Force The force to fully extend the ladder shall not exceed 500 N for mechanically operated extending ladders and shall not exceed 260 N for push-up extending ladders. 7.2 Lines The minimum line diameter shall be 8 mm for ladders up to 260 N to extend and 14 mm for ladders between 260 N and 500 N to extend. Lines shall not obstruct the climbing of the ladder and, where they lie on the front face, a fitting shall be provided to secure the line. The line shall be attached to the ladder such that the surplus does not foul its operation. 7.3 Cables Cables shall have a: minimum breaking load of 2 845 N including its attachments; means of adjustment; closed eyes when used on cable attachments; pulley that is only removable by pulling it through the eye. 7.4 Additional safety requirements Ladders shall be designed and constructed so that it cannot be over-extended. When operating the ladder, it shall be designed and constructed in such a manner that if the rope is released in operation, the ladder shall stop or the section(s) shall be lowered in a controlled manner. NOTE Compliance with this section should be without affecting the continued safe operation of the ladder. 7.5 Pawls Pawls shall be fitted two to a section, to hold the ladder at any extension at which the section rungs coincide. Each pawl shall be capable of supporting the required loads (see Annex G) on its own.
NOTE 1 Pawls should be visible from the ground and when climbing the ladder. NOTE 2 Pawls should preferably be independent but may be linked if desired. 8 Fittings 8.1 Hooks Hooks, where fitted, shall conform to the following. SIST EN 1147:2010
EN 1147:2010 (E) 12 The tip of any hook shall be not less than 260 mm and not greater than 600 mm from the adjacent side of the ladder. Roof ladder hooks shall be constructed so as to minimize damage to the roof surface when the hook comes into contact with the roof. Where two hooks are fitted side by side the contact points shall be not less than 250 mm apart (see Figure 4).
Figure 4 — Measurement between contact points 8.2 Feet The parts of all types of ladders in contact with the ground shall have non-skid fitments. 8.3 Wheels The fitting of wheels to ladders shall be allowed where these are considered necessary for the safe and satisfactory operation of the ladder. NOTE Where wheels are fitted, they should have a resilient solid contact surface, should be able to withstand a temperature (in air) of 80 °C without malfunctioning and should be fitted to the ladder in such a way as to enable the ladder to roll up or roll down a wall or roof. 9 Stabilizing means All ladders over 11 m in length shall be fitted with stabilizing means, which may, for example, be in the form of a pole (see also Annex O). 10 Poles Poles designed to form an integral part of the stabilizing means and/or used for handling the ladder into position shall have a non-slip grip surface extending from the bottom of the pole (closed where telescopic) for a distance of 2 000 mm. Poles designed to form an integral part of the stabilizing means shall have non-slip feet at the bottom of each pole. NOTE Where poles are
...
