SLOVENSKI STANDARD
SIST EN 50520:2020
01-december-2020
Nadomešča:
SIST EN 50520:2009

Prekrivne plošče in folije za zaščito in opozarjanje na položaj kablov ali zasutih

kanalov v podzemnih napeljavah

Cover plates and cover tapes for the protection and location warning of buried cables or

buried conduits in underground installations
Abdeckplatten und –bänder zum Schutz und zur Warnkennzeichnung der Lage von
Kabeln oder erdverlegten Elektroinstallationsrohren in Unterbodeninstallationen

Plaques et bandes de protection pour la protection et le signalement des câbles enterrés

ou des conduits enterrés dans les installations sous terre
Ta slovenski standard je istoveten z: EN 50520:2020
ICS:
29.060.01 Električne žice in kabli na Electrical wires and cables in
splošno general
29.120.10 Inštalacijske cevi za Conduits for electrical
električne namene purposes
SIST EN 50520:2020 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 50520:2020
---------------------- Page: 2 ----------------------
SIST EN 50520:2020
EUROPEAN STANDARD EN 50520
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2020
ICS 29.120.10 Supersedes EN 50520:2009 and all of its amendments
and corrigenda (if any)
English Version
Cover plates and cover tapes for the protection and location
warning of buried cables or buried conduits in underground
installations

Plaques de protection et bandes de protection utilisées pour Abdeckplatten und -bänder zum Schutz und zur

protéger et avertir de la présence des câbles enterrés ou Warnkennzeichnung der Lage von Kabeln oder

des conduits enterrés dans les installations souterraines erdverlegten Elektroinstallationsrohren in

Unterbodeninstallationen

This European Standard was approved by CENELEC on 2020-09-14. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 50520:2020 E
---------------------- Page: 3 ----------------------
SIST EN 50520:2020
EN 50520:2020 (E)

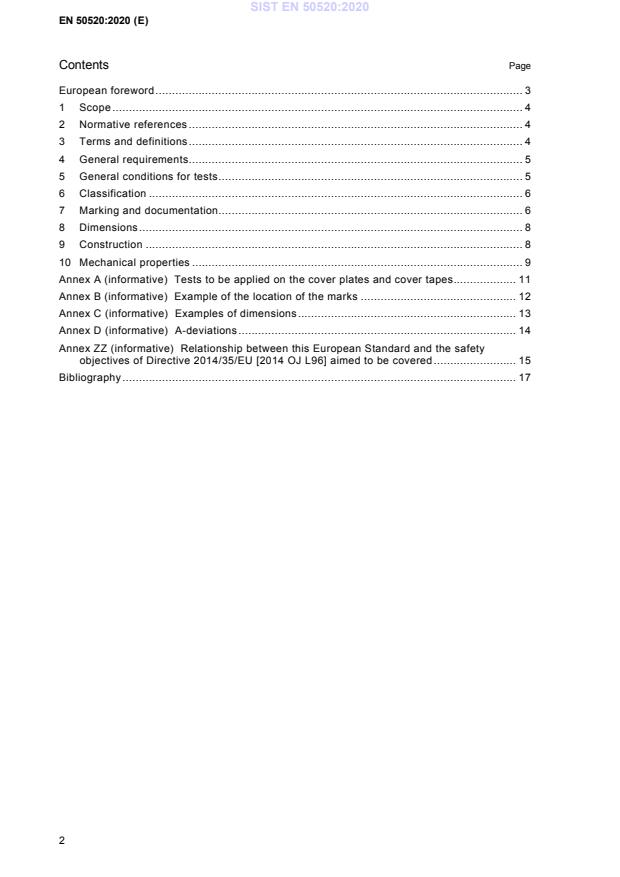

Contents Page

European foreword ............................................................................................................... 3

1 Scope ............................................................................................................................ 4

2 Normative references ..................................................................................................... 4

3 Terms and definitions ..................................................................................................... 4

4 General requirements ..................................................................................................... 5

5 General conditions for tests ............................................................................................ 5

6 Classification ................................................................................................................. 6

7 Marking and documentation ............................................................................................ 6

8 Dimensions .................................................................................................................... 8

9 Construction .................................................................................................................. 8

10 Mechanical properties .................................................................................................... 9

Annex A (informative) Tests to be applied on the cover plates and cover tapes ................... 11

Annex B (informative) Example of the location of the marks ............................................... 12

Annex C (informative) Examples of dimensions .................................................................. 13

Annex D (informative) A-deviations .................................................................................... 14

Annex ZZ (informative) Relationship between this European Standard and the safety

objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be covered ......................... 15

Bibliography ....................................................................................................................... 17

---------------------- Page: 4 ----------------------
SIST EN 50520:2020
EN 50520:2020 (E)
European foreword

This document (EN 50520:2020) has been prepared by CLC/TC 213, “Cable management systems”.

The following dates are fixed:
• latest date by which this document has to be (dop) 2021-09-14
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2023-09-14
conflicting with this document have to be
withdrawn

This document supersedes EN 50520:2009 and all of its amendments and corrigenda (if any).

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

A cover plate or a cover tape that conforms to this document is deemed to be safe for use.

This is a European Standard for cable management products used for electro-technical purposes. It relates

to the Council Directives on the approximation of laws, regulations and administrative provisions of the

Member States relating to Low Voltage Directive 2014/35/EU through consideration of the essential

requirements of this directive.
This document is supported by separate standards to which references are made.

This document has been prepared under a mandate given to CENELEC by the European Commission and

the European Free Trade Association, and supports essential requirements of EU Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this

document.
---------------------- Page: 5 ----------------------
SIST EN 50520:2020
EN 50520:2020 (E)
1 Scope

This document establishes the requirements and tests for cover plates and cover tapes used for the

mechanical protection, identification and warning of the location of buried cables or buried conduits.

NOTE This document does not apply to meshes and tapes falling under EN 12613.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes

requirements of this document. For dated references, only the edition cited applies. For undated references,

the latest edition of the referenced document (including any amendments) applies.

IEC 60417, Graphical symbols for use on equipment
ISO 3864 (series), Graphical symbols — Safety colours and safety signs
3 Terms and definitions
For the purpose of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
cover plate

plate with a defined length and width that are linked one to another and are located underground, above the

cables and/or conduits that are intended:

— to protect against mechanical damage to the underground cables and/or conduit installations; and

— to identify in a prominent manner the location of the underground cables and/or conduit installations

along their length and width
3.2
cover tape

tape with a defined width that are located underground, above the cables and/or conduits and that are

intended:

— to protect against mechanical damage to the underground cables and/or conduit installations; and

— to identify in a prominent manner the location of the underground cables and/or conduit installations

along their length and width
3.3
hygroscopic material

material having the characteristic of enabling attraction or holding water greater than 1,0 % by weight of the

material from the surrounding environment at 23 °C and 50 % relative humidity
---------------------- Page: 6 ----------------------
SIST EN 50520:2020
EN 50520:2020 (E)
4 General requirements

Cover plates and cover tapes shall be so designed and constructed that, when installed according to

manufacturer’s instructions, they provide mechanical protection and location warning of cables or conduits in

all their extension (length and width).
Compliance is checked by carrying out all the tests specified.

Products made of hygroscopic material shall fulfil requirements of 5.3 before testing.

Compliance is checked by inspection of raw material supplier’s data sheet.
5 General conditions for tests
5.1 Test conditions
Tests according to this document are type tests.

NOTE Annex A provides an overview of the tests to be applied on the cover plates and cover tapes.

Unless otherwise specified, the samples are tested as delivered and under normal conditions of use,

according to the manufacturer’s instructions.

Unless otherwise specified, the tests are carried out in the order of the clauses, at an ambient temperature

between 15 °C and 35 °C.
In case of doubt, the tests are made at an ambient temperature of (20 ± 5) °C.
5.2 Samples
Unless otherwise specified, each test is made on three new samples.

NOTE Certain tests, for instance the checking of dimensions, do not affect a change in the property of the samples;

therefore these samples are considered as new samples and can be used for further tests.

5.3 Conditioning

Samples made of hygroscopic material shall be conditioned for at least 240 h, at a temperature of (23 ± 2)

°C and a relative humidity between 90 % and 95 %. All tests shall be carried out immediately after this

conditioning.
5.4 Validation of the results

The samples are submitted to all the relevant tests and the requirements are satisfied if all the tests are met.

If one sample does not satisfy a test due to an assembly or a manufacturing fault, that test and any

preceding one that could have influenced the results of the test shall be repeated, and also the tests that

follow shall be carried out in the required sequence on another full set of samples, all of which shall comply

with the requirements.

NOTE The applicant can submit, together with a number of samples specified in 5.2, the additional set of samples

that could be required, should one sample fail. The testing station will then, without further request, test the additional

samples and will only reject them if a further failure occurs. If the additional set of samples is not submitted at the same

time, the failure of one sample will entail rejection.

When toxic or hazardous processes are used, due regard shall be given to the safety of the persons within

the test area.
---------------------- Page: 7 ----------------------
SIST EN 50520:2020
EN 50520:2020 (E)
6 Classification
6.1 According to material
6.1.1 Hygroscopic material
6.1.2 Non hygroscopic material
6.2 According to the temperature

The minimum temperature of transport, storage, installation and application is given in Table 1.

Table 1 — Minimum transport, storage installation and application temperature
Temperature
-15
-20
-25
-45
7 Marking and documentation
7.1 Cover plates and cover tapes shall be marked with:
— name, sign or trademark of the manufacturer or responsible vendor;

— a product identification mark which may be, for example, a catalogue number, a symbol or the like

— the reference to this document;
— the following notice:
— a warning, as for example ATTENTION or PRECAUTION;

— for the cover plates and cover tapes intended for protection and signalling of electric cables or

conduits for electric cables buried underground:

the warning sign for dangerous voltage as specified in IEC 60417 (code 5036), inside an

advertisement sign as specified on ISO 3864 (series), and the message ELECTRIC CABLES;

— for cover plates and cover tapes intended for protecting and indicating the presence of information

and communication
...
