SIST EN 12068:1999

Cathodic protection - External organic coatings for the corrosion protection of burried or immersed steel pipelines used in conjunction with cathodic protection - Tapes and shrinkable materials

This standard specifies the functional requirements and test methods for external organic coatings based on tapes or shrinkable materials to be used for corrosion protection of buried and immersed steel pipelines in conjunction with cathodic protection. It classifies coatings by increasing mechanical resistance and operating temperatures. Coatings for special installation conditions are also considered. A comprehensive classification of coatings in relation to functional requirements is defined.

Kathodischer Korrosionsschutz - Organische Umhüllungen für den Korrosionsschutz von in Böden und Wässern verlegten Stahlrohrleitungen im Zusammenwirken mit kathodischem Korrosionsschutz - Bänder und schrumpfende Materialien

Diese Europäische Norm legt die Funktionsanforderungen und Prüfverfahren für organische Umhüllungen aus Bändern oder schrumpfenden Materialien für den Korrosionsschutz in Böden oder Wässern verlegter Stahlrohrleitungen im Zusammenwirken mit kathodischem Korrosionsschutz fest. Sie klassifiziert Umhüllungen nach steigendem Widerstand gegen mechanische Belastung und nach Betriebstemperaturen. Umhüllungen für spezielle Verarbeitungsbedingungen sind ebenfalls berücksichtigt. Festgelegt ist eine umfassende Klasseneinteilung mit Bezug auf Funktionsanforderungen.

Protection cathodique - Revetements organiques extérieurs pour la protection contre la corrosion de tubes en acier enterrés ou immergés en conjonction avec la protection cathodique - Bandes et matériaux rétractables

La présente norme spécifie les exigences de caractéristiques fonctionnelles et les méthodes d'essais des revêtements organiques extérieurs pour forme de bandes ou de matériaux rétractables pour la protection contre la corrosion des tubes en acier enterrés ou immergés en conjonction avec la protection cathodique. Elle classifie les revêtements par ordre croissant de résistance mécanique et de températures de service. Elle concerne également les revêtements pour conditions d'installation spéciales. Une classification claire est établie par rapport aux exigences fonctionnelles.

Katodna zaščita - Organske prevleke za zunanjo antikorozijsko zaščito skupaj s katodno zaščito na jeklenih cevovodih v zemlji ali v vodi - Toplotno skrčljivi trakovi in materiali

General Information

• Status: Published
• Publication Date: 30-Sep-1999
• ICS: 23.040.10 - Iron and steel pipes
• ICS: 25.220.60 - Organic coatings
• Technical Committee: IPKZ - Protection of metals against corrosion
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Oct-1999
• Due Date: 01-Oct-1999
• Completion Date: 01-Oct-1999
• Directive: TP075 - Pravilnik o tehničnih pogojih za graditev, obratovanje in vzdrževanje plinovodov z delovnim tlakom nad 16 barov ter o pogojih za posege v območjih njihovih varovalnih pasov
• Ref Project: EN 12068:1998 - Cathodic protection - External organic coatings for the corrosion protection of burried or immersed steel pipelines used in conjunction with cathodic protection - Tapes and shrinkable materials

Overview

EN 12068:1998 is a CEN standard defining functional requirements and test methods for external organic coatings based on tapes and shrinkable materials used for the corrosion protection of buried or immersed steel pipelines in conjunction with cathodic protection. The standard establishes a comprehensive classification system that groups coatings by increasing mechanical resistance and permitted operating temperatures, and it addresses coatings intended for special installation conditions.

Key topics and technical requirements

• Functional requirements for external organic coatings when used with cathodic protection systems (compatibility, barrier performance, and durability).
• Test methods to verify coating performance under relevant mechanical and environmental stresses (mechanical resistance, adhesion, and temperature performance are covered by the standard’s test regime).
• Classification scheme that ranks tape and shrinkable material systems by mechanical resistance and maximum operating temperature to guide selection for specific pipeline conditions.
• Special installation conditions considerations for coatings designed for unusual environments (e.g., extreme temperatures, aggressive soils, or immersion).
• Documentation and marking expectations to ensure traceability and correct application (manufacturer information, system class, and intended use).

Applications

EN 12068:1998 is applicable to a wide range of steel pipeline protection scenarios where organic tape or heat-shrink systems are used together with cathodic protection:

• Buried transmission pipelines for oil, gas, water and district heating
• Immersed or submerged pipelines in rivers, lakes or marine environments
• Pipeline repair and joint protection using tape wraps or shrink sleeves
• Specified projects that require coordinated barrier coatings plus cathodic protection for long-term corrosion control

Who uses this standard

• Pipeline engineers and designers selecting external coating systems compatible with cathodic protection
• Coating manufacturers developing tape and shrinkable materials for pipeline use
• Contractors and field installers applying external wrap systems and shrink sleeves
• Inspection and maintenance teams assessing coating condition and compliance
• Procurement and quality assurance teams specifying materials and verifying test results

Related standards

Complementary standards typically address cathodic protection practice, material specifications and test procedures for pipeline systems. For complete specification and project compliance, EN 12068:1998 should be used together with other relevant CEN/ISO standards on pipeline materials, cathodic protection design and corrosion testing.

Keywords: EN 12068:1998, cathodic protection, external organic coatings, tapes and shrinkable materials, corrosion protection, buried pipelines, immersed pipelines, coating classification, test methods.

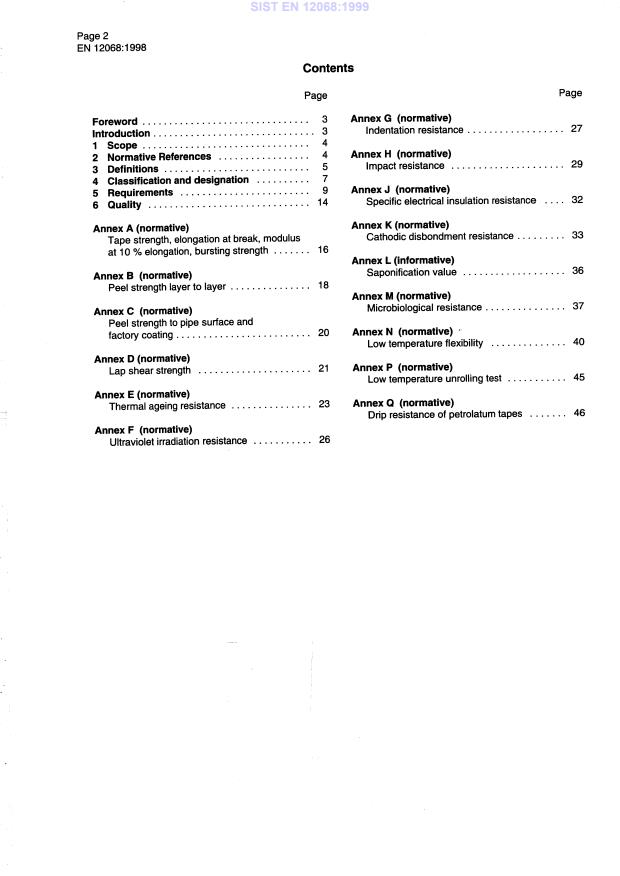

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kathodischer Korrosionsschutz - Organische Umhüllungen für den Korrosionsschutz von in Böden und Wässern verlegten Stahlrohrleitungen im Zusammenwirken mit kathodischem Korrosionsschutz - Bänder und schrumpfende MaterialienProtection cathodique - Revetements organiques extérieurs pour la protection contre la corrosion de tubes en acier enterrés ou immergés en conjonction avec la protection cathodique - Bandes et matériaux rétractablesCathodic protection - External organic coatings for the corrosion protection of burried or immersed steel pipelines used
in conjunction with cathodic protection - Tapes and shrinkable materials25.220.60Organske prevlekeOrganic coatings23.040.10Železne in jeklene ceviIron and steel pipesICS:Ta slovenski standard je istoveten z:EN 12068:1998SIST EN 12068:1999en01-oktober-1999SIST EN 12068:1999SLOVENSKI
STANDARD
S
...
