EN 60704-2-5:2005 (adopting IEC 60704-2-5:2005) is the Part 2-5 supplement to the airborne acoustical noise test code for electric thermal storage room heaters. It specifies particular requirements for noise testing of forced‑convection storage heaters designed for floor placement, wall‑mounting or building‑in. The Part 2-5 document is intended to be used together with EN/IEC 60704-1 (general requirements) and focuses on practical, reproducible determination of airborne noise from these appliances.

Key topics and technical requirements

• Scope: Applies to electric thermal storage room heaters with forced convection; excludes natural‑convection controlled output heaters, free‑output heaters and central storage systems or parts.
• Measurement methods: Recommends use of ISO 3743‑1, ISO 3743‑2 and ISO 3744 for direct and comparison methods; notes special precautions when pure tones are present (see ISO 3743‑2).
• Frequency range: Sound power determination covers octave bands with centre frequencies from 63 Hz to 8 000 Hz (with special attention to room effects at 63 Hz).
• Test conditions:
  • Noise measurements are performed without heating (noise source is primarily the fan; heating cycles are long and may overheat test room/equipment).
  • Appliances must be assembled as the manufacturer specifies; air paths, louvers and filters must be clean.
  • Preconditioning: fans/blowers should run for at least 1 hour at the highest normal speed prior to noise measurement; filters may be removed during running‑in.
• Uncertainty and repeatability:
  • Estimated standard deviations for sound power: σ (repeatability) = 0.4 dB, σ (reproducibility) = 1.0 dB.
  • For declaration/verification (per IEC 60704‑3): production σ ≈ 0.7–1.1 dB, total σ ≈ 1.2–1.5 dB, reference σ ≈ 2.0 dB.
• Reporting: Specifies required measurement, calculation and reporting elements to ensure comparable results between laboratories.

Practical applications

• Type testing and product development to quantify fan and aerodynamic noise.
• Certification, product noise declaration and verification for compliance with noise labeling or procurement specifications.
• Comparative laboratory testing, quality control and production testing programs.
• Useful to HVAC and appliance manufacturers, independent acoustic test laboratories, regulatory bodies and procurement engineers.

Who uses this standard

• Appliance manufacturers (R&D and compliance teams)
• Accredited acoustical testing laboratories
• Regulatory authorities and conformity assessment bodies
• Product designers and procurement/specification engineers

Related standards

• EN/IEC 60704-1 - General requirements for airborne noise testing
• IEC 60704-3 - Noise declaration and verification procedures
• ISO 3743-1 / ISO 3743-2 / ISO 3744 - Reference methods for sound power and sound pressure measurements
• IEC 60531 - Definitions for thermal storage heaters

Keywords: EN 60704-2-5, IEC 60704-2-5, electric thermal storage room heaters, airborne acoustical noise, noise measurement, sound power, forced convection, ISO 3743, ISO 3744, test code.

Standards Content (Sample)

SLOVENSKI SIST EN 60704-2-5:2006

STANDARD
may 2006
Gospodinjski in podobni električni aparati – Postopek preskušanja za
ugotavljanje zvočnega hrupa v zraku – 2-5. del: Posebne zahteve za električne
termoakumulacijske grelnike prostorov (IEC 60704-2-5:2005)
Household and similar electrical appliances - Test code for the determination of
airborne acoustical noise - Part 2-5: Particular requirements for electric thermal
storage room heaters (IEC 60704-2-5:2005)
ICS 17.140.20; 97.100.10 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 60704-2-5
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2005

ICS 17.140.20; 97.100.10 Supersedes EN 60704-2-5:1994

English version
Household and similar electrical appliances –
Test code for the determination of airborne acoustical noise
Part 2-5: Particular requirements for electric thermal storage room heaters
(IEC 60704-2-5:2005)
Appareils électrodomestiques  Elektrische Geräte für den Hausgebrauch
et analogues – und ähnliche Zwecke –
Code d'essai pour la détermination Prüfvorschrift für die Bestimmung
du bruit aérien der Luftschallemission
Partie 2-5: Règles particulières Teil 2-5: Besondere Anforderungen
pour les appareils électriques an Speicherheizgeräte
de chauffage des locaux à accumulation (IEC 60704-2-5:2005)
(CEI 60704-2-5:2005)
This European Standard was approved by CENELEC on 2005-09-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60704-2-5:2005 E

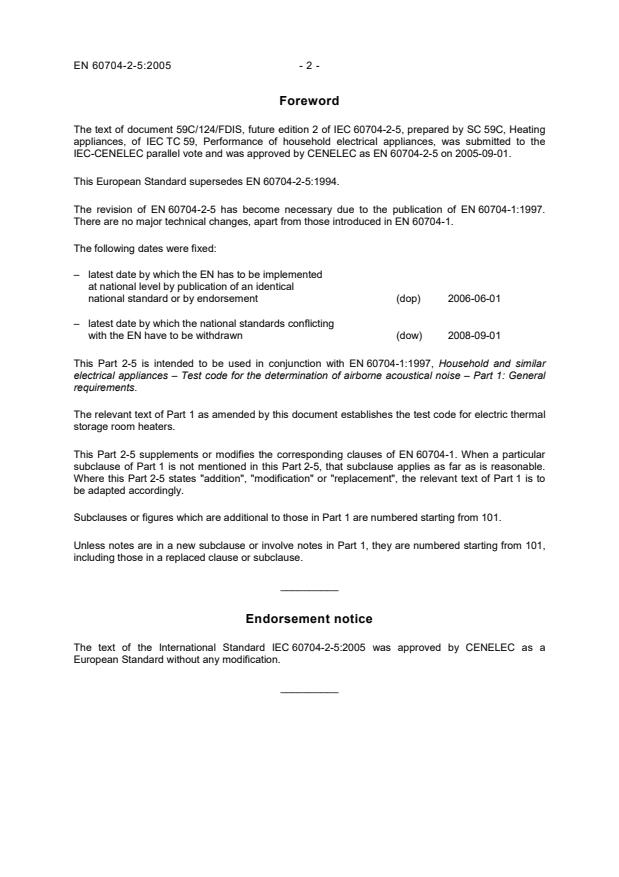

Foreword
The text of document 59C/124/FDIS, future edition 2 of IEC 60704-2-5, prepared by SC 59C, Heating
appliances, of IEC TC 59, Performance of household electrical appliances, was submitted to the
IEC-CENELEC parallel vote and was approved by CENELEC as EN 60704-2-5 on 2005-09-01.
This European Standard supersedes EN 60704-2-5:1994.
The revision of EN 60704-2-5 has become necessary due to the publication of EN 60704-1:1997.
There are no major technical changes, apart from those introduced in EN 60704-1.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2006-06-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2008-09-01
This Part 2-5 is intended to be used in conjunction with EN 60704-1:1997, Household and similar
electrical appliances – Test code for the determination of airborne acoustical noise – Part 1: General
requirements.
The relevant text of Part 1 as amended by this document establishes the test code for electric thermal
storage room heaters.
This Part 2-5 supplements or modifies the corresponding clauses of EN 60704-1. When a particular
subclause of Part 1 is not mentioned in this Part 2-5, that subclause applies as far as is reasonable.
Where this Part 2-5 states "addition", "modification" or "replacement", the relevant text of Part 1 is to
be adapted accordingly.
Subclauses or figures which are additional to those in Part 1 are numbered starting from 101.
Unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101,
including those in a replaced clause or subclause.
__________
Endorsement notice
The text of the International Standard IEC 60704-2-5:2005 was approved by CENELEC as a
European Standard without any modification.
__________
