Fixed firefighting systems - Hose systems - Part 2: Hose systems with lay-flat hose

This European Standard specifies requirements and methods of test for the construction and performance of fire hose reel systems with lay-flat hose for installation in buildings, permanently connected to a water supply, for use by the occupants.
Furthermore, it provides also for requirements on evaluation of conformity and marking of these products.
Its requirements may apply in general for other applications, for example in marine applications or in aggressive environments, but additional requirements may be necessary in such cases.

Ortfeste Löschanlagen - Wandhydranten - Teil 2: Wandhydranten mit Flachschläuchen

Diese Europäische Norm legt Anforderungen und Prüfverfahren für Bauart und Ausführung von Wandhydranten mit Flachschlauch zum Einbau in Gebäuden fest, die fest mit der Wasserzufuhr verbunden und zum Gebrauch durch jede Person bestimmt sind. Weiterhin sind Anforderungen an die Bewertung der Konformität und an die Kennzeichnung dieser Produkte enthalten. Die Anforderungen dieser Norm dürfen in der Regel auch für andere Anwendungen zugrunde gelegt werden, zum Beispiel im Schiffbau oder bei aggressivem Umfeld, in diesen Fällen können jedoch zusätzliche Anforderungen notwendig sein.

Installations fixes de lutte contre l'incendie - Systèmes équipeés de tuyaux - Partie 2: Postes d'eau muraux équipés de tuyaux plats

La présente Norme européenne prescrit les exigences et méthodes d'essais de fabrication et de
performances des postes d'eau muraux équipés de tuyaux plats, destinés à être installés dans des bâtiments
raccordés en permanence à une alimentation en eau, pour être utilisés par les occupants.
Elle spécifie également des exigences applicables à l’évaluation de la conformité et au marquage de ces
produits.
Ses exigences peuvent concerner d'autres cas, par exemple les applications en atmosphères marines ou
corrosives ; dans ces cas, des exigences supplémentaires peuvent s’avérer nécessaires.

Vgrajeni gasilni sistemi - Cevni sistemi - 2. del: Cevni koluti s plosko cevjo

Ta evropski standard določa zahteve in preskusne metode za sestavo in lastnosti sistemov požarnih cevnih kolutov s plosko cevjo za namestitev v stavbah, ki so trajno priključeni na oskrbo z vodo in so namenjeni uporabnikom stavbe. Prav tako določa zahteve glede vrednotenja skladnosti in označevanja teh izdelkov. Zahteve standarda lahko na splošno veljajo tudi na drugih področjih, na primer v pomorstvu ali v agresivnih okoljih, vendar so v takšnih primerih morda potrebne dodatne zahteve.

General Information

Status
Published
Public Enquiry End Date
29-Nov-2011
Publication Date
03-Jun-2012
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
26-Apr-2012
Due Date
01-Jul-2012
Completion Date
04-Jun-2012

RELATIONS

Buy Standard

Standard
SIST EN 671-2:2012
English language
36 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 671-2:2012
01-julij-2012
1DGRPHãþD
SIST EN 671-2:2001
SIST EN 671-2:2001/A1:2004
Vgrajeni gasilni sistemi - Cevni sistemi - 2. del: Cevni koluti s plosko cevjo

Fixed firefighting systems - Hose systems - Part 2: Hose systems with lay-flat hose

Ortfeste Löschanlagen - Wandhydranten - Teil 2: Wandhydranten mit Flachschläuchen

Installations fixes de lutte contre l'incendie - Systèmes équipeés de tuyaux - Partie 2:

Postes d'eau muraux équipés de tuyaux plats
Ta slovenski standard je istoveten z: EN 671-2:2012
ICS:
13.220.10 Gašenje požara Fire-fighting
23.040.70 Gumene cevi in armature Hoses and hose assemblies
SIST EN 671-2:2012 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 671-2:2012
---------------------- Page: 2 ----------------------
SIST EN 671-2:2012
EUROPEAN STANDARD
EN 671-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2012
ICS 13.220.10 Supersedes EN 671-2:2001
English Version
Fixed firefighting systems - Hose systems - Part 2: Hose
systems with lay-flat hose

Installations fixes de lutte contre l'incendie - Systèmes Ortsfeste Löschanlagen - Wandhydranten - Teil 2:

équipés de tuyaux - Partie 2: Postes d'eau muraux équipés Wandhydranten mit Flachschlauch

de tuyaux plats
This European Standard was approved by CEN on 9 March 2012.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national

standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same

status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 671-2:2012: E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 671-2:2012
EN 671-2:2012 (E)

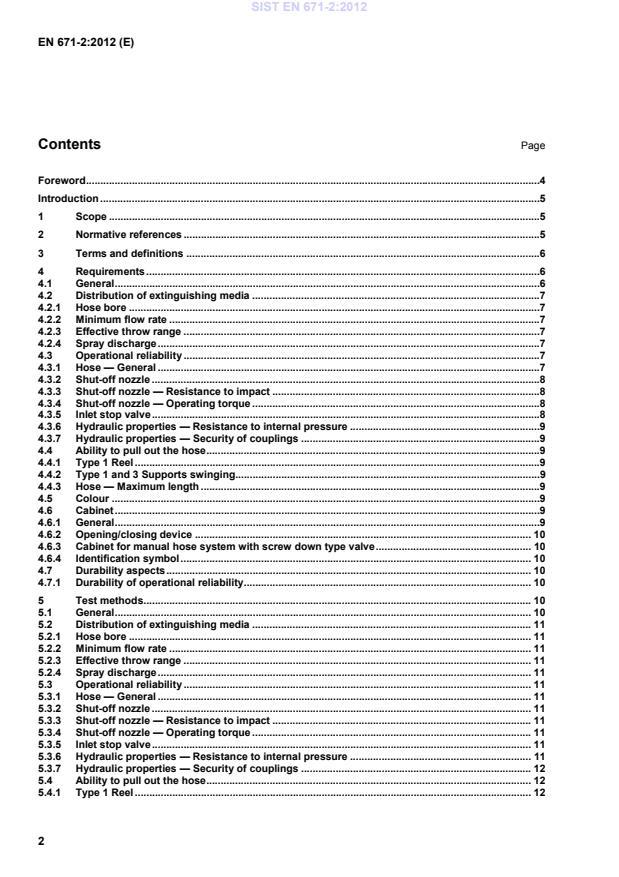

Contents Page

Foreword ..............................................................................................................................................................4

Introduction .........................................................................................................................................................5

1 Scope ......................................................................................................................................................5

2 Normative references ............................................................................................................................5

3 Terms and definitions ...........................................................................................................................6

4 Requirements .........................................................................................................................................6

4.1 General ....................................................................................................................................................6

4.2 Distribution of extinguishing media ....................................................................................................7

4.2.1 Hose bore ...............................................................................................................................................7

4.2.2 Minimum flow rate .................................................................................................................................7

4.2.3 Effective throw range ............................................................................................................................7

4.2.4 Spray discharge .....................................................................................................................................7

4.3 Operational reliability ............................................................................................................................7

4.3.1 Hose — General .....................................................................................................................................7

4.3.2 Shut-off nozzle .......................................................................................................................................8

4.3.3 Shut-off nozzle — Resistance to impact .............................................................................................8

4.3.4 Shut-off nozzle — Operating torque ....................................................................................................8

4.3.5 Inlet stop valve .......................................................................................................................................8

4.3.6 Hydraulic properties — Resistance to internal pressure ..................................................................9

4.3.7 Hydraulic properties — Security of couplings ...................................................................................9

4.4 Ability to pull out the hose ....................................................................................................................9

4.4.1 Type 1 Reel .............................................................................................................................................9

4.4.2 Type 1 and 3 Supports swinging ..........................................................................................................9

4.4.3 Hose — Maximum length ......................................................................................................................9

4.5 Colour .....................................................................................................................................................9

4.6 Cabinet ....................................................................................................................................................9

4.6.1 General ....................................................................................................................................................9

4.6.2 Opening/closing device ..................................................................................................................... 10

4.6.3 Cabinet for manual hose system with screw down type valve ...................................................... 10

4.6.4 Identification symbol .......................................................................................................................... 10

4.7 Durability aspects ............................................................................................................................... 10

4.7.1 Durability of operational reliability.................................................................................................... 10

5 Test methods ....................................................................................................................................... 10

5.1 General ................................................................................................................................................. 10

5.2 Distribution of extinguishing media ................................................................................................. 11

5.2.1 Hose bore ............................................................................................................................................ 11

5.2.2 Minimum flow rate .............................................................................................................................. 11

5.2.3 Effective throw range ......................................................................................................................... 11

5.2.4 Spray discharge .................................................................................................................................. 11

5.3 Operational reliability ......................................................................................................................... 11

5.3.1 Hose — General .................................................................................................................................. 11

5.3.2 Shut-off nozzle .................................................................................................................................... 11

5.3.3 Shut-off nozzle — Resistance to impact .......................................................................................... 11

5.3.4 Shut-off nozzle — Operating torque ................................................................................................. 11

5.3.5 Inlet stop valve .................................................................................................................................... 11

5.3.6 Hydraulic properties — Resistance to internal pressure ............................................................... 11

5.3.7 Hydraulic properties — Security of couplings ................................................................................ 12

5.4 Ability to pull out the hose ................................................................................................................. 12

5.4.1 Type 1 Reel .......................................................................................................................................... 12

---------------------- Page: 4 ----------------------
SIST EN 671-2:2012
EN 671-2:2012 (E)

5.4.2 Type 1 and Type 3 Supports swinging .............................................................................................. 12

5.4.3 Hose — Maximum length .................................................................................................................... 12

5.5 Colour ................................................................................................................................................... 12

5.6 Cabinet.................................................................................................................................................. 12

5.7 Durability aspects ................................................................................................................................ 12

5.7.1 Durability of operational reliability .................................................................................................... 12

6 Evaluation of conformity .................................................................................................................... 13

6.1 General ................................................................................................................................................. 13

6.2 Initial Type Testing — Type Testing .................................................................................................. 13

6.2.1 General ................................................................................................................................................. 13

6.2.2 Test samples ........................................................................................................................................ 14

6.2.3 Test reports .......................................................................................................................................... 14

6.3 Factory Production Control (FPC) ..................................................................................................... 14

6.3.1 General ................................................................................................................................................. 14

6.3.2 Requirements ....................................................................................................................................... 14

6.3.3 Product specific requirements ........................................................................................................... 16

6.3.4 Initial inspection of factory and of FPC ............................................................................................. 17

6.3.5 Continuous surveillance of FPC ........................................................................................................ 18

6.3.6 Procedure for modifications............................................................................................................... 18

6.3.7 One-off products, pre-production products (e.g. prototypes) and products produced in

very low quantity ................................................................................................................................. 18

7 Marking ................................................................................................................................................. 19

8 Instruction ............................................................................................................................................ 19

8.1 Instructions for use ............................................................................................................................. 19

8.2 Installation and maintenance instructions ....................................................................................... 20

Annex A (normative) Schedule for testing sequence ................................................................................... 21

Annex B (normative) Test method for resistance to external corrosion .................................................... 22

Annex C (normative) Ageing test for plastics materials ............................................................................... 23

Annex D (normative) Test method for resistance to corrosion of waterways ............................................ 24

Annex E (normative) Test methods for shut-off nozzle ................................................................................ 25

E.1 Resistance to impact ........................................................................................................................... 25

E.2 Operating torque ................................................................................................................................. 25

E.3 Spray discharge ................................................................................................................................... 25

E.4 Flow rate and throw range .................................................................................................................. 27

E.4.1 Flow rate ............................................................................................................................................... 27

E.4.2 Throw range ......................................................................................................................................... 28

Annex F (normative) Test method for resistance to internal pressure ....................................................... 29

Annex ZA (informative) Clauses of this European Standard addressing the provisions of EU

Construction Products Directive ....................................................................................................... 30

ZA.1 Scope and relevant characteristics ................................................................................................... 30

ZA.2 Procedure for the attestation of conformity of hose systems with lay-flat hose ......................... 32

ZA.2.1 System of attestation of conformity .................................................................................................. 32

ZA.2.2 EC certificate of conformity................................................................................................................ 34

ZA.3 CE marking and labelling.................................................................................................................... 34

---------------------- Page: 5 ----------------------
SIST EN 671-2:2012
EN 671-2:2012 (E)
Foreword

This document (EN 671-2:2012) has been prepared by Technical Committee CEN/TC 191 “Fixed firefighting

systems”, the secretariat of which is held by BSI.

This document shall be given the status of a national standard, either by publication of an identical text or by

endorsement, at the latest by October 2012 and conflicting national standards shall be withdrawn at the latest

by January 2014.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 671-2:2001.

EN 671-2:2001 has been technically revised and editorial edited. The order of clauses has been changed.

Annex ZA has been updated.

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association, and supports essential requirements of EU Directive(s).

For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.

For convenience of application in testing, the normative annexes of this European Standard are arranged so

that Annex A gives the sequence of testing for conformity assessment and Annexes B, C, D, E and F are in

the correct sequence for testing.

EN 671 has the general title “Fixed firefighting systems — Hose systems” and is in three parts:

 Part 1: Hose reels with semi-rigid hose;
 Part 2: Hose systems with lay-flat hose;

 Part 3: Maintenance of hose reels with semi-rigid hose and hose systems with lay-flat hose.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following

countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech

Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,

Sweden, Switzerland, Turkey and the United Kingdom.
---------------------- Page: 6 ----------------------
SIST EN 671-2:2012
EN 671-2:2012 (E)
Introduction

Fire hose systems in proper condition provide a very effective firefighting facility with a continuous supply of

water available immediately.

The requirements of this European Standard have been specified to ensure that hose system can be operated

efficiently by one person and that such systems have a long service life.
1 Scope

This European Standard specifies requirements and methods of test for the construction and performance of

fire hose reel systems with lay-flat hose for installation in buildings, permanently connected to a water supply,

for use by the occupants.

Furthermore, it provides also for requirements on evaluation of conformity and marking of these products.

Its requirements may apply in general for other applications, for example in marine applications or in

aggressive environments, but additional requirements may be necessary in such cases.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated references,

the latest edition of the referenced document (including any amendments) applies.

EN 671-3, Fixed firefighting systems — Hose systems — Part 3: Maintenance of hose reels with semi-rigid

hose and hose systems with lay-flat hose
EN 14540, Fire-fighting hoses — Non-percolating layflat hoses for fixed systems

EN ISO 4892-2:2006, Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc amps

(ISO 4892-2:2006)

ISO 7-1, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances

and designation

EN ISO 9227:2006, Corrosion tests in artificial atmospheres — Salt spray tests (ISO 9227:2006)

ISO 5208, Industrial valves — Pressure testing of metallic valves

ISO 7010, Graphical symbols — Safety colours and safety signs — Registered safety signs

---------------------- Page: 7 ----------------------
SIST EN 671-2:2012
EN 671-2:2012 (E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
cabinet
box to protect the hose system against environmental or physical damage
3.2
coupling
device used to connect the hose to the valve and to the shut-off nozzle
3.3
fire hose system; hose system

firefighting appliance consisting essentially of a cabinet or cover, hose support, manual stop valve, lay-flat

hose with couplings, shut-off nozzle
3.4
hose support
device used to hold the hose and shall be one of the following types:
 Type 1: rotating reel;
 Type 2: cradle with the hose double coiled;
 Type 3: hose basket with the hose flaked
3.5
lay-flat hose
hose which is flat-sectioned except when it is internally pressurized
3.6
maximum working pressure
maximum allowable pressure for which the hose system is designed

Note 1 to entry: All pressures are gauge pressures and are expressed in Mega Pascal (1 MPa = 10 bar).

[SOURCE: EN 671-1:2012]
3.7
shut-off nozzle

component, at the end of the hose, used to direct and control the discharge of water

[SOURCE: EN 671-1:2012]
4 Requirements
4.1 General

Conformity with the requirements given in this Clause 4 shall be verified by testing in accordance with

Clause 5.
---------------------- Page: 8 ----------------------
SIST EN 671-2:2012
EN 671-2:2012 (E)
4.2 Distribution of extinguishing media
4.2.1 Hose bore
The inside diameter of the hose shall be maximum 52 mm.
4.2.2 Minimum flow rate
The flow rates in jet and spray settings shall be according to Table 1.
Table 1 — Minimum flow rates and minimum K-coefficient according to pressure
Nozzle- or Minimum flow rate Q K-coefficient
equivalent
l/min
diameter
mm P = 0,2 MPa P = 0,4 MPa P = 0,6 MPa
9 65 92 113 46
10 78 110 135 55
11 96 136 167 68
12 102 144 176 72
13 120 170 208 85

Flow rate Q at a pressure P is related to the equation Q = K 10P , where Q is in l/min and P is in MPa.

4.2.3 Effective throw range

The effective throw ranges of the discharges at a pressure of 0,2 MPa shall not be less than as follows (as

appropriate):
a) jet discharge: 10 m;
b) sheet spray discharge: 6 m;
c) conical spray discharge: 3 m.
4.2.4 Spray discharge
Nozzles with a spray setting shall give a spray angle as follows:
a) sheet spray: 90° ± 5°;
b) conical spray: not less than 45°.
4.3 Operational reliability
4.3.1 Hose — General
The hose shall be lay-flat and according to EN 14540.
---------------------- Page: 9 ----------------------
SIST EN 671-2:2012
EN 671-2:2012 (E)
4.3.2 Shut-off nozzle
4.3.2.1 General

The hose shall terminate in a shut-off nozzle, which shall give the following control settings:

a) shut;
b) spray;
c) jet.

It is recommended that the sequence should be as above with the spray setting between the shut setting and

the jet setting.

Any spray discharge shall be in the form of either a sheet spray or a conical spray.

Trigger operated shut-off nozzles shall be self closing.
4.3.2.2 Marking of control condition — Rotary operated nozzles

Rotary operated nozzles shall be marked to show the direction of closing and opening.

4.3.2.3 Marking of control conditions — Lever and trigger operated nozzles
Lever and trigger operated nozzles shall be marked to show the settings for:
a) shut;
b) spray;
c) jet.
4.3.3 Shut-off nozzle — Resistance to impact
The nozzle shall not break or show any visible leakage.
4.3.4 Shut-off nozzle — Operating torque

The torque necessary to operate the nozzle to each control setting (i.e. operating, spray, jet or flow rate

control) at maximum working pressure shall not exceed 7 Nm.
4.3.5 Inlet stop valve
A manual stop valve shall be fitted to the hose system.
The valve shall be screw down or other slow-opening type.
The inlet shall be threaded according to ISO 7-1.

The inlet and outlet shall form an angle of not less than 90° and not more than 135°.

The valve shall be closed by turning the handle in a clockwise direction and the direction of opening shall be

marked.

When tested in accordance with ISO 5208 for a maximum working pressure of 1,2 MPa the valve shall

conform to the appropriate requirements.
---------------------- Page: 10 ----------------------
SIST EN 671-2:2012
EN 671-2:2012 (E)
4.3.6 Hydraulic properties — Resistance to internal pressure
Hose assemblies shall be designed for the following pressures:
a) maximum working pressure: 1,2 MPa;
b) test pressure: 2,4 MPa;
c) minimum burst pressure: 4,2 MPa.

When tested in accordance with ISO 5208 for a maximum working pressure of 1,2 MPa the valve shall

conform to the appropriate requirements.
4.3.7 Hydraulic properties — Security of couplings

Hose assemblies shall not leak when tested to the test pressure in accordance with Annex F.

4.4 Ability to pull out the hose
4.4.1 Type 1 Reel

The reel shall rotate around a spindle so that the hose can be withdrawn freely. The inside drum shall have a

minimum diameter of not less than 70 mm and shall have a slit not less than 20 mm wide across the full

diameter of the drum into which the folded hose is located.
4.4.2 Type 1 and 3 Supports swinging

Types 1 and 3 hose supports, if fixed to the cabinet, shall allow a swing to a position at a minimum of 90° to

the plane of the back of the cabinet. The turning axis shall be vertical.
NOTE There are no specific requirements for Type 2.
4.4.3 Hose — Maximum length
For handling reasons the length of the hose should not exceed 20 m.
4.5 Colour
The colour of the support shall be red.
4.6 Cabinet
4.6.1 General

Cabinet for a hose system shall be fitted with a door. Cabinet doors shall open to minimum 170 to allow the

hose to be run out freely in any direction. Cabinet shall be free of sharp edges, which might damage the

equipment or cause injury.

Lockable cabinet shall be provided with an emergency opening device, which may be protected only by

transparent frangible material. To provide access for inspection and maintenance, the cabinet shall be unlock

able with a key.

If the emergency opening device is protected by a frangible glass front this shall be of the type which when

broken does not leave jagged or sharp edges, which might cause injury when the emergency opening is

operated.
---------------------- Page: 11 ----------------------
SIST EN 671-2:2012
EN 671-2:2012 (E)

When transparent material is used as a part of the construction of the door then this shall not be used as the

emergency access to the hose system.

Cabinet may also be used to contain other firefighting equipment, provided that the cabinet is of sufficient size

and the equipment does not interfere with the prompt use of the hose system.

For service in some climatic conditions it may be necessary to provide the cabinet with suitable ventilating

openings.
4.6.2 Opening/closing device

An opening/closing device of the cabinet shall be provided to allow periodical inspection and maintenance.

The opening device shall have provision for a security seal to be fitted.

The force necessary to open and secure the seal shall be not less than 20 N and not more than 40 N.

4.6.3 Cabinet for manual hose system with screw down type valve

The screw down valve shall be positioned in the cabinet for manual hose reel in such a way that there is at

least 35 mm free space around the external diameter of the hand wheel, when the valve is in any position

from fully open to fully closed.
4.6.4 Identification symbol

Hose system cabinet shall be marked with the symbol Fire hose reel, Reference nr. F002, in ISO 7010.

NOTE The symbol may have a luminescent surface.
4.7 Durability aspects
4.7.1 Durability of operational reliability
4.7.1.1 Resistance to external corrosion on coated parts

Any coated parts of the hose system with lay-flat hose shall provide adequate protection (see Annex B).

NOTE The advice of the hose reel manufacturer should be requested in cases of special corrosion risk.

4.7.1.2 Resistance to corrosion of waterways

There shall be no significant corrosion defects (see Annex D) and the mechanical operation of all working

parts shall be unimpaired.
4.7.1.3 Ageing tests for plastics materials

Samples or test pieces of plastic materials used in components subjected to a mechanical and/or hydraulic

effort shall not show cracking or crazing after aging test.
5 Test methods
5.1 General

To verify the conformity with the requirements in Clause 4, the following test methods shall be used. The test

indicated in clauses shall be carried out according to the sequence shown in Annex A, Table A.1.

---------------------- Page: 12 -------------
...
