Overview

EN 50491-5-3:2010 defines the electromagnetic compatibility (EMC) requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) when these products are used in an industrial environment (as defined in EN 61000-6-2). This part of the EN 50491 series supplements the general EMC framework of EN 50491-5-1 by specifying immunity and emission requirements, test levels and conditions appropriate to industrial installations. It is intended to help manufacturers, test laboratories and integrators demonstrate conformity with EMC requirements and with the EC EMC Directive (as noted in the standard).

Key Topics and Technical Requirements

• Scope and application: Applies where EN 50491-5-1 applies, modified to cover industrial environments per EN 61000-6-2.
• Immunity requirements: Adopt the generic immunity levels of EN 61000-6-2 for enclosure, AC/DC power and I/O signal ports. Test set-ups and performance criteria are defined by EN 50491-5-1.
• Network port immunity (specified test levels):
  • Radio-frequency conducted immunity (EN 61000-4-6): 0.15–80 MHz, 10 V RMS (80% AM at 1 kHz); exception 47–68 MHz (ITU broadcast) at 3 V RMS. Applies when cable length may exceed 3 m.
  • Fast transients/bursts (EN 61000-4-4): Tr/Th 5/50 ns, 5 kHz repetition; capacitive clamp used, ±0.5 kV test level.
  • Surge (EN 61000-4-5): line-to-earth ±2 kV; unbalanced transmission ±1 kV; balanced transmission - no test. Surge tests applicable when cable length may exceed 30 m.
  • Footnotes address test equivalence to current into 150 Ω, cable-length applicability and CDN limitations.
• Emissions: Emission requirements follow EN 61000-6-4 (industrial emission standard).
• Referenced test standards: EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, plus EN 50491-5-1 for test set-up and performance criteria.

Practical Applications

• Design and development of HBES/BACS hardware and network interfaces intended for industrial sites.
• EMC type testing and certification for product compliance with industrial immunity and emission levels.
• Procurement and specification: buyers can require compliance with EN 50491-5-3:2010 for equipment deployed in industrial facilities.
• Installation and commissioning: guides integrators on expected EMC robustness and necessary cabling/segregation practices.

Who uses this standard

• Manufacturers and product designers of HBES/BACS devices
• EMC test laboratories and conformity assessors
• System integrators, building automation engineers and procurement teams
• Compliance and regulatory engineers responsible for EMC conformity in industrial installations

Related standards

• EN 50491-5-1 (EMC requirements, conditions and test set-up)
• EN 61000-6-2 (Immunity for industrial environments)
• EN 61000-6-4 (Emission standard for industrial environments)
• EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 (specific EMC test methods)

Keywords: EN 50491-5-3:2010, HBES, BACS, EMC requirements, industrial environment, EN 61000-6-2, network port immunity, EN 61000-6-4.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2011
1DGRPHãþD
SIST EN 50090-2-2:1998
SIST EN 50090-2-2:1998/A1:2003
SIST EN 50090-2-2:1998/A2:2007
Splošne zahteve za stanovanjske in stavbne elektronske sisteme (HBES) in
sisteme za avtomatizacijo in krmiljenje stavb (BACS) - 5-3. del: Zahteve EMC za
HBES/BACS, ki se uporabljajo v industrijskih okoljih
General requirements for Home and Building Electronic Systems (HBES) and Building
Automation and Control Systems (BACS) - Part 5-3: EMC requirements for industrial
environments
Allgemeine Anforderungen an die Elektrische Systemtechnik für Heim und Gebäude
(ESHG) und an Systeme der Gebäudeautomation (GA) - Teil 5-3: EMV-Anforderungen
für den Gebrauch im Industriebereich
Exigences générales relatives aux systèmes électroniques pour les foyers domestiques
et les bâtiments (HBES) et aux Systèmes de Gestion Technique du Bâtiment (SGTB) -
Partie 5-3: Exigences CEM relatives aux environnements industriels
Ta slovenski standard je istoveten z: EN 50491-5-3:2010
ICS:
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50491-5-3
NORME EUROPÉENNE
April 2010
EUROPÄISCHE NORM
ICS 97.120 Supersedes EN 50090-2-2:1996 (partially) + corr. Mar.1997 (partially) + A1:2002 (partially)
+ A2:2007 (partially)
English version
General requirements for Home and Building Electronic Systems (HBES)
and Building Automation and Control Systems (BACS) -
Part 5-3: EMC requirements for HBES/BACS used in industry environment

Exigences générales relatives  Allgemeine Anforderungen
aux systèmes électroniques pour an die Elektrische Systemtechnik für Heim
les foyers domestiques et les bâtiments und Gebäude (ESHG) und an Systeme
(HBES) et aux Systèmes de Gestion der Gebäudeautomation (GA) -
Technique du Bâtiment (SGTB) - Teil 5-3: EMV-Anforderungen
Partie 5-3: Exigences CEM relatives an ESHG/GA für den Gebrauch
aux HBES/SGTB destinés à être utilisés im Industriebereich
en environnement industriel
This European Standard was approved by CENELEC on 2010-04-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50491-5-3:2010 E

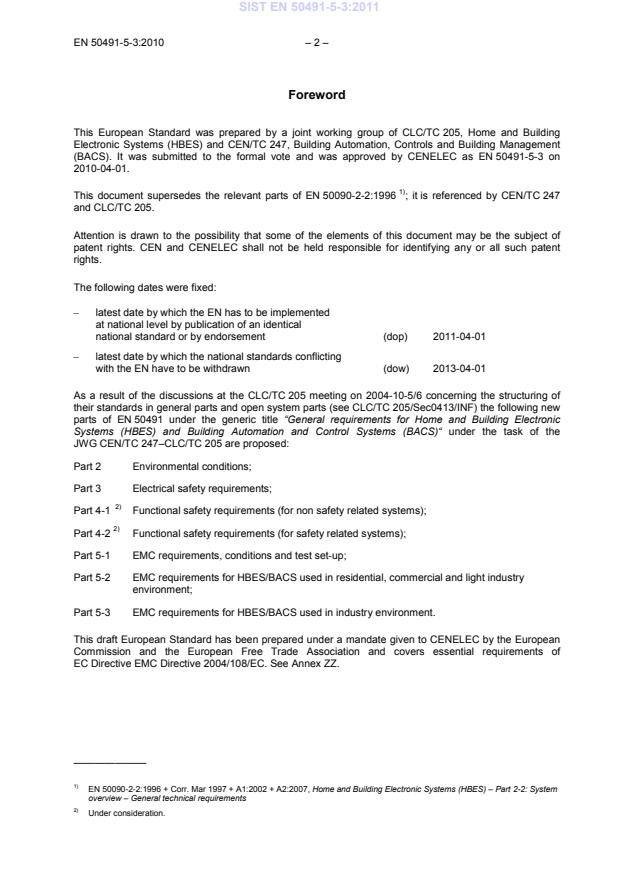

Foreword
This European Standard was prepared by a joint working group of CLC/TC 205, Home and Building
Electronic Systems (HBES) and CEN/TC 247, Building Automation, Controls and Building Management
(BACS). It was submitted to the formal vote and was approved by CENELEC as EN 50491-5-3 on
2010-04-01.
1)
This document supersedes the relevant parts of EN 50090-2-2:1996 ; it is referenced by CEN/TC 247
and CLC/TC 205.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2011-04-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2013-04-01
As a result of the discussions at the CLC/TC 205 meeting on 2004-10-5/6 concerning the structuring of
their standards in general parts and open system parts (see CLC/TC 205/Sec0413/INF) the following new
parts of EN 50491 under the generic title “General requirements for Home and Building Electronic
Systems (HBES) and Building Automation and Control Systems (BACS)“ under the task of the
JWG CEN/TC 247–CLC/TC 205 are proposed:
Part 2 Environmental conditions;
Part 3 Electrical safety requirements;
2)
Part 4-1 Functional safety requirements (for non safety related systems);
2)
Part 4-2 Functional safety requirements (for safety related systems);
Part 5-1 EMC requirements, conditions and test set-up;
Part 5-2 EMC requirements for HBES/BACS used in residential, commercial and light industry
environment;
Part 5-3 EMC requirements for HBES/BACS used in industry environment.
This draft European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and covers essential requirements of
EC Directive EMC Directive 2004/108/EC. See Annex ZZ.
———————
1)
EN 50090-2-2:1996 + Corr. Mar 1997 + A1:2002 + A2:2007, Home and Building Electronic Systems (HBES) – Part 2-2: System
overview – General technical requirements
2)
Under consideration.
– 3 – EN 50491-5-3:2010
Contents
Introduction . 4
1 Scope .
...
