SIST EN IEC 63044-5-3:2019

General requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) - Part 5-3: EMC requirements for HBES/BACS used in indus try environment

IEC 63044-5-3:2017 is a product family standard that sets the minimum level of EMC performance for the HBES/BACS network in addition to the product EMC standards for HBES/BACS devices. It also applies to devices used within an HBES/BACS network for which no specific HBES/BACS product EMC standard exists. In addition, it defines EMC requirements for the interface of equipment intended to be connected to an HBES/BACS network. It does not apply to interfaces to other networks.
NOTE An example of other networks is a dedicated ICT network covered by CISPR 22 and 23.
This document specifies EMC requirements for HBES/BACS to be installed in industrial environments, according to the definition given in IEC 61000-6-2.
NOTE Industrial environment covers the office spaces that may be present in industrial premises. Industrial automation systems are outside the scope. This document is applicable (but not limited) to


•
        operator stations and other human–system interface devices,


•
        devices for management functions,


•
        control devices, automation stations and application-specific controllers,


•
        field devices and their interfaces,


•
        cabling and interconnection of devices,

used within a dedicated HBES/BACS network. This publication is to be read in conjunction with IEC 63044-5-1:2017.

Allgemeine Anforderungen an die Elektrische Systemtechnik für Heim und Gebäude (ESHG) und an Systeme der Gebäudeautomation (GA) - Teil 5–3: EMV-Anforderungen an ESHG/GA für den Gebrauch im Industriebereich

Systèmes électroniques pour les foyers domestiques et les bâtiments (HBES) et systèmes de gestion technique du bâtiment (SGTB) - Partie 5-3: Exigences CEM relatives aux HBES/SGTB destinés à être utilisés en environnement industriel

L'IEC 63044-5-3:2017 est une norme de famille de produits qui établit le niveau minimal de performance CEM pour le réseau HBES/SGTB outre les normes CEM de produits applicables aux dispositifs HBES/SGTB. Elle s'applique également aux dispositifs utilisés dans un réseau HBES/SGTB pour lequel il n'existe aucune norme CEM de produit HBES/SGTB spécifique. De plus, elle spécifie des exigences CEM relatives à l'interface des équipements destinés à être connectés à un réseau HBES/SGTB. Elle ne s'applique pas aux interfaces avec d'autres réseaux.
NOTE Un réseau TIC dédié traité par le CISPR 22 et 23 constitue un exemple d'autres réseaux.
Le présent document spécifie des exigences CEM relatives aux systèmes HBES/SGTB à installer dans un environnement industriel selon la définition de l'IEC 61000-6-2.
NOTE L'expression "environnement industriel" couvre les locaux pour bureaux qui peuvent être présents dans des bâtiments industriels. Les systèmes d'automatisation industrielle ne relèvent pas du domaine d'application du présent document. Le présent document est applicable (sans toutefois s'y limiter) aux


•
        postes d’opérateur et autres dispositifs d’interface homme–système,


•
        dispositifs pour des fonctions de gestion,


•
        dispositifs de commande, postes d’automatisation et contrôleurs spécifiques à une application,


•
        dispositifs de terrain et leurs interfaces,


•
        câblage et à l’interconnexion des dispositifs,

utilisés dans un réseau HBES/SGTB dédié. Cette publication doit être lue conjointement avec l’IEC 63044-5-1:2017.

Splošne zahteve za stanovanjske in stavbne elektronske sisteme (HBES) in sisteme za avtomatizacijo in krmiljenje stavb (BACS) - 5-3. del: Zahteve EMC za HBES/BACS, ki se uporabljajo v industrijskih okoljih

Ta dokument določa zahteve EMC za HBES/BACS za namestitev v industrijskih okoljih v skladu z definicijo iz standarda IEC 61000-6-2.

General Information

• Status: Published
• Publication Date: 19-Nov-2019
• ICS: 35.240.67 - IT applications in building and construction industry
• ICS: 97.120 - Automatic controls for household use
• Technical Committee: ELI - Electrical and communication installations
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 12-Nov-2019
• Due Date: 17-Jan-2020
• Completion Date: 20-Nov-2019
• Directive: 2010-01-3290 - Pravilnik o železniškem telekomunikacijskem omrežju
• Directive: 2014/30/EU - Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)
• Mandate: M/552 - [C(2016) 7641 final] Standardisation request as regards harmonised standards in support of Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility
• Ref Project: EN IEC 63044-5-3:2019 - Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) - Part 5-3: EMC requirements for HBES/BACS used in industrial environments

Relations

• Replaces: SIST EN 50491-5-3:2011 - General requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) - Part 5-3: EMC requirements for industrial environments
• Effective Date: 01-Dec-2019
• Amended By: SIST EN IEC 63044-5-3:2019/A1:2025 - Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) - Part 5-3: EMC requirements for HBES/BACS used in industrial environments (IEC 63044-5-3:2017/AMD1:2022)
• Effective Date: 01-Jan-2025

Overview

EN IEC 63044-5-3:2019 specifies electromagnetic compatibility (EMC) requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) when installed in industrial environments. It is a product-family standard that supplements device-level EMC standards and applies where no specific HBES/BACS product EMC standard exists. This standard is intended to be read together with IEC 63044-5-1 (general EMC requirements, conditions and test set-up) and has been adopted by CENELEC as EN IEC 63044-5-3:2019.

Key topics and technical requirements

• Scope and environment
  • Targets HBES/BACS installations in industrial environments as defined by IEC 61000-6-2 (includes office spaces within industrial premises; excludes industrial automation systems).
• Applicable equipment
  • Operator stations and human–system interfaces, management devices, control devices, automation stations, application-specific controllers, field devices, cabling and interconnection used on a dedicated HBES/BACS network.
• Immunity requirements
  • Generic immunity for enclosure, AC/DC power and I/O signal ports follows IEC 61000-6-2. Performance criteria and test set-ups follow IEC 63044-5-1.
  • Specific test levels for HBES/BACS network ports include requirements for:
    • Radio-frequency common-mode immunity (0.15–80 MHz, 80% AM): typical level 10 V (r.m.s. equivalent) - lower level (3 V) applies in the 47–68 MHz ITU broadcast band.
    • Fast transients/bursts (IEC 61000-4-4): test parameters and use of capacitive clamp; peak levels noted for certain cable lengths.
    • Surge immunity (IEC 61000-4-5): line-to-earth ±2 kV and unbalanced transmission ±1 kV (balanced links may be exempt from surge tests).
  • Footnotes clarify applicability (e.g., test inclusion depends on cable length or transmission type).
• Emission requirements
  • Emissions must meet IEC 61000-6-4 (emission standard for industrial environments).

Practical applications and users

• Who uses this standard:
  • Manufacturers of HBES/BACS devices and network interfaces seeking CE/EMC compliance for industrial installations.
  • System integrators and specifiers designing building automation in industrial premises.
  • EMC test laboratories creating test plans for HBES/BACS network ports and device enclosures.
• Practical benefits:
  • Ensures reliable operation of building automation networks in electrically noisy industrial environments.
  • Provides harmonized immunity and emission levels to guide product design, cable selection and installation practices.

Related standards

• IEC 63044-5-1 (EMC requirements, conditions and test set-up) - normative companion.
• IEC 61000-6-2 (immunity for industrial environments) and IEC 61000-6-4 (emissions for industrial environments).
• IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6 (specific test methods).

Keywords: EN IEC 63044-5-3:2019, HBES, BACS, EMC requirements, industrial environments, IEC 63044-5-1, IEC 61000-6-2, EMI/EMC testing, network ports.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2019
Nadomešča:
SIST EN 50491-5-3:2011
Splošne zahteve za stanovanjske in stavbne elektronske sisteme (HBES) in
sisteme za avtomatizacijo in krmiljenje stavb (BACS) - 5-3. del: Zahteve EMC za
HBES/BACS, ki se uporabljajo v industrijskih okoljih
General requirements for Home and Building Electronic Systems (HBES) and Building
Automation and Control Systems (BACS) - Part 5-3: EMC requirements for HBES/BACS
used in indus try environment
Ta slovenski standard je istoveten z: EN IEC 63044-5-3:2019
ICS:
35.240.67 Uporabniške rešitve IT v IT applications in building
gradbeništvu and construction industry
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 63044-5-3

NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2019
ICS 29.120.99; 29.120.01 Supersedes EN 50491-5-3:2010 and all of its
amendments and corrigenda (if any)
English Version
Home and building electronic systems (HBES) and building
automation and control systems (BACS) - Part 5-3: EMC
requirements for HBES/BACS used in industrial environments
(IEC 63044-5-3:2017)
Systèmes électroniques pour les foyers domestiques et les Allgemeine Anforderungen an die Elektrische
bâtiments (HBES) et systèmes de gestion technique du Systemtechnik für Heim und Gebäude (ESHG) und an
bâtiment (SGTB) - Partie 5-3: Exigences CEM relatives aux Systeme der Gebäudeautomation (GA) - Teil 5–3: EMV-
HBES/SGTB destinés à être utilisés en environnement Anforderungen an ESHG/GA für den Gebrauch im
industriel Industriebereich
(IEC 63044-5-3:2017) (IEC 63044-5-3:2017)
This European Standard was approved by CENELEC on 2017-03-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63044-5-3:2019 E

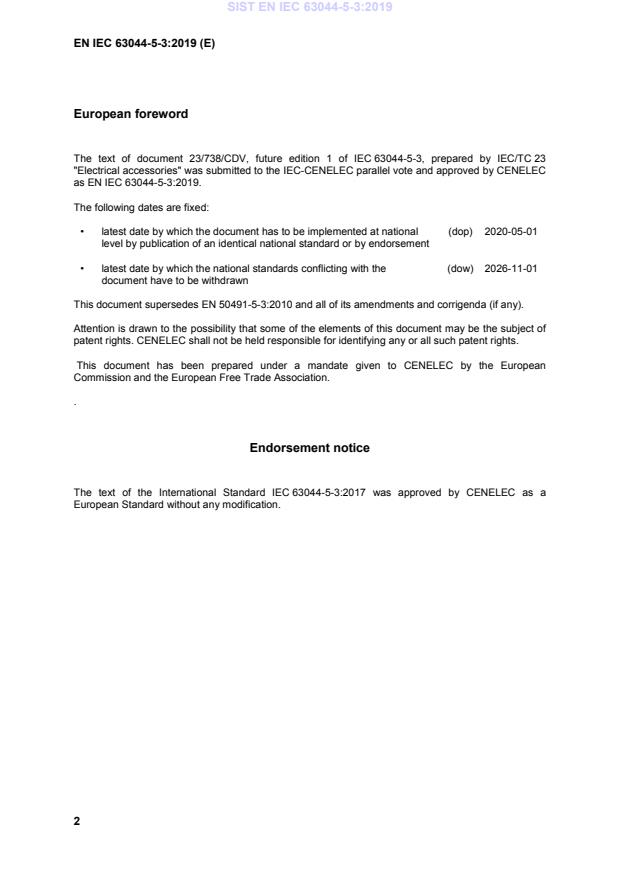

European foreword
The text of document 23/738/CDV, future edition 1 of IEC 63044-5-3, prepared by IEC/TC 23
"Electrical accessories" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC
as EN IEC 63044-5-3:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-05-01
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-11-01
document have to be withdrawn
This document supersedes EN 50491-5-3:2010 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association.
.
Endorsement notice
The text of the International Standard IEC 63044-5-3:2017 was approved by CENELEC as a
European Standard without any modification.

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61000-4-4 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-4 -
4-4: Testing and measurement techniques
- Electrical fast transient/burst immunity
test
IEC 61000-4-5 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-5 -
4-5: Testing and measurement techniques
- Surge immunity test
IEC 61000-4-6 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-6 -
4-6: Testing and measurement techniques
- Immunity to conducted disturbances,
induced by radio-frequency fields
IEC 61000-6-2 -  Electromagnetic compatibility (EMC) - Part EN IEC 61000-6-2 -
6-2: Generic standards - Immunity
standard for industrial environments
IEC 61000-6-4 -  Electromagnetic compatibility (EMC) -- Part EN 61000-6-4 -
6-4: Generic standards - Emission
standard for industrial environments
IEC 63044-5-1 -  Home and Building Electronic Systems EN IEC 63044-5-1 -
(HBES) and Building Automation and
Control Systems (BACS) - Part 5-1: EMC
requirements, conditions and test set-up

IEC 63044-5-3 ®
Edition 1.0 2017-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Home and building electronic systems (HBES) and building automation and

control systems (BACS) –
Part 5-3: EMC requirements for HBES/BACS used in industrial environments

Systèmes électroniques pour les foyers domestiques et les bâtiments (HBES) et

systèmes de gestion technique du bâtiment (SGTB) –

Partie 5-3: Exigences CEM relatives aux HBES/SGTB destinés à être utilisés en

environnement industriel
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.01; 29.120.99 ISBN 978-2-8322-3776-2

– 2 – IEC 63044-5-3:2017 © IEC 2017
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and abbreviated terms . 6
4 General requirements . 7
5 Performance criteria . 7
6 Standard test conditions . 7
7 EMC requirements . 7
7.1 Immunity requirements . 7
7.2 Emission requirements . 8

Table 1 – EMC immunity requirements for HBES/BACS network ports . 8

IEC 63044-5-3:2017 © I
...
