SIST EN 13573:2009

Inland navigation vessels - Anchoring, coupling, towing, hauling and mooring systems

This European Standard specifies safety requirements for the arrangement, accessibility and marking of
anchoring, coupling, towing, hauling and mooring systems on inland navigation vessels.
Depending on the type, the dimensions, the intended use of the vessels as well as the waters on which they
are operated, inland navigation vessels are equipped with anchoring, coupling, towing, hauling and mooring
systems.
This standard does not apply to recreational craft according to Directive 94/25/EEC.

Fahrzeuge der Binnenschifffahrt - Anker-, Kupplungs-, Schlepp-, Verhol- und Festmacheeinrichtungen

Diese Europäische Norm legt sicherheitstechnische Anforderungen an Anordnung, Zugänglichkeit und Kennzeichnung für Anker-, Kupplungs-, Schlepp-, Verhol- und Festmacheeinrichtungen auf Fahrzeugen der Binnenschifffahrt fest.
Fahrzeuge der Binnenschifffahrt werden entsprechend ihrem Typ, ihren Abmessungen, ihrem Verwendungszweck sowie den Gewässern, auf denen sie eingesetzt werden, mit Anker-, Kupplungs-, Schlepp-, Verhol- und Festmacheeinrichtungen ausgerüstet.
Diese Norm gilt nicht für Sportboote nach Richtlinie 94/25/EG.

Bateaux de navigation intérieure - Dispositifs d'ancrage, d'accouplement, de remorquage, de halage et d'amarrage

La présente Norme européenne spécifie les exigences de sécurité concernant la disposition, l’accessibilité et
le marquage des dispositifs d’ancrage, d’accouplement, de remorquage, de halage et d’amarrage montés sur
les bateaux de navigation intérieure.
Les bateaux de navigation intérieure sont équipés de dispositifs d’ancrage, d’accouplement, de remorquage,
de halage et d’amarrage en fonction de leur type, de leurs dimensions, de leur usage ainsi que des eaux sur
lesquelles ils naviguent.
La présente norme ne s’applique pas aux bateaux de plaisance conformes à la Directive 94/25/CE.

Plovila za celinske vode - Sistemi za sidranje, sklapljanje, vleko, pritegovanje in privezovanje

General Information

• Status: Published
• Public Enquiry End Date: 31-Dec-2007
• Publication Date: 09-Feb-2009
• ICS: 47.020.50 - Deck equipment and installations
• ICS: 47.060 - Inland navigation vessels
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 23-Jan-2009
• Due Date: 30-Mar-2009
• Completion Date: 10-Feb-2009
• Ref Project: EN 13573:2009 - Inland navigation vessels - Anchoring, coupling, towing, hauling and mooring systems

Relations

• Replaces: SIST EN 13573:2002 - Inland navigation vessels - Anchoring, coupling, towing, hauling and mooring systems
• Effective Date: 01-Mar-2009

Overview

EN 13573:2009 - "Inland navigation vessels - Anchoring, coupling, towing, hauling and mooring systems" (CEN) defines safety requirements for the arrangement, accessibility and marking of anchoring, coupling, towing, hauling and mooring systems on inland navigation vessels. The standard applies to commercial inland craft (not recreational craft under Directive 94/25/EEC) and covers equipment selection, installation, operation access and protection measures to reduce risk to crew and other vessels.

Key topics and technical requirements

• Anchoring systems
  • Anchor chains or wire ropes to meet studless chain requirements (EN 14330) or ISO 2408 for wire ropes.
  • Anchor swivel breaking force ≥ 20% above the chain/wire minimum breaking force.
  • Windlass (EN 13711) required for anchors > 50 kg; motor drive for anchors > 500 kg. Windlasses may serve as hauling winches.
  • Chain stoppers, lockers and end fastenings to comply with EN 15271; safe operator positioning and access per EN 13281.
  • Anchor hawses/pockets to allow automatic lowering/raising and prevent damage to other vessels.
• Coupling systems
  • Pushing systems (platforms/shoulders/horns) and mechanical or hydraulic coupling devices; must keep coupled vessels fixed relative to each other and not extend beyond push-tow width.
  • If wire ropes are used, at least two coupling/tensioning devices required; ropes led close to deck and spliced/covered.
  • Coupling devices to meet EN ISO 6218; fairleads and roller fairleads per EN 15272 parts 2–3.
  • Cross-overs and safe passage between coupled vessels per EN 790/EN 13056 or EN 13574.
• Towing systems
  • Towing hooks or winches (EN 13711); rope grabs on both sides of stern towing beam.
  • Safe remote release capability: releasing force limits cited for wheelhouse operation.
• Hauling and mooring
  • Bollards, cleats, cable stoppers and rope tubs to meet specified requirements; rope leading equipment per EN 15272 series.

Practical applications and users

• Target users: shipbuilders, naval architects, ship operators, port authorities, safety managers, inspectors and designers of inland navigation vessels.
• Use cases:
  • Designing and installing safe anchoring/coupling/towing equipment on barges, push-tows and inland cargo vessels.
  • Preparing technical specifications for newbuilds or retrofits to meet EU national standards.
  • Conducting surveys, risk assessments and crew training focused on safe access, marking and operation of mooring and towing gear.

Related standards

Relevant referenced documents include EN 13711, EN 14330, EN 15271, EN ISO 6218, ISO 2408 and the EN 15272 equipment-for-rope-leading series - all commonly cited when applying EN 13573:2009 to design and compliance work.

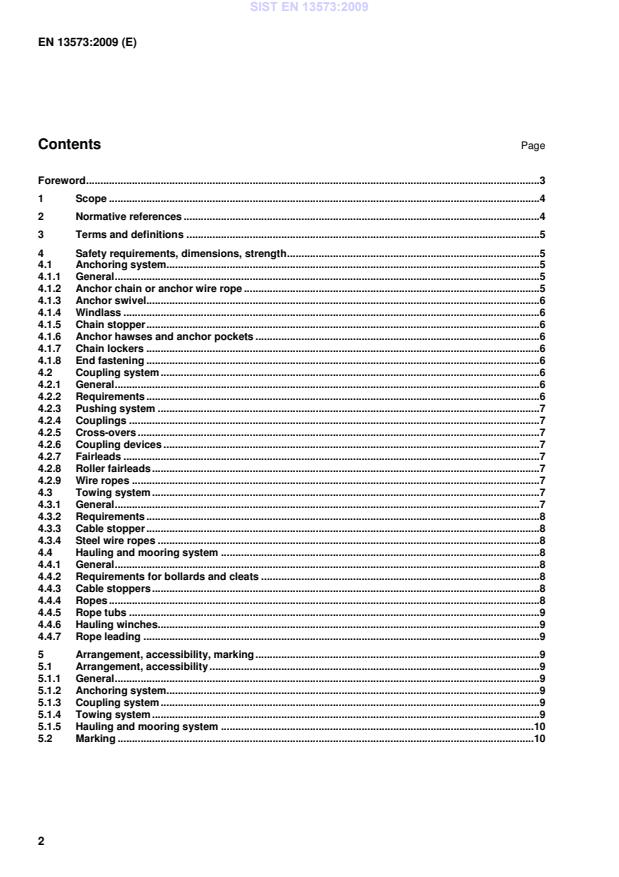

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Plovila za celinske vode - Sistemi za sidranje, sklapljanje, vleko, pritegovanje in privezovanjeFahrzeuge der Binnenschifffahrt - Anker-, Kupplungs-, Schlepp-, Verhol- und FestmacheeinrichtungenBateaux de navigation intérieure - Dispositifs d'ancrage, d'accouplement, de remorquage, de halage et d'amarrageInland navigation vessels - Anchoring, coupling, towing, hauling and mooring systems47.060Inland navigation vessels47.020.50Palubna oprema ter napraveDeck equipment and installationsICS:Ta slovenski standard je istoveten z:EN 13573:2009SIST EN 13573:2009en,fr,de01-marec-2009SIST EN 13573:2009SLOVENSKI
STANDARDSIST EN 13573:20021DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13573January 2009ICS 47.020.50; 47.060Supersedes EN 13573:2001
English VersionInland navigation vessels - Anchoring, coupling, towing, haulingand mooring systemsBateaux de navigation intérieure - Dispositifs d'ancrage,d'accouplement, de remorquage, de halage et d'amarrageFahrzeuge der Binnenschifffahrt - Anker-, Kupplungs-,Schlepp-, Verhol- und FestmacheeinrichtungenThis European Standard was approved by CEN on 5 December 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13573:2009: ESIST EN 13573:2009

1 Scope This European Standard specifies safety requirements for the arrangement, accessibility and marking of anchoring, coupling, towing, hauling and mooring systems on inland navigation vessels.
Depending on the type, the dimensions, the intended use of the vessels as well as the waters on which they are operated, inland navigation vessels are equipped with anchoring, coupling, towing, hauling and mooring systems.
This standard does not apply to recreational craft according to Directive 94/25/EEC. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 790, Inland navigation vessels — Polyamide stairs with inclination angles of 45° to 60° — Requirements, types EN 1261, Fibre ropes for general service — Hemp EN 12339, Inland navigation vessels — Rope tubs EN 13056, Inland navigation vessels — Stairs with inclination angles of 30° to < 45°— Requirements, types EN 13281, Inland navigation vessels — Safety requirements for walkways and working places
EN 13574, Inland navigation vessels — Permanently installed climbing devices with a length not exceeding
5 m EN 13711, Inland navigation vessels — Winches for ship operation — Safety requirements
EN 14330, Inland navigation vessels — Studless anchor chain — Round steel link chain EN 14606, Inland navigation vessels — Studless anchor chain — Accessories EN 14874, Inland navigation vessels — Studless anchor chain — Cable lifter EN 15271, Inland navigation vessels — Studless anchor chain — Anchor equipment EN 15272-1, Inland navigation vessels — Equipment for rope leading — Part 1: General requirements EN 152
...
