oSIST prEN 10248-2:2006

Hot rolled steel sheet piling - Part 2: Tolerances on shape and dimensions

This part of this European Standard specifies the tolerances on dimensions, squareness of ends, straightness and mass of hot rolled non alloy steel sheet piling which are defined in EN 10248-1.

Warmgewalzte Spundbohlen aus unlegierten Stählen - Teil 2: Grenzabmaße und Formtoleranzen

Dieser Teil der Europäischen Norm enthält die Grenzabmaße der Höhe, Breite, Wanddicke und Länge sowie Grenzabweichungen des Schnitts rechtwinklig zur Längsachse, der Geradheit und der Masse von warmgewalzten, unlegierten Spundbohlen nach EN 10248-1.

Palplanches laminées a chaud en aciers non alliés - Partie 2 : Tolérances sur les dimensions et la forme

La présente partie de cette norme européenne spécifie les tolérances relatives aux dimensions, à l'équerrage
des extrémités, à la rectitude et à la masse des palplanches laminées à chaud en aciers non alliés définies
dans l'EN 10248-1.

Vroče valjane zagate iz nelegiranih jekel - 2. del: Mejni odstopki mer in tolerance oblik

General Information

• Status: Not Published
• ICS: 77.140.45 - Non-alloyed steels
• ICS: 77.140.70 - Steel profiles
• Technical Committee: IFEK - Ferrous metals
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 13-May-2024
• Due Date: 18-May-2024
• Completion Date: 13-May-2024
• Directive: 89/106/EEC - Construction products
• Mandate: M/120 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on structural metallic products and ancillaries
• Ref Project: prEN 10248-2 - Hot rolled steel sheet piling - Part 2: Tolerances on shape and dimensions

Relations

• Revised: SIST EN 10248-2:1998 - Hot rolled sheet piling of non alloy steels - Part 2: Tolerances on shape and dimensions
• Effective Date: 18-Jan-2023
• Revised: SIST EN 10248-2:1998 - Hot rolled sheet piling of non alloy steels - Part 2: Tolerances on shape and dimensions
• Effective Date: 22-Dec-2008

Overview

oSIST prEN 10248-2:2006 is a key European standard developed by CEN that specifies the tolerances on shape and dimensions for hot rolled, non-alloy steel sheet piling. This document is part two of the standard series on hot rolled steel sheet piling (the first part being EN 10248-1, which defines the technical delivery conditions). The standard provides clear guidelines on acceptable deviations in dimensions, squareness of ends, straightness, and mass for various types of steel sheet piles including U-sheet, Z-sheet, straight-web, and H-sheet piles.

Ensuring compliance with these tolerances is critical for manufacturers, suppliers, and contractors involved in civil engineering and construction projects where steel sheet piling is used. This standard helps guarantee that the products meet quality requirements, fit correctly on site, and perform reliably under structural loads.

Key Topics

• Height Tolerances
  Defines permissible variations in height for different sheet pile profiles:

  • U-sheet piles: ±4 to ±5 mm depending on nominal height
  • Z-sheet piles: ±5 to ±7 mm depending on nominal height
  • H-sheet piles: ±5 to ±7 mm depending on nominal height

• Width Tolerances
  Width deviations are expressed as a percentage of nominal width, with typical values:

  • Single piles: ±2%
  • Double (interlocked) piles: ±3%
    This ensures accurate fit and interlocking on site.

• Wall Thickness Tolerances
  Thickness tolerances depend on nominal thickness:

  • For thickness ≤ 8.5 mm: typically -0.5 mm (negative tolerance) with positive tolerance at manufacturer discretion
  • For thickness > 8.5 mm: tolerance of -6% with positive tolerance options
    These criteria apply to all profile types.

• Straightness and Length
  Straightness deviation should be less than 0.2% of the pile length, ensuring installation ease and structural integrity.
  Length tolerances are ±200 mm but may be reduced by agreement.

• Squareness of Ends
  The cut ends' squareness tolerance limits deviation to 2% of the width for U-, Z-, and straight-web piles, and 4% of the height for H-piles.

• Mass Tolerance
  Delivered mass may vary up to +5% from the calculated mass based on ordered dimensions, providing consistency in material quantity and quality.

• Interlock Specifications
  Interlocks must have sufficient free play (minimum interference of 4 to 6 mm depending on type) to facilitate assembly and load transfer.

• Options Available
  Customers can agree on tailored tolerance options during enquiry and ordering, including reduced tolerances or positive thickness deviations.

Applications

The tolerances defined in oSIST prEN 10248-2:2006 are essential for various civil engineering and construction applications, specifically:

• Marine construction - quays, breakwaters, and seawalls where precise piling dimensions ensure watertight and stable structures.
• Foundation engineering - retaining walls and excavation supports, where tolerance influences load distribution and safety.
• Infrastructure projects - bridges, roads, and railways requiring durable and dimensionally accurate sheet piling for long-term performance.
• Urban development - building basements and substructures benefiting from reliable sheet piling conforming to defined tolerances.

By adhering to these tolerances, manufacturers can ensure that steel sheet piling components fit perfectly, maintain structural integrity, and reduce installation delays or failures.

Related Standards

• EN 10248-1: Hot rolled steel sheet piling - Part 1: Technical delivery conditions - defines the material grades and properties that complement the tolerances in part 2.
• EN 10025 series: Structural steels specifications often referenced for base material quality in steel piling procurement.
• ISO 9001: Quality management standards ensuring consistent manufacturing quality aligned with tolerance requirements.
• EN 1993 (Eurocode 3): Design of steel structures which references material tolerances for calculation and safety verification.

---

Adopting oSIST prEN 10248-2:2006 supports industry best practices by setting stringent, yet practical dimensional tolerances on hot rolled steel sheet piling. This facilitates international trade, quality assurance, and optimal structural performance in steel sheet pile construction projects.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2006
9URþHYDOMDQH]DJDWHL]QHOHJLUDQLKMHNHOGHO0HMQLRGVWRSNLPHULQWROHUDQFH
REOLN
Hot rolled steel sheet piling - Part 2: Tolerances on shape and dimensions
Warmgewalzte Spundbohlen aus unlegierten Stählen - Teil 2: Grenzabmaße und
Formtoleranzen
Palplanches laminées a chaud en aciers non alliés - Partie 2 : Tolérances sur les
dimensions et la forme
Ta slovenski standard je istoveten z: prEN 10248-2
ICS:
77.140.45 Nelegirana jekla Non-alloyed steels
77.140.70 Jekleni profili Steel profiles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2006
ICS 77.140.70 Will supersede EN 10248-2:1995
English Version
Hot rolled steel sheet piling - Part 2: Tolerances on shape and
dimensions
Palplanches laminées à chaud en aciers non alliés - Partie
2 : Tolérances sur les dimensions et la forme
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ECISS/TC 10.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 10248-2:2006: E
worldwide for CEN national Members.

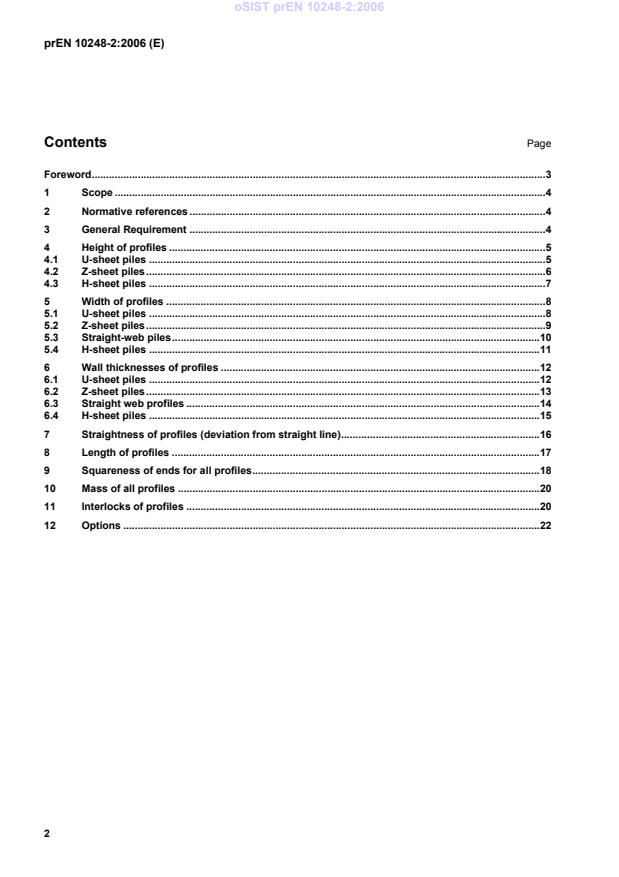

Contents Page
Foreword.3
1 Scope .4
2 Normative references .4
3 General Requirement .4
4 Height of profiles .5
4.1 U-sheet piles .5
4.2 Z-sheet piles.6
4.3 H-sheet piles .7
5 Width of profiles .8
5.1 U-sheet piles .8
5.2 Z-sheet piles.9
5.3 Straight-web piles.10
5.4 H-sheet piles .11
6 Wall thicknesses of profiles .12
6.1 U-sheet piles .12
6.2 Z-sheet piles.13
6.3 Straight web profiles .14
6.4 H-sheet piles .15
7 Straightness of profiles (deviation from straight line).16
8 Length of profiles .17
9 Squareness of ends for all profiles.18
10 Mass of all profiles .20
11 Interlocks of profiles .20
12 Options .22

Foreword
This document (prEN 10248-2:2006) has been prepared by Technical Committee ECISS/TC 10
“Structural steels - Grades and qualities”, the secretariat of which is held by NEN.
This document is currently submitted to the CEN Enquiry.
This document is a draft of revision of EN 10248-2:1995.
1 Scope
This part of this European Standard specifies the tolerances on dimensions, squareness of ends,
straightness and mass of hot rolled non alloy steel sheet piles which are defined in EN 10248-1.

2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
prEN 10248-1, Hot rolled steel sheet piling - Part 1 : Technical delivery conditions.

3 General Requirement
The determination of sheet-piling dimensions and tolerances must comply with the following
preparation before any measurement is carried out. This requirement applies in the workshop or on-
site without any distinction.
The sheet piling to be measured must be extracted from the storing stack and must be laid down on
the ground separately. The reference ground must be flat and free of any local relief over the length of
the sheet piling. Transverse supports, e.g. blocks, may be used for supporting the sheet piling on the
ground, but the distance between supports must not exceed five meters. The sheet piling must be laid
down with the lower flange on the ground parallel to it : in particular, double U-piles and single Z-piles
must be supported by blocks or any suitable supporting device.
4 Height of profiles
4.1 U-sheet piles
The tolerances on the height of U-sheet piles are given in Table 1.
Table 1 — Height of U-sheet piles
Dimensions in millimetres
Nominal
Designation Figure Tolerance
dimension
h ≤ 200 ± 4
Height
h
h > 200 ± 5
Tolerances on the height of sections made of a pair of crimped or welded piles may be agreed at the
time of the enquiry and order.
Option 1: See 12.2.
...
