SIST EN IEC 61557-17:2022
(Main)Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 17: Non-contact AC voltage indicators (IEC 61557-17:2021)
Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 17: Non-contact AC voltage indicators (IEC 61557-17:2021)
This part of IEC 61557 defines minimum performance requirements for non-contact AC voltage
indicators to reduce the risk of electric shock for the testing person and bystanders caused by
the wrong interpretation of the indication.
Products designed and manufactured in accordance with this document are for use by
(electrically) skilled persons only. Non-contact AC voltage indicators are not designed for
testing the absence of the operating voltage.
Elektrische Sicherheit in Niederspannungsnetzen bis AC 1 000 V und DC 1 500 V - Geräte zum Prüfen, Messen oder Überwachen von Schutzmaßnahmen - Teil 17: Berührungslose Spannungsanzeiger (IEC 61557-17:2021)
Sécurité électrique dans les réseaux de distribution basse tension au plus égale à 1 000 V C.A. et 1 500 V C.C. -Dispositifs de contrôle, de mesure ou de surveillance de mesures de protection - Partie 17: Indicateurs de tension alternative sans contact (IEC 61557-17:2021)
IEC 61557-17:2021 définit les exigences minimales de qualités de fonctionnement relatives aux indicateurs de tension alternative sans contact afin de réduire le risque de choc électrique encouru par la personne qui effectue l’essai et les personnes au voisinage et occasionné par une mauvaise interprétation de l'indication.
Les produits conçus et fabriqués conformément au présent document sont destinés à être utilisés par des personnes (électriquement) qualifiées uniquement. Les indicateurs de tension alternative sans contact ne sont pas conçus pour vérifier l'absence de tension de service.
Električna varnost v nizkonapetostnih razdelilnih sistemih za izmenične napetosti do 1 kV in enosmerne napetosti do 1,5 kV - Oprema za preskušanje, merjenje in nadzorovanje zaščitnih ukrepov - 17. del: Brezstični indikatorji napetosti (IEC 61557-17:2021)
Ta del standarda IEC 61557 opredeljuje minimalne zahteve glede zmogljivosti brezstičnih indikatorjev izmenične napetosti, da se zmanjša tveganje električnega udara, ki bi ga zaradi napačne interpretacije indikacije lahko utrpeli preskuševalec in navzoče osebe. Izdelki, zasnovani in izdelani v skladu s tem dokumentom, so namenjeni samo (elektrotehniško) usposobljenim osebam. Brezstični indikatorji izmenične napetosti niso zasnovani za preskušanje odsotnosti delovne napetosti.
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 61557-17:2022
01-marec-2022
Električna varnost v nizkonapetostnih razdelilnih sistemih za izmenične napetosti
do 1 kV in enosmerne napetosti do 1,5 kV - Oprema za preskušanje, merjenje in
nadzorovanje zaščitnih ukrepov - 17. del: Brezstični indikatorji napetosti (IEC
61557-17:2021)
Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC -
Equipment for testing, measuring or monitoring of protective measures - Part 17: Non-
contact AC voltage indicators (IEC 61557-17:2021)
Elektrische Sicherheit in Niederspannungsnetzen bis AC 1 000 V und DC 1 500 V -
Geräte zum Prüfen, Messen oder Überwachen von Schutzmaßnahmen - Teil 17:
Berührungslose Spannungsanzeiger (IEC 61557-17:2021)
Sécurité électrique dans les réseaux de distribution basse tension au plus égale à 1 000
V C.A. et 1 500 V C.C. -Dispositifs de contrôle, de mesure ou de surveillance de
mesures de protection - Partie 17: Indicateurs de tension alternative sans contact (IEC
61557-17:2021)
Ta slovenski standard je istoveten z: EN IEC 61557-17:2021
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
29.080.01 Električna izolacija na Electrical insulation in
splošno general
29.240.01 Omrežja za prenos in Power transmission and
distribucijo električne energije distribution networks in
na splošno general
SIST EN IEC 61557-17:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 61557-17:2022
---------------------- Page: 2 ----------------------
SIST EN IEC 61557-17:2022
EUROPEAN STANDARD EN IEC 61557-17
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2021
ICS 17.220.20; 29.080.01; 29.240.01
English Version
Electrical safety in low voltage distribution systems up to 1 000 V
AC and 1 500 V DC - Equipment for testing, measuring or
monitoring of protective measures - Part 17: Non-contact AC
voltage indicators
(IEC 61557-17:2021)
Sécurité électrique dans les réseaux de distribution basse Elektrische Sicherheit in Niederspannungsnetzen bis AC 1
tension au plus égale à 1 000 V C.A. et 1 500 V C.C. - 000 V und DC 1 500 V - Geräte zum Prüfen, Messen oder
Dispositifs de contrôle, de mesure ou de surveillance de Überwachen von Schutzmaßnahmen - Teil 17:
mesures de protection - Partie 17: Indicateurs de tension Berührungslose Spannungsanzeiger
alternative sans contact (IEC 61557-17:2021)
(IEC 61557-17:2021)
This European Standard was approved by CENELEC on 2021-12-15. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61557-17:2021 E
---------------------- Page: 3 ----------------------
SIST EN IEC 61557-17:2022
EN IEC 61557-17:2021 (E)

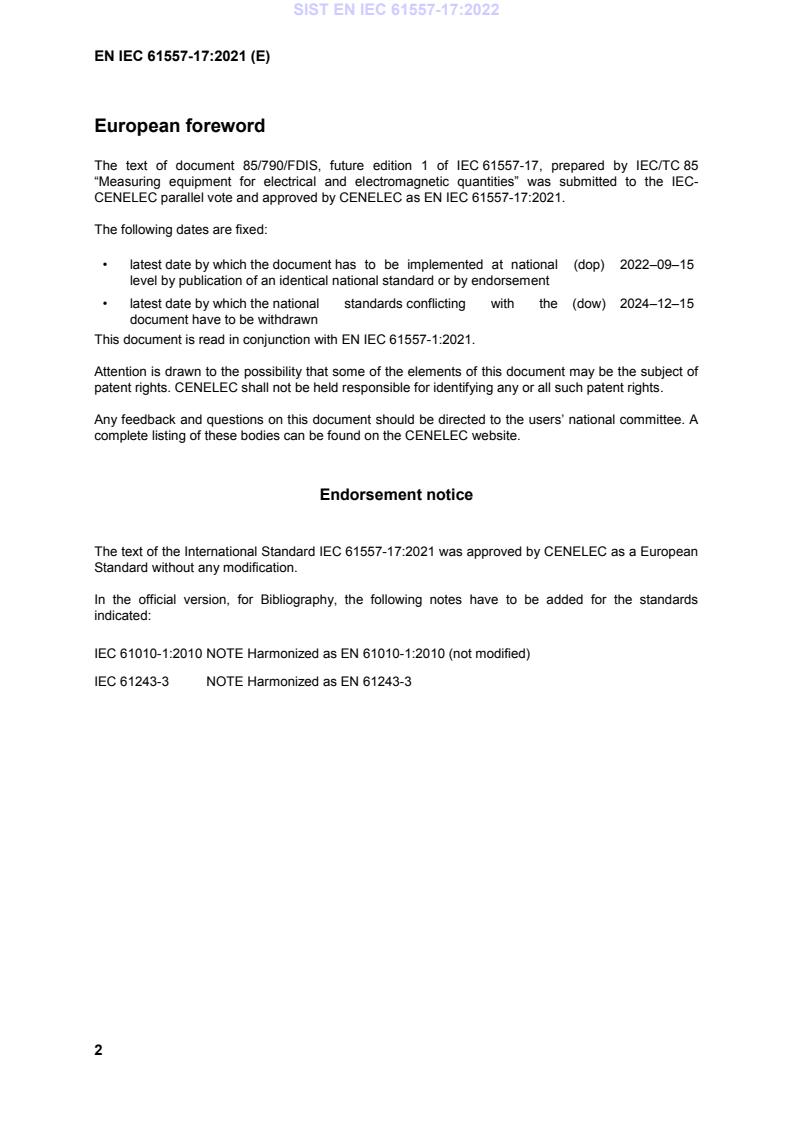

European foreword
The text of document 85/790/FDIS, future edition 1 of IEC 61557-17, prepared by IEC/TC 85
“Measuring equipment for electrical and electromagnetic quantities” was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 61557-17:2021.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2022–09–15
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024–12–15
document have to be withdrawn
This document is read in conjunction with EN IEC 61557-1:2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61557-17:2021 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 61010-1:2010 NOTE Harmonized as EN 61010-1:2010 (not modified)
IEC 61243-3 NOTE Harmonized as EN 61243-3
2
---------------------- Page: 4 ----------------------
SIST EN IEC 61557-17:2022
EN IEC 61557-17:2021 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61010-031 2015 Safety requirements for electrical EN 61010-031 2015
equipment for measurement, control and
laboratory use - Part 031: Safety
requirements for hand-held probe
assemblies for electrical measurement and
test
/AMD1 2018 /A1 2021
IEC 61326-1 2020 Electrical equipment for measurement, EN IEC 61326-1 2021
control and laboratory use - EMC
requirements - Part 1: General
requirements
IEC 61557-1 2019 Electrical safety in low voltage distribution EN IEC 61557-1 2021
systems up to 1 000 V a.c. and
1 500 V d.c. - Equipment for testing,
measuring or monitoring of protective
measures - Part 1: General requirements
3
---------------------- Page: 5 ----------------------
SIST EN IEC 61557-17:2022
---------------------- Page: 6 ----------------------
SIST EN IEC 61557-17:2022
IEC 61557-17
®
Edition 1.0 2021-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrical safety in low voltage distribution systems up to 1 000 V AC and
1 500 V DC – Equipment for testing, measuring or monitoring of protective
measures –
Part 17: Non-contact AC voltage indicators
Sécurité électrique dans les réseaux de distribution basse tension au plus égale
à 1 000 V C.A. et 1 500 V C.C. – Dispositifs de contrôle, de mesure ou de
surveillance de mesures de protection –
Partie 17: Indicateurs de tension alternative sans contact
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.20; 29.080.01; 29.240.01 ISBN 978-2-8322-1017-7
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN IEC 61557-17:2022
– 2 – IEC 61557-17:2021 © IEC 2021
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Requirements . 7
4.1 General . 7
4.2 Influencing quantities – Operating uncertainty (B), percentage operating
uncertainty (B [%]) . 7
4.3 Rated operating conditions . 7
4.4 Battery test facility . 7
4.5 Safety . 7
4.6 Electromagnetic compatibility . 8
4.6.1 Immunity . 8
4.6.2 Emission . 8
4.7 Indication . 8
5 Marking and operating instructions . 8
6 Tests . 9
6.1 General . 9
6.2 Test of mechanical strength . 9
6.3 Test of indication (type test) . 9
6.4 Test of visibility of optical indication (type test) . 11
6.5 Safety tests . 11
6.6 EMC tests . 12
6.7 Marking and operating instructions . 12
Bibliography . 13
Figure 1 – Non-contact AC voltage indicator . 8
Figure 2 – Test configuration to determine the trigger point of indication (front view) . 10
Figure 3 – Test configuration to determine the trigger point of indication (side view) . 11
---------------------- Page: 8 ----------------------
SIST EN IEC 61557-17:2022
IEC FDIS 61557-17 © IEC 2021 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICAL SAFETY IN LOW VOLTAGE DISTRIBUTION SYSTEMS
UP TO 1 000 V AC AND 1 500 V DC – EQUIPMENT FOR TESTING,
MEASURING OR MONITORING OF PROTECTIVE MEASURES –
Part 17: Non-contact AC voltage indicators
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition o
...
SLOVENSKI STANDARD
oSIST prEN IEC 61557-17:2021
01-marec-2021
Električna varnost v nizkonapetostnih razdelilnih sistemih izmenične napetosti do
1 kV in enosmerne napetosti do 1,5 kV - Oprema za preskušanje - Merjenje in
nadzorovanje zaščitnih ukrepov - 17. del: Nekontaktni indikatorji napetosti
Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC -
Equipment for testing,- Measuring and monitoring of protective measures - Part 17: Non
contact voltage indicators
Ta slovenski standard je istoveten z: prEN IEC 61557-17:2020
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
29.080.01 Električna izolacija na Electrical insulation in
splošno general
29.240.01 Omrežja za prenos in Power transmission and
distribucijo električne energije distribution networks in
na splošno general
oSIST prEN IEC 61557-17:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN IEC 61557-17:2021
---------------------- Page: 2 ----------------------
oSIST prEN IEC 61557-17:2021
85/738/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 61557-17 ED1
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2020-12-25 2021-03-19
SUPERSEDES DOCUMENTS:
85/708/CD, 85/718A/CC
IEC TC 85 : MEASURING EQUIPMENT FOR ELECTRICAL AND ELECTROMAGNETIC QUANTITIES
SECRETARIAT: SECRETARY:
China Ms Guiju HAN
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:
TC 66,TC 78
Other TC/SCs are requested to indicate their interest, if
any, in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
TITLE:
ELECTRICAL SAFETY IN LOW VOLTAGE DISTRIBUTION SYSTEMS UP TO 1000V AC AND 1500V
DC-EQUIPMENT FOR TESTING;MEASURING AND MONITORING OF PROTECTIVE MEASURES-Part
17: Non contact voltage indicators
PROPOSED STABILITY DATE: 2026
NOTE FROM TC/SC OFFICERS:
Copyright © 2020 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to
download this electronic file, to make a copy and to print out the content for the sole purpose of preparing National
Committee positions. You may not copy or "mirror" the file or printed version of the document, or any part of it, for
any other purpose without permission in writing from IEC.
---------------------- Page: 3 ----------------------
oSIST prEN IEC 61557-17:2021
IEC CDV 61557-17 IEC 2020 - 2 - 85/738/CDV
CONTENTS
FOREWORD . - 3 -
INTRODUCTION . - 5 -
1 Scope . - 6 -
2 Normative references . - 6 -
3 Terms and definitions . - 6 -
4 Requirements . - 7 -
4.1 General . - 7 -
4.2 Influencing quantities – Operating uncertainty (B), percentage operating
uncertainty (B [%]) . - 7 -
4.3 Rated operating conditions . - 7 -
4.4 Battery test facility . - 7 -
4.5 Safety . - 7 -
4.6 Electromagnetic compatibility . - 8 -
4.7 Indication . - 8 -
5 Marking and operating instructions . - 8 -
6 Tests . - 9 -
6.1 General . - 9 -
6.2 Test of mechanical strength . - 9 -
6.3 Test of indication (type test) . - 9 -
6.4 Test of visibility of optical indication (type test) . - 12 -
6.5 Safety tests . - 12 -
6.6 EMC tests . - 12 -
6.7 Marking and operating instructions. - 12 -
Bibliography . - 13 -
Figure 1 – Non-contact AC voltage indicator . - 8 -
Figure 2 – Test configuration to determine the trigger point of indication (front view) . - 10 -
Figure 3 – Test configuration to determine the trigger point of indication (side view) . - 11 -
---------------------- Page: 4 ----------------------
oSIST prEN IEC 61557-17:2021
IEC CDV 61557-17 IEC 2020 - 3 - 85/738/CDV
1 INTERNATIONAL ELECTROTECHNICAL COMMISSION
2 ____________
3
4 ELECTRICAL SAFETY IN LOW VOLTAGE DISTRIBUTION SYSTEMS
5 UP TO 1 000 V AC AND 1 500 V DC –
6 EQUIPMENT FOR TESTING, MEASURING OR MONITORING
7 OF PROTECTIVE MEASURES –
8
9 Part 17: Non-contact AC voltage indicators
10
11 FOREWORD
12 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
13 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
14 international co-operation on all questions concerning standardization in the electrical and electronic fields. To
15 this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
16 Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
17 Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
18 in the subject dealt with may participate in this preparatory work. International, governmental and non-
19 governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
20 with the International Organization for Standardization (ISO) in accordance with conditions determined by
21 agreement between the two organizations.
22 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
23 consensus of opinion on the relevant subjects since each technical committee has representation from all
24 interested IEC National Committees.
25 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
26 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
27 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
28 misinterpretation by any end user.
29 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
30 transparently to the maximum extent possible in their national and regional publications. Any divergence
31 between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
32 the latter.
33 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
34 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
35 services carried out by independent certification bodies.
36 6) All users should ensure that they have the latest edition of this publication.
37 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
38 members of its technical committees and IEC National Committees for any personal injury, property damage or
39 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
40 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
41 Publications.
42 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
43 indispensable for the correct application of this publication.
44 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
45 patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
46 International Standard IEC 61557-17 has been prepared by IEC technical committee 85:
47 Measuring equipment for electrical and electromagnetic quantities.
48 The text of this International Standard is based on the following documents:
FDIS Report on voting
85/708/CD 85/718/RVD
49
50 Full information on the voting for the approval of this International Standard can be found in
51 the report on voting indicated in the above table.
---------------------- Page: 5 ----------------------
oSIST prEN IEC 61557-17:2021
IEC CDV 61557-17 IEC 2020 - 4 - 85/738/CDV
52 This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
53 This International Standard is to be used in conjunction with IEC 61557-1:2019
54 A list of all parts of the IEC 61557 series, published under the general title Electrical safety in
55 low voltage distribution systems up to 1 000 V AC and 1 500 V DC – Equipment for testing,
56 measuring or monitoring of protective measures, can be found on the IEC website
57 The committee has decided that the contents of this document will remain unchanged until the
58 stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
59 the specific document. At this date, the document will be
60 • reconfirmed,
61 • withdrawn,
62 • replaced by a revised edition, or
63 • amended.
64
65
66 The National Committees are requested to note that for this document the stability date
67 is 2026.
68 THIS TEXT IS INCLUDED FOR THE INFORMATION OF THE NATIONAL COMMITTEES AND WILL BE
69 DELETED AT THE PUBLICATION STAGE.
70
71
72
73
---------------------- Page: 6 ----------------------
oSIST prEN IEC 61557-17:2021
IEC CDV 61557-17 IEC 2020 - 5 - 85/738/CDV
74 INTRODUCTION
75
76 It is the intention of this standard to specify the minimum construction and performance
77 re
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
