SIST EN 1034-6:2006+A1:2010

Safety of machinery - Safety requirements for the design and construction of paper making and finishing machines - Part 6: Calender

This European Standard applies to calenders intended for use in paper making and finishing and shall be used together with EN 1034-1:2000+A1:2009. It deals with all significant hazards listed in clause 4. Related safety requirements and/or measures are described in clause 5.
It does not cover hazards connected with lifting operations required for changing rolls, inserting reels into the unwinding unit, removal of reels from the winding unit and heating systems for heating calender rolls..
This European Standard is not applicable to calenders that have been manufactured before the date of publication of this standard.

Sicherheit von Maschinen - Sicherheitstechnische Anforderungen für Konstruktion und Bau von Maschinen der Papierherstellung und Ausrüstung - Teil 6: Kalander

Diese Europäische Norm gilt für Kalander der Papierherstellung und -ausrüstung und ist gemeinsam mit
!EN 1034-1:2000+A1:2010" anzuwenden. Sie behandelt alle in Abschnitt 4 aufgeführten signifikanten
Gefährdungen. Zugehörige Sicherheitsanforderungen und/oder -maßnahmen werden in Abschnitt 5 beschrieben.
Nicht behandelt werden die Gefährdungen der Hebeeinrichtungen, die zum Wechseln der Walzen, Einlegen
der Rollen in die Abrollung und Entnehmen der Rollen aus der Aufrollung bestimmt sind, sowie Heizsysteme
zum Erwärmen von Kalanderwalzen.
Diese Europäische Norm gilt nicht für Kalander, die hergestellt wurden, bevor CEN die Norm veröffentlichte.

Sécurité des machines - Prescriptions de sécurité pour la conception et la construction de machines de fabrication et de finition du papier - Partie 6: Calandres

La présente Norme européenne s’applique aux calandres destinées à la fabrication et à la finition du papier et doit être appliqué conjointement avec l'!EN 1034-1:2000+A1:2010".
Elle traite de tous les phénomènes dangereux significatifs, les situations dangereuses et les évènements dangereux qui s'appliquent aux défibreurs lorsqu'ils sont utilisés dans des conditions normales et conformément aux conditions prévisibles du fabricant (voir Article 4).
Les phénomènes dangereux liés aux dispositifs de levage, qui sont destinés au remplacement des cylindres, à la mise en place des bobines dans l’unité de déroulage et à la préhension des bobines de l'unité d’enroulage, ainsi qu’aux systèmes de chauffage destinés au réchauffement des cylindres de calandre ne sont pas traités dans la présente norme.
La présente Norme européenne ne s’applique pas aux calandres qui ont été fabriquées avant sa publication par le CEN.

Varnost strojev - Varnostne zahteve za načrtovanje in konstrukcijo strojev in opreme za izdelavo papirja - 6. del: Kalander

Ta evropski standard velja za kalandre, namenjene uporabi pri izdelavi papirja, in se uporablja skupaj z EN 1034-1:2000+A1:2010. Obravnava vse velike nevarnosti, navedene v Klavzuli 4. Povezane varnostne zahteve in/ali ukrepi so opisani v Klavzuli 5.

General Information

• Status: Published
• Publication Date: 18-Jan-2010
• ICS: 13.110 - Safety of machinery
• ICS: 21.020 - Characteristics and design of machines, apparatus, equipment
• ICS: 85.100 - Equipment for the paper industry
• Technical Committee: GRT - Graphical technology
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 17-Dec-2009
• Due Date: 21-Feb-2010
• Completion Date: 19-Jan-2010
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 98/37/EC - Machinery
• Mandate: M/079 - Mandate to CEN and CENELEC for standardization in the field of machines
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: EN 1034-6:2005+A1:2009 - Safety of machinery - Safety requirements for the design and construction of paper making and finishing machines - Part 6: Calender

Relations

• Consolidates: SIST EN 1034-6:2006 - Safety of machinery - Safety requirements for the design and construction of paper making and finishing machines - Part 6: Calender
• Effective Date: 01-Feb-2010

Overview

EN 1034-6:2005+A1:2009 - Safety of machinery - Safety requirements for the design and construction of paper making and finishing machines - Part 6: Calender (CEN) specifies safety requirements for calenders intended for use in paper making and finishing. It is a Type C standard (per EN ISO 12100) and is intended to be used together with EN 1034-1:2000+A1:2010 (Common requirements). The standard:

• Covers all significant hazards identified in clause 4 and prescribes related safety requirements and measures in clause 5.
• Excludes hazards connected with certain lifting operations for roll changing/handling and heating systems for calender rolls.
• Applies only to calenders manufactured on or after the publication date (not retroactive).
• Includes Amendment A1:2009 and aligns with relevant EU machine directives (see Annexes ZA/ZB).

Key topics and technical requirements

EN 1034-6 organizes safety provisions across the full calender lifecycle. Key technical topics include:

• Hazard identification & risk assessment - list of significant hazards (clause 4) and verification methods.
• Start-up warnings, emergency stop and braking systems - requirements for safe stopping and warning devices.
• Web threading, sheet feeding and winding/unwinding units - safe procedures and guards for web handling.
• Workplaces, access and lifting platforms - permanent access, catwalks, lifting platform safety, and associated control/stop measures.
• Isolation, prevention of unexpected start-up and lockout - energy dissipation and safe isolation procedures.
• Make-ready, repair and cleaning operations - safe working measures for maintenance activities.
• Control systems and actuators - safety-related control principles and verification (including electro-sensitive protective equipment).
• Electrical, hydraulic and pneumatic equipment - conformity with machine electrical and fluid power safety standards.
• Power transmission, roll stacks, rider rolls and web cutting devices - guarding and protective measures to prevent crushing, shearing and cutting hazards.
• Noise, lighting and ergonomics - human factors, integrated lighting and noise mitigation for operator safety.
• Documentation and verification - tests, marking, instruction handbook contents and compliance verification.

Practical applications & who uses it

This standard is essential for:

• Machine designers and OEMs building calenders for paper making and finishing.
• Safety engineers and compliance officers specifying machine safety features.
• Maintenance and operations teams implementing safe procedures (threading, cleaning, make-ready).
• Notified bodies and procurement specialists evaluating conformity with EU machine directives. Practical uses include designing compliant guarding, emergency systems, lifting platform controls, performing risk assessments, and preparing required technical documentation and markings.

Related standards (selection)

• EN 1034-1:2000+A1:2010 (Common requirements for paper machines)
• EN ISO 12100-1/-2 (Risk assessment and design principles)
• EN 60204-1 (Electrical equipment of machines)
• EN 61496-1 (Electro‑sensitive protective equipment)
• EN 1760-1 / EN 1760-2 (Pressure-sensitive safety devices)
• EN 1037, EN 1050 (Prevention of unexpected start-up; risk assessment)

Keywords: EN 1034-6, calender safety, paper making machines, CEN standard, safety requirements, machine design, risk assessment, winding units.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sicherheit von Maschinen - Sicherheitstechnische Anforderungen für Konstruktion und Bau von Maschinen der Papierherstellung und Ausrüstung - Teil 6: KalanderSécurité des machines - Prescriptions de sécurité pour la conception et la construction de machines de fabrication et de finition du papier - Partie 6: CalandresSafety of machinery - Safety requirements for the design and construction of paper making and finishing machines - Part 6: Calender85.100Oprema za papirno industrijoEquipment for the paper industry21.020Characteristics and design of machines, apparatus, equipment13.110Varnost strojevSafety of machineryICS:Ta slovenski standard je istoveten z:EN 1034-6:2005+A1:2009SIST EN 1034-6:2006+A1:2010en,fr01-februar-2010SIST EN 1034-6:2006+A1:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1034-6:2005+A1
December 2009 ICS 85.100 Supersedes EN 1034-6:2005English Version
Safety of machinery - Safety requirements for the design and construction of paper making and finishing machines - Part 6: Calender
Sécurité des machines - Prescriptions de sécurité pour la conception et la construction de machines de fabrication et de finition du papier - Partie 6: Calandres
Sicherheit von Maschinen - Sicherheitstechnische Anforderungen für Konstruktion und Bau von Maschinen der Papierherstellung und Ausrüstung - Teil 6: Kalander This European Standard was approved by CEN on 4 November 2005 and includes Amendment 1 approved by CEN on 17 November 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1034-6:2005+A1:2009: ESIST EN 1034-6:2006+A1:2010

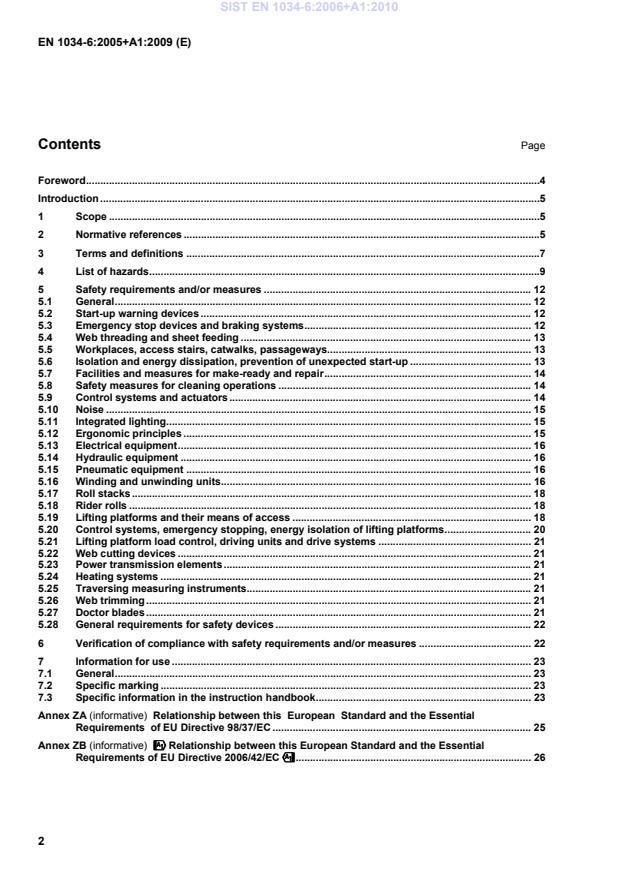

Relationship between this
European
Standard and the Essential Requirements
of EU Directive 98/37/EC . 25Annex ZB (informative)
!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC"""" . 26 SIST EN 1034-6:2006+A1:2010

calender (example) . 9 Figure 3 — Example of an access to a lifting platform in upper position . 19
Tables Table 1 — List of significant hazards . 9 Table 2 — Methods used to verify safety requirements and/or measures . 22
The machinery concerned and the extent to which hazards, hazardous situations and events are covered are indicated in the scope of this European Standard.
For machines that have been designed and built according to the provisions of this type C standard, the following stipulation applies: When provisions of this type C standard are different from those which are stated in type A or B standards or from provisions made in !EN 1034-1:2000+A1:2010", the provisions of this type C standard take precedence over the provisions of the other standards. 1 Scope This European Standard applies to calenders intended for use in paper making and finishing and shall be used together with !EN 1034-1:2000+A1:2010". It deals with all significant hazards listed in clause 4. Related safety requirements and/or measures are described in clause 5.
It does not cover hazards connected with lifting operations required for changing rolls, inserting reels into the unwinding unit, removal of reels from the winding unit and heating systems for heating calender rolls. This European Standard is not applicable to calenders that have been manufactured before the date of publication of this standard. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
prEN 81-41:2004, Safety rules for the construction and installation of lifts — Special lifts for the transport of persons and goods — Part 41: Vertical lifting platforms intended for use by persons with impaired mobility. EN 294:1992, Safety of machinery — Safety distances to prevent danger zones being reached by the upper limbs. EN 349:1993, Safety of machinery — Minimum gaps to avoid crushing of parts of the human body. EN 418:1992, Safety of machinery — Emergency stop equipment — Functional aspects — Principles for design. EN 563:1994, Safety of machinery — Temperatures of touchable surfaces — Ergonomics data to establish temperature limit values for hot surfaces. EN 894-1:1997, Safety of machinery — Ergonomic requirements for the design of displays and control actuators — Part 1: General principles for human interactions for displays and control actuators. EN 894-2:1997, Safety of machinery — Ergonomic requirements for the design of displays and control actuators — Part 2: Displays.
EN 1760-1:1997, Safety of machinery — Pressure-sensitive safety devices — Part 1: General principles for the design and testing of pressure-sensitive mats and pressure-sensitive floors.
EN 1760-2:2001, Safety of machinery — Pressure-sensitive safety devices — Part 2: General principles for the design and testing of pressure-sensitive edges and pressure-sensitive bars.
EN 13023:2003, Noise measurement methods for printing, paper converting, paper making machines and auxiliary equipment — Accuracy categories 2 and 3. EN 60204-1:1997, Safety of machinery — Electrical equipment — Part 1: General requirements
(IEC 60204-1:1997).
EN 60024-11:2000, Safety of machinery — Electrical equipment — Part 11: High-voltage equipment for voltages above 1 000 V AC or 1 500 V DC, but not more than 36 kV (IEC 60204-11:2000). EN 61000-6-2:2001, Electromagnetic compatibility (EMC) — Part 6-2: Generic standard — Immunity —
Part 2: Industrial environment (IEC 61000-6-2:1999, modified). EN 61496-1:2004, Safety of machinery — Electro-sensitive protective equipment — Part 1: General requirements and tests (IEC 61496-1:2004, modified). prEN 61496-2:2005, Safety of machinery — Electro-sensitive protective equipment — Part 2: Particular requirements for equipment using active opto-electronic protective devices (AOPDs) (IEC 61496-2:2005). EN ISO 11957:1996, Acoustics — Determination of sound insulation performance of cabins — Laboratory and in situ measurements (ISO 11957:1996). EN ISO12100-1:2003, Safety of machinery — Basic concepts — General principles for design — Part 1: Basic terminology, methodology (ISO 12100-1:2003). SIST EN 1034-6:2006+A1:2010

machine using two or more adjacent rolls for glazing, smoothing, calibrating or embossing of paper, including the winding unit and unwinding unit if fitted, see 3.2 3.2
off-line calender
calender with winding and unwinding unit. An example is illustrated in Figure 1 3.3
on-line calender
calender integrated into a paper making or coating machine. An example is illustrated in Figure 2 3.4
sheet calender
calender used for glazing individual sheets of paper 3.5
lifting platform
lifting device integrated into a calender for people to carry out specific tasks, e.g. web threading, cleaning, maintenance. Often two lifting platforms are provided on the roll stack
NOTE Safety devices are not shown.
Key 1 Unwinding unit 2 Lifting appliance 3 Roll stack
4 Lifting platform 5 Shell storage
6 Winding unit
Figure 1 — Off-line calender (example)
NOTE: Safety devices are not shown.
Key 1 Doctor
2 First nip 3 Doctor
4 Second nip
Figure 2 — On-line
calender (example) 4 List of hazards This clause contains all the significant hazards, as far as they are dealt with in this standard, which are identified by risk assessment in accordance with EN 1050 as significant for this type of machinery and which require action to eliminate or reduce the risk. When carrying out the risk assessment, the machine designer
has to check whether the list of hazards in Table 1 is complete and applicable with respect to the particular machine. Table 1 — List of significant hazards No. from Table A.1
of EN 1050:1996 Hazards EN 1034-6:2005 !!!!EN 1034-1: 2000+A1:2010"""" 1 Mechanical hazards due to:
1.1 Crushing hazard 5.16.3; 5.16.4; 5.16.8; 5.16.9; 5.17.3; 5.19.3; 5.19.4; 5.19.5; 5.19.6; 5.19.8; 5.19.9; 5.25; 5.27.1 5.1; 5.3; 1.2 Shearing hazard 5.16.8; 5.19.5; 5.19.8; 5.25 5.1 1.3 Cutting or severing hazard 5.16.8; 5.22.1; 5.22.2; 5.26.2; 5.27.1; 5.27.2 5.11; 5.12
of EN 1050:1996 Hazards EN 1034-6:2005 !!!!EN 1034-1: 2000+A1:2010"""" 1.4 Entanglement hazard 5.8; 5.16.7; 5.23, 5.26.1, 5.28.1; 5.28.2 5.2 1.5 Drawing-in or trapping hazard 5.4.5; 5.8.3; 5.16.3; 5.16.6; 5.17.1; 5.18; 5.23; 5.27.1; 5.28.1; 5.28.2 5.1; 5.4 1.6 Impact hazard 5.16; 5.19.6; 5.19.9; 5.23 5.1 1.8 Friction or abrasion hazard 5.7.1; 5.8; 5.23 5.1 1.9 High-pressure fluid injection or ejection hazard 5.14.1; 5.18.1 5.24 2. Electrical hazards due to:
2.1 Contact of persons with live parts 5.13 5.23 2.2 Contact of persons with parts that have become live under faulty conditions 5.13 5.23 2.4 Electrostatic phenomena 5.13 5.23 3 Thermal hazards, resulting in:
3.1 Burns by contact 5.8.4; 5.24, Clause 7 5.13; 5.17 4 Hazards generated by noise, resulting in:
4.1 Hearing loss and other physiological disorders
5.10, clause 7 5.15 4.2 Interference with speech communication, acoustic signals 5.10; clause 7 5.15 6 Hazards generated by radiation, particularly:
6.4 Ionizing radiation sources 5.25 5.20 6.5 Lasers 5.25 5.21 7 Hazards generated by materials and substances processed, used or exhausted by the machinery, for example:
7.1 Hazard resulting from the inhalation of asbestos 5.17.4; clause 7 5.16 7.2 Fire hazard 5.13 5.13; 5.18; 5.19; 5.23
8 Hazards generated by neglecting ergonomic principles in machinery design, for example by:
8.1 Unhealthy posture or excessive effort 5.4; 5.12; clause 7 5.22 8.2 Inadequate consideration of hand/arm or foot/leg anatomy 5.4; 5.12; clause 7 5.22 8.4 Inadequate local lighting 5.11 5.18 9 Combination of hazards 5.2.1; 5.2.2; 5.4; 5.6; 5.7; 5.8.1; 5.28; clause 7 5.6 SIST EN 1034-6:2006+A1:2010

of EN 1050:1996 Hazards EN 1034-6:2005 !!!!EN 1034-1: 2000+A1:2010"""" 10 Unexpected start-up, unexpected overrun/overspeed:
10.1 Failure/disorder of the control system 5.2.3; 5.3.3; 5.3.4; 5.3.5; 5.6.2; 5.9.1; 5.9.2; 5.9.3; 5.9.4; 5.9.5; 5.13; 5.16.4; 5.16.5; 5.16.8; 5.17.1; 5.17.3; 5.20 5.14, 5.23 10.2 Restoration of energy supply after an interruption 5.6; 5.13; 5.14.2; 5.15.2; 5.20.6 5.8 10.3 External influences on electrical equipment 5.13 5.23 10.6 Errors made by the operator due to mismatch of machinery with human characteristics 5.9.1; 5.13; 5.20.2 5.14 11 Impossibility of stopping the machine in the
best possible conditions 5.3; 5.6; 5.14.2; 5.15.2; 5.20.1
14 Failure of the control circuit 5.2.3; 5.3.3; 5.3.4; 5.3.5; 5.6.2; 5.9.1; 5.9.2; 5.9.3; 5.9.4; 5.9.5; 5.13; 5.16.4; 5.16.5; 5.16.8; 5.17.1; 5.17.3; 5.20 5.14 15
Errors of fitting 5.7.3; 5.7.4; clause 7 clause 7 17 Unforeseen ejection of objects 5.16.1; 5.16.2; 5.19.7; 5.23 5.2 18 Loss of stability 5.9.2; 5.16.2; 5.21 clause 7 19 Slip, trip and fall of persons 5.5; 5.19.2; 5.19.4; 5.19.10 5.5 27 Mechanical hazards resulting from lifting processes
27.1 from load falls, collisions 5.16.1; 5.16.2; 5.16.5; 5.16.10; 5.19.7
27.6 from inadequate selection of lifting equipment 5.16.10; clause 7
27.9 from the effect of load on persons 5.19.7; clause 7
29 Hazards generated by neglecting ergonomic principles in lifting processes
29.1 Insufficient visibility from the driving position 5.16.1
34 Mechanical hazards and hazardous events due to:
34.1 Inadequate mechanical strength – inadequate working coefficients 5.20; 5.21.2; 5.21.3
34.3 Failing of controls in person carrier (function, priority) 5.20.3; 5.20.4; .5.21.1
34.4 Overspeed of person carrier 5.20.5
35 Falling of person from person carrier 5.19.2; 5.19.4
Falling or overturning of person carrier 5.21
of EN 1050:1996 Hazards EN 1034-6:2005 !!!!EN 1034-1: 2000+A1:2010"""" 37 Human error, human behaviour 5.2.4; 5.3.6; 5.4.4 ; 5.6.3; 5.7.4; 5.8.4; 5.10.4; 5.16.10; 5.17.1; 5.17.2; 5.17.4; 5.19.1; 5.16.6; 5.20.3; 5.21.2; 5.27.2; 5.28.2; clause 7 clause 7
Emergency measures 5.3; 5.8.2; 5.20.1; 5.20.3; 5.20.4; clause 7 5.1.3; 5.7; 5.18; 5.19 5 Safety requirements and/or measures 5.1 General Calenders shall comply with the safety requirements and/or measures of this clause. In addition, the machinery shall be designed according to the principles of EN ISO 12100-2:2003 for hazards relevant but not significant, which are not dealt with by this European Standard (for example, sharp edges). 5.2 Start-up warning devices 5.2.1 For start-up warning devices on on-line calenders, 5.6.1 of !EN 1034-1:2000+A1:2010" shall apply. 5.2.2 Start-up warning devices on off-line calenders shall comply with category B specified in 5.6.2 of !EN 1034-1:2000+A1:2010". 5.2.3 The control system of start-up warning devices shall comply with at least category 1 of
EN 954-1:1996 for
conventional control systems and category 2 of EN 954-1:1996 for electronic control systems. 5.2.4 The use of start-up warning devices shall be described in the instruction handbook. 5.3 Emergency stop devices and braking systems 5.3.1
Calenders shall be equipped with an emergency stop device. Emergency stop devices shall comply with the requirements of 5.7 of !EN 1034-1:2000+A1:2010" and EN 418:1992 and shall act on all hazardous movements of the machine. This includes the movement of electric, hydraulic and pneumatic drives of calender rolls, unwinding, winding, threading, sheet feed devices and lifting platforms.
Actuators for emergency stopping are also required in areas that need to be accessed for cleaning. As a deviation from 5.7 of !EN 1034-1:2000+A1:2010", in cases where it is not practicable to complete the whole stop procedure with a closed roll nip, it is permitted to open the nip even before standstill is attained if the safety devices are designed so that they prevent the drawing-in hazard with the nip both closed and open. Additional requirements for emergency stop devices of lifting platforms are contained in 5.20.1.
5.3.2
Calenders shall be provided with braking devices which operate on actuation of the emergency stop device. This requirement can be fulfilled, for example, by mechanical brakes or electric regenerative brakes. Braking devices shall operate in such a way that the stopping time of the machine does not exceed the shortest possible start-up time following emergency stopping. SIST EN 1034-6:2006+A1:2010

The control system of emergency stop devices shall comply with at least category 3 of
EN 954-1.1996.
The emergency stop device shall be effective according to stop category 1 from 4.1.5 of
EN 418:1992. 5.3.4
The control system of electric brakes shall comply with at least category 2 of EN 954-1:1996. Any fault in the brake control system shall lead to emergency stopping according to category 0 from 5.1.4 of
EN 418:1992. 5.3.5
The emergency stop control system of on-line calenders shall be integrated into the emergency stop control system of the paper/smoothing machine in such a way that the emergency stop devices of the other machine units also act on the calender and the calender emergency stop devices also act on the other machine units
It shall be ensured that all the safety-related parts of the linked emergency stop control system correspond to category 3 according to EN 954-1:1996.
5.3.6
The use and checking procedures of emergency stop devices shall be described in the instruction handbook. 5.4 Web threading and sheet feeding 5.4.1
For threading the paper web on off-line calenders with high roll stacks, for example super calenders, lifting platforms are required which satisfy the requirements of 5.19 to 5.21. 5.4.2
On-line calenders shall be provided with a threading device, for example, a rope threading device. 5.4.3
Sheet calenders require devices for feeding the paper sheets. 5.4.4
Safe working practices for threading the paper web and joining the web ends shall be described in the instruction handbook. 5.4.5 The wrapping points of the threading device according to 5.4.2 and the device according to 5.4.3 shall be safeguarded in accordance with 5.4.2 of !EN 1034-1:2000+A1:2010". 5.5 Workplaces, access stairs, catwalks, passageways
The requirements laid down in 5.5 of !EN 1034-1:2000+A1:2010" and in EN ISO 14122-1:2000, EN ISO 14122-2:2000 and EN ISO 14122-3:2000 shall be fulfilled. Additional requirements are specified in 5.19. 5.6 Isolation and energy dissipation, prevention of unexpected start-up 5.6.1
For isolation and energy dissipation of electric, pneumatic and hydraulic equipment from their respective power source, independent means shall be provided in accordance with 5.8 of !EN 1034-1:2000+A1:2010" for the calendar and each lifting platform. The respective requirements from EN 1037:1996; EN 60204-1:1997 and, as far as applicable, EN 60204-11:2000 shall be fulfilled. Additional stipulations shall be observed for energy isolation of lifting platforms in accordance with 5.20.6. 5.6.2
The main control panel shall be equipped with independent means ensuring prevention of unexpected start-up of the calendar and or each lifting platform in accordance with 5.8.2 of !EN 1034-1:2000+A1:2010" and 5.4 of EN IEC 60204-1:1997.
The associated controls shall be at least category 3 as specified in EN 954-1:1996. 5.6.3
The use of the devices for energy isolation and prevention of unexpected start-up shall be described in the instruction handbook.
The requirements of 5.9 of !EN 1034-1:2000+A1:2010" shall be fulfilled. Crawl speeds of calenders shall be as low as possible with a maximum of 0,25 m/s (15 m/min). Crawl speeds shall be indicated in the instruction handbook.
5.7.2 Calenders shall allow crawl speed opera
...
