SIST EN ISO 10088:2017
(Main)Small craft - Permanently installed fuel systems (ISO 10088:2013)
Small craft - Permanently installed fuel systems (ISO 10088:2013)
This International Standard specifies the requirements for the design, materials, construction, installation
and testing of permanently installed fuel systems as installed for internal combustion engines.
It applies to all parts of permanently installed diesel and petrol fuel systems as installed, from the
fuel fill opening to the point of connection with the propulsion or auxiliary engine(s) on inboard- and
outboard-powered small craft of up to 24 m hull length.
Requirements for the design, materials, construction and testing of permanently installed fixed fuel
tanks are given in ISO 21487.
Kleine Wasserfahrzeuge - Dauerhaft installierte Kraftstoffsysteme (ISO 10088:2013)
Petits navires - Systèmes à carburant installés à demeure (ISO 10088:2013)
L'ISO 10088:2013 spécifie les exigences concernant la conception, les matériaux, la construction, l'installation et les essais des systèmes à carburant installés à demeure et destinés à l'alimentation des moteurs à combustion interne.
Elle s'applique à tous les éléments des systèmes à carburant diesel et essence installés à demeure, depuis le nable de remplissage jusqu'au point de raccordement au(x) moteur(s) de propulsion ou au(x) moteur(s) auxiliaire(s) des petits navires propulsés par un ou des moteurs intérieurs ou hors-bord, et de longueur de coque inférieure ou égale à 24 m.
Les exigences concernant la conception, les matériaux, la construction et les essais des réservoirs fixes à carburant installés à demeure sont données dans l'ISO 21487.
Mala plovila - Trajno vgrajeni sistemi za gorivo (ISO 10088:2013)
Ta mednarodni standard določa zahteve za zasnovo, materiale, izdelavo, vgradnjo in preskušanje sistemov za gorivo, trajno vgrajenih v motorje z notranjim izgorevanjem.
Uporablja se za vse dele trajno vgrajenih sistemov za bencinsko in dizelsko gorivo, od odprtine za dovod goriva do točke povezave z vgrajenim ali izven krmnim pogonskim ali pomožnim motorjem malih plovil z dolžino trupa do 24 m.
Zahteve za zasnovo, materiale, izdelavo in preskušanje trajno vgrajenih stacionarnih rezervoarjev za gorivo so podane v standardu ISO 21487.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN ISO 10088:2017
01-oktober-2017
1DGRPHãþD
SIST EN ISO 10088:2013
Mala plovila - Trajno vgrajeni sistemi za gorivo (ISO 10088:2013)
Small craft - Permanently installed fuel systems (ISO 10088:2013)
Kleine Wasserfahrzeuge - Dauerhaft installierte Kraftstoffsysteme (ISO 10088:2013)
Petits navires - Systèmes à carburant installés à demeure (ISO 10088:2013)
Ta slovenski standard je istoveten z: EN ISO 10088:2017
ICS:
47.020.20 Ladijski motorji Marine engines and
propulsion systems
47.080 ýROQL Small craft
SIST EN ISO 10088:2017 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN ISO 10088:2017
---------------------- Page: 2 ----------------------
SIST EN ISO 10088:2017
EN ISO 10088
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2017
EUROPÄISCHE NORM
ICS 47.080 Supersedes EN ISO 10088:2013
English Version
Small craft - Permanently installed fuel systems (ISO
10088:2013)
Petits navires - Systèmes à carburant installés à Kleine Wasserfahrzeuge - Dauerhaft installierte
demeure (ISO 10088:2013) Kraftstoffsysteme (ISO 10088:2013)
This European Standard was approved by CEN on 9 July 2017.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10088:2017 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 10088:2017
EN ISO 10088:2017 (E)

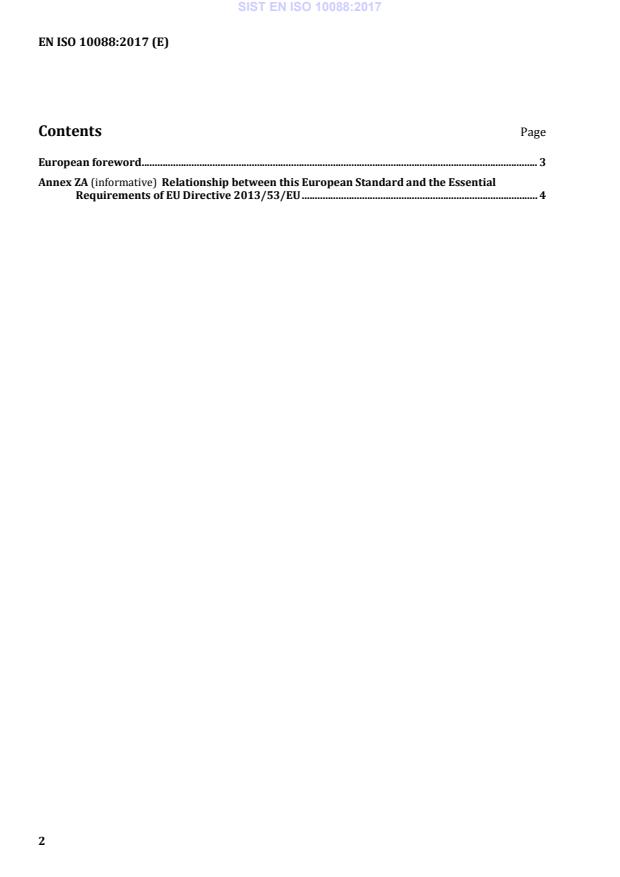

Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2013/53/EU . 4
2
---------------------- Page: 4 ----------------------
SIST EN ISO 10088:2017
EN ISO 10088:2017 (E)
European foreword
The text of ISO 10088:2013 has been prepared by Technical Committee ISO/TC 188 “Small craft” of the
International Organization for Standardization (ISO) and has been taken over as EN ISO 10088:2017.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2018, and conflicting national standards
shall be withdrawn at the latest by February 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 10088:2013.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of 10088:2013 has been approved by CEN as EN ISO 10088:2017 without any modification.
3
---------------------- Page: 5 ----------------------
SIST EN ISO 10088:2017
EN ISO 10088:2017 (E)
Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 2013/53/EU
This European standard has been prepared under a mandate given to CEN by the European Commission
to provide one means of conforming to Essential Requirements of the New Approach Directive
2013/53/EU.
Once this standard is cited in the Official Journal of the European Union under that Directive and has
been implemented as a national standard in at least one member state, compliance with the normative
clauses of this standard given in Table ZA.1 confers, within the limits of the scope of this standard, a
presumption of conformity with the relevant Essential Requirements of that Directive and associated
EFTA regulations.
Table ZA.1: Correspondence between this European Standard and Directive 2013/53/EU
Clauses/sub-clauses of this Essential Requirements Qualifying remarks/Notes
standard (ERs) of EU Directive
2013/53/EU
All Clauses Annex 1 A, Clause 5.2.1, Fuel This Standard applies to all
system -General parts of permanently
installed diesel and petrol
fuel systems as installed,
from the fuel fill opening to
the point of connection with
the propulsion or auxiliary
engine(s) on inboard- and
outboard-powered small
craft of up to 24 m hull
length.
This Standard does not
address fuel systems for
other types of diesel or petrol
burning appliances.
All Clauses Annex 1 A, Clause 5.2.2, Fuel The clauses in this standard
system –Fuel tanks address fuel lines and
ventilation of petrol tank
compartments. The design
and construction of fuel tanks
is specifically addressed by
EN ISO 21487.
4, 5 Annex 1, Clause 5.6.1 Fire The clauses in this standard
protection - General are limited to the installation
of the fuel system to
minimise the risk of fire.
4
---------------------- Page: 6 ----------------------
SIST EN ISO 10088:2017
EN ISO 10088:2017 (E)
4.1.7, 4.1.8, 4.2.3, 5.2.8 Annex 1 A, Clause 5.8 This standard addresses the
Discharge prevention prevention of fuel overflow
from vent openings and
blowback of fuel through fill
fittings. It does not address
accidental spillage entering
the environment.
WARNING: Other requirements and other EU Directives may be applicable to the product(s) falling within
the scope of this standard.
5
---------------------- Page: 7 ----------------------
SIST EN ISO 10088:2017
---------------------- Page: 8 ----------------------
SIST EN ISO 10088:2017
INTERNATIONAL ISO
STANDARD 10088
Fourth edition
2013-08-15
Small craft — Permanently installed
fuel systems
Petits navires — Systèmes à carburant installés à demeure
Reference number
ISO 10088:2013(E)
©
ISO 2013
---------------------- Page: 9 ----------------------
SIST EN ISO 10088:2017
ISO 10088:2013(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 10088:2017
ISO 10088:2013(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General requirements . 3
4.1 Materials and design . 3
4.2 Testing . 4
4.3 Installation . 4
5 Fuel pipes, hoses, connections and accessories . 4
5.1 Fuel filling lines . 4
5.2 Vent lines and components . 5
5.3 Fuel distribution, return and balancing lines . 5
5.4 Hose fittings and hose clamping . 6
5.5 Valves and fittings. 7
5.6 Fuel filters . 7
5.7 Labelling . 7
Annex A (normative) Pressure testing . 8
Bibliography . 9
© ISO 2013 – All rights reserved iii
---------------------- Page: 11 ----------------------
SIST EN ISO 10088:2017
ISO 10088:2013(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received. www.iso.org/patents
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
The committee responsible for this document is ISO/TC 188, Small craft.
This fourth edition cancels and replaces the third edition (ISO 10088:2009), which has been technically
revised. The major changes concern 4.1.6, 4.3.2, and 5.5.4.
iv © ISO 2013 – All rights reserved
---------------------- Page: 12 ----------------------
SIST EN ISO 10088:2017
INTERNATIONAL STANDARD ISO 10088:2013(E)
Small craft — Permanently installed fuel systems
1 Scope
This International Standard specifies the requirements for the design, materials, construction, installation
and testing of permanently installed fuel systems as installed for internal combustion engines.
It applies to all parts of permanently installed diesel and petrol fuel systems as installed, from the
fuel fill opening to the point of connection with the propulsion or auxiliary engine(s) on inboard- and
outboard-powered small craft of up to 24 m hull length.
Requirements for the design, materials, construction and testing of permanently installed fixed fuel
tanks are given in ISO 21487.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids
ISO 7840:2013, Small craft — Fire-resistant fuel hoses
ISO 8469:2013, Small craft — Non-fire-resistant fuel hoses
ISO 8846, Small craft — Electrical devices — Protection against ignition of surrounding flammable gases
ISO 10133, Small craft — Electrical systems — Extra-low-voltage d.c. installations
ISO 11105, Small craft — Ventilation of petrol engine and/or petrol tank compartments
ISO 11192, Small craft — Graphical symbols
ISO 13297, Small craft — Electrical systems — Alternating current installations
ISO 21487, Small craft — Permanently installed petrol and diesel fuel tanks
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
accessible
capable of being reached for inspection, removal or maintenance without removal of permanent
craft structure
Note 1 to entry: Hatches are not regarded as permanent craft structures in this sense, even if tools such as
wrenches or screwdrivers are needed to open them. Hatches for inspection or maintenance of fuel tanks may be
covered by uncut carpet, provided that all tank fittings can be inspected and maintained through other openings.
3.2
readily accessible
capable of being reached quickly and safely for maintenance or effective use under emergency conditions
without the use of tools
© ISO 2013 – All rights reserved 1
---------------------- Page: 13 ----------------------
SIST EN ISO 10088:2017
ISO 10088:2013(E)
3.3
permanently installed
securely fastened so that tools need to be used for removal
3.4
anti-siphon valve
demand valve which can be opened only by fuel pump suction to withdraw fuel from a tank and which
will remain closed when the fuel pump is not operating, preventing siphon action created by a break or
leakage at any point in the fuel distribution system
3.5
static floating position
attitude in which the boat floats in calm fresh water according to light craft mass m with each fuel
LCC
tank filled to rated capacity but excluding all non-permanently attached interior and exterior equipment
[1]
Note 1 to entry: Light craft mass m is specified in ISO 8666:2002 , 6.3.
LCC
[2]
[SOURCE: ISO 13590:2003 , 3.3, modified]
3.6
petrol
hydrocarbon fuel, or blend thereof, which is liquid at atmospheric pressure and is used in spark-
ignition engines
3.7
diesel
hydrocarbon fuel, or blend thereof, which is liquid at atmospheric pressure and is used in compression-
ignition engines
3.8
spud
rigid pipe or spigot used for the connection of pipes and hoses to tanks or components such as filters
and pumps
3.9
swaged sleeve
permanently attached fuel hose end fitting obtained by applying even compression to a metal sleeve
or ferrule, sufficient to make the inner lining of the hose take up the shape of the insert and create a
pressure seal
Note 1 to entry: See Figure 1.
Key
1 hose
2 sleeve
Figure 1 — Swaged sleeve
2 © ISO 2013 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 10088:2017
ISO 10088:2013(E)
3
...
SLOVENSKI STANDARD
kSIST FprEN ISO 10088:2017
01-maj-2017
Mala plovila - Trajno vgrajeni sistemi za gorivo (ISO 10088:2013)
Small craft - Permanently installed fuel systems (ISO 10088:2013)
Kleine Wasserfahrzeuge - Dauerhaft installierte Kraftstoffsysteme (ISO 10088:2013)
Petits navires - Systèmes à carburant installés à demeure (ISO 10088:2013)
Ta slovenski standard je istoveten z: FprEN ISO 10088
ICS:
47.080 ýROQL Small craft
kSIST FprEN ISO 10088:2017 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
kSIST FprEN ISO 10088:2017
---------------------- Page: 2 ----------------------
kSIST FprEN ISO 10088:2017
FINAL DRAFT
EUROPEAN STANDARD
FprEN ISO 10088
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2017
ICS 47.080 Will supersede EN ISO 10088:2013
English Version
Small craft - Permanently installed fuel systems (ISO
10088:2013)
Petits navires - Systèmes à carburant installés à Kleine Wasserfahrzeuge - Dauerhaft installierte
demeure (ISO 10088:2013) Kraftstoffsysteme (ISO 10088:2013)
This draft European Standard is submitted to CEN members for unique acceptance procedure. It has been drawn up by the
Technical Committee CEN/SS T01.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprEN ISO 10088:2017 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
kSIST FprEN ISO 10088:2017
FprEN ISO 10088:2017 (E)
Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2013/53/EU . 4
2
---------------------- Page: 4 ----------------------
kSIST FprEN ISO 10088:2017
FprEN ISO 10088:2017 (E)
European foreword
The text of ISO 10088:2013 has been prepared by Technical Committee ISO/TC 188 “Small craft” of the
International Organization for Standardization (ISO) and has been taken over as FprEN ISO
10088:2017.
This document is currently submitted to the Unique Acceptance Procedure.
This document will supersede EN ISO 10088:2013.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
Endorsement notice
The text of 10088:2013 has been approved by CEN as FprEN ISO 10088:2017 without any modification.
3
---------------------- Page: 5 ----------------------
kSIST FprEN ISO 10088:2017
FprEN ISO 10088:2017 (E)
Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 2013/53/EU
This European standard has been prepared under a mandate given to CEN by the European Commission
to provide one means of conforming to Essential Requirements of the New Approach Directive
2013/53/EU.
Once this standard is cited in the Official Journal of the European Communities under that Directive and
has been implemented as a national standard in at least one member state, compliance with the
normative clauses of this standard given in Table ZA.1 confers, within the limits of the scope of this
standard, a presumption of conformity with the relevant Essential Requirements of that Directive and
associated EFTA regulations.
Table ZA.1: Correspondence between this European Standard and Directive 2013/53/EU
Clauses/sub-clauses of this Essential Requirements Qualifying remarks/Notes
standard (ERs) of EU Directive
2013/53/EU
All Clauses Annex 1 A, Clause 5.2.1, Fuel This Standard applies to all
system -General parts of permanently
installed diesel and petrol
fuel systems as installed,
from the fuel fill opening to
the point of connection with
the propulsion or auxiliary
engine(s) on inboard- and
outboard-powered small
craft of up to 24 m hull
length.
This Standard does not
address fuel systems for
other types of diesel or petrol
burning appliances.
All Clauses Annex 1 A, Clause 5.2.2, Fuel The clauses in this standard
system –Fuel tanks address fuel lines and
ventilation of petrol tank
compartments. The design
and construction of fuel tanks
is specifically addressed by
EN ISO 21487.
4, 5 Annex 1, Clause 5.6.1 Fire The clauses in this standard
protection - General are limited to the installation
of the fuel system to
minimise the risk of fire.
4
---------------------- Page: 6 ----------------------
kSIST FprEN ISO 10088:2017
FprEN ISO 10088:2017 (E)
4.1.7, 4.1.8, 4.2.3, 5.2.8 Annex 1 A, Clause 5.8 This standard addresses the
Discharge prevention prevention of fuel overflow
from vent openings and
blowback of fuel through fill
fittings. It does not address
accidental spillage entering
the environment.
WARNING: Other requirements and other EU Directives may be applicable to the product(s) falling within
the scope of this standard.
5
---------------------- Page: 7 ----------------------
kSIST FprEN ISO 10088:2017
---------------------- Page: 8 ----------------------
kSIST FprEN ISO 10088:2017
INTERNATIONAL ISO
STANDARD 10088
Fourth edition
2013-08-15
Small craft — Permanently installed
fuel systems
Petits navires — Systèmes à carburant installés à demeure
Reference number
ISO 10088:2013(E)
©
ISO 2013
---------------------- Page: 9 ----------------------
kSIST FprEN ISO 10088:2017
ISO 10088:2013(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
---------------------- Page: 10 ----------------------
kSIST FprEN ISO 10088:2017
ISO 10088:2013(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General requirements . 3
4.1 Materials and design . 3
4.2 Testing . 4
4.3 Installation . 4
5 Fuel pipes, hoses, connections and accessories . 4
5.1 Fuel filling lines . 4
5.2 Vent lines and components . 5
5.3 Fuel distribution, return and balancing lines . 5
5.4 Hose fittings and hose clamping . 6
5.5 Valves and fittings. 7
5.6 Fuel filters . 7
5.7 Labelling . 7
Annex A (normative) Pressure testing . 8
Bibliography . 9
© ISO 2013 – All rights reserved iii
---------------------- Page: 11 ----------------------
kSIST FprEN ISO 10088:2017
ISO 10088:2013(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received. www.iso.org/patents
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
The committee responsible for this document is ISO/TC 188, Small craft.
This fourth edition cancels and replaces the third edition (ISO 10088:2009), which has been technically
revised. The major changes concern 4.1.6, 4.3.2, and 5.5.4.
iv © ISO 2013 – All rights reserved
---------------------- Page: 12 ----------------------
kSIST FprEN ISO 10088:2017
INTERNATIONAL STANDARD ISO 10088:2013(E)
Small craft — Permanently installed fuel systems
1 Scope
This International Standard specifies the requirements for the design, materials, construction, installation
and testing of permanently installed fuel systems as installed for internal combustion engines.
It applies to all parts of permanently installed diesel and petrol fuel systems as installed, from the
fuel fill opening to the point of connection with the propulsion or auxiliary engine(s) on inboard- and
outboard-powered small craft of up to 24 m hull length.
Requirements for the design, materials, construction and testing of permanently installed fixed fuel
tanks are given in ISO 21487.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids
ISO 7840:2013, Small craft — Fire-resistant fuel hoses
ISO 8469:2013, Small craft — Non-fire-resistant fuel hoses
ISO 8846, Small craft — Electrical devices — Protection against ignition of surrounding flammable gases
ISO 10133, Small craft — Electrical systems — Extra-low-voltage d.c. installations
ISO 11105, Small craft — Ventilation of petrol engine and/or petrol tank compartments
ISO 11192, Small craft — Graphical symbols
ISO 13297, Small craft — Electrical systems — Alternating current installations
ISO 21487, Small craft — Permanently installed petrol and diesel fuel tanks
3 Terms a nd definiti ons
For the purposes of this document, the following terms and definitions apply.
3.1
accessible
capable of being reached for inspection, removal or maintenance without removal of permanent
craft structure
Note 1 to entry: Hatches are not regarded as permanent craft structures in this sense, even if tools such as
wrenches or screwdrivers are needed to open them. Hatches for inspection or maintenance of fuel tanks may be
covered by uncut carpet, provided that all tank fittings can be inspected and maintained through other openings.
3.2
readily accessible
capable of being reached quickly and safely for maintenance or effective use under emergency conditions
without the use of tools
© ISO 2013 – All rights reserved 1
---------------------- Page: 13 ----------------------
kSIST FprEN ISO 10088:2017
ISO 10088:2013(E)
3.3
permanently installed
securely fastened so that tools need to be used for removal
3.4
anti-siphon valve
demand valve which can be opened only by fuel pump suction to withdraw fuel from a tank and which
will remain closed when the fuel pump is not operating, preventing siphon action created by a break or
leakage at any point in the fuel distribution system
3.5
s t at ic f lo at i n g p o s it ion
attitude in which the boat floats in calm fresh water according to light craft mass m with each fuel
LCC
tank filled to rated capacity but excluding all non-permanently attached interior and exterior equipment
[1]
Note 1 to entry: Light craft mass m is specified in ISO 8666:2002 , 6.3.
LCC
[2]
[SOURCE: ISO 13590:2003 , 3.3, modified]
3.6
petrol
hydrocarbon fuel, or blend thereof, which is liquid at atmospheric pressure and is used in spark-
ignition engines
3.7
diesel
hydrocarbon fuel, or blend thereof, which is liquid at atmospheric pressure and is used in compression-
ignition engines
3.8
spud
rigid pipe or spigot used for the connection of pipes and hoses to tanks or components such as filters
and pumps
3.9
swaged sleeve
permanently attached fuel hose end fitting obtained by applying even compression to a metal sleeve
or ferrule, sufficient to make the inner lining of the hose take up the shape of the insert and create a
pressure seal
Note 1 to entry: See Figure 1.
Key
1 hose
2 sleeve
Figure 1 — Swaged sleeve
2 © ISO 2013 – All rights reserved
---------------------- Page: 14 ----------------------
kSIST FprEN ISO 10088:2017
ISO 10088:2013(E)
3.10
sleeve and threaded insert
permanently attached fuel hose end fitting made by screwing an insert sleeve with threads into the hose
and applying even compression to a metal sleeve or ring to secure the hose in place
Note 1 to entry: This type of connection can be made with th
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
