Space - Use of GNSS-based positioning for road Intelligent Transport System (ITS) - Security attacks modelling and definition of performance features and metrics related to security

The objective is to analyse the security issues that can occur at the GNSS SIS level. In order to do so, a full taxonomy of the GNSS SIS attacks are proposed and GNSS SIS attack security model are elaborated and classified. Security metrics for the validation of the GBPT robustness performances are defined.
The proposed methodology for this technical report consists in three distinct steps that are described hereunder:
I. The first step consists in providing a full taxonomy of the possible GNSS Signal in Space attacks (voluntary or not) to be considered and identify their impact at GBPT level;
II. The second step consists in regrouping narrow sets of previouslyidentified GNSS SIS attacks into security attack models. For each security attack model, an assessment of the dangerousness based on beforehand identified key parameters and methodology will be provided;
III. The third step consists in providing definition of performance objectives, security control, security metrics, and a specific procedure for a robustness evaluation of a GBPT against the identified security attack models at step II.
The results will benefit to the EN16803-3 "Assessment of security performances of GNSS based positioning terminals"

Modellierung von Sicherheitsangriffen und Definition von Leistungsmerkmalen und Sicherheitsmetriken

Espace - Utilisation de la localisation basée sur les GNSS pour les systèmes de transport routiers intelligents - Modélisation des attaques de sécurité et, définition des caractéristiques de performance et des métriques liées à la sécurité

Vesolje - Ugotavljanje položaja z uporabo sistema globalne satelitske navigacije (GNSS) pri inteligentnih transportnih sistemih (ITS) v cestnem prometu - Modeliranje varnostnih napadov ter opredelitev tehničnih značilnosti in metrike v zvezi z varnostjo

General Information

Status
Published
Public Enquiry End Date
31-Dec-2019
Publication Date
16-Aug-2020
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
13-Aug-2020
Due Date
18-Oct-2020
Completion Date
17-Aug-2020

Buy Standard

Technical report
SIST-TP CEN/TR 17464:2020 - BARVE
English language
59 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Technical report
kSIST-TP FprCEN/TR 17464:2019 - BARVE
English language
60 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST-TP CEN/TR 17464:2020
01-oktober-2020
Vesolje - Ugotavljanje položaja z uporabo sistema globalne satelitske navigacije
(GNSS) pri inteligentnih transportnih sistemih (ITS) v cestnem prometu -

Modeliranje varnostnih napadov ter opredelitev tehničnih značilnosti in metrike v

zvezi z varnostjo

Space - Use of GNSS-based positioning for road Intelligent Transport System (ITS) -

Security attacks modelling and definition of performance features and metrics related to

security
Modellierung von Sicherheitsangriffen und Definition von Leistungsmerkmalen und
Sicherheitsmetriken
Espace - Utilisation de la localisation basée sur les GNSS pour les systèmes de

transport routiers intelligents - Modélisation des attaques de sécurité et, définition des

caractéristiques de performance et des métriques liées à la sécurité
Ta slovenski standard je istoveten z: CEN/TR 17464:2020
ICS:
03.220.20 Cestni transport Road transport
33.060.30 Radiorelejni in fiksni satelitski Radio relay and fixed satellite
komunikacijski sistemi communications systems
35.240.60 Uporabniške rešitve IT v IT applications in transport
prometu
SIST-TP CEN/TR 17464:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TP CEN/TR 17464:2020
---------------------- Page: 2 ----------------------
SIST-TP CEN/TR 17464:2020
TECHNICAL REPORT
CEN/TR 17464
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
August 2020
ICS 03.220.20; 33.060.30; 35.240.60
English version
Space - Use of GNSS-based positioning for road Intelligent
Transport System (ITS) - Security attacks modelling and
definition of performance features and metrics related to
security

Espace - Utilisation de la localisation basée sur les Modellierung von Sicherheitsangriffen und Definition

GNSS pour les systèmes de transport routiers von Leistungsmerkmalen und Sicherheitsmetriken

intelligents - Modélisation des attaques de sécurité et,
définition des caractéristiques de performance et des
métriques liées à la sécurité

This Technical Report was approved by CEN on 3 February 2020. It has been drawn up by the Technical Committee

CEN/CLC/JTC 5.

CEN and CENELEC members are the national standards bodies and national electrotechnical committees of Austria, Belgium,

Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia,

Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
CEN-CENELEC Management Centre:
Rue de la Science 23, B-1040 Brussels

© 2020 CEN/CENELEC All rights of exploitation in any form and by any means Ref. No. CEN/TR 17464:2020 E

reserved worldwide for CEN national Members and for
CENELEC Members.
---------------------- Page: 3 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)

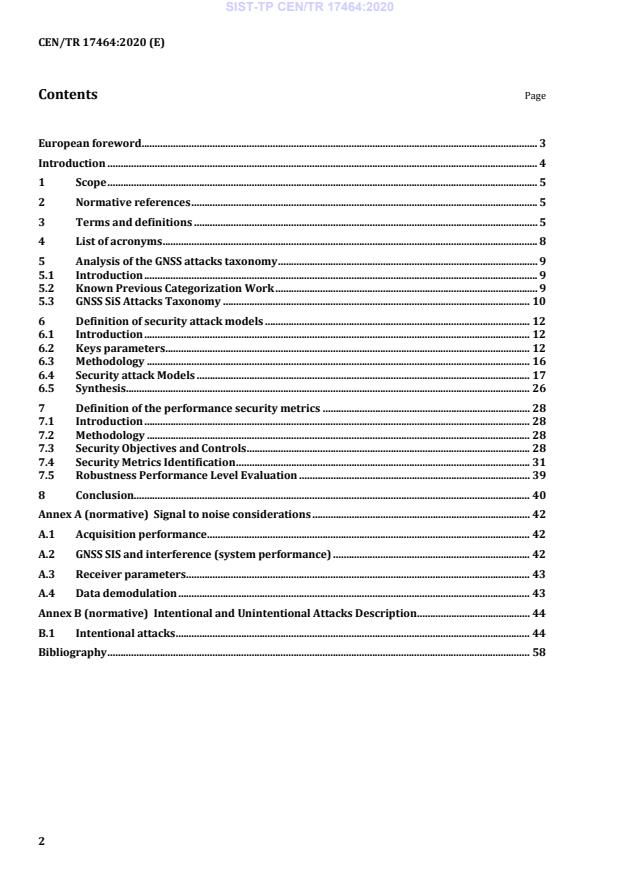

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 List of acronyms ............................................................................................................................................... 8

5 Analysis of the GNSS attacks taxonomy ................................................................................................... 9

5.1 Introduction ...................................................................................................................................................... 9

5.2 Known Previous Categorization Work .................................................................................................... 9

5.3 GNSS SiS Attacks Taxonomy ..................................................................................................................... 10

6 Definition of security attack models ..................................................................................................... 12

6.1 Introduction ................................................................................................................................................... 12

6.2 Keys parameters ........................................................................................................................................... 12

6.3 Methodology .................................................................................................................................................. 16

6.4 Security attack Models ............................................................................................................................... 17

6.5 Synthesis.......................................................................................................................................................... 26

7 Definition of the performance security metrics ............................................................................... 28

7.1 Introduction ................................................................................................................................................... 28

7.2 Methodology .................................................................................................................................................. 28

7.3 Security Objectives and Controls ............................................................................................................ 28

7.4 Security Metrics Identification ................................................................................................................ 31

7.5 Robustness Performance Level Evaluation ........................................................................................ 39

8 Conclusion....................................................................................................................................................... 40

Annex A (normative) Signal to noise considerations ................................................................................... 42

A.1 Acquisition performance ........................................................................................................................... 42

A.2 GNSS SIS and interference (system performance) ........................................................................... 42

A.3 Receiver parameters ................................................................................................................................... 43

A.4 Data demodulation ...................................................................................................................................... 43

Annex B (normative) Intentional and Unintentional Attacks Description ........................................... 44

B.1 Intentional attacks ....................................................................................................................................... 44

Bibliography ................................................................................................................................................................. 58

---------------------- Page: 4 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
European foreword

This document (CEN/TR 17464:2020) has been prepared by Technical Committee CEN-CENELEC/JTC 5

“Space”, the secretariat of which is held by DIN.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

---------------------- Page: 5 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
Introduction

Performances of the PVT (Position, Velocity and Time) information provided by a GBPT (GNSS-Based

Positioning Terminal) is a key feature that has a direct impact on the reliability and performance of the

application itself. The lack of effort devoted to assess the quality of the PVT has resulted in a lack of

common assessment criteria. Being able to assess the quality of a computed PVT is a critical problem for

applications such Road user charging or autonomous driving.

The EC mandate M/496 (“Mandate addressed to CEN, CENELEC and ETSI to develop standardization

regarding space industry”) and more specifically part of the dossier 1 “Navigation and Positioning (NP)

Receivers for Road Applications” of mandate M/496 (exclusion made of airport services) stressed

European standards organizations to make assessment of necessary future standardization in support of

the regulatory framework related to positioning performances.

The mandate work related to dossier sectorial 1, especially regarding the topics mentioned above, have

been carried out by CEN/CLC TC5/WG1 and BNAE dealing with administrative management of the

standardization work.

WG1 of CEN-CLC TC5 has produced draft standards EN 16803 (all parts), Use of GNSS-based positioning

for road Intelligent Transport Systems (ITS) — Part 1: Definitions and system engineering procedures for

the establishment and assessment of performances; Part 2: Assessment field tests for basic performances of

GNSS-based positioning terminals; Part 3: Assessment of security performances of GNSS-based positioning

terminals.

Security of the GBPT in road Intelligent Transport Systems (ITS) became a critical point. Many

applications rely on PVT information provided by GNSS. If during the past GNSS SIS attacks were

considered as feasible but requiring significant technical means, it is not the case today considering that

a spoofing attack can be led with a COTS SDR at relatively low cost and that jammer are available on the

market at a wealth of prices.

In this context, receiver manufacturers began to implement new technologies fighting against SiS (Signal

in Space) GNSS attacks and major advances that have been done in the GNSS security aspects in Europe

associated to the new capabilities of the Galileo system in particular in the definition of the public

regulated service and the commercial authentication service in E6 where some member of this

consortium has been especially active.
---------------------- Page: 6 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
1 Scope

The objective is to analyse the security issues that can occur at the GNSS SIS level. In order to do so, a full

taxonomy of the GNSS SIS attacks are proposed and GNSS SIS attack security model are elaborated and

classified. Security metrics for the validation of the GBPT robustness performances are defined.

The proposed methodology for this technical report consists in three distinct steps that are described

hereunder:

— The first step consists in providing a full taxonomy of the possible GNSS Signal in Space attacks

(voluntary or not) to be considered and identify their impact at GBPT level;

— The second step consists in regrouping narrow sets of previously identified GNSS SIS attacks into

security attack models. For each security attack model, an assessment of the dangerousness based

on beforehand identified key parameters and methodology will be provided;

— The third step consists in providing definition of performance objectives, security control, security

metrics, and a specific procedure for a robustness evaluation of a GBPT against the identified security

attack models at step II.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 27001:2013, Information technology — Security techniques — Information security management

systems — Requirements

ETSI TS 103 246-3:2015, Satellite Earth Stations and Systems (SES) — GNSS based location systems —

Part 3: Performance requirements
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ETSI TS 103 246-3 and

ISO/IEC 27001 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• ISO Online browsing platform: available at http://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
3.1
objective
result to be achieved
3.2
attack

attempt to destroy, expose, alter, disable, steal or gain unauthorized access to or make unauthorized use

of an asset
3.3
availability
property of being accessible and usable upon demand by an authorized entity
---------------------- Page: 7 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
3.4
competence
ability to apply knowledge and skills to achieve intended results
3.5
data

collection of values assigned to base measures, derived measures and/or indicators

3.6
integrity

measure of the trust in the accuracy of the location-related data provided by the location system

3.7
integrity risk

risk that a positioning error is greater than a protection level per independent sample of time

3.8
threat

potential cause of an unwanted incident, which may result in harm to a system or organization

3.9
electromagnetic interference

source of RF transmission that is within the frequency band used by a communication link, and that

degrades the performance of this link
Note 1 to entry: Jamming is a particular case of electromagnetic interference.
3.10
jamming

deliberate transmission of interference to disrupt processing of wanted signals (which in this case are

GNSS or telecommunications signals)
3.11
level of risk

magnitude of a risk expressed in terms of the combination of consequences and their likelihood

3.12
likelihood
chance of something happening
3.13
continuity

likelihood that the navigation signal-in-space supports accuracy and integrity requirements for duration

of intended operation

Note 1 to entry: Continuity aids a user to start an operation during a given exposure period without an

interruption of this operation and assuming that the service was available at beginning of the operation. Related to

the Continuity concept, a Loss of Continuity occurs when the user is forced to abort an operation during a specified

time interval after it has begun (the system predicts service was available at start of operation).

3.14
continuity risk

probability of detected but unscheduled navigation interruption after initiation of an operation

---------------------- Page: 8 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
3.15
spoof/spoofing

transmission of signals intended to deceive location processing into reporting false location target data

e.g. meaconing
3.16
vulnerability
weakness of an asset or control that can be exploited by one or more threats
3.17
performance

measurable result, performance can relate either to quantitative or qualitative findings

3.18
requirement
need or expectation that is stated, generally implied or obligatory
3.19
robustness

degree to which a system or component can function correctly in the presence of invalid inputs or

stressful environmental conditions
3.20
localisation
process of determining the position or location of a location target
3.21
Pseudo-Random Noise Code
(PRN)

unique binary code (or sequence) transmitted by a GNSS satellite to allow a receiver to determine the

travel time of the radio signal from satellite to receiver
3.22
security

function of a location system that aims at ensuring that the location-related data is safeguarded against

unapproved disclosure or usage inside or outside the location system, and that it is also provided in a

secure and reliable manner that ensures it is neither lost nor corrupted
3.23
time-to-alert

time from when an unsafe integrity condition occurs to when an alerting message reaches the user

3.24
performance feature

set of performance requirements for a given location-related data category produced by the GBPT

3.25
security control
description of how to respond to a security objective
---------------------- Page: 9 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
4 List of acronyms
AGC Automatic Gain Control
BER Bit Error Rate
COTS Commercial-Off-The-Shelf
CW Continuous Wave
DAB Digital Audio Broadcasting
DECT Digital Enhanced Cordless Telecommunications
DLL Delay Lock Loop
DoA Direction of Arrival
DoS Denial of Service
DQPSK Differential Quadrature Phase-Shift Keying
DST Doppler Shift Test
EC European Commission
ETSI European Telecommunications Standards Institute
GBPT GNSS-Based Positioning Terminal
GNSS Global Navigation Satellite Systems
GPS Global Positioning System
GFSK Gaussian Frequency-Shift Keying
GSM Global System for Mobile communications
ITS Intelligent Transport Systems
Kbps kilobyte per second
MAC Media Access Control
NAV NAVigation
NP Navigation and Positioning
OFDM Orthogonal frequency-division multiplexing
PAS Personal Access System
PHS Personal Handy-phone System
PHY PHYsical layer
PRN Pseudo Random Noise
PVT Position Velocity Time
RAIM Receiver Autonomous Integrity Monitoring
RF Radio Frequency
RPL Robustness performance Level
SDR Software Design Radio
SiS Signal in Space
SINR Signal-to-Interference-Plus-Noise-Ratio
SNR Signal to noise ratio
SSC Spectral Separation Coefficient
TDD Time Division Duplex
---------------------- Page: 10 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
TDMA Time Division Multiple Access
TV Television
UHF Ultra-High Frequency
UMTS Universal Mobile Telecommunications System
UWB Ultra-Wide Band
WCDMA Wideband CDMA
WLAN Wireless Local Area Network
5 Analysis of the GNSS attacks taxonomy
5.1 Introduction

This clause aims to propose a full taxonomy of GNSS SiS attacks signals (voluntary or non-voluntary) and

identify their impact on GBPT positioning function. An opening concerning the jamming and spoofing

threat categorization subject is provided describing two known previous categorization works. Then a

taxonomy of GNSS attack signals is proposed and each attacks categories and types are detailed.

5.2 Known Previous Categorization Work

Many categorization works have been already proposed for the jamming and spoofing threats.

For illustration, two known previous work papers that have proposed respectively categorisations of the

jamming and spoofing threats are provided. Those papers will be briefly analysed with regard to the

taxonomy expected to be elaborated in this technical report. Those papers constitute a good opening

about the jamming and spoofing threat categorization.

Cornell University and University of Texas, Signal Characteristics of Civil GPS Jammers: three categories

based on power source and antenna type [5].

The Cornell University and University of Texas paper on signal characteristics of civil GPS jammers has

surveyed the signal properties of 18 commercially available GPS jammers based on experimental data.

To do so the examined GPS jammers were grouped beforehand into three categories based on power

source and antenna type that are listed hereunder:

• Category I: jammers designed to plug into an automotive cigarette lighter 12-Volt supply;

• Category II: jammers which are both powered by an internal rechargeable battery and have an

external antenna connected via an SMA connector (referred to as SMA-Battery Jammers);

• Category III: Jammers also powered by an internal rechargeable battery but without external

antennas.

In this proposed categorization, no attention was payed to the jammers signal characteristics as the aim

was to show that the tested commercialised jammers, even if they are of different categories and aspect,

are employing approximately the same jamming method, i.e. linear frequency modulation of a single tone

(swept jamming). This technical report aims to provide a taxonomy of all known types of jamming SiS

attacks and considering that the examined jammer features categorization include only one type of

jamming SiS attack (swept jamming method), the proposed taxonomy will be focused on the jamming

attack signal specifications (e.g. bandwidth, waveform) rather than the attack devices features (e.g. power

source, antenna type).

Cornell University and University of Texas, Assessing the Spoofing Threat: Development of a Portable GPS

Civilian Spoofer [20].
---------------------- Page: 11 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)

The Cornell University and University of Texas paper assessing the spoofing threat has proposed an

identification of the likely mode of spoofing attacks. It proposes a spoofing threat continuum roughly

divided into three level of complexity listed hereunder:

• simplistic attack: a commercial GNSS simulator is used to broadcast GNSS signals for the spoofed

position to the GNSS receiver under attack, it is a quite simple attack and no knowledge of the victims

original PVT is used;

• intermediate attack: a portable receiver-spoofer is first gaining information on the victim's PVT and

using this information to generate a synchronised spoofed composite GNSS signal broadcasted

towards the victim;

• sophisticated attack: multiple small receiver-spoofer sharing a common reference oscillator and

communication link carry out similar attacks than described before but also simulate the spatial

signal domain in order to completely fool the target GNSS receiver.

Such categorization is linked to the level complexity and associated operational spoofing solutions. In the

context of this paper, the aim is to provide a taxonomy of all known types of spoofing attacks that could

threat the GNSS SiS, accordingly as for the jamming signals the proposed taxonomy will be focused on the

spoofed signal characteristics for various type of spoofing (e.g. meaconing, record and replay).

5.3 GNSS SiS Attacks Taxonomy

The proposed taxonomy consists in three dimensions allowing classification of the existing GNSS SiS

types of attacks. The first dimension covers the motivation of the GNSS SiS attack (voluntary or non-

voluntary). The second dimension allows for classification of the attack category (jamming, spoofing or

interference). The existing type of GNSS SiS attack signals for each identified category are gathered in the

third dimension.

Regarding the first dimension of this taxonomy, it can be divided into two type of attack motivation:

voluntary or non-voluntary:

• intentional GNSS SiS attacks are intentionally transmitted to prevent the use of GNSS or induce a

wrong position solution for as many users as possible.

• non intentional GNSS SiS attacks result from unintentional transmissions appearing at/or near GNSS

frequencies.

The following Figure 1 provides the proposed three dimensional taxonomy for GNSS SiS attacks.

---------------------- Page: 12 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
Figure 1 — Proposed GNSS SiS attacks taxonomy

The Annex B describes in further details the second and third dimensions of this taxonomy.

---------------------- Page: 13 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
6 Definition of security attack models
6.1 Introduction

This clause aims to regroup narrow sets of previously identified GNSS SiS attack signals (see Clause 5)

into security attack models. Those security models are then classified in function of the dangerousness

they represent. The assessment of the dangerousness level is performed based on key parameters and a

methodology that are identified and defined in this clause.
6.2 Keys parameters
6.2.1 General

The key parameters identified and defined in this subclause aim to allow the assessment of the threat

level of a GNSS SIS security attack model.
6.2.2 Attacker Profile

An attacker is a person or organization that desires to breach GNSS security and ultimately will benefit

from the breach in some way.
The identified attackers’ profiles are:

• hostile nations: these are people who professionally gather information and commit sabotage for

governments. Hostile Nations are capable and well resourced;

• terrorism and terrorist Groups: terrorists are politically motivated and have their own political agenda

that they use to select targets. Terrorists are capable and has significant resources;

• organized criminal groups: organized crime target information or assets that are of value for them

and that can be converted into money. Organized criminal groups are capable and has significant

resources;

• hackers (amateur or professional): professional and amateurs hackers that generally have the same

interest as organized crime. Hackers have modest capabilities and resources;

• employees (disaffected or dishonest): employees could attack themselves in order to avoid being

tracked by their boss. They have very modest capabilities and resources;

• end users: end users could attack themselves in case of commercial relations with a service provider.

This includes frauds related to a “pay-per-use” model. End users have almost no capabilities and

resources.
6.2.3 Technical level required

Various technical levels are foreseen and are linked to the technical skills required to setup and

implement an attack on the GNSS SIS.

• formidable: attack on the GNSS SIS requires a large amount of professional equipment and several

man-years to setup and implement the attack. It consists in the development of bespoke and long-

term attacks. The attack is coordinated and required several threat actors;

• significant: attack on the GNSS SIS requires a modest amount of equipment and several man-weeks

to setup and implement the attack. Publicly available attack tools such COTS technology are likely to

be used for the attack;
---------------------- Page: 14 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)

• limited: attack on the GNSS SIS requires a small amount of well-known publicly available attack

equipment and few man-days to setup and implement the attack;

• little: attack on the GNSS SIS requires a very small amount of well-known publicly available attack

equipment and few man-days to setup and implement the attack;

• very little: attack on the SIS requires to use “plug-and-play” plug-in devices and removable media and

to devote few man-hours to setup and implement the attack.
6.2.4 Objective targeted

During an attack on the GNSS SIS, several objective can be targeted by the attackers.

• Denial of Service (DoS): the objective of the adversary would then be to degrade the acquisition and

tracking process at GBPT level;

• dissimulation of position data: the objective of the adversary would then be to degrade the decoding

process at GBPT level;

• false positioning solution: the objective of the adversary would then be to delay the GNSS SiS or forge

false NAV messages, transmit them over an area with one or more receivers, and this way manipulate

their PVT solutions.
6.2.5 Implementation of the attack
A GNSS SIS attack implementation is specified through the following aspects:

• equipment needed (professional equipment, COTS technology, well-known publicly available

equipment, “plug-and-play” plug-in devices);
• time needed;

• environmental conditions (e.g. urban environment, rural environment, mountain, hill, plane space);

• resource required (significant, modest, little);

• technical skills required for implementing the attack (formidable, significant, limited, little, and very

little);

• threat actors required (e.g. bystander, handler, indirectly connected, information exchange partner,

person within range, normal user, physical intruder, privileged user).
6.2.6 Feasibility

The feasibility of a GNSS attack can be assessed based on the established parameters for the

implementation of the GNSS attack and the technical level required for the attack. The feasibility

assessment will result in a grade going from 0 to 6. This result will be elaborated by establishing the

feasible implementation aspects provided in subclause 6.2.5. For each feasible implementation aspect, 1

(one) point will be added to the total grade.

The feasibility parameter will be then characterized based on the obtained total grade as follow:

• Low: total grade going from 0 to 2;
• Medium: total grade going from 3 to 4;
• High: total grade going from 5 to 6.
---------------------- Page: 15 ----------------------
SIST-TP CEN/TR 17464:2020
CEN/TR 17464:2020 (E)
6.2.7 Scope of the attack

The scope of the attack is characterized by the number of GBPT targeted as well as the area covered:

• local (receiver only): Only one GBPT is targeted and the attack is performed over a small area;

• regional (several receivers): Several GBPT are targeted at the same time over a medium area;

• global (all rece
...

SLOVENSKI STANDARD
kSIST-TP FprCEN/TR 17464:2019
01-december-2019
Vesolje - Ugotavljanje položaja z uporabo sistema globalne satelitske navigacije
(GNSS) pri inteligentnih transportnih sistemih (ITS) v cestnem prometu -

Modeliranje varnostnih napadov ter opredelitev tehničnih značilnosti in metrike v

zvezi z varnostjo

Space - Use of GNSS-based positioning for road Intelligent Transport System (ITS) -

Security attacks modelling and definition of performance features and metrics related to

security
Modellierung von Sicherheitsangriffen und Definition von Leistungsmerkmalen und
Sicherheitsmetriken
Espace - Utilisation de la localisation basée sur les GNSS pour les systèmes de

transport routiers intelligents - Modélisation des attaques de sécurité et, définition des

caractéristiques de performance et des métriques liées à la sécurité
Ta slovenski standard je istoveten z: FprCEN/TR 17464
ICS:
03.220.20 Cestni transport Road transport
33.060.30 Radiorelejni in fiksni satelitski Radio relay and fixed satellite
komunikacijski sistemi communications systems
35.240.60 Uporabniške rešitve IT v IT applications in transport
prometu
kSIST-TP FprCEN/TR 17464:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
kSIST-TP FprCEN/TR 17464:2019
---------------------- Page: 2 ----------------------
kSIST-TP FprCEN/TR 17464:2019
TECHNICAL REPORT
FINAL DRAFT
FprCEN/TR 17464
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
October 2019
ICS 03.220.20; 33.060.30; 35.240.60
English version
Space - Use of GNSS-based positioning for road Intelligent
Transport System (ITS) - Security attacks modelling and
definition of performance features and metrics related to
security

Espace - Utilisation de la localisation basée sur les Modellierung von Sicherheitsangriffen und Definition

GNSS pour les systèmes de transport routiers von Leistungsmerkmalen und Sicherheitsmetriken

intelligents - Modélisation des attaques de sécurité et,
définition des caractéristiques de performance et des
métriques liées à la sécurité

This draft Technical Report is submitted to CEN members for Vote. It has been drawn up by the Technical Committee

CEN/CLC/JTC 5.

CEN and CENELEC members are the national standards bodies and national electrotechnical committees of Austria, Belgium,

Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia,

Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a Technical Report. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a Technical Report.
CEN-CENELEC Management Centre:
Rue de la Science 23, B-1040 Brussels

© 2019 CEN/CENELEC All rights of exploitation in any form and by any means Ref. No. FprCEN/TR 17464:2019 E

reserved worldwide for CEN national Members and for
CENELEC Members.
---------------------- Page: 3 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
Contents Page

European foreword ....................................................................................................................................................... 4

Introduction .................................................................................................................................................................... 5

1 Scope .................................................................................................................................................................... 6

2 Normative references .................................................................................................................................... 6

3 Terms and definitions ................................................................................................................................... 6

4 List of acronyms ............................................................................................................................................... 9

5 Analysis of the GNSS attacks taxonomy ................................................................................................ 10

5.1 Introduction ................................................................................................................................................... 10

5.2 Known Previous Categorization Work ................................................................................................. 10

5.3 GNSS SiS Attacks Taxonomy ..................................................................................................................... 11

6 Definition of security attack models ..................................................................................................... 13

6.1 Introduction ................................................................................................................................................... 13

6.2 Keys parameters ........................................................................................................................................... 13

6.2.1 Attacker Profile ............................................................................................................................................. 13

6.2.2 Technical level required ............................................................................................................................ 13

6.2.3 Objective targeted ........................................................................................................................................ 14

6.2.4 Implementation of the attack .................................................................................................................. 14

6.2.5 Feasibility ........................................................................................................................................................ 14

6.2.6 Scope of the attack ....................................................................................................................................... 15

6.2.7 Vulnerability exploited at receiver level (assets targeted by the attack) ............................... 15

6.2.8 Consequences on the function positioning ......................................................................................... 15

6.2.9 Likelihood of the attack ............................................................................................................................. 15

6.2.10 Protection capabilities ............................................................................................................................... 16

6.3 Methodology .................................................................................................................................................. 17

6.4 Security attack Models ............................................................................................................................... 18

6.4.1 Jamming attacks models ............................................................................................................................ 19

6.4.2 Spoofing attack models .............................................................................................................................. 22

6.4.3 Interference attack models ...................................................................................................................... 26

6.5 Synthesis.......................................................................................................................................................... 27

7 Definition of the performance security metrics ............................................................................... 29

7.1 Introduction ................................................................................................................................................... 29

7.2 Methodology .................................................................................................................................................. 29

7.3 Security Objectives and Controls ............................................................................................................ 29

7.3.1 Security Objectives Identification .......................................................................................................... 29

7.3.2 Security Controls Identification .............................................................................................................. 30

7.3.3 Synthesis table .............................................................................................................................................. 31

7.4 Security Metrics Identification ................................................................................................................ 32

7.4.1 GBPT description security metrics ........................................................................................................ 32

7.4.2 Security attack model metrics ................................................................................................................. 33

7.4.3 Protection objectives security metrics ................................................................................................. 34

7.4.4 Navigation performance security metrics .......................................................................................... 39

7.5 Robustness Performance Level Evaluation ........................................................................................ 40

8 Conclusion....................................................................................................................................................... 41

Annex A (normative) Signal to noise considerations .................................................................................. 43

A.1 Acquisition performance ........................................................................................................................... 43

---------------------- Page: 4 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)

A.2 GNSS SIS and interference (system performance) ............................................................................ 43

A.3 Receiver parameters ................................................................................................................................... 44

A.4 Data demodulation ....................................................................................................................................... 44

Annex B (normative) Intentional and Unintentional Attacks Description ........................................... 45

B.1.1 Intentional attacks ....................................................................................................................................... 45

B.1.2 Unintentional attacks .................................................................................................................................. 53

Bibliography ................................................................................................................................................................. 59

---------------------- Page: 5 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
European foreword

This document (FprCEN/TR 17464:2019) has been prepared by Technical Committee CEN-

CENELEC/TC 5 “”, the secretariat of which is held by DIN.
This document is currently submitted to the Vote on TR.
---------------------- Page: 6 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
Introduction

Performances of the PVT (Position, Velocity and Time) information provided by a GBPT (GNSS-Based

Positioning Terminal) is a key feature that has a direct impact on the reliability and performance of the

application itself. The lack of effort devoted to assess the quality of the PVT has resulted in a lack of

common assessment criteria. Being able to assess the quality of a computed PVT is a critical problem for

applications such Road user charging or autonomous driving.

The EC mandate M/496 (“Mandate addressed to CEN, CENELEC and ETSI to develop standardization

regarding space industry”) and more specifically part of the dossier 1 “Navigation and Positioning (NP)

Receivers for Road Applications” of mandate M/496 (exclusion made of airport services) stressed

European standards organizations to make assessment of necessary future standardization in support of

the regulatory framework related to positioning performances.

The mandate work related to dossier sectorial 1, especially regarding the topics mentioned above, have

been carried out by CEN/CLC TC5/WG1 and BNAE dealing with administrative management of the

standardization work.

WG1 of CEN-CLC TC5 has produced draft standards EN 16803 (all parts), Use of GNSS-based positioning

for road Intelligent Transport Systems (ITS) — Part 1: Definitions and system engineering procedures for

the establishment and assessment of performances; Part 2: Assessment field tests for basic performances of

GNSS-based positioning terminals; Part 3: Assessment of security performances of GNSS-based positioning

terminals.

Security of the GBPT in road Intelligent Transport Systems (ITS) became a critical point. Many

applications rely on PVT information provided by GNSS. If during the past GNSS SIS attacks were

considered as feasible but requiring significant technical means, it is not the case today considering that

a spoofing attack can be led with a COTS SDR at relatively low cost and that jammer are available on the

market at a wealth of prices.

In this context, receiver manufacturers began to implement new technologies fighting against SiS (Signal

in Space) GNSS attacks and major advances that have been done in the GNSS security aspects in Europe

associated to the new capabilities of the Galileo system in particular in the definition of the public

regulated service and the commercial authentication service in E6 where some member of this

consortium has been especially active.
---------------------- Page: 7 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
1 Scope

The objective is to analyse the security issues that can occur at the GNSS SIS level. In order to do so, a full

taxonomy of the GNSS SIS attacks are proposed and GNSS SIS attack security model are elaborated and

classified. Security metrics for the validation of the GBPT robustness performances are defined.

The proposed methodology for this technical report consists in three distinct steps that are described

hereunder:

— The first step consists in providing a full taxonomy of the possible GNSS Signal in Space attacks

(voluntary or not) to be considered and identify their impact at GBPT level;

— The second step consists in regrouping narrow sets of previously identified GNSS SIS attacks into

security attack models. For each security attack model, an assessment of the dangerousness based

on beforehand identified key parameters and methodology will be provided;

— The third step consists in providing definition of performance objectives, security control, security

metrics, and a specific procedure for a robustness evaluation of a GBPT against the identified security

attack models at step II.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 27001:2013, Information technology — Security techniques — Information security management

systems — Requirements

ETSI TS 103 246-3:2015, Satellite Earth Stations and Systems (SES) — GNSS based location systems —

Part 3: Performance requirements
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ETSI TS 103 246-3 and

ISO/IEC 27001 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• ISO Online browsing platform: available at http://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
3.1
objective
result to be achieved
3.2
attack

attempt to destroy, expose, alter, disable, steal or gain unauthorized access to or make unauthorized use

of an asset
3.3
availability
property of being accessible and usable upon demand by an authorized entity
---------------------- Page: 8 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
3.4
competence
ability to apply knowledge and skills to achieve intended results
3.5
data

collection of values assigned to base measures, derived measures and/or indicators

3.6
integrity

measure of the trust in the accuracy of the location-related data provided by the location system

3.7
integrity risk

risk that a positioning error is greater than a protection level per independent sample of time

3.8
threat

potential cause of an unwanted incident, which may result in harm to a system or organization

3.9
electromagnetic interference

source of RF transmission that is within the frequency band used by a communication link, and that

degrades the performance of this link
Note 1 to entry: Jamming is a particular case of electromagnetic interference.
3.10
jamming

deliberate transmission of interference to disrupt processing of wanted signals (which in this case are

GNSS or telecommunications signals)
3.11
level of risk

magnitude of a risk expressed in terms of the combination of consequences and their likelihood

3.12
likelihood
chance of something happening
3.13
continuity

likelihood that the navigation signal-in-space supports accuracy and integrity requirements for duration

of intended operation

Note 1 to entry: Continuity aids a user to start an operation during a given exposure period without an

interruption of this operation and assuming that the service was available at beginning of the operation. Related to

the Continuity concept, a Loss of Continuity occurs when the user is forced to abort an operation during a specified

time interval after it has begun (the system predicts service was available at start of operation).

3.14
continuity risk

probability of detected but unscheduled navigation interruption after initiation of an operation

---------------------- Page: 9 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
3.15
spoof/spoofing

transmission of signals intended to deceive location processing into reporting false location target data

e.g. meaconing
3.16
vulnerability
weakness of an asset or control that can be exploited by one or more threats
3.17
performance

measurable result, performance can relate either to quantitative or qualitative findings

3.18
requirement
need or expectation that is stated, generally implied or obligatory
3.19
robustness

degree to which a system or component can function correctly in the presence of invalid inputs or

stressful environmental conditions
3.20
localisation
process of determining the position or location of a location target
3.21
Pseudo-Random Noise Code
(PRN)

unique binary code (or sequence) transmitted by a GNSS satellite to allow a receiver to determine the

travel time of the radio signal from satellite to receiver
3.22
security

function of a location system that aims at ensuring that the location-related data is safeguarded against

unapproved disclosure or usage inside or outside the location system, and that it is also provided in a

secure and reliable manner that ensures it is neither lost nor corrupted
3.23
time-to-alert

time from when an unsafe integrity condition occurs to when an alerting message reaches the user

3.24
performance feature

set of performance requirements for a given location-related data category produced by the GBPT

3.25
security control
description of how to respond to a security objective
---------------------- Page: 10 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
4 List of acronyms
AGC Automatic Gain Control
BER Bit Error Rate
COTS Commercial-Off-The-Shelf
CW Continuous Wave
DAB Digital Audio Broadcasting
DECT Digital Enhanced Cordless Telecommunications
DLL Delay Lock Loop
DoA Direction of Arrival
DoS Denial of Service
DQPSK Differential Quadrature Phase-Shift Keying
DST Doppler Shift Test
EC European Commission
ETSI European Telecommunications Standards Institute
GBPT GNSS-Based Positioning Terminal
GNSS Global Navigation Satellite Systems
GPS Global Positioning System
GFSK Gaussian Frequency-Shift Keying
GSM Global System for Mobile communications
ITS Intelligent Transport Systems
Kbps kilobyte per second
MAC Media Access Control
NAV NAVigation
NP Navigation and Positioning
OFDM Orthogonal frequency-division multiplexing
PAS Personal Access System
PHS Personal Handy-phone System
PHY PHYsical layer
PRN Pseudo Random Noise
PVT Position Velocity Time
RAIM Receiver Autonomous Integrity Monitoring
RF Radio Frequency
RPL Robustness performance Level
SDR Software Design Radio
SiS Signal in Space
SINR Signal-to-Interference-Plus-Noise-Ratio
SNR Signal to noise ratio
SSC Spectral Separation Coefficient
TDD Time Division Duplex
---------------------- Page: 11 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
TDMA Time Division Multiple Access
TV Television
UHF Ultra-High Frequency
UMTS Universal Mobile Telecommunications System
UWB Ultra-Wide Band
WCDMA Wideband CDMA
WLAN Wireless Local Area Network
5 Analysis of the GNSS attacks taxonomy
5.1 Introduction

This clause aims to propose a full taxonomy of GNSS SiS attacks signals (voluntary or non-voluntary) and

identify their impact on GBPT positioning function. An opening concerning the jamming and spoofing

threat categorization subject is provided describing two known previous categorization works. Then a

taxonomy of GNSS attack signals is proposed and each attacks categories and types are detailed.

5.2 Known Previous Categorization Work

Many categorization works have been already proposed for the jamming and spoofing threats.

For illustration, two known previous work papers that have proposed respectively categorisations of the

jamming and spoofing threats are provided. Those papers will be briefly analysed with regard to the

taxonomy expected to be elaborated in this technical report. Those papers constitute a good opening

about the jamming and spoofing threat categorization.

Cornell University and University of Texas, Signal Characteristics of Civil GPS Jammers: three categories

based on power source and antenna type [5].

The Cornell University and University of Texas paper on signal characteristics of civil GPS jammers has

surveyed the signal properties of 18 commercially available GPS jammers based on experimental data.

To do so the examined GPS jammers were grouped beforehand into three categories based on power

source and antenna type that are listed hereunder:

• Category I: jammers designed to plug into an automotive cigarette lighter 12-Volt supply;

• Category II: jammers which are both powered by an internal rechargeable battery and have an

external antenna connected via an SMA connector (referred to as SMA-Battery Jammers);

• Category III: Jammers also powered by an internal rechargeable battery but without external

antennas.

In this proposed categorization, no attention was payed to the jammers signal characteristics as the aim

was to show that the tested commercialised jammers, even if they are of different categories and aspect,

are employing approximately the same jamming method, i.e. linear frequency modulation of a single tone

(swept jamming). This technical report aims to provide a taxonomy of all known types of jamming SiS

attacks and considering that the examined jammer features categorization include only one type of

jamming SiS attack (swept jamming method), the proposed taxonomy will be focused on the jamming

attack signal specifications (e.g. bandwidth, waveform) rather than the attack devices features (e.g. power

source, antenna type).

Cornell University and University of Texas, Assessing the Spoofing Threat: Development of a Portable GPS

Civilian Spoofer [20].
---------------------- Page: 12 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)

The Cornell University and University of Texas paper assessing the spoofing threat has proposed an

identification of the likely mode of spoofing attacks. It proposes a spoofing threat continuum roughly

divided into three level of complexity listed hereunder:

• simplistic attack: a commercial GNSS simulator is used to broadcast GNSS signals for the spoofed

position to the GNSS receiver under attack, it is a quite simple attack and no knowledge of the victims

original PVT is used;

• intermediate attack: a portable receiver-spoofer is first gaining information on the victim's PVT and

using this information to generate a synchronised spoofed composite GNSS signal broadcasted

towards the victim;

• sophisticated attack: multiple small receiver-spoofer sharing a common reference oscillator and

communication link carry out similar attacks than described before but also simulate the spatial

signal domain in order to completely fool the target GNSS receiver.

Such categorization is linked to the level complexity and associated operational spoofing solutions. In the

context of this paper, the aim is to provide a taxonomy of all known types of spoofing attacks that could

threat the GNSS SiS, accordingly as for the jamming signals the proposed taxonomy will be focused on the

spoofed signal characteristics for various type of spoofing (e.g. meaconing, record and replay).

5.3 GNSS SiS Attacks Taxonomy

The proposed taxonomy consists in three dimensions allowing classification of the existing GNSS SiS

types of attacks. The first dimension covers the motivation of the GNSS SiS attack (voluntary or non-

voluntary). The second dimension allows for classification of the attack category (jamming, spoofing or

interference). The existing type of GNSS SiS attack signals for each identified category are gathered in the

third dimension.

Regarding the first dimension of this taxonomy, it can be divided into two type of attack motivation:

voluntary or non-voluntary:

• intentional GNSS SiS attacks are intentionally transmitted to prevent the use of GNSS or induce a

wrong position solution for as many users as possible.

• non intentional GNSS SiS attacks result from unintentional transmissions appearing at/or near GNSS

frequencies.

The following Figure 1 provides the proposed three dimensional taxonomy for GNSS SiS attacks.

---------------------- Page: 13 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
Figure 1 — Proposed GNSS SiS attacks taxonomy

The Annex B describes in further details the second and third dimensions of this taxonomy.

---------------------- Page: 14 ----------------------
kSIST-TP FprCEN/TR 17464:2019
FprCEN/TR 17464:2019 (E)
6 Definition of security attack models
6.1 Introduction

This clause aims to regroup narrow sets of previously identified GNSS SiS attack signals (see Clause 5)

into security attack models. Those security models are then classified in function of the dangerousness

they represent. The assessment of the dangerousness level is performed based on key parameters and a

methodology that are identified and defined in this clause.
6.2 Keys parameters
6.2.1 General

The key parameters identified and defined in this subclause aim to allow the assessment of the threat

level of a GNSS SIS security attack model.
6.2.2 Attacker Profile

An attacker is a person or organization that desires to breach GNSS security and ultimately will benefit

from the breach in some way.
The identified attackers’ profiles are:

• hostile nations: these are people who professionally gather information and commit sabotage for

governments. Hostile Nations are capable and well resourced;

• terrorism and terrorist Groups: terrorists are politically motivated and have their own political agenda

that they use to select targets. Terrorists are capable and has significant resources;

• organized criminal groups: organized crime target information or assets that are of value for them

and that can be converted into money. Organized criminal groups are capable and has significant

resources;

• hackers (amateur or professional): professional and amateurs hackers that generally have the same

interest as organized crime. Hackers have modest capabilities and resources;

• employees (disaffected or dishonest): employees could attack themselves in order to avoid being

tracked by their boss. They have very modest capabilities and resources;

• end users: end users could attack themselves in case of commercial relations with a service provider.

This includes frauds related to a “pay-per-use” model. End users have almost no capabilities and

resources.
6.2.3 Technical level required
...
