SIST EN ISO 8655-9:2022
(Main)Piston-operated volumetric apparatus - Part 9: Manually operated precision laboratory syringes (ISO 8655-9:2022)
Piston-operated volumetric apparatus - Part 9: Manually operated precision laboratory syringes (ISO 8655-9:2022)
This part of ISO 8655 specifies
- metrological requirements,
- maximum permissible errors,
- requirements for marking and
- information to be provided for users,
for manually operated precision laboratory syringes. It applies to syringes with nominal volumes up to 200 ml, designed to deliver their volume (Ex).
Manually operated precision laboratory syringes are instruments used for delivering liquids and gases.
The barrel is typically made of glass and the plunger and the needle are typically made of metal.
NOTE General requirements and definitions of terms for piston-operated volumetric apparatus are given in ISO 8655-1. The gravimetric reference measurement procedure for the determination of volume is given in ISO 8655-6. A photometric reference measurement procedure for the determination of is given in ISO 8655-8. Alternative methods for the determination of volume are described in ISO 8655-7.
Volumenmessgeräte mit Hubkolben - Teil 9: Manuell betätigte Präzisionslaborspritzen (ISO 8655-9:2022)
Dieses Dokument trifft Festlegungen hinsichtlich
— metrologischer Anforderungen,
— Fehlergrenzen,
— Anforderungen an die Kennzeichnung und
— Benutzerinformation
für manuell betätigte Präzisionslaborspritzen aus Glas oder Glas und Metall, die für die Abgabe (Ex) ihres gewählten Volumens ausgelegt sind.
Manuell betätigte Präzisionslaborspritzen sind Geräte für die Dosierung von Flüssigkeiten und Gasen. Der Zylinder besteht in der Regel aus Glas und der Kolbenstopfen und die Nadel sind üblicherweise aus Metall.
Appareils volumétriques à piston - Partie 9: Seringues de laboratoire haute précision pour utilisation manuelle (ISO 8655-9:2022)
Le présent document spécifie:
— les exigences métrologiques;
— les erreurs maximales tolérées;
— les exigences relatives au marquage; et
— les informations à fournir aux utilisateurs;
pour les seringues de laboratoire haute précision pour utilisation manuelle constituées de verre ou de verre et de métal, conçues pour distribuer leur volume sélectionné (Ex).
Les seringues de laboratoire haute précision pour utilisation manuelle sont des instruments utilisés pour distribuer des liquides et des gaz. Le corps est généralement en verre et le piston et l’aiguille sont généralement en métal.
Volumetrične naprave, delujoče na bat - 9. del: Ročno upravljanje natančne laboratorijske brizgalke (ISO 8655-9:2022)
Ta del standarda ISO 8655 določa:
– meroslovne zahteve;
– največje dopustne pogreške;
– zahteve za označevanje; in
– informacije, predvidene za uporabnike
za natančne laboratorijske brizge z ročnim upravljanjem. Uporablja se za brizge z nazivnimi prostorninami do 200 ml, ki so zasnovane za dovajanje ustreznega odmerka (Ex).
Natančne laboratorijske brizge z ročnim upravljanjem so instrumenti, ki se uporabljajo za dovajanje tekočin in plinov.
Njihovi tulci so običajno izdelani iz stekla, bat in igla pa iz kovine.
OPOMBA: Splošne zahteve in definicije izrazov za volumetrične naprave, delujoče na bat, so podane v standardu ISO 8655-1. Gravimetrični referenčni postopek merjenja za določanje prostornine je podan v standardu ISO 8655-6. Postopek fotometričnega referenčnega merjenja za določanje prostornine je podan v standardu ISO 8655-8. Nadomestne metode za določanje prostornine so opisane v standardu ISO 8655-7.
General Information
Standards Content (Sample)

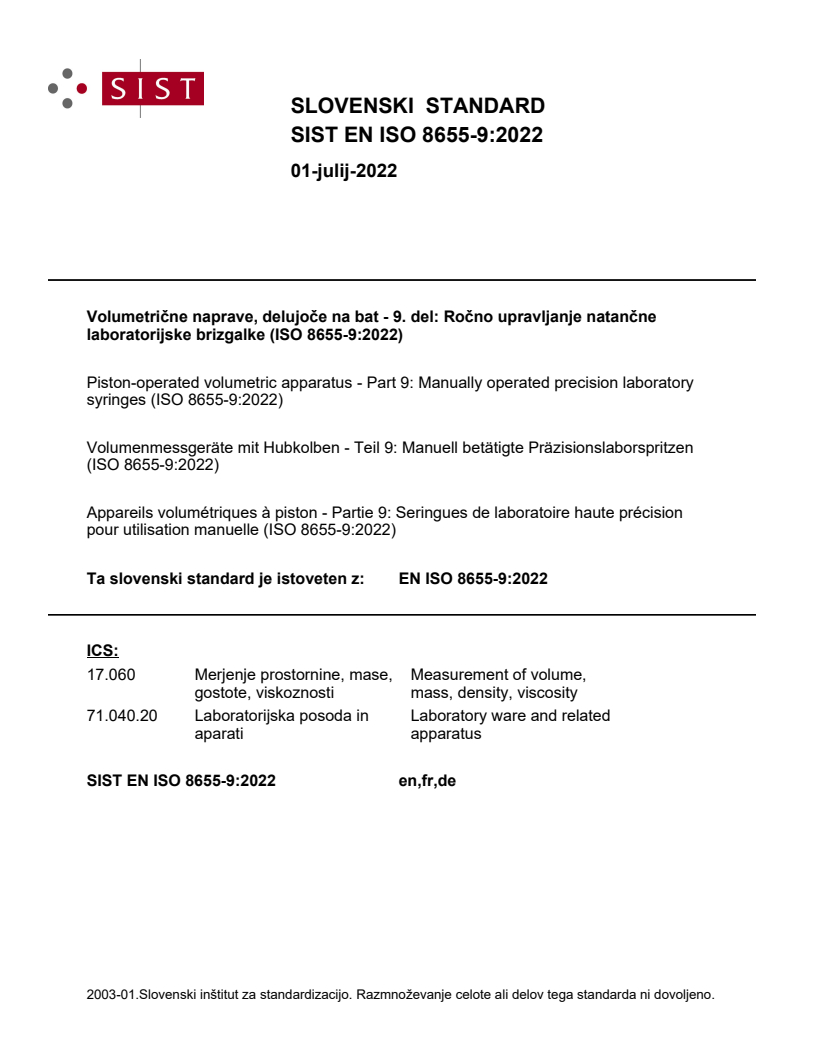

SLOVENSKI STANDARD
SIST EN ISO 8655-9:2022
01-julij-2022
Volumetrične naprave, delujoče na bat - 9. del: Ročno upravljanje natančne
laboratorijske brizgalke (ISO 8655-9:2022)
Piston-operated volumetric apparatus - Part 9: Manually operated precision laboratory
syringes (ISO 8655-9:2022)
Volumenmessgeräte mit Hubkolben - Teil 9: Manuell betätigte Präzisionslaborspritzen
(ISO 8655-9:2022)
Appareils volumétriques à piston - Partie 9: Seringues de laboratoire haute précision
pour utilisation manuelle (ISO 8655-9:2022)
Ta slovenski standard je istoveten z: EN ISO 8655-9:2022
ICS:
17.060 Merjenje prostornine, mase, Measurement of volume,
gostote, viskoznosti mass, density, viscosity
71.040.20 Laboratorijska posoda in Laboratory ware and related
aparati apparatus
SIST EN ISO 8655-9:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN ISO 8655-9:2022
---------------------- Page: 2 ----------------------
SIST EN ISO 8655-9:2022

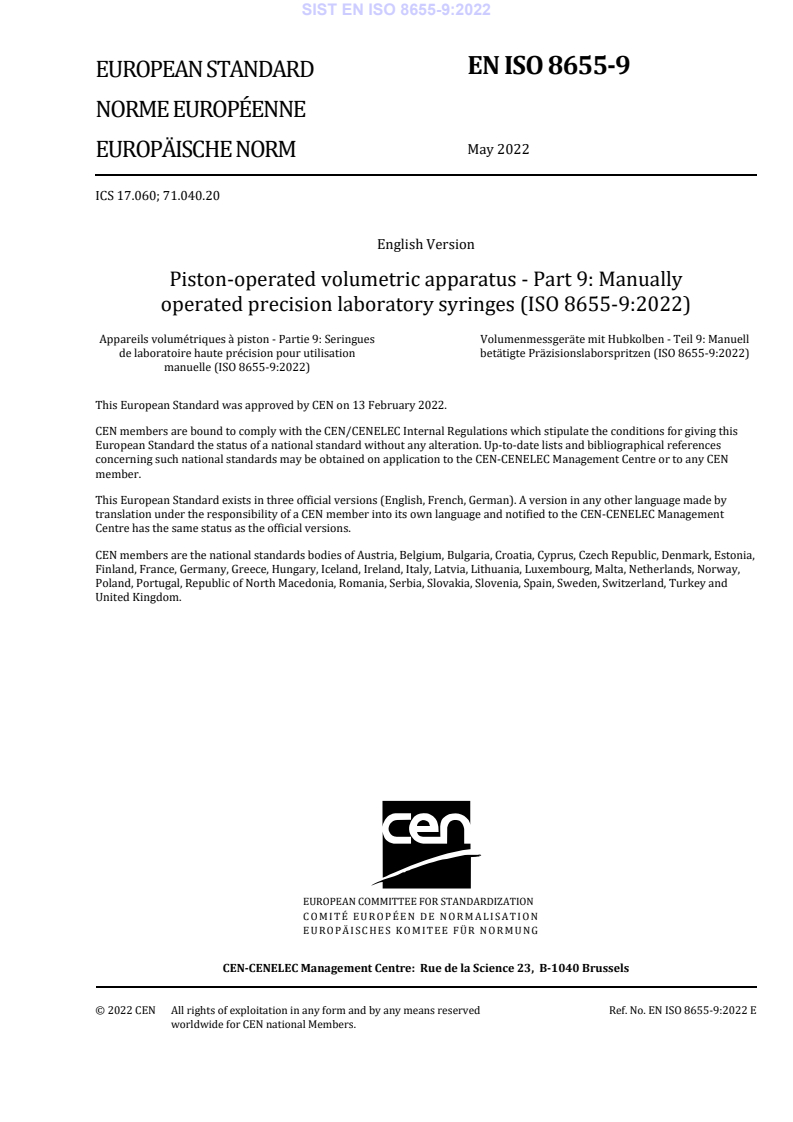

EN ISO 8655-9
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2022
EUROPÄISCHE NORM
ICS 17.060; 71.040.20
English Version
Piston-operated volumetric apparatus - Part 9: Manually
operated precision laboratory syringes (ISO 8655-9:2022)
Appareils volumétriques à piston - Partie 9: Seringues Volumenmessgeräte mit Hubkolben - Teil 9: Manuell
de laboratoire haute précision pour utilisation betätigte Präzisionslaborspritzen (ISO 8655-9:2022)
manuelle (ISO 8655-9:2022)
This European Standard was approved by CEN on 13 February 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 8655-9:2022 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 8655-9:2022
EN ISO 8655-9:2022 (E)
Contents Page
European foreword . 3
2
---------------------- Page: 4 ----------------------
SIST EN ISO 8655-9:2022
EN ISO 8655-9:2022 (E)
European foreword
This document (EN ISO 8655-9:2022) has been prepared by Technical Committee ISO/TC 48
"Laboratory equipment" in collaboration with Technical Committee CEN/TC 332 “Laboratory
equipment” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by November 2022, and conflicting national standards
shall be withdrawn at the latest by November 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 8655-9:2022 has been approved by CEN as EN ISO 8655-9:2022 without any
modification.
3
---------------------- Page: 5 ----------------------
SIST EN ISO 8655-9:2022
---------------------- Page: 6 ----------------------
SIST EN ISO 8655-9:2022
INTERNATIONAL ISO
STANDARD 8655-9
First edition
2022-04
Piston-operated volumetric
apparatus —
Part 9:
Manually operated precision
laboratory syringes
Appareils volumétriques à piston —
Partie 9: Seringues de laboratoire haute précision pour utilisation
manuelle
Reference number
ISO 8655-9:2022(E)
© ISO 2022
---------------------- Page: 7 ----------------------
SIST EN ISO 8655-9:2022
ISO 8655-9:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
© ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 8655-9:2022
ISO 8655-9:2022(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle of operation . 2
5 Design and adjustment .3
5.1 Materials . 3
5.2 Construction requirements. 3
5.3 Reading of the scale . . 4
5.4 Basis of adjustment . 4
5.5 Initial adjustment . 4
6 Metrological performance requirements . 4
6.1 General . 4
6.2 Calculation of maximum permissible errors not given in Table 2 . 5
7 User information . 5
8 Marking . . 6
Bibliography . 7
iii
© ISO 2022 – All rights reserved
---------------------- Page: 9 ----------------------
SIST EN ISO 8655-9:2022
ISO 8655-9:2022(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 48, Laboratory equipment, in collaboration
with the European Committee for Standardization (CEN) Technical Committee CEN/TC 332, Laboratory
equipment, in accordance with the Agreement on technical cooperation between ISO and CEN (Vienna
Agreement).
A list of all parts in the ISO 8655 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
© ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 8655-9:2022
ISO 8655-9:2022(E)
Introduction
The ISO 8655 series addresses the needs of:
— manufacturers, as a basis for quality control including, where
...
SLOVENSKI STANDARD
oSIST prEN ISO 8655-9:2020
01-oktober-2020
Volumetrične naprave, delujoče na bat - 9. del: Ročno upravljanje natančne
laboratorijske brizgalke (ISO/DIS 8655-9:2020)
Piston-operated volumetric apparatus - Part 9: Manually operated precision laboratory
syringes (ISO/DIS 8655-9:2020)
Volumenmessgeräte mit Hubkolben - Teil 9: Manuell betätigte Präzisionslaborspritzen
(ISO/DIS 8655-9:2020)
Appareils volumétriques à piston - Partie 9: [Titre manque] (ISO/DIS 8655-9:2020)
Ta slovenski standard je istoveten z: prEN ISO 8655-9
ICS:
17.060 Merjenje prostornine, mase, Measurement of volume,
gostote, viskoznosti mass, density, viscosity
71.040.20 Laboratorijska posoda in Laboratory ware and related
aparati apparatus
oSIST prEN ISO 8655-9:2020 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN ISO 8655-9:2020
---------------------- Page: 2 ----------------------
oSIST prEN ISO 8655-9:2020
DRAFT INTERNATIONAL STANDARD
ISO/DIS 8655-9
ISO/TC 48 Secretariat: DIN
Voting begins on: Voting terminates on:
2020-07-29 2020-10-21
Piston-operated volumetric apparatus —
Part 9:
Manually operated precision laboratory syringes
ICS: 17.060; 71.040.20
THIS DOCUMENT IS A DRAFT CIRCULATED
This document is circulated as received from the committee secretariat.
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
ISO/CEN PARALLEL PROCESSING
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 8655-9:2020(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2020
---------------------- Page: 3 ----------------------
oSIST prEN ISO 8655-9:2020
ISO/DIS 8655-9:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
oSIST prEN ISO 8655-9:2020
ISO/DIS 8655-9:2020(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Principle of operation . 2
5 Design . 3
5.1 Materials . 3
5.2 Construction requirements . 3
5.3 Reading of the scale . 4
6 Metrological performance requirements . 4
6.1 General . 4
6.2 Calculation of maximum permissible errors not given in Table 2 . 5
7 User information . 5
8 Marking . 6
Bibliography . 7
© ISO 2020 – All rights reserved iii
---------------------- Page: 5 ----------------------
oSIST prEN ISO 8655-9:2020
ISO/DIS 8655-9:2020(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 48, Laboratory equipment.
A list of all parts in the ISO 8655 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
oSIST prEN ISO 8655-9:2020
ISO/DIS 8655-9:2020(E)
Introduction
ISO 8655 addresses the needs of:
— manufacturers, as a basis for quality control including, where appropriate, the issuance of
manufacturer’s declarations;
— calibration laboratories, test houses, users of the equipment and other bodies as a basis for
independent calibration, verification, and routine checking.
The tests specified in the ISO 8655 series are intended to be carried out by trained personnel.
Some definitions of ISO 7886-1 are included in this standard.
© ISO 2020 – All rights reserved v
---------------------- Page: 7 ----------------------
oSIST prEN ISO 8655-9:2020
---------------------- Page: 8 ----------------------
oSIST prEN ISO 8655-9:2020
DRAFT INTERNATIONAL STANDARD ISO/DIS 8655-9:2020(E)
Piston-operated volumetric apparatus —
Part 9:
Manually operated precision laboratory syringes
1 Scope
This part of ISO 8655 specifies
— metrological requirements,
— maximum permissible errors,
— requirements for marking and
— information to be provided for users,
for manually operated precision laboratory syringes made of glass or glass and metal designed to
deliver their selected volume (Ex).
Manually operated precision laboratory syringes are instruments used for delivering liquids and gases.
The barrel is typically made of glass and the plunger and the needle are typically made of metal.
NOTE General requirements and definitions of terms for piston-operated volumetric apparatus are given
in ISO 8655-1. The gravimetric reference measurement procedure for the determination of volume is given in
ISO 8655-6. The photometric reference measurement procedure for the determination of volume is given in
ISO 8655-8. Alternative measurement procedures for the determination of volume are given in ISO 8655-7.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 384:2015, Laboratory glass and plastics ware — Principles of design and construction of volumetric
instruments
ISO 4787:2010, Laboratory glassware — Volumetric instruments — Methods for testing of capacity
and for use
ISO 7886-1:2017, Sterile hypodermic syringes for single
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
