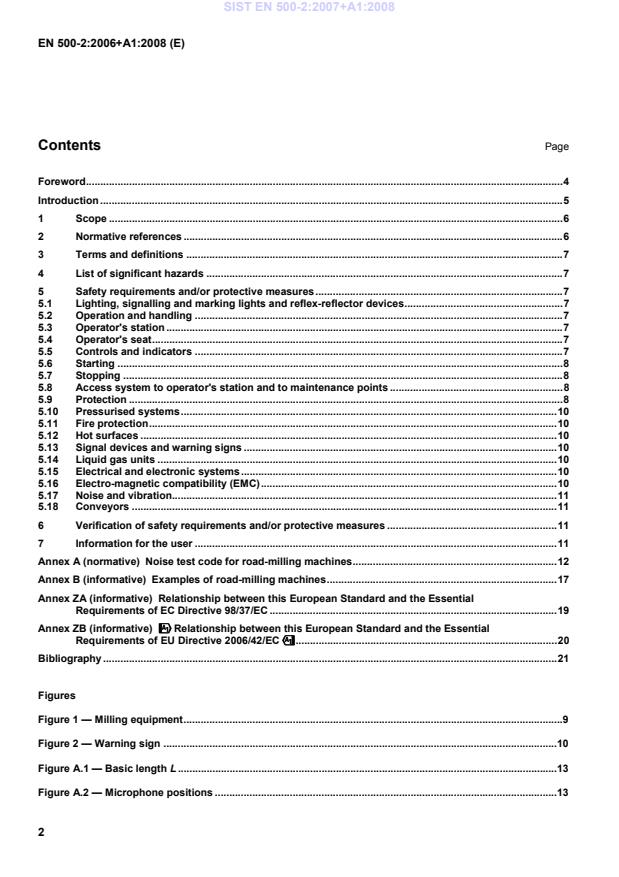

Contents Page
Foreword.4
Introduction .5
1 Scope .6
2 Normative references .6
3 Terms and definitions .7
4 List of significant hazards .7
5 Safety requirements and/or protective measures.7
5.1 Lighting, signalling and marking lights and reflex-reflector devices.7
5.2 Operation and handling .7
5.3 Operator's station .7
5.4 Operator's seat.7
5.5 Controls and indicators .7
5.6 Starting .8
5.7 Stopping .8
5.8 Access system to operator's station and to maintenance points .8
5.9 Protection .8
5.10 Pressurised systems.10
5.11 Fire protection.10
5.12 Hot surfaces .10
5.13 Signal devices and warning signs .10
5.14 Liquid gas units .10
5.15 Electrical and electronic systems.10
5.16 Electro-magnetic compatibility (EMC).10
5.17 Noise and vibration.11
5.18 Conveyors .11
6 Verification of safety requirements and/or protective measures .11
7 Information for the user .11
Annex A (normative) Noise test code for road-milling machines.12
Annex B (informative) Examples of road-milling machines.17
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EC Directive 98/37/EC .19
Annex ZB (informative) !!!!Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC"""".20
Bibliography .21
Figures
Figure 1 — Milling equipment.9
Figure 2 — Warning sign .10
Figure A.1 — Basic length L .13
Figure A.2 — Microphone positions .13
2
---------------------- Page: 4 ----------------------
SIST EN 500-2:2007+A1:2008
EN 500-2:2006+A1:2008 (E)
Figure B.1 — Road-milling machine with front-loading conveyor .17
Figure B.2 — Road-milling machine with rear-loading conveyor.18
Figure B.3 — Road-milling machine without conveyor .18
3
---------------------- Page: 5 ----------------------
SIST EN 500-2:2007+A1:2008
EN 500-2:2006+A1:2008 (E)
Foreword
This document (EN 500-2:2006+A1:2008) has been prepared by Technical Committee CEN/TC 151 “Construction
equipment and building material machines — Safety”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by April 2009, and conflicting national standards shall be withdrawn at the latest by
December 2009.
This document supersedes !EN 500-2:2006".
This document includes Amendment 1, approved by CEN on 2008-09-11.
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
This document has been prepared under a mandate given to CEN by the European Commission and the European
Free Trade Association, and supports essential requirements of EU Directive(s).
!For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document."
EN 500 “Mobile road construction machinery — Safety” comprises the following parts:
Part 1: Common requirements;
Part 2: Specific requirements for road-milling machines;
Part 3: Specific requirements for soil-stabilising machines and recycling machines;
Part 4: Specific requirements for compaction machines;
Part 6: Specific requirements for paver-finishers.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following coun-
tries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Den-
mark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg,
Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and
United Kingdom.
4
---------------------- Page: 6 ----------------------
SIST EN 500-2:2007+A1:2008
EN 500-2:2006+A1:2008 (E)
Introduction
This European Standard is a type C standard as stated in EN ISO 12100-1.
The machinery concerned and the extent to which hazards, hazardous situations and events are covered are indi-
cated in the scope of this European Standard.
When provisions of this type C standard are different from those stated in type A or B standards, the provisions of
this type C standard take precedence over the provisions of the other standards, for machines that have been de-
signed and built according to the provisions of this type C standard.
5
---------------------- Page: 7 ----------------------
SIST EN 500-2:2007+A1:2008
EN 500-2:2006+A1:2008 (E)
1 Scope
This part of EN 500 specifies the safety requirements for road-milling machines as defined in Clause 3 and deals
with all significant hazards, hazardous situations and events relevant to these machines, when they are used as
intended and under conditions of misuse which are reasonably foreseeable.
This part of EN 500 contains additional requirements to EN 500-1 ”Common requirements”.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
EN 500-1:2006, Mobile road construction machinery — Safety — Part 1: Common requirements.
EN 811:1996, Safety of machinery — Safety distances to prevent danger zones being reached by the lower limbs.
EN 953:1997, Safety of machinery — Guards — General requirements for the design and construction of fixed and
movable guards.
EN 61310-1:1995, Safety of machinery — Indication, marking and actuation — Part 1: Requirements for visual,
auditory and tactile signals (IEC 61310-1:1995).
EN ISO 3744:1995, Acoustics — Determination of sound power levels of noise sources using sound pressure —
Engineering method in an essentially free field over a reflecting plane (ISO 3744:1994).
EN ISO 11201:1995, Acoustics — Noise emitted by machinery and equipment — Measurement of emission sound
pressure levels at a work station and at other specified positions — Engineering method in an essentially free field
over a reflecting plane (ISO 11201:1995).
EN ISO 12100-1:2003, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic termi-
nology, methodology (ISO 12100-1:2003).
6
---------------------- Page: 8 ----------------------
SIST EN 500-2:2007+A1:2008
EN 500-2:2006+A1:2008 (E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 12100-1:2003 and the following ap-
ply.
3.1
road-milling machines
mobile road construction machines used to mill material from paved surfaces
3.2
milling equipment
power-driven cylindrical bodies on which the milling tools are fitted. The cylindrical bodies rotate during the milling
operation
4 List of significant hazards
Annex F of EN 500-1:2006 applies with the following exception:
Table 1
5 Hazards generated by vibration
5.1 Hand-arm vibrations
5 Safety requirements and/or protective measures
5.1 Lighting, signalling and marking lights and reflex-reflector devices
5.2 of EN 500-1:2006 applies.
5.2 Operation and handling
5.3 of EN 500-1:2006 applies with the following addition:
to minimise the risk of dust, appropriate provisions (e.g. a water sprinkling system) shall be made.
5.3 Operator's station
5.4 of EN 500-1:2006 applies. with the following exception:
5.4.2 of EN 500-1:2006, first paragraph, does not apply for road-milling machines.
5.4 Operator's seat
5.5 of EN 500-1:2006 applies.
5.5 Controls and indicators
5.6 of EN 500-1:2006 applies.
7
---------------------- Page: 9 ----------------------
SIST EN 500-2:2007+A1:2008
EN 500-2:2006+A1:2008 (E)
5.6 Starting
5.7 of EN 500-1:2006 applies.
5.7 Stopping
5.8 of EN 500-1:2006 applies with the following addition:
it shall be possible to stop the milling equipment, even while the power unit (engine) is running;
where additional controls to operate the machine are provided, an emergency stop shall be available.
5.8 Access system to operator's station and to maintenance points
5.9 of EN 500-1:2006 applies with the following addition:
provisions shall be made to minimise hazards if wheels and tracks are in the vicinity of the operator's station
and/or in the access areas. If there are guards, they shall comply with Clauses 5 and 6 of EN 953:1997.
5.9 Protection
5.9.1 General
5.10.1 to 5.10.3 of EN 500-1:2006
...
