Textiles and textile products - Burning behaviour - Curtains and drapers - Measurement of flame spread of vertically oriented specimens with large ignition source

This European Standard specifies a method for the measurement of flame spread of vertically oriented textile fabrics intended for curtains and drapes in the form of single or multi-component (coated, quilted, multilayered, sandwich construction and similar combinations) fabrics using a large ignition source.

Textilien und textile Erzeugnisse - Brennverhalten von Vorhängen und Gardinen - Messung der Flammenausbreitungseigenschaften von vertikal angeordneten Messproben bei Einwirkung großer Zündquellen

Diese Europäische Norm legt ein Verfahren zur Messung der Flammenausbreitung bei Einwirkung einer größeren Zündquelle für vertikal angeordnete textile Flächengebilde fest, die für Gardinen und Vorhänge bestimmt und als Ein  oder Mehrkomponenten Gewebe ausgeführt sind (beschichtet, gesteppt, mehrlagig, Verbundstoffe und ähnliche Kombinationen).

Textiles et produits textiles - Comportement au feu - Rideaux et tentures - Mesurage de la propagation de flamme d'éprouvettes orientées verticalement, avec une source d'allumage importante

La présente Norme européenne spécifie une méthode de mesurage de propagation de la flamme des étoffes orientées verticalement par rapport à une importante source d’allumage ; il peut s’agir d’étoffes simples ou complexes (textiles enduits, ouatés, multicouches, en sandwich et autres structures)

Tekstilije in tekstilni izdelki - Gorljivost - Zavese in zastori - Merjenje razširjanja plamena navpično nameščenih preskušancev z velikim začetnim vžigom

Ta evropski standard določa metodo za merjenje razširjanja plamena navpično nameščenih tekstilnih materialov za zavese in draperije v obliki eno- ali večkomponentnih materialov (plastificiranih, prešitih, večslojnih, konstrukcije sendvič in podobnih kombinacij) z uporabo velikega začetnega vžiga.

General Information

Status
Published
Publication Date
03-Oct-2011
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
13-Sep-2011
Due Date
18-Nov-2011
Completion Date
04-Oct-2011

RELATIONS

Buy Standard

Standard
SIST EN 13772:2011
English language
12 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.PTextilien und textile Erzeugnisse - Brennverhalten von Vorhängen und Gardinen - Messung der Flammenausbreitungseigenschaften von vertikal angeordneten Messproben bei Einwirkung großer ZündquellenTextiles et produits textiles - Comportement au feu - Rideaux et tentures - Mesurage de la propagation de flamme d'éprouvettes orientées verticalement, avec une source d'allumage importanteTextiles and textile products - Burning behaviour - Curtains and drapers - Measurement of flame spread of vertically oriented specimens with large ignition source97.160Tekstilije za dom. PeriloHome textiles. Linen13.220.40Sposobnost vžiga in obnašanje materialov in proizvodov pri gorenjuIgnitability and burning behaviour of materials and productsICS:Ta slovenski standard je istoveten z:EN 13772:2011SIST EN 13772:2011en,fr,de01-november-2011SIST EN 13772:2011SLOVENSKI

STANDARDSIST EN 13772:20031DGRPHãþD
SIST EN 13772:2011
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13772

January 2011 ICS 13.220.40; 59.080.30; 97.160 Supersedes EN 13772:2003English Version

Textiles and textile products - Burning behaviour - Curtains and drapes - Measurement of flame spread of vertically oriented specimens with large ignition source

Textiles et produits textiles - Comportement au feu - Rideaux et tentures - Mesurage de la propagation de flamme d'éprouvettes orientées verticalement, avec une source d'allumage importante

Textilien und textile Erzeugnisse - Brennverhalten - Vorhänge und Gardinen - Messung der Flammenausbreitungseigenschaften von vertikal angeordneten Messproben mit großer Zündquelle This European Standard was approved by CEN on 3 December 2010.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13772:2011: ESIST EN 13772:2011

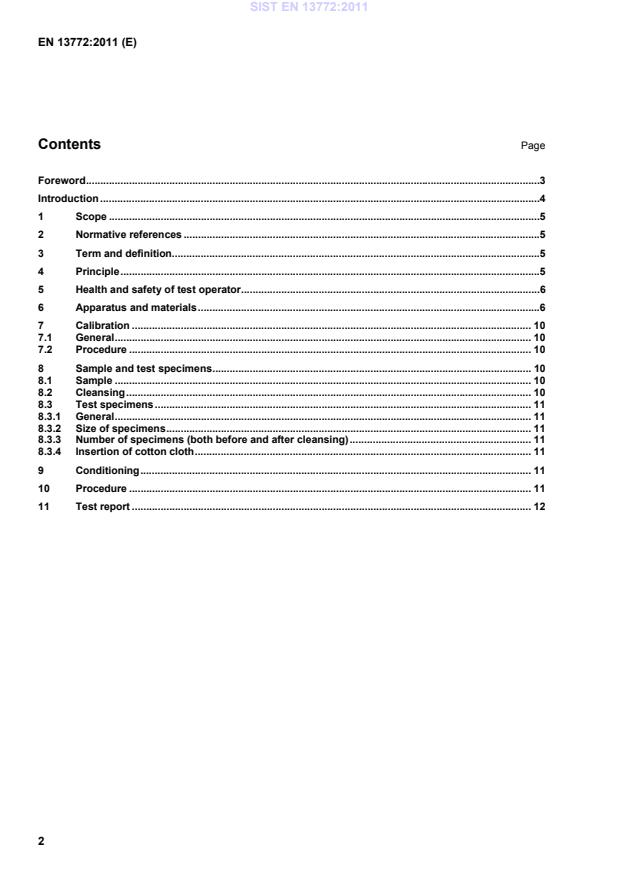

EN 13772:2011 (E) 2 Contents Page Foreword ..............................................................................................................................................................3Introduction .........................................................................................................................................................41Scope ......................................................................................................................................................52Normative references ............................................................................................................................53Term and definition................................................................................................................................54Principle ..................................................................................................................................................55Health and safety of test operator ........................................................................................................66Apparatus and materials .......................................................................................................................67Calibration ........................................................................................................................................... 107.1General ................................................................................................................................................. 107.2Procedure ............................................................................................................................................ 108Sample and test specimens ............................................................................................................... 108.1Sample ................................................................................................................................................. 108.2Cleansing ............................................................................................................................................. 108.3Test specimens ................................................................................................................................... 118.3.1General ................................................................................................................................................. 118.3.2Size of specimens ............................................................................................................................... 118.3.3Number of specimens (both before and after cleansing) ............................................................... 118.3.4Insertion of cotton cloth ..................................................................................................................... 119Conditioning ........................................................................................................................................ 1110Procedure ............................................................................................................................................ 1111Test report ........................................................................................................................................... 12 SIST EN 13772:2011

EN 13772:2011 (E) 3 Foreword This document (EN 13772:2011) has been prepared by Technical Committee CEN/TC 248 “Textiles and textile products”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by July 2011, and conflicting national standards shall be withdrawn at the latest by July 2011. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13772:2003. The main differences between this standard and the previous version are:  all three marker threads shall be used;  tolerances for the position of the electric radiator and for the tension of the marker threads have been introduced;  the metal grid below the specimen has been defined more precisely;  major adjustments to the cleansing procedure. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

SIST EN 13772:2011

EN 13772:2011 (E) 4 Introduction In order to assess the burning behaviour of curtains and drapes two test methods were established, i.e.

EN 1101 for the measurement of ignitability (based on EN ISO 6940) and EN 1102 for the measurement of flame spread (based on EN ISO 6941). EN ISO 6941 measures the flame spread of vertically oriented specimens exposed to a defined small flame. This allows the flame spread properties of ignitable products to be determined. Nevertheless this test method is not suitable to assess products that do not ignite. The measurement of the length or area destroyed by the small flame is questionable as shown by round robin testing. There is a risk that products which pass the small flame test, can still be ignited with a larger ignition source. The equipment used in EN ISO 6941 has therefore been modified by adding a radiator, which radiates on the lower part of the specimen in order to boost locally and temporarily the ignition of the specimen. The combination of this radiation and the small flame application simulates the action from a larger flaming source. With this combined ignition source some materials, not ignitable with the small flame, may ignite. Some of these will self extinguish, when the action from the ignition source has ceased, while others will self-propagate. For this purpose, a European research project (CT 96-2057) was set up to establish a small scale test method for assessing the burning behaviour of curtains and drapes using a large ignition source. Reaction to fire parameters like smoke development, heat release and toxic components were not taken into account. The project involved eleven laboratories from nine European countries.

In order to select the relevant characteristics of burning behaviour in terms of classification and to assess the repeatability and reproducibility, 15 samples of commercially available fabrics representative for the main product groups on the market were tested with the large ignition source test method. Most of them had a flame retardant treatment or coating. The material selection included standard and fire retardant polyester, cotton, modacryl, wool, chlorofibre and glass fibre and represented different structures and fibre blends. The occurrence of flaming debris, the severance of marker threads and the time to sever marker threads (first and third threads) were selected as representative parameter to assess the burning behaviour of the samples. Other burning behaviour characteristics such as after-flame and after-glow times did not bring any extra relevant information and were discarded.

An inter-laboratory test was conducted in 1997 with ten laboratories, each testing 15 materials. Repeatability and reproducibility were assessed through statistical analysis. Consequently, some improvements were introduced in the method. Good agreement was also found with national test methods in use in various European countries or regions (France, Germany, Belgium, the Netherlands, Italy, Scandinavia and the United Kingdom).

SIST EN 13772:2011

EN 13772:2011 (E) 5 1 Scope This European Standard specifies a method for the measurement of flame spread of vertically oriented textile fabrics intended for curtains and drapes in the form of single or multi-component (coated, quilted, multilayered, sandwich construction and similar combinations) fabrics using a large ignition source. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 367:1992, Protective clothing — Protection against heat and fire — Method of determining heat transmission on exposure to flame EN 13773:2003, Textiles and textile produ

...
