ASTM D5818-22
(Practice)Standard Practice for Exposure and Retrieval of Samples to Evaluate Installation Damage of Geosynthetics
Standard Practice for Exposure and Retrieval of Samples to Evaluate Installation Damage of Geosynthetics
SIGNIFICANCE AND USE
5.1 The ability to maintain design function (for example, reinforcement, separation, barrier, etc.) or design properties (for example, tensile strength, chemical resistance, etc.), or both, of a geosynthetic may be affected by damage to the physical structure of the geosynthetic due to the rigors of field installation. The effect of damage may be assessed by analyzing specimens cut from sample(s) retrieved after installation in a representative test section. Analysis may be performed with visual examination or laboratory testing of specimens from the control sample(s), and from the exhumed sample(s).
5.2 A uniform practice for installing and retrieving representative sample(s) from a test section is needed to assess installation damage using project-specific or generally accepted, representative materials and procedures. Damage of a specific grade and type of geosynthetic under specific installation procedures may be assessed with sample(s) exhumed from a full-scale test section.
SCOPE
1.1 This practice covers standardized procedures for obtaining samples of geosynthetics from a test section for use in assessment of the effects of damage immediately after installation caused only by the installation techniques. The assessment may include physical testing. This practice is applicable to any geosynthetic except those installed between layers of aggregate or soil modified by a binder.
Note 1: The binder would inhibit the retrieval of the geosynthetic without inflicting further damage to the geosynthetic. Other practices may be suitable for retrieving geosynthetics used in these applications but are out of the scope of this practice.
1.2 This practice is limited to full-scale test sections and does not address laboratory modeling of field conditions. This practice does not address which test method(s) to use for quantifying installation damage.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 30-Jun-2022
- Technical Committee
- D35 - Geosynthetics
- Drafting Committee
- D35.01 - Mechanical Properties
Relations
- Effective Date
- 01-Feb-2024
- Effective Date
- 15-Apr-2018
- Effective Date
- 01-Aug-2017
- Effective Date
- 01-Mar-2017
- Effective Date
- 01-Jan-2016
- Effective Date
- 15-Sep-2015
- Effective Date
- 01-Sep-2015
- Effective Date
- 01-Sep-2015
- Effective Date
- 01-Jul-2015
- Effective Date
- 01-Apr-2015
- Effective Date
- 01-Mar-2014
- Effective Date
- 15-Jun-2013
- Effective Date
- 15-Jun-2013
- Effective Date
- 15-May-2013
- Effective Date
- 01-Feb-2012
Overview
ASTM D5818-22 is the Standard Practice for Exposure and Retrieval of Samples to Evaluate Installation Damage of Geosynthetics. Developed by ASTM International, this standard provides a uniform practice for installing and retrieving representative geosynthetic samples from full-scale test sections, enabling the assessment of potential installation damage. Geosynthetics-including geotextiles, geomembranes, and related polymeric materials-are widely used in construction for separation, reinforcement, barrier, and drainage functions. Their performance may be compromised by physical damage incurred during typical construction activities such as placement, compaction, and cover material installation.
ASTM D5818-22 outlines the procedures for exposing geosynthetics to actual field installation conditions and retrieving the samples for subsequent analysis, either visually or via laboratory testing. This practice supports the validation of a material's ability to maintain its intended properties and structural function immediately after installation.
Key Topics
Sample Installation and Retrieval Procedures
- Defines how to install geosynthetics in a test section using project-specific or generally accepted materials and methods.
- Details procedures for marking, exhuming, and documenting samples to ensure accurate assessment and reproducibility.
Damage Assessment
- Focuses on evaluating installation damage by comparing exhumed samples with control (uninstalled) samples.
- Outlines the need for thorough documentation of all construction procedures and sample identification.
Applicability
- Applicable to most geosynthetics except those installed between binders or stabilized soils and aggregates.
- Limited to full-scale field sections-does not cover laboratory simulation or specific quantification test methods.
Reporting and Documentation
- Specifies requirements for reporting the test section construction, material identification, testing performed, and any deviations or notable damages.
Applications
ASTM D5818-22 is utilized across a range of geotechnical and civil engineering applications that incorporate geosynthetics. Typical use cases include:
- Ensuring Geosynthetic Performance:
Validates the durability of geosynthetics post-installation in projects such as roadways, embankments, retaining walls, landfills, and other soil-structure systems. - Quality Assurance:
Supports project owners, engineers, and contractors in verifying that installation techniques do not cause unacceptable damage that could jeopardize the effectiveness of the geosynthetic material. - Specification Development:
Helps manufacturers and specifiers establish or refine material and installation specifications based on representative, real-world installation damage data. - Compliance and Forensic Evaluation:
Used for regulatory compliance or investigation when field performance issues are suspected to be linked to installation-related damage.
Related Standards
For broader context and comprehensive quality management when working with geosynthetics, ASTM D5818-22 references and aligns with several related standards, including:
- ASTM D123 - Terminology Relating to Textiles
- ASTM D4439 - Terminology for Geosynthetics
- ASTM D4873/D4873M - Guide for Identification, Storage, and Handling of Geosynthetic Rolls and Samples
These complementary standards provide essential definitions and guidelines that support consistent material handling, terminology, and project reporting.
Conclusion
ASTM D5818-22 plays a vital role in the effective use of geosynthetics by standardizing the processes for evaluating installation damage. By following this practice, stakeholders gain reliable, project-specific data ensuring geosynthetics are properly assessed and capable of fulfilling their intended design roles. This enhances confidence in geosynthetic installations, helps prevent premature failures, and supports consistent construction quality in infrastructure projects.
Keywords: ASTM D5818-22, geosynthetics, installation damage, sample retrieval, geotextiles, construction quality, field installation, standard practice, civil engineering.
Buy Documents
ASTM D5818-22 - Standard Practice for Exposure and Retrieval of Samples to Evaluate Installation Damage of Geosynthetics
REDLINE ASTM D5818-22 - Standard Practice for Exposure and Retrieval of Samples to Evaluate Installation Damage of Geosynthetics
Get Certified
Connect with accredited certification bodies for this standard
Control Union Certifications
Global certification for agriculture and sustainability.
Bureau Veritas Bangladesh
Bureau Veritas certification services in Bangladesh.
ECOCERT France
Leader in organic and sustainability certification worldwide.
Sponsored listings
Frequently Asked Questions
ASTM D5818-22 is a standard published by ASTM International. Its full title is "Standard Practice for Exposure and Retrieval of Samples to Evaluate Installation Damage of Geosynthetics". This standard covers: SIGNIFICANCE AND USE 5.1 The ability to maintain design function (for example, reinforcement, separation, barrier, etc.) or design properties (for example, tensile strength, chemical resistance, etc.), or both, of a geosynthetic may be affected by damage to the physical structure of the geosynthetic due to the rigors of field installation. The effect of damage may be assessed by analyzing specimens cut from sample(s) retrieved after installation in a representative test section. Analysis may be performed with visual examination or laboratory testing of specimens from the control sample(s), and from the exhumed sample(s). 5.2 A uniform practice for installing and retrieving representative sample(s) from a test section is needed to assess installation damage using project-specific or generally accepted, representative materials and procedures. Damage of a specific grade and type of geosynthetic under specific installation procedures may be assessed with sample(s) exhumed from a full-scale test section. SCOPE 1.1 This practice covers standardized procedures for obtaining samples of geosynthetics from a test section for use in assessment of the effects of damage immediately after installation caused only by the installation techniques. The assessment may include physical testing. This practice is applicable to any geosynthetic except those installed between layers of aggregate or soil modified by a binder. Note 1: The binder would inhibit the retrieval of the geosynthetic without inflicting further damage to the geosynthetic. Other practices may be suitable for retrieving geosynthetics used in these applications but are out of the scope of this practice. 1.2 This practice is limited to full-scale test sections and does not address laboratory modeling of field conditions. This practice does not address which test method(s) to use for quantifying installation damage. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 5.1 The ability to maintain design function (for example, reinforcement, separation, barrier, etc.) or design properties (for example, tensile strength, chemical resistance, etc.), or both, of a geosynthetic may be affected by damage to the physical structure of the geosynthetic due to the rigors of field installation. The effect of damage may be assessed by analyzing specimens cut from sample(s) retrieved after installation in a representative test section. Analysis may be performed with visual examination or laboratory testing of specimens from the control sample(s), and from the exhumed sample(s). 5.2 A uniform practice for installing and retrieving representative sample(s) from a test section is needed to assess installation damage using project-specific or generally accepted, representative materials and procedures. Damage of a specific grade and type of geosynthetic under specific installation procedures may be assessed with sample(s) exhumed from a full-scale test section. SCOPE 1.1 This practice covers standardized procedures for obtaining samples of geosynthetics from a test section for use in assessment of the effects of damage immediately after installation caused only by the installation techniques. The assessment may include physical testing. This practice is applicable to any geosynthetic except those installed between layers of aggregate or soil modified by a binder. Note 1: The binder would inhibit the retrieval of the geosynthetic without inflicting further damage to the geosynthetic. Other practices may be suitable for retrieving geosynthetics used in these applications but are out of the scope of this practice. 1.2 This practice is limited to full-scale test sections and does not address laboratory modeling of field conditions. This practice does not address which test method(s) to use for quantifying installation damage. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D5818-22 is classified under the following ICS (International Classification for Standards) categories: 19.020 - Test conditions and procedures in general; 59.080.70 - Geotextiles. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D5818-22 has the following relationships with other standards: It is inter standard links to ASTM D4439-24, ASTM D4439-18, ASTM D4439-17, ASTM D123-17, ASTM D4873/D4873M-16, ASTM D123-15b, ASTM D4439-15a, ASTM D123-15a, ASTM D4439-15, ASTM D123-15, ASTM D4439-14, ASTM D123-13ae1, ASTM D123-13a, ASTM D123-13, ASTM D123-12e1. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D5818-22 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

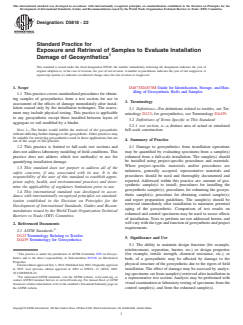

Designation: D5818 − 22
Standard Practice for
Exposure and Retrieval of Samples to Evaluate Installation
Damage of Geosynthetics
This standard is issued under the fixed designation D5818; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D4873/D4873M Guide for Identification, Storage, and Han-
dling of Geosynthetic Rolls and Samples
1.1 This practice covers standardized procedures for obtain-
ing samples of geosynthetics from a test section for use in
3. Terminology
assessment of the effects of damage immediately after instal-
lation caused only by the installation techniques. The assess-
3.1 Definitions—For definitions related to textiles, see Ter-
ment may include physical testing. This practice is applicable
minology D123; for geosynthetics, see Terminology D4439.
to any geosynthetic except those installed between layers of
3.2 Definitions of Terms Specific to This Standard:
aggregate or soil modified by a binder.
3.2.1 test section, n—a distinct area of actual or simulated
NOTE 1—The binder would inhibit the retrieval of the geosynthetic
full-scale construction.
without inflicting further damage to the geosynthetic. Other practices may
be suitable for retrieving geosynthetics used in these applications but are
4. Summary of Practice
out of the scope of this practice.
4.1 Damage to geosynthetics from installation operations
1.2 This practice is limited to full-scale test sections and
may be quantified by evaluating specimens from a sample(s)
does not address laboratory modeling of field conditions. This
exhumed from a full-scale installation. The sample(s) should
practice does not address which test method(s) to use for
be installed using project-specific procedures and materials.
quantifying installation damage.
When project-specific materials and/or procedures are
1.3 This standard does not purport to address all of the
unknown, generally accepted, representative materials and
safety concerns, if any, associated with its use. It is the
procedures should be used and thoroughly documented and
responsibility of the user of this standard to establish appro-
reported. Addressed within this practice are: amount of geo-
priate safety, health, and environmental practices and deter-
synthetic sample(s) to install; procedures for installing the
mine the applicability of regulatory limitations prior to use.
geosynthetic sample(s); procedures for exhuming the geosyn-
1.4 This international standard was developed in accor-
thetic sample(s); procedure for obtaining control sample(s);
dance with internationally recognized principles on standard-
and report preparation guidelines. The sample(s) should be
ization established in the Decision on Principles for the
retrieved immediately after installation to minimize potential
Development of International Standards, Guides and Recom-
aging of the geosynthetic. Comparison of test results on
mendations issued by the World Trade Organization Technical
exhumed and control specimens may be used to assess effects
Barriers to Trade (TBT) Committee.
of installation. Tests to perform are not addressed herein, and
willvarywiththetypeandfunctionofgeosyntheticandproject
2. Referenced Documents
requirements.
2.1 ASTM Standards:
D123 Terminology Relating to Textiles
5. Significance and Use
D4439 Terminology for Geosynthetics
5.1 The ability to maintain design function (for example,
reinforcement, separation, barrier, etc.) or design properties
This practice is under the jurisdiction of ASTM Committee D35 on Geosyn-
(for example, tensile strength, chemical resistance, etc.), or
thetics and is the direct responsibility of Subcommittee D35.01 on Mechanical
both, of a geosynthetic may be affected by damage to the
Properties.
physical structure of the geosynthetic due to the rigors of field
Current edition approved July 1, 2022. Published July 2022. Originally approved
installation. The effect of damage may be assessed by analyz-
in 1995. Last previous edition approved in 2022 as D5818 – 11 (2022). DOI:
10.1520/D5818-22.
ing specimens cut from sample(s) retrieved after installation in
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
a representative test section. Analysis may be performed with
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
visual examination or laboratory testing of specimens from the
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. control sample(s), and from the exhumed sample(s).
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

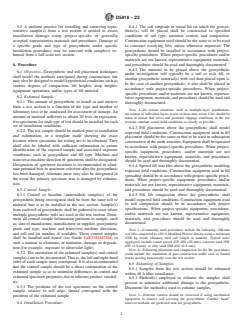

D5818 − 22
5.2 A uniform practice for installing and retrieving repre- 6.4.1 The soil subgrade or initial lift on which the geosyn-
sentative sample(s) from a test section is needed to assess thetic(s) will be placed shall be constructed to specified
installation damage using project-specific or generally conditions of soil type, moisture content, and compaction.
accepted, representative materials and procedures. Damage of Construction equipment used should be the same as to be used
a specific grade and type of geosynthetic under specific to construct overlying lifts, unless otherwise requested. The
installation procedures may be assessed with sample(s) ex- geosynthetic should be installed in accordance with project-
humed from a full-scale test section. specific procedures. When project-specific procedures and/or
materials are not known, representative equipment, materials,
and procedures should be used and thoroughly documented.
6. Procedure
6.4.2 The material to be placed above the geosynthetic
6.1 Objective—Geosynthetic and soil placement techniques
under investigation will typically be a soil or rock fill, or
shall model the methods anticipated during construction, but
another geosynthetic material(s) with soil then placed upon it.
may also be designed to model hypothetical conditions such as
In the case of another geosynthetic, it also shall be placed in
various degrees of compaction, lift heights, drop heights,
accordance with project-specific procedures. When project-
equipment operations, and/or types of fill material.
specific procedures and/or materials are not known, represen-
6.2 Exhumed Sample:
tative equipment, materials, and procedures should be used and
6.2.1 The amount of geosynthetic to install in and retrieve
thoroughly documented.
from a test section is a function of the type and number of
NOTE 2—In certain situations, such as multiple-layer installations,
laboratory tests to be conducted for assessment of damage.An
movement of individual layers in test sections may occur. Care should be
amount of material sufficient to obtain 20 tests on representa-
taken to ensure that stress and potential slippage conditions in the test
tive specimens for each type of test should be installed for each
sections simulate actual field conditions as closely as possible.
set of installation conditions.
6.4.3 Fill
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

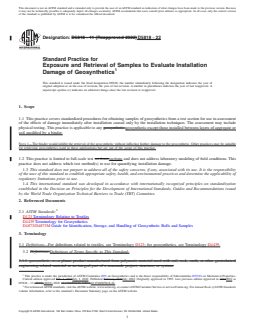

Designation: D5818 − 11 (Reapproved 2022) D5818 − 22
Standard Practice for
Exposure and Retrieval of Samples to Evaluate Installation
Damage of Geosynthetics
This standard is issued under the fixed designation D5818; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice covers standardized procedures for obtaining samples of geosynthetics from a test section for use in assessment
of the effects of damage immediately after installation caused only by the installation techniques. The assessment may include
physical testing. This practice is applicable to any geosynthetic.geosynthetic except those installed between layers of aggregate or
soil modified by a binder.
NOTE 1—The binder would inhibit the retrieval of the geosynthetic without inflicting further damage to the geosynthetic. Other practices may be suitable
for retrieving geosynthetics used in these applications but are out of the scope of this practice.
1.2 This practice is limited to full-scale test sections,sections and does not address laboratory modeling of field conditions. This
practice does not address which test method(s) to use for quantifying installation damage.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D123 Terminology Relating to Textiles
D4439 Terminology for Geosynthetics
D4873/D4873M Guide for Identification, Storage, and Handling of Geosynthetic Rolls and Samples
3. Terminology
3.1 Definitions—For definitions related to textiles, see Terminology D123; for geosynthetics, see Terminology D4439.
3.2 Definitions:Definitions of Terms Specific to This Standard:
3.1.1 geosynthetic, n—a planar product manufactured from polymeric material used with soil, rock, earth, or other geotechnical
engineering-related material as an integral part of a manmade project, structure, or system.
This practice is under the jurisdiction of ASTM Committee D35 on Geosynthetics and is the direct responsibility of Subcommittee D35.01 on Mechanical Properties.
Current edition approved Feb. 1, 2022July 1, 2022. Published February 2022July 2022. Originally approved in 1995. Last previous edition approved in 20182022 as
D5818 – 11 (2018).(2022). DOI: 10.1520/D5818-11R22.10.1520/D5818-22.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D5818 − 22
3.1.2 sample, n—(1) a portion of material that is taken for testing or for record purposes; (2) a group of specimens used, or of
observations made, which provide information that can be used for making statistical inferences about the population(s) from
which the specimens are drawn.
3.2.1 test section, n—a distinct area of actual or simulated full-scale construction.
3.1.4 For definitions of other geosynthetics terms used in this practice, refer to Terminology D4439.
4. Summary of Practice
4.1 Damage to geosynthetics from installation operations may be quantified by evaluating specimens from a sample(s) exhumed
from a full-scale installation. The sample(s) should be installed using project-specific procedures and materials. When
project-specific materials and/or procedures are unknown, generally accepted, representative materials and procedures should be
used and thoroughly documented and reported. Addressed within this practice are: amount of geosynthetic sample(s) to install;
procedures for installing the geosynthetic sample(s); procedures for exhuming the geosynthetic sample(s); procedure for obtaining
control sample(s); and report preparation guidelines. The sample(s) should be retrieved immediately after installation to minimize
potential aging of the geosynthetic. Comparison of test results on exhumed and control specimens may be used to assess effects
of installation. Tests to perform are not addressed herein, and will vary with the type and function of geosynthetic and project
requirements.
5. Significance and Use
5.1 The ability to maintain design function (for example, reinforcement, separation, barrier, etc.) or design properties (for example,
tensile strength, chemical resistance, etc.), or both, of a geosynthetic may be affected by damage to the physical structure of the
geosynthetic due to the rigors of field installation. The effect of damage may be assessed by analyzing specimens cut from
sample(s) retrieved after installation in a representative test section. Analysis may be performed with visual examination or
laboratory testing of specimens from the control sample(s), and from the exhumed sample(s).
5.2 A uniform practice for installing and retrieving representative sample(s) from a test section is needed to assess installation
damage using project-specific or generally accepted, representative materials and procedures. Damage of a specific grade and type
of geosynthetic under specific installation procedures may be assessed with sample(s) exhumed from a full-scale test section.
6. Procedure
6.1 Objective—Geosynthetic and soil placement techniques shall model the methods anticipated during construction, but may also
be designed to model hypothetical conditions such as various degrees of compaction, lift heights, drop heights, equipment
operations, and/or types of fill material.
6.2 Exhumed Sample:
6.2.1 The amount of geosynthetic to install in and retrieve from a test section is a function of the type and number of laboratory
tests to be conducted for assessment of damage. An amount of material sufficient to obtain 20 tests on representative specimens
for each type of test should be installed for each set of installation conditions.
6.2.2 The test sample should be marked prior to installation and exhumation, or a template made showing the exact location where
specimens for testing are to be obtained. They shall also be labeled with sufficient information to ensure identification of the
exposed sample and associated exposure conditions, such as geosynthetic and fill type. Machine and transverse-machine direction
of specimens shall be designated. Designation of specimen locations is recommended to eliminate potential bias in specimen
selection after the geosynthetic has been damaged. Alternate areas may also be designated in the event the primary specimen area
is damaged by exhumation.
6.3 Control Sample:
6.3.1 Control or baseline (uninstalled) sample(s) of the geosynthetic being investigated shall be from the same roll of material that
is to be installed in the test section. Sample(s) from each roll of geosynthetic shall be gath
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
