ASTM C1071-19
(Specification)Standard Specification for Fibrous Glass Duct Lining Insulation (Thermal and Sound Absorbing Material)
Standard Specification for Fibrous Glass Duct Lining Insulation (Thermal and Sound Absorbing Material)
ABSTRACT
This specification covers fibrous glass insulation used as a thermal and sound absorbing liner for interior surfaces of ducts, plenums, and other air handling equipment. The insulation shall be of the following types: Type I and Type II. The basic material shall be made from glass processed from the molten state into fibrous form with a binder added to form dimensionally stable insulation. The following test methods shall be performed: corrosiveness; water vapor sorption; fungi resistance; temperature resistance; erosion resistance; odor emission; surface burning characteristics; apparent thermal conductivity; sound absorption coefficients; bacteria resistance; and combustion characteristics.
SCOPE
1.1 This specification covers fibrous glass insulation used as a thermal and sound absorbing liner for interior surfaces of ducts, plenums, and other air handling equipment that handle air up to 250°F (121°C).
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

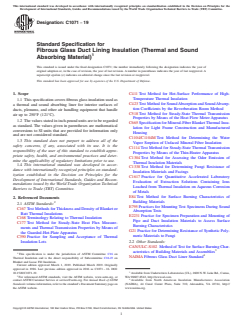

Designation: C1071 −19
Standard Specification for
Fibrous Glass Duct Lining Insulation (Thermal and Sound
1
Absorbing Material)
This standard is issued under the fixed designation C1071; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope C411 Test Method for Hot-Surface Performance of High-
Temperature Thermal Insulation
1.1 This specification covers fibrous glass insulation used as
C423 Test Method for SoundAbsorption and SoundAbsorp-
a thermal and sound absorbing liner for interior surfaces of
tion Coefficients by the Reverberation Room Method
ducts, plenums, and other air handling equipment that handle
C518 Test Method for Steady-State Thermal Transmission
air up to 250°F (121°C).
Properties by Means of the Heat Flow Meter Apparatus
1.2 The values stated in inch-pound units are to be regarded
C665 Specification for Mineral-Fiber Blanket Thermal Insu-
as standard. The values given in parentheses are mathematical
lation for Light Frame Construction and Manufactured
conversions to SI units that are provided for information only
Housing
and are not considered standard.
C1104/C1104M Test Method for Determining the Water
1.3 This standard does not purport to address all of the
Vapor Sorption of Unfaced Mineral Fiber Insulation
safety concerns, if any, associated with its use. It is the
C1114 Test Method for Steady-State Thermal Transmission
responsibility of the user of this standard to establish appro-
Properties by Means of the Thin-Heater Apparatus
priate safety, health, and environmental practices and deter-
C1304 Test Method for Assessing the Odor Emission of
mine the applicability of regulatory limitations prior to use.
Thermal Insulation Materials
1.4 This international standard was developed in accor-
C1338 Test Method for Determining Fungi Resistance of
dance with internationally recognized principles on standard-
Insulation Materials and Facings
ization established in the Decision on Principles for the
C1617 Practice for Quantitative Accelerated Laboratory
Development of International Standards, Guides and Recom-
Evaluation of Extraction Solutions Containing Ions
mendations issued by the World Trade Organization Technical
Leached from Thermal Insulation on Aqueous Corrosion
Barriers to Trade (TBT) Committee.
of Metals
E84 Test Method for Surface Burning Characteristics of
2. Referenced Documents
Building Materials
2
2.1 ASTM Standards:
E795 Practices for Mounting Test Specimens During Sound
C167 Test Methods for Thickness and Density of Blanket or
Absorption Tests
Batt Thermal Insulations
E2231 Practice for Specimen Preparation and Mounting of
C168 Terminology Relating to Thermal Insulation
Pipe and Duct Insulation Materials to Assess Surface
C177 Test Method for Steady-State Heat Flux Measure-
Burning Characteristics
ments and Thermal Transmission Properties by Means of
G21 Practice for Determining Resistance of Synthetic Poly-
the Guarded-Hot-Plate Apparatus
meric Materials to Fungi
C390 Practice for Sampling and Acceptance of Thermal
Insulation Lots 2.2 Other Standards:
CAN/ULC-S102 Method of Test for Surface Burning Char-
3
acteristics of Building Materials and Assemblies
1
This specification is under the jurisdiction of ASTM Committee C16 on
4
NAIMA Fibrous Glass Duct Liner Standard
Thermal Insulation and is the direct responsibility of Subcommittee C16.23 on
Blanket and Loose Fill Insulation.
Current edition approved March 1, 2019. Published March 2019. Originally
approved in 1986. Last previous edition approved in 2016 as C1071 – 16. DOI:
3
10.1520/C1071-19. Available from Underwriters Laboratories (UL), 2600 N.W. Lake Rd., Camas,
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or WA 98607-8542, http://www.ul.com.
4
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Available from North American Insulation Manufacturers Association
Standards volume information, refer to the standard’s Document Summary page on (NAIMA), 44 Canal Center Plaza, Suite 310, Alexandria, VA 22314, http://
the ASTM website. www.naima.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
C1071 − 19
NFPA 259 Test Method for Potential Heat of Building 7.2 Water Vapor Sorption—When tested in accordance
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

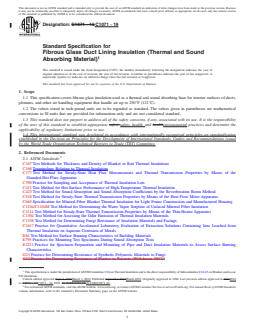

Designation: C1071 − 16 C1071 − 19
Standard Specification for
Fibrous Glass Duct Lining Insulation (Thermal and Sound
1
Absorbing Material)
This standard is issued under the fixed designation C1071; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope
1.1 This specification covers fibrous glass insulation used as a thermal and sound absorbing liner for interior surfaces of ducts,
plenums, and other air handling equipment that handle air up to 250°F (121°C).
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
C167 Test Methods for Thickness and Density of Blanket or Batt Thermal Insulations
C168 Terminology Relating to Thermal Insulation
C177 Test Method for Steady-State Heat Flux Measurements and Thermal Transmission Properties by Means of the
Guarded-Hot-Plate Apparatus
C390 Practice for Sampling and Acceptance of Thermal Insulation Lots
C411 Test Method for Hot-Surface Performance of High-Temperature Thermal Insulation
C423 Test Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method
C518 Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus
C665 Specification for Mineral-Fiber Blanket Thermal Insulation for Light Frame Construction and Manufactured Housing
C1104/C1104M Test Method for Determining the Water Vapor Sorption of Unfaced Mineral Fiber Insulation
C1114 Test Method for Steady-State Thermal Transmission Properties by Means of the Thin-Heater Apparatus
C1304 Test Method for Assessing the Odor Emission of Thermal Insulation Materials
C1338 Test Method for Determining Fungi Resistance of Insulation Materials and Facings
C1617 Practice for Quantitative Accelerated Laboratory Evaluation of Extraction Solutions Containing Ions Leached from
Thermal Insulation on Aqueous Corrosion of Metals
E84 Test Method for Surface Burning Characteristics of Building Materials
E795 Practices for Mounting Test Specimens During Sound Absorption Tests
E2231 Practice for Specimen Preparation and Mounting of Pipe and Duct Insulation Materials to Assess Surface Burning
Characteristics
G21 Practice for Determining Resistance of Synthetic Polymeric Materials to Fungi
3
G22 Practice for Determining Resistance of Plastics to Bacteria (Withdrawn 2002)
1
This specification is under the jurisdiction of ASTM Committee C16 on Thermal Insulation and is the direct responsibility of Subcommittee C16.23 on Blanket and Loose
Fill Insulation.
Current edition approved Sept. 1, 2016March 1, 2019. Published September 2016March 2019. Originally approved in 1986. Last previous edition approved in 20122016
as C1071 – 12.C1071 – 16. DOI: 10.1520/C1071-16.10.1520/C1071-19.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
C1071 − 19
2.2 Other Standards:
3
CAN/ULC-S102 Method of Test for Surface Burning Characteristics of Building Materials and Assemblies
4
NAIMA Fibrous Glass Duct Liner Standard
5
NFPA 259 Test Method for Potential Heat of Building Materials
6
SMACNA HVAC Duct Construction Stan
...
