ASTM D5282-05(2020)
(Test Method)Standard Test Methods for Compatibility of Construction Material with Silicone Fluid Used for Electrical Insulation
Standard Test Methods for Compatibility of Construction Material with Silicone Fluid Used for Electrical Insulation
SIGNIFICANCE AND USE
3.1 The magnitude of the changes in the electrical properties of the silicone fluid is of importance in determining the contamination of the fluid by the test specimen.
3.2 Physical and chemical changes in the fluid, such as color and acidity, also indicate solubility or other adverse effects of the test specimen on the fluid.
3.3 Physical changes of the test specimen, such as hardness, swelling, and discoloration, show the effect of the fluid on the test specimen and are used to determine the suitability of the material for use in silicone fluid.
3.4 A material meeting the criteria recommended does not necessarily indicate suitability for use in electrical equipment. Other properties must also be considered. Additionally, certain materials containing additives may meet the requirements of these test methods yet be unsatisfactory when subjected to longer-term evaluations.
3.5 These test methods may be used as a guide for testing the compatibility of materials for silicone fluids other than 50 cSt poly-dimethyl siloxane fluid, but different criteria for judgment may be necessary.
SCOPE
1.1 These test methods cover screening for the compatibility of construction materials with silicone fluid for use in electrical equipment.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Oct-2020
- Technical Committee
- D27 - Electrical Insulating Liquids and Gases
- Drafting Committee
- D27.06 - Chemical Test
Relations
- Effective Date
- 01-Apr-2024
- Effective Date
- 01-Dec-2023
- Effective Date
- 01-Dec-2023
- Effective Date
- 01-Nov-2023
- Effective Date
- 01-Oct-2019
- Effective Date
- 01-Apr-2019
- Effective Date
- 15-Nov-2017
- Effective Date
- 01-May-2017
- Refers
ASTM D1933-03(2017) - Standard Specification for Nitrogen Gas as an Electrical Insulating Material - Effective Date
- 01-Jan-2017
- Effective Date
- 01-Jan-2017
- Effective Date
- 15-Dec-2016
- Effective Date
- 01-Nov-2016
- Effective Date
- 01-Oct-2015
- Effective Date
- 01-Dec-2014
- Effective Date
- 01-Jul-2014
Overview
ASTM D5282-05(2020) - Standard Test Methods for Compatibility of Construction Material with Silicone Fluid Used for Electrical Insulation - provides essential procedures for screening construction materials for their compatibility with silicone fluids employed as electrical insulating liquids. This international ASTM standard is crucial in electrical equipment manufacturing and maintenance, addressing both material selection and quality assurance to help prevent issues related to contamination or material degradation.
Testing compatibility ensures that materials in contact with silicone fluids, such as gaskets, wires, varnishes, and core steels, do not compromise electrical performance or undergo unwanted physical or chemical changes. The standard covers evaluation of materials with commonly used silicone fluids, particularly 50 cSt poly-dimethyl siloxane, but can guide testing with other silicone fluids when adjusted criteria are defined.
Key Topics
- Assessing Electrical Properties: The magnitude of change in electrical properties of silicone fluid upon contact with a candidate material is monitored to detect contamination or adverse reactions.
- Physical and Chemical Changes: Examination of fluid properties like color and acidity reveals possible solubility issues or chemical breakdown that could result from interaction with the test specimen.
- Material Performance Evaluation: Physical properties of the construction material, such as hardness, swelling, and discoloration, are assessed post-exposure to silicone fluid to judge suitability.
- Screening and Test Methods: Direction is provided for preparing, conditioning, and testing both materials and fluids using specific sample ratios and referenced test methods (e.g., for viscosity, dielectric strength, resistance, and more).
- Interpretation of Results: Guidance includes comparison of test fluid and reference results, determining compatibility or the need for further investigation, and recognizing the importance of additional properties for in-service reliability.
Applications
- Selection of Construction Materials: Manufacturers use this standard to test and qualify materials for use with silicone fluids in transformers, switchgear, and other electrical equipment by verifying that the materials will not deteriorate or compromise the fluid.
- Quality Assurance: Routine compatibility testing helps prevent failures in electrical insulation systems caused by physical or chemical incompatibility of materials.
- Guidance for New Materials: The standard is a practical reference for developers and suppliers introducing new construction materials or additives for electrical insulation systems.
- Assessment of Long-Term Reliability: While the standard primarily provides initial screening, it sets the foundation for extended testing protocols to ensure long-term performance, especially for materials exposed to electrical insulating fluids over time.
- Regulatory and Safety Compliance: Adherence to ASTM D5282-05(2020) supports compliance with industry and international regulations, ensuring safe and reliable operation of electrical infrastructure.
Related Standards
Referencing and working with the following ASTM standards is often necessary for comprehensive compatibility testing:
- ASTM D4652: Specification for Silicone Liquid Used for Electrical Insulation
- ASTM D445: Test Method for Kinematic Viscosity of Transparent and Opaque Liquids
- ASTM D877: Test Method for Dielectric Breakdown Voltage of Insulating Liquids
- ASTM D924: Test Method for Dissipation Factor and Relative Permittivity of Electrical Insulating Liquids
- ASTM D1169: Test Method for Specific Resistance (Resistivity) of Electrical Insulating Liquids
- ASTM D2129: Test Method for Color of Clear Electrical Insulating Liquids (Platinum-Cobalt Scale)
- ASTM D974/D664: Test Methods for Acid and Base Number by Titration
Keywords: compatibility testing, silicone fluid, electrical insulation, construction materials, ASTM D5282, insulating liquids, poly-dimethyl siloxane, electrical equipment, material screening, test methods
By following ASTM D5282-05(2020), industries can significantly reduce risks related to electrical insulation failure, enhance product reliability, and maintain high safety standards.
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Building products evaluation and certification.
QAI Laboratories
Building and construction product testing and certification.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
Sponsored listings
Frequently Asked Questions
ASTM D5282-05(2020) is a standard published by ASTM International. Its full title is "Standard Test Methods for Compatibility of Construction Material with Silicone Fluid Used for Electrical Insulation". This standard covers: SIGNIFICANCE AND USE 3.1 The magnitude of the changes in the electrical properties of the silicone fluid is of importance in determining the contamination of the fluid by the test specimen. 3.2 Physical and chemical changes in the fluid, such as color and acidity, also indicate solubility or other adverse effects of the test specimen on the fluid. 3.3 Physical changes of the test specimen, such as hardness, swelling, and discoloration, show the effect of the fluid on the test specimen and are used to determine the suitability of the material for use in silicone fluid. 3.4 A material meeting the criteria recommended does not necessarily indicate suitability for use in electrical equipment. Other properties must also be considered. Additionally, certain materials containing additives may meet the requirements of these test methods yet be unsatisfactory when subjected to longer-term evaluations. 3.5 These test methods may be used as a guide for testing the compatibility of materials for silicone fluids other than 50 cSt poly-dimethyl siloxane fluid, but different criteria for judgment may be necessary. SCOPE 1.1 These test methods cover screening for the compatibility of construction materials with silicone fluid for use in electrical equipment. 1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 3.1 The magnitude of the changes in the electrical properties of the silicone fluid is of importance in determining the contamination of the fluid by the test specimen. 3.2 Physical and chemical changes in the fluid, such as color and acidity, also indicate solubility or other adverse effects of the test specimen on the fluid. 3.3 Physical changes of the test specimen, such as hardness, swelling, and discoloration, show the effect of the fluid on the test specimen and are used to determine the suitability of the material for use in silicone fluid. 3.4 A material meeting the criteria recommended does not necessarily indicate suitability for use in electrical equipment. Other properties must also be considered. Additionally, certain materials containing additives may meet the requirements of these test methods yet be unsatisfactory when subjected to longer-term evaluations. 3.5 These test methods may be used as a guide for testing the compatibility of materials for silicone fluids other than 50 cSt poly-dimethyl siloxane fluid, but different criteria for judgment may be necessary. SCOPE 1.1 These test methods cover screening for the compatibility of construction materials with silicone fluid for use in electrical equipment. 1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D5282-05(2020) is classified under the following ICS (International Classification for Standards) categories: 91.100.01 - Construction materials in general. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D5282-05(2020) has the following relationships with other standards: It is inter standard links to ASTM D445-24, ASTM D924-23, ASTM D5837-15(2023), ASTM D445-23, ASTM D1169-19a, ASTM D1169-19, ASTM D3612-02(2017), ASTM D664-11a(2017), ASTM D1933-03(2017), ASTM D2129-17, ASTM D445-16, ASTM D828-16, ASTM D5837-15, ASTM D974-14e1, ASTM D445-14e1. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D5282-05(2020) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

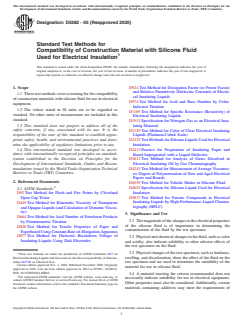

Designation: D5282 − 05 (Reapproved 2020)
Standard Test Methods for
Compatibility of Construction Material with Silicone Fluid
Used for Electrical Insulation
This standard is issued under the fixed designation D5282; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D924 Test Method for Dissipation Factor (or Power Factor)
and Relative Permittivity (Dielectric Constant) of Electri-
1.1 Thesetestmethodscoverscreeningforthecompatibility
cal Insulating Liquids
ofconstructionmaterialswithsiliconefluidforuseinelectrical
D974 Test Method for Acid and Base Number by Color-
equipment.
Indicator Titration
1.2 The values stated in SI units are to be regarded as
D1169 Test Method for Specific Resistance (Resistivity) of
standard. No other units of measurement are included in this
Electrical Insulating Liquids
standard.
D1933 Specification for Nitrogen Gas as an Electrical Insu-
1.3 This standard does not purport to address all of the
lating Material
safety concerns, if any, associated with its use. It is the D2129 Test Method for Color of Clear Electrical Insulating
responsibility of the user of this standard to establish appro-
Liquids (Platinum-Cobalt Scale)
priate safety, health, and environmental practices and deter- D2225 TestMethodsforSiliconeLiquidsUsedforElectrical
mine the applicability of regulatory limitations prior to use.
Insulation
1.4 This international standard was developed in accor- D2413 Practice for Preparation of Insulating Paper and
dance with internationally recognized principles on standard-
Board Impregnated with a Liquid Dielectric
ization established in the Decision on Principles for the D3612 Test Method for Analysis of Gases Dissolved in
Development of International Standards, Guides and Recom-
Electrical Insulating Oil by Gas Chromatography
mendations issued by the World Trade Organization Technical D4243 Test Method for Measurement ofAverage Viscomet-
Barriers to Trade (TBT) Committee.
ric Degree of Polymerization of New andAged Electrical
Papers and Boards
2. Referenced Documents
D4559 Test Method for Volatile Matter in Silicone Fluid
D4652 Specification for Silicone Liquid Used for Electrical
2.1 ASTM Standards:
Insulation
D92 Test Method for Flash and Fire Points by Cleveland
D5837 Test Method for Furanic Compounds in Electrical
Open Cup Tester
Insulating Liquids by High-Performance Liquid Chroma-
D445 Test Method for Kinematic Viscosity of Transparent
tography (HPLC)
and Opaque Liquids (and Calculation of Dynamic Viscos-
ity)
3. Significance and Use
D664 Test Method for Acid Number of Petroleum Products
3.1 Themagnitudeofthechangesintheelectricalproperties
by Potentiometric Titration
of the silicone fluid is of importance in determining the
D828 Test Method for Tensile Properties of Paper and
contamination of the fluid by the test specimen.
PaperboardUsingConstant-Rate-of-ElongationApparatus
D877 Test Method for Dielectric Breakdown Voltage of
3.2 Physicalandchemicalchangesinthefluid,suchascolor
Insulating Liquids Using Disk Electrodes
and acidity, also indicate solubility or other adverse effects of
the test specimen on the fluid.
3.3 Physical changes of the test specimen, such as hardness,
These test methods are under the jurisdiction of ASTM Committee D27 on
swelling, and discoloration, show the effect of the fluid on the
Electrical Insulating Liquids and Gasesand are the direct responsibility of Subcom-
mittee D27.06 on Chemical Test.
test specimen and are used to determine the suitability of the
Current edition approved Nov. 1, 2020. Published November 2020. Originally
material for use in silicone fluid.
approved in 1992. Last previous edition approved in 2012 as D5282 – 05(2012).
DOI: 10.1520/D5282-05R20.
3.4 A material meeting the criteria recommended does not
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
necessarily indicate suitability for use in electrical equipment.
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Other properties must also be considered.Additionally, certain
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. materials containing additives may meet the requirements of
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

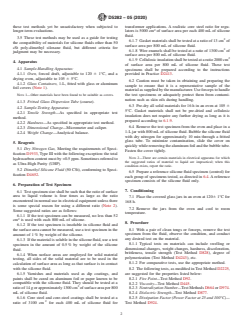

D5282 − 05 (2020)
