This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

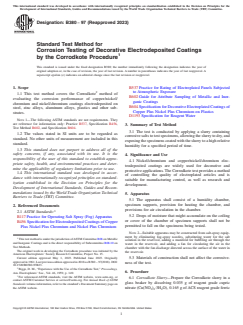

Designation: B380 − 97 (Reapproved 2023)
Standard Test Method for
Corrosion Testing of Decorative Electrodeposited Coatings
by the Corrodkote Procedure
This standard is issued under the fixed designation B380; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope B537 Practice for Rating of Electroplated Panels Subjected
2 to Atmospheric Exposure
1.1 This test method covers the Corrodkote method of
B602 Guide for Attribute Sampling of Metallic and Inor-
evaluating the corrosion performance of copper/nickel/
ganic Coatings
chromium and nickel/chromium coatings electrodeposited on
B604 Specification for Decorative Electroplated Coatings of
steel, zinc alloys, aluminum alloys, plastics and other sub-
Copper Plus Nickel Plus Chromium on Plastics
strates.
D1193 Specification for Reagent Water
NOTE 1—The following ASTM standards are not requirements. They
are reference for information only: Practice B537, Specification B456,
3. Summary of Test Method
Test Method B602, and Specification B604.
3.1 The test is conducted by applying a slurry containing
1.2 The values stated in SI units are to be regarded as
corrosive salts to test specimens, allowing the slurry to dry, and
standard. No other units of measurement are included in this
exposing the specimens coated with the slurry to a high relative
standard.
humidity for a specified period of time.
1.3 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
4. Significance and Use
responsibility of the user of this standard to establish appro-
4.1 Nickel/chromium and copper/nickel/chromium elec-
priate safety, health, and environmental practices and deter-
trodeposited coatings are widely used for decorative and
mine the applicability of regulatory limitations prior to use.
protective applications. The Corrodkote test provides a method
1.4 This international standard was developed in accor-
of controlling the quality of electroplated articles and is
dance with internationally recognized principles on standard-
suitable for manufacturing control, as well as research and
ization established in the Decision on Principles for the
development.
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
5. Apparatus
Barriers to Trade (TBT) Committee.
5.1 The apparatus shall consist of a humidity chamber,
specimen supports, provision for heating the chamber, and
2. Referenced Documents
provisions for air circulation in the chamber.
2.1 ASTM Standards:
5.2 Drops of moisture that might accumulate on the ceiling
B117 Practice for Operating Salt Spray (Fog) Apparatus
or cover of the chamber of specimen supports shall not be
B456 Specification for Electrodeposited Coatings of Copper
permitted to fall on the specimens being tested.
Plus Nickel Plus Chromium and Nickel Plus Chromium
NOTE 2—Suitable apparatus may be constructed from salt-spray equip-
ment by eliminating fog-spray nozzles, substituting water for the salt
This test method is under the jurisdiction of ASTM Committee B08 on Metallic
solution in the reservoir, adding a manifold for bubbling air through the
and Inorganic Coatings and is the direct responsibility of Subcommittee B08.10 on
water in the reservoir, and adding a fan for circulating the air in the
Test Methods.
chamber with the fan discharge directed across the surface of the water in
The original work in developing the Corrodkote procedure was initiated by the
the reservoir.
American Electroplaters’ Society Research Committee, Project No. 15.
Current edition approved May 1, 2023. Published June 2023. Originally
5.3 Materials of construction shall not affect the corrosive-
approved in 1961. Last previous edition approved in 2018 as B380 – 97(2018). DOI:
ness of the test.
10.1520/B0380-97R23.
Bigge, D. M., “Experience with the Use of the Corrodkote Test,” Proceedings,
6. Procedure
Am. Electroplaters’ Soc., Vol. 46, 1959, p. 149.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
6.1 Corrodkote Slurry—Prepare the Corrodkote slurry in a
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
glass beaker by dissolving 0.035 g of reagent grade cupric
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. nitrate (Cu(NO ) ·3H O), 0.165 g of ACS reagent grade ferric
3 2 2
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

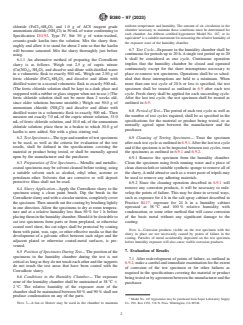

B380 − 97 (2023)
uniform temperature and humidity. The amount of air circulation in the
chloride (FeCl ·6H O), and 1.0 g of ACS reagent grade
3 2
chamber necessary to maintain these conditions must be determined for
ammonium chloride (NH Cl) in 50 mL of water conforming to
each chamber. An Abbeon certified hygrometer Model No. 167, or its
Specification D1193, Type IV. Stir 30 g of water-washed,
equivalent is a suitable instrument for measuring the relative humidity of
ceramic-grade kaolin into the solution. Mix the slurry thor-
the exposure zone of the humidity chamber.
oughly and allow it to stand for about 2 min so that the kaolin
6.7 Test Cycle—Exposure in the humidity chamber shall be
will become saturated. Mix the slurry thoroughly just before
continuous for periods up to 20 h. A single test period up to 20
using.
h shall be considered as one cycle. Continuous operation
6.1.1 An alternative method of preparing the Corrodkote
implies that the humidity chamber be closed and operated
slurry is as follows. Weigh out 2.5 g of cupric nitrate
continuously except for the short interruptions necessary to
(Cu(NO ) ·3H O), and dissolve and dilute with distilled water
3 2 2
place or remove test specimens. Operations shall be so sched-
in a volumetric flask to exactly 500 mL. Weigh out 2.50 g of
uled that these interruptions are held to a minimum. When
ferric chloride (FeCl ·6H O), and dissolve and dilute with
3 2
distilled water in a second volumetric flask to exactly 500 mL. more than one test cycle of 20 h or less is specified, the test
specimen shall be treated as outlined in 6.9 after each test
(The ferric chloride solution shall be kept in a dark place and
stoppered with a rubber or glass stopper when not in use.) (The cycle. Fresh slurry shall be applied for each succeeding cycle.
ferric chloride solution shall not
...
