EN 12259-12:2023
(Main)Fixed firefighting systems - Components for sprinkler and water spray systems - Part 12: Pumps
Fixed firefighting systems - Components for sprinkler and water spray systems - Part 12: Pumps
This document specifies requirements for single stage and multi-stage centrifugal pumps with mechanical seal or soft packing for use in automatic sprinkler systems and is for use with EN 12845 and EN 17451 .
This document is applicable for the following pumps, independent of installed orientation (vertical, horizontal or sloped according to the manufacturer indications):
- end suction pumps (close coupled or long coupled) of the back pull-out type pump;
- axial horizontal split case pumps;
- ring section pumps including multistage single or multi outlet;
- single or multistage inline pumps (pump with inlet and outlet in line);
- submersible motor borehole pumps.
This document is also applicable to vertical turbine pumps.
Ortsfeste Brandbekämpfungsanlagen - Bauteile für Sprinkler- und Sprühwasseranlagen - Teil 12: Sprinklerpumpen
Dieses Dokument legt Anforderungen an einstufige und mehrstufige Kreiselpumpen mit mechanischer Dichtung oder Weichstoffdichtung für den Einsatz in automatischen Sprinkleranlagen fest und ist für die Verwendung mit EN 12845 und EN 17451 bestimmt.
Dieses Dokument ist für die folgenden Pumpen anwendbar, unabhängig von der Einbau¬ausrichtung (vertikal, horizontal oder geneigt, je nach Herstellerangabe):
- Pumpen mit axialem Eintritt (Blockausführung oder Grundplattenausführung) der Pumpe in Prozess-bauweise;
- längs geteilte Axial Gehäusepumpen;
- Gliederpumpen inklusive mehrstufige Pumpen mit einem oder mehreren Ausgängen;
- ein- oder mehrstufige Reihenpumpen (Pumpe mit Einlass und Auslass in Reihe);
- Motortauchpumpen.
Dieses Dokument ist auch anwendbar für vertikale Turbinenpumpen.
Installations fixes de lutte contre l'incendie - Composants des systèmes d'extinction du type sprinkleur et à pulvérisation d'eau - Partie 12 : Pompes
Le présent document spécifie les exigences relatives aux pompes monocellulaires et multicellulaires à garnitures mécaniques d’étanchéité ou à tresses, destinées à être utilisées dans les systèmes d’extinction automatique du type sprinkleur et avec l’EN 12845 et l’EN 17451 .
Le présent document s’applique aux pompes suivantes, indépendamment de leur orientation d’installation (verticale, horizontale ou inclinée conformément aux indications du fabricant) :
— les pompes à aspiration axiale (à accouplement rigide ou à accouplement long) de type à démontage arrière « back pull-out » ;
— les pompes axiales à plan de joint horizontal ;
— les pompes à corps segmenté, y compris les pompes multicellulaires à un seul ou à plusieurs orifices de refoulement ;
— les pompes monocellulaires ou multicellulaires en ligne (pompe avec orifices d’aspiration et de refoulement en ligne) ;
— les pompes de forage à moteur immergé.
Le présent document s'applique également aux pompes à turbine verticale.
Vgrajene naprave za gašenje - Sestavni deli sprinklerskih sistemov in sistemov s pršečo vodo – 12. del: Črpalke
Ta del skupine standardov EN 12259 določa zahteve za enostopenjske in večstopenjske centrifugalne črpalke z mehanskim tesnilom ali mehkim tesnilom za uporabo v avtomatskih sprinklerskih sistemih, uporablja pa se s standardoma EN 12845 in EN 17451.
Ta dokument se uporablja samo za naslednje črpalke, neodvisno od nameščenega položaja (navpično, vodoravno ali nagnjeno):
– sesalne vodne črpalke (tesno sklopljene ali dolgo sklopljene) izvlečnega tipa;
– osne vodoravne črpalke z deljenim ohišjem;
– črpalke z obročastim delom;
– črpalke, pritrjene na cevi (črpalka z navpično cevno gredjo z vstopnim in izstopnim vodom);
– navpične turbinske črpalke;
– večstopenjske črpalke, pritrjene na cevi;
– večstopenjske črpalke z več izstopnimi odprtinami;
– potopne motorne črpalke, primerne za vrtine.
General Information
Standards Content (Sample)

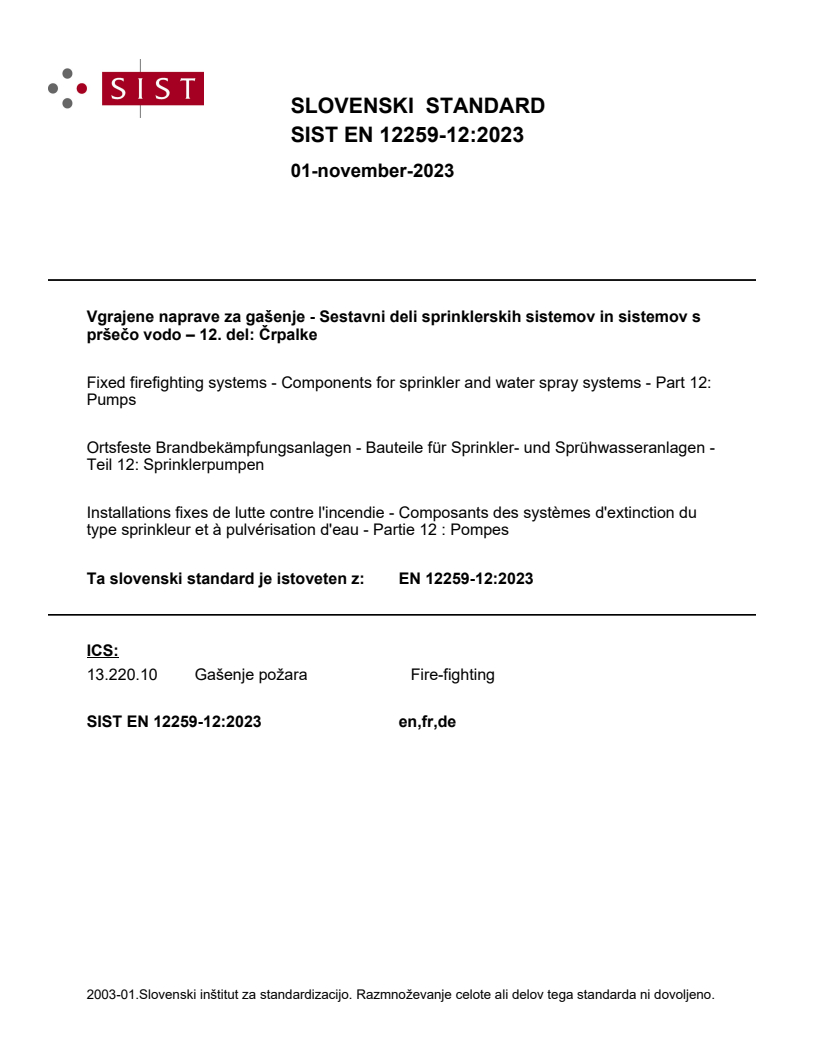

SLOVENSKI STANDARD
01-november-2023
Vgrajene naprave za gašenje - Sestavni deli sprinklerskih sistemov in sistemov s
pršečo vodo – 12. del: Črpalke
Fixed firefighting systems - Components for sprinkler and water spray systems - Part 12:
Pumps
Ortsfeste Brandbekämpfungsanlagen - Bauteile für Sprinkler- und Sprühwasseranlagen -
Teil 12: Sprinklerpumpen
Installations fixes de lutte contre l'incendie - Composants des systèmes d'extinction du
type sprinkleur et à pulvérisation d'eau - Partie 12 : Pompes
Ta slovenski standard je istoveten z: EN 12259-12:2023
ICS:
13.220.10 Gašenje požara Fire-fighting
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

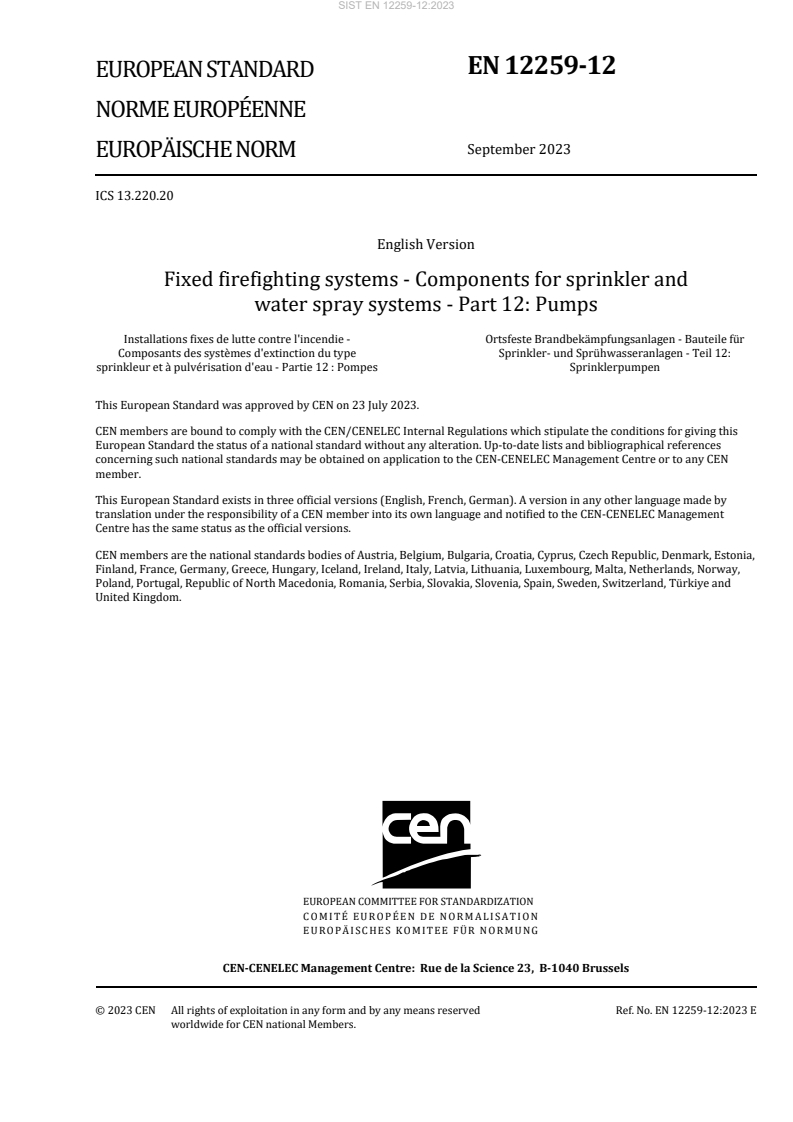

EN 12259-12
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2023
EUROPÄISCHE NORM
ICS 13.220.20
English Version
Fixed firefighting systems - Components for sprinkler and
water spray systems - Part 12: Pumps
Installations fixes de lutte contre l'incendie - Ortsfeste Brandbekämpfungsanlagen - Bauteile für
Composants des systèmes d'extinction du type Sprinkler- und Sprühwasseranlagen - Teil 12:
sprinkleur et à pulvérisation d'eau - Partie 12 : Pompes Sprinklerpumpen
This European Standard was approved by CEN on 23 July 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12259-12:2023 E
worldwide for CEN national Members.

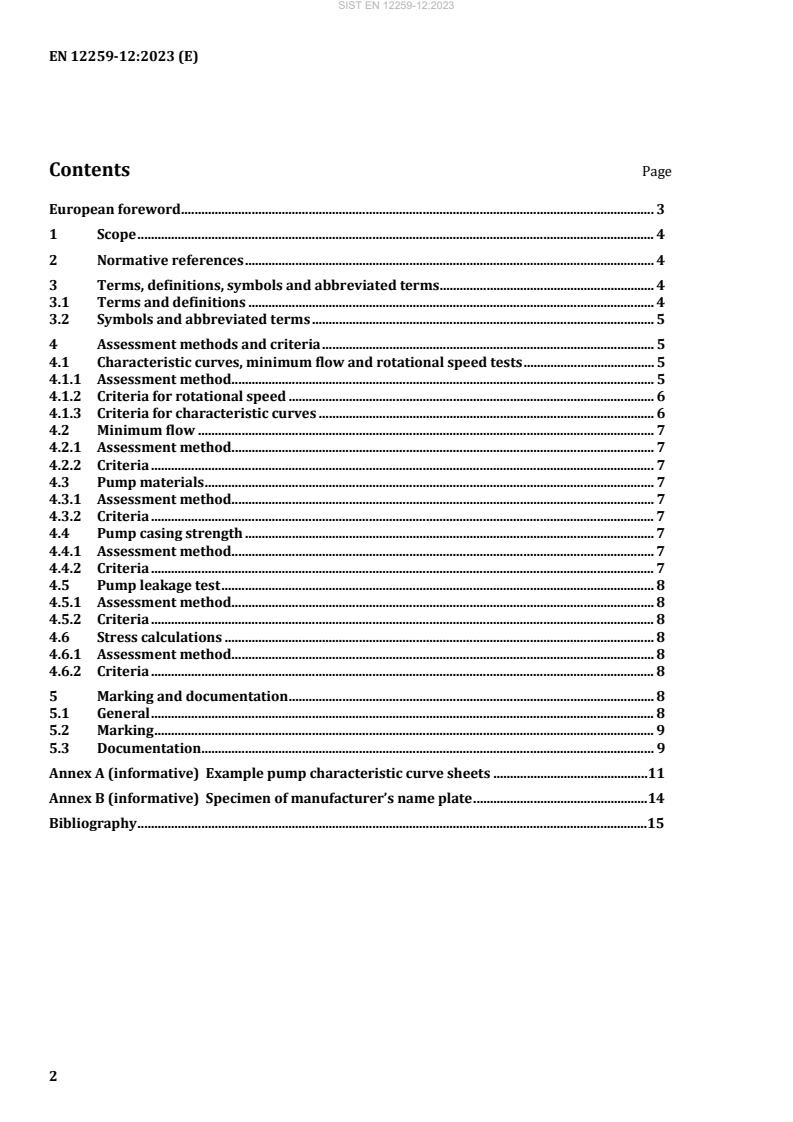

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms, definitions, symbols and abbreviated terms . 4
3.1 Terms and definitions . 4
3.2 Symbols and abbreviated terms . 5
4 Assessment methods and criteria . 5
4.1 Characteristic curves, minimum flow and rotational speed tests . 5
4.1.1 Assessment method . 5
4.1.2 Criteria for rotational speed . 6
4.1.3 Criteria for characteristic curves . 6
4.2 Minimum flow . 7
4.2.1 Assessment method . 7
4.2.2 Criteria . 7
4.3 Pump materials . 7
4.3.1 Assessment method . 7
4.3.2 Criteria . 7
4.4 Pump casing strength . 7
4.4.1 Assessment method . 7
4.4.2 Criteria . 7
4.5 Pump leakage test . 8
4.5.1 Assessment method . 8
4.5.2 Criteria . 8
4.6 Stress calculations . 8
4.6.1 Assessment method . 8
4.6.2 Criteria . 8
5 Marking and documentation . 8
5.1 General . 8
5.2 Marking . 9
5.3 Documentation . 9
Annex A (informative) Example pump characteristic curve sheets .11
Annex B (informative) Specimen of manufacturer’s name plate .14
Bibliography .15
European foreword
This document (EN 12259-12:2023) has been prepared by Technical Committee CEN/TC 191 “Fixed
firefighting systems”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2024, and conflicting national standards shall be
withdrawn at the latest by March 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies requirements for single stage and multi-stage centrifugal pumps with
mechanical seal or soft packing for use in automatic sprinkler systems and is for use with EN 12845 and
EN 17451 .
This document is applicable for the following pumps, independent of installed orientation (vertical,
horizontal or sloped according to the manufacturer indications):
— end suction pumps (close coupled or long coupled) of the back pull-out type pump;
— axial horizontal split case pumps;
— ring section pumps including multistage single or multi outlet;
— single or multistage inline pumps (pump with inlet and outlet in line);
— submersible motor borehole pumps.
This document is also applicable to vertical turbine pumps.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 809, Pumps and pump units for liquids — Common safety requirements
EN 12162:2001+A1:2009, Liquid pumps - Safety requirements - Procedure for hydrostatic testing
EN 12845, Fixed firefighting systems — Automatic sprinkler systems — Design, installation and
maintenance
EN ISO 9906:2012, Rotodynamic pumps - Hydraulic performance acceptance tests - Grades 1, 2 and 3 (ISO
9906:2012)
EN ISO 17769-1, Liquid pumps and installation - General terms, definitions, quantities, letter symbols and
units - Part 1: Liquid pumps (ISO 17769-1)
ISO 3069:2000, End-suction centrifugal pumps — Dimensions of cavities for mechanical seals and for soft
packing
3 Terms, definitions, symbols and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 12845, EN ISO 17769-1 and the
following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
Under preparation. Stage at the time of publication: prEN 17451.
3.1.1
back pull-out type pump
centrifugal pump design type which allows the rotating assembly to be pulled out of the pump casing
without having to remove the pump casing from the piping
3.2 Symbols and abbreviated terms
NPSH net positive suction head in m
NPSHr net positive suction head required in m
Q rated flow of the pump in l/min when tested in accordance 4.1.1
r
NOTE It is determined from the flow of the pump to generate an NPSHr of 8,5 m for vertical line shaft and
submersible pumps or 5 m for all other pumps.
Q
zero flow condition in l/min (closed valve)
p
maximum allowable casing working pressure in bar
allw
4 Assessment methods and criteria
4.1 Characteristic curves, minimum flow and rotational speed tests
4.1.1 Assessment method
Pump characteristic curves shall be drawn for the rated speed condition. The highest flow to be shown in
the curves shall be sufficient to demonstrate a non-overloading power characteristic or a flow
corresponding to at least NPSHr of 16 m.
In case of non-overloading power characteristic, all curves shall be shown including values which are
minimum 15 % higher than the flow at the maximum power consumption.
The flow, power consumption, NPSHr and the corresponding delivery head shall be determined in
accordance with EN ISO 9906:2012, Grade 2. The measurement uncertainty as specified in
EN ISO 9906:2012, Grade 2B shall be applied.
NOTE For examples, see Annex A.
Type tests and conversion of test data shall be undertaken using methods in accordance with
EN ISO 9906:2012, Grade 2B and the tolerances given there.
Where there are a range of impeller diameters, tests shall include the maximum and minimum impeller
diameters. Performance between tested impeller diameters can be interpolated in accordance with
EN ISO 9906:2012, 6.2 for changes not exceeding ± 4 % in impeller diameter.
Inlet, outlet and threaded connections shall be in accordance with appropriate National, European or
International Standards. Casing wear rings shall be fitted and shall be prevented from rotating.
The test data required for the purpose of evaluation in accordance with EN ISO 9906:2012, are
established at a minimum of 7 points uniformly distributed between the lowest rate of flow and the
highest rate of flow to be measured. The lowest rate of flow to be measured shall be between zero and
the minimum by-pass flow. NPSHr shall be determined for minimum and maximum impeller diameters
and speeds at 5 points between 0,3 Q and the highest flow, where Q is the rated flow. The highest flow
r r
to be measured shall be sufficient to demonstrate a non-overloading power characteristic or a flow
corresponding to at least NPSHr of 16m.
Pump characteristic curve conversions for alternative drivers with speeds between the minimum and
maximum tested speeds shall be converted using the formula (see also EN ISO 9906:2012, Clause 6):
x
n
sp
NPSHr = NPS
...
