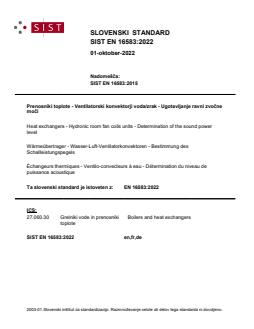

SLOVENSKI STANDARD
01-oktober-2022
Nadomešča:
SIST EN 16583:2015
Prenosniki toplote - Ventilatorski konvektorji voda/zrak - Ugotavljanje ravni zvočne
moči
Heat exchangers - Hydronic room fan coils units - Determination of the sound power
level
Wärmeübertrager - Wasser-Luft-Ventilatorkonvektoren - Bestimmung des
Schallleistungspegels
Échangeurs thermiques - Ventilo-convecteurs à eau - Détermination du niveau de
puissance acoustique
Ta slovenski standard je istoveten z: EN 16583:2022
ICS:
27.060.30 Grelniki vode in prenosniki Boilers and heat exchangers
toplote
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 16583
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2022
EUROPÄISCHE NORM
ICS 27.060.30 Supersedes EN 16583:2015
English Version
Heat exchangers - Hydronic room fan coils units -
Determination of the sound power level
Échangeurs thermiques - Ventilo-convecteurs à eau - Wärmeübertrager - Wasser-Luft-
Détermination du niveau de puissance acoustique Ventilatorkonvektoren - Bestimmung des
Schallleistungspegels
This European Standard was approved by CEN on 22 May 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16583:2022 E
worldwide for CEN national Members.

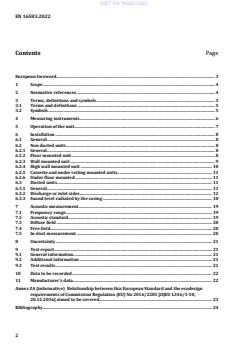

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms, definitions and symbols . 5
3.1 Terms and definitions . 5
3.2 Symbols . 5
4 Measuring instruments . 6
5 Operation of the unit . 7
6 Installation . 8
6.1 General . 8
6.2 Non ducted units . 8
6.2.1 General . 8
6.2.2 Floor mounted unit . 8
6.2.3 Wall mounted unit . 9
6.2.4 High wall mounted unit . 10
6.2.5 Cassette and under ceiling mounted units . 11
6.2.6 Under floor mounted . 11
6.3 Ducted units . 11
6.3.1 General . 11
6.3.2 Discharge or inlet sides . 12
6.3.3 Sound level radiated by the casing . 18
7 Acoustic measurement . 19
7.1 Frequency range . 19
7.2 Acoustic standard. 19
7.3 Diffuse field . 20
7.4 Free field. 20
7.5 In-duct measurement . 20
8 Uncertainty . 21
9 Test report . 21
9.1 General information . 21
9.2 Additional information . 21
9.3 Test results . 21
10 Data to be recorded . 22
11 Manufacturer's data . 22
Annex ZA (informative) Relationship between this European Standard and the ecodesign
requirements of Commission Regulation (EU) No 2016/2281 [OJEU L346/1-50,
20.12.2016] aimed to be covered . 23
Bibliography . 24

European foreword
This document (EN 16583:2022) has been prepared by Technical Committee CEN/TC 113 “Heat pumps
and air conditioning units”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2023, and conflicting national standards shall
be withdrawn at the latest by January 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 16583:2015.
This document has been prepared under a Standardization Request given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s) / Regulation(s).
For relationship with EU Directive(s) / Regulation(s), see informative Annex ZA, which is an integral part
of this document.
This document was prepared in the framework of the Commission Regulation (EU) 2016/2281 of 30
November 2016 implementing Directive 2009/125/EC of the European Parliament and of the Council
establishing a framework for the setting of ecodesign requirements for energy-related products, with
regard to ecodesign requirements for air heating products, cooling products, high temperature process
chillers and fan coil units.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
1 Scope
This document is applicable to hydronic fan coil units (FCU) as factory-made single assemblies which
provide the functions of cooling and/or heating but do not include the source of cooling or heating.
This document is applicable to both air free delivery and air ducted units with a maximum external static
pressure due to duct resistance of 300 Pa max.
This document specifies methods for the determination of the acoustical performance of fan coil units,
defining standard working condition and installation.
It is not the purpose of this document to specify the tests used for production or field testing.
NOTE For the purpose of remaining clauses, the term “unit” is used to mean “fan coil unit”.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 3741:2010, Acoustics - Determination of sound power levels and sound energy levels of noise sources
using sound pressure - Precision methods for reverberation test rooms (ISO 3741:2010)
EN ISO 3743-1:2010, Acoustics - Determination of sound power levels and sound energy levels of noise
sources using sound pressure - Engineering methods for small movable sources in reverberant fields - Part
1: Comparison method for a hard-walled test room (ISO 3743-1:2010)
EN ISO 3743-2:2019, Acoustics - Determination of sound power levels of noise sources using sound pressure
- Engineering methods for small, movable sources in reverberant fields - Part 2: Methods for special
reverberation test rooms (ISO 3743-2:2018)
EN ISO 3744:2010, Acoustics - Determination of sound power levels and sound energy levels of noise sources
using sound pressure - Engineering methods for an essentially free field over a reflecting plane (ISO
3744:2010)
1)
EN ISO 3745:2012 , Acoustics — Determination of sound power levels and sound energy levels of noise
sources using sound pressure — Precision methods for anechoic rooms and hemi-anechoic rooms
(ISO 3745:2012)
EN ISO 9614-1:2009, Acoustics - Determination of sound power levels of noise sources using sound intensity
- Part 1: Measurement at discrete points (ISO 9614-1:1993)
EN ISO 9614-2:1996, Acoustics - Determination of sound power levels of noise sources using sound intensity
- Part 2: Measurement by scanning (ISO 9614-2:1996)
EN ISO 9614-3:2009, Acoustics - Determination of sound power levels of noise sources using sound intensity
- Part 3: Precision method for measurement by scanning (ISO 9614-3:2002)
EN ISO 80000-8:2020, Quantities and units - Part 8: Acoustics (ISO 80000-8:2020)

1)
Document impacted by A1:2017.
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 80000-8:2020 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
hydronic fan-coil unit
factory-made single assembly which provides one or more of the functions of forced circulation of air,
heating, cooling, dehumidification and filtering of air, but which does not include the source of heating or
cooling
Note 1 to entry: This device includes a
...
