EN 10245-2:2011
(Main)Steel wire and wire products - Organic coatings on steel wire - Part 2: PVC finished wire
Steel wire and wire products - Organic coatings on steel wire - Part 2: PVC finished wire
Complementary to prEN 10245-1, this European Standard specifies the characteristics and requirements for steel wire and wire products coated with PVC.
Stahldraht und Drahterzeugnisse - Organische Beschichtungen auf Stahldraht - Teil 2: PVC beschichteter Draht
Ergänzend zu EN 10245 1 legt diese Europäische Norm Eigenschaften und Anforderungen für Stahldraht und Drahterzeugnisse fest, die mit PVC beschichtet sind.
Fils et produits tréfilés en acier - Revêtements organiques sur fils d'acier - Partie 2: Fils à revêtement de PVC
Cette norme européenne, qui vient en complément de l’EN 10245-1, spécifie les caractéristiques et prescriptions relatives aux fils et produits tréfilés en acier à revêtement de PVC.
Jeklena žica in žični izdelki - Organske prevleke na jekleni žici - 2. del: Žica, prevlečena s PVC
Ta evropski standard dopolnjuje EN 10245-1 in določa karakteristike in zahteve za jeklene žice in žične izdelke, prevlečene s PVC.
General Information
- Status
- Published
- Publication Date
- 25-Oct-2011
- Withdrawal Date
- 29-Apr-2012
- Technical Committee
- ECISS/TC 106 - Wire rod and wires
- Drafting Committee
- ECISS/TC 106 - Wire rod and wires
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 03-Dec-2021
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 08-Jun-2022
Overview
EN 10245-2:2011 - "Steel wire and wire products – Organic coatings on steel wire – Part 2: PVC finished wire" (CEN) is the European standard that specifies characteristics, requirements and test methods for steel wire and wire products coated with PVC. Complementary to EN 10245-1 (General rules), this part covers the coating material, methods of application, performance tests and inspection/quality assurance relevant to PVC finished wire.
Key topics and technical requirements
- Scope: Applies to PVC organic coatings on steel wire and wire products; addresses both coating material (pre-application) and the coating as an integral part of the finished wire.
- Methods of application: Extrusion, fluidised‑bed, and powder spraying are defined as acceptable application processes.
- Coating classes: Classification based on application and adhesion:
- Class 1a - direct extrusion producing a typically non-adherent tube
- Class 1b - extrusion with primer or adhesive to produce an adherent coating
- Class 2a - PVC powder applied by thermal fusion or electrostatic spray (adherent)
- Class 2b - primer + thermally cured + powder application for adherence
- Material requirements (examples):
- Density ≤ 1.5 g/cm³
- Hardness (Shore D) ≥ 38
- Tensile strength ≥ 17 MPa
- Elongation ≥ 200% (Test methods referenced to EN ISO standards such as EN ISO 1183, EN ISO 868 and EN ISO 527.)
- Coating on wire requirements:
- Minimum concentricity of coating: 60%
- Adhesion classes and test criteria per EN 10245-1
- Colour stability / accelerated weathering: QUV/Xenon tests referenced; example requirement QUV (A) 2500 h, ΔE ≤ 5 (to be agreed or referenced in the product specification)
- Quality assurance & inspection: Inspection per EN 10021; compliance may be demonstrated via certificates of conformity or test certificates; traceability recommended (batch numbers, inspection references).
Applications and practical value
EN 10245-2:2011 is used to ensure consistent performance and conformity of PVC coated wire across manufacturing, procurement and end‑use. Practical applications include:
- Specifying and procuring PVC coated wire for protective, insulating or decorative wire products
- Defining production and acceptance tests for wire manufacturers and coating applicators
- Establishing performance expectations for durability, adhesion and weather resistance Using this standard helps minimize variation between batches, supports traceability, and clarifies responsibilities between coating material suppliers and applicators.
Who uses this standard
- Wire and wire‑product manufacturers
- Coating material suppliers and applicators
- Purchasing/specification engineers and quality managers
- Test laboratories performing coating and weathering assessments
- Product designers and regulatory compliance teams
Related standards
- EN 10245-1:2008 (General rules)
- EN 10021 (Inspection / delivery conditions)
- EN 10204 (Inspection documents)
- Relevant EN ISO test standards: EN ISO 1183, EN ISO 868, EN ISO 527, EN ISO 2813, EN ISO 3668, EN ISO 4892 series
Keywords: EN 10245-2:2011, PVC finished wire, PVC coating, PVC coated wire, steel wire standards, organic coatings, coating test methods, CEN.
Frequently Asked Questions
EN 10245-2:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Steel wire and wire products - Organic coatings on steel wire - Part 2: PVC finished wire". This standard covers: Complementary to prEN 10245-1, this European Standard specifies the characteristics and requirements for steel wire and wire products coated with PVC.
Complementary to prEN 10245-1, this European Standard specifies the characteristics and requirements for steel wire and wire products coated with PVC.
EN 10245-2:2011 is classified under the following ICS (International Classification for Standards) categories: 25.220.60 - Organic coatings; 77.140.65 - Steel wire, wire ropes and link chains. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 10245-2:2011 has the following relationships with other standards: It is inter standard links to EN 10245-2:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 10245-2:2011 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

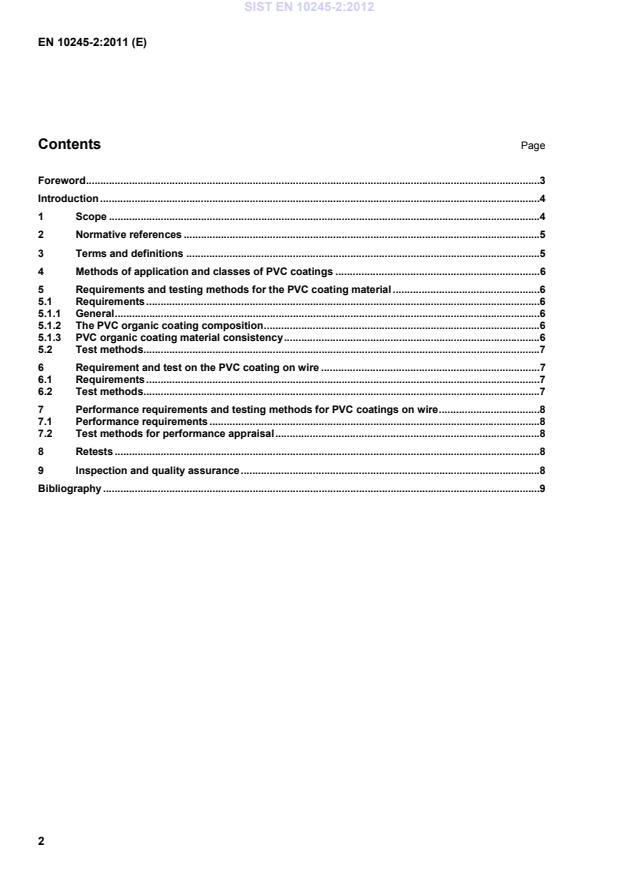

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stahldraht und Drahterzeugnisse - Organische Beschichtungen auf Draht - Teil 2: PVC beschichteter DrahtFils et produits tréfilés en acier - Revêtements organiques sur fils d'acier - Partie 2: Fils à revêtement de PVCSteel wire and wire products - Organic coatings on steel wire - Part 2: PVC finished wire77.140.65Jeklene žice, jeklene vrvi in verigeSteel wire, wire ropes and link chains25.220.60Organske prevlekeOrganic coatingsICS:Ta slovenski standard je istoveten z:EN 10245-2:2011SIST EN 10245-2:2012en,de01-januar-2012SIST EN 10245-2:2012SLOVENSKI
STANDARDSIST EN 10245-2:20021DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10245-2
October 2011 ICS 25.220.60; 77.140.65 Supersedes EN 10245-2:2001English Version
Steel wire and wire products - Organic coatings on steel wire - Part 2: PVC finished wire
Fils et produits tréfilés en acier - Revêtements organiques sur fils d'acier - Partie 2: Fils à revêtement de PVC
Stahldraht und Drahterzeugnisse - Organische Beschichtungen auf Stahldraht - Teil 2: PVC beschichteter Draht This European Standard was approved by CEN on 17 September 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10245-2:2011: ESIST EN 10245-2:2012
Part 1: General Rules; Part 2: PVC finished wire; Part 3: PE coated wire; Part 4: Polyester coated wire; Part 5: Polyamide coated wire. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
To aid continuity and in order to limit complexity, the following structure has been chosen for this standard: Clause 4 deals with the characteristics and tes
...
SIST EN 10245-2:2012は、PVCでコーティングされた鋼線および鋼線製品に関する特性と要件を明確に定義する欧州標準です。この標準は、prEN 10245-1を補完するものであり、鋼線のコーティングに関する一貫した基準を提供します。 この標準の範囲は、PVC仕上げの鋼線に関連する特性及び技術的要件を網羅しており、製造業者やエンドユーザーにとって必要な情報を提供しています。特に、鋼線の耐久性、耐腐食性、および機能性について詳細な基準を設けることで、品質の均一性を確保することが可能です。 SIST EN 10245-2:2012の強みは、その包括的な特性にあります。具体的には、製品の性能に影響を与える環境要因や使用条件を考慮に入れており、実際の使用状況におけるパフォーマンスを保証します。また、コーティングプロセスに関する具体的なガイドラインも含まれているため、製造における実効性を高めています。 さらに、この標準は、環境への配慮を反映しており、PVCコーティングにおける安全性や持続可能性にも言及されています。これは、業界の規制遵守やエコロジカルな意識の高まりに応える重要な要素です。 全体として、SIST EN 10245-2:2012は、PVC仕上げの鋼線とその製品に関する確かな基準を提供することで、関連産業における製品の信頼性と競争力を向上させる重要な役割を果たしています。このため、業界関係者にとって非常に参考になる標準と言えるでしょう。
EN 10245-2:2011은 PVC로 코팅된 강선 및 강선 제품에 대한 유럽 표준으로, prEN 10245-1의 보완적인 역할을 합니다. 이 표준은 PVC로 마감된 강선의 특성과 요구사항을 명확하게 규정하고 있으며, 시장에서의 일관된 품질 보장을 위한 중요한 기준이 됩니다. 이 표준의 주요 강점 중 하나는 PVC 코팅이 강선의 내구성과 내후성에 미치는 영향을 상세히 설명하고 있다는 점입니다. 이를 통해 제품 사용자들은 강선의 성능을 신뢰할 수 있으며, 품질 관리 및 제조 과정에서 일관성을 유지할 수 있습니다. 또한, EN 10245-2:2011은 다양한 적용 분야에 적합한 강선 제품을 제공하는 데 필요한 데이터를 제공합니다. EN 10245-2:2011은 여러 산업에서 필수적인 PVC로 코팅된 강선의 사용을 지원하기 때문에, 이 표준의 준수는 품질 기준에 맞는 제품 제공을 통해 소비자 신뢰를 증대시키는 데 기여합니다. 따라서 이 표준은 강선 및 강선 제품의 생산자와 사용자 모두에게 매우 중요한 문서로, 제조업체가 시장에서의 경쟁력을 유지하며 안전하고 신뢰성 있는 제품을 제공하는 데 필수적인 역할을 합니다.
The standard EN 10245-2:2011 plays a crucial role in establishing the specifications for steel wire and wire products that are coated with polyvinyl chloride (PVC). This standard serves as a complementary document to prEN 10245-1, extending the guidelines specifically focused on the coating aspect to ensure consistent quality and performance in related applications. One of the primary strengths of EN 10245-2:2011 is its comprehensive approach to defining the characteristics and requirements essential for the effective performance of PVC finished wire. By detailing the necessary mechanical properties, corrosion resistance, and adhesion strength of the PVC coating, this standard ensures that manufacturers and end-users can rely on the durability and utility of the coated products in various environments. Moreover, the relevance of this standard is underscored by its alignment with contemporary manufacturing practices, where the use of PVC coatings has become increasingly prevalent due to their cost-effectiveness and versatility. The inclusion of precise specifications for such coatings means that industries ranging from construction to automotive can adhere to a common benchmark, enhancing product compatibility and safety protocols across the board. In addition, the standard addresses both the technical and environmental aspects associated with PVC coatings, reflecting an awareness of the pressing need for sustainable practices within the manufacturing sector. As users increasingly prioritize environmentally responsible materials, the guidelines presented within EN 10245-2:2011 help to facilitate informed choices regarding the use of PVC in wire products. Overall, EN 10245-2:2011 stands out as a vital standard that guides the industry in the production of high-quality steel wire coated with PVC, providing essential criteria for performance evaluation while promoting consistency and safety across various applications.
