EN 10245-3:2011
(Main)Steel wire and wire products - Organic coatings on steel wire - Part 3: PE coated wire
Steel wire and wire products - Organic coatings on steel wire - Part 3: PE coated wire
Complementary to prEN 10245-1, this European Standard specifies the characteristics and requirements for steel wire and wire products coated with polyethylene (PE).
Stahldraht und Drahterzeugnisse - Organische Beschichtungen auf Stahldraht - Teil 3: PE-beschichteter Draht
Ergänzend zu EN 10245-1 legt diese Europäische Norm Eigenschaften und Anforderungen für Stahldraht und Drahterzeugnisse fest, die mit Polyethylen (PE) beschichtet sind.
Fils et produits tréfilés en acier - Revêtements organiques sur fils d'acier - Partie 3: Fils à revêtement de PE
La présente partie de cette norme européenne, qui vient en complément de la norme EN 10245-1, spécifie les caractéristiques et les prescriptions relatives aux fils et produits tréfilés en acier à revêtement de polyéthylène (PE).
Jeklena žica in žični izdelki - Organske prevleke na jekleni žici - 3. del: Žica, prevlečena s PE
Ta evropski standard dopolnjuje EN 10245-1 in določa karakteristike in zahteve za jeklene žice in žične izdelke, prevlečene s polietilenom (PE).
General Information
- Status
- Published
- Publication Date
- 25-Oct-2011
- Withdrawal Date
- 29-Apr-2012
- Technical Committee
- ECISS/TC 106 - Wire rod and wires
- Drafting Committee
- ECISS/TC 106 - Wire rod and wires
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 03-Dec-2021
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 22-Dec-2008
Overview
EN 10245-3:2011 is the CEN European Standard that specifies the characteristics, requirements and test methods for polyethylene (PE) coated steel wire and wire products. Complementary to EN 10245-1 (General Rules), this part (Part 3) defines classification of PE materials, required physical properties of the coating material and of the finished coated wire, and the associated test procedures to ensure consistent quality and performance.
Key Topics and Requirements
- Scope: Covers steel wire and wire products coated with polyethylene (PE).
- PE types by density:
- Type 1 (low density): 0.910–0.925 g/cm³
- Type 2 (medium density): 0.926–0.940 g/cm³
- Type 3 (high density): 0.941–0.965 g/cm³
- Melt Flow Index (MFI):
- Base material MFI: 0.3 ± 0.1 g/10 min (190 °C, 21.2 N).
- MFI categories defined (e.g., Category 5: max 0.4 g/10 min).
- Mechanical properties:
- Minimum tensile strength of PE material: Type 1 = 8.5 MPa, Type 2 = 11.0 MPa, Type 3 = 17.0 MPa.
- Elongation of PE material: minimum 800%; elongation of coating film on wire: ≥ 300%.
- Coating geometry and adhesion:
- Concentricity of coating on wire: at least 60%.
- Adherence testing is optional and agreed at order.
- Appearance must be smooth, shiny and uniform in colour; small contact dents are acceptable.
- Colour stability (accelerated weathering):
- Xenon-arc exposure: 2 500 hours, cycle: 4 h UV (black panel 63 °C) / 4 h condensation (50% RH).
- Acceptable colour change: ΔE ≤ 5.
- Testing and reference standards: Test methods reference EN 10245-1 and international standards such as EN ISO 1133 (MFI), EN ISO 4892 (light exposure), EN ISO 3668 (colour), ISO 813 (adhesion), ISO 4582 (colour assessment).
Practical Applications
EN 10245-3:2011 is used to specify and verify PE coatings where durability, appearance and consistent performance of coated steel wire are required. Typical practical goals include corrosion protection, mechanical abrasion resistance, color identification and improved surface finish for wire products used in industrial, construction and outdoor environments.
Who Uses This Standard
- PE coating material manufacturers and formulators
- Wire applicators and coating processors
- Steel wire and wire-product manufacturers
- Quality assurance and testing laboratories
- Purchasers, specifiers and procurement teams who need performance and test criteria
Related Standards
- EN 10245-1:2008 - General rules for organic coatings on steel wire
- EN ISO 1133, EN ISO 4892-1/2/3, EN ISO 3668, ISO 813, ISO 4582 - referenced test methods
Keywords: EN 10245-3:2011, PE coated wire, polyethylene coating, steel wire standards, melt flow index, colour stability, concentricity, tensile strength, EN 10245-1.
Frequently Asked Questions
EN 10245-3:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Steel wire and wire products - Organic coatings on steel wire - Part 3: PE coated wire". This standard covers: Complementary to prEN 10245-1, this European Standard specifies the characteristics and requirements for steel wire and wire products coated with polyethylene (PE).
Complementary to prEN 10245-1, this European Standard specifies the characteristics and requirements for steel wire and wire products coated with polyethylene (PE).
EN 10245-3:2011 is classified under the following ICS (International Classification for Standards) categories: 25.220.60 - Organic coatings; 77.140.65 - Steel wire, wire ropes and link chains. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 10245-3:2011 has the following relationships with other standards: It is inter standard links to EN 10245-3:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 10245-3:2011 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

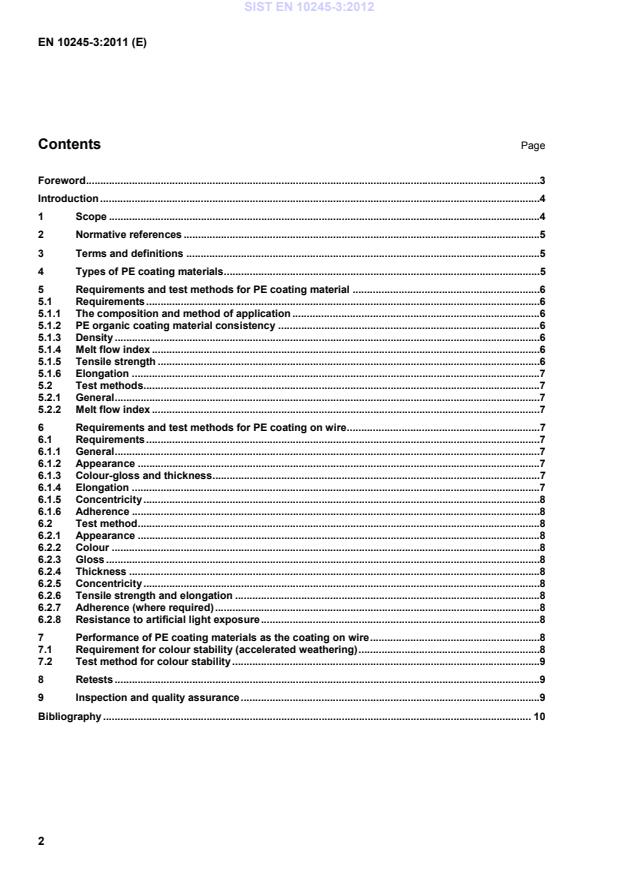

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stahldraht und Drahterzeugnisse - Organische Beschichtungen auf Draht - Teil 3: PE-beschichteter DrahtFils et produits tréfilés en acier - Revêtements organiques sur fils d'acier - Partie 3: Fils à revêtement de PESteel wire and wire products - Organic coatings on steel wire - Part 3: PE coated wire77.140.65Jeklene žice, jeklene vrvi in verigeSteel wire, wire ropes and link chains25.220.60Organske prevlekeOrganic coatingsICS:Ta slovenski standard je istoveten z:EN 10245-3:2011SIST EN 10245-3:2012en,de01-januar-2012SIST EN 10245-3:2012SLOVENSKI
STANDARDSIST EN 10245-3:20021DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10245-3
October 2011 ICS 25.220.60; 77.140.65 Supersedes EN 10245-3:2001English Version
Steel wire and wire products - Organic coatings on steel wire - Part 3: PE coated wire
Fils et produits tréfilés en acier - Revêtements organiques sur fils d'acier - Partie 3: Fils à revêtement de PE
Stahldraht und Drahterzeugnisse - Organische Beschichtungen auf Stahldraht - Teil 3: PE-beschichteter Draht This European Standard was approved by CEN on 17 September 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10245-3:2011: ESIST EN 10245-3:2012
Part 1: General Rules; Part 2: PVC finished wire; Part 3: PE coated wire; Part 4: Polyester coated wire; Part 5: Polyamide coated wire. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. SIST EN 10245-3:2012
...
The standard EN 10245-3:2011 plays a pivotal role in ensuring the quality and performance of steel wire and wire products that are coated with polyethylene (PE). This document outlines the specific characteristics and requirements necessary for the use of PE coatings on steel wire, thus complementing the foundational guidance provided in prEN 10245-1. One of the key strengths of this standard is its comprehensive nature. It details the necessary criteria for the material properties, coating thickness, adhesion, and overall durability of the PE coating, which are critical for applications where the wire is exposed to diverse environmental conditions. This precision in defining the characteristics ensures that manufacturers can produce wire that meets high reliability standards, leading to enhanced performance and longevity of the end products. Another aspect that adds to the strength of EN 10245-3:2011 is its relevance in various industries, including construction, telecommunications, and agriculture, where coated steel wire serves essential functions. The polyethylene coating provides increased resistance to corrosion and physical damage, which is particularly important for products used in outdoor environments or those subject to mechanical stresses. By adhering to this standard, manufacturers not only secure compliance with European regulations but also enhance the marketability of their products through guaranteed quality. Therefore, the EN 10245-3:2011 standard stands out due to its specific focus on the attributes of PE coated wire, making it a vital reference for manufacturers, quality assurance professionals, and industry stakeholders seeking to ensure the reliability and adequacy of their coated steel wire products. The standard's comprehensive specifications and emphasis on quality elevate the relevance of polyethylene coatings in various applications, fostering trust among users and consumers alike.
Die Norm EN 10245-3:2011 behandelt die Eigenschaften und Anforderungen von stahlnen Drähten und Drahtprodukten, die mit Polyethylen (PE) beschichtet sind. Diese Norm ergänzt die prEN 10245-1 und legt spezifische Kriterien fest, die für die Qualität und Leistungsfähigkeit von PE-beschichtetem Draht von entscheidender Bedeutung sind. Der Anwendungsbereich dieser Norm ist besonders relevant für Industrien, die drahtbasierte Produkte nutzen, sei es im Bauwesen, in der Automobilindustrie oder in der Elektroinstallation. Ein zentrales Merkmal der EN 10245-3:2011 ist die umfassende Beschreibung der mechanischen und chemischen Eigenschaften der PE-Beschichtung. Die Norm definiert auch Prüfmethoden zur Überprüfung der Haftung der Beschichtung sowie der korrosiven Beständigkeit des Drahtes. Diese Anforderungen tragen dazu bei, dass die Produkte den notwendigen Sicherheitsstandards entsprechen und eine lange Lebensdauer haben, was für Hersteller und Endnutzer von herausragendem Wert ist. Die Relevanz der Norm zeigt sich nicht nur in ihrer technischen Strenge, sondern auch in ihrer Fähigkeit, eine hohe Produktqualität zu gewährleisten. Indem sie klare Standards für die Herstellung und Prüfung von PE-beschichtetem Draht vorgibt, unterstützt sie die Einhaltung nationaler und internationaler Vorschriften. Unternehmen, die die EN 10245-3:2011 implementieren, können somit ihre Wettbewerbsfähigkeit steigern und Vertrauen bei Kunden und Partnern aufbauen. Darüber hinaus ist die Norm wichtig für die Innovationskraft innerhalb der Branche. Durch die Definition von Standards werden Anreize geschaffen, um neue Produkte zu entwickeln, die den aktuellen Umwelt- und Sicherheitsanforderungen entsprechen. Die EN 10245-3:2011 fördert zusätzlich die Nachhaltigkeit, indem sie die Verwendung von langlebigen und korrosionsbeständigen Materialien zulässt, was zu einer Verringerung des Ressourcenverbrauchs führt. Insgesamt ist die EN 10245-3:2011 eine wesentliche Norm, die für die Entwicklung und Qualitätssicherung von PE-beschichtetem Draht von großer Bedeutung ist und die sowohl Herstellern als auch Verbrauchern zugutekommt.
標準EN 10245-3:2011は、ポリエチレン（PE）コーティングを施した鋼線および鋼線製品に関する特性と要求事項を定めており、特に鋼製ワイヤーの表面保護において重要な役割を果たしています。この文書は、prEN 10245-1を補完するもので、欧州規格として信頼性の高い基準を提供します。 この標準の強みは、PEコーティングに特化した明確な要件を持つことで、さまざまな業界での鋼製ワイヤーの使用を推進し、長期的な耐久性と機能性を確保する点にあります。具体的には、環境的な影響や腐食防止に対する優れた耐性を持っているため、建設や電力配線など、多岐にわたる用途での実用性が高まります。 また、EN 10245-3:2011は、使用する材料の一貫性や品質の確保を図るための厳格な試験方法も包含しており、現場での信頼性を向上させる仕様となっています。これにより、製品が市場の要求に応じた高水準の品質を持つことが保証され、製造者やエンドユーザーの信頼を獲得しやすくなります。 このように、EN 10245-3:2011は、両方の側面から鋼線および鋼線製品のPEコーティングに関して、業界標準の明確な指針を提供しており、実際の仕様への適用においても重要な意義を持っています。
La norme SIST EN 10245-3:2012 est un document essentiel qui complète la prEN 10245-1 en se concentrant spécifiquement sur les fils en acier et les produits en fil dotés de revêtements en polyéthylène (PE). Cette norme définit de manière précise les caractéristiques et les exigences que doivent respecter les fils en acier recouverts de PE, ce qui en fait un outil indispensable pour les fabricants et les utilisateurs. L'un des points forts de cette norme est la clarté de sa portée. Elle établit des lignes directrices claires concernant les propriétés mécaniques, les méthodes d'essai et les critères d'acceptation, garantissant ainsi que les produits répondent aux besoins d'application spécifiques. De plus, la norme permet d'assurer une uniformité dans la production, ce qui est crucial pour la qualité et la performance des fils en acier revêtus. La pertinence de la norme EN 10245-3:2011 se manifeste également dans sa capacité à s'adapter aux exigences du marché moderne. Avec l'augmentation de l'utilisation de fils en acier dans divers secteurs, notamment l'industrie de la construction et l'agriculture, cette norme permet aux entreprises de garantir la sécurité et la durabilité de leurs produits. Les revêtements en PE, décrits dans cette norme, offrent une protection contre la corrosion, augmentant ainsi la longévité des fils en acier, ce qui est d'une importance capitale dans les applications extérieures. En résumé, la norme SIST EN 10245-3:2012 représente une référence incontournable pour ceux qui travaillent avec des fils en acier recouverts de polyéthylène. Grâce à ses exigences claires et ses spécifications techniques, cette norme assure non seulement la qualité des produits, mais également la confiance des consommateurs et des professionnels du secteur.
EN 10245-3:2011은 폴리에틸렌(PE)으로 코팅된 강철 와이어와 와이어 제품에 대한 유럽 표준으로, prEN 10245-1을 보완하는 내용을 가지고 있습니다. 이 표준은 PE 코팅된 강철 와이어의 특성과 요구 사항을 명확하게 규정하여, 관련 산업에서 일관된 품질을 유지할 수 있도록 하고 있습니다. 이 표준의 강점은 PE 코팅이 제공하는 내식성 및 내구성을 규명함으로써, 사용자가 보다 신뢰할 수 있는 제품을 선택할 수 있도록 돕는 것입니다. 또한, 강철 와이어의 물리적 및 화학적 성질을 철저히 분석하여, 각종 산업 응용에서의 성능 기준을 설정합니다. 이를 통해 화학 산업, 건설 분야 및 전선 제조업체들에서의 활용 가능성을 높이고 있습니다. EN 10245-3:2011은 PE 코팅된 강철 와이어의 품질 관리 및 검사 과정에서도 중요한 역할을 합니다. 이 표준은 제품의 일관성과 안전성을 보장하는 데 필요한 다양한 시험 방법과 검증 절차를 포함하고 있어, 제조업체들이 품질 기준을 충족할 수 있도록 지원합니다. 이러한 점에서 서울에서의 산업 기반에 맞추어 PE 코팅 기술의 적용과 지속적인 개선을 이끌어내는 데 매우 중요한 역할을 하고 있습니다. 결론적으로, EN 10245-3:2011은 강철 와이어 및 와이어 제품에 대한 폴리에틸렌 코팅의 특성을 규정하고, 실질적인 적용 사례에 있어 필수적인 기준을 제공함으로써, 관련 산업에서 그 중요성이 더욱 부각되고 있습니다. PE 코팅 강철 와이어의 품질을 확보하고자 하는 모든 기업들에게 이 표준의 준수는 필수적이며, 이는 제품 경쟁력을 높이는 데 기여할 것입니다.
