Stationary source emissions - Guideline for the elaboration of standardized measurement methods - Recommendations for the structure and content

This document supports the elaboration of standardized measurement methods for the determination of stationary source emissions by manual or automated measurement methods.
This document describes the basic elements of standardized measurement methods for the determination of stationary source emissions.
This document is supplemented by an electronic template providing a uniform structure and common elements and texts.
NOTE   Detailed information on the electronic template is given in Annex A.
This document is addressed to working groups of CEN/TC 264 dealing with stationary source emissions. It aims at facilitating in the working groups the elaboration and the harmonization of documents produced by CEN/TC 264. Such documents can be European standards (EN), European Technical Specifications (CEN/TS) or European Technical Reports (CEN/TR).

Emissionen aus stationären Quellen - Leitfaden für die Erarbeitung von standardisierten Messverfahren - Empfehlungen für Aufbau und Inhalt

Dieses Dokument unterstützt die Entwicklung standardisierter Messverfahren für die Bestimmung von Emissionen aus stationären Quellen durch manuelle oder automatische Messverfahren.
Dieses Dokument beschreibt die grundlegenden Elemente standardisierter Messverfahren für die Bestimmung von Emissionen aus stationären Quellen.
Dieses Dokument wird durch eine elektronische Vorlage unterstützt, die eine einheitliche Struktur und allgemeine Elemente und Texte bietet.
ANMERKUNG   Ausführliche Informationen zu der elektronischen Vorlage sind in Anhang A enthalten.
Dieses Dokument richtet sich an Arbeitsgruppen von CEN/TC 264, die sich mit Emissionen aus stationären Quellen befassen. Es dient dazu, die Arbeitsgruppen bei der Entwicklung und Harmonisierung der von CEN/TC 264 erstellten Dokumenten zu unterstützen. Solche Dokumente können Europäische Normen (EN), Europäische Technische Spezifikationen (CEN/TS) oder Europäische Technische Berichte (CEN/TR) sein.

Émissions de sources fixes - Cadre directeur pour l’élaboration de méthodes de mesurage normalisées - Recommandations pour la structure et le contenu

Le présent document vient en appui de l’élaboration de méthodes de mesurage normalisées pour la détermination des émissions de sources fixes à l’aide de méthodes de mesurage manuelles ou automatiques.
Le présent document décrit les éléments de base des méthodes de mesurage normalisées pour la détermination des émissions de sources fixes.
Le présent document est complété par un modèle électronique fournissant une structure uniforme, ainsi que des textes et des éléments communs.
NOTE   L’Annexe A fournit des informations détaillées concernant ce modèle électronique.
Le présent document est destiné aux groupes de travail du CEN/TC 264 qui sont en charge des émissions de sources fixes. Il vise à faciliter l’élaboration et l’harmonisation des documents produits par le CEN/TC 264 au sein des groupes de travail. Ces documents peuvent être des Normes européennes (EN), des Spécifications techniques européennes (CEN/TS) ou des Rapports techniques européens (CEN/TR).

Emisije nepremičnih virov - Smernica za pripravo standardiziranih merilnih metod - Priporočila za strukturo in vsebino

Ta dokument podpira pripravo standardiziranih merilnih metod za določanje emisij iz nepremičnih virov z ročnimi ali samodejnimi merilnimi metodami.
Ta dokument opisuje osnovne elemente standardiziranih merilnih metod za določanje emisij iz nepremičnih virov.
Ta dokument je dopolnjen z elektronsko predlogo, ki zagotavlja enotno strukturo ter skupne elemente in besedila.
OPOMBA:   Podrobne informacije o elektronski predlogi so navedene v dodatku A.
Ta dokument je namenjen delovnim skupinam CEN/TC 264, ki se ukvarjajo z emisijami iz nepremičnih virov. Namenjen je olajšati delovnim skupinam pripravo in usklajevanje dokumentov, ki jih pripravlja CEN/TC 264. Ti dokumenti so lahko evropski standardi (EN), evropske tehnične specifikacije (CEN/TS) ali evropska tehnična poročila (CEN/TR).

General Information

Status
Published
Publication Date
14-Feb-2023
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
15-Feb-2023
Due Date
15-May-2023
Completion Date
15-Feb-2023

Buy Standard

Technical report
TP CEN/TR 17911:2023
English language
21 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

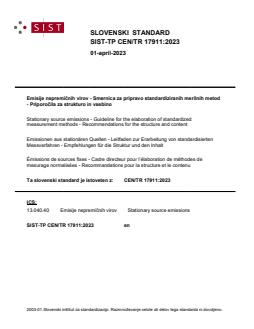

SLOVENSKI STANDARD
01-april-2023
Emisije nepremičnih virov - Smernica za pripravo standardiziranih merilnih metod
- Priporočila za strukturo in vsebino
Stationary source emissions - Guideline for the elaboration of standardized
measurement methods - Recommendations for the structure and content
Emissionen aus stationären Quellen - Leitfaden zur Erarbeitung von standardisierten
Messverfahren - Empfehlungen für die Struktur und den Inhalt
Émissions de sources fixes - Cadre directeur pour l’élaboration de méthodes de
mesurage normalisées - Recommandations pour la structure et le contenu
Ta slovenski standard je istoveten z: CEN/TR 17911:2023
ICS:
13.040.40 Emisije nepremičnih virov Stationary source emissions
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

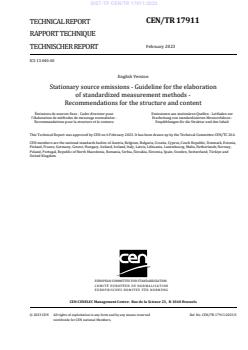

CEN/TR 17911
TECHNICAL REPORT
RAPPORT TECHNIQUE
February 2023
TECHNISCHER REPORT
ICS 13.040.40
English Version
Stationary source emissions - Guideline for the elaboration
of standardized measurement methods -
Recommendations for the structure and content
Émissions de sources fixes - Cadre directeur pour Emissionen aus stationären Quellen - Leitfaden zur
l'élaboration de méthodes de mesurage normalisées - Erarbeitung von standardisierten Messverfahren -
Recommandations pour la structure et le contenu Empfehlungen für die Struktur und den Inhalt

This Technical Report was approved by CEN on 6 February 2023. It has been drawn up by the Technical Committee CEN/TC 264.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 17911:2023 E
worldwide for CEN national Members.

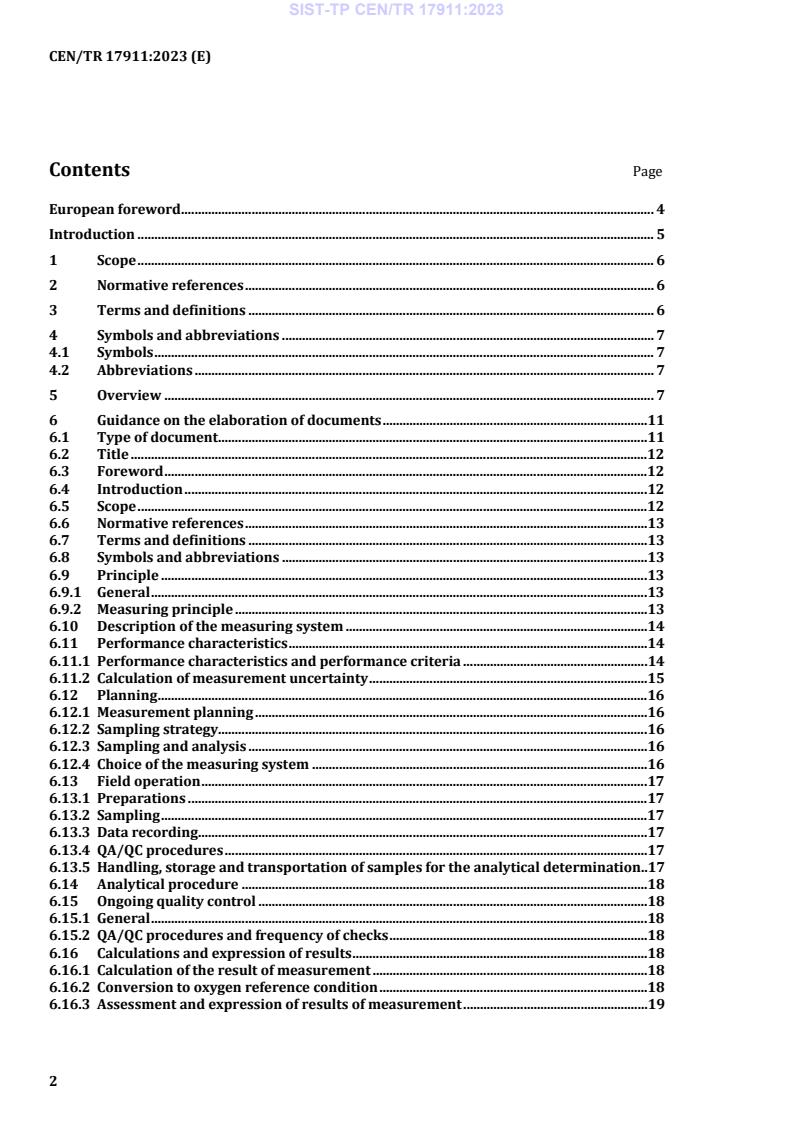

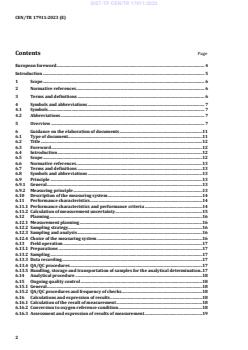

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Symbols and abbreviations . 7
4.1 Symbols . 7
4.2 Abbreviations . 7
5 Overview . 7
6 Guidance on the elaboration of documents .11
6.1 Type of document .11
6.2 Title .12
6.3 Foreword .12
6.4 Introduction .12
6.5 Scope .12
6.6 Normative references .13
6.7 Terms and definitions .13
6.8 Symbols and abbreviations .13
6.9 Principle .13
6.9.1 General .13
6.9.2 Measuring principle .13
6.10 Description of the measuring system .14
6.11 Performance characteristics .14
6.11.1 Performance characteristics and performance criteria .14
6.11.2 Calculation of measurement uncertainty .15
6.12 Planning .16
6.12.1 Measurement planning .16
6.12.2 Sampling strategy.16
6.12.3 Sampling and analysis .16
6.12.4 Choice of the measuring system .16
6.13 Field operation .17
6.13.1 Preparations .17
6.13.2 Sampling .17
6.13.3 Data recording .17
6.13.4 QA/QC procedures .17
6.13.5 Handling, storage and transportation of samples for the analytical determination .17
6.14 Analytical procedure .18
6.15 Ongoing quality control .18
6.15.1 General .18
6.15.2 QA/QC procedures and frequency of checks .18
6.16 Calculations and expression of results .18
6.16.1 Calculation of the result of measurement .18
6.16.2 Conversion to oxygen reference condition .18
6.16.3 Assessment and expression of results of measurement .19
6.17 Equivalence of an alternative method . 19
6.18 Measurement report . 19
6.19 Annex “Validation of the method” . 19
6.20 Annex “Measurement uncertainty” . 19
6.21 Annex “Calculation of the uncertainty associated with a concentration expressed on
dry gas and at an oxygen reference concentration” . 19
Annex A (informative) Electronic template . 20
Bibliography . 21

European foreword
This document (CEN/TR 17911:2023) has been prepared by Technical Committee CEN/TC 264 “Air
Quality”, the secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
Introduction
This document has been prepared by WG 46 “Task Force Emissions” of the Technical Committee
CEN/TC 264 “Air quality”, the secretariat of which is held by DIN.
This document is intended to assist working groups of CEN/TC 264 when drafting new or revising
existing documents on measurement methods for the determination of stationary source emissions. A
document describing a standardized measurement method can be a
— European standard (EN);
— European Technical Specification (CEN/TS);
— European Technical Report (CEN/TR).
This document is designed to ensure that these documents are
— consistent regarding structure, definitions and general aspects;
— in accordance and properly linked with other relevant documents such as EN 15259;
— appropriate technical references giving no rise to significant misunderstandings and/or significant
differences of interpretation by testing laboratories and/or technical auditors.
It is considered that such significant differences, misunderstandings and/or inconsistencies would, on
the one hand, impair the quality and comparability of data produced according to European emission
measurement methods and, on the other hand, result in unfair competition among European laboratories
in the field of emission measurements.
This document is applicable to manual and automated measurement methods.
This document is supplemented by an electronic template providing a uniform structure and common
elements and texts. The uniform structure is based on the requirements and recommendations specified
in the CEN-CENELEC Internal Regulations Part 3.
This document can be applicable to other air quality fields.
1 Scope
This document supports the elaboration of standardized measurement methods for the determination of
stationary source emissions by manual or automated measurement methods.
This document describes the basic elements of standardized measurement methods for the
determination of stationary source emissions.
This document is supplemented by an electronic template providing a uniform structure and common
elements and texts.
NOTE Detailed information on the electronic template is given in Annex A.
This document is addressed to working groups of CEN/TC 264 dealing with stationary source emissions.
It aims at facilitating in the working groups the elaboration and the harmonization of documents
produced by CEN/TC 264. Such documents can be European standards (EN), European Technical
Specifications (CEN/TS) or European Technical Reports (CEN/TR).
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
standard reference method
SRM
reference method prescribed by European or national legislation
[SOURCE: EN 15259:2007, 3.9, modified – Note 1 to entry removed]
3.2
reference method
RM
measurement method taken as a reference by convention, which gives the accepted reference value of
the measurand
Note 1 to entry: A reference method is fully described.
Note 2 to entry: A reference method can be a manual or an automated method.
Note 3 to entry: Alternative methods can be used if equivalence to the reference method has been demonstrated.
[SOURCE: EN 15259:2007, 3.8]
3.3
measurement method
method described in a written procedure containing all the means a
...
