SLOVENSKI STANDARD
SIST EN 17270:2020
01-januar-2020
Krma: metode vzorčenja in analize - Določevanje teobromina v sestavinah krme in
krmnih mešanicah, vključno s pridobljenimi sestavinami iz kakava, s tekočinsko
kromatografijo

Animal feeding stuffs: Methods of sampling and analysis - Determination of theobromine

in feed materials and compound feed, including cocoa derived ingredients, by liquid

chromatography
Futtermittel: Probenahme- und Untersuchungsverfahren - Bestimmung von Theobromin

in Einzel- und Mischfuttermitteln, einschließlich aus Kakao gewonnenen Bestandteilen,

mittels Flüssigchromatographie

Aliments des animaux : Méthodes d'échantillonnage et d'analyse — Détermination par

chromatographie en phase liquide de la teneur en théobromine dans les matières
premières destinées aux aliments des animaux et dans les aliments composés pour
animaux, y compris les ingrédients issus du cacao
Ta slovenski standard je istoveten z: EN 17270:2019
ICS:
65.120 Krmila Animal feeding stuffs
71.040.50 Fizikalnokemijske analitske Physicochemical methods of
metode analysis
SIST EN 17270:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 17270:2020
---------------------- Page: 2 ----------------------
SIST EN 17270:2020
EN 17270
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2019
EUROPÄISCHE NORM
ICS 65.120
English Version
Animal feeding stuffs: Methods of sampling and analysis -
Determination of theobromine in feed materials and
compound feed, including cocoa derived ingredients, by
liquid chromatography

Aliments des animaux : Méthodes d'échantillonnage et Futtermittel: Probenahme- und

d'analyse - Détermination par chromatographie en Untersuchungsverfahren - Bestimmung von

phase liquide de la teneur en théobromine dans les Theobromin in Einzelfuttermitteln, vor allem aus

matières premières destinées aux aliments des Kakao gewonnen sowie in Mischfuttermitteln mittels

animaux et dans les aliments composés pour animaux, Flüssigchromatographie
y compris les ingrédients issus du cacao
This European Standard was approved by CEN on 28 July 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17270:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 17270:2020
EN 17270:2019 (E)

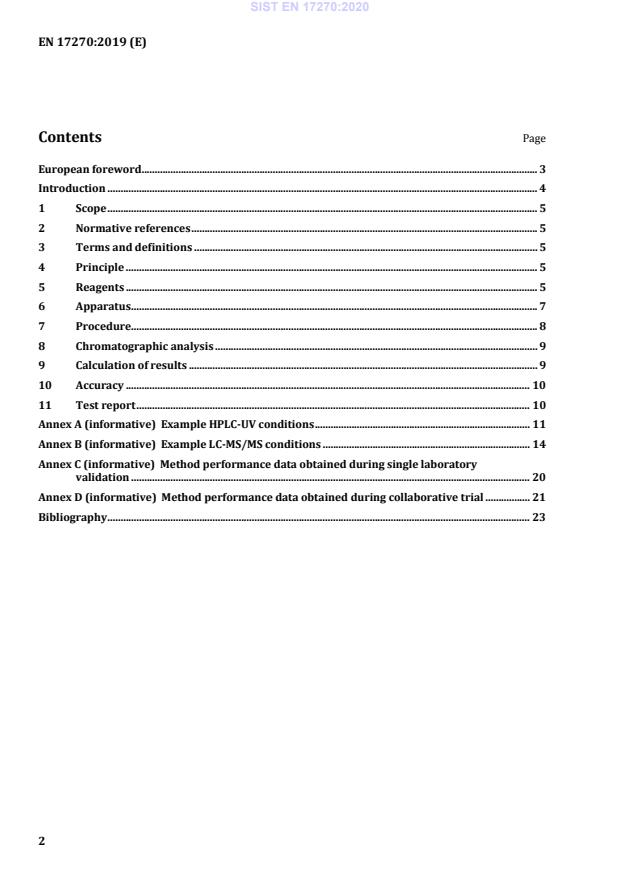

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Principle ............................................................................................................................................................. 5

5 Reagents ............................................................................................................................................................. 5

6 Apparatus ........................................................................................................................................................... 7

7 Procedure........................................................................................................................................................... 8

8 Chromatographic analysis ........................................................................................................................... 9

9 Calculation of results ..................................................................................................................................... 9

10 Accuracy .......................................................................................................................................................... 10

11 Test report ...................................................................................................................................................... 10

Annex A (informative) Example HPLC-UV conditions .................................................................................. 11

Annex B (informative) Example LC-MS/MS conditions ............................................................................... 14

Annex C (informative) Method performance data obtained during single laboratory

validation ........................................................................................................................................................ 20

Annex D (informative) Method performance data obtained during collaborative trial ................. 21

Bibliography ................................................................................................................................................................. 23

---------------------- Page: 4 ----------------------
SIST EN 17270:2020
EN 17270:2019 (E)
European foreword

This document (EN 17270:2019) has been prepared by Technical Committee CEN/TC 327 “Animal

feeding stuffs: Methods of sampling and analysis”, the secretariat of which is held by NEN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by April 2020, and conflicting national standards shall be

withdrawn at the latest by April 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a standardization request given to CEN by the European

Commission and the European Free Trade Association.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 17270:2020
EN 17270:2019 (E)
Introduction

Theobromine is naturally present in the cacao tree and its seeds and consequently in cocoa product and

by-products. Cocoa bean shells, cocoa bean meal, cocoa germs and discarded confectionery are used for

feed purposes in Europe. Maximum levels of theobromine in feeding stuffs are controlled by EU

regulations.

WARNING — the use of this protocol involves hazardous materials, operations and equipment.

This protocol does not purport to address all the safety problems associated with its use. It is the

responsibility of the user of this protocol to establish appropriate health and safety practices

and determine the compatibility with regulatory limitations prior to use.
---------------------- Page: 6 ----------------------
SIST EN 17270:2020
EN 17270:2019 (E)
1 Scope

This document specifies a test method for the determination of theobromine in feed material or

compound feed in the working range 27 mg/kg to 307 mg/kg using liquid chromatography coupled to a

UV detector (HPLC-UV) or in the working range 49 mg/kg to 307 mg/kg using liquid chromatography

with tandem mass spectrometry (LC-MS/MS).

This method has been fully validated using complementary compound feed for adult dogs and

complementary compound feed for horses.

This method is also considered applicable for determining theobromine in baking chocolate using either

HPLC-UV or LC-MS/MS systems.
The working range can be extended provided the extended range is validated.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
4 Principle

A test portion of finely ground and homogeneous material is defatted with hexane, an internal standard

added and the theobromine extracted into ammonium acetate buffer. The extract is cleaned with the

addition of Carrez reagents, filtered and the extract analysed by liquid chromatography with UV

detection. Alternatively, the theobromine content can be determined by liquid chromatography tandem

mass spectrometry (LC-MS/MS) providing it can be demonstrated that there is no interference from the

sample matrix.
5 Reagents

Use only reagents of recognized analytical grade unless otherwise specified. Commercially available

solutions with equivalent properties to those listed may be used. References to products or vendors are

for information only and do not preclude the use of products of similar quality from alternative

suppliers.

For reagents specific to the analysis of the extracts by HPLC-UV see Annex A. For reagents specific to the

analysis of the extracts by LC-MS/MS see Annex B.

WARNING — Dispose of waste solvents according to applicable environmental rules and regulations.

5.1 Ammonium acetate, analytical reagent grade
5.2 Glacial acetic acid, 99,5 %
5.3 Acetic acid, 1 mol/l
---------------------- Page: 7 ----------------------
SIST EN 17270:2020
EN 17270:2019 (E)

Add 5,7 ml of glacial acetic acid (5.2) to 60 ml high-purity water (5.4) in a 100 ml volumetric flask, mix

thoroughly and dilute to the mark with water (5.4). Mix the flask contents thoroughly again by

inversion before use.

5.4 Water, LC-MS grade or of comparable purity, e.g. resistance of 18,2 MΩ cm or conductivity of

55 nS/cm at 20 °C
5.5 2,5 mol/l Ammonium acetate buffer, pH 5,5

Weigh 192,7 g ± 0,1 g ammonium acetate (5.1) into a 1 l beaker and dissolve in approximately 600 ml of

high-purity water (5.4). Using a calibrated pH meter (6.13), adjust the pH of the buffer using initially

glacial acetic acid (5.2) and then 1 mol/l acetic acid (5.3) until it is in the range of pH 5,4 to 5,6.

Quantitatively transfer the pH-adjusted buffer from the beaker to a 1 l volumetric flask and then dilute

to volume with water (5.4). Mix thoroughly by inversion prior to use. This solution is stable for up to

1 month when stored at room temperature.
5.6 Hexane, reagent grade
5.7 Zinc acetate dihydrate, reagent grade
5.8 Potassium ferrocyanide trihydrate, reagent grade
5.9 Carrez reagent I

Weigh 219 g ± 1 g zinc acetate dihydrate (5.7) into a 1 l beaker, add 30 ml glacial acetic acid (5.2) and

approximately 800 ml water (5.4). Mix thoroughly until dissolved, transfer to a 1 l volumetric flask and

dilute to volume with water (5.4). Mix well before use. This solution is stable for up to 3 months when

stored at room temperature.
5.10 Carrez reagent II

Weigh 106 g ± 1 g potassium ferrocyanide trihydrate (5.8) into a 1 l beaker and add approximately

800 ml water (5.4). Mix thoroughly until dissolved, transfer to a 1 l volumetric flask and dilute to

volume with water (5.4). Mix well before use. This solution is stable for up to 3 months when stored at

room temperature.
5.11 Theobromine, ≥ 98,5 %
5.12 Theobromine stock solution, 125 µg/ml

Weigh 62,5 mg ± 1 mg theobromine (5.11) into a 500 ml volumetric flask and add approximately 400 ml

water (5.4). Place in an ultrasonic bath until the theobromine has completely dissolved then dilute to

volume with water (5.4). Mix well before use. The exact weight of theobromine taken should be

recorded and the concentration of the solution calculated. This solution is stable for up to 1 month

when stored at 2 °C to 8 °C.
5.13 7-(β-Hydroxyethyl)theophylline, ≥ 98 %
5.14 7-(β-Hydroxyethyl)theophylline internal standard stock solution, 1 mg/ml

Weigh 100 mg ± 1 mg 7-(β-Hydroxyethyl)theophylline (5.13) into a 100 ml volumetric flask and add

approximately 80 ml water (5.4). Shake well to dissolve then dilute to volume with water (5.4). Mix well

before use. This solution is stable for up to 1 month when stored at 2 °C to 8 °C.

---------------------- Page: 8 ----------------------
SIST EN 17270:2020
EN 17270:2019 (E)
5.15 7-(β-Hydroxyethyl)theophylline internal standard solution, 100 µg/ml

Pipette 1 ml 7-(β-Hydroxyethyl)theophylline internal standard stock solution, 1 mg/ml (5.14) into a

10 ml volumetric flask and dilute to volume with water (5.4). Mix well before use. This solution is stable

for up to 1 month when stored at 2 °C to 8 °C.
5.16 Calibration standards

Add by pipette 7-(β-Hydroxyethyl)theophylline solution, 100 µg/ml (5.15) and different volumes of

theobromine stock solution, 125 µg/ml (5.12), into six 10 ml volumetric flasks such that six calibration

standards across the calibration range are obtained. The solutions should be diluted to volume with

water (5.4). These solutions are stable for up to 1 week when stored at room temperature.

Table 1 provides examples of volumes to be taken to obtain calibration standards at 0 µg/ml, 0,5 µg/ml,

1, 5 µg/ml, 10 µg/ml and 15 µg/ml theobromine. If the extraction procedure is followed, the calibration

standards are equivalent to 0 mg/kg, 20 mg/kg, 40 mg/kg, 200 mg/kg, 400 mg/kg and 600 mg/kg in

the sample. The exact concentration of the calibration standards should be calculated from the weight

of theobromine used to prepare the stock standard solution (5.12).
Table 1 — Suggested Calibration Standards
Calibration Standard (nominal concentration µg/ml) 0 0,5 1 5 10 15
Volume (µl) of
0 40 80 400 800 1200
125 µg/ml theobromine (5.12)
Volume (µl) of
100 µg/ml 200 200 200 200 200 200
7-(β-Hydroxyethyl)theophylline (5.15)
5.17 Quality control material

It is recommended that a suitable quality control material be analysed in every batch, for example NIST

SRM 2384 Baking chocolate, certified value for theobromine (11 600 ± 1 100) mg/kg. For NIST

SRM 2384 a sample weight of 1,0 g ± 0,1 g should be used, 2 ml of 1 mg/ml 7-(β-

Hydroxyethyl)theophylline internal standard stock solution (5.14) should be added and the extract

should be diluted, for example, by a factor of 10 prior to analysis by HPLC-UV or LC-MS/MS.

6 Apparatus
Standard laboratory glassware and equipment including the following:

6.1 Mill, single mill or multiple mills, capable of comminuting test materials to particle sizes

of < 500 μm
6.2 Sieve, 500 µm
6.3 Mixer, capable of sufficiently homogenizing the comminuted test materials

6.4 Conical polypropylene (PP) screw-cap centrifuge tubes, with screw cap, 50 ml or similar

6.5 Balance, with a mass resolution of 0,001 g or better

6.6 Centrifuge, capable of generating a relative centrifugal force (rcf) of 3000 g

---------------------- Page: 9 ----------------------
SIST EN 17270:2020
EN 17270:2019 (E)

6.7 Glass vials for use in the autosampler (usually approximately 1,5 ml capacity) and screw caps or

equivalent
6.8 Nylon syringe filter, small internal volume, pore size: 0,45 μm
6.9 General purpose filter papers
6.10 Vortex mixer
6.11 Water bath, capable of maintaining 40 °C ± 5 °C.
6.12 Ultrasonic bath

6.13 Equipment for measuring pH, calibrated and sufficiently accurate for the purposes of this

European Standard
7 Procedure
7.1 Sample preparation

It is important that the laboratory receives a sample which is truly representative and has not been

damaged or altered during transport or storage. Laboratory samples should be taken and prepared in

accordance with European legislation where applicable [1]. The laboratory sample should be finely

ground and thoroughly mixed using a mill (6.1) and a mixer (6.3) or another process for which

adequate homogenization has been demonstrated, before a test portion is taken for analysis.

It is important that the test portion is taken from a subsample which is sufficiently homogenous with a

particle size of ≤ 500 μm. Care should be taken not to overheat the sample during this process.

7.2 Extraction

Weigh 2,5 g ± 0,1 g homogenized sample into a polypropylene screw-cap tube (6.4). Add 6 ml hexane

(5.6) and mix thoroughly by vortex (6.10) then centrifuge at 2 700 g for 5 min (6.6). Discard the top

hexane layer.
Repeat the hexane extraction two more times, each with 3 ml hexane.

Dry the sample with a stream of nitrogen to remove the last traces of hexane then add 0,2 ml of

1 mg/ml 7-(β-Hydroxyethyl)theophylline internal standard (5.14).

Add 25 ml 2,5 mol/l ammonium acetate, pH 5,5 (5.5), shake vigorously then place in a water bath (6.11)

set at 40 °C ± 1 °C for (15 ± 2) min. Vortex to mix thoroughly ensuring that no solid material remains

adhered to the bottom of the tube, then place in an ultrasonic bath (6.12) for (20 ± 2) min.

Transfer the sample and extract to a 100 ml volumetric flask, using water (5.4) to rinse the

polypropylene tube.

Add 5 ml Carrez I (5.9) and mix well by hand. Add 5 ml Carrez II (5.10) and mix well by hand.

Dilute to volume with water (5.4) and mix well then filter through a general purpose filter paper (6.9).

Pass an aliquot of the filtrate through a 0,45 µm syringe filter (6.8).
----------------------
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
