Gas supply systems - Gas installation pipework with an operating pressure greater than 0,5 bar for industrial installations and greater than 5 bar for industrial and non-industrial installations - Part 2: Detailed functional requirements for commissioning, operation and maintenance

This European Standard specifies detailed functional requirements for the commissioning, operation and maintenance of
-   industrial gas installations and assemblies with an operating pressure greater than 0,5 bar and of
-   non-industrial gas installations (residential and commercial) with an operating pressure greater than 5 bar,
starting from the outlet of the network operator’s point of delivery up to the inlet connection to the gas appliance; normally the inlet isolation valve. This European Standard also covers the pipework to the inlet connection of a gas appliance that is not included within the scope of the appliance standard.
NOTE   The use of the term installation and pipework is interchangeable.
Apart from the exceptions stated below, this standard applies to gas installations operating at ambient temperatures between -20 °C and 40 °C and operating pressures up to and including 60 bar. For operating conditions outside these limitations, reference should additionally be made to EN 13480 for metallic pipework.
For industrial gas installations up to and including 0,5 bar and for non-industrial (residential and commercial) gas installations up to and including 5 bar EN 1775 applies.
For gas installations that do not fall within the scope of EN 1775 or other European Standards, this European Standard applies.
In this European Standard, the term "gas" refers to combustible gases, which are gaseous at 15 °C and 1 013 mbar absolute atmospheric pressure. These gases are commonly referred to as manufactured gas, natural gas or Liquefied Petroleum Gas (LPG). They are also referred to as first, second or third family gases as classified in Table 1 of EN 437:2003+A1:2009. The given values are considered as normal conditions for all volumes given in this standard.
This European Standard is applicable to installation pipework for the carriage of:
-   processed, non-toxic and non-corrosive natural gas according to EN 437:2003+A1:2009 and EN 16726 -Gas infrastructure - Quality of gas - Group H”,
-   vaporized LNG,
-   biomethane, complying with EN 16723-1,
-   vaporized LNG.
NOTE   The specification of vaporized LNG is equal to that of natural gas as classified in EN 437:2003+A1:2009.
This European Standard does not cover pipework for hydrogen rich gases that fall outside the definitions within EN 437:2003+A1:2009. LPG storage vessels (including all ancillaries fitted directly to storage vessels) are excluded. Also excluded are LPG installations and sections of LPG installations operating at vapour pressure (e.g. between the storage vessel and its pressure regulator).
In this European Standard, all pressures are gauge pressures unless otherwise stated.
This European Standard specifies common basic principles for gas supply systems. Users of this European Standard should be aware that more detailed national standards and/or code of practice may exist in the CEN member countries.
This European Standard is intended to be applied in association with these national standards and/or codes of practice setting out the above-mentioned basic principles.
For gas installations within the scope of this standard, national legislation and regulations have to be taken into account.
Functional requirements for design, selection of materials, construction, inspection and testing of industrial gas installations and assemblies with an operating pressure greater than 0,5 bar and of gas installations greater than 5 bar in buildings and areas intended for residential, commercial, public and mixed uses are described in EN 15001-1.
Generally, additional safety precautions may be necessary where non odorized gas is used. For non-industrial purposes, the gas should be odorized.

Gasversorgungssysteme - Gasleitungsanlagen mit einem Betriebsdruck größer 0,5 bar für industrielle Installationen und größer 5 bar für industrielle und nicht-industrielle Installationen - Teil 2: Detaillierte funktionale Anforderungen an Inbetriebnahme, Betrieb und Instandhaltung

Dieses Dokument legt detailliert die funktionalen Anforderungen hinsichtlich Inbetriebnahme, Betrieb und Instandhaltung von:
—   industriellen Gasleitungsanlagen und Baugruppen mit einem Betriebsdruck größer 0,5 bar; und
—   nicht-industriellen Gasleitungsanlagen (Haushalte und Gewerbebetriebe) mit einem Betriebsdruck größer 5 bar,
beginnend am Ausgangsanschluss der Übergabestelle des Netzbetreibers bis zum Eingangsanschluss der Gasgeräte, d. h. in der Regel der Absperrarmatur vor dem Gerät, fest. Dieses Dokument gilt auch für die Rohrleitungen zum Eingangsanschluss der Gasgeräte, die nicht in den Anwendungsbereich der Gasgerätenorm fallen.
Abgesehen von den nachstehend angegebenen Ausnahmen gilt dieses Dokument für den Betrieb von Gasleitungsanlagen bei Umgebungstemperaturen zwischen –20 °C und 40 °C mit Betriebsdrücken bis einschließlich 60 bar. Bei Betriebszuständen außerhalb dieser Grenzen wird zusätzlich auf EN 13480 für metallische Rohrleitungen Bezug genommen.
Für industrielle Gasleitungsanlagen mit Betriebsdrücken bis einschließlich 0,5 bar und für nicht-industrielle Gasleitungsanlagen (Haushalte und Gewerbebetriebe) mit Betriebsdrücken bis einschließlich 5 bar gilt EN 1775.
Diese Europäische Norm gilt für Gasleitungsanlagen, die nicht in den Anwendungsbereich der EN 1775 oder anderer Europäischer Normen fallen.

Infrastructures gazières - Canalisations d'installation de gaz avec une pression de service supérieure à 0,5 bar pour les installations industrielles et supérieure à 5 bar pour les installations industrielles et non industrielles - Partie 2 : Exigences fonctionnelles détaillées pour la mise en service, l'exploitation et la maintenance

l’exploitation et à la maintenance :
- des installations et ensembles de gaz industriels fonctionnant à une pression supérieure à 0,5 bar et aux ;
- installations de gaz non industrielles (résidentielles et commerciales) fonctionnant à une pression supérieure à 5 bar ;
allant de la sortie du point de livraison de l’opérateur de réseau jusqu’à la connexion d’entrée de l’appareil à gaz, normalement le robinet de sectionnement d’entrée. Cette norme couvre aussi la tuyauterie de la connexion d’entrée d’un appareil à gaz qui n’est pas couverte par la norme de l’appareil.
NOTE 1 Les termes « installation » et « tuyauterie » sont interchangeables.
Outre les exceptions énoncées ci-après, la présente norme s’applique aux installations de gaz fonctionnant à des températures ambiantes comprises entre - 20 °C et 40 °C et des pressions de service inférieures ou égales à 60 bar. Pour des conditions d’exploitation à l’extérieur de ces limites, il convient qu’il soit fait référence à la norme EN 13480 concernant les tuyauteries métalliques.
Pour les installations de gaz industrielles inférieures ou égales à 0,5 bar et pour les installations de gaz non industrielles (résidentielles et commerciales) fonctionnant à une pression inférieure ou égale à 5 bar, c’est l’EN 1775 qui s’applique.
La présente norme s’applique aux installations de gaz qui n’entrent pas dans le domaine d’application de la norme EN 1775 ou d’autres normes européennes.
Dans la présente Norme, le terme « gaz » se rapporte à des gaz combustibles se présentant sous forme gazeuse à 15 °C et à 1 013 mbar de pression atmosphérique absolue. Ces gaz sont couramment appelés gaz manufacturés, gaz naturel ou gaz de pétrole liquéfié (GPL). Ils sont aussi dénommés gaz de la 1ère, 2e ou 3e famille respectivement selon le classement de l’EN 437:2003+A1:2009, Tableau 1. Les valeurs données sont considérées aux conditions normales pour tous les volumes donnés dans cette norme.
La présente Norme européenne s’applique aux canalisations d'installations pour le transport du :
- gaz traité, non toxique et non corrosif, naturel, conformément à l’EN 437:2003+A1:2009 et à l’EN 16726, « Infrastructures gazières - Qualité du gaz - Groupe H » ;
- GNL vaporisé ;
- biométhane, conforme à l’EN 16723-1 ;
- GNL vaporisé.
NOTE 2 La spécification du GNL vaporisé équivaut à celle du gaz naturel classé dans l’EN 437:2003+A1:2009.
La présente Norme européenne ne couvre pas la tuyauterie pour les gaz riches en hydrogène ne relevant pas de la définition figurant dans l’EN 437:2003+A1:2009. Les réservoirs de stockage de GPL (y compris tous les accessoires fixés directement sur les réservoirs) sont exclus. Il en est de même pour les installations de GPL et les parties d'installations de GPL exploitées à la pression de vapeur (par exemple entre le réservoir de stockage et son régulateur de pression).

Infrastruktura za plin - Plinske napeljave z delovnim tlakom nad 0,5 bar za industrijsko uporabo in delovnim tlakom nad 5 bar za industrijsko in neindustrijsko uporabo - 2. del: Podrobne funkcionalne zahteve za začetek obratovanja, obratovanje in vzdrževanje

Ta evropski standard določa podrobne funkcionalne zahteve za zagon, delovanje in vzdrževanje
•   industrijskih plinskih naprav in sestavov z obratovalnim tlakom, višjim od 0,5 bara, in
•   neindustrijskih naprav (stanovanjskih in poslovnih) z obratovalnim tlakom, višjim od 5 barov,
od izhoda iz dobavnega mesta upravljavca omrežja do dovodnega priključka plinske naprave: običajno do dovodnega izolirnega ventila. Ta evropski standard zajema tudi dovodni priključek plinske naprave, ki obsega cevovode, ki ne spadajo na področje uporabe standarda za naprave.
Ta standard se uporablja za plinske naprave, ki delujejo pri temperaturah okolice med −20 °C in 40 °C ter pri obratovalnih tlakih do vključno 60 barov. Za obratovalne pogoje zunaj teh omejitev se je treba dodatno sklicevati na standard EN 13480 za kovinske cevovode.
Za industrijske plinske napeljave do vključno 0,5 bara in za neindustrijske (stanovanjske in poslovne) plinske napeljave do vključno 5 barov v stavbah se uporablja standard EN 1775.
Za plinske napeljave, ki ne spadajo na področje uporabe standarda EN 1775 ali drugih evropskih standardov, velja ta evropski standard.
V tem standardu se izraz »plin« nanaša na gorljive pline, ki so plinasti pri 15 °C in absolutnem atmosferskem tlaku 1013 mbar (normalni pogoji). Ti plini se običajno imenujejo industrijski plin, zemeljski plin ali utekočinjeni naftni plin (LPG). Imenujemo jih tudi plini prve, druge ali tretje plinske družine (glej preglednico 1 standarda EN 437:2003).
Posode za shranjevanje utekočinjenega naftnega plina (LPG) (vključno z vsemi pomožnimi napravami, nameščenimi neposredno na posode za shranjevanje) so izključene. Prav tako so izključene naprave za LPG in deli naprav za LPG, ki delujejo pri parnem tlaku (npr. med posodo za shranjevanje in regulatorjem tlaka).
V tem evropskem standardu so vsi tlaki merilni tlaki, razen če ni drugače navedeno.
Za plinske naprave, ki spadajo v področje uporabe tega standarda, se uporablja nacionalna zakonodaja.

General Information

Status
Published
Publication Date
21-Feb-2023
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
22-Feb-2023
Due Date
04-Aug-2019
Completion Date
22-Feb-2023

Relations

Buy Standard

Standard
EN 15001-2:2023
English language
26 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-april-2023
Nadomešča:
SIST EN 15001-2:2009
Infrastruktura za plin - Plinske napeljave z delovnim tlakom nad 0,5 bar za
industrijsko uporabo in delovnim tlakom nad 5 bar za industrijsko in
neindustrijsko uporabo - 2. del: Podrobne funkcionalne zahteve za začetek
obratovanja, obratovanje in vzdrževanje
Gas supply systems - Gas installation pipework with an operating pressure greater than
0,5 bar for industrial installations and greater than 5 bar for industrial and non-industrial
installations - Part 2: Detailed functional requirements for commissioning, operation and
maintenance
Gasversorgungssysteme - Gasleitungsanlagen mit einem Betriebsdruck größer 0,5 bar
für industrielle Installationen und größer 5 bar für industrielle und nicht-industrielle
Installationen - Teil 2: Detaillierte funktionale Anforderungen an Inbetriebnahme, Betrieb
und Instandhaltung
Infrastructures gazières - Canalisations d'installation de gaz avec une pression de
service supérieure à 0,5 bar pour les installations industrielles et supérieure à 5 bar pour
les installations industrielles et non industrielles - Partie 2 : Exigences fonctionnelles
détaillées pour la mise en service, l'exploitation et la maintenance
Ta slovenski standard je istoveten z: EN 15001-2:2023
ICS:
91.140.40 Sistemi za oskrbo s plinom Gas supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 15001-2
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2023
EUROPÄISCHE NORM
ICS 23.040.01 Supersedes EN 15001-2:2008
English Version
Gas supply systems - Gas installation pipework with an
operating pressure greater than 0,5 bar for industrial
installations and greater than 5 bar for industrial and non-
industrial installations - Part 2: Detailed functional
requirements for commissioning, operation and
maintenance
Infrastructures gazières - Canalisations d'installation Gasversorgungssysteme - Gas-Leitungsanlagen mit
de gaz avec une pression de service supérieure à 0,5 einem Betriebsdruck größer 0,5 bar für industrielle
bar pour les installations industrielles et supérieure à 5 Installationen und größer 5 bar für industrielle und
bar pour les installations industrielles et non nicht-industrielle Installationen - Teil 2: Detaillierte
industrielles - Partie 2 : Exigences fonctionnelles funktionale Anforderungen an Inbetriebnahme, Betrieb
détaillées pour la mise en service, l'exploitation et la und Instandhaltung
maintenance
This European Standard was approved by CEN on 1 July 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15001-2:2023 E
worldwide for CEN national Members.

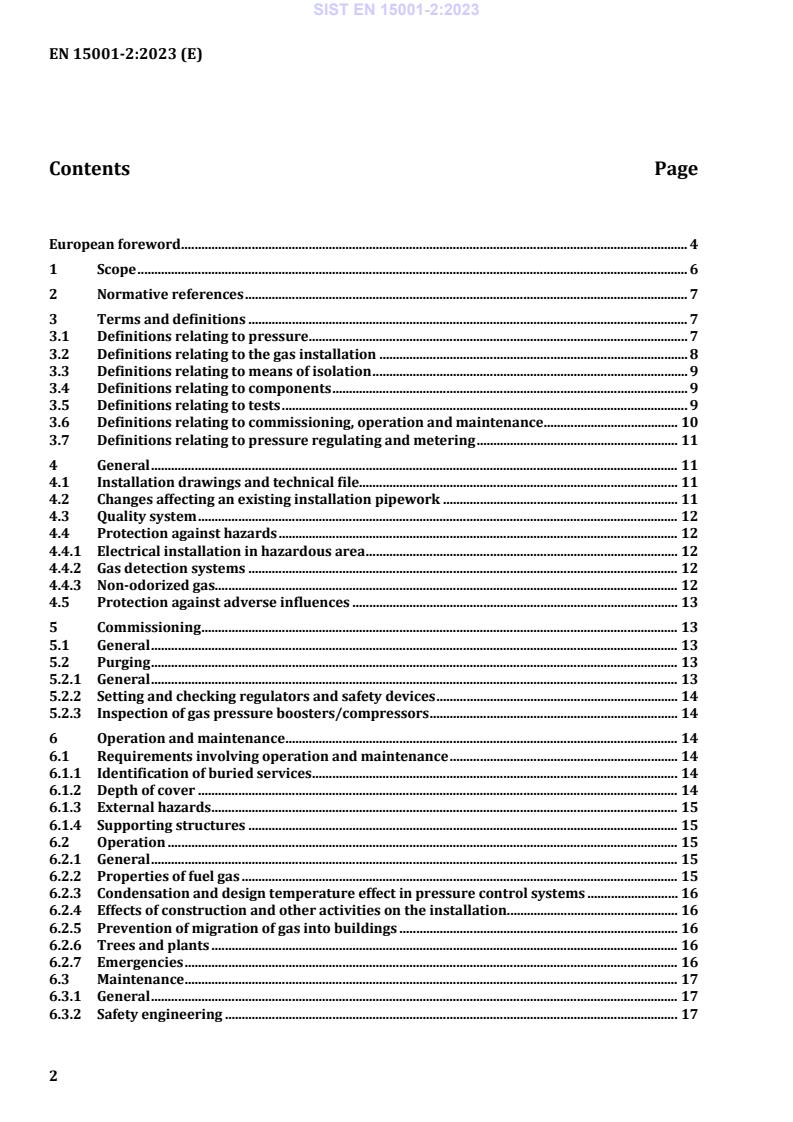

Contents Page
European foreword . 4
1 Scope . 6
2 Normative references . 7
3 Terms and definitions . 7
3.1 Definitions relating to pressure . 7
3.2 Definitions relating to the gas installation . 8
3.3 Definitions relating to means of isolation . 9
3.4 Definitions relating to components . 9
3.5 Definitions relating to tests . 9
3.6 Definitions relating to commissioning, operation and maintenance . 10
3.7 Definitions relating to pressure regulating and metering . 11
4 General . 11
4.1 Installation drawings and technical file. 11
4.2 Changes affecting an existing installation pipework . 11
4.3 Quality system . 12
4.4 Protection against hazards . 12
4.4.1 Electrical installation in hazardous area . 12
4.4.2 Gas detection systems . 12
4.4.3 Non-odorized gas. 12
4.5 Protection against adverse influences . 13
5 Commissioning . 13
5.1 General . 13
5.2 Purging . 13
5.2.1 General . 13
5.2.2 Setting and checking regulators and safety devices . 14
5.2.3 Inspection of gas pressure boosters/compressors . 14
6 Operation and maintenance . 14
6.1 Requirements involving operation and maintenance . 14
6.1.1 Identification of buried services . 14
6.1.2 Depth of cover . 14
6.1.3 External hazards . 15
6.1.4 Supporting structures . 15
6.2 Operation . 15
6.2.1 General . 15
6.2.2 Properties of fuel gas . 15
6.2.3 Condensation and design temperature effect in pressure control systems . 16
6.2.4 Effects of construction and other activities on the installation. 16
6.2.5 Prevention of migration of gas into buildings . 16
6.2.6 Trees and plants . 16
6.2.7 Emergencies . 16
6.3 Maintenance . 17
6.3.1 General . 17
6.3.2 Safety engineering . 17
6.3.3 Appliance isolating valves . 18
6.3.4 Identification of above-ground gas pipework . 18
6.3.5 Detail engineering . 18
6.3.6 Work on pipework . 19
6.3.7 Inspections . 19
6.3.8 Operability check on valves . 21
6.3.9 Pressure control systems. 21
6.3.10 Pressure settings . 21
6.3.11 Installation of pressure regulating systems . 21
6.3.12 Filters and liquid separators . 21
6.3.13 Corrosion protection . 21
6.3.14 Hazardous areas. 22
6.3.15 Hot working in hazardous areas . 22
6.3.16 Hot tapping. 23
Annex A (informative) Significant technical changes between this European standard and
the previous version EN 15001-2:2008 . 24
Bibliography . 26

European foreword
This document (EN 15001-2:2023) has been prepared by Technical Committee CEN/TC 234 “Gas
supply”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by August 2023, and conflicting national standards shall
be withdrawn at the latest by August 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15001-2:2008.
A list of the significant changes compared to EN 15001-2:2008 can be found in Annex A, Table A.1.
The scope of this revised standard is extended with biomethane and vaporized LNG gases. This
standard is not designed for various mixtures of natural gas and hydrogen which may be allowed in the
different member states.
With respect to hydrogen there are proposals to inject hydrogen (H2) from renewable sources into the
