EN 1949:2021
(Main)Specification for the installation of LPG systems for habitation purposes in leisure accommodation vehicles and accommodation purposes in other vehicles
Specification for the installation of LPG systems for habitation purposes in leisure accommodation vehicles and accommodation purposes in other vehicles
This document specifies the requirements for the installation of liquefied petroleum gas systems for habitation purposes in leisure accommodation vehicles and for accommodation purposes in other vehicles.
It details health and safety requirements on:
— the selection of materials;
— components and appliances;
— design considerations;
— tightness testing of installations;
— the contents of the user's handbook.
This document only covers installations supplied with 3rd family gases (LPG).
It does not cover:
— water connections or electrical power supplies to the appliance(s);
— portable appliances, incorporating their own LPG supply;
— the installation of LPG appliances to be used for commercial purposes;
— LPG installations on boats;
— LPG supply equipment and LPG appliances separate from and external to the body of the vehicle.
This document covers LPG tanks fulfilling the requirements of the Pressure Equipment Directive (2014/68/EU).
Attention is drawn to the Pressure Equipment Directive (2014/68/EU) for any parts of the installation operating above 0,5 bar.
Festlegungen für die Installation von Flüssiggasanlagen in bewohnbaren Freizeitfahrzeugen und zu Wohnzwecken in anderen Fahrzeugen
Dieses Dokument legt die Anforderungen an die Installation von Flüssiggasanlagen in bewohnbaren Freizeitfahrzeugen und für Wohnzwecke in anderen Fahrzeugen fest.
Im Einzelnen sind Anforderungen an Gesundheit und Sicherheit zu Folgendem beschrieben:
— Auswahl der Werkstoffe;
— Bauteile und Geräte;
— Bauweise;
— Dichtheitsprüfung von Installationen;
— Inhalt der Bedienungsanleitung.
Dieses Dokument gilt nur für solche Installationen, die mit Gasen der 3. Gasfamilie (Flüssiggas) betrieben werden.
Es gilt nicht für:
— Wasseranschlüsse oder Stromversorgungen des Geräts bzw. der Geräte;
— tragbare Geräte mit eigener Flüssiggasversorgung;
— die Installation von Flüssiggasgeräten zu gewerblichen Zwecken;
— Flüssiggasinstallationen auf Booten;
— Flüssiggasversorgungseinrichtungen und Flüssiggasgeräte, die sich außerhalb des Fahrzeugs befinden.
Dieses Dokument gilt für Flüssiggastanks, die die Anforderungen der Druckgeräterichtlinie (2014/68/EU) erfüllen.
Für alle Teile der Installation, die mit Drücken über 0,5 bar betrieben werden, wird auf die Druckgeräterichtlinie (2014/68/EU) hingewiesen.
Spécifications relatives aux installations des systèmes GPL pour les besoins domestiques dans les véhicules habitables de loisirs et dans les autres véhicules
La présente Norme européenne spécifie les exigences applicables à l'installation de systèmes fonctionnant aux gaz de pétrole liquéfiés pour les besoins d’habitation dans les véhicules habitables de loisirs, et à des fins d’hébergement dans les autres véhicules.
Elle détaille les exigences relatives à la santé et à la sécurité pour :
— le choix des matériaux ;
— les composants et appareils d'utilisation ;
— les considérations de conception ;
— les essais d'étanchéité des installations ;
— le contenu du manuel d'utilisation.
Ce document ne s'applique qu’aux installations alimentées par des gaz appartenant à la troisième famille (GPL).
Elle ne couvre pas :
— les raccordements en eau ou en énergie électrique des appareils ;
— les appareils portatifs disposant d'une alimentation en gaz incorporée ;
— l'installation des appareils GPL utilisés pour les besoins commerciaux ;
— les installations GPL dans les bateaux ;
— l'équipement d'alimentation en GPL et les appareils GPL séparés et extérieurs au corps du véhicule.
Ce document couvre les réservoirs GPL qui satisfont aux exigences de la Directive Équipements sous Pression (2014/68/UE).
L’attention est portée sur la Directive Équipements sous pression (2014/68/UE) pour toute partie de l’installation fonctionnant au-delà de 0,5 bar.
Specifikacija za vgradnjo sistemov na utekočinjeni naftni plin (UNP) v bivalna vozila za prosti čas in druga bivalna vozila
Ta evropski standard določa zahteve za vgradnjo sistemov na utekočinjeni naftni plin v bivalna vozila za prosti čas in druga bivalna vozila. Podrobno določa varnostne in zdravstvene zahteve za izbiro materialov, komponent in aparatov, izdelavo in preskušanje trdnosti vgradenj ter vsebino uporabniškega priročnika.
Ta evropski standard ne zajema vgradenj, ki ne uporabljajo plinov tretje družine (LPG), vodovodnih priključkov ali električnega napajanja aparatov. Prenosni aparati z lastno oskrbo s plinom niso obravnavani kot del vgradnje in ne spadajo na področje uporabe tega standarda. Standard ne vključuje vgradnje aparatov na utekočinjeni naftni plin za komercialne namene ali plovila. Ta standard prav tako ne obravnava opreme za dovajanje plina in aparatov na plin, ki so ločeni od karoserije vozila in nameščeni zunaj nje.
General Information
Relations
Standards Content (Sample)

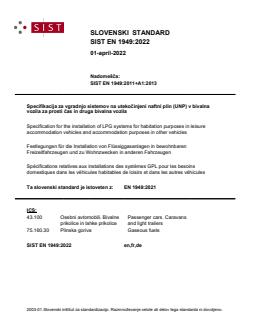

SLOVENSKI STANDARD
01-april-2022
Nadomešča:
SIST EN 1949:2011+A1:2013
Specifikacija za vgradnjo sistemov na utekočinjeni naftni plin (UNP) v bivalna
vozila za prosti čas in druga bivalna vozila
Specification for the installation of LPG systems for habitation purposes in leisure
accommodation vehicles and accommodation purposes in other vehicles
Festlegungen für die Installation von Flüssiggasanlagen in bewohnbaren
Freizeitfahrzeugen und zu Wohnzwecken in anderen Fahrzeugen
Spécifications relatives aux installations des systèmes GPL pour les besoins
domestiques dans les véhicules habitables de loisirs et dans les autres véhicules
Ta slovenski standard je istoveten z: EN 1949:2021
ICS:
43.100 Osebni avtomobili. Bivalne Passenger cars. Caravans
prikolice in lahke prikolice and light trailers
75.160.30 Plinska goriva Gaseous fuels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

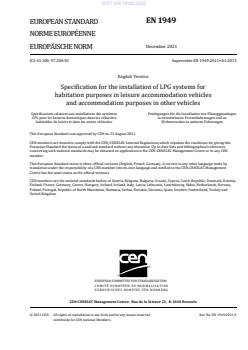

EN 1949
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2021
EUROPÄISCHE NORM
ICS 43.100; 97.200.30 Supersedes EN 1949:2011+A1:2013
English Version
Specification for the installation of LPG systems for
habitation purposes in leisure accommodation vehicles
and accommodation purposes in other vehicles
Spécifications relatives aux installations des systèmes Festlegungen für die Installation von Flüssiggasanlagen
GPL pour les besoins domestiques dans les véhicules in bewohnbaren Freizeitfahrzeugen und zu
habitables de loisirs et dans les autres véhicules Wohnzwecken in anderen Fahrzeugen
This European Standard was approved by CEN on 23 August 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1949:2021 E
worldwide for CEN national Members.

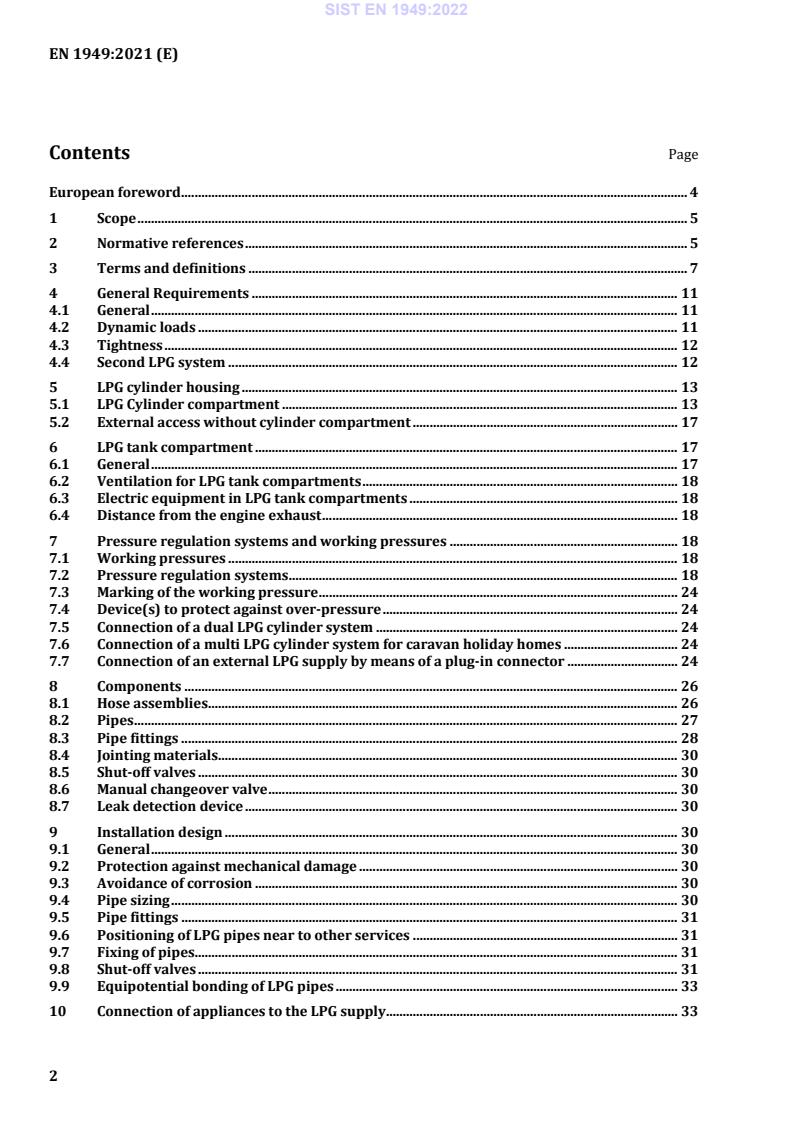

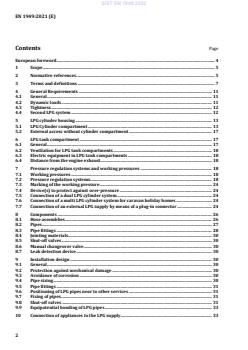

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 7
4 General Requirements . 11
4.1 General . 11
4.2 Dynamic loads . 11
4.3 Tightness . 12
4.4 Second LPG system . 12
5 LPG cylinder housing . 13
5.1 LPG Cylinder compartment . 13
5.2 External access without cylinder compartment . 17
6 LPG tank compartment . 17
6.1 General . 17
6.2 Ventilation for LPG tank compartments . 18
6.3 Electric equipment in LPG tank compartments . 18
6.4 Distance from the engine exhaust . 18
7 Pressure regulation systems and working pressures . 18
7.1 Working pressures . 18
7.2 Pressure regulation systems . 18
7.3 Marking of the working pressure . 24
7.4 Device(s) to protect against over-pressure . 24
7.5 Connection of a dual LPG cylinder system . 24
7.6 Connection of a multi LPG cylinder system for caravan holiday homes . 24
7.7 Connection of an external LPG supply by means of a plug-in connector . 24
8 Components . 26
8.1 Hose assemblies. 26
8.2 Pipes . 27
8.3 Pipe fittings . 28
8.4 Jointing materials . 30
8.5 Shut-off valves . 30
8.6 Manual changeover valve . 30
8.7 Leak detection device . 30
9 Installation design . 30
9.1 General . 30
9.2 Protection against mechanical damage . 30
9.3 Avoidance of corrosion . 30
9.4 Pipe sizing . 30
9.5 Pipe fittings . 31
9.6 Positioning of LPG pipes near to other services . 31
9.7 Fixing of pipes. 31
9.8 Shut-off valves . 31
9.9 Equipotential bonding of LPG pipes . 33
10 Connection of appliances to the LPG supply . 33
10.1 General . 33
10.2 Road vehicles. 34
10.3 Slide outs of road vehicles . 34
10.4 Caravan holiday homes . 35
11 LPG Appliances . 35
11.1 Suitability of LPG appliances . 35
11.2 Installations . 35
11.3 Space heaters . 35
11.4 Water heaters. 36
11.5 Cooking appliances . 37
11.6 Refrigerators . 37
11.7 Gas lights . 37
11.8 LPG fuel cells . 37
11.9 LPG power generators . 38
12 Flueing . 38
12.1 Flues . 38
12.2 Flue terminals . 38
12.3 Weather protection . 40
12.4 Draught diverters . 40
12.5 Accessibility of flues . 40
13 Installation of LPG tanks on road vehicles supplying LPG appliances . 40
13.1 LPG tank and accessories . 40
13.2 Installation of the LPG tank and LPG system requirements . 41
14 User’s handbook. 42
Annex A (informative) National situation concerning the maximum flow rate of pressure
regulating devices for caravan holiday homes . 44
Annex B (informative) National situations in the Member States . 46
Annex C (informative) Manufacturer declaration . 48
Bibliography . 50
European foreword
This document (EN 1949:2021) has
...
