Rubber or plastic coated fabrics - Mechanical properties - Determination of the elongation under load and the residual deformation

This European standard describes the method of determination of the elongation under load and the residual deformation of coated fabrics.

Mit Kautschuk oder Kunststoff beschichtete Textilien - Mechanische Eigenschaften - Bestimmung der Dehnung unter Last und der verbleibenden Verformung

Diese Europäische Norm legt das Verfahren zur Bestimmung der Dehnung unter Belastung und der Restver-formung von beschichteten textilen Flächengebilden fest.

Supports textiles revêtus de caoutchouc ou de plastique - Propriétés mécaniques - Détermination de l'allongement sous charge et de la déformation résiduelle

La présente Norme européenne décrit la méthode de détermination de l’allongement sous charge et de la déformation résiduelle des supports textiles revêtus.

Gumirane ali plastificirane tekstilije - Mehanske lastnosti - Ugotavljanje raztezka pri obremenitvi in rezidualne deformacije

Ta evropski standard opisuje metodo ugotavljanja raztezka pri obremenitvi in rezidualne deformacije plastificiranih tekstilij.

General Information

Status
Published
Publication Date
15-Feb-2011
Withdrawal Date
30-Aug-2011
ICS
59.080.40 - Coated fabrics
Technical Committee
CEN/TC 248 - Textiles and textile products
Drafting Committee
CEN/TC 248/WG 4 - Coated fabrics
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
20-Apr-2021
Completion Date
14-Apr-2025
Ref Project
SIST EN 15977:2011 - Rubber or plastic coated fabrics - Mechanical properties - Determination of the elongation under load and the residual deformation

Relations

Revised
prEN ISO 18636 - Rubber or plastic coated fabrics - Mechanical properties - Determination of the elongation under load and the residual deformation (ISO/DIS 18636:2025)
Effective Date
14-Apr-2025

Overview

EN 15977:2011 is a CEN European standard describing a reproducible test method for assessing the mechanical properties of rubber- or plastic-coated fabrics, specifically the determination of elongation under load and residual deformation. The standard defines specimen preparation, required apparatus, loading regimes, optional heat ageing, calculation methods and required test report information for coated textiles used in different end-uses.

Key Topics and requirements

  • Scope: Method for measuring elongation under load and residual deformation of coated fabrics (rubber or plastic coated).
  • Specimen preparation:
    • Test three strips of (50 ± 1) mm width in each principal direction (e.g., warp/weft).
    • Strip length: at least 200 mm or 300–400 mm depending on test parameters.
    • Mark two perpendicular lines at (100 ± 1) mm or (200 ± 1) mm apart (Table 1).
  • Apparatus:
    • Calibrated ruler (0.5 mm gradations) or calliper (0.1 mm resolution).
    • Manual loading device with non-damaging steel jaws; loads applied by calibrated masses.
    • Hot air oven (for optional heat exposure) per EN 12280-1.
  • Test procedure:
    • Condition tests in atmosphere B per EN ISO 2231.
    • Place specimen so each mark sits 50 mm from its clamp.
    • Apply specified load for the specified duration, measure length under load, then allow relaxation and measure residual length.
    • Choose measurement resolution such that device resolution is ~1/10 of the expected elongation measurement.
  • Typical test parameters (Table 1):
    • For architectural coated fabrics: mark distance 200 mm, load (10.00 ± 0.01) daN, load time 24 h ± 30 min, relaxation 2 h ± 5 min.
    • For upholstery-type coated fabrics: mark distance 100 mm, load (5.00 ± 0.01) daN, load time 30 ± 3 min, relaxation 30 ± 3 min.
  • Optional heat ageing: 24 h at (80 ± 2) °C in hot air oven (EN 12280-1) with 2 h stabilization before testing.
  • Calculations:
    • Elongation under load = ((length under load − initial length) / initial length) × 100 (%).
    • Residual deformation = ((residual length after relaxation − initial length) / initial length) × 100 (%).
  • Test report must cite EN 15977, test date, specimen ID, ageing status, parameters, individual and mean results, and any deviations.

Applications and users

EN 15977 is used by:

  • Coated fabric manufacturers and R&D teams for product development and quality control.
  • Independent testing laboratories performing mechanical property verification.
  • Specifiers, architects and procurement professionals assessing coated textiles for architectural membranes, awnings, upholstery, tarpaulins and technical textile applications.
  • Compliance and certification bodies referencing standardized test results.

Keywords: EN 15977, coated fabrics testing, elongation under load, residual deformation, rubber-coated fabrics, plastic-coated fabrics, mechanical properties.

Related standards

  • EN 12280-1:1997 - accelerated heat ageing (referenced for optional oven treatment)
  • EN ISO 2231 - standard atmospheres for conditioning and testing
  • EN 15619 (normative background - Annex C)

Frequently Asked Questions

EN 15977:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Rubber or plastic coated fabrics - Mechanical properties - Determination of the elongation under load and the residual deformation". This standard covers: This European standard describes the method of determination of the elongation under load and the residual deformation of coated fabrics.

This European standard describes the method of determination of the elongation under load and the residual deformation of coated fabrics.

EN 15977:2011 is classified under the following ICS (International Classification for Standards) categories: 59.080.40 - Coated fabrics. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 15977:2011 has the following relationships with other standards: It is inter standard links to prEN ISO 18636. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

You can purchase EN 15977:2011 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

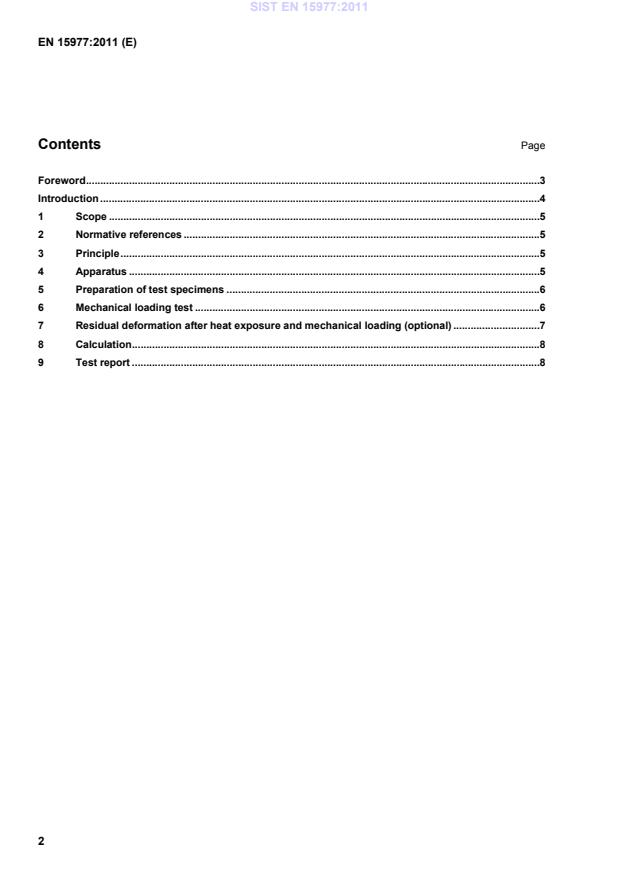

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Gumirane ali plastificirane tekstilije - Mehanske lastnosti - Ugotavljanje raztezka pri obremenitvi in rezidualne deformacijeMit Kautschuk oder Kunststoff beschichtete Textilien - Mechanische Eigenschaften - Bestimmung der Dehnung unter Last und der verbleibenden VerformungSupports textiles revêtus de caoutchouc ou de plastique - Propriétés mécaniques - Détermination de l'allongement sous charge et de la déformation résiduelleRubber or plastic coated fabrics - Mechanical properties - Determination of the elongation under load and the residual deformation59.080.40WHNVWLOLMHCoated fabricsICS:Ta slovenski standard je istoveten z:EN 15977:2011SIST EN 15977:2011en,fr,de01-november-2011SIST EN 15977:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15977
February 2011 ICS 59.080.40 English Version
Rubber or plastic coated fabrics - Mechanical properties - Determination of the elongation under load and the residual deformation
Supports textiles revêtus de caoutchouc ou de plastique - Propriétés mécaniques - Détermination de l'allongement sous charge et de la déformation résiduelle
Mit Kautschuk oder Kunststoff beschichtete Textilien - Mechanische Eigenschaften - Bestimmung der Dehnung unter Last und der verbleibenden Verformung This European Standard was approved by CEN on 8 January 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15977:2011: ESIST EN 15977:2011
...
