EN 144-1:2018
(Main)Respiratory protective devices - Gas cylinder valves - Part 1: Inlet connections
Respiratory protective devices - Gas cylinder valves - Part 1: Inlet connections
This document specifies the dimensions and tolerances as well as the impact resistance and marking requirements of inlet connections for connecting cylinder valves to gas cylinders for respiratory protective devices (RPD).
Atemschutzgeräte - Gasflaschenventile - Teil 1: Eingangsanschlüsse
Dieses Dokument legt die Maße und Toleranzen sowie die Anforderungen an die Schlagfestigkeit und die Kennzeichnung von Eingangsanschlüssen fest, die zum Anschluss von Flaschenventilen an Gasflaschen für Atemschutzgeräte verwendet werden.
Appareils de protection respiratoire - Robinets de bouteille à gaz - Partie 1: Raccordements d'entrée
Le présent document spécifie les exigences relatives aux dimensions, aux tolérances, au marquage et à la résistance au choc des raccordements d’entrée destinés à être utilisés dans les appareils de protection respiratoire (APR) pour le raccordement des robinets sur des bouteilles à gaz.
Oprema za varovanje dihal - Ventili za plinske jeklenke - 1. del: Dovodni priključki
Ta evropski standard določa mere in odstopanja ter odpornost proti udarcem in zahteve za označevanje dovodnih priključkov za priključevanje ventilov za jeklenke na plinske jeklenke za opremo za varovanje dihal (RPD).
General Information
- Status
- Published
- Publication Date
- 10-Apr-2018
- Withdrawal Date
- 30-Oct-2018
- Technical Committee
- CEN/TC 79 - Respiratory protective devices
- Drafting Committee
- CEN/TC 79/WG 6 - Self-contained breathing apparatus
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 02-Dec-2023
- Completion Date
- 02-Dec-2023
Relations
- Effective Date
- 18-Apr-2018
- Effective Date
- 04-Oct-2017
- Effective Date
- 04-Oct-2017
Overview
EN 144-1:2018 specifies the dimensional, mechanical and marking requirements for inlet connections used to join gas cylinder valves to cylinders for respiratory protective devices (RPDs). Prepared by CEN/TC 79, this Part 1 standard focuses on inlet connections to ensure safety, interchangeability and reliable performance under impact and pressure testing.
Key Topics
- Scope and purpose: Sets dimensions and tolerances, impact-resistance criteria and mandatory marking for inlet connections of cylinder valves used with RPDs.
- Approved thread types: Only parallel threads M18x1,5 or M25x2, or taper 17E are permitted for RPD inlet connections. M18x1,5 and M25x2 are the preferred options.
- Dimensional conformity: Parallel and taper threads shall meet the referenced specifications (EN ISO 15245-1 for parallel threads; EN ISO 11363-1 for 17E taper thread).
- Impact resistance: The connection material must withstand an impact energy of (120 ± 3) J. Two assembled valves (excluding actuating means) are tested; distortion of sealing elements is permissible, but cracking of the valve body is not.
- Post-impact tests: After impact, valves must pass a hydraulic pressure test (1.2 × working pressure) and an internal tightness test. Total permissible leakage is not to exceed 180 cm3/h, and the valve must remain operable for emergency venting by hand or simple tool.
- Marking: Valves conforming to EN 144-1 must be marked with the standard number (EN 144-1), manufacturer identification, date of manufacture (at least year) and thread identification (e.g., 18P, 25P or 17E).
Applications
EN 144-1:2018 directly applies to manufacturers, test laboratories, procurement teams and safety engineers involved with respiratory protective devices that use gas cylinders (e.g., supplied-air systems, escape sets). Practical benefits include:
- Safety: Defined impact and pressure tests reduce the risk of catastrophic failure under mechanical shock.
- Interchangeability: Standardized thread types and markings simplify compatibility checks between valves and cylinders across manufacturers.
- Regulatory compliance: Clear identification and testing procedures support conformity assessments and national adoption.
Related Standards
This Part 1 is one element of a three-part series on gas cylinder valve connections for RPDs:
- EN 144-2 - Outlet connections (see EN 144 series)
- EN 144-3 - Outlet connections for diving gases (Nitrox and oxygen)
Normative references cited in EN 144-1:2018 include:
- EN ISO 11363-1 (17E taper thread)
- EN ISO 15245-1 (parallel threads M18x1,5 and M25x2)
- EN ISO 13341 (fitting of valves to cylinders)
- EN ISO 10286 and ISO/TR 11364 (terminology and thread guidance)
For manufacturers and specifiers, EN 144-1:2018 provides a practical, test-driven framework for ensuring inlet connections on cylinder valves meet safety, compatibility and marking expectations for respiratory protective equipment.
Frequently Asked Questions
EN 144-1:2018 is a standard published by the European Committee for Standardization (CEN). Its full title is "Respiratory protective devices - Gas cylinder valves - Part 1: Inlet connections". This standard covers: This document specifies the dimensions and tolerances as well as the impact resistance and marking requirements of inlet connections for connecting cylinder valves to gas cylinders for respiratory protective devices (RPD).
This document specifies the dimensions and tolerances as well as the impact resistance and marking requirements of inlet connections for connecting cylinder valves to gas cylinders for respiratory protective devices (RPD).
EN 144-1:2018 is classified under the following ICS (International Classification for Standards) categories: 13.340.30 - Respiratory protective devices. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 144-1:2018 has the following relationships with other standards: It is inter standard links to EN 144-1:2000, EN 144-1:2000/A2:2005, EN 144-1:2000/A1:2003. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 144-1:2018 is associated with the following European legislation: EU Directives/Regulations: 2016/425, 89/686/EEC; Standardization Mandates: M/031. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 144-1:2018 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

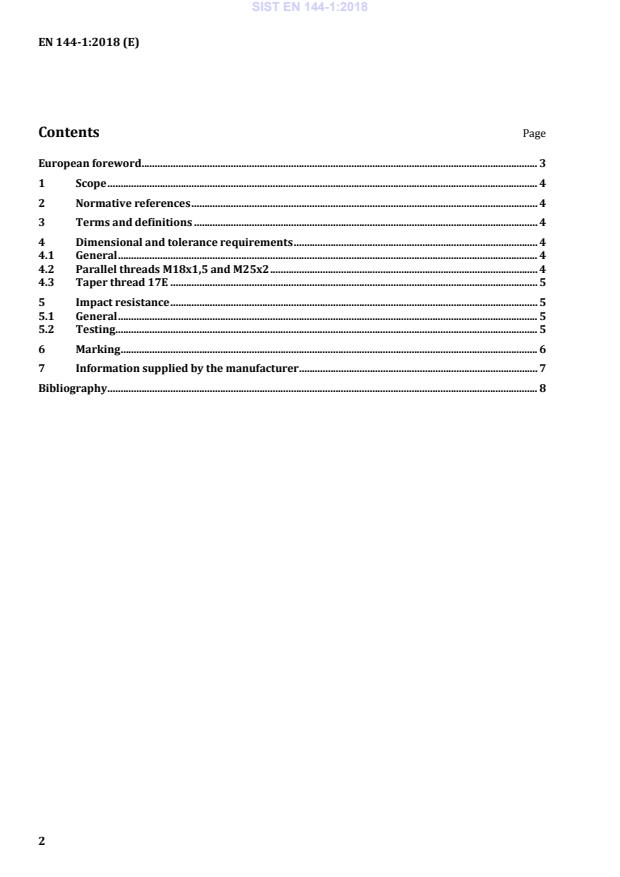

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Atemschutzgeräte - Gasflaschenventile - Teil 1: EingangsanschlüsseAppareils de protection respiratoire - Robinets de bouteille à gaz - Partie 1: Raccords d'entréeRespiratory protective devices - Gas cylinder valves - Part 1: Inlet connections13.340.30Varovalne dihalne napraveRespiratory protective devicesICS:Ta slovenski standard je istoveten z:EN 144-1:2018SIST EN 144-1:2018en,fr,de01-junij-2018SIST EN 144-1:2018SLOVENSKI
STANDARDSIST EN 144-1:2001/A2:2005SIST EN 144-1:2001/A1:2003SIST EN 144-1:20011DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 144-1
April
t r s z ICS
s uä u v rä u r Supersedes EN
s v væ sã t r r rEnglish Version
Respiratory protective devices æ Gas cylinder valves æ Part
sã Inlet connections Appareils de protection respiratoire æ Robinets de bouteille à gaz æ Partie
sã Raccordements d 5entrée
Atemschutzgeräte æ Gasflaschenventile æ Teil
sã Eingangsanschlüsse This European Standard was approved by CEN on
s { February
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v væ sã t r s z ESIST EN 144-1:2018
...
The EN 144-1:2018 standard is a crucial document in the realm of respiratory protective devices (RPD), specifically addressing the inlet connections of gas cylinder valves. Its comprehensive scope focuses on establishing the dimensions and tolerances necessary for effective and safe connections between cylinder valves and gas cylinders used in RPD systems. One of the significant strengths of this standard is its meticulous attention to impact resistance requirements, ensuring that the connections can withstand the physical stresses encountered in various environments, contributing to the overall safety and reliability of respiratory protective devices. Moreover, the clear marking requirements outlined in the standard enhance traceability and compliance, fostering improved manufacturing practices and user awareness regarding the specifications for gas cylinder valves. The relevance of EN 144-1:2018 cannot be overstated, as it directly impacts the performance and safety of respiratory protective devices. By ensuring standardization in the inlet connections, it aids manufacturers in producing components that meet international safety benchmarks, thus enhancing the overall efficacy of respiratory protection systems. This standard serves as an essential reference point for manufacturers, ensuring the integrity of gas cylinder valves and their compatibility with gas cylinders in critical respiratory applications.
Die Norm SIST EN 144-1:2018 legt umfassend die Maße und Toleranzen sowie die Anforderungen an die Schlagfestigkeit und Kennzeichnung für den Anschluss von Zylinderventilen an Gaskessel für Atemschutzgeräte fest. Das Hauptaugenmerk dieser Norm liegt auf der Gewährleistung einer sicheren und zuverlässigen Verbindung zwischen den Zylinderventilen und den Gasflaschen, was für die Funktionalität von Atemschutzgeräten von entscheidender Bedeutung ist. Eine der wichtigsten Stärken dieser Norm ist die Klarheit der Spezifikationen, die es Herstellern und Benutzern von Atemschutzgeräten ermöglicht, ein einheitliches Verständnis der Anforderungen zu entwickeln. Dadurch wird nicht nur die Qualität der Produkte verbessert, sondern auch die Sicherheit der Anwender gewährleistet. Zudem wird durch die standardisierten Maße und Toleranzen die Kompatibilität zwischen verschiedenen Herstellern gefördert. Die Relevanz der EN 144-1:2018 zeigt sich zudem in ihrer Bedeutung für die Einhaltung gesetzlicher Vorschriften und Normen, die in vielen Industrien, insbesondere in der Chemie- und Bauindustrie, von höchster Wichtigkeit sind. Vor dem Hintergrund steigender Anforderungen an die Sicherheit und Effizienz von Atemschutzsystemen wird deutlich, dass diese Norm einen wesentlichen Beitrag zur Risikominderung und zur Gefahrenabwehr leistet. Insgesamt stellt die SIST EN 144-1:2018 eine fundierte Grundlage für die Entwicklung, Herstellung und Prüfung von Zylinderventilen dar und trägt damit maßgeblich zur Verbesserung der Qualitätssicherung in der Branche der Atemschutzgeräte bei. Die Einhaltung dieser Norm fördert nicht nur die Sicherheitskultur, sondern unterstützt auch die Innovationskraft innerhalb des Sektors, indem sie Herstellern hilft, termingerechte und marktfähige Produkte zu entwickeln.
La norme SIST EN 144-1:2018 est un document fondamental pour la sécurité et l'efficacité des dispositifs de protection respiratoire, notamment en ce qui concerne les vannes de cylindres de gaz. Son domaine d'application se concentre sur les exigences relatives aux connexions d'entrée des vannes, ce qui est essentiel pour garantir une connexion fiable et sécurisée entre les vannes et les cylindres de gaz. L'un des principaux atouts de cette norme réside dans la précision des dimensions et des tolérances qu'elle spécifie. Cela permet d'assurer l'interopérabilité des composants, un aspect critique dans le cadre de l'utilisation des dispositifs de protection respiratoire. Par ailleurs, la norme précise les exigences en matière de résistance aux impacts, garantissant ainsi que ces connexions peuvent résister à des conditions d'utilisation rigoureuses sans compromettre la sécurité des utilisateurs. En outre, les exigences de marquage incluses dans la norme renforcent la traçabilité et la conformité des équipements. Cela permet aux fabricants de s'assurer que leurs produits respectent les standards de sécurité, tout en facilitant l'identification des composants par les utilisateurs finaux. La norme SIST EN 144-1:2018 est particulièrement pertinente dans le contexte actuel où la sécurité au travail et la protection des employés sont primordiales. L'alignement sur cette norme permet aux entreprises de se conformer aux réglementations en matière de santé et de sécurité, tout en améliorant la confiance des utilisateurs dans les équipements de protection fournis. En résumé, la norme EN 144-1:2018 constitue un référence incontournable pour les fabricants et utilisateurs de dispositifs de protection respiratoire, soulignant l'importance de la fiabilité des connexions d'entrée des vannes de cylindres de gaz.
SIST EN 144-1:2018 표준은 호흡 보호 장치(RPD)에 연결하기 위한 가스 실린더 밸브의 입구 연결에 관한 명확한 규정을 제공하고 있습니다. 이 표준은 입구 연결의 치수 및 허용 오차를 정의하고, 충격 저항 및 마킹 요구 사항을 규명함으로써, 가스 실린더와 연결되는 밸브의 안전성과 일관성을 보장합니다. 주요 강점은 고도의 정확성과 품질 보증을 위해 필요한 모든 치수와 기술적 요구 사항을 상세히 제시한다는 점입니다. 이를 통해 제조업체는 제품 설계 및 생산 과정에서 일관성을 유지할 수 있으며, 최종 사용자에게는 보다 안전한 호흡 보호 장치를 제공할 수 있습니다. 또한, 표준은 다양한 응용 분야에서 호흡 보호 장치와 가스 실린더 간의 호환성을 보장하여 산업 환경에서의 실질적인 적용 가능성을 증대시킵니다. 이번 표준의 적합성은 특히 화학 산업, 소방 및 구조 작업 등 다양한 산업 분야에서 중요한 역할을 합니다. 이러한 표준은 각종 장치의 설계와 생산에 있어 고객의 요구를 충족시키고, 법규 준수를 보장하는 데에도 큰 기여를 합니다. EN 144-1:2018 표준은 호흡 보호 장치와 관련된 안전 기준을 명확히 함으로써, 사용자에게 필수적인 안전성을 제공하는 중요한 문서입니다.
標準EN 144-1:2018は、呼吸用保護具（RPD）用のガスシリンダーバルブに関する重要な基準を提供しています。この文書は、ガスシリンダーに接続されるシリンダーバルブのための入口接続の寸法や公差、衝撃耐性、マーキング要件を明確に規定しています。 この標準の強みは、その具体的な技術的要件にあります。特に、接続部分の寸法が厳密に定義されているため、異なる製造業者でも相互互換性が確保され、使用時の安全性が向上します。また、衝撃耐性の要件が含まれていることにより、事故や環境要因による破損のリスクが低減され、使用者の安全がより保証されます。 さらに、この標準は国際的にも広く適用されるため、グローバルな市場での信頼性が高まります。呼吸用保護具の使用が求められる様々な業界において、標準EN 144-1:2018は、効果的なリスク管理と安全性の向上に貢献しています。このことにより、ユーザーは安心して呼吸用保護具を使用できる環境が整います。 全体的に見ると、EN 144-1:2018の標準は、呼吸用保護具に不可欠なガスシリンダーバルブの入口接続に関連する基準として、非常に重要であり、その技術的焼き入れと安全性への配慮が際立っています。
