EN 14179-1:2005
(Main)Glass in building - Heat soaked thermally toughened soda lime silicate safety glass - Part 1: Definition and description
Glass in building - Heat soaked thermally toughened soda lime silicate safety glass - Part 1: Definition and description
This European Standard specifies the heat soak process system together with tolerances flatness, edgework, fragmentation and physical and mechanical characteristics of monolithic flat heat soaked thermally toughened soda lime silicate safety glass for use in buildings.
Information on curved heat soak thermally toughened soda lime silicate safety glass is given in Annex B, but this product does not form part of this European Standard.
Other requirements, not specified in this European Standard, can apply to heat soaked thermally toughened soda lime silicate safety glass which is incorporated into assemblies, e.g. laminated glass or insulating units, or undergo an additional treatment, e.g. coating. The additional requirements are specified in the appropriate product standard. Heat soak thermally toughened soda lime silicate safety glass, in this case, does not lose its mechanical or thermal characteristics.
Glas im Bauwesen - Heißgelagertes thermisch vorgespanntes Kalknatron-Einscheibensicherheitsglas - Teil 1: Definition und Beschreibung
Diese Europäische Norm legt das Heißlagerungsprozess-System sowie die Toleranzen, Geradheit, Kantenbearbei-tung,
das Bruchverhalten und physikalische und mechanische Eigenschaften von einscheibigem, flachem heißge-lagertem
thermisch vorgespanntem Kalknatron-Einscheibensicherheitsglas für die Verwendung im Bauwesen fest.
Anhang B enthält Angaben zu gebogenem heißgelagertem thermisch vorgespanntem Kalknatron-Einscheiben-sicherheitsglas,
dieses Produkt ist aber nicht Bestandteil dieser Europäischen Norm.
An heißgelagerte thermisch vorgespannte Kalknatron-Einscheibensicherheitsgläser können andere Anforderun-gen,
die in dieser Europäischen Norm nicht beschrieben sind, gestellt werden, wenn sie Bestandteil von Kombina-tionen
sind, wie z. B. Verbundglas oder Isolierglas, sind oder wenn sie weiterverarbeitet, z. B. beschichtet werden.
Die zusätzlichen Anforderungen sind in den für die Fertigprodukte zutreffenden Normen festgelegt. In diesem Fall
wird heißgelagertes thermisch vorgespanntes Kalknatron-Einscheibensicherheitsglas seine mechanischen
und/oder thermischen Eigenschaften nicht verlieren.
Verre dans la construction - Verre de silicate sodo-calcique de sécurité trempé et traité Heat Soak - Partie 1: Définition et description
Le présent document spécifie le système fonctionnel de stabilisation thermique ainsi que les tolérances, la planéité, la finition des chants, la fragmentation et les caractéristiques physiques et mécaniques du verre plat monolithique de silicate sodo-calcique de sécurité trempé thermiquement et traité Heat Soak dans la construction.
L'Annexe B fournit des informations relatives au verre bombé de silicate sodo-calcique de sécurité trempé thermiquement et traité Heat Soak, mais ce produit ne fait pas partie du présent document.
D'autres exigences, non spécifiées dans le présent document, peuvent s'appliquer au verre de silicate sodo calcique de sécurité trempé thermiquement et traité Heat Soak intégré dans des ensembles, par exemple du verre feuilleté ou des ensembles isolants préfabriqués scellés ou qui subit un traitement supplémentaire, par exemple une couche. Les exigences additionnelles sont spécifiées dans la norme de produit correspondante. Dans ce cas, le verre de silicate sodo-calcique de sécurité trempé thermiquement et traité Heat Soak ne perd pas ses caractéristiques mécaniques ou thermiques.
Steklo v gradbeništvu – HS-preskus kaljenega natrijevega-kalcijevega-silikatnega varnostnega stekla – 1. del: Definicije in opis
General Information
- Status
- Withdrawn
- Publication Date
- 21-Jun-2005
- Withdrawal Date
- 13-Apr-2025
- Technical Committee
- CEN/TC 129 - Glass in building
- Drafting Committee
- CEN/TC 129/WG 2 - Toughened, heat strengthened and enamelled glass
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 27-Jul-2016
- Completion Date
- 14-Apr-2025
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 03-Aug-2016
Frequently Asked Questions
EN 14179-1:2005 is a standard published by the European Committee for Standardization (CEN). Its full title is "Glass in building - Heat soaked thermally toughened soda lime silicate safety glass - Part 1: Definition and description". This standard covers: This European Standard specifies the heat soak process system together with tolerances flatness, edgework, fragmentation and physical and mechanical characteristics of monolithic flat heat soaked thermally toughened soda lime silicate safety glass for use in buildings. Information on curved heat soak thermally toughened soda lime silicate safety glass is given in Annex B, but this product does not form part of this European Standard. Other requirements, not specified in this European Standard, can apply to heat soaked thermally toughened soda lime silicate safety glass which is incorporated into assemblies, e.g. laminated glass or insulating units, or undergo an additional treatment, e.g. coating. The additional requirements are specified in the appropriate product standard. Heat soak thermally toughened soda lime silicate safety glass, in this case, does not lose its mechanical or thermal characteristics.
This European Standard specifies the heat soak process system together with tolerances flatness, edgework, fragmentation and physical and mechanical characteristics of monolithic flat heat soaked thermally toughened soda lime silicate safety glass for use in buildings. Information on curved heat soak thermally toughened soda lime silicate safety glass is given in Annex B, but this product does not form part of this European Standard. Other requirements, not specified in this European Standard, can apply to heat soaked thermally toughened soda lime silicate safety glass which is incorporated into assemblies, e.g. laminated glass or insulating units, or undergo an additional treatment, e.g. coating. The additional requirements are specified in the appropriate product standard. Heat soak thermally toughened soda lime silicate safety glass, in this case, does not lose its mechanical or thermal characteristics.
EN 14179-1:2005 is classified under the following ICS (International Classification for Standards) categories: 81.040.20 - Glass in building. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14179-1:2005 has the following relationships with other standards: It is inter standard links to EN 14179-1:2016. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14179-1:2005 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/135. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 14179-1:2005 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2005
Steklo v gradbeništvu – HS-preskus kaljenega natrijevega-kalcijevega-silikatnega
varnostnega stekla – 1. del: Definicije in opis
Glass in building - Heat soaked thermally toughened soda lime silicate safety glass - Part
1: Definition and description
Glas im Bauwesen - Heißgelagertes thermisch vorgespanntes Kalknatron-
Einscheibensicherheitsglas - Teil 1: Definition und Beschreibung
Verre dans la construction - Verre de silicate sodo-calcique de sécurité trempé et traité
Heat Soak - Partie 1: Définition et description
Ta slovenski standard je istoveten z: EN 14179-1:2005
ICS:
81.040.20 Steklo v gradbeništvu Glass in building
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 14179-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2005
ICS 81.040.20
English version
Glass in building - Heat soaked thermally toughened soda lime
silicate safety glass - Part 1: Definition and description
Verre dans la construction - Verre de silicate sodo-calcique Glas im Bauwesen - Heißgelagertes thermisch
de sécurité trempé et traité Heat Soak - Partie 1: Définition vorgespanntes Kalknatron-Einscheibensicherheitsglas -
et description Teil 1: Definition und Beschreibung
This European Standard was approved by CEN on 19 May 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14179-1:2005: E
worldwide for CEN national Members.

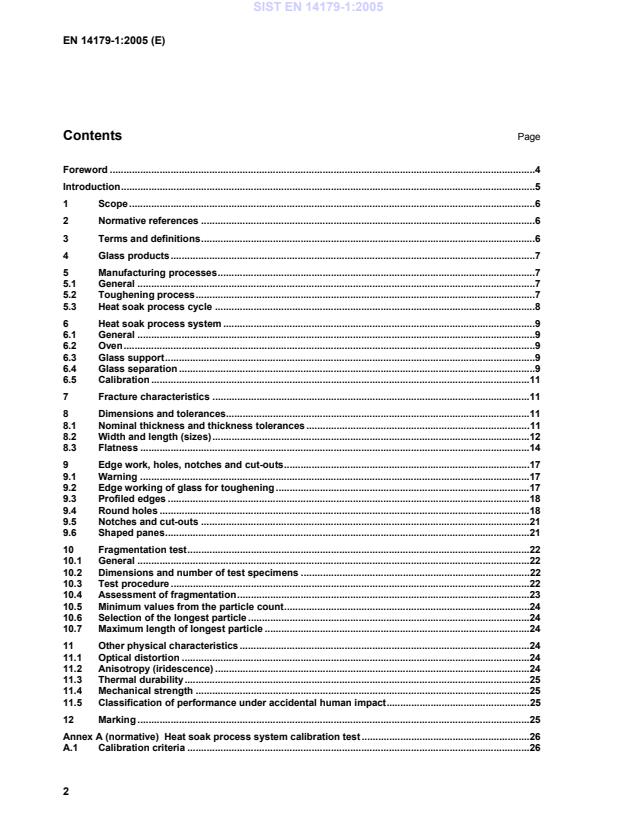

Contents Page
Foreword .4
Introduction.5
1 Scope .6
2 Normative references .6
3 Terms and definitions.6
4 Glass products.7
5 Manufacturing processes.7
5.1 General .7
5.2 Toughening process.7
5.3 Heat soak process cycle .8
6 Heat soak process system .9
6.1 General .9
6.2 Oven.9
6.3 Glass support.9
6.4 Glass separation .9
6.5 Calibration .11
7 Fracture characteristics .11
8 Dimensions and tolerances.11
8.1 Nominal thickness and thickness tolerances.11
8.2 Width and length (sizes).12
8.3 Flatness .14
9 Edge work, holes, notches and cut-outs.17
9.1 Warning .17
9.2 Edge working of glass for toughening .17
9.3 Profiled edges .18
9.4 Round holes .18
9.5 Notches and cut-outs .21
9.6 Shaped panes.21
10 Fragmentation test.22
10.1 General .22
10.2 Dimensions and number of test specimens .22
10.3 Test procedure .22
10.4 Assessment of fragmentation.23
10.5 Minimum values from the particle count.24
10.6 Selection of the longest particle .24
10.7 Maximum length of longest particle .24
11 Other physical characteristics .24
11.1 Optical distortion .24
11.2 Anisotropy (iridescence) .24
11.3 Thermal durability.25
11.4 Mechanical strength .25
11.5 Classification of performance under accidental human impact.25
12 Marking .25
Annex A (normative) Heat soak process system calibration test .26
A.1 Calibration criteria .26
A.2 Loading of oven and position for glass surface temperature measurement .26
A.3 Procedure .27
A.4 Records .27
A.5 Interpretation of the calibration test.28
Annex B (informative) Curved heat soaked thermally toughened soda lime silicate safety glass .37
Annex C (informative) Examples of particle count .38
Foreword
This European Standard (EN 14179-1:2005) has been prepared by Technical Committee CEN/TC 129 “Glass
in building”, the secretariat of which is held by IBN/BIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by December 2005, and conflicting national standards shall be withdrawn
at the latest by December 2005.
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association.
This Part of the European Standard does not stand-alone, it is a part of one standard:
EN 14179-1: Glass in building – Heat soaked thermally toughened soda lime silicate safety glass –
Part 1: Definition and description;
EN 14179-2: Glass in building – Heat soaked thermally toughened soda lime silicate safety glass –
Part 2: Evaluation of conformity/Product standard.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland
and United Kingdom.
Introduction
Heat soaked thermally toughened soda lime silicate safety glass has a safer breakage behaviour when
compared with annealed glass. It also has a known level of residual risk of spontaneous breakage arising from
the possible presence of critical nickel sulphide (NiS) inclusions in the thermally toughened soda lime silicate
glass.
NOTE 1 This case deals with extremely large quantities of glass. These quantities are dealt with on a statistical basis.
Therefore it is impossible to select a quantity of heat soaked thermally toughened soda lime silicate safety glass, for a
building, and claim that ‘no break’ by NiS inclusion can occur. The breakage of heat soaked thermally toughened soda
lime silicate safety glass caused by other influences is excluded.[sl1]
When used to offer protection under accidental human impact, heat soaked thermally toughened soda lime
silicate safety glass also should be classified according to EN 12600 (all parts).
NOTE 2 CEN/TC 129/WG 8 is producing standards for the determination of the design strength of glass and is
preparing a design method.
The European Committee for Standardization (CEN) draws attention to the fact that it is claimed that
compliance with this document may involve the use of a patent concerning Heat Soak Tests. CEN takes no
position concerning the evidence, validity and scope of this patent right. The holder of this patent right has
assured CEN that he/she is willing to negotiate licences under reasonable and non-discriminatory terms and
conditions with applicants throughout the world. In this respect, the statement of the holder of this patent right
is registered with CEN. Information may be obtained from:
SAINT-GOBAIN GLASS FRANCE
Les Miroirs – 92096 La Défense Cedex
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights other than those identified above. CEN shall not be held responsible for identifying any or all such
patent rights.
1 Scope
This European Standard specifies the heat soak process system together with tolerances flatness, edgework,
fragmentation and physical and mechanical characteristics of monolithic flat heat soaked thermally toughened
soda lime silicate safety glass for use in buildings.
Information on curved heat soak thermally toughened soda lime silicate safety glass is given in Annex B, but
this product does not form part of this European Standard.
Other requirements, not specified in this European Standard, can apply to heat soaked thermally toughened
soda lime silicate safety glass which is incorporated into assemblies, e.g. laminated glass or insulating units,
or undergo an additional treatment, e.g. coating. The additional requirements are specified in the appropriate
product standard. Heat soak thermally toughened soda lime silicate safety glass, in this case, does not lose its
mechanical or thermal characteristics.
2 Normative references
The following referenced documents are indispensable for the application of this European Standard. For
dated references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 572-1, Glass in building — Basic soda lime silicate glass products — Part 1: Definitions and general
physical and mechanical properties
EN 572-2, Glass in building — Basic soda lime silicate glass products — Pall 2: Float glass
EN 572-4, Glass in building — Basic soda lime silicate glass products — Part 4: Drawn sheet glass
EN 572-5, Glass in building — Basic soda lime silicate glass products — Part 5: Patterned glass
EN 1096-1, Glass in building — Coated glass — Part 1: Definitions and classification
3 Terms and definitions
For the purposes of this European Standard, the following terms and definitions apply.
3.1
heat soaked thermally toughened soda lime silicate safety glass
glass within which a permanent surface compressive stress has been induced in order to give it greatly
increased resistance to mechanical and thermal stress and prescribed fragmentation characteristics and
which has a known level of residual risk of spontaneous breakage due to the presence of critical nickel
sulphide (NiS) inclusions
3.2
level of residual risk
risk of spontaneous breakage of heat soaked thermally toughened soda lime silicate safety glass, on a
statistical basis, due to the presence of critical nickel sulphide inclusions, is no more than one breakage per
400 tonnes of heat soaked thermally toughened soda lime silicate safety glass
3.3
flat heat soaked thermally toughened soda lime silicate safety glass
heat soaked thermally toughened soda lime silicate safety glass that has not been deliberately given a specific
profile during manufacture
3.4
heat soaked enamelled thermally toughened soda lime silicate safety glass
heat soaked thermally toughened soda lime silicate safety glass which has a ceramic frit fired into the surface
during the toughening process. After toughening the ceramic frit becomes an integral part of the glass
NOTE In the UK, this glass is also known as heat soaked opaque thermally toughened soda lime silicate safety glass.
3.5
horizontal toughening
process in which the glass is supported on horizontal rollers
3.6
vertical toughening
process in which the glass is suspended by tongs
4 Glass products
Heat soaked thermally toughened soda lime silicate safety glass shall be made from a monolithic soda lime
silicate glass product generally corresponding to one of the following standards:
soda lime silicate glass according to EN 572-1;
float glass according to EN 572-2;
drawn sheet glass according to EN 572-4;
patterned glass according to EN 572-5;
coated glass according to EN 1096-1.
5 Manufacturing processes
5.1 General
Heat soaked thermally toughened soda time silicate safety glass is manufactured as follows:
Basic soda lime silicate glass products (see Clause 4) are cut to size, shaped and edgeworked (see Clause 9).
The prepared glass panes are then thermally toughened (see 5.2).
The thermally toughened panes are then subjected to the heat soak process cycle.
After manufacture the heat soaked thermally toughened soda lime silicate glass shall comply with the
fragmentation test (see Clause 10) and mechanical strength requirement (see 11.4).
5.2 Toughening process
The cut, shaped and edgeworked glasses are toughened. The horizontal or vertical toughened glass shall
comply with the flatness criteria (see 8.3).
The thermally toughened soda lime silicate glass shall have a level of fragmentation that will ensure that after
the glass has been through the heat soak process, and subsequently tested to the fragmentation test (see
Clause 10), it shall comply with 10.5.
5.3 Heat soak process cycle
5.3.1 General
The heat soak process cycle consists of a heating phase, a holding phase and a cooling phase (see Figure 1).
Key
T glass temperature at any point, °C d ambient temperature
t time, h
a heating phase
1 first glass to reach 280 °C b holding phase
2 last glass to reach 280 °C c cooling phase
Figure 1 — Heat soak process cycle
5.3.2 Heating phase
The heating phase commences with all the glasses at ambient temperature and concludes when the surface
temperature of the last glass reaches 280 °C. The time to reach this temperature is defined in the calibration
process. This time will be dependent on the size of the oven, the amount of glass to be treated, the separation
between glasses and the heating system capacity.
NOTE 1 The glass separation and rate of heating should be controlled to minimise the risk of glass breakage as a
result of thermal stress.
To facilitate economic heating, the air temperature within the oven may exceed 320 °C. However, the glass
surface temperature shall not be allowed to exceed 320 °C. The period of glass surface temperature in excess
of 300 °C shall be minimised.
NOTE 2 When the temperature of the glass exceeds 300 °C, care should be taken to ensure that the properties of the
heat soaked thermally toughened soda lime silicate safety glass are not significantly altered i.e. they continue to meet
Clause 10.
5.3.3 Holding phase
The holding phase commences when the surface temperature of all the glasses has reached a temperature of
280 °C. The duration of the holding phase is 2 h.
Precise oven control is necessary in order to ensure that the glass surface temperature shall be maintained in
the range of 290 °C ± 10 °C during the holding phase.
5.3.4 Cooling phase
The cooling phase commences when the last glass to reach 280 °C has completed its holding phase, i.e.
been held for two hours at 290 °C ± 10 °C. During this phase the glass temperature shall be brought down to
ambient temperature.
The cooling phase can be concluded when the air temperature in the oven reaches 70 °C.
NOTE The rate of cooling should be controlled to minimise the risk of glass breakage as a result of thermal stress.
6 Heat soak process system
6.1 General
The heat soak process system consists of:
oven (see 6.2);
glass support (see 6.3);
separation system (see 6.4).
The oven shall be calibrated, see 6.5 and Annex A, and this determines the method of operation of the heat
soak process system during manufacture of heat soaked thermally toughened soda lime silicate safety glass.
6.2 Oven
The oven shall be heated by convection and shall allow an unhindered air circulation around each glass pane.
In the event of glass breakage the airflow shall not be hindered. The airflow in the oven shall be led parallel to
the glass surfaces.
NOTE The openings for the air ingress/egress should be designed to ensure that fragments of broken glass do not
cause blockages.
6.3 Glass support
Glasses may be supported vertically or horizontally. The glasses shall not be fixed or clamped, they have to
be supported to allow free movement.
NOTE Vertically means true vertical or up to 15° either side of true vertical.
The distance between glasses affects the airflow, heat exchange and the heating time. Glass to glass contact
shall not be allowed.
6.4 Glass separation
The glasses shall be separated in a manner that does not hinder the airflow. The separators shall also not
hinder the airflow e.g. see Figure 2.
Dimensions in millimetres
Figure 2 — Example of a vertical glass support
The minimum separation of the glasses shall be determined during the calibration of the oven, see 6.5 and
Annex A.
NOTE 1 Generally, a minimum separation of 20 mm is recommended (see Figure 3).
NOTE 2 If glasses of very different size are put on the same stillage, they will require greater separation in order to
prevent glass breakage when the furnace is opened alter the heat soak process. The same applies to glasses with holes,
notches and cut-outs.
Figure 3 — Recommend separation between glass
The positioning of the separators, material of the manufacture and their shape shall be specified during the
calibration test of the oven and shall be reproduced during the manufacturing process.
6.5 Calibration
The heat soak system, e.g. oven, glass separation, separators, etc., shall be calibrated, see Annex A.
The calibration shall determine the heating phase of the process, glass separation distance, the positioning,
material and shape of separators, the type and positioning of stillage(s) and define the operating conditions for
use during manufacture.
7 Fracture characteristics
In the event of breakage, heat soaked thermally toughened soda lime silicate safety glass fractures into
numerous small pieces, the edges of which are generally blunt.
NOTE Fragmentation in service does not always correspond to that described in Clause 10, due to restraint from
fixing or reprocessing (e.g. laminating), or due to the cause of fracture.
8 Dimensions and tolerances
8.1 Nominal thickness and thickness tolerances
The nominal thicknesses and thickness tolerances are those given in the relevant product standard (see
Clause 4), some of which are reproduced in Table 1.
Table 1 — Nominal thicknesses and thickness tolerances
Dimensions in millimetres
Thickness tolerances for glass type
Nominal thickness
d
Drawn sheet Patterned Float
±0,2
±0,2
±0,5
±0,2
±0,2
±0,5
±0,2
5 ±0,3 ±0,5
6 ±0,2
±0,3 ±0,5
8 ±0,3
±0,4 ±0,8
±0,3
±0,5 ±1,0
±0,3
±0,6 not manufactured
not manufactured ±0,5
not manufactured
not manufactured not manufactured
±1,0
not manufactured
not manufactured
±1,0
The thickness of a pane shall be determined as for the basic product. The measurement shall be taken at the
centres of the 4 sides, and away from the area of any tong marks (see Figure 6), which may be present.
8.2 Width and length (sizes)
8.2.1 General
When heat soaked thermally toughened soda lime silicate safety glass dimensions are quoted for rectangular
panes, the first dimension shall be the width, B, and the second dimension the length, H, as shown in
Figure 4. It shall be made clear which dimension is the width, B, and which is the length, H, when related to its
installed position.
Figure 4 — Examples of width, B, and length, H, relative to the pane shape
NOTE For heat soaked thermally toughened soda lime silicate safety glass manufactured from patterned glass, the
direction of the pattern should be specified relative to one of the dimensions.
8.2.2 Maximum and minimum sizes
For maximum and minimum sizes, the manufacturer shall be consulted.
8.2.3 Tolerances and squareness
The nominal dimensions for width and length being given, the finished pane shall not be larger than a
prescribed rectangle resulting from the nominal dimensions increased by the tolerance, t, or smaller than a
prescribed rectangle reduced by the tolerance, t. The sides of the prescribed rectangles are parallel to one
another and these rectangles shall have a common centre (see Figure 5). The limits of squareness shall be
determined by the prescribed rectangles. Tolerances are given in Table 2.
Figure 5 — Tolerance limits for dimensions of rectangular panes
Table 2 — Tolerances on width, B, and length, H
Dimensions in millimetres
Tolerance, t
Nominal dimension of side,
nominal glass thickness, nominal glass thickness,
B or H
d ≤≤≤≤ 12 d > 12
≤2 000 ±2,5 (horizontal toughening) ±3,0
±3,0 (vertical toughening)
2 000 < B or H ≤ 3 000 ±3,0 ±4,0
>3 000
±4,0 ±5,0
8.2.4 Edge deformation produced by vertical toughening
The tongs used to suspend the glass during toughening can result in surface depressions, known as tong
marks (see Figure 6). The centres of the tong marks may be situated up to a maximum of 20 mm in from the
edge. A deformation of the edge less than 2 mm can be produced in the region of the tong mark and there can
also be an area of optical distortion. These deformations shall be included in the tolerances in Table 2.
Key
1 deformation
2 up to 20 mm
3 tong mark
4 100 mm radius maximum area of optical distortion
Figure 6 — Tong mark deformation
8.3 Flatness
8.3.1 General
By the very nature of the toughening process, it is not possible to obtain a product as flat as annealed glass.
The difference depends on the nominal thickness, the dimensions and the ratio between the dimensions.
Therefore a distortion known as overall bow may occur. There are two kinds of bow (see Figure 7):
overall or general bow;
local bow.
NOTE 1 Overall bow can, in general, be accommodated by the framing system.
NOTE 2 Local bow needs to be allowed for in the glazing materials and the weather seals. For special requirements
the manufacturers should be consulted.
8.3.2 Measurement of o
...
The EN 14179-1:2005 standard provides a comprehensive framework for the heat soak process system specifically tailored to monolithic flat heat soaked thermally toughened soda lime silicate safety glass used in building applications. The scope of this standard is well-defined, encompassing critical parameters such as tolerances for flatness, edgework, fragmentation, as well as detailing the physical and mechanical characteristics essential for ensuring safety and performance in construction. One of the significant strengths of EN 14179-1:2005 lies in its rigorous specification of the heat soak process, which enhances the safety and durability of thermally toughened glass. By clearly outlining the requirements and tolerances, the standard facilitates a consistent approach to quality assurance in the manufacturing process. This is particularly important for ensuring that the safety glass meets the necessary safety regulations and provides adequate protection in a building environment. Additionally, the relevance of this standard extends beyond just the product itself; it serves as a foundational document for manufacturers looking to integrate heat soaked thermally toughened soda lime silicate safety glass into complex assemblies, such as laminated glass or insulating units. The acknowledgment of the possibility for additional treatments and the reference to relevant product standards further underscores its adaptability in various applications. While the document includes information on curved heat soak thermally toughened soda lime silicate safety glass in Annex B, it clearly delineates that this product is not included within the core specification. This precision helps in avoiding ambiguities and maintains focus on the primary subject of the standard. In summary, the EN 14179-1:2005 standard offers a detailed and relevant guideline for the specification and quality of heat soaked thermally toughened soda lime silicate safety glass for building applications, making it an essential resource for manufacturers and stakeholders in the construction industry.
Die Norm EN 14179-1:2005 definiert und beschreibt den Prozess zur Herstellung von wärmebehandeltem, thermisch vorgespanntem Sicherheitsglas aus Natron-Kalk-Silikat für den Einsatz im Bauwesen. Die umfangreiche Regelung berücksichtigt wesentliche Parameter wie die Toleranzen in Bezug auf Planheit, Kantenbearbeitung, Fragmentierung sowie die physikalischen und mechanischen Eigenschaften des Monoglas. Ein herausragendes Merkmal dieser Norm ist ihre spezifische Fokussierung auf die Wärmebehandlungsverfahren, die für eine signifikante Verbesserung der Sicherheit und der strukturellen Eigenschaften von Glasprodukten sorgen. Durch die Etablierung eines klaren Rahmenwerks wird sichergestellt, dass die thermisch vorgespannten Gläser eine hohe Qualität und Zuverlässigkeit aufweisen, was insbesondere für Bauanwendungen von großer Bedeutung ist. Des Weiteren ist die Norm besonders relevant, da sie die Möglichkeit eröffnet, zusätzliche Anforderungen zu berücksichtigen, die für wärmebehandeltes Glas, welches in Verbundsysteme integriert wird oder zusätzlichen Behandlungen unterzogen wird, gelten können. Dies gewährleistet eine optimale Anpassung an spezifische Projektanforderungen, ohne dabei die mechansichen und thermischen Eigenschaften des Glases zu beeinträchtigen. Somit bietet die EN 14179-1:2005 eine solide Grundlage für die Verwendung von wärmebehandeltem, thermisch vorgespanntem Natron-Kalk-Silikatsicherheitsglas, und fördert die Sicherheit und Leistungsfähigkeit in Bauprojekten erheblich.
La norme EN 14179-1:2005 est une référence essentielle dans le domaine du verre de construction, spécifiquement dédiée au verre de sécurité en silicate de soude et de chaux, trempé thermiquement et soumis à un processus d'imbibition thermique. Son champ d'application est clairement défini, spécifiant les aspects du processus d'imbibition thermique, ainsi que les tolérances de planéité, de travail des bords, de fragmentation, et les caractéristiques physiques et mécaniques du verre monolithique plat. Parmi les points forts de cette norme, on trouve tout d'abord la précision dans la définition des exigences liées au verre de sécurité. La norme fournit des critères détaillés qui garantissent non seulement la sécurité, mais aussi la durabilité et la fiabilité du produit utilisé dans les bâtiments. Cela est particulièrement pertinent pour les applications où la sécurité est primordiale. De plus, bien que la norme ne couvre pas les spécificités du verre courbé trempé thermiquement, elle fournit néanmoins des informations pertinentes dans l'Annexe B. Cela montre une approche complète de la norme, en reconnaissant la diversité des besoins en matière de vitrage tout en se concentrant sur son cœur de compétence. Un autre aspect important de la norme EN 14179-1:2005 est la clarté des exigences supplémentaires applicables au verre trempé, qui est intégré dans des assemblages comme le verre stratifié ou les unités isolantes. Cela offre aux fabricants et aux utilisateurs une meilleure compréhension des caractéristiques que doit avoir le verre dans des contextes plus complexes, sans compromettre ses propriétés mécaniques ou thermiques. Ainsi, la norme non seulement assure une standardisation essentielle pour le verre de sécurité dans la construction, mais elle établit également un cadre pour l'innovation et l'utilisation de verre thermiquement transformé dans des applications variées, tout en maintenant des standards de sécurité rigoureux. Cela la rend particulièrement pertinente dans le contexte actuel des constructions modernes, où la sécurité et la performance du matériau sont des considérations primordiales.
SIST EN 14179-1:2005 표준 문서는 건축 분야에서 사용되는 열처리된 소다 라임 실리케이트 안전유리에 대한 정의와 설명을 제공합니다. 이 표준의 주요 범위는 열처리 프로세스 시스템, 평탄도 허용 기준, 가장자리 가공, 파편화 및 물리적 및 기계적 특성을 규정하는 것입니다. 이러한 요소들은 건축물에서의 안전유리 사용 시 필수적으로 고려해야 할 사항입니다. SIST EN 14179-1:2005의 강점은 명확한 정의를 통해 산업 표준을 일관되게 유지할 수 있도록 한다는 점입니다. 이는 건축자재의 품질을 보장하고, 안전성을 높이며, 건축물의 내구성을 증대시키는데 기여합니다. 또한, 이 표준은 열처리된 안전유리의 물리적 및 기계적 특성을 명확히 규정하여, 설계 및 시공 시 활용될 수 있는 유용한 기준을 제공합니다. 본 표준의 관련성 또한 뚜렷합니다. 건축 관련 규정 및 품질 기준이 엄격해지는 추세 속에서, SIST EN 14179-1:2005는 안전유리에 대한 신뢰할 수 있는 기준을 제공하여, 건축업계에서의 광범위한 적용 가능성을 엿볼 수 있습니다. 특히, 열처리된 안전유리는 다양한 기후 조건에서의 안정성과 내구성이 요구되는 건축물에 필수적이므로, 이 표준은 특정 건축 프로젝트에 있어서 필수적인 참고자료로 자리 잡고 있습니다. Annex B에서 다루고 있는 곡면 유리와 같은 추가적인 정보는 이 표준의 주된 범위와는 별도로 제공되지만, 이는 열처리된 안전유리의 다양한 형태에 대한 이해를 넓혀주는 중요한 자료입니다. 총괄적으로 SIST EN 14179-1:2005는 안전유리의 품질 및 성능을 보장하는 데에 중요한 역할을 하며, 건축물의 안전성을 높이는 데 기여하는 유용한 기준으로 자리 잡고 있습니다.
EN 14179-1:2005は、熱処理されたソーダライムシリケート安全ガラスに関する欧州標準であり、その範囲と重要性は非常に広いです。この標準は、熱ソークプロセスのシステムを明確に定義し、平面性、エッジワーク、破片化、および物理的および機械的特性に関する許容範囲を規定しています。建物に使用される単体の熱処理されたソーダライムシリケート安全ガラスに焦点を当てており、明確なガイドラインを提供しています。 この標準の大きな強みは、建築における安全性の確保です。熱処理されたソーダライムシリケートガラスは、その特性によって物理的強度と熱的特性が保持されるため、厳しい環境でも信頼性を提供します。また、標準が詳細に述べる許容範囲により、製品の品質管理が一層強化されます。 さらに、付録Bでは曲面の熱処理されたガラスに関する情報も提供されていますが、これは標準には含まれないため、特定のニーズに応じた製品標準を参照する必要があります。また、異なる処理や層状ガラス、断熱ユニットへの組み込みに関しては、その標準で定義された追加要件が適用される可能性がありますが、EN 14179-1:2005が提供する基盤は、これらの要件にスムーズに適応できるよう設計されています。 この文書は、建設業界の専門家や設計者にとって、熱処理されたソーダライムシリケート安全ガラスを使用する上での信頼できるリファレンスです。そのため、EN 14179-1:2005は、すべての関連ステークホルダーにとって不可欠な標準となっており、確かな品質と安全性を追求する上での強力な指針となります。
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
