prEN 1504-3

Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 3: Structural and non-structural repair

Characteristics relevant to mechanical resistance and stability are: shrinkage, permeability to gases, capillarity absorption, diffusion of chloride ions, resistance to carbonation, thermal compatibility, adhesion. Characteristics relevant to safety in case of fire.

Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Definitionen, Anforderungen, Qualitätsüberwachung und AVCP - Teil 3: Instandsetzungsbeton und -mörtel

Dieses Dokument gilt für Instandsetzungsmörtel und -betone, die möglicherweise zusammen mit anderen Produkten und Systemen angewendet werden, um die Nutzungsdauer eines geschädigten Betontragwerks zu verlängern, indem der ursprüngliche bauliche Zustand wiederhergestellt oder fehlerhafter Beton ersetzt wird und Bewehrungen mit einem Schutz versehen werden.
Folgende Instandsetzungsverfahren werden in diesem Dokument behandelt:
-   Betonersatz durch Auftrag von Instandsetzungsmörteln von Hand;
-   Betonersatz durch Querschnittsergänzung durch Betonieren;
-   Betonersatz durch Mörtel- oder Betonauftrag durch Spritzverarbeitung;
-   Verstärkung des Betontragwerks durch Querschnittsergänzung durch Mörtel oder Beton;
-   Erhöhung des physikalischen Widerstandes durch Auftrag von zusätzlichen Mörtel- oder Betonschichten;
-   Erhöhung des Widerstands gegen Chemikalien durch Auftrag von zusätzlichen Mörtel- oder Betonschichten;
-   Wiederherstellung der Passivität durch Erhöhung der Betondeckung durch Mörtel- oder Betonauftrag;
-   Wiederherstellung der Passivität durch Ersatz der karbonatisierten Betondeckung durch Mörtel oder Beton.

Produits et systèmes pour la protection et la réparation des structures en béton - Définitions, exigences, maîtrise de la qualité et EVCP - Partie 3 : Béton et mortiers de réparation

Le présent document couvre les mortiers et bétons de réparation utilisés, le cas échéant, conjointement avec d’autres produits ou systèmes, afin de restaurer ou de remplacer un béton défectueux et de protéger les armatures afin d’allonger la durée de service d’une structure en béton dégradée.
Les méthodes de réparation traitées dans le présent document sont les suivantes :
-   restauration du béton par application de mortiers de réparation à la main ;
-   restauration du béton par nouveau coulage de béton ;
-   restauration du béton par projection de mortier ou de béton ;
-   renforcement du béton par ajout de mortier ou de béton ;
-   amélioration de la résistance physique par recouvrement de mortier ou de béton ;-
-   amélioration de la résistance chimique par recouvrement de mortier ou de béton ;
-   restauration de la passivation en augmentant l’enrobage par ajout de mortier ou de béton ;
-   restauration de la passivation en remplaçant l’enrobage carbonaté par ajout de mortier ou de béton.

Proizvodi in sistemi za zaščito in popravilo betonskih konstrukcij - Definicije, zahteve, kontrola kakovosti ter ocenjevanje in preverjanje nespremenljivosti lastnosti (AVCP) - 3. del: Beton in malta za popravila

General Information

• Status: Not Published
• Publication Date: 21-May-2017
• ICS: 01.040.91 - Construction materials and building (Vocabularies)
• ICS: 91.080.40 - Concrete structures
• Technical Committee: CEN/TC 104 - Concrete ( performance, production, placing and compliance criteria )
• Drafting Committee: CEN/TC 104/SC 8/WG 2 - Repair
• Current Stage: 4598 - Decision to abandon - Finalization for Vote
• Start Date: 17-Oct-2003
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/128 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on products for concrete, mortar and grout
• Ref Project: oSIST prEN 1504-3:2015 - Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and AVCP - Part 3: Repair concrete and mortars

Overview

prEN 1504-3 (CEN draft) defines requirements, identification and performance characteristics for repair concrete and mortars used to restore or replace defective concrete and to protect reinforcement. The standard covers both structural and non-structural repair methods and supports conformity assessment and factory production control (AVCP). It addresses characteristics relevant to mechanical resistance, durability and safety in case of fire.

Key Topics

• Performance characteristics relevant to mechanical resistance and stability, including:
  • shrinkage
  • permeability to gases
  • capillary absorption
  • diffusion of chloride ions
  • resistance to carbonation
  • thermal compatibility
  • adhesion
• Reaction to fire and associated test methods and classifications for safety in case of fire
• Identification characteristics and product classes to facilitate specification and traceability
• Quality control and AVCP processes: type testing, sampling and factory production control (FPC)
• Special applications and related test procedures for overlays, sprayed concrete and structural strengthening

The document references established test standards (for example EN 12190 for compressive strength, EN 13687 for thermal compatibility and EN 13501-1 for reaction to fire) to ensure consistent verification of performance.

Applications

prEN 1504-3 is intended for specifiers, manufacturers and contractors involved in concrete repair and asset preservation. Typical applications include:

• Hand-applied repair mortars for local concrete restoration
• Recasting with repair concrete to replace degraded sections
• Sprayed concrete or mortar for large-scale repair or rehabilitation
• Adding mortar or concrete for structural strengthening or to increase cover
• Applying overlays to improve physical or chemical resistance
• Replacing carbonated cover to restore reinforcement passivity

Key practical benefits:

• Improved durability and extended service life of concrete elements
• Clear criteria for mechanical performance and durability, aiding material selection
• Defined AVCP and FPC requirements to support consistent on-site quality
• Consideration of fire safety alongside mechanical and durability properties

Related Standards

• EN 1504 series: Part 1 (Definitions), Part 2 (Surface protection), Part 4 (Structural bonding), Part 5 (Injection), Part 6 (Anchoring), Part 7 (Corrosion protection), Part 8 (Quality control/AVCP), Part 9 (General principles), Part 10 (Site application)
• Selected test standards cited in prEN 1504-3: EN 12190, EN 12617-4, EN 13295, EN 13687-1/2/4, EN 13501-1, EN 1542

prEN 1504-3 provides a practical, test-referenced framework for specifying and verifying repair concretes and mortars, aligning product performance, durability and safety for effective concrete restoration and rehabilitation.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2015
3URL]YRGLLQVLVWHPL]D]DãþLWRLQSRSUDYLOREHWRQVNLKNRQVWUXNFLM'HILQLFLMH
]DKWHYHNRQWURODNDNRYRVWLWHURFHQMHYDQMHLQSUHYHUMDQMHQHVSUHPHQOMLYRVWL
ODVWQRVWL$9&3GHO%HWRQLQPDOWD]DSRSUDYLOD
Products and systems for the protection and repair of concrete structures - Definitions,
requirements, quality control and AVCP - Part 3: Repair concrete and mortars
Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken -
Definitionen, Anforderungen, Qualitätsüberwachung und AVCP - Teil 3:
Instandsetzungsbeton und -mörtel
Produits et systèmes pour la protection et la réparation des structures en béton -
Définitions, exigences, maîtrise de la qualité et EVCP - Partie 3 : Béton et mortiers de
réparation
Ta slovenski standard je istoveten z: prEN 1504-3 rev
ICS:
01.040.91 Gradbeni materiali in gradnja Construction materials and
(Slovarji) building (Vocabularies)
91.080.40 Betonske konstrukcije Concrete structures
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2015
ICS 01.040.91; 91.080.40 Will supersede EN 1504-3:2005
English Version
Products and systems for the protection and repair of concrete
structures - Definitions, requirements, quality control and AVCP -
Part 3: Repair concrete and mortars
Produits et systèmes pour la protection et la réparation des Produkte und Systeme für den Schutz und die
structures en béton - Définitions, exigences, maîtrise de la Instandsetzung von Betontragwerken - Definitionen,
qualité et EVCP - Partie 3 : Béton et mortiers de réparation Anforderungen, Qualitätsüberwachung und AVCP - Teil 3:
Instandsetzungsbeton und -mörtel
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 104.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1504-3:2015 E
worldwide for CEN national Members.

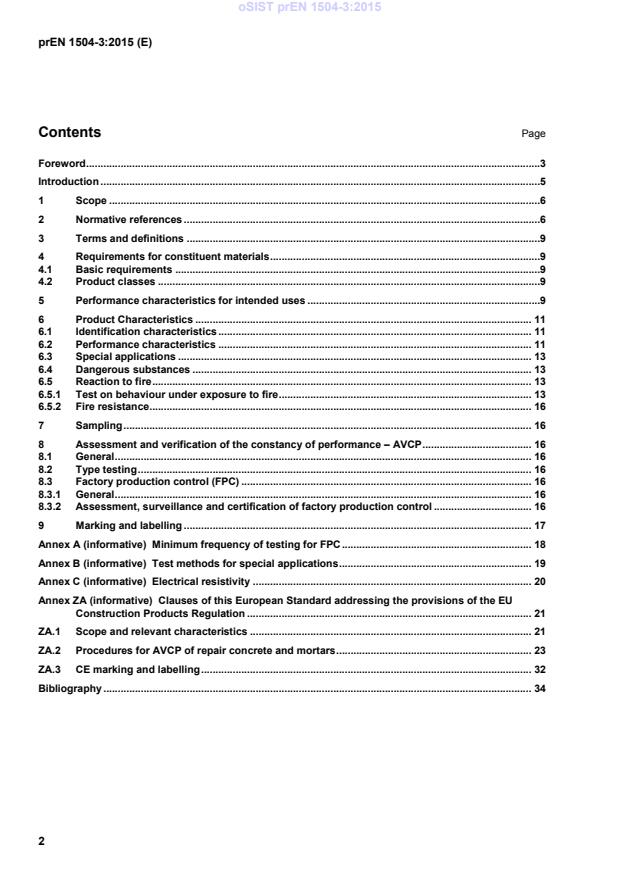

Contents Page
Foreword .3
Introduction .5
1 Scope .6
2 Normative references .6
3 Terms and definitions .9
4 Requirements for constituent materials .9
4.1 Basic requirements .9
4.2 Product classes .9
5 Performance characteristics for intended uses .9
6 Product Characteristics . 11
6.1 Identification characteristics . 11
6.2 Performance characteristics . 11
6.3 Special applications . 13
6.4 Dangerous substances . 13
6.5 Reaction to fire . 13
6.5.1 Test on behaviour under exposure to fire . 13
6.5.2 Fire resistance . 16
7 Sampling . 16
8 Assessment and verification of the constancy of performance – AVCP . 16
8.1 General . 16
8.2 Type testing . 16
8.3 Factory production control (FPC) . 16
8.3.1 General . 16
8.3.2 Assessment, surveillance and certification of factory production control . 16
9 Marking and labelling . 17
Annex A (informative) Minimum frequency of testing for FPC . 18
Annex B (informative) Test methods for special applications . 19
Annex C (informative) Electrical resistivity . 20
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the EU
Construction Products Regulation . 21
ZA.1 Scope and relevant characteristics . 21
ZA.2 Procedures for AVCP of repair concrete and mortars . 23
ZA.3 CE marking and labelling . 32
Bibliography . 34

Foreword
This document (prEN 1504-3:2015) has been prepared by Technical Committee CEN/TC 104 “Concrete and
related products”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of Regulation (EU) No. 305/2011.
For relationship with Regulation (EU) No. 305/2011, see informative Annex ZA which is an integral part of this
document.
This document will supersede EN 1504-3:2005.
The main technical changes that have been made in this new edition are as follows:
a) clarification of the scope;
b) implementation of additional principles realizable with repair mortars;
c) implementation of classes with regard to constituents;
d) clarification of addressed essential characteristics for intended uses;
e) implementation of additional essential characteristics in Table 1;
f) clarification of the necessity range of identification tests;
g) implementation of additional identification characteristics in Table 2;
h) differentiation between essential characteristics in relation to physical properties or durability;
i) elimination of assignment of mortar classes to structural or non-structural repair;
j) replacement of test method for frost resistance (CEN/TS 12390-9);
k) introduction of additional performance criteria e.g. flexural strength according to EN 1015-11;
l) revision of 6.5 Reaction to fire;
m) revision of Annex B and Annex C;
n) revision of Annex ZA according to CPR.
EN 1504 consists of the following parts under the general title Products and systems for the protection and
repair of concrete structures — Definitions, requirements, quality control and AVCP:
— Part 1: Definitions
— Part 2: Surface protection products and systems for concrete
— Part 3: Repair concrete and mortars (the present document)
— Part 4: Structural bonding
— Part 5: Concrete injection
— Part 6: Anchoring of reinforcing steel bar
— Part 7: Reinforcement corrosion protection
— Part 8: Quality control and assessment and verification of the constancy of performance (AVCP)
— Part 9: General principles for the use of products and systems
— Part 10: Site application of products and systems and quality control of the works
Introduction
This document gives specifications for products and systems to be used for the structural and non-structural
repair of concrete structures. The test methods to which the specifications refer are the subject of separate
standards.
Repair mortars are used as methods for the following principles defined in EN 1504-9:
— Principle 3 (CR): Concrete restoration
3.1 Hand applied mortar
3.2 Recasting with concrete or mortar
3.3 Spraying concrete or mortar
— Principle 4 (StS): Structural strengthening
4.4 Adding mortar or concrete
— Principle 5 (PR): Increasing physical resistance
5.3 Adding mortar or concrete
— Principle 6 (RC): Resistance to chemicals
6.3 Adding mortar or concrete
— Principle 7 (PRP): Preserving or restoring passivity
7.1 Increasing cover with additional mortar or concrete
7.2 Replacing contaminated or carbonated concrete
1 Scope
It covers repair mortars and concretes, possibly used in conjunction with other products and systems, to
restore or to replace defective concrete and to protect reinforcement, necessary to extend the service life of a
concrete structure exhibiting deterioration.
The repair methods covered by this document are the following:
— concrete restoration by applying repair mortars by hand;
— concrete restoration by recasting with concrete;
— concrete restoration by spraying on mortar or concrete;
— concrete strengthening by adding mortar or concrete;
— improving physical resistance by application of overlays of mortar or concrete;
— improving chemical resistance by application of overlays of mortar or concrete;
— restoring passivation by increasing cover by adding mortar or concrete;
— restoring passivation by replacing carbonated cover by adding mortar or concrete.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 197-1, Cement — Part 1: Composition, specifications and conformity criteria for common cements
EN 480-14, Admixtures for concrete, mortar and grout — Test methods — Part 14: Determination of the effect
on corrosion susceptibility of reinforcing steel by potentiostatic electro-chemical test
EN 520, Gypsum plasterboards — Definitions, requirements and test methods
EN 934-1, Admixtures for concrete, mortar and grout — Part 1: Common requirements
EN 1015-11, Methods of test for mortar for masonary — Part 11: Determination of flexural and compressive
strength of hardened mortar
EN 1015-17, Methods of test for mortar for masonry — Part 17: Determination of water-soluble chloride
content of fresh mortars
EN 1504-1, Products and systems for the protection and repair of concrete structures — Definitions,
requirements, quality control and evaluation of conformity — Part 1: Definitions
EN 1504-8, Products and systems for the protection and repair of concrete structures — Definitions,
requirements, quality control and evaluation of conformity — Part 8: Quality control and evaluation of
conformity
EN 1504-9, Products and systems for the protection and repair of concrete structures — Definitions,
requirements, quality control and evaluation of conformity — Part 9: General principles for the use of products
and systems
EN 1542, Products and systems for the protection and repair of concrete structures — Test methods —
Measurement of bond strength by pull-off
EN 1766, Products and systems for the protection and repair of concrete structures — Test methods —
Reference concretes for testing
EN 1767, Products and systems for the protection and repair of concrete structures — Test methods —
Infrared analysis
EN 1770, Products and systems for the protection and repair of concrete structures — Test methods —-
Determination of the coefficient of thermal expansion
EN 1877-1, Products and systems for the protection and repair of concrete structures — Test methods —
Reactive functions related to epoxy resins — Part 1: Determination of epoxy equivalent
EN 1877-2, Products and systems for the protection and repair of concrete structures — Test methods —
Reactive functions related to epoxy resins — Part 2: Determination of amine functions using the total basicity
number
EN 12190, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of compressive strength of repair mortar
EN 12192-1, Products and systems for the protection and repair of concrete structures — Granulometry
analysis — Part 1: Test method for dry components of premixed mortar
EN 12617-4, Products and systems for the protection and repair of concrete structures — Test methods —
Part 4: Determination of shrinkage and expansion
CEN/TS 12390-9, Testing hardened concrete — Part 9: Freeze-thaw resistance — Scaling
EN 12620, Aggregates for concrete
EN 13036-4, Road and airfield surface characteristics — Test methods — Part 4: Method for measurement of
slip/skid resistance of a surface: The pendulum test
EN 13057, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of resistance of capillary absorption
EN 13294, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of stiffening time
EN 13295, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of resistance to carbonation
EN 13395-1, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of workability — Part 1: Test for flow of thixotropic mortars
EN 13395-2, Products and systems for the protection and repair of concrete structures — Test methods -
Determination of workability — Part 2: Test for flow of grout or mortar
EN 13395-3, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of workability — Part 3: Test for flow of repair concrete
EN 13395-4, Products and systems for the protection and repair of concrete structures — Test methods -
Determination of workability — Part 4: Application of repair mortar overhead
EN 13412, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of modulus of elasticity in compression
EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification using
test data from reaction to fire tests
EN 13501-2, Fire classification of construction products and building elements — Part 2: Classification using
data from fire resistance tests, excluding ventilation services
EN 13584, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of creep in compression for repair products
EN 13687-1, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of thermal compatibility — Part 1: Freeze-thaw cycling with de-icing salt immersion
EN 13687-2, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of thermal compatibility — Part 2: Thunder-shower cycling (thermal shock)
EN 13687-4, Products and systems for the protection and repair of concrete structures — Test methods —
Determination of thermal compatibility — Part 4: Dry thermal cycling
EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to the
thermal attack by a single burning item
EN 14306, Thermal insulation products for building equipment and industrial installations — Factory made
calcium silicate (CS) products — Specification
EN 14647, Calcium aluminate cement — Composition, specifications and conformity criteria
EN ISO 1182, Reaction to fire tests for products — Non-combustibility test (ISO 1182:2010)
EN ISO 1716, Reaction to fire tests for products — Determination of the gross heat of combustion (calorific
value) (ISO 1716:2010)
EN ISO 3251, Paints, varnishes and plastics — Determination of non-volatile-matter content (ISO 3251)
EN ISO 9239-1, Reaction to fire tests for floorings — Part 1: Determination of the burning behaviour using a
radiant heat source (ISO 9239-1:2010)
EN ISO 9514, Paints and varnishes — Determination of the pot life of multicomponent coating systems —
Preparation and conditioning of samples and guidelines for testing (ISO 9514:2005)
EN ISO 11358-1, Plastics — Thermogravimetry (TG) of polymers — Part 1: General principles (ISO 11358)
EN ISO 11925-2, Reaction to fire tests — Ignitability of products subjected to direct impingement of flame —
Part 2: Single-flame source test (ISO 11925-2:2010)
ISO 390, Products in fibre-reinforced cement — Sampling and inspection
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 1504-1, EN 1504-8, EN 1504-9 and
the following apply.
3.1
bonding agent
component of a repair system used to promote adhesion of a repair mortar or concrete to a concrete
substrate, for the purposes of achieving a permanent bond, which is not affected by moisture and strong alkali
in service
3.2
stiffening time
time beyond which the workability of a hydraulic or polymer modified hydraulic cement repair concrete or
mortar is lost
3.3
capillary absorption
ability of the repair product or system to absorb water without application of hydrostatic pressure
3.4
thermal compatibility
property of a repair product or system, when bonded onto a prepared concrete substrate, to accommodate
repeated rapid cyclic changes in temperature
4 Requirements for constituent materials
4.1 Basic requirements
Constituent materials for repair mortar/concrete shall not contain harmful ingredients in such quantities as may
be detrimental to the durability of the concrete or cause corrosion of the reinforcement and shall be suitable
for the intended use as repair mortars/concretes or repair mortar systems for concrete structures.
4.2 Product classes
For concrete structures repair materials the following classes apply:
CM 1 repair mortar product or system containing constituents according to EN 197-1, EN 12620, type I or
II-additions, admixtures or fibres;
CM 2 repair mortar product or system containing constituents according to CM 1 allowing the addition of
standardized binders (e.g. according to EN 14647);
CM 3 repair mortar product or system containing constituents according to CM 2 allowing the addition of
hydraulic or latent hydraulic or pouzzolanic binder and aggregates;
CM 4 repair mortar product or system containing polymer binder.
5 Performance characteristics for intended uses
Table 1 lists the performance characteristics of products and systems for structural and non-structural repair
which are required for intended uses according to the principles and methods defined in EN 1504-9.
Performance characteristics for “all intended” uses refer to the usually minimum required properties for the
addressed repair method according to this standard. This does not affect the content of the declaration of
performance by the product manufacturer with regard to the number of declared performance characteristics
or the no performance determined (NPD) option. Performance characteristics for “certain intended” uses are
effective for ensuring the performance of repair products or systems, e.g. in particular climatic conditions
(frost, moisture, sea water, de-icing salt) or special mechanical stresses.
Performance characteristics which are required for “all intended” uses are marked with ■. All other
performance characteristics which are marked with □ may be required for “certain intended” uses.
The repair system shall be selected based on an assessment of the actual or potential causes of deterioration
and consideration of the appropriate principles and methods for protection and repair specified in EN 1504-9.
Table 1 — Performance characteristics of repair concrete and mortars related to the principles and
methods defined in EN 1504–9
Principle
3 4 5 6 7
Performance characteristic
Method
3.1, 3.2, 3.3 4.4 5.3 6.3 7.1, 7.2
a
■ ■ ■ ■ ■
Compressive strength
Chloride ion content ■ ■ ■ ■ ■
, ,
a b c
■ ■ ■ ■ ■
Adhesive bond
Shrinkage / Expansion □ □ □ □ □
Durability
a) Carbonation resistance ■ ■ □ ■ ■
b) Thermal compatibility
,
□ □ □ □ □
according to EN 13687–1
a, c
EN 13687–2 or EN 13687–4
Frost resistance □ □ □ □ □
Elastic modulus □ ■ □ □ □
Coefficient of thermal expansion □ □ □ □ □
Capillary absorption (water
□ □ □ □ □
a
permeability)
Corrosion behaviour □ □ □ □ □
Flexural strength □ □ □ □ □
Freeze–thaw resistance without de-
□ □ □ □ □
icing agent of mortar
Freeze–thaw resistance with de-
□ □ □ □ □
icing agent of mortar
Creep in compression □ □ □ □ □
Skid resistance □ □ □ □ □
■ characteristic for “all intended” uses
□ characteristic for “certain intended” uses
a
Performance characteristics related to method 3.3 shall be tested on sprayed test specimen, see EN 1504–10.
b
If overhead application is intended the product shall be tested according to EN 13395–4.
c
If bonding agent is necessary for the use of any applied mortar it should be tested as a system with regard to the bond-strength

tests.
6 Product Characteristics
6.1 Identification characteristics
The manufacturer shall undertake representative initial identification tests for the product or system as
specified in Table 2. These tests may be used to confirm the composition of the product at any time.
Acceptable tolerances are also given in Table 2. The manufacturer shall hold the test records.
Table 2 — Identification characteristics for repair concrete and mortars
Identification characteristics / Property Tolerances Test method
Granulometry of dry components Manufacturers declared values and tolerances EN 12192–1
a b
EN 1767
Infrared analysis Confirmed by comparison
Compressive strength Greater than 80 % of manufacturers declared value EN 12190
f
Manufacturers declared value EN 1542
Adhesive bond
Density ±5 % EN 12190
Shrinkage Manufacturers declared value and tolerances EN 12617–4
c
EN 13294
Stiffening time Manufacturers declared value and tolerances
d
Manufacturers declared value and tolerances EN 13395–1
Workability – thixotropic mortar
d
EN 13395–2
Manufacturers declared value and tolerances
Workability – flow of mortar
d
EN 13395–3
Manufacturers declared value and tolerances
Workability – flow of concrete
e b
EN
Thermogravimetric analysis Confirmed by comparison
ISO 11358–1
e
±5 % EN 1877–1
Epoxide equivalent
e
±6 % EN 1877–2
Amine function
e
±20 % EN ISO 9514
Pot life
Volatile/non-volatile matter in liquid ±10 % EN ISO 3251
e
components
a
For all products containing organic materials.
b
Check for signs of change in composition.
c
As an alternative method, the change in workability with time by methods according to EN 13395–1, EN 13395–2 and EN 13395–3
may be used.
d
Depending on the nature of the material.
e
For PCs only.
f
Only for hand application.
6.2 Performance characteristics
The manufacturer shall undertake initial performance tests on repair products in accordance with Table 3 and
Table 4 and the product shall comply with the requirements. The performance depends on the curing
condition of the product or system.
The manufacturer shall indicate the curing condition to which the product or system has been subjected to
before testing. The testing condition can be type “A” for wet curing and /or type “B” for dry curing and shall be
declared by the manufacturer.
Table 3 — Essential characteristics related to physical properties for repair concrete and mortars
No. 1 2 3 4 5 6 7
Requirement
Reference
Test
Characteristic substrate Class R4 Class R3 Class R2 Class R1
method
(EN 1766)
1 Compressive strength None EN 12190 ≥ 45 MPa ≥ 25 MPa ≥ 15 MPa ≥ 10 MPa
a,b
2 MC (0,40) EN 1542 ≥ 2,0 MPa ≥ 1,5 MPa ≥ 0,8 MPa ≥ 0,5 MPa
Adhesive bond
3 Elastic modulus None EN 13412 ≥ 20 GPa ≥ 15 GPa ≥ 10 GPa None
Measured value (no strength-loss at
4 Flexural strength None EN 1015–11 ≥ 8 MPa
increasing age)
Thermal compatibility,
Part 1
De-icing salt
5 MC (0,40) EN 13687–1
immersion
Bond strength after
a
50 cycles
Thermal compatibility,
No cracking
Part 2 a b
≥ 2,0 MPa ≥ 0,8 MPa
≥ 1,5 MPa
or
Thunder shower
6 MC (0,40) EN 13687–2
delamination
Bond strength after
a
30 cycles
Thermal compatibility,
Part 4
Dry cycling
7 MC (0,40) EN 13687–4
Bond strength after
a, c
30 cycles
≤ 0,60 % at 28 d if E-
o
None
Modul ≤ 25 GPa
8 Shrinkage None EN 12617–4 ≤ 0,90 %
o
≤ 0,80 % at 28 d if E-
o
None
Modul ≤ 20 GPa
9 Swelling None EN 12617–4 ≤ 0,30 % after 28 d
o
10 Creep in compression None EN 13584 value declaration
a
If necessary for the use of a PCC-mortar a bonding bridge shall be tested as a system with regard to bond-strength
tests.
b
If necessary for the use shall be tested at storage A after 90 d.
c
Maximum permissible average crack width ≤ 0,05 mm with no crack ≥ 0,1 mm and no delamination.
All performance characteristics of this table shall be tested on sprayed test specimen when applicable.
Table 4 — Essential characteristics related to durability for repair concrete and mortars
No. 1 2 3 4 5 6
Requirement
Characteristic Test method Class R4 Class R3 Class R2 Class R1
1 Chloride ion content EN 1015–17 ≤ 0,05 %
d ≤ control concrete
k
2 Carbonation resistance EN 13295 —
(MC (0,45)) (MC (0,70))
a
3 EN 1770 Value declaration —
Coefficient of thermal expansion
-2 -0,5
4 Capillary absorption EN 13057 —
≤ 0,5 kgm h
-2
CEN/TS
Class F1: ≤ 600 gm
5 Frost resistance —
-2
12390–9
Class F2: ≤ 1 200 gm
EN 480–14
6 Corrosion behaviour No evidence of corrosion-promoting effect.
with EN 934–1
Class I: > 40 units wet tested
7 Skid resistance EN 13036–4 Class II: > 40 units dry tested
Class III:  > 55 units wet tested
a
For PC.
All performance characteristics of this table shall be tested on sprayed test specimen when applicable.
6.3 Special applications
For the performance characteristics for special applications of repair products or missing harmonized
European test methods see Annex B, Table B.1.
6.4 Dangerous substances
National regulations on dangerous substances may require verification and declaration on release, and
sometimes content, when construction products covered by this standard are placed on those markets.
In the absence of European harmonized test methods, verification and declaration on release/content should
be done taking into account national provisions in the place of use.
NOTE An informative database covering European and national provisions on dangerous substances is available at
the Construction website on EUROPA accessed through: http://ec.europa.eu/enterprise/construction/cpd-ds/.
6.5 Reaction to fire
6.5.1 Test on behaviour under exposure to fire
6.5.1.1 General
The behaviour under exposure to fire shall be declared where the product is subject to statutory provisions
and it may be declared where it is not subject to these types of requirements.
6.5.1.2 Test on fire behaviour
6.5.1.2.1 Products which fulfil the requirements of Class A1 or A1 respectively on fire behaviour
fl
without the necessity of a test
In the case of products which contain ≤ 1 percent by weight or volume of organic material, depending on
which fraction is the less advantageous, it is assumed that in accordance with the provisions of EC Decision
96/603/EC, including changes, they fulfil the requirements of the performance classes A1 or A1 respectively
fl
on the characteristics in respect of fire behaviour without the necessity of a test.
6.5.1.2.2 Other products
Products which do not fall within the area of application 6.5.1.2.1 shall be tested and classified in accordance
with EN 13501-1:
a) either without the necessity of further testing (CWFT) (Classified Without Further Testing), as stated in
1)
Table 5 where it is proven that the product for repair fulfils the requirements of the class stated therein;
b) or on the basis of the testing of the product repair in accordance with the Standards stated in EN 13501-1
where the product for repair does not fulfil the requirements of Table 5 or where a higher class as that
stated in a) is strived for.
NOTE Where the application of the products for repair is not subject to national statutory provisions, the Class F may
be declared for this characteristic. This corresponds to the NPD option (No Performance Determined).
Table 5 — Fire behaviour classes for products for repair
Max. coating thickness Organic fraction Class
Product
mm M.-%
a
Cement based products 50 E
1 to 15
Epoxy resins 50 00 to 100 E E
a
see 6.5.1.2.1
If option b) applies, the products to be tested shall, where the test process requires it, in addition to the
generally cited measures in the test process, be manufactured and installed in accordance with the
manufacturer's instructions in a way that is representative of their intended application.
The following further provisions apply to the manufacture of the test object as well as its installation and
fastening.
a) Fire tests in accordance with EN 13823 (SBI)
— Application of the product onto fibre cement boards as per ISO 390 (bulk density
3 3
1800 kg/m ± 200 kg/m , thickness 8 mm ± 2 mm, Euroclass A2-s1,d0) or
— Application of the product onto calcium silicate boards as per EN 14306 (bulk density
3 3
870 kg/m ± 50 kg/m , thickness 11 mm ± 2 mm, Euroclass A2-s1,d0) or
3 3
— Application of the product onto plasterboard as per EN 520 (bulk density 700 kg/m ± 100 kg/m ,
thickness 12,5 mm ± 0,5 mm, Euroclass A2-s1,d0);

1)
Table 5 is the same as in the Commission Decision XXXX/XX/EU dated XX.XX.XXXX (see European Union Official
Journal LXX dated XX:XX:XXXX)
— Full surface application without joints on the carrier material;
— Mounting in the SBI directly backed with the closing boards, sides of the test facility closed off with
part boards.
b) Fire tests in accordance with EN ISO 9239-1 (radiant panel test)
— Application of the product onto fibre cement boards as per ISO 390 (bulk density
3 3
1800 kg/m ± 200 kg/m , thickness 8 mm ± 2 mm, Euroclass A2 -s1);
fl
— Full surface application without joints on the carrier material.
c) Fire tests in accordance with EN ISO 11925-2 (ignitability test)
— Application of the product onto the subsurface selected under a) or b);
— Full surface application without joints on the carrier material;
— Testing with surface and edge firing and where necessary on test specimens rotated through 90°.
d) Fire tests in accordance with EN ISO 1716 (Heat of combustion).
e) Fire tests in accordance with EN ISO 1182 (ISO oven).
6.5.1.2.3 Direct areas of application for the results of the tests on fire behaviour
The direct areas of application described in the following Table 6 apply to the standard parameters of surface
protection systems for concrete.
Table 6 — Fire behaviour – direct areas of application for the test results
Parameters Factors Validity of test
One thickness Valid for ± 5 % of the tested thickness (individual test).
Thickness range Where the same product is produced in different thicknesses,
Thickness
both the thinnest and the thickest variants are to be tested and
the lowest achieved classification for this thickness range is to be
specified.
One bulk density Valid for ± 5 % of the tested bulk density (individual test).
Bulk density range Where the same product is produced in different bulk densities,
Bulk density
both the lightest and the heaviest variants are to be tested and
the lowest achieved classification for this bulk density range is to
be specified.
One system build Valid for the tested system build.
Several system structures Valid for the tested setup and those with the same or lower PCS
values for the individually exchanged components.
a) PCS value: ≤ 4MJ/m
System structure
b) PCS value: ≥ 4MJ/m
Where the product for repair is produced in different system
structures, each setup is first to be examined cursorily with the
worst variant being then subjected to a full test and the lowest
achieved classification is to be specified.
Parameters Factors Validity of test
Standard carrier board in Valid for the practical application of Euroclasses A1 and A2-s1,d0
accordance with 6.5.1.2.2 with bulk densities:
Fibre cement
≥ 1 350 kg/m
Subsurface Calcium silicate
≥ 652,5 kg/m (with the exception of plasterboard)
Plasterboard
≥ 525 kg/m
Other sub surfaces Valid for the tested sub surfaces.
6.5.2 Fire resistance
Where fire resistance is required, this is to be tested in accordance with EN 13501-2.
Prior to the commencement of a fire resistance test the manufacturer should check that the intended test(s)
is/are in accordance with the execution requirements for the intended application in the country of destination.
7 Sampling
General requirements for sampling are set out in EN 1504-8.
8 Assessment and verification of the constancy of performance – AVCP
8.1 General
General requirements for procedures for AVCP are set out in EN 1504-8.
8.2 Type testing
General requirements for type testing are set out in EN 1504-8.
8.3 Factory production control (FPC)
8.3.1 General
The manufacturer shall operate a factory production control (FPC) system to ensure that production continues
to meet the identification and performance requirements set out in 6.1 and 6.2 of this document.
For FPC, the manufacturer shall carry out the identification test according to Table 2 or may select other test
methods. Such other FPC test methods shall be correlated to the initial identification and performance test
methods to ensure conformity of the product to the requirements of this document. Such correlation shall be
clearly documented in the FPC system.
The FPC shall be undertaken in accordance with EN 1504-8.
Guidance on the frequency of identification and performance tests for FPC is given in Annex A. Frequencies
may need to be increased during initial production or following an incident of non-conformity.
Any deviation from this guidance shall be justified by documented evidence which demonstrates equivalence.
8.3.2 Assessment, surveillance and certification of factory production control
Provisions for the assessment, surveillance and certification of FPC are given in EN 1504-8.
9 Marking and labelling
Requirements for marking and labelling are set out in EN 1504-8.
NOTE For CE marking and labelling ZA.3 applies.
Annex A
(informative)
Minimum frequency of testing for FPC
Table A.1 — Identification characteristic and minimum frequency of testing for FPC
Cement based Epoxy resins
Identification characteristic / Property
products
Identification of the components
General appearance and colour A A
Granulometry of dry components B B
Adhesive bond D D
a, b
D C
Infrared analysis
b
— C
Epoxy equivalent
Shrinkage D —
b
— C
Amine function
Volatile/non-volatile matter in liquid components B B
Identification of the fresh mixture or the hardened samples
Stiffening time
Workability alternative B B
Pot life  — A
Compressive strength and density B B
A Every batch, (as defined in EN 1504–8).
B Every 10 batches, every two weeks, or every 1 000 t, whichever is the sooner (that is, whichever requires the most
frequent testing).
C Twice per year.
D Once per year.
a
For all products containing ≥ 1,0 % of organic components.
b
Documentation supplied by the raw material supplier will be deemed to satisfy this requirement.
Annex B
(informative)
Test methods for special applications
Additional test methods that may be considered for special applications are listed in Table B.1.
Such testing may be required for specific projects. Typical examples would be where information on the
performance of a product is required under the following extreme conditions: high or low temperature, or
exposure to sea water or other sources of high salt concentration.
Table B.1 — Test methods for special applications
Reference
Property Test method Comments
concrete
1 Chloride ingress EN 13396 None Declared value
a
Declared value
RCM NT Build 492
2 Chloride Migration None
or national regulation
EN 13529 or Declared value
2 Chemical resistance None
ISO 2812-1 (Not required where a surface protection
system is specified.)
a
3 Sulfate resistance None Declared performance
—
a
4 Restrained shrinkage None Declared value
—
Bond strength after dynamic Adhesive bond strength should satisfy
a
5 load C 0.40 requirement in Table 3, line 2 according to
—
class.
f 0,60 f
Durability in water cycling or
90(SWC) ≥ 90(stor. B)
calcium hydroxide solution
f  f
a
6 None 90(stor. CH; B) ≥ 56 (stor. CH)
—
f  0,70 f
90(stor. CH; B) ≥ 90 (stor. B)
NOTE For the additional performance characteristic electrical resistivity see informative Annex C.
a
There are no harmonized European test methods available; therefor national regulations shall be applied.
All performance characteristics of this table should be tested on sprayed test specimen if required.
Annex C
(informative)
Electrical resistivity
The properties of cementitious repair materials to be used in combination with all types of electrochemical
applications shall be as close to the properties of parent concrete as possible (see EN ISO 12696:2012, 05,
5.10.4, Note).
Annex ZA
(informative)
Clauses of this European Standard addressing the provisions of the EU
Construction Products Regulation
ZA.1 Scope and relevant characteristics
This European Standard has been prepared under Mandate M/128 “Products related to concrete, mortar and
grout” given to CEN by the European Commission and the European Free Trade Association.
If this European standard is cited in the Official Journal of the European Union (OJEU), the clauses of this
standard, shown in this annex, are considered to meet the provisions of the relevant mandate, under the
Regulation (EU) No. 305/2011.
This annex deals with the CE marking of the repair concrete and mortars intended for the uses indicated in
Table ZA.1 and shows the relevant clauses applicable.
This annex has the same scope as in Clause 1 of this standard related to the aspects covered by the mandate
and is defined by Table ZA.1.
Table ZA.1 — Relevant clauses for concrete and mortars (curing type A and/or B; hand appliqued or
sprayed) for repair according to principles 3, 4, 5, 6 and 7 (see Table 1) and intended use in buildings
and civil engineering works
Product: Concrete and mortars (curing type A and/or B; hand appliqued or sprayed) for repair
according to principles 3, 4, 5, 6 and 7 (see Table 1)

In buildings and civil engineering works
Intended use:
Clauses in this and other
Regulatory
Essential Characteristics European Standard(s) related Notes
classes
to essential characteristics
Raw materials 4.2 Product classes Declared class RM1 or
RM2 subject to the
—
standardized raw
materials
Compressive strength 5.2 Performance requirements Declared class (R1 to R4
Table 3 (1)
—
(subject to a threshold
value in MPa)
Elastic Modulus 5.2 Performance requirements Declared value, in GPa
Table 3 (2)
—
(subject to a threshold
value)
Adhesive Bon
...
