Bituminous mixtures - Test methods - Part 7: Determination of the bulk density of bituminous specimens by gamma rays

This document specifies a method for measuring the bulk density of pavement mixtures using a transmission-type gamma radiation test bench.
This method applies to cylindrical specimens or parallelepipedal blocks, prepared in a laboratory or cut from a pavement. The thickness and the mass absorption coefficient, which is a function of the chemical composition, are known. The thickness of the specimen body traversed by the radiation is between 30 mm and 300 mm.
The method cannot be applied to materials containing slags, with variable metal content or chemical composition.
NOTE   Material containing metal or chemical compositions can affect the absorption of gamma rays.

Asphalt - Prüfverfahren - Teil 7: Bestimmung der Raumdichte von Asphalt-Probekörpern mit Gammastrahlen

Dieses Dokument legt ein Verfahren fest, mit dem die Raumdichte von Asphaltgemischen für Fahrbahnbeläge gemessen wird, wenn eine Durchstrahlungseinrichtung mit Gammastrahlung verwendet wird.
Dieses Verfahren gilt für zylindrische Probekörper oder Parallelepiped-Blöcke, die im Labor hergestellt oder einem Fahrbahnbelag entnommen werden. Die Dicke und der von der chemischen Zusammensetzung abhängige Massenabsorptionskoeffizient sind bekannt. Die Dicke des Probekörpers, der bei der Messung von Gammastrahlen durchdrungen wird, beträgt zwischen 30 mm und 300 mm.
Dieses Verfahren kann nicht auf Materialien angewendet werden, die Schlacken enthalten oder über unterschiedliche Metallgehalte oder unterschiedliche chemische Zusammensetzungen verfügen.
ANMERKUNG   Materialien, die metallische oder chemische Zusammensetzungen enthalten, können die Absorption der Gammastrahlen verändern.

Mélanges bitumineux - Méthodes d’essai - Partie 7 : Détermination de la masse volumique apparente des éprouvettes bitumineuses par les rayons gamma

Le présent document décrit une méthode de mesure de la masse volumique apparente des matériaux de chaussée au moyen d’un banc d’essai à rayons gamma par transmission.
Cette méthode s’applique à des éprouvettes cylindriques ou blocs parallélépipédiques, préparés en laboratoire ou découpés dans une chaussée. L’épaisseur et le coefficient d’absorption massique qui est fonction de la composition chimique sont connus. L’épaisseur du corps d’éprouvette traversé par le rayonnement doit être comprise entre 30 mm et 300 mm.
La méthode ne peut être appliquée à des matériaux contenant des laitiers présentant une teneur en métal ou une composition chimique variable.
NOTE Les matériaux contenant du métal ou présentant des compositions chimiques variables peuvent affecter l’absorption des rayons gamma.

Bitumenske zmesi - Preskusne metode - 7. del: Ugotavljanje gostote bitumenskih preskušancev z žarki gama

Ta dokument določa metodo za merjenje gostote vozišč s preskusno mizo za oddajanje žarkov gama.
Ta metoda se uporablja za valjaste preskušance ali bloke, pripravljene v laboratoriju ali izrezane iz vozišč, katerih debelina in koeficient absorpcije mase, kar je funkcija kemične sestave, sta znana. Debelina vzorca telesa, skozi katerega poteka sevanje, mora biti med 30 mm in 300 mm.
Metode ni mogoče uporabljati za snovi, ki vsebujejo žlindre ali s spremenljivo vsebnostjo kovin ali kemijsko sestavo.
OPOMBA:   Snovi z vsebnostjo kovin ali kemijsko sestavo lahko vplivajo na absorpcijo žarkov gama.

General Information

Status
Published
Publication Date
08-Feb-2022
Withdrawal Date
30-Aug-2022
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
09-Feb-2022
Due Date
20-Oct-2022
Completion Date
09-Feb-2022

Relations

Buy Standard

Standard
EN 12697-7:2022
English language
11 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

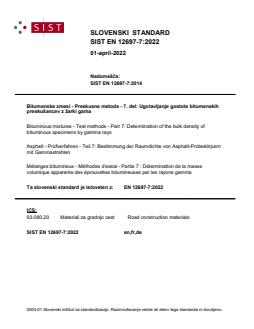

SLOVENSKI STANDARD
01-april-2022
Nadomešča:
SIST EN 12697-7:2014
Bitumenske zmesi - Preskusne metode - 7. del: Ugotavljanje gostote bitumenskih
preskušancev z žarki gama
Bituminous mixtures - Test methods - Part 7: Determination of the bulk density of
bituminous specimens by gamma rays
Asphalt - Prüfverfahren - Teil 7: Bestimmung der Raumdichte von Asphalt-Probekörpern
mit Gammastrahlen
Mélanges bitumineux - Méthodes d’essai - Partie 7 : Détermination de la masse
volumique apparente des éprouvettes bitumineuses par les rayons gamma
Ta slovenski standard je istoveten z: EN 12697-7:2022
ICS:
93.080.20 Materiali za gradnjo cest Road construction materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

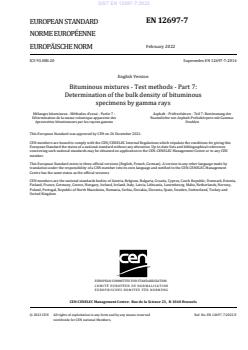

EN 12697-7
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2022
EUROPÄISCHE NORM
ICS 93.080.20 Supersedes EN 12697-7:2014
English Version
Bituminous mixtures - Test methods - Part 7:
Determination of the bulk density of bituminous
specimens by gamma rays
Mélanges bitumineux - Méthodes d'essai - Partie 7 : Asphalt - Prüfverfahren - Teil 7: Bestimmung der
Détermination de la masse volumique apparente des Raumdichte von Asphalt-Probekörpern mit Gamma-
éprouvettes bitumineuses par les rayons gamma Strahlen
This European Standard was approved by CEN on 26 December 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12697-7:2022 E
worldwide for CEN national Members.

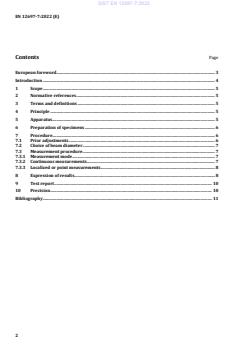

Contents Page
