FprCEN/TS 16157-10

• Abstract:

  The proposed CEN/TS 16157-10 of the CEN 16157 series will specify publication sub-models within the DATEX II model that support the publication of information about vehicle energy infrastructure, e.g. sites, stations and refill points for electric vehicles as well as petrol, gasoline or gas-based refuelling for vehicles. In terms of dynamic information, the availability of the infrastructure, possible faults and a price indication will be covered. This is specified as a DATEX II "EnergyInfrastructure" namespace, which is part of the DATEX II platform independent model and hence follows the EN 16157-1 methodology and reuse common concepts that are specified in EN 16157-2 (Location referencing), EN 16157-7 (Common data elements) and CEN/TS 16157-12 (Facility related publications).; It will define a UML model with a corresponding data dictionary and XML Schema.; These publications of CEN/TS 16157-10 will contain informational structures, relationships, association ends, attributes and associated data types required for publishing information about facilities within the DATEX II framework.

• Status: Not Published
• Publication Date: 11-Nov-2026
• Technical Committee: CEN/TC 278 - Road transport and traffic telematics
• Drafting Committee: CEN/TC 278/WG 8 - Road traffic data (RTD)
• Current Stage: 5060 - Closure of Vote - Formal Approval
• Start Date: 17-Sep-2026
• Due Date: 23-Apr-2026
• Completion Date: 17-Sep-2026
• Directive: Not Harmonized2010/40/EU - Directive 2010/40/EU of the European Parliament and of the Council of 7 July 2010 on the framework for the deployment of Intelligent Transport Systems in the field of road transport and for interfaces with other modes of transport Text with EEA relevance
• Directive:

  ---

  Not Harmonized2023/1804 - Regulation (EU) 2023/1804 of the European Parliament and of the Council of 13 September 2023 on the deployment of alternative fuels infrastructure, and repealing Directive 2014/94/EU
• Directive:

  ---

  Not Harmonized2023/1804-1 - Regulation (EU) 2023/1804 of the European Parliament and of the Council of 13 September 2023 on the deployment of alternative fuels infrastructure, and repealing Directive 2014/94/EU
• Directive:

  ---

  Not Harmonized2023/1804-2 - Regulation (EU) 2023/1804 of the European Parliament and of the Council of 13 September 2023 on the deployment of alternative fuels infrastructure, and repealing Directive 2014/94/EU
• Ref Project: kSIST-TS FprCEN/TS 16157-10:2026 - Intelligent transport systems - DATEX II data exchange specifications for traffic management and information - Part 10: Energy infrastructure publications

• Revises: CEN/TS 16157-10:2022 - Intelligent transport systems - DATEX II data exchange specifications for traffic management and information - Part 10: Energy infrastructure publications
• Effective Date: 05-Nov-2024

Overview

FprCEN/TS 16157-10 is a Technical Specification developed by CEN under the CEN/TC 278 Technical Committee for Intelligent Transport Systems (ITS). It forms Part 10 of the DATEX II data exchange specifications, focusing specifically on energy infrastructure publications. This standard helps define publication sub-models within DATEX II for exchanging information about vehicle energy infrastructure, such as electric vehicle charging stations, fuel refuelling sites, and individual refill points. Supporting both static and dynamic information, this specification ensures efficient, standardized, and interoperable data exchange between road authorities, infrastructure operators, and ITS service providers.

Key Topics

• DATEX II Energy Infrastructure Model: Defines a dedicated EnergyInfrastructure namespace within the platform-independent DATEX II model, supporting various types of vehicle energy supply infrastructure.
• Static and Dynamic Data: Separates information into static (site and station characteristics) and dynamic (availability, operational status, real-time pricing, and faults) categories for robust data exchange.
• Infrastructure Structure:
  • Energy Infrastructure Site: Describes the overall facility offering refilling services (electric, petrol, gas, etc.).
  • Energy Infrastructure Station: Parts of a site where energy refilling occurs, handling authentication, available energy products, and payment options.
  • Refill Point: Individual connection points for vehicle energy transfer, including electric charging points, petrol or diesel pumps, and gas outlets.
• Data Modelling: Specifies Unified Modeling Language (UML) structures, a data dictionary, and XML schema to ensure clarity and interoperability.
• Sustainability and Regulation: Supports compliance with relevant EU regulations on alternative fuels infrastructure and aligns with the European Commission's Sustainable and Smart Mobility Strategy.

Applications

FprCEN/TS 16157-10 provides practical value for a range of stakeholders within intelligent transport systems:

• Road Authorities and Transport Operators: Efficiently manage and publish data on the availability, status, and operational characteristics of energy infrastructure, thereby improving traffic management and traveler services.
• ITS Service Providers and App Developers: Integrate up-to-date energy infrastructure information into route planners, navigation systems, and mobility platforms, supporting electric vehicle users and drivers of alternative fuel vehicles.
• Infrastructure Operators: Standardize the publication of status (e.g., operational/faulty, occupied/available), pricing, and asset information, facilitating market openness and interoperability.
• Urban Planners and Policy Makers: Use standardized, reliable datasets for planning and monitoring the roll-out of charging/refuelling infrastructure, assessing network readiness, and supporting policy compliance.
• End Users: Benefit indirectly via applications and services that provide real-time availability, convenient refuelling/charging location information, and price comparison for diverse vehicle energy infrastructures.

Related Standards

FprCEN/TS 16157-10 fits within a broader suite of DATEX II standards and closely interacts with several related specifications:

• EN 16157-1: Context and framework for DATEX II data exchange.
• EN 16157-2: Location referencing, supporting precise geographic information integration.
• EN 16157-7: Common data elements for consistent data modelling.
• CEN/TS 16157-12: Facility-related publications covering further details of facility modelling.
• ISO/IEC 19505-1: Specification of UML, the foundational modelling language.
• EU Regulations (e.g., 2025/655, 2023/1804): Legal framework for the availability and accessibility of data on alternative fuels infrastructure.

By adopting FprCEN/TS 16157-10, organizations enable secure, reliable, and harmonized data flows about vehicle energy sites across the ITS ecosystem, ensuring seamless, cross-border, and future-proof information exchange for evolving mobility needs.

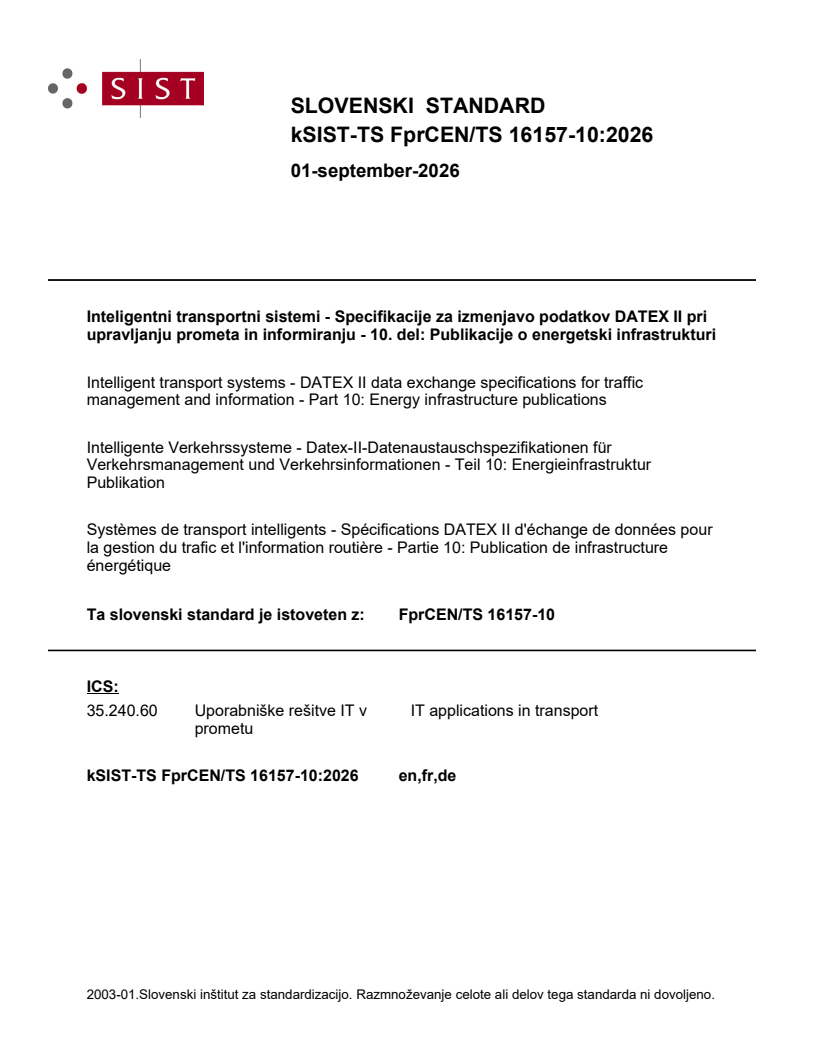

SLOVENSKI STANDARD
01-september-2026
Inteligentni transportni sistemi - Specifikacije za izmenjavo podatkov DATEX II pri
upravljanju prometa in informiranju - 10. del: Publikacije o energetski infrastrukturi
Intelligent transport systems - DATEX II data exchange specifications for traffic
management and information - Part 10: Energy infrastructure publications
Intelligente Verkehrssysteme - Datex-II-Datenaustauschspezifikationen für
Verkehrsmanagement und Verkehrsinformationen - Teil 10: Energieinfrastruktur
Publikation
Systèmes de transport intelligents - Spécifications DATEX II d'échange de données pour
la gestion du trafic et l'information routière - Partie 10: Publication de infrastructure
énergétique
Ta slovenski standard je istoveten z: FprCEN/TS 16157-10
ICS:
35.240.60 Uporabniške rešitve IT v IT applications in transport
prometu
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

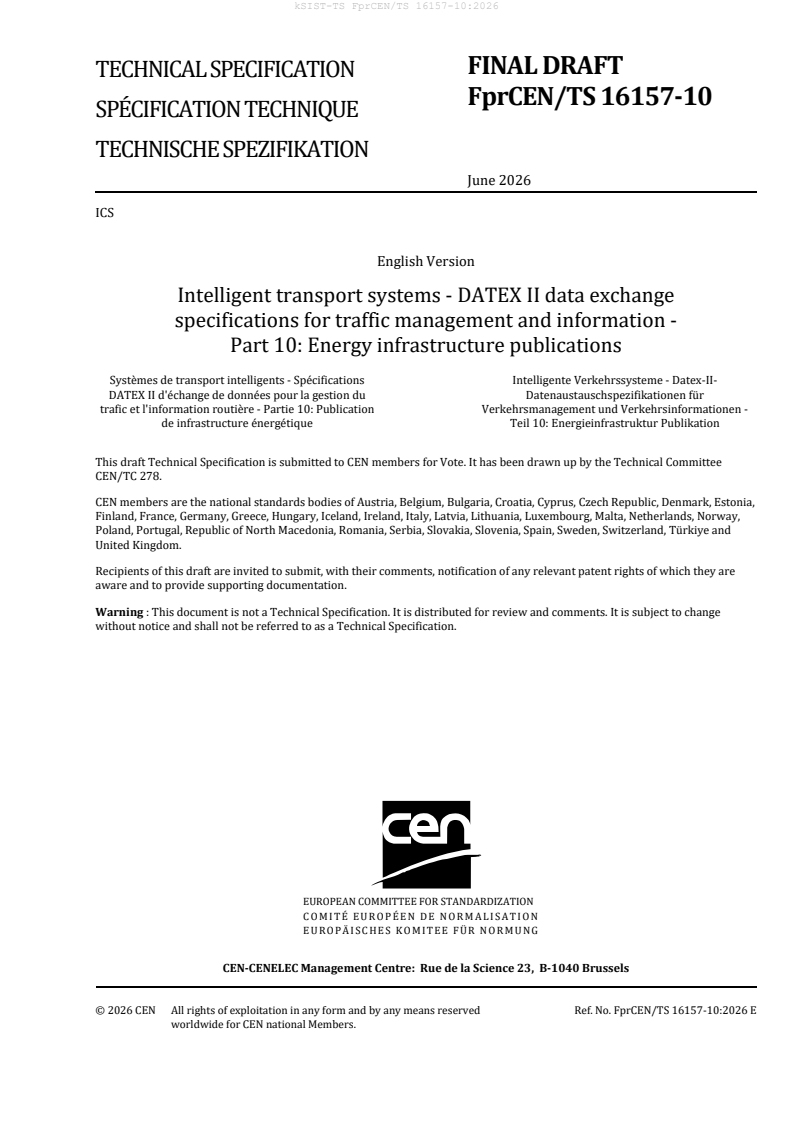

FINAL DRAFT
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
June 2026
ICS
English Version
Intelligent transport systems - DATEX II data exchange
specifications for traffic management and information -
Part 10: Energy infrastructure publications
Systèmes de transport intelligents - Spécifications Intelligente Verkehrssysteme - Datex-II-
DATEX II d'échange de données pour la gestion du Datenaustauschspezifikationen für
trafic et l'information routière - Partie 10: Publication Verkehrsmanagement und Verkehrsinformationen -
de infrastructure énergétique Teil 10: Energieinfrastruktur Publikation

This draft Technical Specification is submitted to CEN members for Vote. It has been drawn up by the Technical Committee
CEN/TC 278.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a Technical Specification. It is distributed for review and comments. It is subject to change
without notice and shall not be referred to as a Technical Specification.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprCEN/TS 16157-10:2026 E
worldwide for CEN national Members.

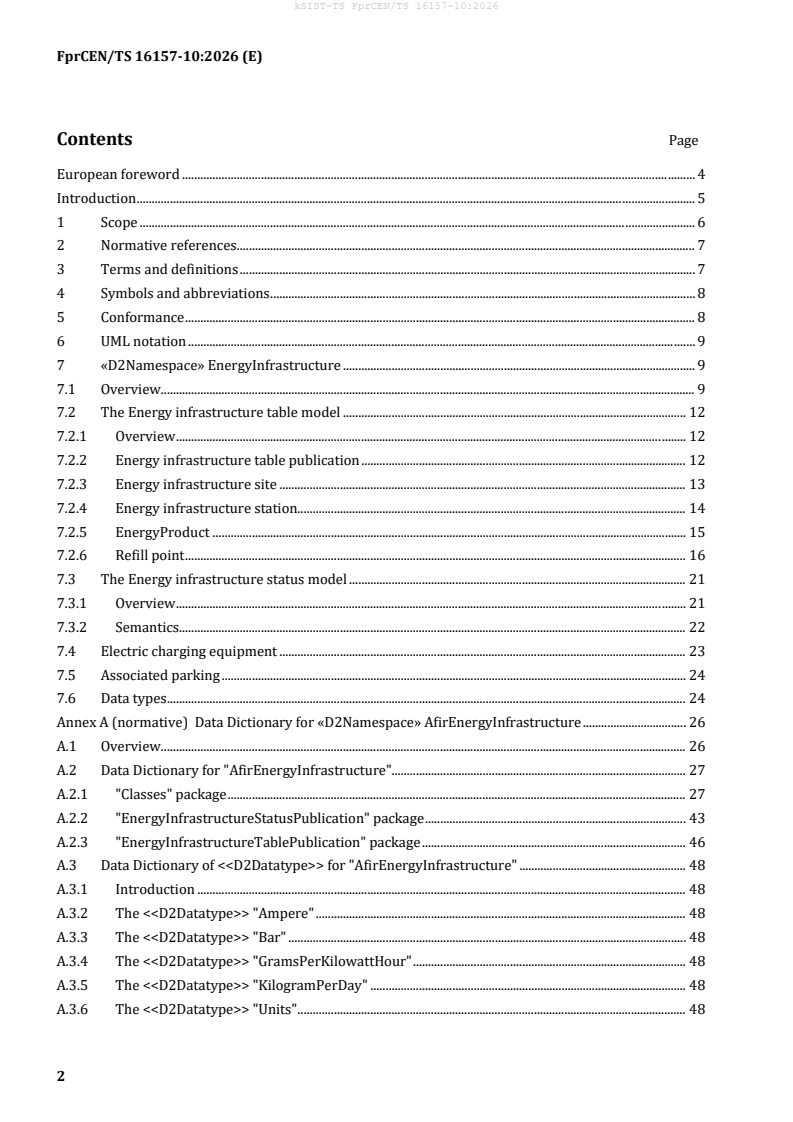

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 7
3 Terms and definitions . 7
4 Symbols and abbreviations . 8
5 Conformance . 8
6 UML notation . 9
7 «D2Namespace» EnergyInfrastructure . 9
7.1 Overview . 9
7.2 The Energy infrastructure table model . 12
7.2.1 Overview . 12
7.2.2 Energy infrastructure table publication . 12
7.2.3 Energy infrastructure site . 13
7.2.4 Energy infrastructure station. 14
7.2.5 EnergyProduct . 15
7.2.6 Refill point . 16
7.3 The Energy infrastructure status model . 21
7.3.1 Overview . 21
7.3.2 Semantics. 22
7.4 Electric charging equipment . 23
7.5 Associated parking . 24
7.6 Data types . 24
Annex A (normative) Data Dictionary for «D2Namespace» AfirEnergyInfrastructure . 26
A.1 Overview . 26
A.2 Data Dictionary for "AfirEnergyInfrastructure". 27
A.2.1 "Classes" package . 27
A.2.2 "EnergyInfrastructureStatusPublication" package . 43
A.2.3 "EnergyInfrastructureTablePublication" package . 46
A.3 Data Dictionary of <> for "AfirEnergyInfrastructure" . 48
A.3.1 Introduction . 48
A.3.2 The <> "Ampere" . 48
A.3.3 The <> "Bar" . 48
A.3.4 The <> "GramsPerKilowattHour" . 48
A.3.5 The <> "KilogramPerDay" . 48
A.3.6 The <> "Units" . 48
A.3.7 The <> "Volt" . 48
A.3.8 The <> "Watt" . 48
A.4 Data Dictionary of <> for "AfirEnergyInfrastructure" . 48
A.4.1 Introduction . 48
A.4.2 The <> "AuthenticationAndIdentificationEnum" . 48
A.4.3 The <> "BioethanolTypeEnum" . 49
A.4.4 The <> "ChargingModeEnum" . 50
A.4.5 The <> "ChargingPointUsageTypeEnum" . 50
A.4.6 The <> "ConnectorFormatTypeEnum" . 51
A.4.7 The <> "ConnectorTypeEnum" . 51
A.4.8 The <> "CurrentTypeEnum" . 54
A.4.9 The <> "DeliveryUnitEnum" . 54
A.4.10 The <> "DieselVehicleTypeEnum". 54
A.4.11 The <> "ElectricEnergySourceTypeEnum" . 54
A.4.12 The <> "EnergyInfrastructureSiteTypeEnum" . 55
A.4.13 The <> "GasConnectorTypeEnum" . 55
A.4.14 The <> "HydrogenFuellingProcessProtocolEnum" . 56
A.4.15 The <> "HydrogenRefuellingModeEnum" . 56
A.4.16 The <> "OctaneTypeEnum" . 57
A.4.17 The <> "PetrolTypeEnum" . 57
A.4.18 The <> "PriceTypeEnum" . 57
A.4.19 The <> "RatePolicyEnum" . 58
A.4.20 The <> "RefillPointStatusEnum" . 58
A.4.21 The <> "ReservationTypeEnum" . 59
A.4.22 The <> "ServiceTypeEnum" . 59
A.4.23 The <> "SmartRechargingServicesEnum" . 60
A.4.24 The <> "UserTypeEnum" . 60
A.4.25 The <> "VehicleToGridCommunicationTypeEnum" . 61
Bibliography . 63

European foreword
This document (FprCEN/TS 16157-10:2026) has been prepared by Technical Committee CEN/TC 278
“Intelligent transport systems”, the secretariat of which is held by NEN.
This document will supersede CEN/TS 16157-10:2022.
CEN/TS 16157-10:2022:
 adding elements to provide support for COMMISSION IMPLEMENTING REGULATION (EU) 2025/655
- Rules for the application of Regulation (EU) 2023/1804 of the European Parliament and of the
Council as regards specifications and procedures relating to the availability and accessibility of data
on alternative fuels infrastructure
 introducing the new namespace AfirEnergyInfrastructure (aegi) because of non-backwards
compatible model changes
 further model improvements
 correction of different bugs.
Introduction
This document defines a common set of data exchange specifications to support the vision of a seamless
interoperable exchange of road traffic and travel information across boundaries, including national,
urban, interurban, road administrations, infrastructure providers and service providers. Standardisation
in this context is a vital constituent to ensure interoperability, reduction of risk, reduction of the cost base,
promotion of open marketplaces and many social, economic and community benefits to be gained from
more informed travellers, network managers and transport operators.
Deploying intelligent transport systems in line with European Sustainable and Smart Mobility Strategy as
issued by the European Commission requires co-ordination of traffic management operation and
development of seamless pan-European information services. These jointly aim at contributing to the
transformation of the European transport system for the objectives of efficient, safe, sustainable, smart
and resilient mobility.
In this context the European Commission has been supporting the development of information exchange
between the actors of road traffic management and related services for several years. In the road sector,
DATEX II has been long in fruition, with the European Commission being fundamental to its development
through an initial contract and subsequent co-funding of the further evolution of the standard and user
support ecosystem. With this standardisation of DATEX II, there is a real basis for common exchange
between the actors of the traffic and travel information sector both in the collaboration between traffic
management organisations and their systems, as well as in coherent information provision to service
providers. DATEX II supports the requirements of the stakeholder organisations involved in the road
traffic and travel domain in compliance with the EU policy and legal frameworks aimed at the sector.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
1 Scope
This document specifies two publication sub-models within the DATEX II framework that support the
publication of information on infrastructure for vehicle energy supply. The provided data model is
separated into two publications for static and dynamic information. The static information regarding the
infrastructure is not subject to frequent changes, whereas the dynamic part offers the ability to provide
highly up-to-date information. The static part covers all relevant information on vehicle energy
infrastructure, e.g. sites, stations and refill points for electric vehicles as well as petrol, gasoline or gas-
based refuelling for vehicles. In terms of dynamic information, the availability of the infrastructure,
possible faults and a price indication are covered.
In normative Annex A, the data dictionary for the «D2Namespace» AfirEnergyInfrastructure is specified.
These publications are intended to support the exchange of informational content from road traffic
authorities issuing traffic regulation orders and organisations implementing these orders to other
organisations providing ITS services or onward information exchange.

2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 16157-1:2018, Intelligent transport systems - DATEX II data exchange specifications for traffic
management and information - Part 1: Context and framework
EN 16157-2:2019, Intelligent transport systems - DATEX II data exchange specifications for traffic
management and information - Part 2: Location referencing
EN 16157-7:2018, Intelligent transport systems - DATEX II data exchange specifications for traffic
management and information - Part 7: Common data elements
CEN/TS 16157-12, Intelligent transport systems - DATEX II data exchange specifications for traffic
management and information - Part 12: Facility related publications
ISO/IEC 19505-1:2012, Information technology - Object Management Group Unified Modeling Language
(OMG UML) - Part 1: Infrastructure
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 16157-1, EN 16157-2 and EN
16157-7 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
 ISO Online browsing platform: available at https://www.iso.org/obp
 IEC Electropedia: available at https://www.electropedia.org/
3.1
connector
type and form of the piece that is used to connect a charging point to a vehicle or vice versa
Note 1 to entry: It requires a matching socket.
3.2
electric charging point
technical infrastructure at a specific location that facilitates electric charging of one vehicle at a time
3.3
energy infrastructure site
location and corresponding constructions where vehicles can be refilled and other services (parking,
shopping, etc.) may be offered
3.4
energy infrastructure station
part of an energy infrastructure site that offers at least one refilling option (e.g. fuel, gas, electricity, .)

Under preparation. Stage at the time of publication: FprCEN/TS 16157-12.
3.5
fault
information about a malfunction relating to a specific piece of equipment or process
3.6
refilling
process of transferring energy from a refill point to a vehicle, regardless of the type of energy; replaces
the terms "fuelling" and "charging"
3.7
refill point
technical infrastructure at a specific location that facilitates an energy refilling process being connected
to max. one vehicle at a time
4 Symbols and abbreviations
AC Alternating Current
DC Direct Current
CEE Commission on the Rules for the Approval of the Electrical Equipment
CCS Combined Charging Solution
CNG Compressed Natural Gas
EV Electric Vehicle
IEC International Electrotechnical Commission
kWh Kilo Watt Hours
LPG Liquefied Petroleum Gas
MCS Megawatt Charging System
NFC Near Field Communication
PLC Powerline Communication
RFID Radio-Frequency Identification
SAE Society of Automotive Engineers
UML Unified Modeling Language
URL Uniform Resource Locator
XML eXtensible Markup Language
5 Conformance
This document specifies DATEX II infrastructure for vehicle energy supply, except for the elements that
relate to location information which are specified in EN 16157-2:2019, the common elements (i.e., shared
between several publications) which are defined in EN 16157-7:2018 and facility information which is
specified in CEN/TS 16157-12
Revision in preparation
The DATEX II platform independent data model, of which this publication sub-model is a part,
corresponds to the level A model as defined in EN 16157-1.
Conformance with this Part shall require platform independent models from which platform specific
models are generated to comply with the UML modelling rules defined in EN 16157-1 and with the
following requirements of the models which are expressed in this part.
6 UML notation
The UML notation used in these Technical Specifications shall be as described in ISO/IEC 19505-1.
NOTE Some introductory guides to UML 2 are provided in the Bibliography of EN 16157-1:2018
7 «D2Namespace» EnergyInfrastructure
7.1 Overview
The namespace "EnergyInfrastructure" shall specify a data model with details of infrastructure for vehicle
energy supply. The approach is to provide all necessary details for all kinds of energy types (fuels, gases,
hydrogen and electricity). The core concept (see Figure 2) was derived from ISO/TS 21219-25 [7].
Three core elements define the model:
 «D2Class» "EnergyInfrastructureSite" represents an energy infrastructure site, i.e. a site where
vehicles can refill energy. It is described by a number of properties and parameters like for example
its included energy infrastructure stations, operation hours or its location.
 «D2Class» "EnergyInfrastructureStation" represents an energy infrastructure station that is located
on an energy infrastructure site. The station is the location on the site where the refilling can be
carried out. For fuels, it usually offers different kinds of petrol (super, regular) and diesel. For electro
mobility, it may offer different kind of connectors. Furthermore, it may offer options for the client to
pay for the product (energy) they refilled.
 «D2Class» "RefillPoint" represents a refill point that is part of an energy infrastructure station. A refill
point is defined by its ability to charge one vehicle at a time by establishing a connection between the
station and the vehicle. In most cases, a refill point is specialised to only be able to provide one kind
of energy.
These three classes shall all be a specialization of the «D2Class» "Facility" from «D2Namespace» Facilities
defined in CEN/TS 16157-12. This implies, that these classes inherit a number of facility properties, like
being versioned identifiable, operating hours, rates, URLs, information about operator and owner and
more.
EXAMPLE: Figure 1 shows the core elements of an energy infrastructure site at the example of electric charging.
Note that ElectricChargingPoint is a specialisation of RefillPoint, and connectors are only available for electric
charging points, not for other types of refill points.

Figure 1 — Core elements of an energy infrastructure site on the example of electric charging

Figure 2 — The core structure of the Energy Infrastructure Publication
The «D2Namespace» "AfirEnergyInfrastructure" shall be immediately subordinate to the
“PayloadPublication” package defined in EN 16157-7 and shall comprise:
 the «D2Package» "EnergyInfrastructureTablePublication" (see 7.2);
 the «D2Package» "EnergyInfrastructureStatusPublication" (see 7.3);
 and, in addition, the classes, data types and enumerations specific for these payload publications.
The prefix of the namespace shall be "aegi".
Some of the packages and individual classes used within the “AfirEnergyInfrastructure” namespace reside
in the namespaces “Common” and "LocationReferencing" defined in EN 16157-7 and EN 16157-2. Some
other elements reside in the «D2Namespace» "AfirFacilities" that is specified in CEN/TS 16157-12.
The classes, attributes, data types and enumerations that are specific to the namespace
"AfirEnergyPublication" are defined in the normative Annex A. The XML schema corresponding to this
document is provided in the normative Annex B.
7.2 The Energy infrastructure table model
7.2.1 Overview
The Energy infrastructure table model shall be located in the «D2Package» "EnergyInfrastructureTable
Publication" and define a model for publishable information on sites where vehicles can be refilled with
energy. The corresponding publication contains information designated for low exchange-rate
communication.
7.2.2 Energy infrastructure table publication
7.2.2.1 Overview
The «D2Class» “EnergyInfrastructureTablePublication” class shall be a specialization of the
“PayloadPublication” class defined in EN 16157-7 (see Figure 3). It shall comprise one or more instances
of «D2VersionedIdentifiable» “EnergyInfrastructureTable”.

Figure 3 — EnergyInfrastructureTablePublication class and associated classes
7.2.2.2 Semantics
7.2.2.2.1 «D2Class» EnergyInfrastructureTablePublication
The “EnergyInfrastructureTablePublication” class is a specific realisable case of a “PayloadPublication”
(defined in EN 16157-7). The “EnergyInfrastructureTablePublication” class is the base class for
containing the published “EnergyInfrastructureTable”.
7.2.2.2.2 «D2Class» HeaderInformation
The “HeaderInformation” class and its components is defined in EN 16157-7.
7.2.2.2.3 «D2VersionedIdentifiable» EnergyInfrastructureTable
Each instance of a “EnergyInfrastructureTable” comprises one or more instances of the
“EnergyInfrastructureSite” class and may have associated metadata contained in an instance of the
“HeaderInformation” class (defined in EN 16157-7), which allows the supplier of the
“EnergyInfrastructureTable” to specify how the recipient should treat the information contained in it.
7.2.3 Energy infrastructure site
7.2.3.1 Overview
The «D2Class» “EnergyInfrastructureSite” is aggregated to the “EnergyInfrastructureTable” class (see
Figure 4) and a specialization of the «D2Class» "Facility" from «D2Namespace» AfirFacilities defined in
CEN/TS 16157-12. It shall comprise any number of instances of «D2Class» “EnergyInfrastructureStation”
and shall have further aggregations to the «D2Class» Location as depicted in Figure 4.

Figure 4 — EnergyInfrastructureSite and -Station and associated classes
7.2.3.2 Semantics
7.2.3.2.1 «D2Class» EnergyInfrastructureSite
The “EnergyInfrastructureSite” class shall provide information about a site which offers refilling of
vehicles. By inheritance of the Facility class, a name or its location (including a physical address) may be
given. General information like operating hours, owner and operator and a link to its website may also be
given. For users, information on supplemental facilities, i.e. services or equipment, may be provided.
7.2.3.2.2 «D2Class» Location
The aggregated Location class is specified in EN 16157-2.
7.2.3.2.3 «D2Class» ServiceType
The “ServiceType” class may be used to give information whether a station operates with full service, self-
service, with physical attendance or is unattended. It may be linked to a specific period valid for this type
of service.
7.2.4 Energy infrastructure station
7.2.4.1 Overview
The «D2Class» “EnergyInfrastructureStation” is aggregated to the “EnergyInfrastructureSite” class and a
specialization of the «D2Class» "Facility" from «D2Namespace» AfirFacilities defined in CEN/TS 16157-
12. It shall comprise any number of instances of «D2Class» “RefillPoint” and shall have further
aggregations to classes as depicted in Figure 4.
7.2.4.2 Semantics
7.2.4.2.1 «D2Class» EnergyInfrastructureStation
The “EnergyInfrastructureStation” class shall provide information on authentication methods and the
number of available refill points. An energy distributor, multiple mobility service providers and multiple
roamingplatforms may be specified, each using the Organisation sub model from «D2Namespace»
AfirFacilities. The type of service may be specified similar as of an Energy Infrastructure Site.
7.2.4.2.2 «D2Class» Hydrogen
The “Hydrogen” class offers specific information for hydrogen stations such as the specific refill solution
for hydrogen and the cumulative capacity per day.
7.2.5 EnergyProduct
7.2.5.1 Overview
The «D2Class» “EnergyProduct” shall be aggregated to the “EnergyInfrastructureSite” class as well as to
“RefillPoint” class (see Figure 5). Each instance shall provide a specific offer of energy, optional specialised
as “ElectricEnergy” which might be described with its electrical mix and its rates.

Figure 5 —EnergyProduct
7.2.5.2 Semantics
7.2.5.2.1 «D2Class» EnergyProduct
This class provides information on the product name, green energy information and further product
information of a specific energy offer. This specification can be applied to all types of energy sources, but
the class might be specialised by class “ElectricEnergy” to allow the specification of a specific electric
energy product.
7.2.5.2.2 «D2Class» ElectricEnergy
This class provides information on the carbon dioxid and the nuclear waste impact of a specific electric
energy offer. The electric energy mix might be specified in detail using the “ElectricEnergySourceRatio”
class.
7.2.5.2.3 «D2Class» EnergyRate
This class provides specific rate information for an energy offer. It can be distinguished between contract
based and adhoc offers. Rates can be specified in relation to a specific given period. Payment methods can
be specified by using the PaymentMethod structure from the «D2Namespace» AfirFacilities.
7.2.5.2.4 «D2Class»EnergyPrice, TimeBasedApplicability and EnergyBasedApplicability
This class provides price information for the given energy rate. Prices can be specified in relation to a
specific given period or time-based (applicable from/to a specific minute of charging) or energy-based
(applicable from/to a specific value of kWh).
7.2.5.2.5 «D2Class» ElectricEnergySourceRatio
For each type of energy source its percentage ratio can be defined.
7.2.6 Refill point
7.2.6.1 Overview
The abstract «D2Class» “RefillPoint” class (see Figure 6) shall be a specialization of the «D2Class»
"Facility" from «D2Namespace» AfirFacilities defined in CEN/TS 16157-12. Its Instance shall be
specialized by one of the objects of the classes “AlternativeFuelsRefillPoint” (see 7.2.6.2.2),
“DieselRefillPoint” (see Figure 7), “PetrolRefillPoint” (see Figure 8) or “ElectricChargingPoint” (see Figure
9).
7.2.6.2 Semantics
7.2.6.2.1 Abstract «D2Class» RefillPoint
The “RefillPoint” class shall give information on what kind of energy can be transferred to a vehicle and
which connector is used. It may specify the delivery unit, a minimum and maximum delivery amount, a
model type and the type of reservation, if applicable.
7.2.6.2.2 «D2Class» AlternativeFuelsRefillPoint
The “AlternativeFuelsRefillPoint” class (see Figure 6) is a specialization of the “RefillPoint” class. It may
be used to provide information on the type of gases or liquids that this refill point provides (e.g. cng, lng,
lpd, hydrogen). It may be used to provide information on the refill solution and the process protocol.
Additionally, information on the ratio of renewable energy used for the hydrogen production may be
given.
Figure 6 — AlternativeFuelsRefillPoint
7.2.6.2.3 «D2Class» DieselRefillPoint
The “DieselRefillPoint” class (see Figure 7) is a specialization of the “RefillPoint” class. It may be used to
provide information on the type of diesel and its cetane value offered at this refill point.

Figure 7 — DieselRefillPoint class
7.2.6.2.4 «D2Class» PetrolRefillPoint
The “PetrolRefillPoint” class (see Figure 8) is a specialization of the “RefillPoint” class. It may be used to
provide information on the type of petrol available, its cetane value and bio ethanol percentage.

Figure 8 — PetrolRefillPoint class
7.2.6.2.5 «D2Class» ElectricChargingPoint
The “ElectricChargingPoint” class (see Figure 9) is a specialization of the “RefillPoint” class. It may be used
to provide information on the connectors, the energy source mixes and limitations for users in terms of
the usage type and the charging solution modes. Specific spaces for vehicles that are adjacent to this
electric charging point may be specified by using the «D2Class» VehicleSpace, which shall be a
specialization of the «D2Class» "Facility" from «D2Namespace» AfirFacilities defined in CEN/TS 16157-
12.
Figure 9 — ElectricChargingPoint class structure
7.2.6.2.6 «D2Class» Connector
The “Connector” class shall be used to provide information on the connector used at an electric charging
point, such as the charging interface and information on the cable (see Figure 9).
Some literals of the following elements make use of termonology from the denoted standards:
 ChargingModeEnum – EN IEC 61851-1 [1];
 VehicleToGridCommunicationTypeEnum – EN ISO 15118 (all parts) [2], IEC/TS 61980-2 [3];
 ConnectorTypeEnum – IEC 60309-2 [4], IEC 62196 (all parts) [5], EN 17186 [6].
7.3 The Energy infrastructure status model
7.3.1 Overview
The Energy infrastructure status model shall be located in the «D2Package» "EnergyInfrastructureStatus
Publication" and comprises a model for defining publishable information on the current status of
locations where vehicles can be refilled with energy – see Figure 10. The corresponding publication shall
exchange information on a high frequency.

Figure 10 — EnergyInfrastructureStatus class model
7.3.2 Semantics
7.3.2.1 «D2Class» EnergyInfrastructureStatusPublication
The “EnergyInfrastructureStatusPublication” class is a specific realisable case of a “PayloadPublication”
(defined in EN 16157-7). The “EnergyInfrastructureStatusPublication” class is the base class for
containing the published “EnergyInfrastructureStatus”.
7.3.2.2 «D2Class» HeaderInformation
The “HeaderInformation” class and its components is defined in EN 16157-7.
7.3.2.3 «D2Class» EnergyInfrastructureSiteStatus
The “EnergyInfrastructureSiteStatus” relates to the EnergyInfrastructureSite class (7.2.3.2.1). It is a
specialization of FacilityStatus from Namespace AfirFacilities, from which it inherits a number of status
properties, such as information about operating hours or closures. The reference to the class
EnergyInfrastructureSite is done on the level of the classes Facility and FacilityStatus by using the
versioned reference mechanism described in EN 16157-1.
The attributes in this class may be used to provide information on the available car and truck parking
spaces.
It is possible to specify the service type for the site (as well for the station), also in combination with
specific periods.
7.3.2.4 «D2Class» EnergyInfrastructureStationStatus
The “EnergyInfrastructureStationStatus” relates to the EnergyInfrastructureStation class (7.2.4.2.1). It is
a specialization of FacilityStatus from Namespace AfirFacilities, from which it inherits a number of status
properties. The reference to the class EnergyInfrastructureStation is done on the level of the classes
Facility and FacilityStatus by using the versioned reference mechanism described in EN 16157-1.
The attribute in this class may be used for each individual station to provide information whether it is
available.
7.3.2.5 «D2Class» RefillPointStatus
The “RefillPointStatus” relates to the RefillPoint class (7.2.6.2.1). It is a specialization of FacilityStatus
from Namespace AfirFacilities, from which it inherits a number of status properties. The reference to the
class RefillPoint is done on the level of the classes Facility and FacilityStatus by using the versioned
reference mechanism described in EN 16157-1.
The “RefillPointStatus” class may be used to provide information for an individual refill point regarding
its status (e.g. available, occupied or faulted), the price per delivery unit or minute (via class Rate) and an
approximated waiting time.
7.3.2.6 «D2Class» ElectricChargingPointStatus
The “ElectricChargingPointStatus” class may be used to provide additional information on the status of
an electric charging point. Due to the longer charging times compared to other refill processes, the
information whether a charging point is occupied at a certain point is much more relevant.
7.3.2.7 «D2Class» PlannedRefillPointStatus
With this class it is possible to define reservations, closures or some other status information of the refill
point in the future due to the aggregation to overallPeriod.
7.3.2.8 «D2Class» EnergyRateUpdate and EnergyPrice
With these classes, energy rates and prices can be updated. The energyRateReference is mandatory to
refer to a defined energy rate of the static model.
7.3.2.9 «D2Class» DurationValue (waitingTime)
With this class, the current waiting time at a specific refill point can be specified.
7.4 Electric charging equipment
The «D2Class» ElectricChargingEquipment (see Figure 11) shall provide an additional option to specify
an electric charging point as an equipment component in terms of a SupplementalFacility as defined in
«D2Namespace» AfirFacilies (CEN/TS 16157-12).

Figure 11 — Electric charging equipment
7.5 Associated parking
The «D2Class» AssociatedParking (see Figure 12) shall form a specialization of the «D2Class»
AssociatedFacility defined in the «D2Namespace» AfirFacilies (CEN/TS 16157-12) to support some basic
parking related information for some parking facility that is associated with this energy infrastructure
facility.
Figure 12 — Associated parking
7.6 Data types
The following data types shall be part of the energy infrastructure model:
 Watt;
 Volt;
 Ampere;
 Units – This data type allows to specify amounts in generic terms of a Unit, which can be one of the
elements in DeliveryUnitEnum.
 Bar;
 KilogramPerDay.
All of them shall be derived from the generic data type "Float" specified in EN 16157-7 – see Figure 13.
Figure 13 — Data types
Annex A
(normative)
Data Dictionary for «D2Namespace» AfirEnergyInfrastructure
A.1 Overview
This data dictionary identifies the definitions and characteristics of the different classes, attributes,
association ends, data types and enumerations appearing in the data model defined in Clause 7. The data
dictionary is specified as a whole, for the whole “AfirEnergyInfrastructure” namespace.
The generic data types which are used throughout all publications are defined in EN 16157-7:2018.
The first part of the data dictionary for each publication is partitioned into subclauses which relate to
each of the UML model packages and each subclause defines the contained classes, their attributes and
any association ends defined for associations between the classes within that package.
The Data Dictionary tables use the following columns:
Column Class name: it provides the symbolic name (upper camel case) given to the corresponding class.
Where a class name is prefixed by another name separated by a dot, the first name identifies the
namespace.
Column Association end: it provides the symbolic name (lower camel case) given to the corresponding
association end.
Column Attribute name: it provides the symbolic name (lower camel case) given to the corresponding
attribute of a class.
Column Enumerated value name: It provides the symbolic name (lower camel case) given to the
corresponding enumerated value.
Column Designation: it provides the corresponding name in natural language of the corresponding class,
attribute, association end or enumeration value.
Column Definition: it provides a comprehensive definition detailing the class, attribute or association
end.
Column Stereotype: it provides a statement of the stereotype that is assigned to the class, if any – see EN
16157-1:2018, 6.2 for further details.
Column Abstract: it provides a statement as to whether the class is abstract (non-instantiable) or
concrete (instantiable).
Column Multiplicity: it provides a statement of the allowed multiplicity for the attribute or association
end.
Column Target: It provides the name of the class which is at the end of the association to which the
association end applies.
A.2 Data Dictionary for "AfirEnergyInfrastructure"
A.2.1 "Classes" package
A.2.1.1 Location of "Classes" package
The location of "Classes" package is:
— D2Payload/PayloadPublication/AfirEnergyInfrastructure/Classes
A.2.1.2 Classes of the "Classes" package
Table A.1— Classes of the "Classes" package
Class name Designation Definition Stereotype Abstract
AlternativeFuelsRefill Alternative fuels refill A refill point for alt
...
