EN 61347-2-1:2001
(Main)Lamp controlgear - Part 2-1: Particular requirements for starting devices (other than glow starters)
Lamp controlgear - Part 2-1: Particular requirements for starting devices (other than glow starters)
This part of EN 61347 specifies particular safety requirements for starting devices (starters other than glow starters and ignitors) for fluorescent and other discharge lamps for use on a.c. supplies up to 1 000 V at 50 Hz or 60 Hz which produce starting pulses not greater than 100 kV and which are used in combination with lamps and ballasts covered in EN 60081, EN 60188, EN 60192, EN 60662, EN 60901, EN 61167, EN 61195, EN 61199, EN 61347-2-8 and EN 61347-2-9. It does not apply to glow starters or starting devices which are incorporated in discharge lamps or which are manually operated. Preheat transformers for fluorescent lamps are covered by EN 61347-2-8. This first edition of EN 61347-2-1, together with EN 61347-1, cancels and replaces the second edition of EN 60926, published in 1995, and constitutes a minor revision. This standard shall be used in conjunction with EN 61347-1. It was established on the basis of the first edition (2000) of that standard.
Geräte für Lampen - Teil 2-1: Besondere Anforderungen an Startgeräte (andere als Glimmstarter)
Appareillages de lampes - Partie 2-1: Prescriptions particulières pour les dispositifs d'amorçage (autres que starters à lueur)
La présente partie de la EN 61347 spécifie les prescriptions de sécurité particulières aux dispositifs d'amorçage (starters autres que starters à lueur et amorceurs) pour lampes à fluorescence et autres lampes à décharge conçus pour être alimentés en courant alternatif de 50 Hz ou 60 Hz jusqu'à 1 000 V produisant des impulsions d'amorçage ne dépassant pas 100 kV, et utilisés en association avec les lampes et ballasts faisant l'objet de la EN 60081, de la EN 60188, de la EN 60192, de la EN 60662, de la EN 60901, de la EN 61167, de la EN 61195, de la EN 61199, de la EN 61347-2-8 et de la EN 61347-2-9. Elle n'est pas applicable aux starters à lueur ni aux dispositifs d'amorçage incorporés dans les lampes à décharge ou aux dispositifs d'amorçage à commande manuelle. Les transformateurs de préchauffage pour lampes à fluorescence sont traités dans la EN 61347-2-8. Cette première édition de la EN 61347-2-1, conjointement avec la EN 61347-1, annule et remplace la deuxième édition de la EN 60926, parue en 1995, dont elle constitue une révision mineure. Cette norme doit être utilisée conjointement avec la EN 61347-1. Elle a été établie sur la base de la première édition (2000) de cette norme.
Lamp controlgear – Part 2-1: Particular requirements for starting devices (other than glow starters) (IEC 61347-2-1:2000)
General Information
- Status
- Published
- Publication Date
- 11-Jan-2001
- Withdrawal Date
- 30-Nov-2006
- Technical Committee
- CLC/TC 34 - 'Lamps and related equipment
- Drafting Committee
- IEC/SC 34C - IEC_SC_34C
- Parallel Committee
- IEC/SC 34C - IEC_SC_34C
- Current Stage
- 6060 - Document made available - Publishing
- Start Date
- 12-Jan-2001
- Completion Date
- 12-Jan-2001
Relations
- Effective Date
- 28-Jan-2023
- Effective Date
- 28-Jan-2023
- Effective Date
- 19-Mar-2019
- Effective Date
- 29-Jan-2023
- Effective Date
- 28-Jan-2023
Overview
EN 61347-2-1:2001 (CLC) is a European particular-requirements standard for lamp controlgear that covers starting devices (other than glow starters and ignitors) used with fluorescent and other discharge lamps on AC supplies up to 1 000 V at 50 Hz or 60 Hz. The standard specifies safety requirements for devices that produce starting pulses up to 100 kV and are intended to be used in combination with lamps and ballasts covered by related standards. EN 61347-2-1 is intended to be used together with EN 61347-1 and is based on IEC 61347-2-1.
Key Topics
- Scope and applicability
- Starting devices for fluorescent and other discharge lamps (excluding glow starters, ignitors, manually operated starters, or devices incorporated within the lamp).
- Voltage and frequency limits: a.c. supplies up to 1 000 V at 50/60 Hz.
- Maximum starting pulse level: 100 kV.
- Safety requirements
- Electrical insulation, clearing of fault conditions and protection against hazardous voltages during starting.
- Compatibility and combined use with lamp and ballast standards.
- Design and construction considerations
- Mechanical robustness, mounting and connection requirements suited to controlgear assemblies.
- Marking and information for safe installation and operation (to be used with EN 61347-1).
- Exclusions and special cases
- Glow starters and starters integrated into lamps are explicitly excluded.
- Preheat transformers are covered separately (see related standards).
Applications
EN 61347-2-1 is practical for manufacturers, test laboratories, certification bodies, and electrical safety engineers involved with:
- Design, testing and certification of standalone starting devices for fluorescent and discharge lamp systems.
- Product compliance and CE marking for lamp controlgear sold in the European market.
- Ensuring safe integration of starters with ballasts and discharge lamps in commercial and industrial lighting installations.
- Specifying procurement and acceptance criteria for controlgear used in lighting systems where high-voltage starting pulses are present.
Related Standards
Use EN 61347-2-1 in conjunction with:
- EN 61347-1 (general requirements for lamp controlgear)
- EN 60081, EN 60188, EN 60192, EN 60662, EN 60901, EN 61167, EN 61195, EN 61199 (lamp and ballast standards)
- EN 61347-2-8 (preheat transformers)
- EN 61347-2-9 Note: EN 61347-2-1 (first edition) superseded EN 60926 (second edition, 1995) as part of the harmonized controlgear series.
Keywords: EN 61347-2-1, lamp controlgear, starting devices, fluorescent lamps, discharge lamps, ballast compatibility, electrical safety, CLC.
Frequently Asked Questions
EN 61347-2-1:2001 is a standard published by CLC. Its full title is "Lamp controlgear - Part 2-1: Particular requirements for starting devices (other than glow starters)". This standard covers: This part of EN 61347 specifies particular safety requirements for starting devices (starters other than glow starters and ignitors) for fluorescent and other discharge lamps for use on a.c. supplies up to 1 000 V at 50 Hz or 60 Hz which produce starting pulses not greater than 100 kV and which are used in combination with lamps and ballasts covered in EN 60081, EN 60188, EN 60192, EN 60662, EN 60901, EN 61167, EN 61195, EN 61199, EN 61347-2-8 and EN 61347-2-9. It does not apply to glow starters or starting devices which are incorporated in discharge lamps or which are manually operated. Preheat transformers for fluorescent lamps are covered by EN 61347-2-8. This first edition of EN 61347-2-1, together with EN 61347-1, cancels and replaces the second edition of EN 60926, published in 1995, and constitutes a minor revision. This standard shall be used in conjunction with EN 61347-1. It was established on the basis of the first edition (2000) of that standard.
This part of EN 61347 specifies particular safety requirements for starting devices (starters other than glow starters and ignitors) for fluorescent and other discharge lamps for use on a.c. supplies up to 1 000 V at 50 Hz or 60 Hz which produce starting pulses not greater than 100 kV and which are used in combination with lamps and ballasts covered in EN 60081, EN 60188, EN 60192, EN 60662, EN 60901, EN 61167, EN 61195, EN 61199, EN 61347-2-8 and EN 61347-2-9. It does not apply to glow starters or starting devices which are incorporated in discharge lamps or which are manually operated. Preheat transformers for fluorescent lamps are covered by EN 61347-2-8. This first edition of EN 61347-2-1, together with EN 61347-1, cancels and replaces the second edition of EN 60926, published in 1995, and constitutes a minor revision. This standard shall be used in conjunction with EN 61347-1. It was established on the basis of the first edition (2000) of that standard.
EN 61347-2-1:2001 is classified under the following ICS (International Classification for Standards) categories: 29.140.99 - Other standards related to lamps. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 61347-2-1:2001 has the following relationships with other standards: It is inter standard links to EN 60926:1996/A1:1999, EN 60926:1996, EN IEC 61347-2-1:2024, EN 61347-2-1:2001/A1:2006, EN 61347-2-1:2001/A2:2014. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 61347-2-1:2001 is associated with the following European legislation: EU Directives/Regulations: 2006/95/EC, 73/23/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 61347-2-1:2001 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.

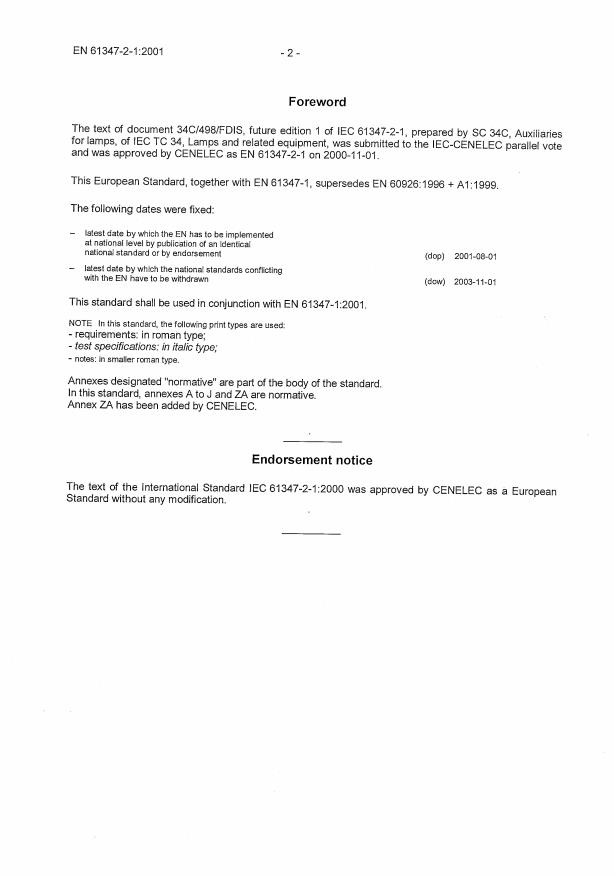

Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2002
1DGRPHãþD
SIST EN 60926:1996
SIST EN 60926:1996/A1:2000
Lamp controlgear – Part 2-1: Particular requirements for starting devices (other
than glow starters) (IEC 61347-2-1:2000)
Lamp controlgear -- Part 2-1: Particular requirements for starting devices (other than
glow starters)
Geräte für Lampen -- Teil 2-1: Besondere Anforderungen an Startgeräte (andere als
Glimmstarter)
Appareillages de lampes -- Partie 2-1: Prescriptions pa
...
