EN IEC 62847:2023
(Main)Railway applications - Rolling stock - Electrical connectors - Requirements and test methods
Railway applications - Rolling stock - Electrical connectors - Requirements and test methods
This International Standard retains IEC 61984:2008 as the minimum performance requirements for railway rolling stock electrical connectors. It identifies additional terms, test methods and performance requirements for single-pole and multipole connectors with rated voltages up to 1 000 V, rated currents up to 125 A per contact and frequencies below 3 MHz used for indoor and outdoor applications in railway rolling stock. This International Standard does not cover: - connectors with breaking capacity (CBCs) as defined in IEC 61984:2008, 3.2, because on board rolling stock connectors are not intended to be operated (i.e. mated and unmated) under load or when live, either by means of procedures or by the presence of interlocks, as required by IEC 61991; - non-rewirable connectors as defined in IEC 61984:2008, 3.5; - automatic couplers, due to their additional mechanical complexity and the need for more specific requirements and testing; - inter-vehicle jumpers, as they are connector and cable assemblies whose characteristics depend on those of both elements. Inter-vehicle connectors within the limits set in the scope of this International Standard are therefore covered by the agreed choice of suitable mechanical and environmental characteristics as defined by Annex B, and suggested by Annex C. This International Standard identifies the application levels for electrical connectors based on a) the severity of the service conditions in different rolling stock technologies, b) the intended use of the rolling stock, c) the location of the connector in the rolling stock system. This International Standard is not applicable to internal connections of electronic devices such as connectors for printed boards and rack-and-panel connectors.
Bahnanwendungen - Fahrzeuge - Elektrische Steckverbinder - Anforderungen und Prüfverfahren
Applications ferroviaires - Matériel roulant - Connecteurs électriques - Exigences et méthodes d'essai
L'IEC 62847:2016 reconnaît les exigences de l'IEC 61984:2008 comme étant les exigences de performances minimales des connecteurs électriques sur matériel roulant ferroviaire et identifie d'autres termes, méthodes d'essais et exigences de performances pour les connecteurs unipolaires et multipolaires avec des tensions assignées jusqu'à 1 000 V, des courants assignés jusqu'à 125 A par contact et des fréquences inférieures à 3 MHz, utilisés pour des applications intérieures et extérieures sur matériel roulant ferroviaire.
Železniške naprave - Vozna sredstva - Električni konektorji - Zahteve in preskusne metode
Ta mednarodni standard kot najnižjo zahtevo glede zmogljivosti električnih konektorjev železniških voznih sredstev ohranja standard IEC 61984:2008.
Opredeljuje dodatne pogoje, preskusne metode in zahteve glede zmogljivosti za enopolne in večpolne konektorje z nazivnimi napetostmi do 1000 V, nazivnimi toki do 125 A na stik in frekvencami pod 3 MHz, ki se uporabljajo za notranje in zunanje naprave pri železniških voznih sredstvih.
Ta mednarodni standard ne zajema:
– konektorjev z zmogljivostjo prekinitve (CBC), opredeljenih v točki 3.2 standarda IEC 61984:2008, ker konektorji na voznih sredstvih niso namenjeni za delovanje (tj. v spojenem in ločenem stanju) pod obremenitvijo ali napetostjo, bodisi s postopki ali prisotnostjo zapornih sistemov, kot to zahteva standard IEC 61991;
– konektorjev, ki jih ni mogoče znova povezati, kot je opredeljeno v točki 3.5 standarda IEC 61984:2008;
– samodejnih spojnikov zaradi njihove dodatne mehanske kompleksnosti ter podrobnejših zahtev in preskusov;
– povezovalnih elementov med vozili, tj. sklopov konektorjev in kablov, katerih lastnosti so odvisne od lastnosti obeh elementov. Konektorji za uporabo med vozili so v mejah, določenih v področju uporabe tega mednarodnega standarda, zajeti z dogovorjeno izbiro ustreznih mehanskih in okoljskih lastnosti, kot je opredeljeno v dodatku B in predlagano v dodatku C.
Ta mednarodni standard opredeljuje ravni uporabe za električne konektorje na podlagi
a) resnosti pogojev obratovanja pri različnih tehnologijah železniških voznih sredstev,
b) predvidene uporabe železniških voznih sredstev,
c) namestitve konektorja v sistemu železniških voznih sredstev.
Ta mednarodni standard se ne uporablja za notranje povezave elektronskih naprav, kot so konektorji za tiskana vezja ter konektorji za omare in panele.
General Information
Relations
Standards Content (Sample)

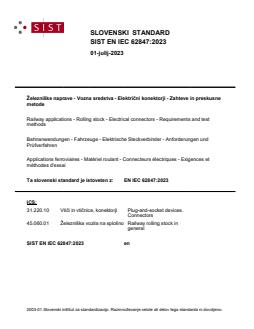

SLOVENSKI STANDARD
SIST EN IEC 62847:2023
01-julij-2023
Železniške naprave - Vozna sredstva - Električni konektorji - Zahteve in preskusne
metode
Railway applications - Rolling stock - Electrical connectors - Requirements and test
methods
Bahnanwendungen - Fahrzeuge - Elektrische Steckverbinder - Anforderungen und
Prüfverfahren
Applications ferroviaires - Matériel roulant - Connecteurs électriques - Exigences et
méthodes d'essai
Ta slovenski standard je istoveten z: EN IEC 62847:2023
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
SIST EN IEC 62847:2023 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 62847:2023
---------------------- Page: 2 ----------------------
SIST EN IEC 62847:2023

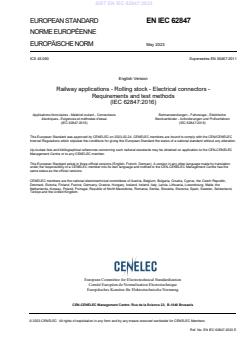

EUROPEAN STANDARD EN IEC 62847
NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 45.060 Supersedes EN 50467:2011
English Version
Railway applications - Rolling stock - Electrical connectors -
Requirements and test methods
(IEC 62847:2016)
Applications ferroviaires - Matériel roulant - Connecteurs Bahnanwendungen - Fahrzeuge - Elektrische
électriques - Exigences et méthodes d'essai Steckverbinder - Anforderungen und Prüfverfahren
(IEC 62847:2016) (IEC 62847:2016)
This European Standard was approved by CENELEC on 2023-02-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62847:2023 E
---------------------- Page: 3 ----------------------
SIST EN IEC 62847:2023
EN IEC 62847:2023 (E)

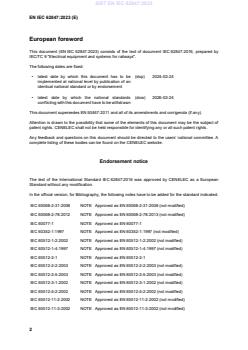

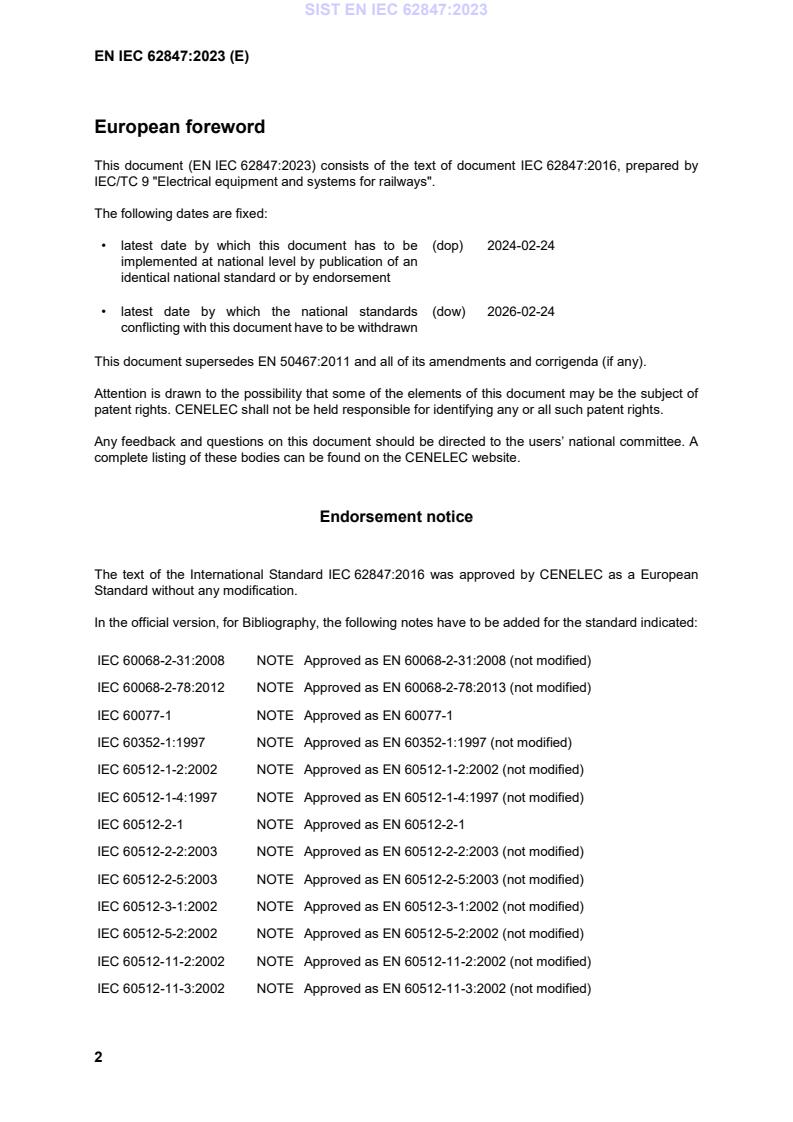

European foreword
This document (EN IEC 62847:2023) consists of the text of document IEC 62847:2016, prepared by
IEC/TC 9 "Electrical equipment and systems for railways".
The following dates are fixed:
• latest date by which this document has to be (dop) 2024-02-24
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) 2026-02-24
conflicting with this document have to be withdrawn
This document supersedes EN 50467:2011 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62847:2016 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60068-2-31:2008 NOTE Approved as EN 60068-2-31:2008 (not modified)
IEC 60068-2-78:2012 NOTE Approved as EN 60068-2-78:2013 (not modified)
IEC 60077-1 NOTE Approved as EN 60077-1
IEC 60352-1:1997 NOTE Approved as EN 60352-1:1997 (not modified)
IEC 60512-1-2:2002 NOTE Approved as EN 60512-1-2:2002 (not modified)
IEC 60512-1-4:1997 NOTE Approved as EN 60512-1-4:1997 (not modified)
IEC 60512-2-1 NOTE Approved as EN 60512-2-1
IEC 60512-2-2:2003 NOTE Approved as EN 60512-2-2:2003 (not modified)
IEC 60512-2-5:2003 NOTE Approved as EN 60512-2-5:2003 (not modified)
IEC 60512-3-1:2002 NOTE Approved as EN 60512-3-1:2002 (not modified)
IEC 60512-5-2:2002 NOTE Approved as EN 60512-5-2:2002 (not modified)
IEC 60512-11-2:2002 NOTE Approved as EN 60512-11-2:2002 (not modified)
IEC 60512-11-3:2002 NOTE Approved as EN 60512-11-3:2002 (not modified)
2
---------------------- Page: 4 ----------------------
SIST EN IEC 62847:2023
EN IEC 62847:2023 (E)
IEC 60512-11-4:2002 NOTE Approved as EN 60512-11-4:2002 (not modified)
IEC 60512-11-9:2002 NOTE Approved as EN 60512-11-9:2002 (not modified)
IEC 60512-11-10:2002 NOTE Approved as EN 60512-11-10:2002 (not modified)
IEC 60512-13-1:2006 NOTE Approved as EN 60512-13-1:2006 (not modified)
IEC 60512-15-1 NOTE Approved as EN 60512-15-1
IEC 60512-15-2 NOTE Approved as EN IEC 60512-15-2
IEC 60512-15-3 NOTE Approved as EN 60512-15-3
IEC 60512-23-7 NOTE Approved as EN 60512-23-7
3
---------------------- Page: 5 ----------------------
SIST EN IEC 62847:2023
FprEN IEC 60335-2-40:2020 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-581 - International Electrotechnical Vocabulary - -
- Part 581: Electromechanical
components for electronic equipment
IEC 60060-1 2010 High-voltage test techniques - Part 1: EN 60060-1 2010
General definitions and test requirements
IEC 60068-1 - Environmental testing - Part 1: General EN 60068-1 -
and guidance
IEC 60068-2-70 1995 Environmental testing - Part 2-70: Tests - EN 60068-2-70 1996
Test Xb: Abrasion of markings and
letterings caused by rubbing of fingers
and hands
IEC 60309-1 1999 Plugs, socket-outlets and couplers for EN 60309-1 1999
industrial purposes - Part 1: General
requirements
IEC 60352-2 2006 Solderless connections - Part 2: Crimped EN 60352-2 2006
connections - General requirements, test
methods and practical guidance
IEC 60352-3 - Solderless connections - Part 3: EN IEC 60352-3 -
Accessible insulation displacement (ID)
connections - General requirements, test
methods and practical guidance
IEC 60352-4 - Solderless connections - Part 4: Non- EN IEC 60352-4 -
accessible insulation displacement (ID)
connections - General requirements, test
methods and practical guidance
IEC 60352-5 - Solderless connections - Part 5: Press-in EN IEC 60352-5 -
connections - General requirements, test
methods and practical guidance
IEC 60352-6 - Solderless connections - Part 6: Insulation EN 60352-6 -
piercing connections - General
requirements, test methods and practical
guidance
4
---------------------- Page: 6 ----------------------
SIST EN IEC 62847:2023
EN IEC 62847:2023 (E)
Publication Year Title EN/HD Year
IEC 60352-7 - Solderless connections - Part 7: Spring EN IEC 60352-7 -
clamp connections - General
requirements, test methods and practical
guidance
IEC 60417 - Graphical symbols for use on equipment. - -
Index, survey and compilation of the
single sheets.
IEC 60512-1 2001 Connectors for electronic equipment - - -
Tests and measurements - Part 1:
General
IEC 60512-1-1 2002 Connectors for electronic equipment - EN 60512-1-1 2002
Tests and measurements - Part 1-1:
General examination - Test 1a: Visual
examination
IEC 60512-4-1 2003 Connectors for electronic equipment - EN 60512-4-1 2003
Tests and measurements - Part 4-1:
Voltage stress tests - Test 4a: Voltage
proof
IEC 60512-5-1 2002 Connectors for electronic equipment - EN 60512-5-1 2002
Tests and measurements - Part 5-1:
Current-carrying capacity tests - Test 5a:
Temperature rise
IEC 60512-11-6 2002 Connectors for electronic equipment - EN 60512-11-6 2002
Tests and measurements - Part 11-6:
Climatic tests - Test 11f: Corrosion, salt
mist
IEC 60512-11-7 2003 Connectors for electronic equipment - EN 60512-11-7 2003
Tests and measurements - Part 11-7:
Climatic tests - Test 11g: Flowing mixed
gas corrosion test
IEC 60512-13-5 - Connectors for electronic equipment - EN 60512-13-5 -
Tests and measurements - Part 13-5:
Mechanical operation tests - Test 13e:
Polarizing and keying method
IEC 60512-19-3 1997 Electromechanical components for EN 60512-19-3 1997
electronic equipment - Basic testing
procedures and measuring methods - Part
19: Chemical resistance tests - Section 3:
Test 19c - Fluid resistance
IEC 60512-23-3 2000 Electromechanical components for EN IEC 60512-23-3 2019
electronic equipment - Basic testing
procedures and measuring methods - Part
23-3: Test 23c: Shielding effectiveness of
connectors and accessories
IEC 60512-23-4 2001 Connectors for electronic equipment - EN 60512-23-4 2001
Tests and measurements - Part 23-4:
Screening and filtering tests - Test 23d:
Transmission line reflections in the time
domain
5
---------------------- Page: 7 ----------------------
SIST EN IEC 62847:2023
FprEN IEC 60335-2-40:2020 (E)
Publication Year Title EN/HD Year
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- - + corrigendum May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60664-1 2007 Insulation coordination for equipment EN 60664-1 2007
within low-voltage systems - Part 1:
Principles, requirements and tests
IEC 60999-1 1999 Connecting devices - Electrical copper EN 60999-1 2000
conductors - Safety requirements for
screw-type and screwless-type clamping
units - Part 1: General requirements and
particular requirements for clamping units
for conductors from 0,2 mm2 up to 35
mm2 (included)
IEC 60999-2 2003 Connecting devices - Electrical copper EN 60999-2 2003
conductors - Safety requirements for
screw-type and screwless-type clamping
units - Part 2: Particular requirements for
clamping units for conductors above 35
mm2 up to 300 mm2 (included)
IEC 61210 - Connecting devices - Flat quick-connect EN 61210 -
terminations for electrical copper
conductors - Safety requirements
IEC 61373 2010 Railway applications - Rolling stock EN 61373 2010
equipment - Shock and vibration tests
IEC 61984 2008 Connectors - Safety requirements and EN 61984 2009
tests
IEC 61991 - Railway applications - Rolling stock - EN 50153 -
Protective provisions against electrical
hazards
IEC 62497-1 2010 Railway applications - Insulation EN 50124-1 2017
coordination - Part 1: Basic requirements
- Clearances and creepage distances for
all electrical and electronic equipment
1
+ A1 —
ISO 1431-1 2012 Rubber, vulcanized or thermoplastic - - -
Resistance to ozone cracking - Part 1:
Static and dynamic strain testing
ISO 4892-2 2013 Plastics - Methods of exposure to EN ISO 4892-2 2013
laboratory light sources - Part 2: Xenon-
arc lamps
1
Under preparation. Stage at the time of publication: EN 50124-1:2017/prA1:2023.
6
---------------------- Page: 8 ----------------------
SIST EN IEC 62847:2023
IEC 62847
®
Edition 1.0 2016-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Railway applications – Rolling stock – Electrical connectors – Requirements
and test methods
Applications ferroviaires – Matériel roulant – Connecteurs électriques –
Exigences et méthodes d'essai
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 45.060 ISBN 978-2-8322-3207-1
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 9 ----------------------
SIST EN IEC 62847:2023
– 2 – IEC 62847:2016 © IEC 2016
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references. 8
3 Terms and definitions . 10
4 Technical information (electrical ratings) . 17
5 Classification . 17
5.1 General . 17
5.2 Severity of service conditions on different rolling stock technologies . 17
5.3 Intended use of rolling stock . 17
5.4 Location of connector on board rolling stock . 17
6 Requirements . 20
6.1 General . 20
6.2 Marking and identification . 20
6.2.1 Identification . 20
6.2.2 Marking . 20
6.2.3 Marking of position for contacts . 21
6.3 Provision against incorrect mating (non-intermateable) . 21
6.4 Protection against electric shock . 21
6.5 Provisions for earthing . 21
6.6 Terminations and connection methods . 21
6.7 Resistance to ageing . 22
6.8 General design . 22
6.8.1 Polarization . 22
6.8.2 Fixing of live parts . 23
6.8.3 Connection of conductors . 23
6.9 Design of a free connector . 23
6.10 Interlock . 23
6.11 IP degree of protection . 23
6.12 Dielectric strength . 23
6.13 Mechanical and electrical durability . 23
6.14 Cable strain relief . 24
6.15 Mechanical strength . 24
6.16 Vibration and shock . 24
6.17 Insulation coordination . 25
6.18 Temperature classes . 25
6.19 Temperature rise . 25
6.20 Protection against corrosion . 25
6.21 Electromagnetic compatibility (EMC) requirements . 26
6.22 Fire behaviour of materials and components . 26
6.23 Resistance to chemically active substances and to contaminating fluids . 26
6.24 Resistance to ozone . 26
6.25 Resistance to UV . 26
7 Tests . 27
7.1 Overview. 27
---------------------- Page: 10 ----------------------
SIST EN IEC 62847:2023
IEC 62847:2016 © IEC 2016 – 3 –
7.1.1 General . 27
7.1.2 Preconditioning and preparation . 27
7.1.3 Test conditions . 27
7.2 Test schedule . 29
7.3 Tests on raw materials . 36
7.4 Visual examination . 36
7.5 Durability of marking . 37
7.6 Interlock . 37
7.7 Protection against electric shock . 37
7.8 Temperature rise . 37
7.9 Mechanical operation . 38
7.10 Vibration and shock . 38
7.11 Measurement of clearances and creepage distances. 39
7.12 Dielectric strength . 39
7.13 Resistance between accessible metal parts and the protective earthing
contact . 39
7.14 Corrosion test . 40
7.15 Ozone resistance (ISO 1431-1) . 40
7.16 Resistance to UV (ISO 4892-2:2013) . 40
7.17 Resistance to fluids (IEC 60512-19-3:1997) . 40
Annex A (informative) Additional characteristics to be agreed by the manufacturer
and the user . 41
A.1 Additional information to be provided upon request of the user . 41
A.1.1 General . 41
A.1.2 Geometrical characteristics . 41
A.1.3 Electrical characteristics . 41
A.1.4 Environmental characteristics . 42
A.1.5 Mechanical characteristics . 42
A.2 Information for testing additional to that mentioned above . 42
Annex B (normative) Severity of the service conditions in different rolling stock
locations (mandatory) . 43
Annex C (informative) Severity of the service conditions in different rolling stock
locations (optional) . 44
Bibliography . 45
Figure 1 – Typical examples of connections . 11
Figure 2 – Multipole connectors . 12
Figure 3 – Typical connector locations on board rolling stock . 18
Figure 4 – Test sample for temperature rise test . 38
Table 1 – Example of typical connector locations on board rolling stock . 19
Table 2 – Preferred number of operating cycles . 24
Table 3 – Preferred test temperatures . 25
Table 4 – Plan of specimens required for tests . 27
Table 5 – Mechanical test group A . 29
Table 6 – Service life test group B . 30
Table 7 – Thermal test group C . 30
---------------------- Page: 11 ----------------------
SIST EN IEC 62847:2023
– 4 – IEC 62847:2016 © IEC 2016
Table 8 – Climatic test group D . 31
Table 9 – Degree of protection test group E. 33
Table 10 – Vibration and shock test group F . 34
Table 11 – Resistance to fluids test group G. 35
Table 12 – Shielding effectiveness test group H . 36
Table 13 – Tests on raw materials . 36
Table 14 – Test voltages . 39
Table B.1 – Minimum severity of service conditions in different rolling stock locations . 43
Table C.1 – Minimum severity of service conditions in different rolling stock locations . 44
---------------------- Page: 12 ----------------------
SIST EN IEC 62847:2023
IEC 62847:2016 © IEC 2016 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RAILWAY APPLICATIONS – ROLLING STOCK – ELECTRICAL
CONNECTORS – REQUIREMENTS AND TEST METHODS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62847 has been prepared by IEC technical committee 9: Electrical
equipment and systems for railways.
EN 50467:2011 has served as a basis for the elaboration of this standard.
The text of this standard is based on the following documents:
FDIS Report on voting
9/2110/FDIS 9/2139/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
---------------------- Page: 13 ----------------------
SIST EN IEC 62847:2023
– 6 – IEC 62847:2016 © IEC 2016
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be
...
SLOVENSKI STANDARD
oSIST prEN IEC 62847:2022
01-september-2022
Železniške naprave - Železniška vozila - Električni konektorji - Zahteve in
preskusne metode
Railway applications - Rolling stock - Electrical connectors - Requirements and test
methods
Applications ferroviaires - Matériel roulant - Connecteurs électriques - Exigences et
méthodes d'essai
Ta slovenski standard je istoveten z: prEN IEC 62847
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
oSIST prEN IEC 62847:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN IEC 62847:2022
---------------------- Page: 2 ----------------------
oSIST prEN IEC 62847:2022
EUROPEAN STANDARD DRAFT
prEN IEC 62847
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2022
ICS 45.060 Will supersede EN 50467:2011
English Version
Railway applications - Rolling stock - Electrical connectors -
Requirements and test methods
(IEC 62847:2016)
Applications ferroviaires - Matériel roulant - Connecteurs To be completed
électriques - Exigences et méthodes d'essai (IEC 62847:2016)
(IEC 62847:2016)
This draft European Standard is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2022-09-16.
The text of this draft consists of the text of IEC 62847:2016.
If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 75807 Ref. No. prEN IEC 62847 E
---------------------- Page: 3 ----------------------
oSIST prEN IEC 62847:2022
prEN IEC 62847:2022 (E)
European foreword
This document (prEN IEC 62847:2022) consists of the text of document IEC 62847:2016, prepared by
IEC/TC 9 " Electrical equipment and systems for railways".
This document is currently submitted to the Enquiry.
The following dates are proposed:
• latest date by which the existence of this document (doa) dor + 6 months
has to be announced at national level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be withdrawn (to be confirmed or
modified when voting)
2
---------------------- Page: 4 ----------------------
oSIST prEN IEC 62847:2022
prEN IEC 62847:2022 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-581 - International Electrotechnical Vocabulary - -
- Part 581: Electromechanical
components for electronic equipment
IEC 60060-1 2010 High-voltage test techniques - Part 1: EN 60060-1 2010
General definitions and test requirements
IEC 60068-1 - Environmental testing - Part 1: General EN 60068-1 -
and guidance
IEC 60068-2-70 1995 Environmental testing - Part 2-70: Tests - EN 60068-2-70 1996
Test Xb: Abrasion of markings and
letterings caused by rubbing of fingers
and hands
IEC 60309-1 1999 Plugs, socket-outlets and couplers for EN 60309-1 1999
industrial purposes - Part 1: General
requirements
IEC 60352-2 2006 Solderless connections - Part 2: Crimped EN 60352-2 2006
connections - General requirements, test
methods and practical guidance
IEC 60352-3 - Solderless connections - Part 3: EN IEC 60352-3 -
Accessible insulation displacement (ID)
connections - General requirements, test
methods and practical guidance
IEC 60352-4 - Solderless connections - Part 4: Non- EN IEC 60352-4 -
accessible insulation displacement (ID)
connections - General requirements, test
methods and practical guidance
IEC 60352-5 - Solderless connections - Part 5: Press-in EN IEC 60352-5 -
connections - General requirements, test
methods and practical guidance
IEC 60352-6 - Solderless connections - Part 6: Insulation EN 60352-6 -
piercing connections - General
requirements, test methods and practical
guidance
3
---------------------- Page: 5 ----------------------
oSIST prEN IEC 62847:2022
FprEN IEC 60335-2-40:2020 (E)
Publication Year Title EN/HD Year
IEC 60352-7 - Solderless connections - Part 7: Spring EN IEC 60352-7 -
clamp connections - General
requirements, test methods and practical
guidance
IEC 60417 - Graphical symbols for use on equipment. - -
Index, survey and compilation of the
single sheets.
IEC 60512-1 2001 Connectors for electronic equipment - - -
Tests and measurements - Part 1:
General
IEC 60512-1-1 2002 Connectors for electronic equipment - EN 60512-1-1 2002
Tests and measurements - Part 1-1:
General examination - Test 1a: Visual
examination
IEC 60512-4-1 2003 Connectors for electronic equipment - EN 60512-4-1 2003
Tests and measurements - Part 4-1:
Voltage stress tests - Test 4a: Voltage
proof
IEC 60512-5-1 2002 Connectors for electronic equipment - EN 60512-5-1 2002
Tests and measurements - Part 5-1:
Current-carrying capacity tests - Test 5a:
Temperature rise
IEC 60512-11-6 2002 Connectors for electronic equipment - EN 60512-11-6 2002
Tests and measurements - Part 11-6:
Climatic tests - Test 11f: Corrosion, salt
mist
IEC 60512-11-7 2003 Connectors for electronic equipment - EN 60512-11-7 2003
Tests and measurements - Part 11-7:
Climatic tests - Test 11g: Flowing mixed
gas corrosion test
IEC 60512-13-5 - Connectors for electronic equipment - EN 60512-13-5 -
Tests and measurements - Part 13-5:
Mechanical operation tests - Test 13e:
Polarizing and keying method
IEC 60512-19-3 1997 Electromechanical components for EN 60512-19-3 1997
electronic equipment - Basic testing
procedures and measuring methods - Part
19: Chemical resistance tests - Section 3:
Test 19c - Fluid resistance
IEC 60512-23-3 2000 Electromechanical components for - -
electronic equipment - Basic testing
procedures and measuring methods - Part
23-3: Test 23c: Shielding effectiveness of
connectors and accessories
IEC 60512-23-4 2001 Connectors for electronic equipment - EN 60512-23-4 2001
Tests and measurements - Part 23-4:
Screening and filtering tests - Test 23d:
Transmission line reflections in the time
domain
4
---------------------- Page: 6 ----------------------
oSIST prEN IEC 62847:2022
prEN IEC 62847:2022 (E)
Publication Year Title EN/HD Year
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- - + corrigendum May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60664-1 2007 Insulation coordination for equipment EN 60664-1 2007
within low-voltage systems - Part 1:
Principles, requirements and tests
IEC 60999-1 1999 Connecting devices - Electrical copper EN 60999-1 2000
conductors - Safety requirements for
screw-type and screwless-type clamping
units - Part 1: General requirements and
particular requirements for clamping units
for conductors from 0,2 mm2 up to 35
mm2 (included)
IEC 60999-2 2003 Connecting devices - Electrical copper EN 60999-2 2003
conductors - Safety requirements for
screw-type and screwless-type clamping
units - Part 2: Particular requirements for
clamping units for conductors above 35
mm2 up to 300 mm2 (included)
IEC 61210 - Connecting devices - Flat quick-connect EN 61210 -
terminations for electrical copper
conductors - Safety requirements
IEC 61373 2010 Railway applications - Rolling stock EN 61373 2010
equipment - Shock and vibration tests
IEC 61984 2008 Connectors - Safety requirements and EN 61984 2009
tests
IEC 61991 - Railway applications - Rolling stock - - -
Protective provisions against electrical
hazards
IEC 62497-1 2010 Railway applications - Insulation - -
coordination - Part 1: Basic requirements
- Clearances and creepage distances for
all electrical and electronic equipment
ISO 1431-1 2012 Rubber, vulcanized or thermoplastic - - -
Resistance to ozone cracking - Part 1:
Static and dynamic strain testing
ISO 4892-2 2013 Plastics - Methods of exposure to EN ISO 4892-2 2013
laboratory light sources - Part 2: Xenon-
arc lamps
5
---------------------- Page: 7 ----------------------
oSIST prEN IEC 62847:2022
---------------------- Page: 8 ----------------------
oSIST prEN IEC 62847:2022
IEC 62847
®
Edition 1.0 2016-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Railway applications – Rolling stock – Electrical connectors – Requirements
and test methods
Applications ferroviaires – Matériel roulant – Connecteurs électriques –
Exigences et méthodes d'essai
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 45.060 ISBN 978-2-8322-3207-1
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 9 ----------------------
oSIST prEN IEC 62847:2022
– 2 – IEC 62847:2016 © IEC 2016
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references. 8
3 Terms and definitions . 10
4 Technical information (electrical ratings) . 17
5 Classification . 17
5.1 General . 17
5.2 Severity of service conditions on different rolling stock technologies . 17
5.3 Intended use of rolling stock . 17
5.4 Location of connector on board rolling stock . 17
6 Requirements . 20
6.1 General . 20
6.2 Marking and identification . 20
6.2.1 Identification . 20
6.2.2 Marking . 20
6.2.3 Marking of position for contacts . 21
6.3 Provision against incorrect mating (non-intermateable) . 21
6.4 Protection against electric shock . 21
6.5 Provisions for earthing . 21
6.6 Terminations and connection methods . 21
6.7 Resistance to ageing . 22
6.8 General design . 22
6.8.1 Polarization . 22
6.8.2 Fixing of live parts . 23
6.8.3 Connection of conductors . 23
6.9 Design of a free connector . 23
6.10 Interlock . 23
6.11 IP degree of protection . 23
6.12 Dielectric strength . 23
6.13 Mechanical and electrical durability . 23
6.14 Cable strain relief . 24
6.15 Mechanical strength . 24
6.16 Vibration and shock . 24
6.17 Insulation coordination . 25
6.18 Temperature classes . 25
6.19 Temperature rise . 25
6.20 Protection against corrosion . 25
6.21 Electromagnetic compatibility (EMC) requirements . 26
6.22 Fire behaviour of materials and components . 26
6.23 Resistance to chemically active substances and to contaminating fluids . 26
6.24 Resistance to ozone . 26
6.25 Resistance to UV . 26
7 Tests . 27
7.1 Overview. 27
---------------------- Page: 10 ----------------------
oSIST prEN IEC 62847:2022
IEC 62847:2016 © IEC 2016 – 3 –
7.1.1 General . 27
7.1.2 Preconditioning and preparation . 27
7.1.3 Test conditions . 27
7.2 Test schedule . 29
7.3 Tests on raw materials . 36
7.4 Visual examination . 36
7.5 Durability of marking . 37
7.6 Interlock . 37
7.7 Protection against electric shock . 37
7.8 Temperature rise . 37
7.9 Mechanical operation . 38
7.10 Vibration and shock . 38
7.11 Measurement of clearances and creepage distances. 39
7.12 Dielectric strength . 39
7.13 Resistance between accessible metal parts and the protective earthing
contact . 39
7.14 Corrosion test . 40
7.15 Ozone resistance (ISO 1431-1) . 40
7.16 Resistance to UV (ISO 4892-2:2013) . 40
7.17 Resistance to fluids (IEC 60512-19-3:1997) . 40
Annex A (informative) Additional characteristics to be agreed by the manufacturer
and the user . 41
A.1 Additional information to be provided upon request of the user . 41
A.1.1 General . 41
A.1.2 Geometrical characteristics . 41
A.1.3 Electrical characteristics . 41
A.1.4 Environmental characteristics . 42
A.1.5 Mechanical characteristics . 42
A.2 Information for testing additional to that mentioned above . 42
Annex B (normative) Severity of the service conditions in different rolling stock
locations (mandatory) . 43
Annex C (informative) Severity of the service conditions in different rolling stock
locations (optional) . 44
Bibliography . 45
Figure 1 – Typical examples of connections . 11
Figure 2 – Multipole connectors . 12
Figure 3 – Typical connector locations on board rolling stock . 18
Figure 4 – Test sample for temperature rise test . 38
Table 1 – Example of typical connector locations on board rolling stock . 19
Table 2 – Preferred number of operating cycles . 24
Table 3 – Preferred test temperatures . 25
Table 4 – Plan of specimens required for tests . 27
Table 5 – Mechanical test group A . 29
Table 6 – Service life test group B . 30
Table 7 – Thermal test group C . 30
---------------------- Page: 11 ----------------------
oSIST prEN IEC 62847:2022
– 4 – IEC 62847:2016 © IEC 2016
Table 8 – Climatic test group D . 31
Table 9 – Degree of protection test group E. 33
Table 10 – Vibration and shock test group F . 34
Table 11 – Resistance to fluids test group G. 35
Table 12 – Shielding effectiveness test group H . 36
Table 13 – Tests on raw materials . 36
Table 14 – Test voltages . 39
Table B.1 – Minimum severity of service conditions in different rolling stock locations . 43
Table C.1 – Minimum severity of service conditions in different rolling stock locations . 44
---------------------- Page: 12 ----------------------
oSIST prEN IEC 62847:2022
IEC 62847:2016 © IEC 2016 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RAILWAY APPLICATIONS – ROLLING STOCK – ELECTRICAL
CONNECTORS – REQUIREMENTS AND TEST METHODS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62847 has been prepared by IEC technical committee 9: Electrical
equipment and systems for railways.
EN 50467:2011 has served as a basis for the elaboration of this standard.
The text of this standard is based on the following documents:
FDIS Report on voting
9/2110/FDIS 9/2139/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
---------------------- Page: 13 ----------------------
oSIST prEN IEC 62847:2022
– 6 – IEC 62847:2016 © IEC 2016
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
---------------------- Page: 14 ----------------------
oSIST prEN IEC 62847:2022
IEC 62847:2016 © IEC 2016 – 7 –
INTRODUCTION
This International Standard provides performance requirements and tests for low-voltage
electrical connectors intended to be installed on board rolling stock, either inside or outside.
Safety requirements and tests for electrical connectors are already covered in general by
IEC 61984:2008. The additional requirements and testing of specific characteristics
demanded by rolling stock applications are set out in this International Standard. One goal of
this International Standard is to avoid retesting of electrical connectors already in compliance
with IEC 61984:2008 for those characteristics that have been assessed suitable also for use
on board rolling stock.
Among the additional requirements for use on board rolling stock, those that can be verified
by documentation of tests on the raw materials are distinguished from those to be assessed
by tests on the component.
Due to the wide spectrum of existing and future specific rolling stock applications of electrical
connectors, this International Standard does not select any particular geometric configuration
of connectors, nor establish any particular values for electrical ratings such as voltage and
current, or for any other characteristic. All such details should be selected and agreed
between the parties involved (e.g. manufacturer and user) depending on the electrical,
mechanical and environmental conditions expected in the intended use. Annexes A and C of
this International Standard provide guidance.
Upon agreement between
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
