Electrical apparatus for the detection of combustible gases in domestic premises - Part 2: Electrical apparatus for continuous operation in a fixed installation in recreational vehicles and similar premises - Additional test methods and performance requirements

This document specifies test methods and performance requirements for electrical apparatus for the detection of
combustible gases designed for continuous operation in a fixed installation in recreational vehicles and similar
premises.
NOTE 1 For caravan holiday homes EN 50194-1 applies.
This document specifies apparatus designed to operate in the event of an escape of liquefied petroleum gas (LPG)
and/or petrol (gasoline) vapour and to provide a visual and audible alarm and an executive action in the form of an
output signal that can actuate directly or indirectly a shut-off device and/or other ancillary device (Type A of
EN 50194-1).
The document excludes apparatus for the detection of toxic gases such as carbon monoxide (see EN 50291).
Apparatus complying with this document is not considered suitable for industrial or commercial installations for
which EN 60079-29-1 apply.
NOTE 2 Apparatus tested in accordance with EN 60079-29-1 will not necessarily comply with this standard.

Elektrische Geräte für die Detektion von brennbaren Gasen in Wohnhäusern - Teil 2: Ortsfeste elektrische Geräte zum kontinuierlichen Betrieb in Freizeitfahrzeugen oder ähnlichen Umgebungen - Ergänzende Prüfverfahren und Anforderungen an das Betriebsverhalten

Matériels électriques pour la détection des gaz combustibles dans les locaux à usage domestique - Partie 2: Matériels électriques en fonctionnement continu et dans une installation fixe dans les véhicules de loisirs et locaux similaires - Méthodes d'essai supplémentaires et exigences de performance

Električne naprave za zaznavanje vnetljivega plina v gospodinjstvih - 2. del: Električne naprave za neprekinjeno delovanje v inštalacijah, vgrajenih v vozilih za rekreacijo, in na sorodnih področjih - Dodatne preskusne metode in zahteve za delovanje

Ta dokument določa preskusne metode in zahteve glede zmogljivosti za električne naprave za zaznavanje vnetljivih plinov, zasnovane za neprekinjeno delovanje v inštalacijah, vgrajenih v vozilih za rekreacijo, in na sorodnih področjih.
OPOMBA 1: Za počitniške prikolice velja standard EN 50194-1.
Ta dokument določa naprave, ki so zasnovane za delovanje v primeru uhajanja utekočinjenega naftnega plina (LPG) in/ali bencinskih hlapov ter sprožijo vizualni in zvočni alarm ter izvršno dejanje v obliki izhodnega signala, ki lahko neposredno ali posredno sproži napravo za zapiranje plina in/ali drugo pomožno napravo (vrsta A iz standarda EN 50194-1).
Dokument izključuje naprave za zaznavanje strupenih plinov, kot je ogljikov monoksid (glej standard EN 50291).
Naprave, skladne s tem dokumentom, niso primerne za industrijske ali komercialne inštalacije, za katere se uporablja standard EN 60079-29-1.
OPOMBA 2: Naprave, preskušene v skladu s standardom EN 60079-29-1, niso nujno v skladu s tem standardom.

General Information

Status
Published
Publication Date
23-May-2019
Current Stage
6060 - Document made available
Due Date
24-May-2019
Completion Date
24-May-2019

RELATIONS

Buy Standard

Standard
EN 50194-2:2019
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 50194-2:2019
01-julij-2019
Nadomešča:
SIST EN 50194-2:2007
SIST EN 50194-2:2007/A1:2016
Električne naprave za zaznavanje vnetljivega plina v gospodinjstvih - 2. del:

Električne naprave za neprekinjeno delovanje v inštalacijah, vgrajenih v vozilih za

rekreacijo, in na sorodnih področjih - Dodatne preskusne metode in zahteve za
delovanje

Electrical apparatus for the detection of combustible gases in domestic premises - Part

2: Electrical apparatus for continuous operation in a fixed installation in recreational

vehicles and similar premises - Additional test methods and performance requirements

Elektrische Geräte für die Detektion von brennbaren Gasen in Wohnhäusern - Teil 2:

Ortsfeste elektrische Geräte zum kontinuierlichen Betrieb in Freizeitfahrzeugen oder

ähnlichen Umgebungen - Ergänzende Prüfverfahren und Anforderungen an das
Betriebsverhalten

Matériels électriques pour la détection des gaz combustibles dans les locaux à usage

domestique - Partie 2: Matériels électriques en fonctionnement continu et en installation

fixe dans les véhicules de loisir et locaux similaires - Méthodes d'essai supplé
Ta slovenski standard je istoveten z: EN 50194-2:2019
ICS:
13.120 Varnost na domu Domestic safety
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
SIST EN 50194-2:2019 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 50194-2:2019
---------------------- Page: 2 ----------------------
SIST EN 50194-2:2019
EUROPEAN STANDARD EN 50194-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2019
ICS 13.320 Supersedes EN 50194-2:2006
English Version
Electrical apparatus for the detection of combustible gases in
domestic premises - Part 2: Electrical apparatus for continuous
operation in a fixed installation in recreational vehicles and
similar premises - Additional test methods and performance
requirements

Matériels électriques pour la détection des gaz Elektrische Geräte für die Detektion von brennbaren Gasen

combustibles dans les locaux à usage domestique - Partie in Wohnhäusern - Teil 2: Ortsfeste elektrische Geräte zum

2: Matériels électriques en fonctionnement continu et dans kontinuierlichen Betrieb in Freizeitfahrzeugen oder

une installation fixe dans les véhicules de loisirs et locaux ähnlichen Umgebungen - Ergänzende Prüfverfahren und

similaires - Méthodes d'essai supplémentaires et exigences Anforderungen an das Betriebsverhalten

de performance

This European Standard was approved by CENELEC on 2019-03-18. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 50194-2:2019 E
---------------------- Page: 3 ----------------------
SIST EN 50194-2:2019
EN 50194-2:2019 (E)

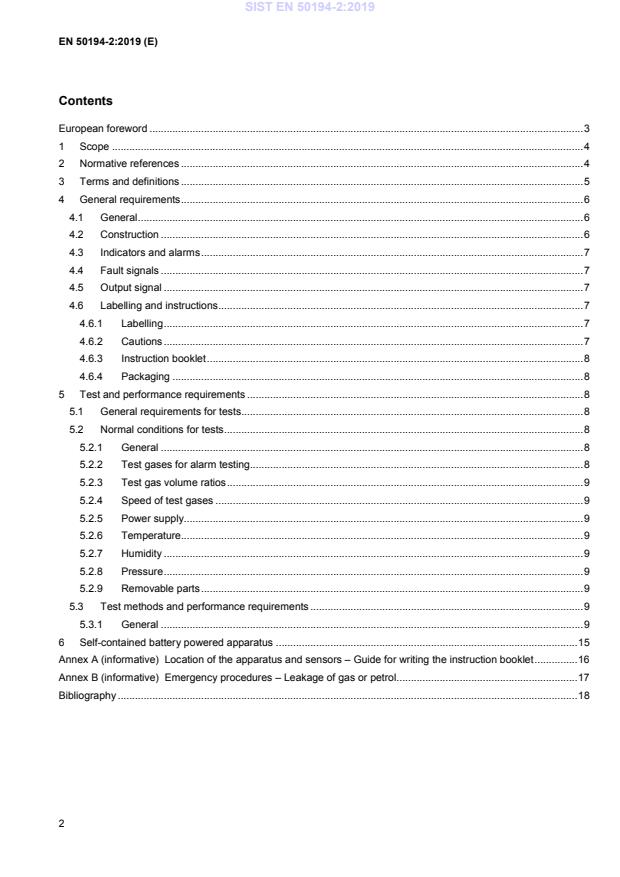

Contents

European foreword ....................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references ............................................................................................................................................ 4

3 Terms and definitions ............................................................................................................................................ 5

4 General requirements ............................................................................................................................................ 6

4.1 General ........................................................................................................................................................... 6

4.2 Construction ................................................................................................................................................... 6

4.3 Indicators and alarms ..................................................................................................................................... 7

4.4 Fault signals ................................................................................................................................................... 7

4.5 Output signal .................................................................................................................................................. 7

4.6 Labelling and instructions ............................................................................................................................... 7

4.6.1 Labelling .................................................................................................................................................. 7

4.6.2 Cautions .................................................................................................................................................. 7

4.6.3 Instruction booklet ................................................................................................................................... 8

4.6.4 Packaging ............................................................................................................................................... 8

5 Test and performance requirements ..................................................................................................................... 8

5.1 General requirements for tests ....................................................................................................................... 8

5.2 Normal conditions for tests ............................................................................................................................. 8

5.2.1 General ................................................................................................................................................... 8

5.2.2 Test gases for alarm testing .................................................................................................................... 8

5.2.3 Test gas volume ratios ............................................................................................................................ 9

5.2.4 Speed of test gases ................................................................................................................................ 9

5.2.5 Power supply........................................................................................................................................... 9

5.2.6 Temperature............................................................................................................................................ 9

5.2.7 Humidity .................................................................................................................................................. 9

5.2.8 Pressure .................................................................................................................................................. 9

5.2.9 Removable parts ..................................................................................................................................... 9

5.3 Test methods and performance requirements ............................................................................................... 9

5.3.1 General ................................................................................................................................................... 9

6 Self-contained battery powered apparatus ......................................................................................................... 15

Annex A (informative) Location of the apparatus and sensors – Guide for writing the instruction booklet ............... 16

Annex B (informative) Emergency procedures – Leakage of gas or petrol ............................................................... 17

Bibliography ................................................................................................................................................................ 18

---------------------- Page: 4 ----------------------
SIST EN 50194-2:2019
EN 50194-2:2019 (E)
European foreword
This document (EN 50194-2:2019) has been prepared by CLC/TC 216 “Gas detectors”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2020–03–18
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2022–03–18
conflicting with this document have to be
withdrawn
This document supersedes EN 50194-2:2006.
This Part 2 is intended to be used in conjunction with EN 50194-1:2009.

This European Standard supplements or modifies the corresponding clauses of EN 50194; where it states

“addition”, “modification” or “replacement” the relevant text of EN 50194 is to be adapted accordingly.

Subclauses, tables and notes that are numbered starting from 101 are additional to those in Part 1.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights.

CENELEC shall not be held responsible for identifying any or all such patent rights.

---------------------- Page: 5 ----------------------
SIST EN 50194-2:2019
EN 50194-2:2019 (E)
1 Scope
This Clause of EN 50194-1 is replaced by:

This document specifies test methods and performance requirements for electrical apparatus for the detection of

combustible gases designed for continuous operation in a fixed installation in recreational vehicles and similar

premises.
NOTE 1 For caravan holiday homes EN 50194-1 applies.

This document specifies apparatus designed to operate in the event of an escape of liquefied petroleum gas (LPG)

and/or petrol (gasoline) vapour and to provide a visual and audible alarm and an executive action in the form of an

output signal that can actuate directly or indirectly a shut-off device and/or other ancillary device (Type A of

EN 50194-1).

The document excludes apparatus for the detection of toxic gases such as carbon monoxide (see EN 50291).

Apparatus complying with this document is not considered suitable for industrial or commercial installations for

which EN 60079-29-1 apply.

NOTE 2 Apparatus tested in accordance with EN 60079-29-1 will not necessarily comply with this standard.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes

requirements of this document. For dated references, only the edition cited applies. For undated references, the

latest edition of the referenced document (including any amendments) applies.
EN 437:2003, Test gases – Test pressures – Appliance categories
EN 13878:2003, Leisure accommodation vehicles - Terms and definitions

EN 50194-1:2009, Electrical apparatus for the detection of combustible gases in domestic premises - Part 1: Test

methods and performance requirements

EN 60079-1, Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d"

EN 50270:2015, Electromagnetic compatibility - Electrical apparatus for the detection and measurement of

combustible gases, toxic gases or oxygen

EN 60068-2-6, Environmental testing - Part 2-6: Tests - Test Fc: Vibration (sinusoidal)

EN 60068-2-7, Environmental testing - Part 2: Tests - Test Ga: Acceleration, steady state

EN 60068-2-27, Environmental testing - Part 2-27: Tests - Test Ea and guidance: Shock

EN 60068-2-52, Environmental testing - Part 2: Tests - Test Kb: Salt mist, cyclic (sodium chloride solution)

EN 60529, Degrees of protection provided by enclosures (IP Code)

EN 60721-3-6:1993, Classification of environmental conditions - Part 3: Classification of groups of environmental

parameters and their severities - Section 6: Ship environment

EN 60945:2002, Maritime navigation and radiocommunication equipment and systems - General requirements -

Methods of testing and required test results

ISO 7637-2:2011, Road vehicles — Electrical disturbances from conduction and coupling — Part 2: Electrical

transient conduction along supply lines only
---------------------- Page: 6 ----------------------
SIST EN 50194-2:2019
EN 50194-2:2019 (E)
3 Terms and definitions

For the purposes of this document, the terms and definitions of EN 50194-1:2009 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.21
recreational vehicle

recreational vehicles considered by this standard include recreational craft, caravans and motor caravans

Note 1 to entry: Other motorised vehicles like trucks are known to have residential accommodation. They are not recreational

vehicles but are considered as similar premises in respect of this standard.
3.22
caravan holiday home

transportable leisure accommodation vehicle that does not meet requirements for construction and use of road

vehicles, that retains means for mobility and that is for temporary or seasonal occupation

[SOURCE: EN 13878]
3.23
recreational craft

boat of a minimum length of 2,5 m and a maximum length of 24 m as specified in Directive 94/25/EC, which is

intended for sports or leisure purposes

Note 1 to entry: For the purposes of this standard the word ´boat´ should be taken with the meaning ´recreational craft´.

3.24
remote sensor
sensor assembly that is mounted in a separate location from the control unit

Note 1 to entry: This definition should be read in conjunction with Definition 3.12 of EN 50194-1.

3.25
control unit

unit that may contain the power supply, signal processing, alarm circuits and indicators

3.26
vehicle supply powered apparatus
apparatus designed to be powered by the vehicle’s electrical supply
3.27
caravan

trailer leisure accommodation vehicle that meets requirements for construction and use of road vehicles

[SOURCE: EN 13878]
---------------------- Page: 7 ----------------------
SIST EN 50194-2:2019
EN 50194-2:2019 (E)
3.28
motor caravan

self-propelled leisure accommodation vehicle that meets requirements for construction and use of road vehicles

It contains at least:
– seats and table,
– sleeping accommodation which may be converted from the seats,
– cooking facilities, and
– storage facilities
[SOURCE: EN 13878]
4 General requirements
4.1 General
This subclause of EN 50194-1 is applicable with the following additions:

This standard also includes apparatus for detecting petrol vapour in applications such as the bilges of boats, where

petrol is used as fuel. It is not applicable for the detection of vapour of diesel fuel.

NOTE 101 Due to the low vapour pressure leaks of diesel fuel do not cause the risk of an explosion at ambient temperatures.

The requirements for flammable gas detection as defined in EN 50194-1 apply equally to petrol vapour detectors.

In this standard, there are requirements that cover all apparatus. Additional application specific requirements apply

to certain groups of recreational vehicles, such as boats. An apparatus which complies with the requirements for

recreational craft will automatically comply with the requirements for motor caravans and caravans. An apparatus

which complies with the requirements for motor caravans will automatically comply with the requirements for

caravans. The apparatus are designed for continuous operation.

NOTE 102 When the vehicle is not in use the apparatus may be switched off in order to save the vehicles power supply or the

internal batteries.

The apparatus may consist of one or more sensor(s) and a control unit. Sensors (integrated into the apparatus or

remote) shall be designed to detect LPG and/or petrol vapour.

NOTE 103 Sensors or apparatus designed according EN 50194-1 may be used as apparatus or as component of it, if the

additional requirements of this standard are complied with.

The apparatus shall reliably detect the presence of combustible gas in recreational vehicles under the stated

application conditions, shall produce an alarm and shall be able to initiate executive actions whenever the level

exceeds the alarm set point.

The apparatus, electrical assemblies and components shall comply with EN 50194-1, where applicable, with the

construction requirements of 4.2 to 4.6 and the test and performance requirements of Clause 5.

4.2 Construction
This subclause of EN 50194-1 is applicable with the following additions:

Each sensor shall be constructed of materials that will not corrode in the environment where it is designed for, e.g.

in the presence of a salt-laden atmosphere as exists in a marine environment, or be affected by the gases and

vapours that may be expected to be present in a bilge of a recreational craft.

Adequate means shall be provided to mount the remote sensor(s), pointing vertically downwards, securely to the

vehicle’s substructure.

The control unit shall be constructed of materials that are suitable for use in the intended application e.g. in the

cabin or below deck area of a recreational craft.
---------------------- Page: 8 ----------------------
SIST EN 50194-2:2019
EN 50194-2:2019 (E)
4.3 Indicators and alarms
This subclause of EN 50194-1 is applicable with the following additions:
4.3.3 Addition:

If more than one sensor is connected to a control unit, the control unit shall indicate the alarm condition of the

different sensors individually.
4.4 Fault signals
This subclause of EN 50194-1 is replaced by:

The apparatus shall provide a visual and audible fault signal in the event of interruption of communication between

control unit and the remote sensor(s).

The audible fault signal shall be clearly identified and different from a gas alarm.

4.5 Output signal
This subclause of EN 50194-1 is replaced by:

The output signal of the apparatus shall operate under the same conditions as the visual and audible alarm. For

triggering an output signal, there shall be no built-in delay.
4.6 Labelling and instructions
This subclause of EN 50194-1 is applicable with the following additions:

The manufacturer shall declare for which of the following application(s) and for which gas(es) the device is

approved:
– domestic premises;
– caravans;
– motor caravans;
– boats;
– gas(es) to be measured.

This shall be noted on a label on the device or fixed at the device and shall be pointed out more detailed in the

manual.

If one instruction manual is used for different types of devices it shall be explicitly noted which type is related to

which of the above mentioned application and to which gas.
4.6.1 Labelling
This subclause of EN 50194-1 is applicable with the following additions:
The following is applicable to recreational craft only:
j) The classification of the environmental condition as defined in EN 60721-3-6:
— remote sensor(s): 6K3/6B1/6S1/6M3,
— control unit: 6K2/6B1//6S1/6M3.
4.6.2 Cautions
This subclause of EN 50194-1 is applicable.
---------------------- Page: 9 ----------------------
SIST EN 50194-2:2019
EN 50194-2:2019 (E)
4.6.3 Instruction booklet
This subclause of EN 50194-1 is applicable with the following additions:
p) power consumption;

q) the correct operating voltage, fuse-rating, if any, and method of connection to the vehicle’s power system;

r) a list of materials that may be expected to be found in recreational vehicles that may produce vapours or

gases, e.g. oils, cleaning fluids, polishes, paints, greases, cooking operations, etc. which may affect the

reliability of the apparatus in the short or long term;

s) recommendation that the gas installation should comply with the requirements of 5.5 of Annex 1 of Directive

2013/53/EU (EN ISO 10239:2014) (applicable for recreational craft only);
t) th
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
