EN 50525-2-82:2011

Electric cables - Low voltage energy cables of rated voltages up to and including 450/750 V (U0/U) - Part 2-82: Cables for general applications - Cables with crosslinked elastomeric insulation for decorative chains

This European Standard applies to polychloroprene, or other equivalent synthetic elastomer, sheathed cables. The cables are of rated voltages U0/U up to and including 300/500 V. The cables are intended for use as decorative chains and with designated lampholders. NOTE 1 Cables to Type H03RN-F are for use with designated lampholders only. The 0,5 mm2 size is for use with miniaturised lampholders; the 0,75 mm2 size is for use with E 14 lampholders. See also HD 516. The maximum conductor operating temperature for each of the cables in this standard is 60 °C. NOTE 2 HD 516 contains extensive guidance on the safe use of cables in this standard. This EN 50525-2-82 should be read in conjunction with EN 50525-1, which specifies general requirements.

Kabel und Leitungen - Starkstromleitungen mit Nennspannungen bis 450/750 V (U0/U) - Teil 2-82: Starkstromleitungen für allgemeine Anwendungen - Leitungen für Lichterketten mit vernetzter Elastomer-Isolierung

Câbles électriques - Câbles d’énergie basse tension de tension assignée au plus égale à 450/750 V (U0/U) - Partie 2-82: Câbles pour applications générales - Câbles pour guirlandes lumineuses isolés en matériau élastomère réticulé

Električni kabli - Nizkonapetostni energetski kabli z nazivno napetostjo do vključno 450/750 V (U0/U) - 2-82. del: Kabli za splošno uporabo - Kabli z zamreženo elastomerno izolacijo za okrasne verige

Ta evropski standard velja za kable, oplaščene s polikloroprenom ali drugim ustreznim sintetičnim elastomerom. Ti kabli imajo nazivno napetost U0/U do vključno 300/500 V. Kabli se uporabljajo kot okrasne verige in z določenimi okovi za žarnice in sijalke.

General Information

• Status: Published
• Publication Date: 05-May-2011
• Withdrawal Date: 16-Jan-2014
• ICS: 29.060.20 - Cables
• Technical Committee: CLC/TC 20 - Electric cables
• Drafting Committee: CLC/TC 20 - Electric cables
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 23-Oct-2024
• Completion Date: 23-Sep-2025
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Ref Project: SIST EN 50525-2-82:2011 - Electric cables - Low voltage energy cables of rated voltages up to and including 450/750 V (U0/U) - Part 2-82: Cables for general applications - Cables with crosslinked elastomeric insulation for decorative chains

Relations

• Replaces: HD 22.8 S2:1994/A2:2004 - Cables of rated voltages up to and including 450/750 V and having cross-linked insulation - Part 8: Polychloroprene or equivalent synthetic elastomer sheathed cable for decorative chains
• Effective Date: 28-Jan-2023
• Replaces: HD 22.8 S2:1994/A1:1999 - Cables of rated voltages up to and including 450/750 V and having cross-linked insulation - Part 8: Polychloroprene or equivalent synthetic elastomer sheathed cable for decorative chains
• Effective Date: 28-Jan-2023
• Replaces: HD 22.8 S2:1994 - Cables of rated voltages up to and including 450/750 V and having cross-linked insulation - Part 8: Polychloroprene or equivalent synthetic elastomer sheathed cable for decorative chains
• Effective Date: 28-Jan-2023

Standards Content (Sample)

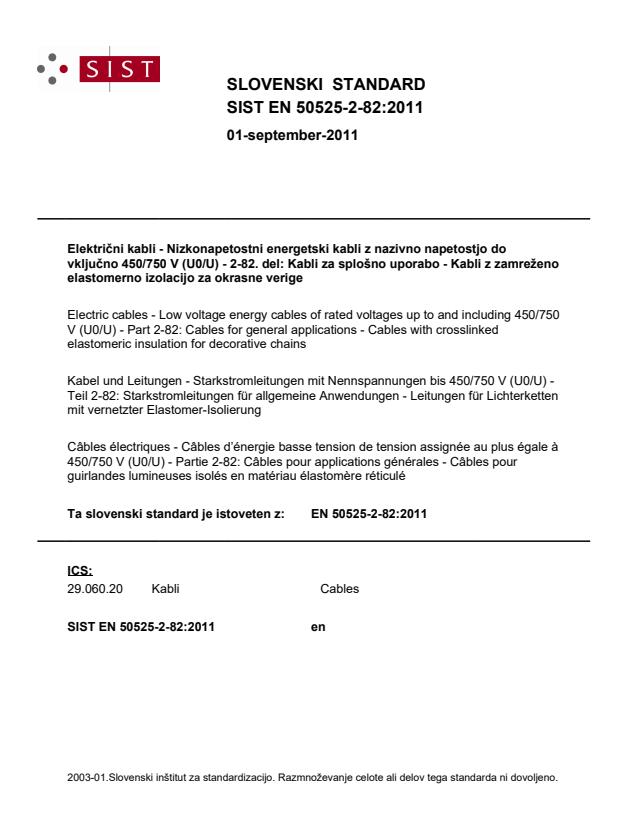

SLOVENSKI STANDARD
01-september-2011
(OHNWULþQLNDEOL1L]NRQDSHWRVWQLHQHUJHWVNLNDEOL]QD]LYQRQDSHWRVWMRGR
YNOMXþQR988GHO.DEOL]DVSORãQRXSRUDER.DEOL]]DPUHåHQR
HODVWRPHUQRL]RODFLMR]DRNUDVQHYHULJH
Electric cables - Low voltage energy cables of rated voltages up to and including 450/750
V (U0/U) - Part 2-82: Cables for general applications - Cables with crosslinked
elastomeric insulation for decorative chains
Kabel und Leitungen - Starkstromleitungen mit Nennspannungen bis 450/750 V (U0/U) -
Teil 2-82: Starkstromleitungen für allgemeine Anwendungen - Leitungen für Lichterketten
mit vernetzter Elastomer-Isolierung
Câbles électriques - Câbles d’énergie basse tension de tension assignée au plus égale à
450/750 V (U0/U) - Partie 2-82: Câbles pour applications générales - Câbles pour
guirlandes lumineuses isolés en matériau élastomère réticulé
Ta slovenski standard je istoveten z: EN 50525-2-82:2011
ICS:
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

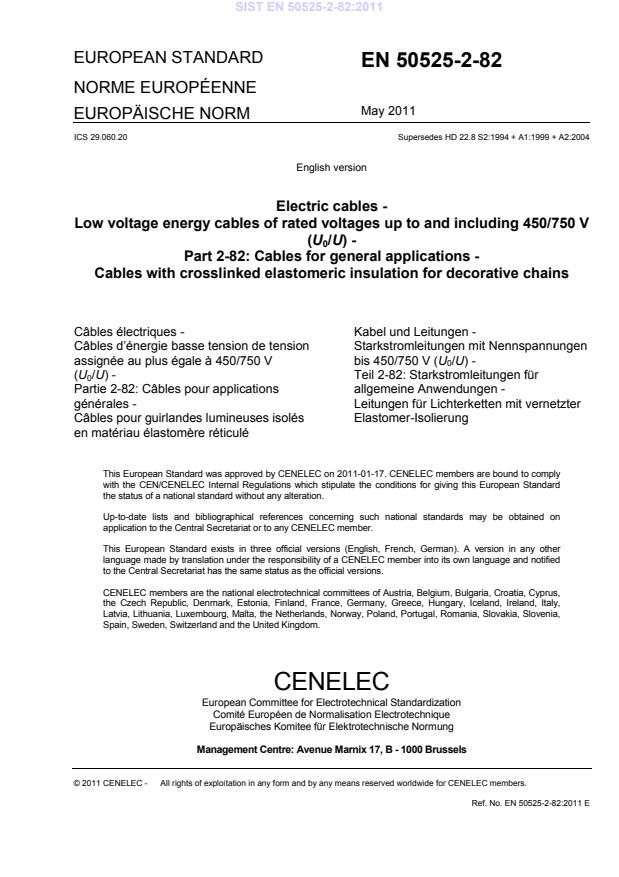

EUROPEAN STANDARD
EN 50525-2-82
NORME EUROPÉENNE
May 2011
EUROPÄISCHE NORM
ICS 29.060.20 Supersedes HD 22.8 S2:1994 + A1:1999 + A2:2004

English version
Electric cables -
Low voltage energy cables of rated voltages up to and including 450/750 V
(U /U) -
Part 2-82: Cables for general applications -
Cables with crosslinked elastomeric insulation for decorative chains

Câbles électriques -  Kabel und Leitungen -
Câbles d’énergie basse tension de tension Starkstromleitungen mit Nennspannungen
assignée au plus égale à 450/750 V bis 450/750 V (U /U) -
(U /U) -
Teil 2-82: Starkstromleitungen für
Partie 2-82: Câbles pour applications allgemeine Anwendungen -
générales - Leitungen für Lichterketten mit vernetzter
Câbles pour guirlandes lumineuses isolés Elastomer-Isolierung
en matériau élastomère réticulé

This European Standard was approved by CENELEC on 2011-01-17. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50525-2-82:2011 E
Foreword
This European Standard was prepared by the Technical Committee CENELEC TC 20, Electric
cables.
The text of the draft was submitted to the formal vote and was accepted by CENELEC as
EN 50525-2-82 on 2011-01-17.
This document, which is one of a multipart series, supersedes HD 22.8 S2:1994 + A1:1999 +
A2:2004.
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights. CEN and CENELEC shall not be held responsible for identifying any
or all such patent rights.
The following dates were fixed:

– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2012-01-17

– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2014-01-17

____________
- 3 - EN 50525-2-82:2011
Contents
Page
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 General purpose cables . 5
4.1 Cables used with designated lampholders – H03RN-F . 5
4.2 Cables – H05RN-F and H05RNH2-F . 5
Annex A (normative) Tests for cables to EN 50525-2-82 . 7
Annex B (normative) General data . 8
Annex C (normative) Requirements for compatibility test . 9
C.1 Test conditions . 9
C.2 Requirements . 9
Bibliography . 10

Tables
Table A.1 . 7
Table B.1 ― General data for cable type H03RN-F . 8
Table B.2 ― General data for cable types H05RN-F AND H05RNH2-F . 8
Table C.1 ― Requirements . 9

1 Scope
This European Standard applies to polychloroprene, or other equivalent synthetic elastomer,
sheathed cables.
The cables are of rated voltages U /U up to and including 300/500 V.
The cables are intended for use as decorative chains and with designated lampholders.
NOTE 1 Cables to Type H03RN-F are for use with designated lampholders only. The 0,5 mm size is for use with
miniaturised lampholders; the 0,75 mm size is for use with E 14 lampholders. See also HD 516.
The maximum conductor operating temperature for each of the cables in this standard is
60 °C.
NOTE 2 HD 516 contains extensive guidance on the safe use of cables in this standard.
This EN 50525-2-82 should be read in conjunction with EN 50525-1, which specifies general
requirements.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.

NOTE One or more references to the standards below are in respect of a specific sub-division of that standard,
for instance a clause, a table, a class or a type. Cross-references to these standards are undated and, at all times,
the latest version applies.
EN 50363-1 Insulating, sheathing and covering materials for low voltage
energy cables − Part 1: Cross-linked elastomeric insulating
compounds
EN 50363-2-1 Insulating, sheathing and covering materials for low voltage
energy cables − Part 2-1: Cross-linked elastomeric sheathing
compounds
EN 50395 Electrical test methods for low voltage energy cables
EN 50396
...
