EN 60335-2-5:2015

Household and similar electrical appliances - Safety - Part 2-5: Particular requirements for dishwashers

IEC 60335-2-5:2012 deals with the safety of electric dishwashers for household and similar purposes that are intended for washing and rinsing dishes, cutlery and other utensils, their rated voltage being not more than 250 V for single-phase appliances and 480 V for other appliances. Appliances intended for normal household and similar use and that may also be used by laymen in shops, in light industry and on farms, are within the scope of this standard. However, if the appliance is intended to be used professionally for washing and rinsing dishes and cutlery and other utensils that are used for commercial purposes, the appliance is not considered to be for household and similar use only. As far as is practicable, this standard deals with the common hazards presented by appliances that are encountered by all persons in and around the home. However, in general it does not take into account persons (including children) whose physical, sensory or mental capabilities, or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction or children playing with the appliance. This sixth edition cancels and replaces the fifth edition published in 2002 including its Amendment 1 (2005) and its Amendment 2 (2008). The principal changes in this edition as compared with the fifth edition of IEC 60335-2-5 are as follows: - added requirements to 22.104 to address switch issues; - converted notes to normative text (3.1.9, 7.12, 10.1, 10.2, 15.101, 22.6, 22.103, AA.1, AA.2, Annex BB - Clause 4) and - deleted notes (19.101, 22.6, 23.101, AA.2). For commercial electric dishwashing machines, see IEC 60335-2-58. Keywords: Appliances, Dishwashers

Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-5: Besondere Anforderungen für Geschirrspülmaschinen

Appareils électrodomestiques et analogues - Sécurité - Partie 2-5: Exigences particulières pour les lave-vaisselle

La CEI 60335-2-5:2012 traite de la sécurité des lave-vaisselle électriques à usage domestique et analogue destinés à laver et à rincer la vaisselle, les couverts et d'autres ustensiles, dont la tension assignée n'est pas supérieure à 250 V pour les appareils monophasés et à 480 V pour les autres appareils. Les appareils destinés à un usage domestique et analogue normal et qui peuvent également être utilisés par des usagers non avertis dans des magasins, chez des artisans et dans des fermes sont compris dans le domaine d'application de la présente norme. Toutefois, si l'appareil est destiné à être utilisé par des professionnels pour laver et rincer la vaisselle, les couverts et d'autres ustensiles qui sont utilisés à des fins commerciales, l'appareil n'est pas considéré comme étant uniquement à usage domestique et analogue. Dans la mesure du possible, la présente norme traite des risques ordinaires présentés par les appareils qui sont encourus par tous les individus à l'intérieur et autour de l'habitation. Cependant, cette norme ne tient pas compte en général des personnes (y compris des enfants) dont les capacités physiques, sensorielles ou mentales, ou le manque d'expérience et de connaissance les empêchent d'utiliser l'appareil en toute sécurité sans surveillance ou instruction; de l'utilisation de l'appareil comme jouet par des enfants. La sixième édition annule et remplace la cinquième édition publiée en 2002, son Amendement 1 (2005) et son Amendement 2 (2008). Les principales modifications de la présente édition par rapport à la cinquième édition de la CEI 60335-2-5 sont les suivantes (les changements mineurs ne sont pas listés): - ajout d'exigences en 22.104 pour résoudre les problèmes de commutation; - conversion des notes en texte normatif (3.1.9, 7.12, 10.1, 10.2, 15.101, 22.6, 22.103, AA.1, AA.2, Annexe BB - Article 4); suppression de notes (19.101, 22.6, 23.101, AA.2). Pour les lave-vaisselle électriques à usage collectif, voir la CEI 60335-2-58. Mots-clés: appareils, lave-vaisselle

Gospodinjski in podobni električni aparati - Varnost - 2-5. del: Posebne zahteve za pomivalne stroje

Besedilo se zamenja z naslednjim:
To točko 1. dela nadomešča naslednje besedilo. Ta evropski standard obravnava varnost električnih pomivalnih strojev za gospodinjske in podobne namene, kot so pranje in spiranje posode, jedilnega pribora ter drugih pripomočkov, katerih nazivna napetost ne presega 250 V za enofazne aparate in 480 V za druge aparate. Področje uporabe tega evropskega standarda zajema aparate, ki so namenjeni za laično uporabo v trgovinah in drugih objektih za običajne gospodinjske namene.
OPOMBA Z101: Primeri aparatov za uporabo v gospodinjstvu so aparati za običajne gospodinjske funkcije, ki se uporabljajo v gospodinjstvu in jih lahko uporabljajo tudi neprofesionalni uporabniki za opravljanje običajnih gospodinjskih funkcij:
– v trgovinah in drugih podobnih delovnih okoljih;
– na kmetijah;
– s strani strank v hotelih, motelih in drugih stanovanjskih okoljih;
– v gostiščih.
OPOMBA Z102: Gospodinjstva vključujejo stanovanjske in povezane zgradbe, vrt itd. Ta evropski standard v največji možni meri obravnava splošne nevarnosti, ki jih predstavljajo aparati ter s katerimi se srečujejo osebe doma in v podobnih okoljih. Vendar na splošno ne vključuje primerov:
– otrok, ki se z napravo igrajo,
– zelo majhnih otrok, ki uporabljajo aparate,
– majhnih otrok, ki aparate uporabljajo brez nadzora,
– uporabniškega vzdrževanja, vključno s čiščenjem aparata, ki ga izvajajo otroci.
Ugotovljeno je, da imajo lahko zelo ranljive osebe potrebe, ki presegajo raven, obravnavano v tem evropskem standardu. Ta evropski standard se ne uporablja za:
– komercialne električne pomivalne stroje (EN 60335-2-58),
– aparate za izključno industrijske namene,
– aparate, ki so namenjeni za uporabo na lokacijah, kjer veljajo posebne razmere, kot je prisotnost korozivne ali eksplozivne atmosfere (prah, hlapi ali plin).
OPOMBA Z103: Upoštevati je treba tudi, da:
– so za aparate, ki so namenjeni za uporabo v vozilih ali na krovu ladij ali letal, morda potrebne dodatne zahteve;
– v številnih državah nacionalni zdravstveni organi, nacionalni organi, odgovorni za varstvo pri delu, nacionalni organi za oskrbo z vodo ter drugi podobni organi določajo dodatne zahteve.

General Information

• Status: Published
• Publication Date: 23-Apr-2015
• Withdrawal Date: 08-Aug-2016
• ICS: 13.120 - Domestic safety
• ICS: 97.040.40 - Dishwashers
• Technical Committee: CLC/TC 61 - Safety of household and similar electrical appliances
• Drafting Committee: IEC/TC 61 - IEC_TC_61
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 24-Apr-2015
• Completion Date: 24-Apr-2015
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Ref Project: SIST EN 60335-2-5:2015 - Household and similar electrical appliances - Safety - Part 2-5: Particular requirements for dishwashers

Relations

• Replaces: EN 60335-2-5:2003 - Household and similar electrical appliances - Safety - Part 2-5: Particular requirements for dishwashers
• Effective Date: 29-Jan-2023
• Replaces: EN 60335-2-5:2003/A1:2005 - Household and similar electrical appliances - Safety - Part 2-5: Particular requirements for dishwashers
• Effective Date: 29-Jan-2023
• Replaces: EN 60335-2-5:2003/A2:2008 - Household and similar electrical appliances - Safety - Part 2-5: Particular requirements for dishwashers
• Effective Date: 29-Jan-2023
• Replaces: EN 60335-2-5:2003/A11:2009 - Household and similar electrical appliances - Safety - Part 2-5: Particular requirements for dishwashers
• Effective Date: 29-Jan-2023
• Replaces: EN 60335-2-5:2003/A12:2012 - Household and similar electrical appliances - Safety - Part 2-5: Particular requirements for dishwashers
• Effective Date: 28-Jan-2023
• Amended By: EN 60335-2-5:2015/A1:2020 - Household and similar electrical appliances - Safety - Part 2-5: Particular requirements for dishwashers
• Effective Date: 23-Jan-2023
• Amended By: EN 60335-2-5:2015/A11:2019 - Household and similar electrical appliances - Safety - Part 2-5: Particular requirements for dishwashers
• Effective Date: 20-Dec-2016

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2015
1DGRPHãþD
SIST EN 60335-2-5:2003
SIST EN 60335-2-5:2003/A1:2005
SIST EN 60335-2-5:2003/A11:2009
SIST EN 60335-2-5:2003/A2:2009
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVWGHO3RVHEQH]DKWHYH]D
SRPLYDOQHVWURMH
Household and similar electrical appliances - Safety - Part 2-5: Particular requirements
for dishwashers
Appareils électrodomestiques et analogues - Sécurité - Partie 2-5: Règles particulières
pour les lave-vaisselle
Ta slovenski standard je istoveten z: EN 60335-2-5:2015
ICS:
13.120 Varnost na domu Domestic safety
97.040.40 Pomivalni stroji Dishwashers
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60335-2-5
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2015
ICS 13.120; 97.040.40 Supersedes EN 60335-2-5:2003
English Version
Household and similar electrical appliances - Safety -
Part 2-5: Particular requirements for dishwashers
(IEC 60335-2-5:2012 , modified)
Appareils électrodomestiques et analogues - Sécurité - Sicherheit elektrischer Geräte für den Hausgebrauch und
Partie 2-5: Exigences particulières pour les lave-vaisselle ähnliche Zwecke - Teil 2-5: Besondere Anforderungen für
(IEC 60335-2-5:2012 , modifiée) Geschirrspülmaschinen
(IEC 60335-2-5:2012 , modifiziert)
This European Standard was approved by CENELEC on 2013-08-09. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any
alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60335-2-5:2015 E

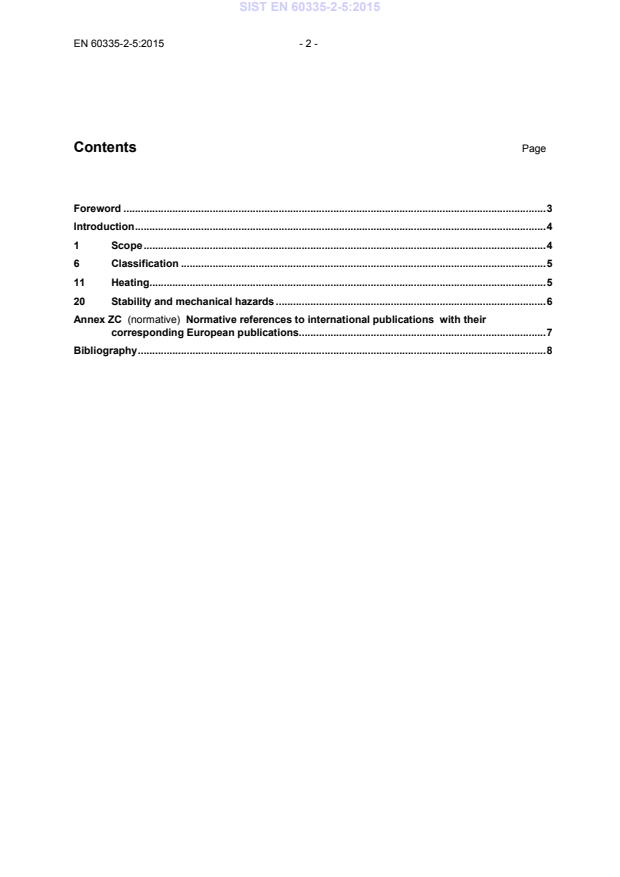

Contents Page
Foreword . 3
Introduction . 4
1 Scope . 4
6 Classification . 5
11 Heating. 5
20 Stability and mechanical hazards . 6
Annex ZC (normative) Normative references to international publications with their
corresponding European publications. 7
Bibliography . 8

- 3 - EN 60335-2-5:2015
Foreword
The text of document 61/4450/FDIS, future edition 6 of IEC 60335-2-5, prepared by IEC/TC 61 "Safety
of household and similar electrical appliances " was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN 60335-2-5:2015.
A draft amendment, which covers common modifications to IEC 60335-2-5:2012, was prepared by
CLC/TC 61, "Safety of household and similar electrical appliances" and approved by CENELEC.
The following dates are fixed:
– latest date by which the document has to be implemented at (dop) 2015-10-24
national level by publication of an identical
national standard or by endorsement
– latest date by which the national standards conflicting with (dow) 2016-08-09
the document have to be withdrawn

This document supersedes EN 60335-2-5:2003.
EN 60335-2-5:2003 and its amendments:
– added requirements to 22.104 to address switch issues;
– converted notes to normative text (3.1.9, 7.12, 10.1, 10.2, 15.101, 22.6, 22.103, AA.1, AA.2,
Annex BB – Clause 4);
– deleted notes (19.101, 22.6, 23.101, AA.2).
This Part 2 is to be used in conjunction with the latest edition of EN 60335-1 and its amendments. It
was established on the basis of EN 60335-1:2012.
NOTE 1 When "Part 1" is mentioned in this standard, it refers to EN 60335-1.
This Part 2 supplements or modifies the corresponding clauses of EN 60335-1, so as to convert it into
the European Standard: Safety requirements for electric dishwashers.
When a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies as far as
is reasonable. When this standard states "addition", "modification" or "replacement", the relevant text
of Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101,
including those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.;
– clauses, subclauses, notes, tables, figures and annexes that are additional to those in the IEC standard are
prefixed with the letter Z.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).

Endorsement notice
The text of the International Standard IEC 60335-2-5:2012 was approved by CENELEC as a European
Standard with agreed common modifications.

COMMON MODIFICATIONS
Introduction
Add the following:
An investigation by CLC/TC 61 has shown that all risks from products within the scope of this standard
are fully covered by the Low Voltage Directive, 2006/95/EC.
1 Scope
Replace the text by the following:
This clause of Part 1 is replaced by the following.
This European Standard deals with the safety of electric dishwashers for household and similar
purposes, that are intended for washing and rinsing dishes, cutlery and other utensils, their rated
voltage being not more than 250 V for single-phase appliances and 480 V for other appliances.
Appliances intended to be used by laymen in shops and other premises for normal housekeeping
purposes, are within the scope of this European Standard.

- 5 - EN 60335-2-5:2015
NOTE Z101 Examples of appliance for household environment are appliances for typical housekeeping
functions used in the household environment that may also be used by non-expert users for typical
housekeeping functions:
– in shops and other similar working environments;
– in farm houses;
– by clients in hotels, motels and other residential type environments;
– in bed and breakfast type environments.
NOTE Z102 Household environments include the dwelling and its associated buildings, the garden, etc.
As far as is practicable, this European Standard deals with the common hazards presented by
appliances that are encountered by all persons in household and similar environments.
However, in general, it does not take into account
– children playing with the appliance,
– the use of the appliance by very young children,
– the use of the appliance by young children without supervision,
– user maintenance by children, including the cleaning of the appliance.
It is recognised that very vulnerable people may have needs beyond the level addressed in this
European Standard.
This European Standard does not apply to
– commercial electric dishwashing machines (EN 60335-2-58),
– appliances intended for industrial purposes,
– appliances intended to be used in locations where special conditions prevail, such as the presence
of a corrosive or explosive atmosphere (dust, vapour or gas).
NOTE Z103 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary,
– in many countries, additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar
authorities.
6 Classification
6.1 Delete the modification in IEC 60335-2-5:2012 as it is covered by EN 60335-1:2012.
11 Heating
Add the following modification:
11.8 Modification:
Replace the first paragraph of Part 1 by the following: “During the test, the temperature rises are
monitored continuously and shall not exceed the values shown in Table 3 and Table Z101 in
accordance with 11.Z101”.
In Table 3, delete the row “External enclosure of motor-operated appliances, except handles held in
normal use” and the corresponding footnotes.
Add the following Table Z101.
Table Z101 – Maximum temperature rises
for external surfaces under normal operating conditions
a
Surface Temperature rise
K
Surfaces of appliances situated not more than Surfaces situated more
850 mm above the floor after installation than 850 mm above the

floor after installation
Front surfaces Other surfaces
Bare metal 40 45 45
b
Coated metal 45 55 55
Glass and ceramic 55 60 60
Plastic and plastic
c 60 65 65
coating > 0,3 mm
a
When the thickness of plastic coating does not exceed 0,3 mm, the temperature rise limits of coated metal or glass and
ceramic apply
b
Metal is considered coated when a coating having a minimum thickness of 80 µm made by enamel or non substantially
plastic coating is used.
c
The temperature rise limit applies also for plastic material having a metal finish of thickness less than 0,1 mm.

Add the following new subclause:
11.Z101 Temperature rises are not measured
– on the underside of appliances intended to be used on a working surface or floor,
– on the rear surface of appliances which, according to the instructions, shall be placed against a
wall.
20 Stability and mechanical hazards
20.102 Add the following at the end of the requirement:
When the door is opened, the programme cycle shall stop.
NOTE Z101 Draining is neglected.

- 7 - EN 60335-2-5:2015
Add the following:
Annex ZC
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
Addition:
Publication Year Title EN/HD Year
IEC 60436 – Electric dishwashers for household use – EN 50242/EN 60436 -
Methods for measuring the performance
ISO 1817 2011 Rubber, vulcanised or thermoplastic – – –
Determination of the effect of liquids
ISO 4046-4 2002 Paper, board, pulps and related terms – – –
Vocabulary
Part 4: Paper and board grades and
converted products
Bibliography
Addition:
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60335-2-58 NOTE Harmonized as EN 60335-2-58.

IEC 60335-2-5 ®
Edition 6.0 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –

Part 2-5: Particular requirements for dishwashers

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-5: Exigences particulières pour les lave-vaisselle

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX S
ICS 13.120; 97.040.40 ISBN 978-2-83220-448-1

---------------------- Pa
...
